USER MANUAL Tornado Mini AK8400BSES Zephyr

• FEB23.0101 Tornado Mini AK8400BS-ES EN Use, Care, and Installation Guide FR Guide d’utilisation, d’entretien et d’installation2 Tornado Mini Use, Care, and Installation Guide TORNADO MINI INSERT CORE3 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Contents Page Safety Information p. 4
• -6 Types of Safety Warnings p. 4
• General Safety p. 4
• -5 Operation p. 6
• Electrical Requirements p. 6
• List of Materials p. 7
• Installation Instructions p. 8
• -13 Ducting Calculation Sheet p. 8
• Mounting Height, Clearance, & Ducting p. 9
• Ducting Options p. 10
• Hood Specifications p. 11
• Electrical Supply p. 12
• Grounding p. 12
• Mounting the Hood p. 13
• Features & Controls p. 14
• Slide Controls p. 14
• Maintenance p. 15
• -16 Hood & Filter Cleaning p. 15
• -16 LumiLight LED p. 16
• Wiring Diagram p. 17
• Troubleshooting p. 18
• -19 List of Parts & Accessories p. 20
• Limited Warranty p. 21

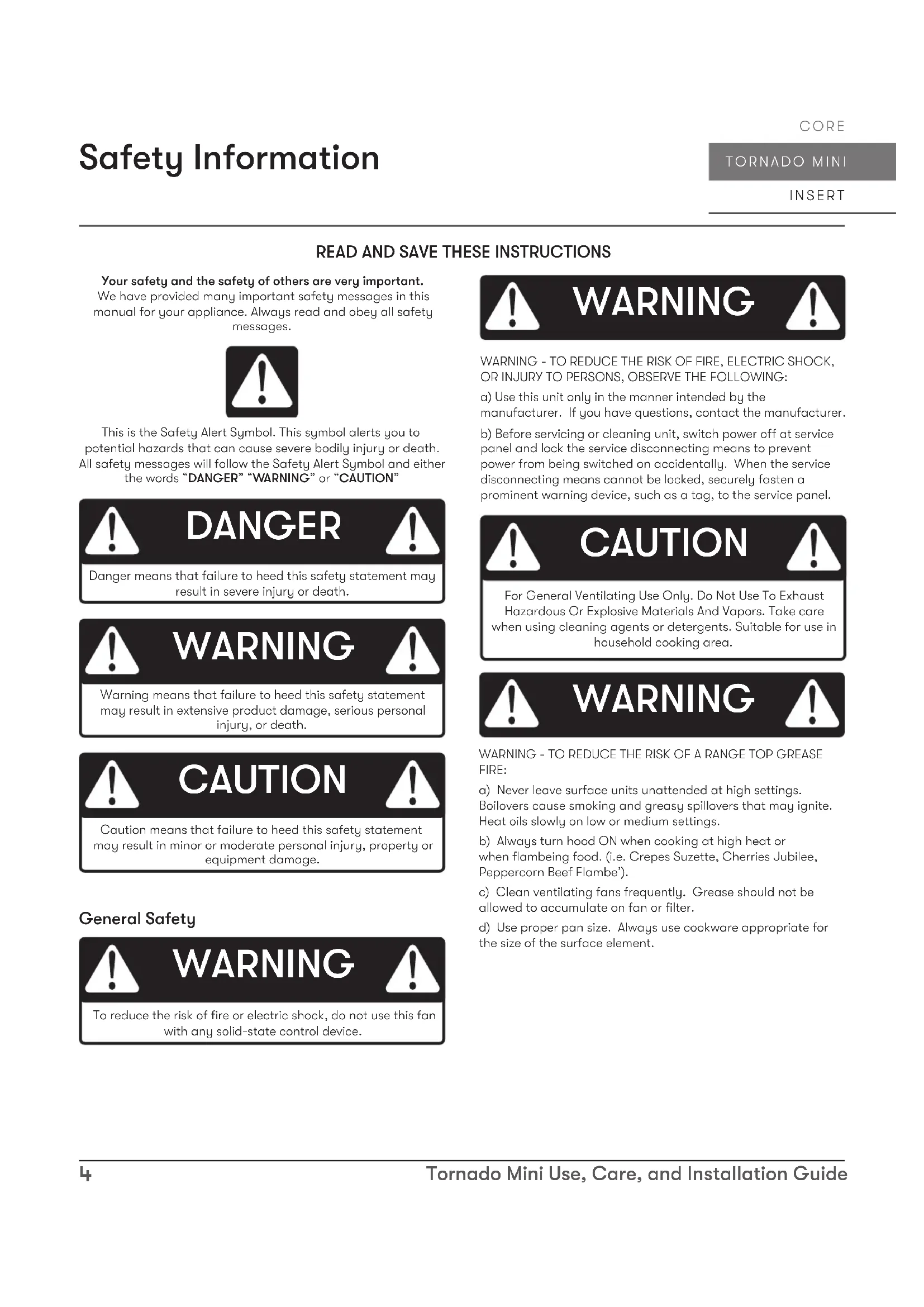

• Product Registration Tornado Mini Use, Care, and Installation Guide TORNADO MINIINSERT CORE Safety Information Your safety and the safety of others are very important.We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can cause severe bodily injury or death. All safety messages will follow the Safety Alert Symbol and either the words “DANGER” “WARNING” or “CAUTION” DANGER Danger means that failure to heed this safety statement may result in severe injury or death. p. 224

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. General Safety WARNING Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death. CAUTION Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage. WARNING To reduce the risk of fire or electric shock, do not use this fan with any solid-state control device. WARNING CAUTION For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. WARNING WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.d) Use proper pan size. Always use cookware appropriate for the size of the surface element.5 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.b) NEVER PICK UP A FLAMING PAN – You may be burned.c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.d) Use an extinguisher ONLY if:1) You know you have a Class ABC extinguisher, and you already know how to operate it.2) The fire is small and contained in the area where it started.3) The fire department is being called.4) You can fight the fire with your back to an exitBased on “Kitchen Firesafety Tips” published by NFPA. WARNING WARNINGTO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.d) Ducted fans must always be vented to the outdoors.e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. WARNING Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.6 Tornado Mini Use, Care, and Installation Guide TORNADO MINI INSERT CORE Safety Information Operation ► Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. ► The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important: ► Observe all governing codes and ordinances. ► It is the customer’s responsibility to be aware of these below: ► To contact a qualified electrical installer. ► To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances. ► If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. ► Do not ground to a gas pipe. ► Check with a qualified electrician if you are not sure the range hood is properly grounded. ► Do not have a fuse in the neutral or ground circuit. ► This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. ► A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

READ AND SAVE THESE INSTRUCTIONS7

Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM List of Materials Parts Not Supplied Ducting, conduit and all installation tools Cable locking connector (if required by local codes) Stainless steel liner Parts Supplied Quantity Part 1 Power pack hood 1 Aluminum mesh filter 2 LumiLight LED, 7W (pre-installed) 1 Single blower motor (pre-installed) 1 Hardware package #6 x 1” (4) #6 x 1-1/2” (4)8 Tornado Mini Use, Care, and Installation Guide TORNADO MINI INSERT CORE Installation Instructions Duct pieces To talEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

elbow 20 Ft. x ( ) = Ft. 6”, 7”, 8”, 10” Round,

9 Ft. x ( ) = Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 =Duct pieces To talEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Ft. Ft. Ft. 6”, 7”, 8”, 10”Roundroof cap 30 Ft. x ( ) = Ft.

Subtotal column 2 =Subtotal column 1 =Total ductwork =Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition 1 Ft. x ( ) = Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow 23 Ft. x ( ) = Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow 24 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect.wall capwith damper

30 Ft. x ( ) = Ft. Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet9 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting 36"Min 20” - Max 36” (electric cooktops)Min 24” - Max 36” (gas cooktops) A minimum of 6” round or 3-1/4” x 10” rectangular duct must be used to maintain maximum air flow eciency. Ducting has a strong eect on the air flow, noise, and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated air flow. Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%. Also use the ducting calculation sheet (on page 8) to compute total available duct run when using elbows, transitions and caps. ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size. If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible. Minimum mount height between range top to hood bottom should be no less than 20” for electric cook tops and 24” for gas cook tops. Maximum mount height should be no higher than 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and eciency. If available, also refer range manufacturer’s height clearance requirements and recommended hood mounting height above range. Always check your local codes for any dierences. For shipment and installation damages: ► Please fully inspect unit for damage before installation. ► If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. ► If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. ► If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.10 Tornado Mini Use, Care, and Installation Guide TORNADO MINIINSERT CORE Installation Instructions Ducting Options ► Use single wall rigid metal ductwork only. ► Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING side wall capw/ gravitydamperSot or crawl spaceRoof Pitch w/ Flashing & Capside wall capw/ gravity damper11 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Hood Specications Top Side 20-9/16”10-5/8”3-1/4”1-5/16”19-1/2”12-1/8” 11” 3-7/16” 5-1/16”1-5/8”9-15/16”1-3/16”9-11/16”10-3/16” Front 14-3/16”1-15/16”6-7/16”16-9/16” Bottom12 Tornado Mini Use, Care, and Installation Guide TORNADO MINIINSERT CORE Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product. Grounding FIG. A 28” Max. GROUNDING INSTRUCTIONSThis appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.WARNING - Improper grounding can result in a risk of electric shock.Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.Position the electrical outlet within the space covered by or above the decorative canopy housing as space permits and as to not interfere with the round duct. Make sure the outlet is no further than 28” from the top of the hood body.13 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting the Hood At least two installers are required due to the weight and size of the hood. CAUTION 1. Install optional AK084xAS Stainless Steel Liner. Review manual included with liner for more details.2. If no liner is used, cut out an opening in bottom of the cabinet by following the dimensions in FIG. B.3. Remove aluminum mesh filter.4. Lift insert hood into opening and ensure locking clip has locked into position. (Locking clip is located on left side of insert hood. FIG. C. 5. Fasten (2) #6 screws into the rear long side of insert hood. If a liner is used, the screws will go through the insert hood mounting holes, then the liner and the wood base. NOTE: Wood blocking may need to be added to cabinet base if additional support is needed. See FIG. D and FIG. E.6. Remove 2 screws from insert hood face plate. The face plate will drop down and hang by internal chains. Access to front long side of insert hood is now available. Fasten (2) #6 screws into the front long side of insert hood. 7. Re-install insert hood face plate by (4) previously removed screws.8. Install duct work and seal all ducting joints and connections with certified aluminum duct tape. Install electrical.9. Remove all packing materials before using insert hood. Switch power on and check for leaks around duct tape. Install aluminum mesh filter.FIG. B Ductwork wood base wood base 2” minimum secure (2) #6 screws to mounting holes on each long side of Power Pack metal or other non combustible material FIG. B FIG. C FIG. D FIG. E locking clipmounting holes Front View Right Side View Ductwork cabinet bottom cut-out size 19-3/4” 10-1/4” Power Pack Stainless Steel Liner FIG. C Ductwork wood base wood base 2” minimum secure (2) #6 screws to mounting holes on each long side of Power Pack metal or other non combustible material FIG. B FIG. C FIG. D FIG. E locking clip mounting holes Front View Right Side View Ductwork cabinet bottom cut-out size 19-3/4” 10-1/4” Power Pack Stainless Steel Liner FIG. D Ductwork wood base wood base2” minimumsecure (2) #6 screws to mounting holes on each long side of Power Pack metal or other non combustible material FIG. B FIG. C FIG. D FIG. E locking clipmounting holes Front View Right Side View Ductwork cabinet bottom cut-out size 19-3/4” 10-1/4” Power Pack Stainless Steel Liner FIG. E Ductwork wood base wood base 2” minimum secure (2) #6 screws to mounting holes on each long side of Power Pack metal or other non combustible material FIG. B FIG. C FIG. D FIG. E locking clipmounting holes Front View Right Side View Ductwork cabinet bottom cut-out size 19-3/4” 10-1/4” Power Pack Stainless Steel Liner14 Tornado Mini Use, Care, and Installation GuideTORNADO MINIINSERT CORE Features & Controls Slide Controls

Blower On/O Speed Selection

0 is o, I is low speed, II is medium speed and III is high speed.

LIGHTS OFF/DIM/BRIGHT

0 is o, I is dim, and II is bright.

Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Hood & Filter Cleaning Surface Maintenance ► Do not use corrosive detergents, abrasive detergents or oven cleaners. ► Do not use any product containing chlorine bleach or any product containing chloride. ► Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain. Aluminum Mesh Filters The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean. Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not aect filter performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled. Dry filters and re-install before using hood. Maintenance16 Tornado Mini Use, Care, and Installation Guide TORNADO MINIINSERT CORE Maintenance Installing Aluminum Mesh Filters (FIG. G):1. Place back of filter into channel on left side of Power Pack.2. Pull filter handle towards left side of Power Pack.3. Pivot filter up and lock into place.Replacing Aluminum Mesh FiltersHood Model Part Number Qty. to OrderAK8400BS 50200054 1AK8400BS290 50200054 1To order parts, visit us online at http://store.zephyronline.com. LumiLight LED In the unlikely event that your LumiLight LED fails, please contact Zephyr to order replacement parts. See the list of parts and accessories page for part numbers and contact information. Push the clip FIG. HLED Removal (FIG. H):1. Remove aluminum mesh filter.2. Remove bottom panel by two screws.3. Disconnect LED light quick connector.4. Push in the two side clips on the ends of the LED light.5. Push LED light through the light panel opening.

REMARKS: CONDENSER 4uF 250V AC FIT AC120V 60Hz B/W B/W B/W MOTOR LED LED BODY WHITE YELLOW BLACK RED RED WHITE WHITE BLUE BROWN GREY BLACK WHITE GREEN18 Tornado Mini Use, Care, and Installation Guide TORNADO MINI INSERT CORE Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board or control board wirings are disconnected. Make sure the wirings at the switch board and control board are connected properly. The switch board or control board is defective. Change the switch board or control board. The wires on control board are loose. Make sure the wires on the control board are connected properly. Light works, but blower is not turning. The thermally protected system detects if the blower is too hot to operate and shuts the blower down. The blower will function properly after the thermally protected system cool down. Damaged capacitor. Change the capacitor. The blower is defective, possibly seized. Change the blower. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops. The duct pipe connections are not sealed or connected properly. Check the duct pipe connections to be sure all connections are sealed properly. The blower is working, but the LumiLight LEDs are not. The LumiLight LED connector is disconnected. Connect the LumiLight LED connector. Defective LumiLight LED. Change the LumiLight LED. The switch board or control board is defective. Change the switch board or control board. LumiLight LEDs flicker when changing speed levels. N/A This is a normal operation and the hood is working correctly.19 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting The hood is not venting out properly. Using the wrong size of ducting. Change the ducting to the correct size. The hood might be hanging to high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 20” (electric cook tops) or 24” (gas cook tops) and 36” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. Filter is vibrating. Filter is loose. Adjust or change the filter. Spring clip is broken on the filter. Change the spring clip. Possible Problem Possible Cause Solutions20 Tornado Mini Use, Care, and Installation Guide TORNADO MINI INSERT CORE List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED, 7W Z0B0065 Aluminum Mesh Filter 50200054 Optional Accessories Replacement Charcoal Filter Z0F-C084 Liner, 30” AK0840AS Liner, 36” AK0846AS To order parts, visit us online at http://store.zephyronline.com.21 Tornado Mini Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty MAY20.0401 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- coal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRE SS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warr anty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements. Please check our website for any additional Product information, www.zephyronline.com. Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-836822 Tornado Mini Use, Care, and Installation Guide TORNADO MINIINSERT CORE Product Registration Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.
