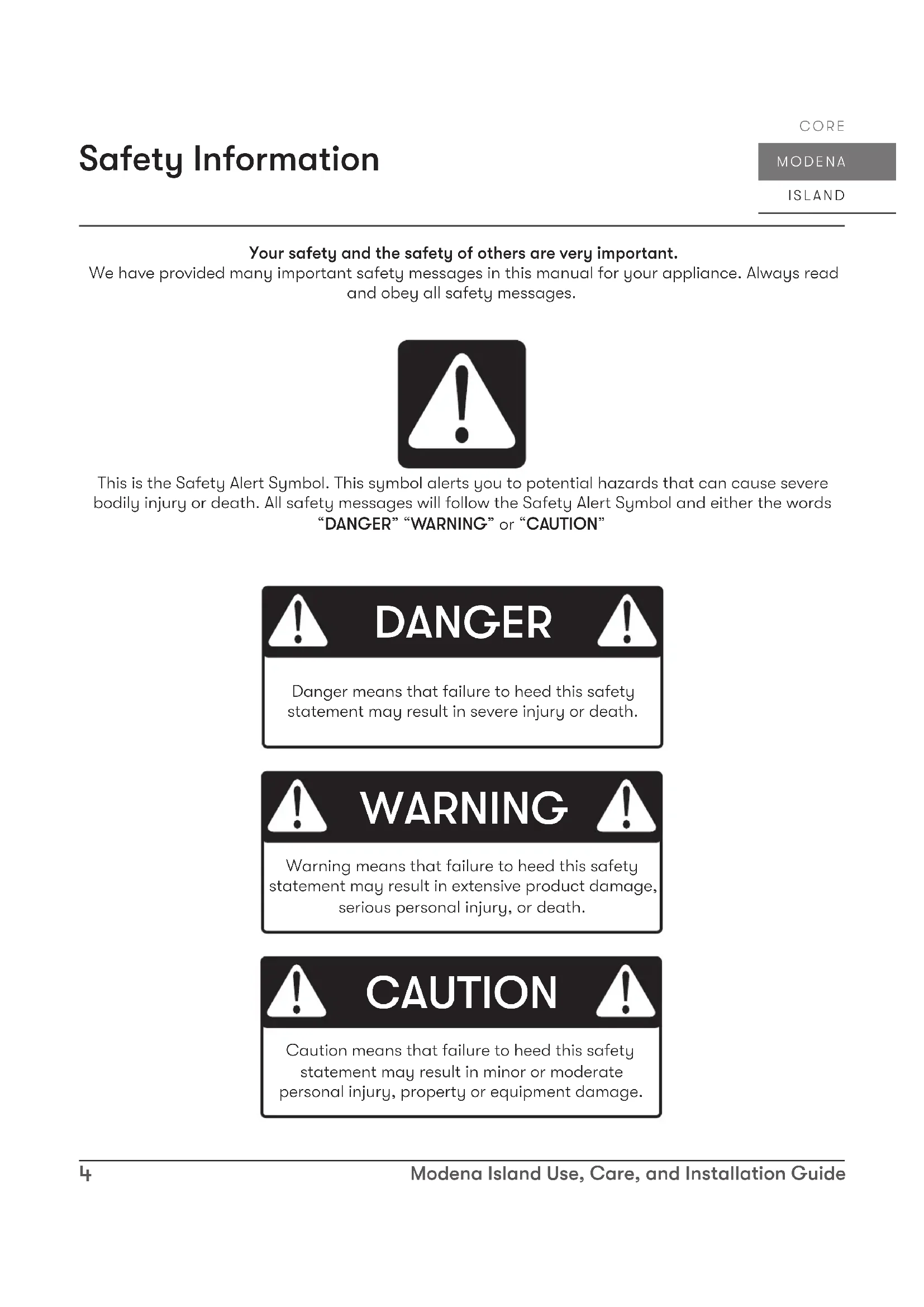

Notice Zephyr ZMDE42BS - page 4
View the manual : Français FR English EN

Download the instructions for your Basket in PDF format for free! Find your manual ZMDE42BS - Zephyr and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZMDE42BS by Zephyr.

USER MANUAL ZMDE42BS Zephyr

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.b) Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. WARNING General Safety For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials and Vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area. CAUTION6 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. WARNING WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn o the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b) NEVER PICK UP A FLAMING PAN – You may be burned. c) DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you already know how to operate it.

2) The fire is small and contained in the area where it started.

3) The fire department is being called.

4) You can fight the fire with your back to an exit

Based on “Kitchen Firesafety Tips” published by NFPA. WARNING7 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

WARNING WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. b) Sucient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. d) Ducted fans must always be vented to the outdoors. e) If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. WARNING8 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Safety Information

READ AND SAVE THESE INSTRUCTIONS

Ź To reduce risk of fire and to properly exhaust air outside, do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. Ź Not for use over an outdoor grill. Ź For indoor use only. CAUTION Operation Ź Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. Ź The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.NOTE: Please check www.zephyronline.com for revisions before doing any custom work. Electrical Requirements Important:Observe all governing codes and ordinances.It is the customer’s responsibility to be aware of these below: Ź To contact a qualified electrical installer. Ź To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.9 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Safety Information

READ AND SAVE THESE INSTRUCTIONS

Prop. 65 Warning for California Residents: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING Ź If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. Ź Do not ground to a gas pipe. Ź Check with a qualified electrician if you are not sure the range hood is properly grounded. Ź Do not have a fuse in the neutral or ground circuit. Ź This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. Ź A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

  • National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-557510 Modena Island Use, Care, and Installation Guide MODENA ISLAND CORE List of Materials Parts Supplied (3) Wire Nuts(4) #6 x 1-1/2”wood screws (1) M4 x 12safety screw1 - Hardware package1 - Top support frame1 - Bottom support frame2 - Top duct covers2 - Bottom duct covers1 - Hood body w/ blower (pre-installed)1 - Aluminum mesh filter4 - LumiLight LED, 6W1 - 8” round damper (pre-installed)

Cut-Out Shaded Area 1 - Paper ceiling template(4) ø12 OD / ø5 ID Washers1 - Support frame bracket2 - Lateral support brackets (20) M4 x 8 pan-headmachine screws(4) 3/16 x 1/4 pan-headmachine screws Parts Not Supplied Ducting, conduit and all installation tools Cable locking connector (if required by local codes) Duct cover extension kit Recirculating kit11 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Duct pieces To t a lEquivalent numberlength x used =3- 1/ 4” x 10”Rect.,straight 1 Ft. x ( ) = Ft.

9 Ft. x ( ) =Ft. Ft. 6”, 7”, 8”, 10” Round,straight 1 Ft. x ( ) = Ft. Subtotal column 1 = Duct pieces To t alEquivalent numberlength x used =6”, 7”, 8”, 10”Round, wall cap with damper 30 Ft. x ( ) = Ft.

Subtotal column 2 = Subtotal column 1 = Total ductwork = Maximum Duct Length: For satisfactory air movement,the total duct length should not exceed 150 equivalent feet.6” round to3- 1/ 4” x 10”rect. transition1 Ft. x ( ) =Ft. 6” round to3- 1/ 4” x 10”rect. transition

elbow23 Ft. x ( ) =Ft. elbowelbow7” to 6” or8” to 7” Round tapered reducer25 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

elbow 15 Ft. x ( ) = Ft. 3- 1/ 4” x 10”Rect. 45 elbow 9 Ft. x ( ) = Ft.

3- 1/ 4” x 10”Rect. 90

flat elbow24 Ft. x ( ) = Ft.

6”, 7“, 8”Round in-line damper Ducting Calculation Sheet12 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Installation Instructions Mounting Height, Clearance, & Ducting min. Amin. Bmax. C Standard ExtensionHood Heights Duct Cover Duct Cover minimum ducted (A) 28” 43“ minimum recirculating (B) 32” 46“ maximum (C) 50” 80”Ceiling Heights minimum ducted (D) 88” (7’ 4”) 103“ (8‘ 7”) minimum recirculating (E) 92” (7’ 8”) 106“ (8’ 10”) maximum (F) 120” (10’) 150” (12’ 6”) 36” 24” min. 34” max. min. Dmin. Emax. F13 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting Height, Clearance, & Ducting A minimum of 8” round duct is recommended to maintain maximum air flow eciency. Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%. Use calculation worksheet to compute total duct work (Page 11). ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 8” to 10”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible. Minimum mount height between range top to hood bottom should be no less than 24”. Maximum mount height should be no higher than 34”. It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose its performance and eciency. If available, also refer to range manufacturer’s height clearance requirements and recommended hood mounting height above range. Always check your local codes for any dierences. Duct cover extension kit available for ceiling heights up to 12 feet. Turn to the List of Parts and Accessories section for part number and ordering information. For shipment and installation damages: Ź Please fully inspect unit for damage before installation. Ź If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement. Ź If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. Ź If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.14 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Installation Instructions Ducting Options Ź Use single wall rigid metal ductwork only. Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.Fire Hazard: NEVER exhaust air or terminate ductwork into spaces between walls, crawl spaces, ceilings, attics, or garages. All exhaust must be ducted to the outside, unless using the recirculating option. WARNING sot or crawl spaceroof pitch w/ flashing & capductlessrecirculating(blower housing)(blower housing)(blower housing)side wall capw/ gravity damper15 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions

Front Side Top of Hood Top Support Frame (top view)STANDARD min. ducted - 28”min. recirc. - 32”max. - 50”Z1C-00MDmin. ducted - 43”min. recirc. - 46”max. - 80”14-3/16”27-1/2”1-3/16”13-11/16”35-7/16”, 41-15/16” 11” 16-9/16”8-1/4”7-3/4”1-5/16”4-1/16” AC In 2-3/8” C/L C/L C/L 11-3/16” 11-3/8” 5-1/4” 1/2” 11-5/8” 5-7/8”16 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Installation Instructions Electrical Supply Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Turn o electrical power at service entrance before wiring. WARNING For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance.Follow national electrical codes or prevailing local codes and ordinances.This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product. Cable Lock A cable locking connector (not supplied) might be required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)Cable LockFIG. A17 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Installation Instructions Mounting the Hood Ceiling Preparation

1. Determine hood mounting location and

temporarily tape paper template (included with the hood) to the ceiling.

2. Cut-out internal shaded area of template

to allow the ducting and electrical to pass through.

3. Add wood blocking (min. 2” x 4”) onto ceiling

joists to reinforce ceiling above the drywall. (FIG. C1).

4. Secure (2) 1-1/2” wood screws into points A

and B of the paper template (FIG. B). Do not completely tighten screws, leave approximately 1/4” exposed. Hood Preparation

5. Remove screws securing top and bottom

support frames together.

6. Adjust support frame to accommodate the

desired hood height and re-assemble the frame using the previously removed screws (2 screws for each support frame arm). (FIG. C2).

Ceiling JoistsWood BlockingTop Support FrameBottom Support FrameHood Body/Canopyfront FIG. C Hood is intended to be mounted to a finished ceiling. CAUTION

Cut-Out Shaded Area FIG. B18 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Installation Instructions Mounting the Hood FIG. D19 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM

7. Hood heights between 40” to 50” require lateral support brackets to be installed to the two top

support frame cut o arms and their corresponding bottom support frame arms. Install lateral support brackets by (12) M4 x 8 sheet metal screws shown in FIG. D.

8. Hood heights between 45” to 50” require a square support bracket to be installed inside the

support frame. Install square support bracket to top support frame arms by (8) M4 x 8 sheet metal screws. (FIG. E1) Top support frame arms extend past lower support frame bracket with shorter hood heights. (FIG. E2).

9. Lift support frame assembly up to the ceiling making sure the word “front” on the top support

frame faces the front of the hood where the controls will be located (FIG. F). The key-holes on the top support frame should cover the wood screws previously installed in the ceiling. Slide support frame towards narrow end of key-holes to lock the frame in place.

10. Install the last (2) 1-1/2” wood screws with washers into the two remaining corners of the top

support frame to secure it to the ceiling. Tighten all screws. Installation Instructions Mounting the Hood FRONTFRONT FIG. E FIG. F

11. Remove tape securing electronics mounting bracket to hood. Position electronics mounting

bracket and secure to hood body using (3) M4 x 8 truss head sheet metal screws as shown in (FIG. G).

12. Lift hood body and align the (4) pre-installed mounting screws on top of blower housing (FIG. C5

on Page 17) with the (4) key holes on the bottom of the support frame. (FIG. H) Slide hood towards the narrow end of key holes to lock in place. Hand tighten each of the (4) screws to secure hood to bottom of support frame. Install (1) M4 x 12mm safety screw into bottom support frame to further secure the hood. (FIG. H).

13. Install electrical and duct work. Seal duct work with aluminum duct tape.

14. Power up hood, verify all functions and check for leaks around duct tape.21

Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM15. Assemble top duct covers (with louver holes) together over top support frame, secure top duct covers together by magnetic strips. NOTE: If using hood in ductless recirculating mode you must install the air diverter plate to the top support frame prior to assembling the duct covers. Turn to page 22 for more details. 16. Secure top duct covers to top support frame by using (4) 3/16 x 1/4 screws (2 screws for each top duct cover). (FIG. I1). 17. Assemble bottom duct covers together over top duct covers and secure together by magnetic strips. Bottom duct covers should rest on top of the hood body. Installation Instructions Mounting the Hood

Top Duct CoversTop Support FrameBottom Duct CoversBottom Support Frame FIG. I22 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Installation Instructions Ductless Recirculation Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and re-circulated back within the home. We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the exhaust option is not possible should you recourse to converting the hood into a recirculating hood. When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard Metal Filter set. Order according to its part number below. The standard mesh filters are intended to capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from cooking for recirculation. Recirculating Kit Installation (required if no ducting is used) Kit includes the charcoal filters and the air diverter plate. Hood Model Part Number Filters in Package

2. Secure air diverter plate to wall below duct cover bracket. (FIG. J) Run 8” ducting from top of

hood and secure to air diverter plate. See manual included with recirculating kit for more detailed instructions.

3. Remove aluminum mesh filter from hood. Install charcoal filter bracket inside filter opening. Note:

screws to secure charcoal filter bracket are already pre-installed in the hood and must first be removed. Clip charcoal filters onto charcoal filter bracket. (FIG. J)

5. Enable charcoal filter change indicator on

control panel. (Refer details to pg. 25)

6. Charcoal filters must be replaced after every

120 hours of use (or approximately every 3 to 4 months based on the average of 1 - 2 hours of daily cooking time). The microprocessor in the controls when set, will elapse and count usage time and indicate when charcoal filter replacement is required every 120 hours. Charcoal Filter Replacements Hood Model Part Number Quantity to Order

DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending on cooking habits. FIG. J24 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Features & Controls ICON Touch Controls Lights Low/High/O Display (speed level, delay o, filter clean/change) Adjust 5 Speed Levels Power / Delay O

1 POWER / DELAY OFF BUTTON

Power Button Function - Button will turn power on and o for entire hood (fan and lights). - Hood will remember the last speed and light level it was turned o at. (Example: Press Button to turn o hood when on fan speed 4 and high lights. Press Button again and the hood will turn back on at speed 4 and high lights level.) Delay O Button Function - With the fan on press and hold the Button for two seconds. The fan will change to speed 1 and the 5 minute delay o timer will start. + LEDs will illuminate and slowly blink in accordance with the time remaining until the fan and lights automatically turn

Fan Speed Decrease Button - Press this button to decrease fan speed. 5, 4, 3, 2, 1. - If fan is On Speed 1 and this button is pressed, fan will power O. Fan Speed Increase Button - Press this button to increase fan speed. Fan On, 1, 2, 3, 4, 5. - If hood is O and this button is pressed, fan will turn On Speed 1. ACT™ Enabled Speed Selections - When ACT™ is enabled, the number of fan speeds will be reduced as follows: - 390 CFM = Maximum 4 speeds - 290 CFM = Maximum 3 speeds25 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Features & Controls ICON Touch Controls 3 LIGHTS BUTTON - Lights have two levels, Low and High. - From o, press one time for Low. Press again for High. Press again to power lights

4 DISPLAY INDICATORS Charcoal Filter Replace Indicator (disabled by default, must be enabled if recirculating hood) - To enable Charcoal Filter Replacement Reminder: - With hood o, hold button and button simultaneously for two seconds. All LED indicators will illuminate for three seconds confirming the Charcoal Filter Replace Reminder is enabled. - To disable Charcoal Filter Replacement Reminder: - With hood o, hold button and button simultaneously for two seconds. All LED indicators will blink two times confirming the Charcoal Filter Replace Reminder is disabled. - After 120 hours of fan usage the button will slowly blink indicating the charcoal filters need replacment. - To reset: With hood o, hold the button for two seconds. All LED indicators will blink two times confirming the 120 hour timer has been reset.26 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Maintenance Hood & Filter Cleaning Surface Maintenance Ź Do not use corrosive detergents, abrasive detergents or oven cleaners. Ź Do not use any product containing chlorine bleach or any product containing chloride. Ź Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the direction of the stainless steel grain. Aluminum Mesh Filters The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean. Remove and clean by hand or in dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergents, or as a result of local water conditions - but this will not aect filter performance. This discoloration is not covered by the warranty. Spray degreasing detergent and leave to soak if heavily soiled. Dry filters and re-install before using hood.27 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Maintenance Removing Aluminum Mesh Filters (FIG. K):

1. Push in on spring loaded handle.

2. Pull down on filter handle to remove filter.

Replacing Aluminum Mesh Filters Hood Model Part Number Qty. to Order ZMD-M90BS 50200049 1 ZMD-E42BS 50200049 1 To order parts, visit us online at http://store. zephyronline.com or call us at 1.888.880.8368. FIG. K28 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE ACT™ Conversion ůĬĻĭ Some local codes limit the maximum amount of CFM a range hood can move. ACT™ allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT™ enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels; 390 or 290 CFM. The usage of ACT™ may not be necessary for your installation. Please check your local codes for CFM restrictions. Hood must be disconnected from the main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product. CAUTION After re-positioning the jumper and powering on the hood, the CFM cannot be changed again. CAUTION29 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM FIG. L PC Board

Max. Blower CFM 290 FIG. M ACT™ Conversion Enabling ACT™ Before hood installation, gain access to PC board by following the steps below:

1. PC board is located on top of motor housing. Unscrew (4) screws and remove PC board from PC

board box shown in FIG. L. NOTE: Take care when removing PC board as there are many wires connected to the board. Disconnecting all the wires is not necessary as long as you can easily access the jumper pins shown in FIG. M.

2. Change plastic jumper position as shown in FIG. M. to the set desired maximum blower CFM. By

default, the maximum CFM is set to 600 (jumper position 5-6 or 7-8).

3. Re-attach PC board to the PC board box. When hood is first powered on, the new maximum

blower CFM will appear on the LCD for two seconds. Maximum blower CFM can also be displayed on the LCD by pressing the Power Button for three seconds (with hood o.)

4. Remove the appropriate blower CFM sticker included with this sheet and place inside the hood

body below the wiring diagram label or in a clearly visible location. NOTE: After re-positioning the jumper and powering on the hood, the CFM cannot be changed again. Please contact Zephyr if you need further assistance.30 Modena Island Use, Care, and Installation Guide MODENA ISLAND CORE Wiring Diagram

CIRCUIT DIAGRAM Power consumption shown for default 600 CFM blower configuration ACT 390 CFM - Fan Max. 393W @ 3.3A ACT 290 CFM - Fan Max. 365W @ 3.0A RED YELLOW BLUE BROWN GREY WHITE GREEN BODY MOTOR RED LED LED LED LED YELLOW YELLOW YELLOW GREEN BLACK WHITE BODY WHITE BLACK31 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Troubleshooting Possible Problem Possible Cause Solutions After installation, the unit doesn’t work. The power source is not turned ON. Make sure the circuit breaker and the unit’s power is ON. The power line and the cable locking connector is not connecting properly. Check the power connection with the unit is connected properly. The switch board or control board wirings are disconnected. Make sure the wirings at the switch board and control board are connected properly. The switch board or control board is defective. Change the switch board or control board. Light works, but blower is not turning. The blower cable is disconnected. Connect the blower cable. Debris or obstruction in motor. Remove the debris or obstruction. Motor defective or possibly seized. Change the blower. Damaged capacitor. Change the capacitor. The switch board or control board is defective. Change defective part. The unit is vibrating. The blower is not secured in place. Tighten the blower in place. Damaged blower wheel. Replace the blower. The hood is not secured in place. Check the installation of the hood. The unit is whistling. The filter is not in the correct position. Adjust the filters until the whistling stops. The duct pipe connections are not sealed or connected properly. Check the duct pipe connections to be sure all connections are sealed properly. The blower is working, but the lights are not. The LED light connector is disconnected. Connect the LED light connector. Defective LED light. Change the LED light. The switch board or control board is defective. Change the switch board or control board. The speed levels of the blower sound the same. Using the wrong size of ducting. Change the ducting to at least 8” or higher. ACT enabled blower CFM set to 290 or 390 CFM. Noise level distinction between some speeds may be minimal when ACT enabled blower is set to 290 or 390 CFM.32 Modena Island Use, Care, and Installation Guide MODENA ISLAND CORE Troubleshooting Possible Problem Possible Cause Solutions The hood is not venting out properly. The hood might be hanging too high from the cook top. Adjust the distance between the cook top and the bottom of the hood within 24” and 34” range. The wind from the opened windows or opened doors in the surrounding area are aecting the ventilation of the hood. Close all the windows and doors to eliminate the outside wind flow. Blockage in the duct opening or ductwork. Remove all the blocking from the duct work or duct opening. The direction of duct opening is against the wind. Adjust the duct opening direction. Using the wrong size of ducting. Change the ducting to at least 8” or higher for the internal blower. Mesh filter is vibrating. Mesh filter is loose. Make sure the metal clips in the handle are not stuck. Or replace the mesh filter. Filter spring clip is loose or broken. Uninstall and reinstall filter, push up on filter latch. Replace mesh filter if needed.33 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM List of Parts & Accessories Description Part Number Replacement Parts LumiLight LED, 6W Z0B0048 Aluminum Mesh Filter (each) 50200042 Optional Accessories Recirculating Kit ZRC-00MD Replacement Charcoal Filters Z0F-C002 Duct Cover Extension Z1C-00MD Make-up Air Damper Kit MUA008A To order parts, visit us online at http://store.zephyronline.com or call us at

Modena Island Use, Care, and Installation Guide MODENA ISLAND CORE Notes35 Modena Island Use, Care, and Installation Guide ZEPHYRONLINE.COM Limited Warranty MAY20.0401 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows: Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products. One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty. Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char- coal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products must be installed by a qualified professional installer to be eligible for warranty repairs or service. Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRE SS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same three-year and one-year periods described above if permitted by applicable law. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warr anty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the Product was originally installed located in the United States and Canada. This warranty is not extended to resellers. To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty repair or replacements. Please check our website for any additional Product information, www.zephyronline.com. Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-836836 Modena Island Use, Care, and Installation Guide MODENAISLAND CORE Product Registration Congratulations on the purchase of your Zephyr product! Please take a moment to register your new Zephyr product at www.zephyronline.com/registration Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368 Prompt registration helps in more ways than one.

Ensures warranty coverage should you need service.Ownership verification for insurance purposes.Notification of product changes or recalls.WWW.ZEPHYRONLINE.COM OCT20.0301 Modena Island
