| Product type | Active direct box |
| Brand | Palmer |
| Model | PAN 02 Active |
| Number of channels | 1 |
| Input connectors | 6.35 mm TS (mono) jack and switchable unbalanced XLR female |
| Output connectors | Balanced XLR male and 6.35 mm jack (link) |
| Power supply | 9 V battery (6LR61) or +48 V phantom power |
| Input impedance | 1 MΩ |
| Output impedance | 600 Ω |
| Maximum input level | +45 dBu |
| Maximum output level | +10 dB (line level) |
| Frequency response | 10 Hz - 20 kHz |
| Attenuation (PAD) | -10 dB, -20 dB, or combined -30 dB |
| Gain | +12 dB switchable |
| Balancing | By transformer (ratio 1:1) |
| Ground Lift function | 3-position selector: GND, LIFT, SOFT GND |
| Dimensions (W × D × H) | 110 × 73 × 42 mm |
| Weight | 0.358 kg |
| Housing material | Steel sheet with sprayed paint |
| Maintenance and cleaning | Clean with a dry cloth. Do not use liquids. |
| Safety | Do not open, do not expose to water, follow voltage instructions. Use only approved accessories. |
| Warranty | 2 years (parts and labor) by Adam Hall. |
Frequently Asked Questions - PAN 02 Active Palmer
User questions about PAN 02 Active Palmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audio Equipment in PDF format for free! Find your manual PAN 02 Active - Palmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PAN 02 Active by Palmer.
USER MANUAL PAN 02 Active Palmer

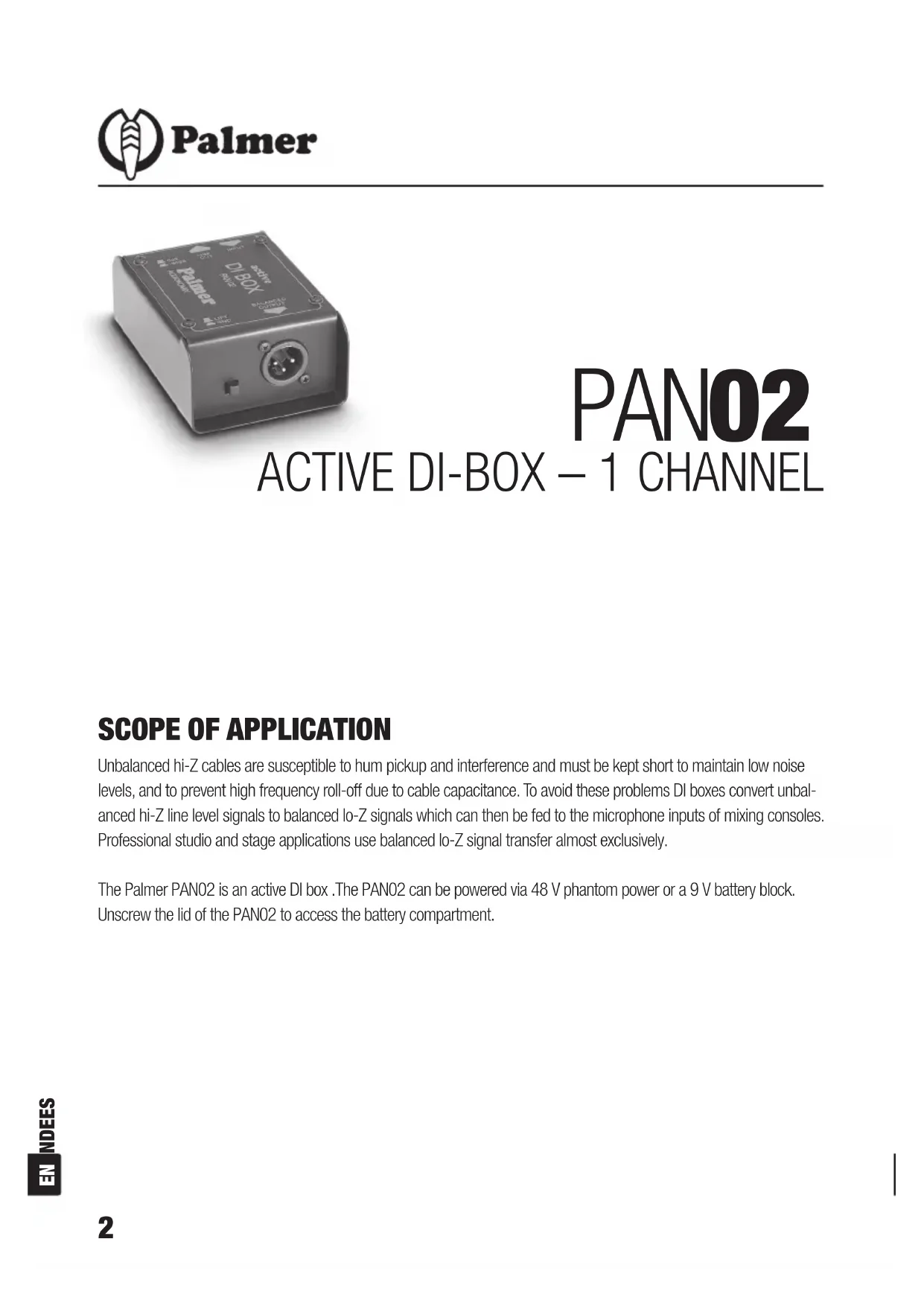

SCOPE OF APPLICATION
Unbalanced hi-Z cables are susceptible to hum pickup and interference and must be kept short to maintain low noise levels, and to prevent high frequency roll-off due to cable capacitance. To avoid these problems DI boxes convert unbalanced hi-Z line level signals to balanced lo-Z signals which can then be fed to the microphone inputs of mixing consoles. Professional studio and stage applications use balanced lo-Z signal transfer almost exclusively.
The Palmer PAN02 is an active DI box. The PAN02 can be powered via 48 V phantom power or a 9 V battery block. Unscrew the lid of the PAN02 to access the battery compartment.
SAFETY INFORMATION
- Please read these instructions carefully.
-
Keep all information and instructions in a safe place.
-
Follow the instructions.
-
Observe all safety warnings. Never remove safety warnings or other information from the equipment.
-
Use the equipment only in the intended manner and for the intended purpose.
-
Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
-
During installation, observe the applicable safety regulations for your country.
-
Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
-
Never place sources of ignition, e.g., burning candles, on the equipment.
-
Ventilation slits must not be blocked.
-
Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
-
Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
-
Make certain that objects cannot fall into the device.
-
Use this equipment only with the accessories recommended and intended by the manufacturer.
-
Do not open or modify this equipment.
-
After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
-
During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
-
If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
-
Clean the equipment using a dry cloth.
-
Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
-
Plastic bags must be kept out of reach of children.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:
-
CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
-
If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
- Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
- Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
- When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
- Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
- IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
- To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
- If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
- Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
CAUTION:
Never remove the cover, because otherwise there may be a risk of electric shock. There are no user service-able parts inside. Have repairs carried out only by qualified service personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.
CAUTION! HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS
- Do not look into the beam from a distance of less than 40 cm.
- Do not stare into the beam for extended periods at short-to-medium distances.
- Do not view the beam directly with optical instruments such as magnifiers.
- Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.
CONNECTORS
Line level signals such as keyboard signals are fed to the INPUT using a high quality shielded instrument cable (6.3mm TS). For simultaneous connection to an instrument amplifier use the LINK output which is wired in parallel. CAUTION - do NOT use the LINK connector for signal input! All unbalanced instrument cables should be as short as possible, and the PAN02 should be located close to the unbalanced source.
The balanced lo-Z output signal is available at male XLR connector. This is wired to the international standard (pin 2 = hot) and electrically connected in parallel. Use shielded balanced microphone cable for connection to a mixing console input. Cable length is basically uncritical with no audible signal degradation at 100 meters and beyond (300' +).
30DB PAD AND GND LIFT SWITCHES
The PAN02 can also be used to feed loudspeaker level signals to a mixing console by connecting the amplifier output to the PAN02 INPUT, and the corresponding LINK output to a loudspeaker. Use dedicated loudspeaker cable only for both connections (16AWG minimum). Due to the much higher level of loudspeaker signals (compared to instrument and line level signals) the PAD 30dB switch must be engaged. To prevent clipping the amplifier should not be rated higher than 100W.
WARNING! TUBE AMPLIFIERS ALWAYS REQUIRE AN APPROPRIATE LOAD AT THEIR OUTPUTS. DO NOT CONNECT THE PAN02 TO TUBE AMPLIFIERS WITHOUT CONNECTING AN APPROPRIATE LOUDSPEAKER ENCLOSURE TO THE AMPLIFIER TO PREVENT PERMANENT DAMAGE TO BOTH UNITS.
The PAD switch can also be used to attenuate the output level to mixing desks that do not provide attenuation of strong line level signals.
The shield of standard microphone cable is wired to pin 1 of the XLR connectors at both ends also connecting the equipment grounds which may result in ground loop hum. Since grounding at one end only provides sufficient shielding the PAN02's GND LIFT switch disconnects pin 1 from ground to prevent ground loops and hum. Let your ears be the judge and always set the switch to the position with minimum interference.
TECHNICAL SPECIFICATIONS
| Product Type: DI box | |
| Type: active | |
| Number of Channels: 1 | |
| Number of Inputs: 1 | |
| Input Connections: 6.3 mm jack | |
| Max. Input Level: +45 dBu | |
| Input Pad: 0/-30 dB | |
| Outputs: 1 | |
| THRU outputs/channel: 1 | |
| Output Connections: 6.3 mm Jack, XLR | |
| Maximum Output Level: +10 dBd | |
| Output Impedance: | 600 Ohm(s) |
| Frequency Response: | 10 Hz - 20,000 Hz |
| Transformer-balanced: | yes |
| Translation Ratio (Ratio): | 1:1 |
| Controls: | Ground-Lift, Attenuator |
| Operating Voltage: | 9 V block battery, + 48 V phantom power |
| Housing Material: | sheet steel |
| Housing Surface: | powder coated |
| Width: | 110 mm |
| Depth: | 73 mm |
| Height: | 42 mm |
| Weight: | 0.358 kg |
FREQUENCY RESPONSE AND PHASE
line
| Frequency (Hz) | Phase (dB) | Gain (dB) | | -------------- | ---------- | --------- | | 40 | -7 | -5 | | 100 | -6 | -4 | | 300 | -5 | -3 | | 1k | -4 | -2 | | 2k | -3 | -1 | | 5k | -2 | 0 | | 10k | -1 | 1 | | 10k | 2 | 15 |FREQUENCY RESPONSE AND PHASE
line
| Frequency /Hz | dBu | | ------------- | ------- | | 50 | -130 | | 100 | -150 | | 200 | -130 | | 500 | -150 | | 1k | -130 | | 2k | -150 | | 5k | -130 | | 10k | -170 |THD
| STATUS | |
| + Impedance 600 O | |
| FREQUENCY | |
| + Start 30.000 Hz | |
| + Stop 20000 Hz | |
| + VOLTAGE 0.0000 dBu | |
| ANALYZER PANEL | |
| + Ch1 Imped 600 O | |
| + FUNCTION THD | |
| DISPLAY PANEL | |
| + Scale MANUAL | |
| + Spacing LIN | |
| + Top 0.5000 % | |
| + Bottom -0.500 % | |
| OPTIONS PANEL | |
| SCREEN HARD COPY | |
| + Comment ON | |
| + Filename |
line
| Frequency (Hz) | THD vs. Frequency @ 0dBu Input level | | -------------- | ----------------------------------- | | 50 | 0.0 | | 100 | 0.0 | | 500 | 0.0 | | 1k | 0.0 | | 2k | 0.0 | | 5k | 0.0 | | 10k | 0.0 |MANUFACTURER'S WARRANTY
This warranty extends to the Palmer branded product you purchased from Adam Hall. The statutory warranty rights against the vendor shall not be affected by this warranty. Rather, this warranty gives you additional independent claims against Adam Hall.
With this warranty, Adam Hall ensures that products you have purchased from Adam Hall or Adam Hall partners, under normal use, are free of defects in material or workmanship for a period of 5 years from the date of purchase, or 2 years from the date of purchase for tube amplifiers and guitar cabinets. The warranty period begins on the date of purchase. In order to assert a claim for warranty service, the proof of date of purchase is provided by the receipt bearing the date of purchase or the date of purchase on the delivery note. You are entitled to warranty service under the conditions and provisions set out in this document, if a repair within the warranty period is required.
This warranty applies only to the original purchaser of the products supplied by Adam Hall and is not transferable to any person to whom the property is transferred by the original purchaser.
Within the warranty period, the defective parts or the product from Adam Hall will be repaired or replaced. Under the terms of this warranty, all the replaced or removed components become the property of Adam Hall.
In the unlikely event that a product acquired from Adam Hall, repeatedly exhibits a defect, Adam Hall may decide, at its discretion, to replace this product with a comparable product of at least the same performance.
Adam Hall does not guarantee that the operation of this product will be uninterrupted or error-free. Adam Hall accepts no responsibility for any damage due to incorrect compliance with the instructions received in the delivery.
This warranty does not extend to:
- wearing parts (eg battery, tubes).
• devices that have had their serial number removed or damaged, or failed as a result of an accident - inappropriate or abusive use or other external causes
- devices that were not used in accordance with the operating parameters defined in the user documentation shipped with the product
• devices that have been repaired using parts not made or distributed by Adam Hall - devices that have been serviced, modified or repaired by someone other than Adam Hall or an authorise service partner.
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased. This warranty is valid only within Europe. Outside of Europe please contact our official distributors.
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries.
This manufacturer's warranty grants you specific rights; depending on jurisdiction (nation or state), you may be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights.
REQUESTING WARRANTY SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.
EC DECLARATION OF CONFORMITY
The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com.
PROPER DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal
ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION
Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrity of this user's manual is prohibited.
