Product type	Clock radio
Brand	SCHNEIDER
Model	Viva GMSC310ACLQIGRY
Mains power	230V ~ 50Hz
Backup battery	1 lithium battery CR2032 (included)
FM band	87.5 - 108 MHz
Station presets	Up to 20 stations
USB charging power	500 mA max
QI wireless charging	Yes, 10W
Number of alarms	2 (AL1 and AL2)
Alarm type	BUZZ (buzzer) or RADIO
Snooze function	Yes, default duration 6 minutes
Auto standby	15, 30, 45, 60, 90, 120 min or OFF
Screen brightness adjustment	Yes (DIMMER button)
FM antenna	Cable at the back of the device
Power consumption	6.6 W
Warranty	2 years
Maintenance	Clean with a dry, soft cloth. Do not use abrasive products or solvents.
Safety	Do not open the device. Risk of electric shock. No user-serviceable parts.

Frequently Asked Questions - Viva GMSC310ACLQIGRY SCHNEIDER

How to set the time on the clock radio?

In standby mode, press and hold the SET button. The hour digits flash. Use H to set the hours and M for the minutes. Press SET again to confirm.

How to set an alarm?

Press and hold AL1 or AL2 until the digits flash. Set the hours with H and the minutes with M. Confirm by pressing AL1 or AL2 again. Select the alarm type (BUZZ or RADIO) with the corresponding selector.

How to store FM stations?

Turn on the radio and tune to a station. Press and hold SET until P01 flashes. Press SET to store. For subsequent stations, repeat the operation and use TUNE ▲/▼ to choose the preset number (P02, P03...). Up to 20 stations.

What to do if the screen is not working properly?

Unplug the device from the mains and remove the backup battery. Wait one to two minutes, then plug back in and reinsert the battery. This will reset the device and you will need to reconfigure the settings.

How to use the QI wireless charger?

Place your QI-compatible phone in the center of the induction area (marked by rectangular dashed lines) on top of the device. Remove any metal or magnetic case before charging.

Can I charge my phone with the USB port?

Yes, the USB port can charge mobile phones with a maximum current of 500 mA. Use a suitable USB cable (not included). Note that the USB port does not support audio playback.

How to stop the alarm and reprogram it for the next day?

When the alarm sounds, press the corresponding AL1 or AL2 button once. The alarm stops and automatically reprograms for the next day.

How to use the snooze function?

When the alarm sounds, press the SNOOZE/DIMMER button. The alarm goes into standby and will ring again after 6 minutes (default duration).

How to set the auto standby for the radio?

Press the SNOOZE/DIMMER button several times to choose the duration: 15, 30, 45, 60, 90, or 120 minutes. Select OFF to disable. The radio will turn off automatically after the selected time.

What to do in case of a power outage?

The CR2032 backup battery saves the time and alarm settings. In case of a power outage, the screen and radio turn off, but the settings are preserved. Replace the battery if it is depleted.

USER MANUAL Viva GMSC310ACLQIGRY SCHNEIDER

GMSC310ACLQIGRY / GMSC310ACLQIBLK

TABLE DES MATIERES

1 ALIMENTATION ÉLECTRIQUE
2 . . . . . . . PRÉCAUTIONS RELATIVES À L'UTILISATION DES PILES
3. DESCRIPTION DE L'APPAREIL
4 . . . . . . . FONCTIONNEMENT
5 . . . . . . . UTILISER LE PORT USB POUR RECHARGER DES APPAREILS
6 . . . . . . . UTILISER LA BASE QI POUR LE CHARGEMENT SANS FIL
7 ..... DÉPANNAGE
8 . . . . . . . CARACTÉRISTIQUES
9 . . . . . . . GARANTIE
10. ..... MENTIONS LÉGALES

Pg. 18 ..... CE DECLARATION OF CONFORMITY

SCHNEIDER (<<0)) SET ALT ALB H M TUNE TUNE SNODGE / DIMMER Δ1 12:38 Δ2 12:38

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES CONSERVER AVEC LE PRODUIT MERCI DE LIRE ATTENTIVEMENT

ATTENTION

RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR

ATTENTION!

RACCORDEMENT AU SECTEUR

Bluetooth logo/brand is a trademark or registered trademark of Bluetooth Sig Inc. All items contained herein are imported by GMS and are not manufactured, sponsored, endorsed or distributed by Bluetooth Sig Inc.

GMSC310ACLQIGRY / GMSC310ACLQIBLK

TABLE OF CONTENTS

1 ..... ELECTRIC SUPPLY
2. WARNING
3. LOCATION OF CONTROLS
4. OPERATIONS
5. TO USE THE USB PORT FOR CHARGING
6. TO USE THE QI BASE FOR WIRELESS CHARGING
7 . . . . . . . TROUBLE SHOOTING
8 . . . . . . SPECIFICATIONS
9 . . . . . . . GARANTEE
10. . . . . . . LEGAL NOTICE

Pg. 18 ..... CE DECLARATION OF CONFORMITY

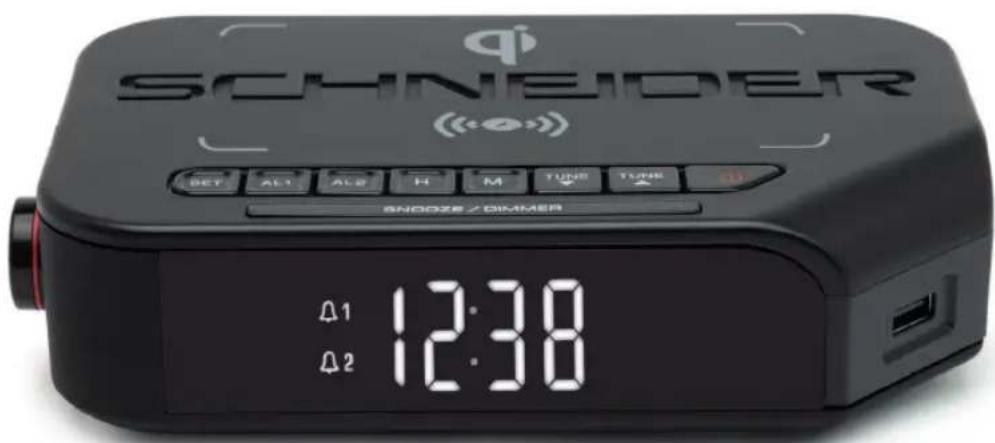

SCHNEIDER ((0.05)) SET ALL ALT H M TUNE TUNE SHOOZE / DIMMER Δ1 12:38 Δ2 12:38

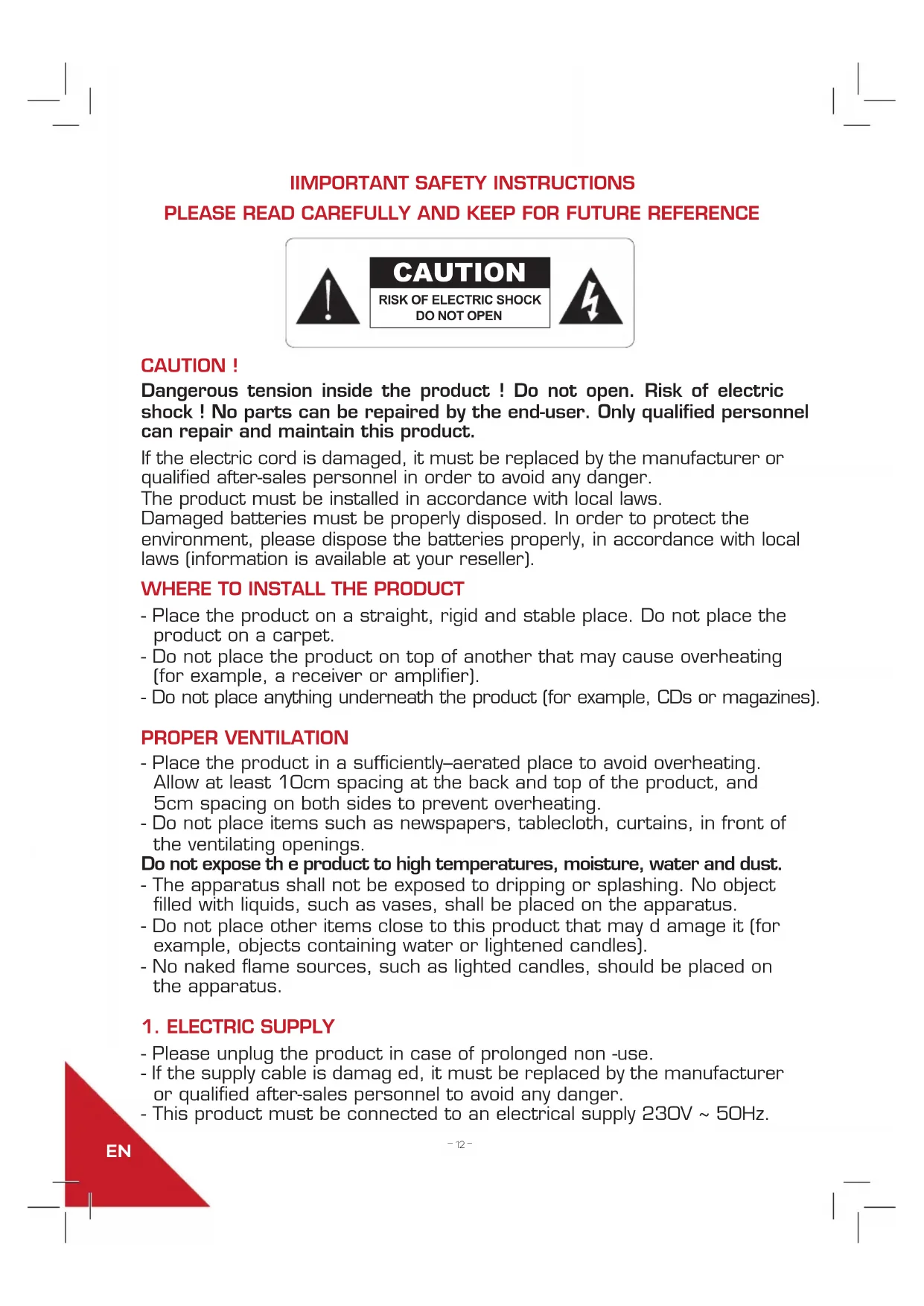

IIMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION!

Dangerous tension inside the product! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

WHERE TO INSTALL THE PRODUCT

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

PROPER VENTILATION

• Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.
• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

1. ELECTRIC SUPPLY

• Please unplug the product in case of prolonged non -use.
• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.

• This product must be connected to an electrical supply 230V \~ 50Hz.

• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.

• Do not use the product with a battery different from the one provided.

2. WARNING

• Do not ingest the battery, Chemical Burn Hazard; this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

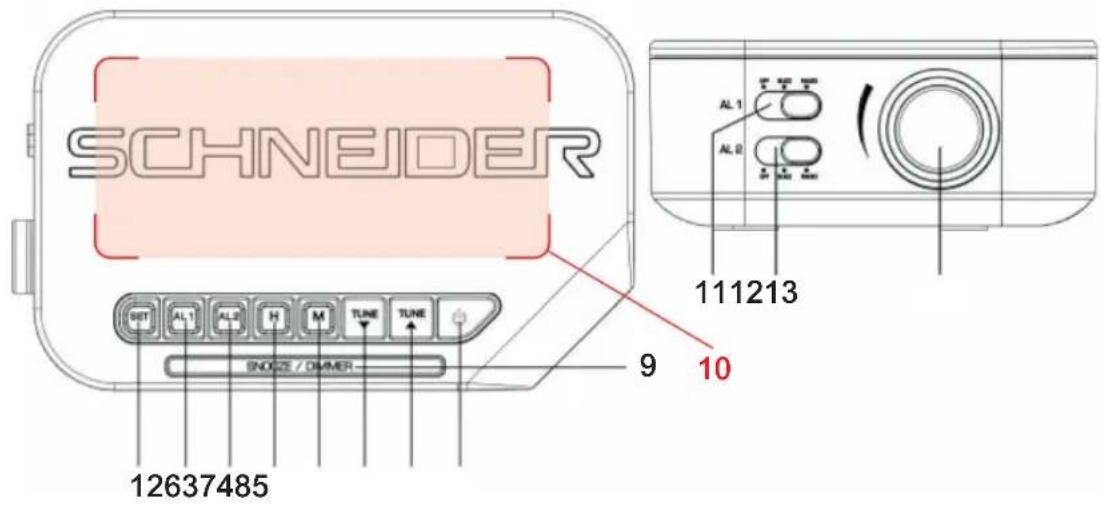

3. LOCATION OF CONTROLS

SCHNEIDER 12637485 9 10 111213 AL1 AL2 AL3 AL4 AL5 AL6 AL7 AL8 AL9 AL10 SNOICE / DIMMER

1. SET
2. ALARM1
3. ALARM2
4. HOUR
5. MINUTE
6. TUNE BACKWARDS
7. TUNE FORWARDS

8. STANDBY

9. SNOOZE/DIMMER

10. QI BASE FOR WIRELESS CHARGING

11. AL1 FUNCTION SELECTOR

12. AL2 FUNCTION SELECTOR
13. VOLUME KNOB
14. USB PORT FOR CHARGING
15. LED DISPLAY

Ω1 Ω2 Mhz 14 15

4. OPERATIONS

CONNECTING MAINS POWER

Connect the AC power cord to the power supply outlet. Your clock radio is ready to work for you.

BACKUP BATTERY INSTALLATION

Your clock radio requires one CR2032 lithium battery (included) to provide backup power to the clock in the event of a temporary power interruption.

1. Open battery cover located at the back of the unit. A screwdriver (not provided) is necessary in order to protect young children.
2. Insert one CR2032 lithium battery into the battery compartment with the “+” side facing up.
3. Close the battery cover.

If AC power is interrupted, the LED display will go off and both the radio and the

alarm will stop . The backup battery will keep the time and all settings of your unit.

Make sure a new CR2032 lithium battery is used.

Note: Do not use old battery for backup, which may lead to abnormal display appears. In case abnormal display appears, please take out the backup battery and then unplug the clock radio.

SETTING TIME

1. In standby mode, long-press the SET button, the time digits flash.
2. Press H button repeatedly to set the current hour.
3. Press M button repeatedly to set the current minute.
4. Short-press SET button again to confirm the setting.

SETTING THE ALARMS

1. Long-press AL1 or AL2 till the time digits flash.
2. Press H button repeatedly to set Alarm1 or Alarm2 hour.
3. Press M button repeatedly to set Alarm1 or Alarm2 minute.
4. Short-press AL1 or AL2 again to confirm the alarms setting.
5. Move the AL1 or AL2 selector to position BUZZ or RADIO to select the alarm tone, the related alarm is turned on, and △1 or ⚫ icon keep lighting up on the display.

STOPPING AND RESETTING THE ALARM TO COME ON THE NEXT DAY

When Alarm 1 or 2 is sounding, the related △ 1 or 🔒 icon flashes. Press ⏻ button once to stop the alarm and reset it to come on the following day after that △ 1 or 🔒 icon keep lighting up on the display.

Note: When AL1 or AL2 selector is moved to position BUZZ, short-press AL1 or AL2 can stop the alarm also and reset it to come on the following day.

CANCEL THE ALARM

Move the AL1 or AL2 selector to position OFF, then the alarm function will be cancelled.

SNOOZE OPERATION (DEFAULT SNOOZE DURATION IS 6 MINUTES)

When alarm is sounding, short-press SNOOZE/DIMMER button once, the alarm will be silent and come on again after the default snooze duration.

Note: If your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

When alarm is in the snooze mode, short-press ⏻ / AL1/ AL2 can stop the snooze mode, alarm is reset to come on the next day.

USING THE DIMMER

Make a long press on the SNOOZE/DIMMER button to adjust the brightness of the LED display.

LISTENING TO FM RADIO

1. To turn on the radio, press ⏻ button once, the display shows radio frequency in Mhz.
2. Press TUNE ▼/▲ to tune the radio to a desired station. Long-press TUNE ▼/▲ to scan the radio programs directly.
3. To adjust the volume, turn the VOLUME knob to the position you want.
4. Press ⏻ button to turn off the radio.

Note: For better FM reception, there is a built-in FM antenna wire at the rear of the unit. Move the wire around to obtain the best reception.

USING THE PRESET MEMORY

This clock radio features a total of 20 preset memories of FM stations. These allow you to preset your favorite stations and access them quickly.

1. Turn on the radio and select a radio station you like to memorize.
2. Long-press the SET button until PO1 flashes. Short-press SET to store Memory 1.
3. Press TUNE ▼/▲ to select another station you like to memorize. Then long-press SET until «P01» flashes. Press TUNE or once, «P02» appears. Press SET once to store Memory O2.
4. Repeat Step 2 and 3 to preset memories 3 through 20.
5. To access a preset station at any time, short-press the SET button at a time while the radio is on.

TO USE THE SLEEP TIMER (APPLICABLE IN RADIO MODE)

1. Short-press the SNOOZE/DIMMER button repeatedly as needed to adjust the sleep timer from 120, 90, 60, 45, 30, 15 or OFF.

2. When the display changes back to show the time, short-press SNOOZE/ DIMMER button again to show the remaining sleep time.

3. The radio will play for the programmed sleep time and then shut off automatically.

4. To turn off the radio before the sleep time has elapsed, press button once.

5. TO USE THE USB PORT FOR CHARGING

Connect your mobile phone with the USB port by a USB charging cable (not provided) to charge.

Note:

1. The USB port is only for USB recharging function, and it cannot support USB player to play music
2. When USB jack is recharging the mobile phone, the maximum current is 500MA. Please choose other device in case of fast recharge.

6. TO USE THE QI BASE FOR WIRELESS CHARGING

Put your QI-compatible wireless charging phone directly on the active QI induction zone ( marked with rectangular-shaped dotted lines ) on the top of the unit to charge wirelessly.

Note:

1. Remove metal protective or magnetic case from the phone before charging. When charging the phone, do not place magnetic-striped or other metal objects on the charger. Doing so could damage the object or this unit. QI-compatible phones with metallic finishes will charge normally.
2. Put your phone to the active QI induction zone as centralized as possible. By doing so could make your wireless charging experience more smoothly.

7. TROUBLE SHOOTING

1. If your clock displays irrelevant time or does not function properly, which may be caused by electro-static discharge or other interference, disconnect the AC power (and remove the backup battery). The clock radio will reset to default settings and you need set it again.
2. If abnormal display appears, please take out the backup battery and then unplug the clock radio. Replug the clock radio after 1-2 minutes.
3. The USB port is only for recharging function, and it cannot support music playback with a USB key.

8. SPECIFICATIONS

FM Band: 87.5 to 108 MHz

Power Supply: 230V \~ 50 Hz

Power Consumption: 6.6W

Battery type :1 x CR2032

USB charging Jack: maximum 500mA current

9. GARANTEE

All Schneider products benefit from after-sales service under the legal guarantee offered to the consumer. A defective product can be exchanged or refunded through a local distributor for 2 years after purchase, by presenting proof of purchase (dated invoice) and the original packaging of the product.

The warranty is excluded in the following situations:

1. Malfunction, defect or damage other than defect or lack of conformity.
2. The product (s) is / are damaged as a result of improper use (shock, fall, misuse, handling error, etc....).
3. The product (s) is / are disassembled, rebuilt (s) and / or modified under unauthorized conditions.
4. Parts which deteriorate as a result of normal wear and tear and which by their nature require frequent replacement.

10. LEGAL NOTICE

SCHNEIDER is a trademark of Schneider Consumer Group or its affiliates used under license by GMS GROUP. This product has been manufactured by and is sold under the responsibility of GMS GROUP. The brands cited are trademarks registered by their respective owners. Guarantee: 2 years. This warranty does not cover damage resulting from improper use or installation of the product.

Bluetooth logo/brand is a trademark or registered trademark of Bluetooth Sig Inc. All items contained herein are imported by GMS and are not manufactured, sponsored, endorsed or distributed by Bluetooth Sig Inc.

Destruction of electrical and electronic devices

The symbol on the product or on its packaging indicates that this product must not be treated as household waste. On the contrary, it must be dropped off at a collection point for recycling electrical and electronic equipment. By ensuring that this equipment is handled properly you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by improper handling of this product. Recycling materials will help preserve natural resources. For more information, please contact your town hall or your waste sorting center.

EN

CE DECLARATION OF CONFORMITY

We, GMS GROUP, declare under our responsibility that the product :

Designation: Alarm clock radio with wireless function

Brand: Schneider

Item number: GMSC31OACLQIGRY / GMSC31OACLQIBLK

Model number: A6QIG / A6QIB

Satisfied all the following union harmonized European standard:

• Directive EMC 2014/30/EU
• Directive CE RED 2014/53/EU
• Directive LVD 2014/35/EU
• Directive ERP EC No 1275/2008
• Directive RoHS 2015/863/EU

And conform with the following harmonized standard :

• ETSI EN 303 345-3 V1.1.7 2017-03
• EN62479:2010
• EN 55032 2015
• EN IEC 61000-3-2 2014
• EN 61000-3-3:2013
• EN 55035 2017
• EN 62368-1:2014+A1:2017
• QI-PCO-PART3-V124
• EN50564:2011
• IEC 62321-3-1:2013
• IEC 62321-4:2013
IEC 62321-5:2013
IEC 62321-6:2015
• IEC 62321-7-1:2015
• IEC 62321-8:2017

Luynes, July 12 ^th , 2021

SCHNEIDER

RADIO RELOJ ALARMA

Viva

Manual de usuario

GMSC310ACLQIGRY / GMSC310ACLQIBLK

INDICE

Pg. 18 ..... CE DECLARATION OF CONFORMITY

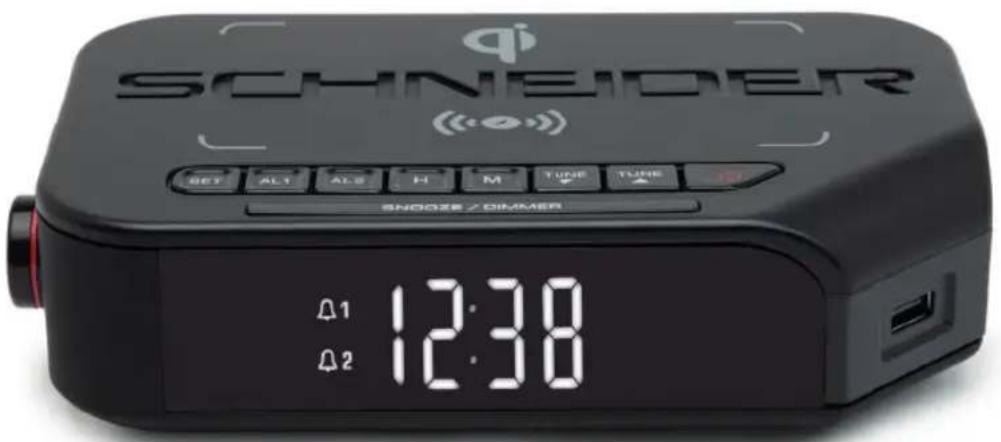

SCHNEIDER ((0.0)) SET ALT ALS H M TUNE TUNE SNOOSE / DIMMER Δ1 12:38 Δ2 12:38
