USER MANUAL 802165 SILVERLINE

POWER RANGE® SILVERLINEC® The Cutter

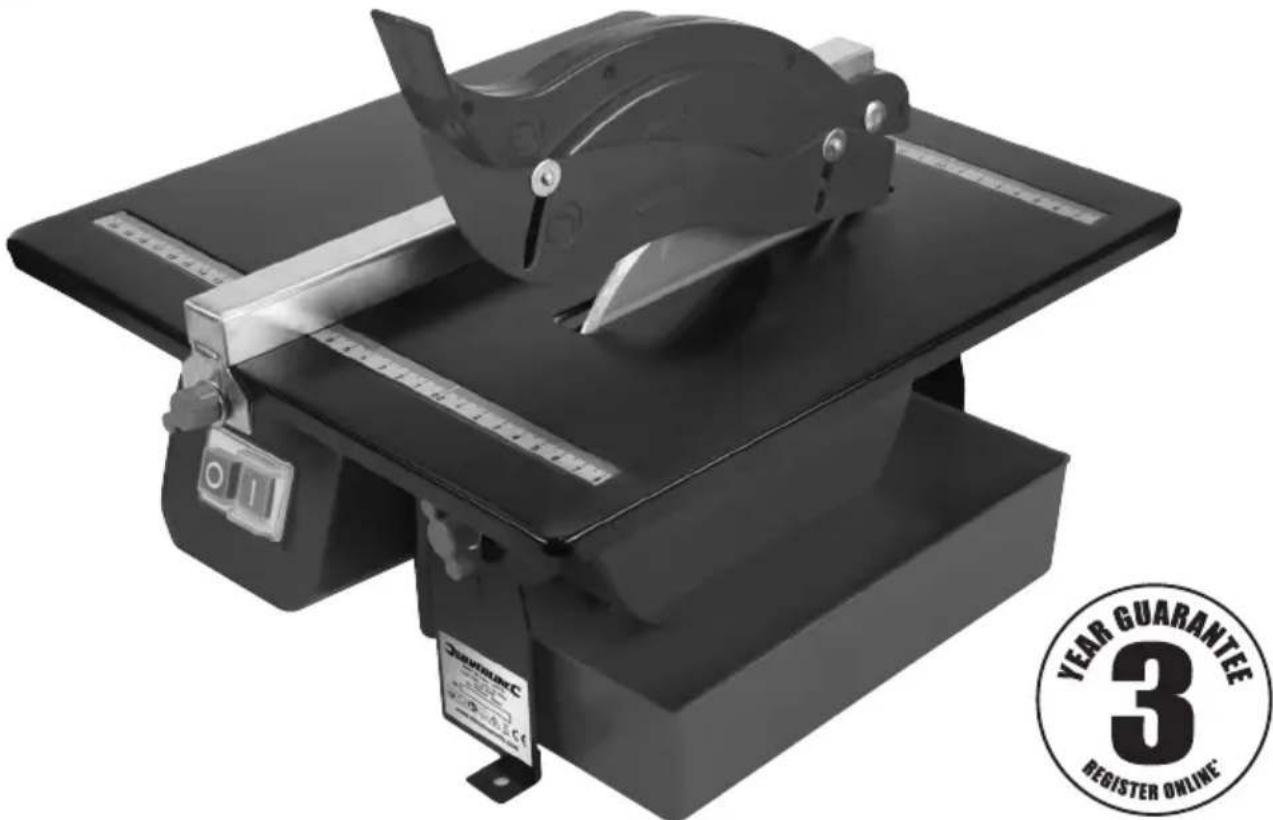

450W Tile Cutter

GB 450W Tile Cutter
F Coupe-carreaux 450 W
D Fliesenschneidmaschine, 450 W

Close-up of a hand operating a mechanical device with curved blades (no visible text or symbols)

Close-up of hands using a tool to adjust or install a small component, with a ruler partially visible (no text or symbols)

Close-up of a hand holding a small electronic component with measurement markings (no readable text or symbols)

Close-up of a hand using a handheld device to adjust a small component, with no visible text or symbols.

Close-up of hands pressing down on a mechanical component (no visible text or symbols)

Close-up of hands using a ruler to cut or adjust a metal object (no visible text or symbols)

Black-and-white photo of a mechanical device with a tool and attached components (no visible text or symbols)

Close-up of a mechanical tool interacting with a white plastic component (no visible text or symbols)

Close-up of hands operating a mechanical device with a circular component and a rectangular block (no visible text or symbols)

Close-up of hands operating a mechanical disc with a tool, no visible text or symbols

POWER RANGE® SILVERLINEC® White Cutter

450W Tile Cutter

English 4

Français 8

Deutsch 12

Español ...... 16

Italiano 20

Nederlands......24

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction manual

DO NOT use in rain or damp environments

For indoors use only!

Internal temperature fuse triggering at 130°C

Class I construction (protective earth)

Environmental Protection

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or

retailer for recycling advice

Conforms to relevant legislation and safety standards

Caution

WARNING: Moving parts can cause crush and cut injuries.

Risk of electrocution!

V	Volts
~	Alternating current
A	Ampere
n_b	No load speed
Hz	Hertz
W, kW	Watt, kilowatt
/min or min ^-1	(revolutions or reciprocation)per minute

Specification

Voltage: 230V\~50Hz

Power: 450W

No Load Speed: 2950min ^-1

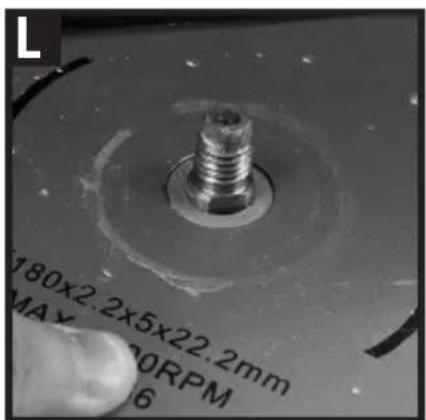

Ceramic saw blade:....Ø180 x 2.2 x 5 x

∅ 22.2mm

Compatible materials:......Ceramic tiles

Max. Depth of Cut: 34mm

Types of cut: Straight, Mitre, Bevel, Compound

Power cord length: 2kg

Ingress protection: IP54

Protection Class:

Weight: 7.5kg

Sound and vibration information:

Sound Pressure LPA: 92dB(A)

Sound Power LWA: 105dB(A)

Uncertainty K: 3dB(A)

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

As part of our ongoing product development, specifications of Silverline products may alter without notice.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to EN60745 or similar international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

WARNING! When using electric power tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following safety information. Read all these instructions before attempting to operate this product and save these instructions for future use.

WARNING! This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

CAUTION: Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

General Safety

Keep work area clear

- Cluttered areas and benches invite injuries

Consider work area environment

• Do not expose tools to rain
• Do not use tools in damp or wet locations
• Keep work area well lit
• Do not use tools in the presence of flammable liquids or gases

Guard against electric shock

- Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators)

Keep other persons away

- Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area

Store idle tools

- When not in use, tools should be stored in a dry locked-up place, out of reach of children

Do not force the tool

- It will perform the job better and safer at the rate for which it was intended

Use the right tool

- Do not force small tools to do the job of a heavy duty tool

Do not use tools for purposes not intended; for example do not use circular saws to cut tree limbs or logs

Dress appropriately

• Do not wear loose clothing or jewellery, which can be caught in moving parts
• Suitable safety footwear is recommended when working outdoors.
• Wear protective covering to contain long hair

Use protective equipment

• Use safety glasses
• Use face or dust mask if working operations create dust

WARNING: Not using protective equipment or appropriate clothing can cause personal injury or increase the severity of an injury.

Connect dust extraction equipment

- If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used

Do not abuse the power cable

- Never yank the power cable to disconnect it from the socket. Keep the power cable away from heat, oil and sharp edges. Damaged or entangled power cables increase the risk of electric shock

Secure work

- Where possible use clamps or a vice to hold the work. It is safer than using your hand

Do not overreach

- Keep proper footing and balance at all times

Maintain tools with care

• Keep cutting tools sharp and clean makes the tool easier to control and less likely to bind or lock in the workpiece
• Follow instruction for lubricating and changing accessories
• Inspect tool power cables periodically and if damaged have them repaired by an authorized service facility
• Inspect extension cables periodically and replace if damaged
• Keep handles dry, clean and free from oil and grease

WARNING: Many accidents are caused by poorly maintained power tools.

- Disconnect tools - When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply

WARNING: The use of accessories or attachments not recommended by the manufacturer may result in a risk of injury to persons.

• Remove adjusting keys and wrenches - Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before switching it on
• Avoid unintentional starting - Ensure switch is in "off" position when connecting to a mains socket or inserting a battery pack, or when picking up or carrying the tool

WARNING: Unintended starting of a tool can cause major injuries.

• Use outdoor extension leads - When the tool is used outdoors, use only extension cords intended for outdoor use and so marked. Use of an extension cable suitable for outdoor use reduces the risk of electric shock

• Stay alert

• Watch what you are doing, use common sense and do not operate the tool when you are tired

• Do not use a power tool while you are under the influence of drugs, alcohol or medication

WARNING: A moment of inattention while operating power tools may result in serious personal injury.

• Check damaged parts
• Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function
• Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation
• A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual
• Have defective switches replaced by an authorized service centre

WARNING: Do not use the tool if the on/off switch does not turn it on and off. The switch must be repaired before the tool is used.

• Have your tool repaired by a qualified person - This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons, otherwise this may result in considerable danger to the user
  WARNING: When servicing use only identical replacement parts.

WARNING: If the power cable is damaged it must be replaced by the manufacturer or an authorised service centre.

• Power tool mains plugs must match the mains socket - Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching sockets will reduce risk of electric shock
• If operating a power tool outside use a residual current device (RCD) - Use of an RCD reduces the risk of electric shock

NOTE: The term "residual current device (RCD)" may be replaced by the term "ground fault circuit interrupter (GFCI)" or "earth leakage circuit breaker (ELCB)".

WARNING: When used in Australia or New Zealand, it is recommended that this tool is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less.

WARNING: Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, and damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

Polarized Plugs (for North America only) To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Tile Cutter Safety

• Only cut materials using this tile cutter as specified under 'Specifications' in this instruction manual. Cutting materials the machine is not designed to cut could overload the motor and break the blade.
• Ensure the tile cutter is mounted on a secure, flat surface. Not doing so will deem the machine unstable and increase the risk of injury.
• ALWAYS stand in an offset position from the blade towards the support fence, standing directly in line with the blade gives incorrect support to the workpiece.
• NEVER use the tile cutter without the blade guard; the blade guard will help deflect projected debris and will lower the risk of accidental cut injuries.
• NEVER install a cutting blade with a rated speed that does not exceed the rated no load speed of the machine.
• Ensure oversized workpieces are adequately supported during out-feed. Incorrectly supported workpieces are more likely to be subjected to kickback.
• NEVER attempt to remove a workpiece during a cut with the blade still running. Always switch the machine off and wait for the blade to reach a complete halt before removing the part-cut workpiece.
• ALWAYS switch the machine off and remove the plug from the mains before carrying out any adjustments or maintenance.
• ALWAYS wear appropriate PPE (Personal Protective Equipment) such as eye protection, hearing protection and cut-proof gloves when working with this machine.
• Ensure the directional arrow displayed on the blade corresponds with the direction of rotation of the motor.
• The disk, arbor and collars should always be kept clean and obstruction-free. Switch the machine off and disconnect from the mains supply, then rotate the disk to ensure it is free from obstruction.
• ALWAYS use the fence to support the tile - never cut the tile freehand
  • ONLY ever cut one tile at a time

• Ensure the waste part of the tile has sufficient room to move after being cut; ignoring this could cause the tile to bind against the cutting disk.

• When removing jammed or conflicting material, switch off the machine, remove the mains plug, and wait for the blade to reach a complete halt.

• Never cut tiles that are too small to leave sufficient room for the hand to guide the tile into the blade. When cutting smaller tiles ALWAYS use a push-stick.
• Only ever fit cutting disks that are recommended in the manufacturer's instruction manual.
• Before using the tile cutter, always allow the cutting blade to reach the correct speed and assess whether the blade is running smoothly, with no unfamiliar sounds or vibrations. If unfamiliar characteristics are noticed, switch the machine off immediately and unplug from the mains before attempting to evaluate the situation.
• Do not use excessive pressure on the cutting disk; doing so will not speed up the cut, and will only cause excessive wear to the machine.
• NEVER use the tile cutter without the aid of cooling water; the water will maintain blade temperature and prevent premature failure.

Product Familiarisation

1	Water Sump
2	On Button
3	Off Button
4	Table Surface
5	Cutting Disk
6	Riving Knife
7	Level Angle Lock Rear (not shown)
8	Level Angle Lock Front
9	Straight Fence
10	Fence Locking Knob
11	Mitre Guide
12	Fence Washer
13	Spanner
14	Spindle Spanner
15	Fence Fixing Brackets
16	Blade Guard Coach Bolt
17	Blade Guard Washer
18	Nut
19	Blade Guard

Intended Use

Precision water-cooled tile cutter for creating specific sized tiles. Features a straight fence, mitre guide and an adjustable table angle for creating bevel cuts.

Unpacking Your Tool

• Carefully unpack and inspect your new tool. Familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.

Bench mounting

NOTE: Due to this machines physical attributes, it is intended to be secured to a bench, or a secure flat work surface.

- Fasten to a secure, flat work surface using the two Bench Mounting Holes, located at the front and rear (Image A)

Blade guard installation

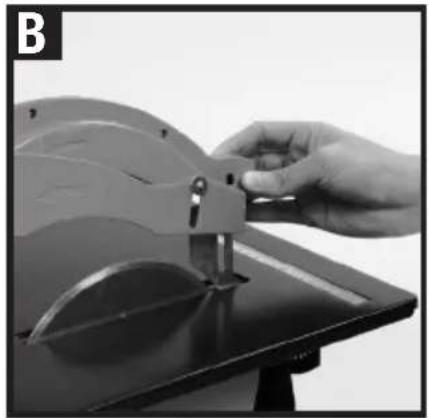

1. Place the tile cutter on a secure flat surface and locate the Blade Guard (19)
2. Fit the Blade Guard over the Riving Knife, ensuring that the blade direction arrow on the guard is facing towards the front of the machine (Image B)

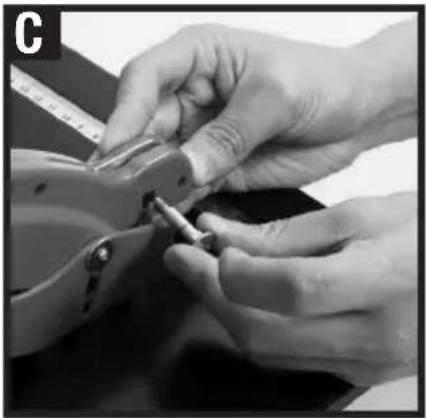

3. Insert the Blade Guard Coach Bolt (16) through the square hole in the guard and through the riving knife (Image C)
4. Fit the Blade Guard Washer (17) and adjust the height of the guard to provide adequate clearance for the material to be cut
5. Fasten the Blade Guard to the Riving Knife using the Nut (18)

Straight fence installation

1. Ensure the Bevel Angle Lock Front (8) and Rear (7) are securely tightened, and position the tile cutter on its side on a secure flat surface
2. Locate the Straight Fence (9), Fence Locking Knobs (10), Fence Washers (12) and the Fence Fixing Brackets (15)

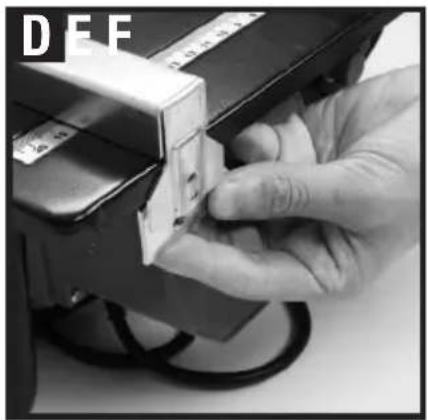

3. Hold the Straight Fence against the Table Surface (4) with the tabs facing towards the bottom of the tile cutter (Image D)

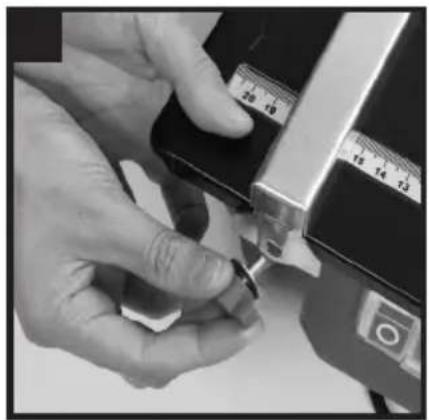

4. Position the Fence Fixing Bracket behind the ridge that runs along the edge of the Table Surface; place the washer onto the Fence Locking Knob and screw it into the fixing bracket to secure the Straight Fence to the table (Image E)
5. Repeat step 4 for the other side of the Straight Fence

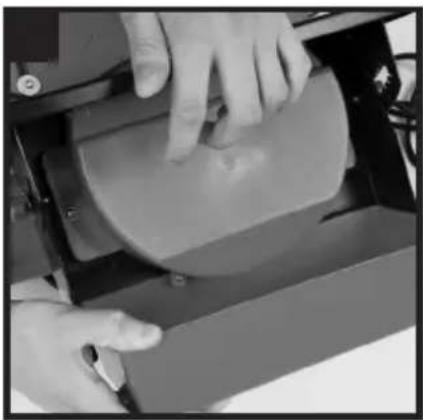

Water sump installation

WARNING: Handling water around electronic equipment is hazardous. Take extra care when handling water around the tile cutter. Always make sure the machine is switched off at the mains beforehand.

1. Position the tile cutter on a secure flat surface
2. Locate the Water Sump (1)
3. Lift the side of the tile cutter that features the blade housing and place the Water Sump so the blade housing sits inside (Image F)
4. To fill the Water Sump, add clean water to the sump until the level sits between the 'min' and 'max' markings on the blade housing

Operation

WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

WARNING: Prolonged use of this machine can cause the internal motor to overheat. To prevent overheating of the motor, switch off and allow the machine to cool down after 10 minutes of consistent use.

WARNING: Never operate this machine without water, dry operation will cause the machine to wear out prematurely.

Switching on and off

• The green On Button (2) is located at the front of the machine, next to the red Off Button (3)
  • To Switch the machine on, Press the On Button
  • To Switch the machine off, Press the Off Button

Performing a straight cut

- Use the measuring scale located on the Table Surface (4) to accurately determine the size of the cut

1. Loosen the Fence Locking Knobs (10), position the Straight Fence (9) in the desired location and relighten the Fence Locking Screws
2. With the machine on, press the workpiece firmly against the Straight Fence and slowly feed the workpiece into the Cutting Disk (5)

NOTE: Do not force the workpiece into the blade, excessive pressure can cause kickback, and damage to the blade/workpiece.

Performing a mitre cut

NOTE: Use the Mitre Guide (11) to perform accurate 45° cuts.

1. Loosen the Straight Fence Locking Knobs (10)

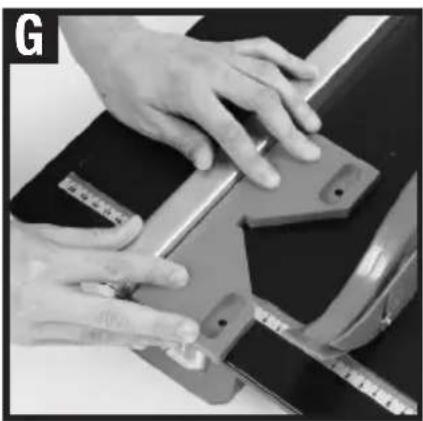

2. Place the Mitre Guide (11) against the Straight Fence (9) (Image G)
3. Adjust the Straight Fence position, using the measuring scale as reference, to accurately measure the cut
4. Lock the Straight Fence into position, by tightening the Straight Fence Locking Knobs
5. Use the Mitre Guide to feed the tile into the Cutting Disk (5)

Performing a bevel cut

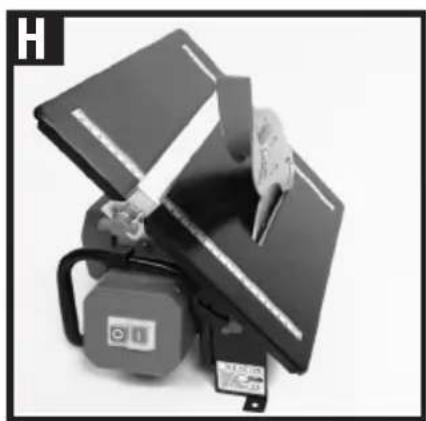

• To adjust the bevel angle of the Table Surface (4):

1. Undo Bevel Angle Lock Front (8) and Rear (7)
2. Tilt the table to the desired angle, and Lock the Bevel Angle Lock Front and Rear to secure the position, (Image H)

Note: The bevel angle is displayed on a graduation scale beneath the Bevel Angle Lock Front.

• Ensure the Straight Fence (9) is secure, and use it as a guide when cutting the workpiece
  • Take extra care of the Cutting Disk (5) when performing bevel cuts

Accessories

- A range of accessories and consumables, including Tile Cutting Diamond Disc (993035) is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com

Maintenance

WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

Replacing the cutting disk

WARNING: ALWAYS wear suitable cut proof gloves when handling the Cutting Disk (5). Not doing so may result in cuts, or harm to the operator.

1. Remove the Water Sump (1), ensure the blade housing area is dry and turn the machine on its side so the blade housing is facing upwards

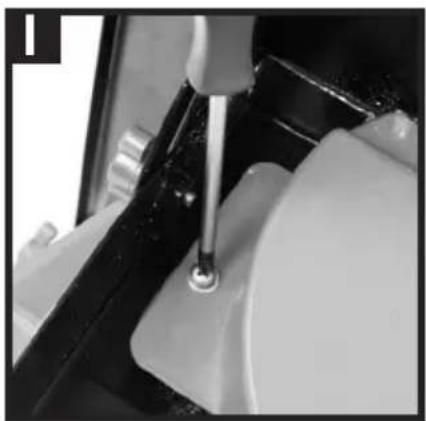

2. Unscrew and remove the four Philipps head screws holding the blade cover on (Image I)

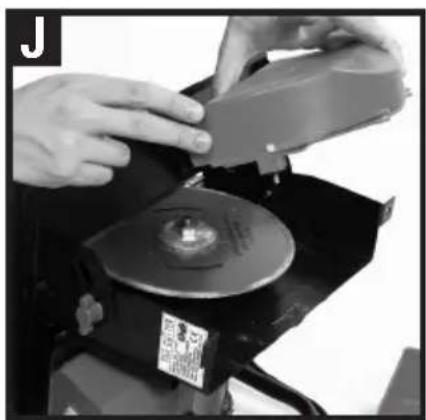

3. Remove the blade cover to reveal the Cutting Disk (5) and spindle assembly (Image J)

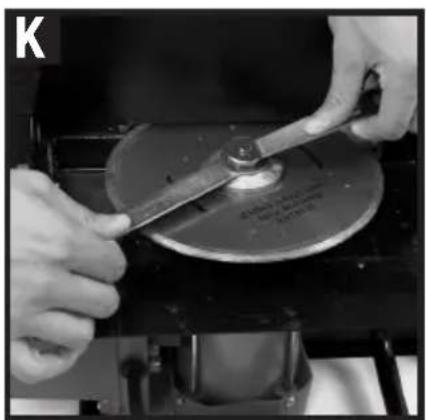

4. Place the Spanner (13) over the locking nut, and use the Spindle Spanner (14) to secure the spindle. Undo the locking nut using the Spanner (Image K)
5. Remove the outer flange from the spindle to reveal the disk. Pull the disk off the inner flange
6. Replace the Cutting Disk, being sure that it is the correct orientation and that it is correctly seated on the inner flange (Image L)

Note: The spindle will spin in an anticlockwise direction when viewed with the blade cover removed. Ensure the correct disk is installed in the correct orientation.

1. Reinstall the outer flange and tighten the lock nut onto the spindle
2. Replace the blade cover and return the tile cutter to its normal working position
3. Switch the machine on, allow the Cutting Disk to get up to speed, and check that it is running smoothly and 'true'

General inspection

• Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
• Never use caustic agents to clean plastic parts

Lubrication

- Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Brushes

• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Troubleshooting

Problem Possible cause Solution
No function when On/Off Button (2 & 3) is operated	No power Check power supply
	Defective On/Off Button Replace the On/Off Trigger Switch at an authorised Silverline service centre
Cutting Disk (5) is making strange noises/vibrating/not performing straight cuts	Loose spindle locking nut	Ensure that the blade is correctly fastened to the spindle, see ‘Replacing the cutting disk’
	The Cutting Disk is not seated on the inner flange correctly	Check the Cutting Disk is seated on the inner flange correctly so that it runs safe and true, see ‘Replacing the cutting disk’
	The Cutting Disk is too worn/warped from excessive use Replace the Cutting Disk, see ‘Replacing the cutting disk’
The Cutting Disk is wearing excessively and a burning smell is being produced'	Insufficient amount of water in the Water Sump (1) Refill the Water Sump
	Cutting Disk is too worn to effectively dissipate heat	Check and replace the Cutting Disk, see ‘Replacing the cutting disk’

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

• Your personal details
  • Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

Battery Guarantee

Silverline batteries are guaranteed for 30 days. If a defect occurs on a registered battery during the term of the Battery Guarantee, due to material or manufacturing fault, then Silverline will replace it free of charge. This guarantee does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that

Identification code: 802165

Description: 450W Tile Cutter

Conforms to the following Directives:

• Machinery Directive 2006/42/EC

• Low Voltage Directive 2006/95/EC

• EMC Directive 2004/108/EC

• ROHS Directive 2002/95/EC

• EN61029-1+A11:2010, EN ISO12100:2010

• EN55014-1+A1:2009, EN55014-2+A2:2008

• EN61000-3-2+A2:2009, EN61000-3-3:2008

Notified body: TÜV SÜD Producvvt Service

The technical documentation is kept by: Silverline Tools

Date: 08/10/2014

Signed by:

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059.

Registered address:

Central House, Church Street, Yeovil, Somerset, BA20 1HH, United Kingdom.

Symboles

Directeur général

Central House, Church Street, Yeovil, Somerset BA20 1HH, United Kingdom.

Symbolerklärung

Silverline Tools Service Centre

PO Box 2988

Yeovil

Internal temperature fuse triggering at 130°C

AVVERTENZA: Moving parts can cause crush and cut injuries.

Signor Darrell Morris

Central House, Church Street, Yeovil, Somerset BA20 1HH, Regno Unito.

Let op: The spindle will spin in an anticlockwise direction when viewed with the blade cover removed. Ensure the correct disk is installed in the correct orientation.

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Mechanical tool with metal cutting machine and ruler, no visible text or symbols

3 Year Guarantee

*Register online within 30 days. Terms & Conditions apply

Garantie de 3 ans
