USER MANUAL Fresko 4B TAURUS

Line drawing of a three-bladed office ceiling fan with a conical top (no text or symbols)

FRESKO 4B

Diagram of a three-blade ceiling fan with labeled parts A, B, C, and D

H E F G

Ceiling fan with light

FRESKO 4B

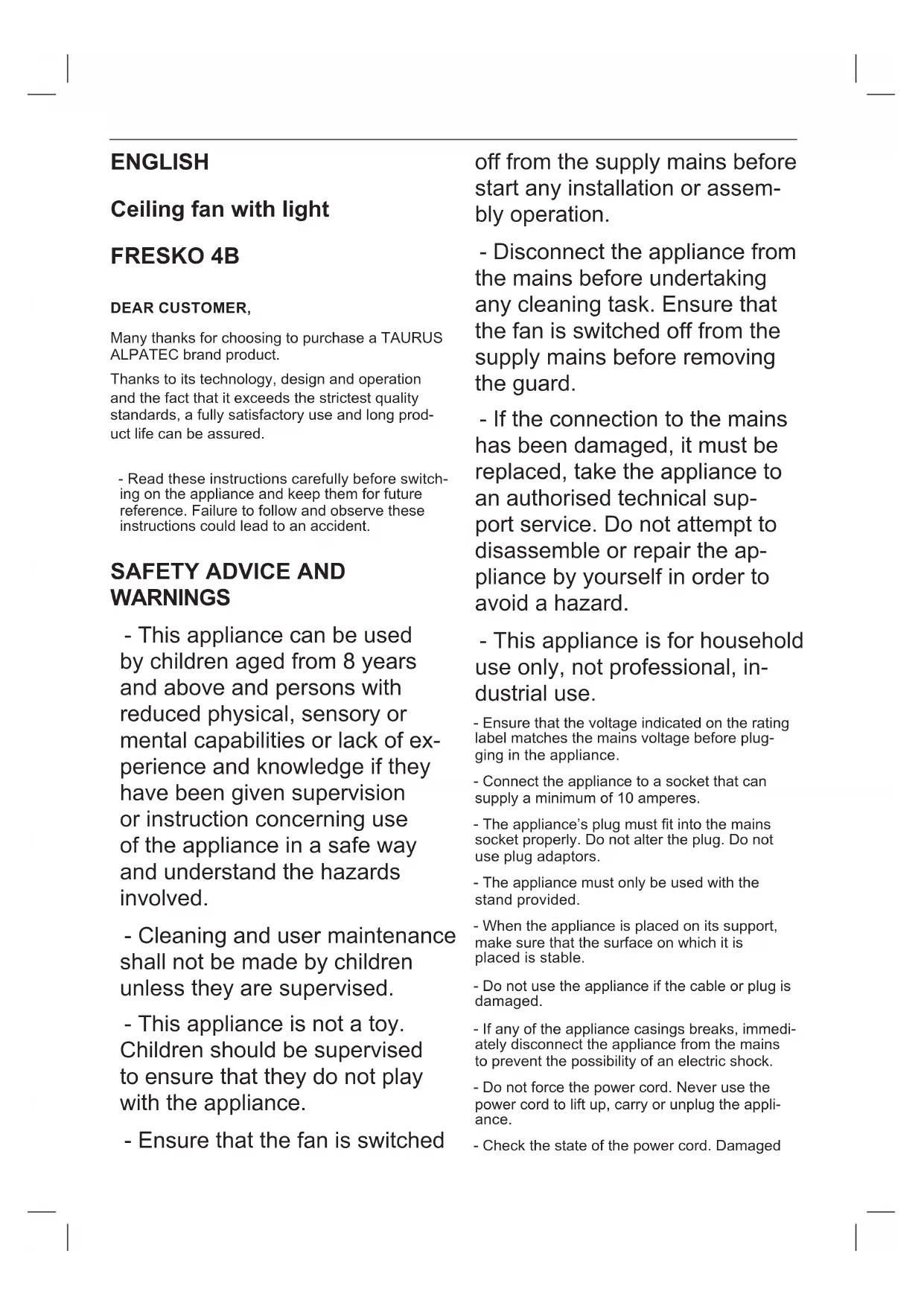

DEAR CUSTOMER,

Many thanks for choosing to purchase a TAURUS ALPATEC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Ensure that the fan is switched

off from the supply mains before start any installation or assembly operation.

- Disconnect the appliance from the mains before undertaking any cleaning task. Ensure that the fan is switched off from the supply mains before removing the guard.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- The appliance must only be used with the stand provided.

- When the appliance is placed on its support, make sure that the surface on which it is placed is stable.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Check the state of the power cord. Damaged

or tangled cables increase the risk of electric shock.

• The appliance is not suitable for outdoor use.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch any of the appliance's moving parts while it is operating.
• Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may cause irritation or burns.

USE AND CARE:

• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the on/off switch does not work.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

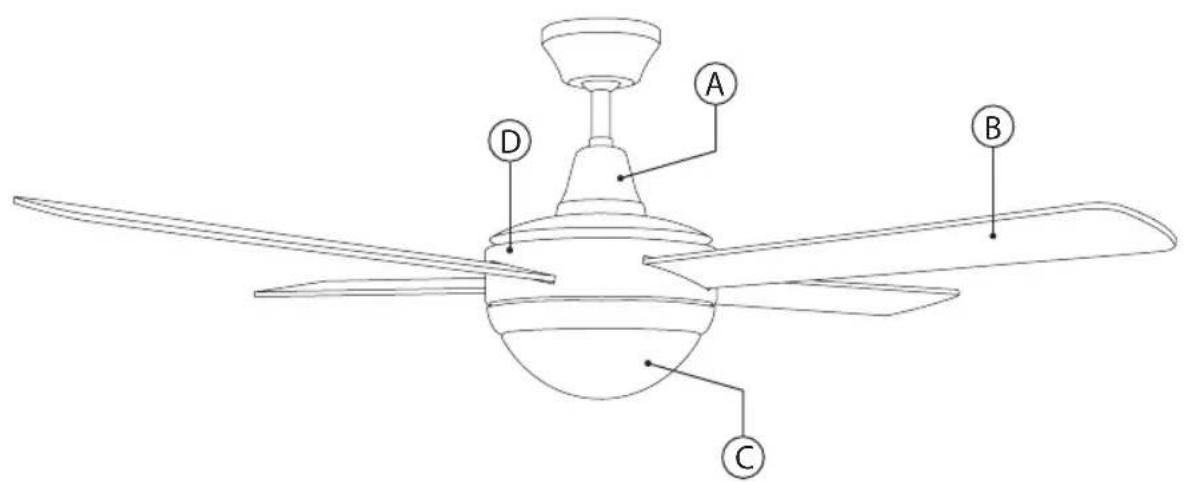

DESCRIPTION

A Cover bar
B Blades
C Glass lamp
D Lamp holder*

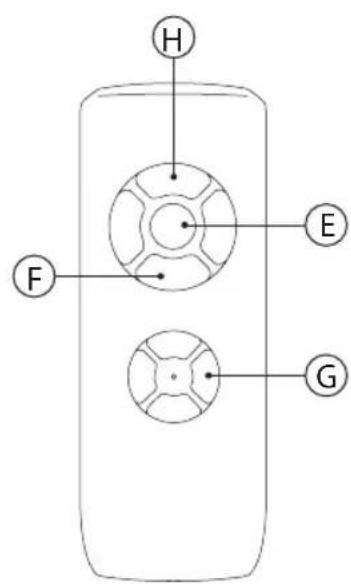

E On/off light button
F STOP fan button
G Timer button
H Speed button

* Only for E27 bulbs, maximum power 60W (bulb not included).

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.

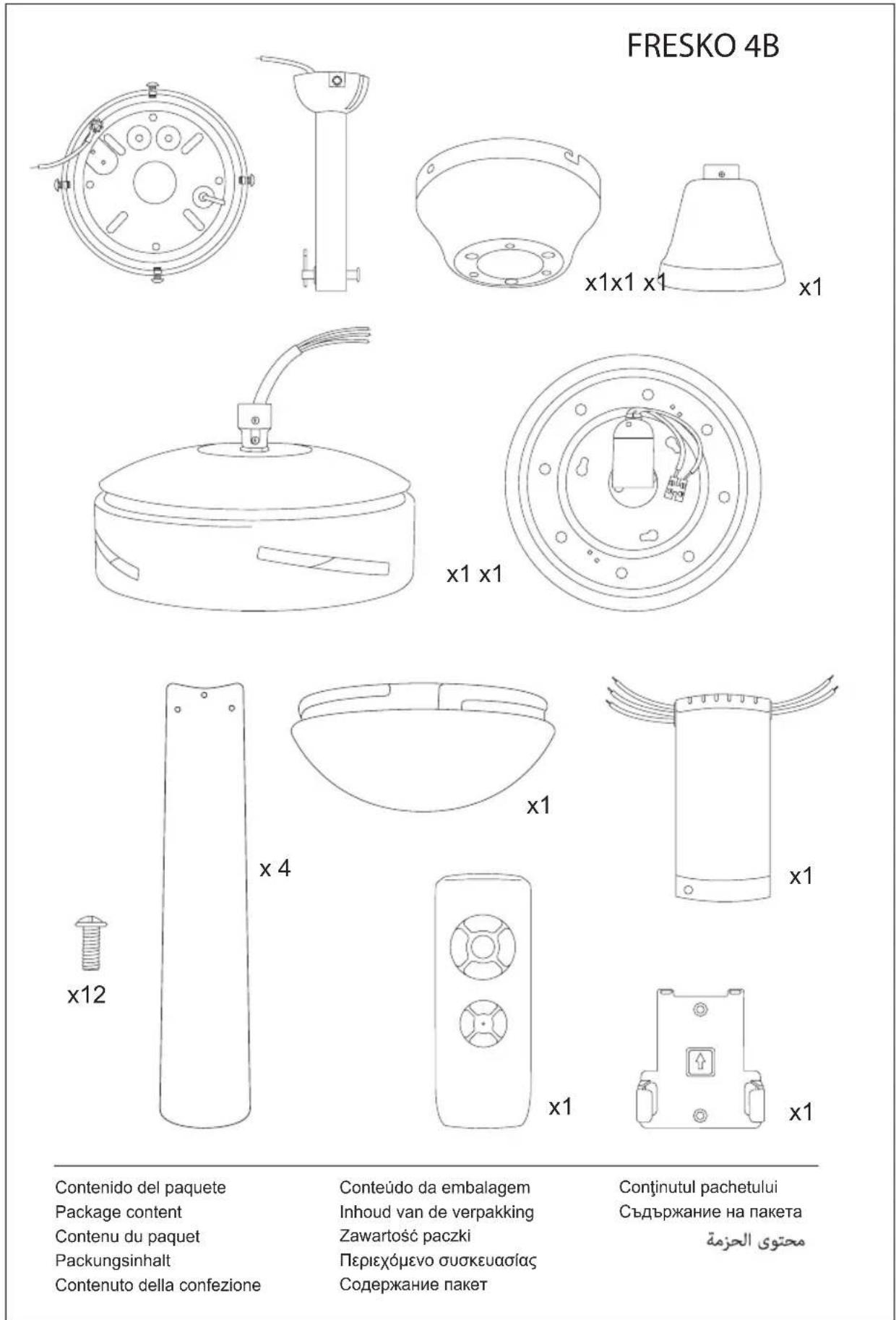

• Check if you have all the necessary parts. (Fig.1).
• Remove the motor housing from the packaging. To avoid any damage on the housing surface, mount the motor on a soft surface.
• In order to avoid electric shock, make sure that the power supply has been previously disconnected.
• The electrical installation must be done in accordance with the regulations in force, connecting the fan to the ground as a precaution against possible electric shock.
• It is recommended that the installation be done by a professional.
• Install the fan at a minimum distance of 2,30 meters from the ground or other objects.

ASSEMBLING THE CEILING FAN

• Check "FAN INSTALLATION" at the beginning of the instruction manual.
• IMPORTANT: To fix the main support to the ceiling, use the appropriate fixing means for each type of ceiling.

ASSEMBLING THE BATTERY/S

• Caution: During the handling of batteries, do not touch both poles at the same time, as this will provoke the partial discharge of the stocked energy therefore affecting longevity.
• Remove the cover of the battery compartment.
• Check that the plastic covering that protects the battery has been removed (some batteries are sold with a protective covering)
• Put the battery in its compartment, respecting the polarity.
• Replace the cover of the battery compartment.
• It is essential that the batteries should always be the same kind and the same charge. Never mix alkaline batteries with normal one (Carbon-Zinc) and/or rechargeable ones.
• N.B. When changing the batteries, the configuration of the appliance will be removed, and you will need to reset the parameters of the appliance.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

USE:

• Turn the light on using the (E) button.
• Turn the appliance on, by using one of the speed selection buttons (H).
• Select the desired speed.

TIMER FUNCTION:

• The appliance's operating time can be controlled.
• To program the operating time simply select it using the timer buttons (1h, 2h, 4h or 8h) (G).
• After the selected time the appliance will switch off automatically.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance using the STOP fan button (F).
• Turn off the light using the on/off buton (E).
• Clean the appliance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

his symbol means that product may include a battery or batteries; user must to remove them before disposing of the product. Remember that batteries must

be disposed of in duly authorised containers. Do not dispose of them in fire.

The following information details the features related to ecodesign.

FRESKO 4B
Maximum fan flow rate (F)	13,79 m^3/min
Fan power input(P) 67	W
Service value (SV)(according to IEC 60879)	0,21 ( m^3/min )/W
Standby power consumption (PSB)	0,47 W
Fan sound power level (LWA)	66,31 dB(A)
Maximum air velocity( c )	2,55 metres/sec

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

FRANÇAIS

NIEPRAWIDŁOWOŚCI I NAPRAWA

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
