Product type	Pedestal fan
Brand	Taurus
Model	Tropicano 6V
Power supply	6 V DC (mains adapter included)
Dimensions (H × W × D)	135 × 40 × 40 cm
Net weight	3.5 kg
Blade diameter	40 cm
Number of speeds	3 adjustable speeds
Oscillation	Automatic horizontal oscillation (90°)
Tilt	Manual tilt up/down
Control type	Rotary knob on the base
Noise level	≤ 55 dB(A) at maximum speed
Color	White and gray
Blade material	ABS plastic
Protective grille	Removable metal grille for cleaning
Maintenance	Clean with a damp cloth; do not immerse
Safety	Non-slip base; automatic shut-off if tipped over
Spare parts	Blades, grille, motor available from after-sales service
Repairability	Repairability index: 7.5/10
Included accessories	6 V mains adapter, user manual

Frequently Asked Questions - Tropicano 6V TAURUS

How to assemble the Tropicano 6V fan?

Insert the telescopic tube into the base, attach the motor to the tube, then clip on the blades and the protective grille. Tighten the provided screws. Refer to the manual for detailed steps.

How to clean the fan grille?

Unplug the appliance, remove the grille by unscrewing the retaining ring. Clean with a damp cloth and mild soap. Dry completely before reassembling.

The fan does not turn on, what to do?

Check that the mains adapter is properly plugged in and the socket works. Ensure the switch is set to a speed position. If the problem persists, contact after-sales service.

Can I use the fan without a mains adapter?

No, the Tropicano 6V only operates on mains power via the provided 6 V adapter. It does not have a built-in battery.

How to adjust the speed?

Turn the rotary knob located on the fan base. Positions 0 (off), 1 (low), 2 (medium) and 3 (high) are available.

The fan makes an abnormal noise, why?

Noise can come from loose blades, imbalance, or an obstacle in the grille. Check the assembly and clean the blades. If the noise persists, contact after-sales service.

How to activate oscillation?

Press the oscillation button located behind the motor (often a push button). The fan will oscillate horizontally. To deactivate, pull the button.

What is the maximum height?

The telescopic tube allows adjusting the height from 110 cm to approximately 135 cm. Tighten the locking ring after adjustment.

Can I use an extension cord?

Yes, use an extension cord with sufficient cross-section (1.5 mm² minimum) and suitable for the fan's power (6 V, 1 A). Avoid overloading.

Where to find spare parts?

Contact Taurus customer service or visit their official website. Available parts include blades, grille, and mains adapter.

USER MANUAL Tropicano 6V TAURUS

Illustration of two open air conditioners with visible blades and girdles (no text or symbols)

(No text)

|

(No text to output)

1

Fig. A

Fig. B

Español

Ventilador

Tropicano 4V / Tropicano 4V Ionic / Tropicano 6V

stinguido cliente:

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

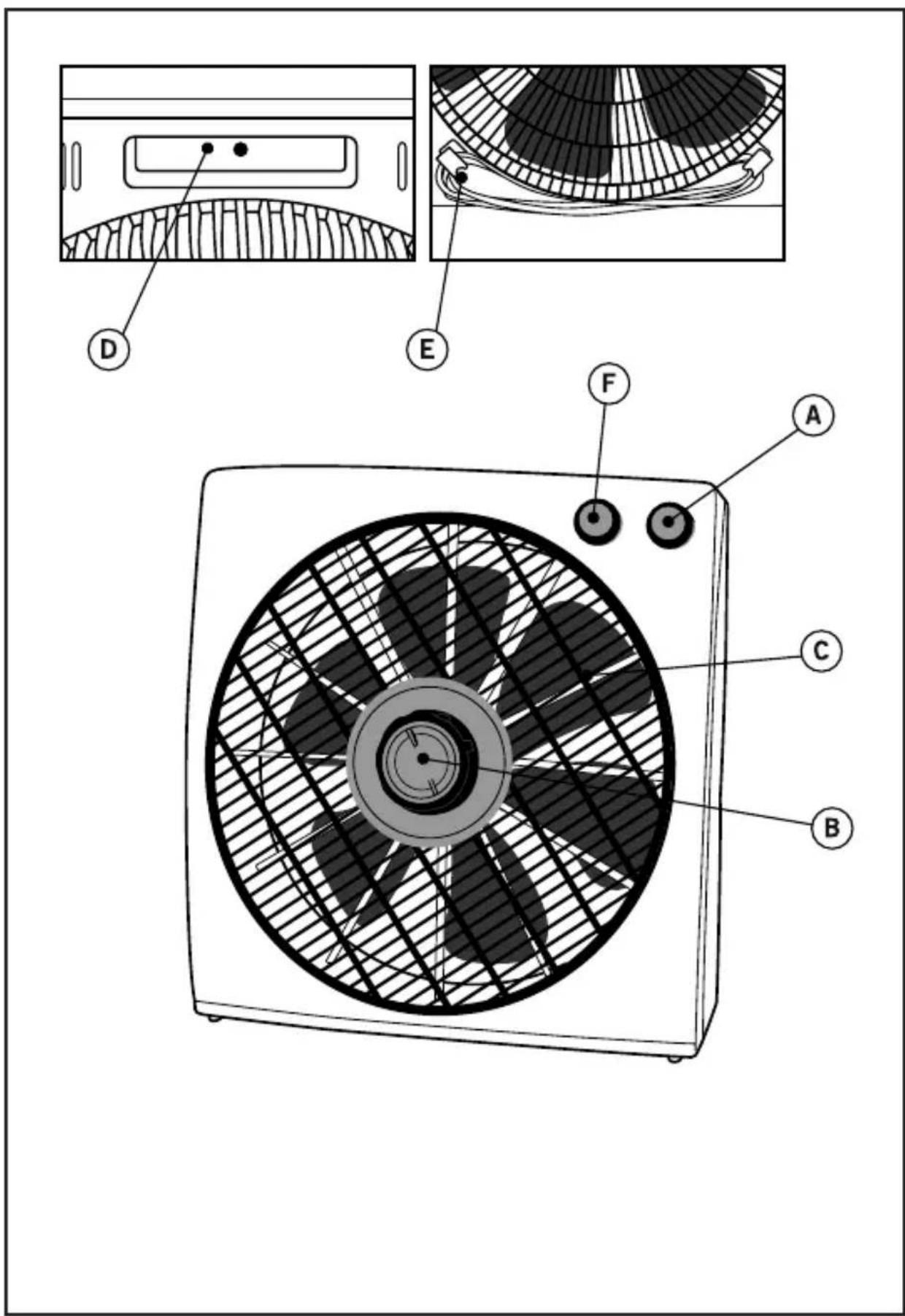

Description

A Start/stop switch and speed/power selector

B Diffuser level control
C Diffuser
D Transportation handle
E Cord housing
F Timer switch*

*Only Tropicano 6V model

afety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident. Failure to follow and observe these instructions may result in an accident.

Use or working environment:

• The appliance must not be placed below a power socket.
• Place the appliance on a horizontal, flat, stable surface away from heat sources and contact with water (splashes etc.).
• CAUTION: In order to prevent overheating, do not cover the appliance.
• Ensure that neither the air access

nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on, as there is a risk of fire if the appliance is covered or incorrectly situated.

Electric safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• CAUTION: Maintain the appliance dry.
• CAUTION: Do not use the appliance near water.
• Do not use the appliance near bathtubs, showers or swimming pools.

• Do not use the appliance with damp hands or feet, or when barefooted.

• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.

• Do not touch the plug with wet hands.

Personal safety:

- Do not touch any of the appliance's moving parts while it is operating.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not expose to extreme temperatures or strong magnetism.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

structions for use

Before use:

- Make sure that all the product's packaging has been removed.

- To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

Cable compartment (E):

This appliance has a cable compartment situated on its underside.

Use:

• Take the length of cable required out of the housing.

• Connect the appliance to the mains. Select the desired airflow with switch (A):

• Fan stopped

• Minimum airflow
• Medium airflow
• Maximum airflow

- Select the manual position using the timer control. (*Only for model 6V) (fig.B)

Operating the diffuser (fig.A)

Fixed diffuser:

Turn the diffuser control (B) to the right.

Rotating diffuser:

-Turn the diffuser control (B) to the left.

Operating the timer:

• Select the desired operating time using the timer control.
  Once the selected time finishes, the appliance will stop automatically.
  Select the manual position ( ) for continuous operation.
  *This function is only available for the Tropicano 6V model.

Once you have finished using the appliance:

• Turn off the appliance by selecting 0 on the speed regulator.
• Unplug the appliance to the mains.
• Put the cable back in the cable housing.

Carry:

- The device has a handle on the upper part so it can be transported easily and comfortably.

Safety thermal protector:

- The appliance has a safety device, which protects the appliance from overheating.

Ionic function\*:

• Once the appliance is in operation, it automatically activates the generation of negative ions.
• Negative ions are useful for removing the static electricity, smells and fumes.

eaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

nomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or

repair without assistance, as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

- This symbol means that it is important to read the operating instructions

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

Français

Ventilateur

Tropicano 4V / Tropicano 4V Ionic / Tropicano 6V

her Client,

Product weight (approximate)

Tropicano 4V: G.W. 3,43 Kg

N.W. 2,70 Kg

Tropicano 4V Ionic: G.W. 3,40 Kg

N.W. 3,05 Kg

Tropicano 6V: G.W. 3,43 Kg

N.W. 2,70 Kg
