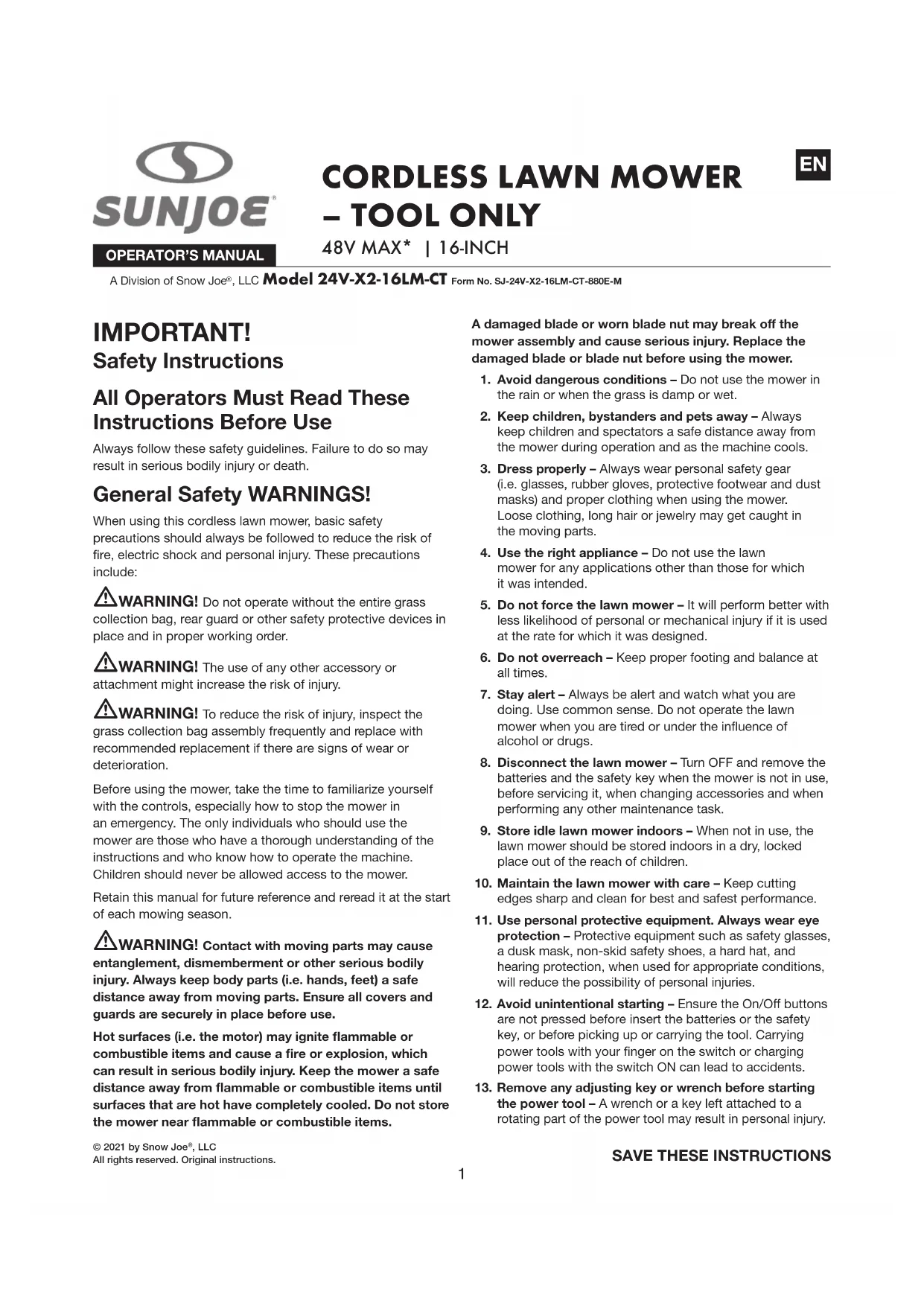

USER MANUAL 24VX216LMCT Sun Joe

© 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death. General Safety WARNINGS! When using this cordless lawn mower, basic safety precautions should always be followed to reduce the risk of re, electric shock and personal injury. These precautions include: mWARNING! Do not operate without the entire grass collection bag, rear guard or other safety protective devices in place and in proper working order. mWARNING! The use of any other accessory or attachment might increase the risk of injury. mWARNING! To reduce the risk of injury, inspect the grass collection bag assembly frequently and replace with recommended replacement if there are signs of wear or deterioration. Before using the mower, take the time to familiarize yourself with the controls, especially how to stop the mower in an emergency. The only individuals who should use the mower are those who have a thorough understanding of the instructions and who know how to operate the machine. Children should never be allowed access to the mower. Retain this manual for future reference and reread it at the start of each mowing season. mWARNING! Contact with moving parts may cause entanglement, dismemberment or other serious bodily injury. Always keep body parts (i.e. hands, feet) a safe distance away from moving parts. Ensure all covers and guards are securely in place before use. Hot surfaces (i.e. the motor) may ignite ammable or combustible items and cause a re or explosion, which can result in serious bodily injury. Keep the mower a safe distance away from ammable or combustible items until surfaces that are hot have completely cooled. Do not store the mower near ammable or combustible items. A damaged blade or worn blade nut may break o the mower assembly and cause serious injury. Replace the damaged blade or blade nut before using the mower.

1. Avoid dangerous conditions – Do not use the mower in

the rain or when the grass is damp or wet.

2. Keep children, bystanders and pets away – Always

keep children and spectators a safe distance away from the mower during operation and as the machine cools.

3. Dress properly – Always wear personal safety gear

(i.e. glasses, rubber gloves, protective footwear and dust masks) and proper clothing when using the mower. Loose clothing, long hair or jewelry may get caught in the moving parts.

4. Use the right appliance – Do not use the lawn

mower for any applications other than those for which it was intended.

5. Do not force the lawn mower – It will perform better with

less likelihood of personal or mechanical injury if it is used at the rate for which it was designed.

6. Do not overreach – Keep proper footing and balance at

7. Stay alert – Always be alert and watch what you are

doing. Use common sense. Do not operate the lawn mower when you are tired or under the inuence of alcohol or drugs.

8. Disconnect the lawn mower – Turn OFF and remove the

batteries and the safety key when the mower is not in use, before servicing it, when changing accessories and when performing any other maintenance task.

9. Store idle lawn mower indoors – When not in use, the

lawn mower should be stored indoors in a dry, locked place out of the reach of children.

10. Maintain the lawn mower with care – Keep cutting

edges sharp and clean for best and safest performance.

11. Use personal protective equipment. Always wear eye

protection – Protective equipment such as safety glasses, a dusk mask, non-skid safety shoes, a hard hat, and hearing protection, when used for appropriate conditions, will reduce the possibility of personal injuries.

12. Avoid unintentional starting – Ensure the On/O buttons

are not pressed before insert the batteries or the safety key, or before picking up or carrying the tool. Carrying power tools with your nger on the switch or charging power tools with the switch ON can lead to accidents.

13. Remove any adjusting key or wrench before starting

the power tool – A wrench or a key left attached to a rotating part of the power tool may result in personal injury.2

14. Keep cutting blade sharp and clean – Properly

maintained cutting blades with sharp edges are less likely to bind and are easier to control.

15. Keep all parts of the body away from the cutting blade

– Do not remove cut material or hold material to be cut when blade is moving. Make sure the switch is o when clearing jammed material. A moment of inattention while operating the product may result in serious personal injury.

16. If the lawn mower strikes a foreign object, follow

i) Stop the lawn mower by releasing the On/O buttons.

ii) Remove the batteries and the safety key.

iii) Inspect for damage.

iv) Repair any damage before restarting and operating

other genuine parts.

18. Keep guards in place and in proper working order.

Electrical Safety mWARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury.

1. Prevent unintentional starting. Ensure the switches

are in the o-position before connecting to battery packs, picking up or carrying the appliance. Carrying the appliance with your nger on the switches or energizing appliance that have the switches on invites accidents.

2. Disconnect the battery packs from the appliance before

making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

3. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

4. Use appliances only with specically designated battery

packs. Use of any other battery packs may create a risk of injury and re.

5. When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

6. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

7. Do not use a battery pack or appliance that is damaged

or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

8. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 265°F (130°C) may cause explosion.

9. Follow all charging instructions and do not charge the

battery packs or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the batteries and increase the risk of re.

10. Have servicing performed by a qualied repair person

using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the appliance or the

battery packs except as indicated in the instructions for use and care. Battery + Charger Safety Instructions NOTE: This unit is tool only. The batteries and the charger are not included. They must be purchased separately. Model 24V-X2-16LM-CT is compatible with the iON+ 24V System batteries and chargers. See page 18 for more information. We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage. IMPORTANT! Analyses conrm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the lawn mower and cause it to malfunction, which can lead to serious personal injury. mCAUTION! To reduce the risk of injury, charge the iON+ 24V lithium-ion battery packs only in the designated iON+ 24V lithium-ion charger. Other types of chargers present risk of re, personal injury and damage. Do not wire the battery packs to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery packs.3

• Avoid dangerous environments – Do not charge the battery packs in rain, snow or in damp or wet locations. Do not use the battery packs or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials) because sparks may be generated when inserting or removing the battery packs, which could lead to a re.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near a charging battery packs. Vented gases may explode. NOTE: The safe temperature range for the batteries are 41°F (5°C) to 104°F (40.5°C). Do not charge the batteries outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of re and electric shock. If an extension cord must be used, plug the charger into a properly wired 18 AWG or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to ow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery packs – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery packs – Do not use the battery packs or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the batteries or charger are damaged, please contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery uids, wash the aected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as paper clips, coins, keys, screws, nails and other metallic objects. A short-circuited battery pack poses a risk of re and severe personal injury.

• Store your battery packs and charger in a cool, dry place – Do not store the battery packs or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer. Protection from environmental inuences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

4. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41°F – 105ºF (5°C – 40.5°C).

5. Do not keep the battery charger in places where the

temperature is liable to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

6. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery packs in a cool, dry place at a temperature of 77°F (25°C). Protect the battery packs, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).

8. Prevent the lithium-ion battery packs from freezing.

Battery packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.4 Information about the batteries

1. For optimum battery performance, avoid low discharge

cycles by charging the battery packs frequently.

2. Store the battery packs in a cool place, ideally at

77°F (25°C) and charged to at least 40%.

3. Lithium-ion batteries are subject to a natural aging

process. The battery packs must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in aged battery packs are no longer capable of meeting the high power requirements needed for the proper operation of your cordless lawn mower, and therefore pose a safety risk.

4. Do not throw battery packs into an open re as this poses

a risk of explosion.

5. Do not ignite the battery packs or expose them to re.

6. Do not exhaustively discharge batteries.

Exhaustive discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the batteries falls noticeably or the electronic protection system triggers. Place the battery packs in long-term storage only after they have been fully charged.

7. Protect batteries and the tool from overloads.

Overloads will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.

8. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than one meter or those that have been exposed to violent shocks, even if the housing of the battery packs appear to be undamaged. The battery cells inside the battery may have suered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

9. If the battery packs suer overloading and overheating,

the integrated protective cuto will switch o the equipment for safety reasons. If this situation happens, stop the tool and let the batteries cool down for a few minutes before restarting.

10. Use only original battery packs. The use of other batteries

poses a re risk and may result in injuries or an explosion. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualied technician at an authorized Snow Joe

dealer or call the Snow Joe

the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodied plugs and matching outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery packs and the cordless

tool out of the reach of children.

5. During periods of heavy use, the battery packs will

become warm. Allow the battery packs to cool to room temperature before inserting them into the charger to recharge.

6. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of charged or partially charged battery packs will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

7. Never use or charge batteries if you suspect that it has

been more than 12 months since the last time they were charged. There is a high probability that the battery packs have already suered dangerous damage (exhaustive discharge).

8. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a re.

9. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have suered dangerous damage.

10. Do not use batteries that have suered curvature or

deformation during the charging process or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.)

11. Never fully discharge the battery packs (maximum

recommended depth of discharge is 80%). A complete discharge of the battery packs will lead to premature aging of the battery cells.5 IMPORTANT! Safety Instructions for Walk-Behind Mowers General Operation

• Read, understand and follow all instructions on the machine and in the manual(s) before starting.

• Do not put hands or feet near or under the machine. Always stay clear of the discharge opening.

• Only responsible adults who are familiar with the instructions should be allowed to operate this machine.

• Clear the mowing area of foreign objects such as rocks, wire, toys and other miscellaneous articles, which could be picked up and thrown by the blade. Stay behind the handle when the engine (motor) is running.

• Make sure that the mowing area is clear of bystanders before starting the machine. Stop the machine if anyone enters the area.

• Do not operate the machine barefooted or while wearing sandals. Always wear substantial footwear.

• Always look down and behind before and while moving backward with the mower.

• Never direct discharged material toward anyone. Avoid discharging material against a wall or other obstruction.

• Do not operate the machine without the entire grass catcher, rear guard or other safety protective devices in place and in proper working order.

• Never leave a running machine unattended.

• Stop the engine (motor) and wait until the blade comes to a complete stop before cleaning the machine, removing the grass catcher or other maintenance.

• Operate the machine only in daylight or in good articial light.

• Do not operate the machine when you are tired or under the inuence of alcohol or drugs.

• Never operate the mower in wet grass. Always be sure of your footing; walk, never run, with the mower.

• If the machine should start to vibrate abnormally, stop the engine (motor) and immediately check the machine to ascertain the cause. Vibration is generally a signal of trouble.

• Keep the blade sharp.

• Keep hands and feet away from the cutting area.

• Always wear eye protection when operating the machine.

• Objects struck by the lawn mower blade can cause severe injuries. The mowing area should always be carefully examined and cleared of all objects prior to each mowing.

• Follow instructions for lubricating and changing accessories.

• Inspect lawn mower cord (interconnection cord) periodically and if damaged, have it repaired by an authorized service facility. Keep handles dry, clean and free from oil and grease. Slope Operation Slopes are major factors related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never mow slopes following an up and down traverse. Exercise extreme caution when changing direction on a slope.

• Watch for holes, ruts, bumps, rocks or other hidden objects. These may cause an unexpected slip or fall.

• Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.

• Do not mow near drop os, ditches or embankments. You could lose your footing or balance. Children Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.

• Stay alert and turn the mower o if a child enters the area.

• Never let children operate the machine.

• Use extra care when approaching blind corners, shrubs, trees or other objects that may block your view of a child. Service

• Stop the machine and remove the batteries before servicing, cleaning, or removing grass from the lawn mower.

• Keep all nuts and bolts tight.

• Never tamper with safety devices. Regularly check to ensure these devices are in place and in proper working order.

• Keep the mower free from grass, leaves or other debris buildup.

• If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine (motor) running. Always remove the batteries before adjusting, cleaning or repairing.6

• Check the grass bag components and the discharge guard frequently and replace with manufacturer’s recommended parts when necessary.

• Mower blade is sharp. Wrap the blade or wear gloves, and use extra caution when servicing it.

• Maintain or replace safety and instruction labels, as necessary.

• If your power tool requires service, contact an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Only identical replacement parts should be utilized for repairs. This will ensure that the safety of the power tool is maintained.

• If the battery charger cable is damaged, it must be immediately replaced to avoid a hazard. Contact the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.7 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. To reduce the risk of injury, user must read instruction manual. Safety Alert. Caution. Slip on slope hazard – Use extra caution when mowing on slopes to prevent slip and fall accidents. Severing of toes or ngers by rotary mower blade. Thrown objects and rotating blade can cause severe injury. Wear eye and hearing protection. For protection against injury, wear ear defenders and safety goggles. Keep bystanders and children a safe distance away. DANGER! Rotating blades. Keep hands and feet away. Symbols SymbolsDescriptions Descriptions WARNING! Do not expose or operate the unit in rain or wet conditions. Keep dry. Wear protective gloves and non-slip footwear when using the machine and handling debris. Keep bystanders a safe distance away from the work area. Blade continue to rotate after machine is switched o. WARNING! Always turn the machine OFF and remove the batteries and safety key before conducting inspection, cleaning and maintenance. Indoor use only. Only use battery charger indoors. Look behind when backing up with the lawn mower. Rotating blade, keep hands and feet away from the opening while the machine is running.8 Know Your Cordless Lawn Mower Read the owner’s manual and safety instructions carefully before operating the mower. Compare the illustration below to the mower in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

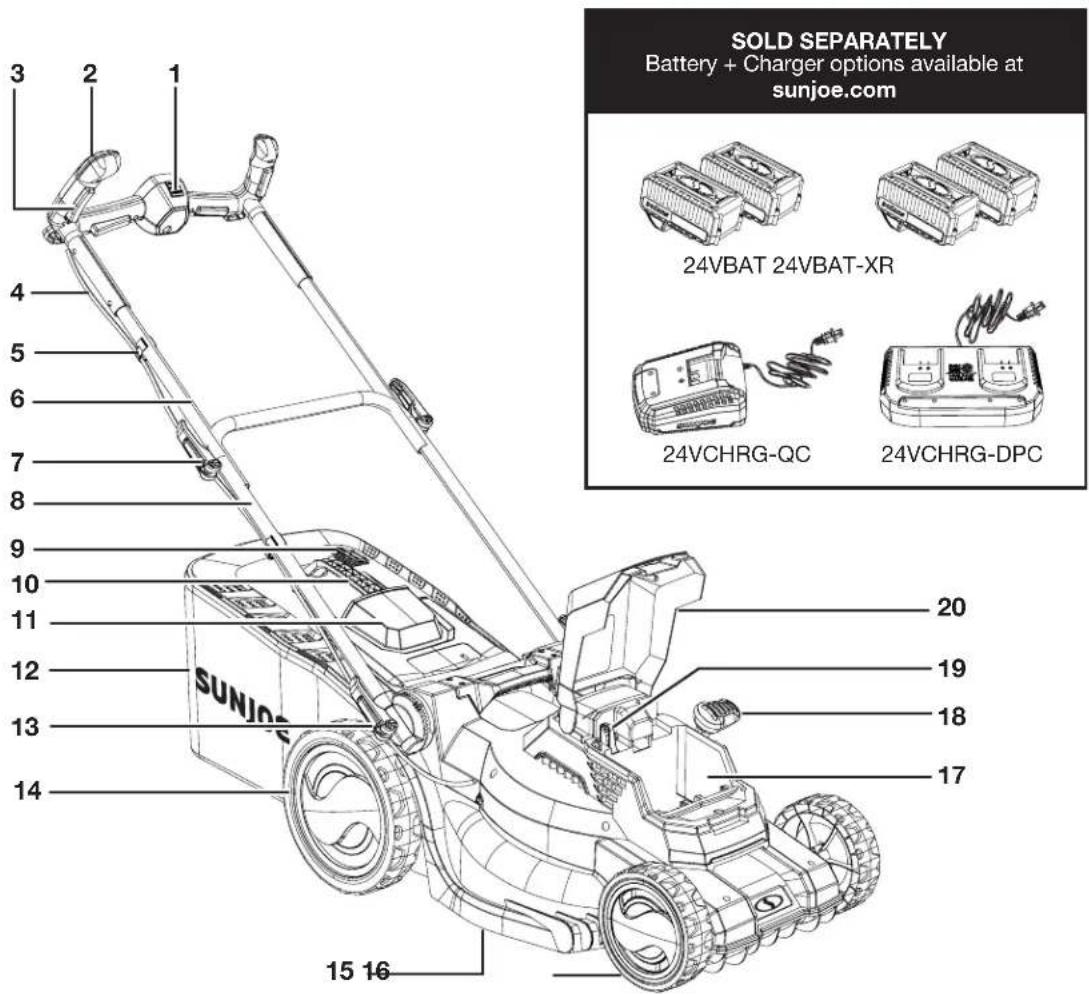

17. Battery compartment

20. Battery compartment cover

• SOLD SEPARATELY Battery + Charger options available at sunjoe.com 24VCHRG-DPC 24VCHRG-QC 24VBAT 24VBAT-XR9 Technical Data Motor p. 800
• W Brushless Battery Voltage Max* p. 48
• V D.C. (2 x 24V) Cutting Width Max p. 16
• in. (40.6 cm) Cutting Height p. 1
• .4 in. to 3 in. (35 mm to 75 mm) Grass Bag Capacity p. 12
• Gal (45.4 L) No Load Speed p. 3300
• rpm Net Weight .4 lbs (12 kg) p. 26

• Generates 48V max with two 24V lithium-ion batteries. Initial no-load voltage, per fully charged battery, peaks at 24V. Nominal voltage under typical load is 21.6V. Unpacking Carton Contents

• Cordless lawn mower + lower handle frame

• Safety key (in the key slot)

• Handle latches, bolts and washers (2)

• Manual with registration card

1. Carefully remove the lawn mower and check to see that all

of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless lawn mower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! Battery Pack Operation The equipment is powered by two lithium-ion batteries. The battery packs are completely sealed and maintenance free. mWARNING! The cordless lawn mower can only be powered by both of the batteries together. One battery cannot provide sucient power to the tool. Make sure to use two batteries of the same voltage and the same capacity. Using the tool with batteries of dierent capacity will cause damage to the batteries. mWARNING! Before rst use, the batteries require 1 hr 50 min charge time to be fully charged. When the batteries are at low capacity, recharge for 1 hr 50 min again before resuming operation. Battery Charge Level Indicator The battery packs are equipped with a push button for checking the charge level. Simply press the push button to read o the battery charge level from the LEDs of the battery indicator:

• All 3 level monitoring LEDs are lit: Battery charge level is high.

• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Stop work as soon as possible.

• 1 level monitoring LED is lit: Battery is at. Stop work IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. NOTE: If the charge level button does not appear to be working, insert the batteries into the charger and charge as needed. NOTE: Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. In order to operate this cordless lawn mower you will need two batteries and one charger from the iON+ 24V System. For optimal performance of this unit, it is recommended to use the 4.0 Ah batteriers (24VBAT) or greater. See page 18 for battery and charger options and specications, or for more information visit sunjoe.com. TOOL ONLY

BATTERY + CHARGER SOLD SEPARATELY

Charge level button The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity Light IndicatorsLights10 Charger Operation mWARNING! Charge only iON+ 24V lithium-ion battery packs with their compatible iON+ 24V lithium-ion charger. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to ow into the charger's AC/DC plug. When to Charge the iON+ 24V Lithium-iON Battery NOTE: The iON+ 24V lithium-iON battery packs do not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery packs before charging them again.

• Use the battery indicator lights to determine when to charge your iON+ 24V lithium-iON battery packs.

• You can "top-o" your battery packs' charge before starting a big job or after a long day of use. Charging the Batteries

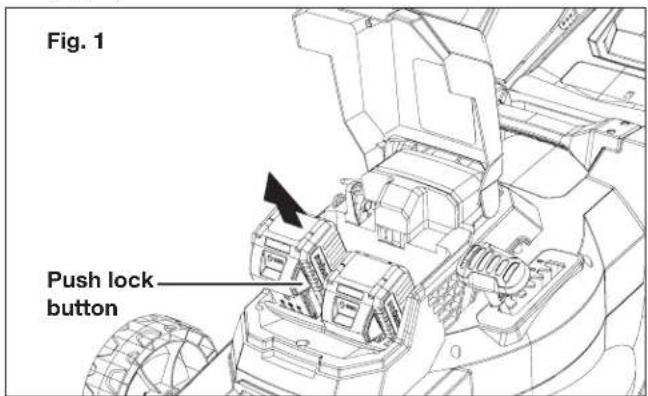

1. Open the battery compartment cover to expose the

battery packs inside. Press the push lock buttons on the batteries to pull the battery packs out of the equipment (Fig. 1).

2. Depending on your Snow Joe

charger model, how to recharge your lithium-ion batteries will vary. You may either insert your 24-volt batteries into the 24VCHRG-QC Quick Charger (sold separately) or the 24VCHRG-DPC Dual Port Charger (sold separately) (Figs. 2 – 3).

3. The battery indicator LEDs will illuminate one by one

during the charging process. Unplug the charger immediately when the 3 LEDs are all illuminated.

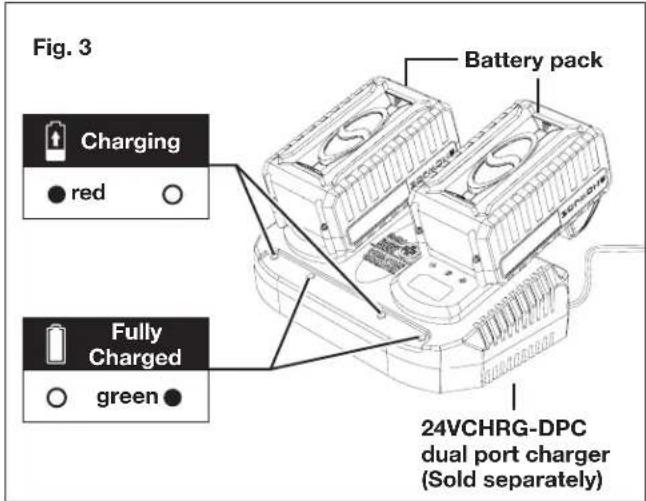

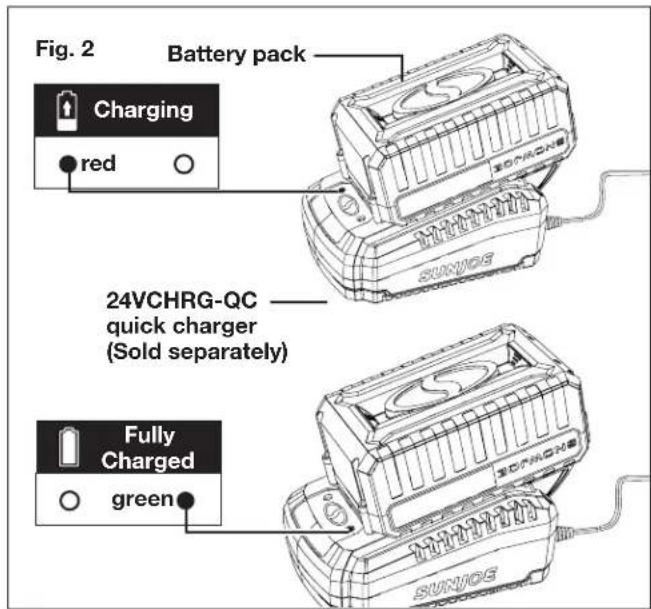

4. The 24VCHRG-QC Quick Charger (sold separately) and

the 24VCHRG-DPC Dual Port Charger (sold separately) are also equipped with additional charging indicating lights which will indicate the charging status (Figs. 2 – 3). mCAUTION! FIRE HAZARD. When removing the batteries from the charger, be sure to unplug the charger from the outlet rst, then remove the batteries from the charger. In order to operate this cordless lawn mower you will need two batteries and one charger from the iON+ 24V System. For optimal performance of this unit, it is recommended to use the 4.0 Ah batteriers (24VBAT) or greater. See page 18 for battery and charger options and specications, or for more information visit sunjoe.com. TOOL ONLY

BATTERY + CHARGER SOLD SEPARATELY

Fig. 1 Push lock button Fig. 2 Battery pack 24VCHRG-QC quick charger (Sold separately) red Charging green Fully Charged Fig. 3 Battery pack 24VCHRG-DPC dual port charger (Sold separately) red Charging green Fully Charged11 mWARNING! This charger does not automatically turn o when the batteries are fully charged. Please take care not to leave the batteries in the charger. Switch o or unplug the charger at the mains when charging is complete.

5. Timely recharging of the batteries will help prolong the

batteries' life. You must recharge the battery packs when you notice a drop in the equipment's power. IMPORTANT! Never allow the battery packs to become fully discharged as this will cause irreversible damage to the batteries.

6. When charging is complete, remove the batteries from

the charger by pulling the push lock button and sliding the batteries backward to unlock it from the charger. Charging a Hot or Cold Battery Pack The green indicator lights on the charger base indicates that the battery packs' temperatures are outside the charging range. Once the packs are within the acceptable range, normal charging will take place and the red light will be continuous. Hot or cold battery packs may take longer to charge. Assembly mWARNING! Do not insert the batteries until assembly is complete. Failure to comply could result in accidental starting and serious personal injury. mWARNING! Before performing any maintenance, make sure the batteries and the safety key are removed from the unit. Failure to heed this warning could result in serious personal injury. mWARNING! The product must be fully assembled before operation. Do not use a product that is only partially assembled or assembled with damaged parts. NOTE: Before using the mower, follow these instructions to assemble the handle and grass bag. Handle Assembly

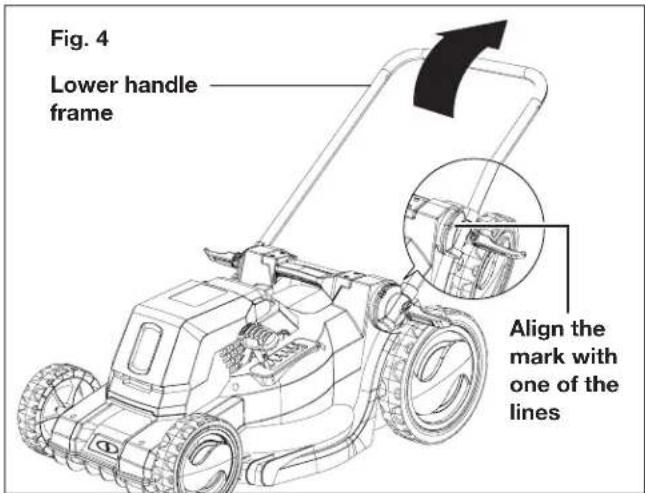

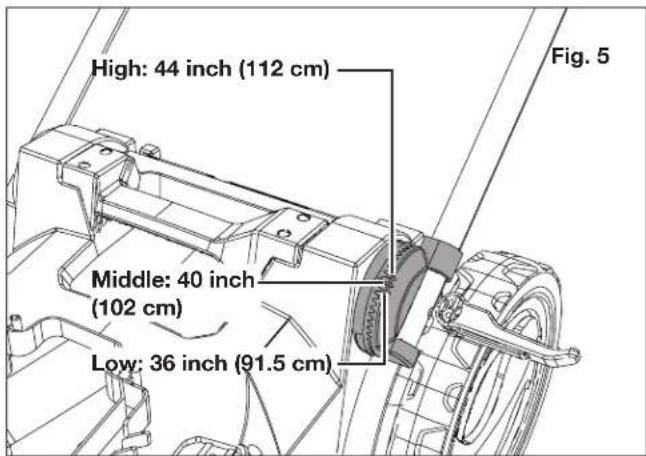

1. The unit arrives with the lower handle in the storage

position and the upper handle detached. Lift the lower handle to the desired height by aligning the arrow on the mower body with one of the 3 lines on the latch wheel, as show (Fig. 4). NOTE: The lawn mower is equipped with 3 handle heights, as shown below (Fig. 5).

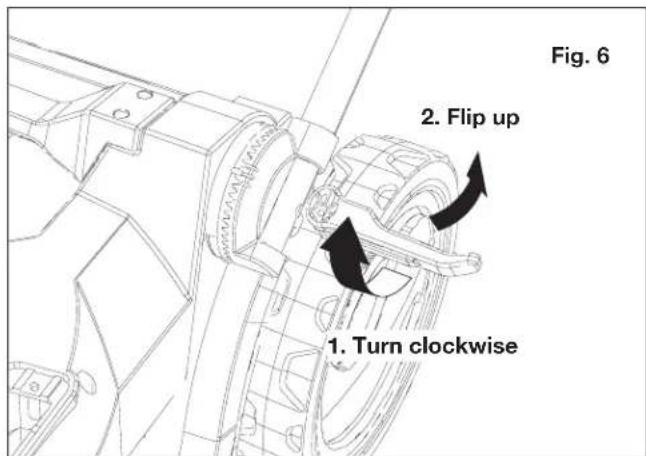

2. When the lower handle frame is set in the desired position,

turn the latch clockwise and ip it up to lock the lower handle frame in position (Fig. 6). Fig. 4 Align the mark with one of the lines Lower handle frame Fig. 5 High: 44 inch (112 cm) Middle: 40 inch (102 cm) Low: 36 inch (91.5 cm) Fig. 6

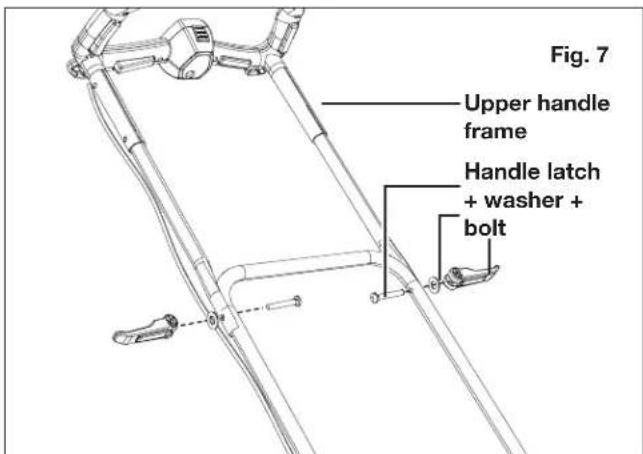

Insert the provided bolts into the aligned holes on the frames and secure with the washers and the latches (Fig. 7). Screw and ip up the latches to lock the handle frames in position.

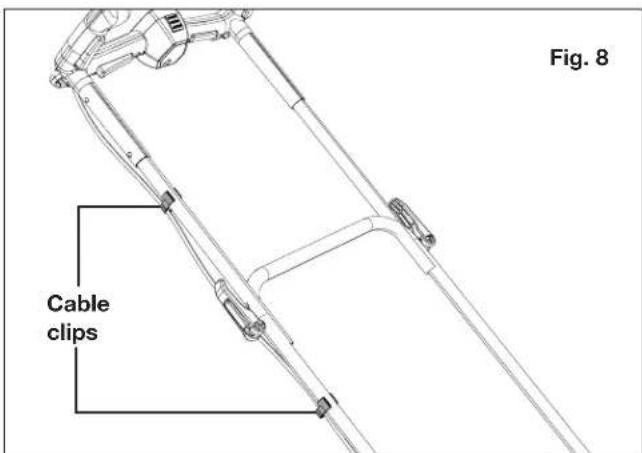

4. Clip the cable clips on the handle to secure the cable

(Fig. 8). Grass Collection Bag Fitting

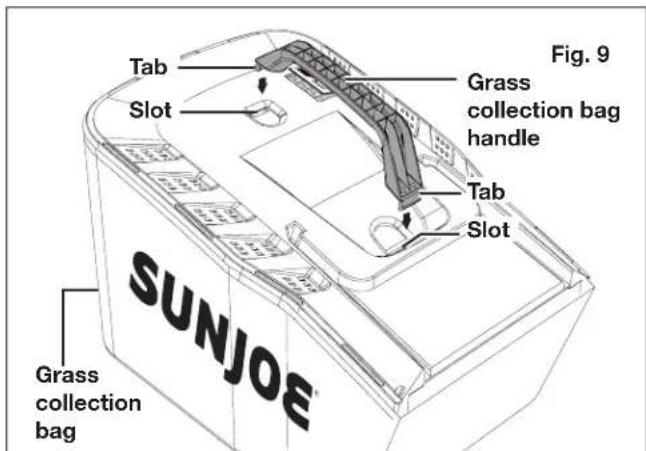

1. Fit the grass collection bag handle on the grass collection

bag by inserting the two tabs on the handle into the slots on the bag, and pressing rmly until the handle clicks in (Fig. 9).

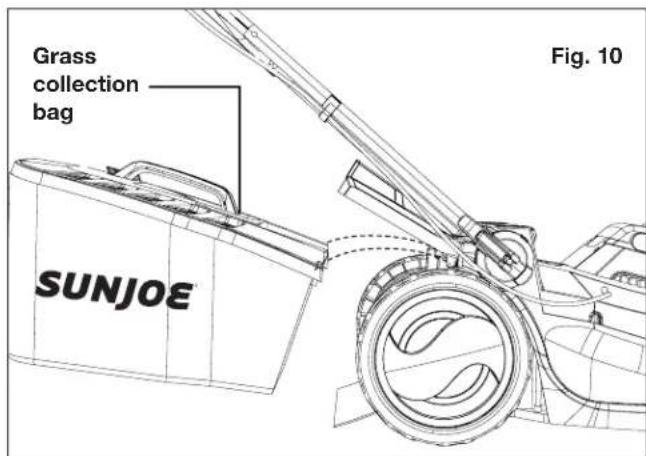

2. With the ejector ap lifted up, hold the grass collection

bag by the handle and hook it in from above onto the hooks on both sides (Fig. 10).

3. Release the ejector ap so that it rests on the grass bag.

Operation This lawn mower is intended for private residential use to cut grass in small lawns and gardens. This lawn mower is not intended to cut grass in public parks, playing elds, farms or forests. Do not use this lawn mower for any application other than that for which it is intended. Adjusting the Cutting Height This cordless lawn mower is equipped with a 6-position height adjustment lever to tailor grass cutting heights from 1.4 in. to 3 in. (35 mm to 75 mm). To change the cutting height of the grass, follow the instructions below. mWARNING! Before making these adjustments, remove the batteries and the safety key from the lawn mower and wait until the rotating blade has come to a complete standstill.

1. Power o the lawn mower and remove the batteries and

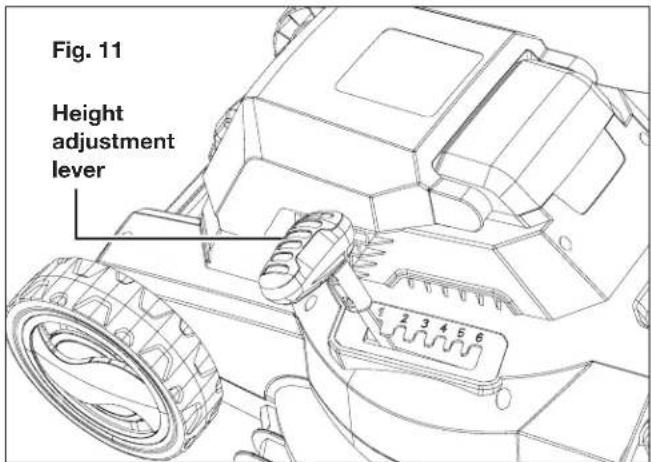

2. Push the cutting height adjustment lever to the outside of

the original slot (Fig. 11).

3. Insert the lever into the desired slot.

6-Position Height Adjustment (From front to rear): (1) 1.4 in. (35 mm) (2) 1.7 in. (43 mm) (3) 2.0 in. (53 mm) (4) 2.4 in. (60 mm) (5) 2.8 in. (70 mm) (6) 3.0 in. (75 mm)

4. Reinsert the batteries and the safety key to the lawn

mower and resume normal use. Starting + Stopping mWARNING! Before switching on the mower, make sure that it is not in contact with any foreign objects. Keep your hands and feet a safe distance away from the rotating mower blade and the ejector opening. Failure to comply with these warnings can result in severe personal injury. IMPORTANT: Do not start the mower in tall grass.

1. Make sure the unit's On/O buttons are not squeezed.

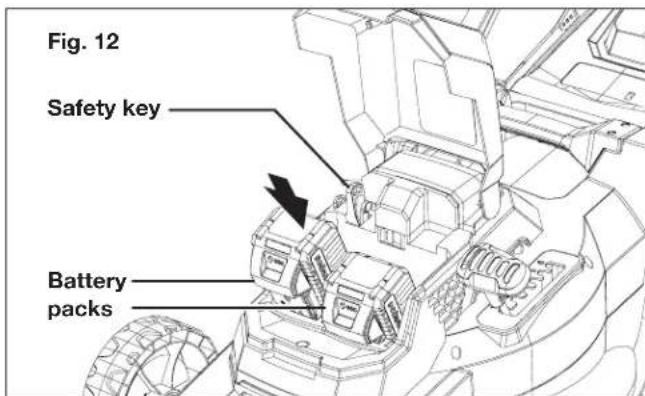

Insert the batteries and the safety key in their slots (Fig. 12). Close the battery compartment cover.

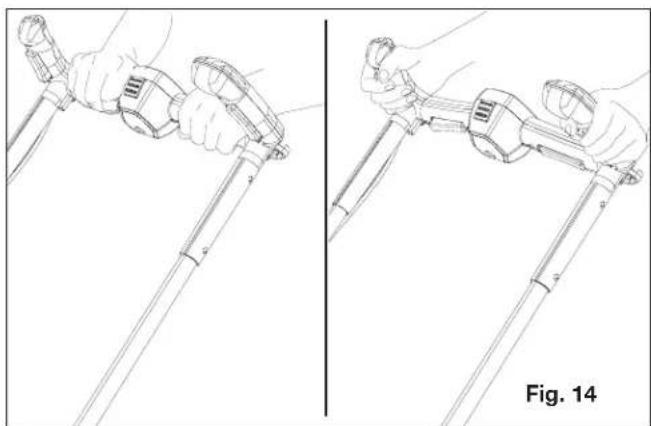

2. To start the machine, press and hold the safety lock

button while squeeze one of the On/O buttons. Once the machine powers on, release the safety lock button and proceed with operation (Fig. 13). NOTE: To achieve the most comfort during operation, the lawn mower comes with 2 sets of On/O switch buttons (totally 4), any one of them can trigger the mower. Choose the button based on your desired position to operate the mower (Fig. 14).

3. To stop the mower, release the On/O switch buttons.

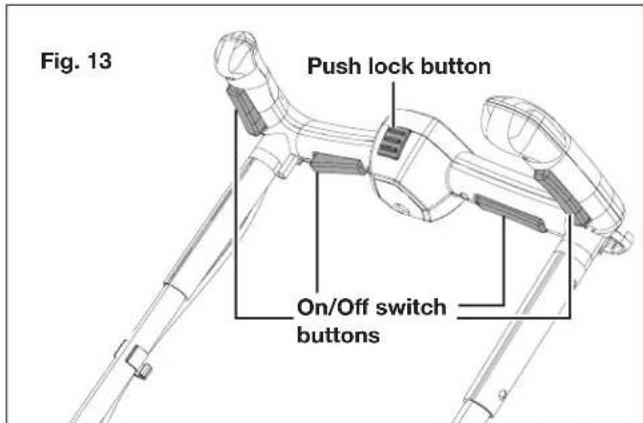

Fig. 11 Height adjustment lever Fig. 12 Battery packs Safety key Fig. 13 Push lock button On/O switch buttons Fig. 1414 mWARNING! The mower blade will continue to rotate for a brief period after the unit has been switched o. Do not tilt or carry the unit while the motor is still running and do not touch the blade while it is still rotating. Failure to comply could result in severe personal injury. Grass Bag Filling Level Indicator

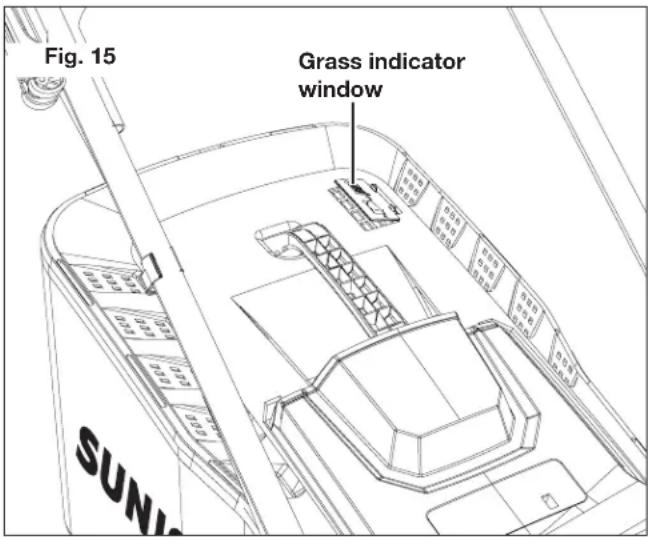

1. The grass bag is equipped with a lling level indicator

window that is opened by the airow that the lawn mower generates during operation (Fig. 15).

2. If the ap closes during mowing, this indicates that the

grass bag is full and must be emptied. NOTE: To ensure that the lling level indicator functions properly, keep the holes under the ap clean and permeable. Mowing Tips mWARNING! Inspect the area prior to mowing and remove all the stones, sticks, wires and other foreign objects that could be picked up and thrown by the rotating blade. Failure to comply not only will damage the mower blade, but can also lead to serious personal injury.

• Be sure to check the mowing blade periodically for signs of wear and replace as needed, as described in the maintenance section. NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting tall grass.

• When cutting thick grass, reduce your walking speed in order to allow for a more eective cut. For a healthy lawn, always cut o one-third or less from the total length of the grass. The average lawn should be approximately 1.5 in. to 2 in. (3.8 cm to 5 cm) long during cool months, and more than 2 in. (5 cm) long during hot months. If there is growth, the lawn should be cut in the fall.

• The lawn will look better if it is always cut to the same height and in alternate directions.

• When crossing any gravelled surfaces, release the On/O buttons to turn o the mower. The stones can be picked up and thrown by the rotating blade.

• Set the mower to the highest cutting height when mowing on uneven ground or in tall weeds. mWARNING! If you strike a foreign object, stop the motor and remove the safety key and batteries. Thoroughly inspect the mower and repair any damage before resuming work.

• IMPORTANT! Never open the ejector ap when the grass collection bag has been detached (to be emptied) and the motor is still running. A rotating blade can cause serious injuries!

• Always carefully fasten the ejector ap and grass collection bag. Switch o the motor before emptying the grass collection bag. Always ensure that a safe distance (provided by the length of the long handles) is maintained between the user and the mower housing. Be especially careful when mowing and changing direction on slopes and inclines.

• Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always mow across an incline (not up and down).

• For safety reasons, the lawn mower may not be used to mow inclines with gradients exceeding 15 degrees.

• Use special caution when backing up and pulling the lawn mower towards you as such maneuvering of the machine poses a tripping hazard.

• For eective mulching, do not cut wet grass; it tends to stick to the underside of the deck, preventing the proper mulching of grass clippings. The best time to mow grass is in the late afternoon, when the grass is dry and the newly cut area will not be exposed to direct sunlight.

• For the best mulching performance, set the cutting height to remove approximately one third of the grass length, ideally no more than 1.5 in. at one time. If the grass is overgrown, it may be necessary to increase the cut height to make it easier to mow and to prevent overloading the motor. Slow your cutting pace in tall or thick grass conditions. For mulching extremely thick or tall grass, it is advisable to rst cut at a high cut-height setting, and then re-cut to the nal cut height. Otherwise, make narrower cuts and mow slowly. ALWAYS MAKE SURE THAT THE BLADE IS SHARP. Maintenance + Care mWARNING! Before cleaning, repairing or inspecting the mower, stop the machine, remove the batteries and the safety key. Verify that all moving parts have come to a complete stop. General

• Always keep the mower clean and free of grass, dirt or other debris.

• Keep the handles dry, clean and free of oil and grease.

• After each cutting session, remove accumulated grass clippings and debris using either a dry cloth or handbrush.

Fig. 15 Grass indicator window15 You may also clean the equipment with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents as they may damage the equipment's plastic components. Make sure that no water penetrates the equipment's interior as intake of water can destroy the switch mechanism and the electric motor.

• Do not clean the lawn mower with running water, particularly with high-pressure water.

• Check all nuts, bolts and screws for proper tightness before each use.

• Frequently inspect the grass collection bag assembly for signs of wear and replace immediately with a genuine part if damage is found.

• Replace excessively worn or damaged parts immediately.

• To maximize your mower's longevity, all screwed parts, including the wheels and axles, should be cleaned and lubricated. There are no parts inside the equipment which require additional maintenance or lubrication. Blade Maintenance IMPORTANT: The mower blade is sharp and can cause severe personal injury if handled incorrectly. Wrap the blade or wear protective gloves, and use extra caution when handling. The steel blade is designed to provide a ne cut in long or tough grass. Deterioration in the quality of cut indicates blade wear or damage. Follow these steps to determine if the blade needs to be resharpened or replaced:

1. Disconnect the power supply to the mower by removing

the batteries and the safety key.

2. Turn the mower on its side to expose the underside of the

a. If the blade is blunt or has minor wear, then resharpen. b. If the blade shows signs of major wear or damage (i.e. gouged, bent), replace. mWARNING! An excessively vibrating mower indicates that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced. Please follow the proper maintenance procedures for blade care. Blade Replacement IMPORTANT: Only use original replacement parts specied for this mower. The use of parts that do not meet the original equipment specications may lead to improper performance of the lawn mower, may compromise operator safety.

1. Remove the batteries and the safety key from the mower.

2. Turn the mower on its side to expose the underside of the

3. Use a cloth to grip the blade or wear heavy-duty gloves.

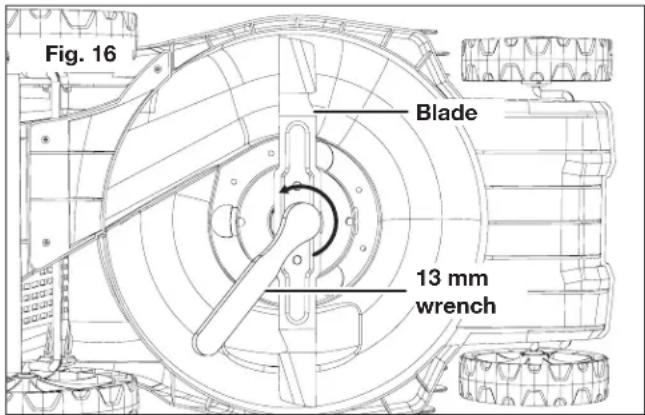

4. Using a 13 mm wrench (not provided), remove the

blade nut securing the blade by turning the nut counterclockwise, then carefully remove the blade (Figs. 16 to 17).

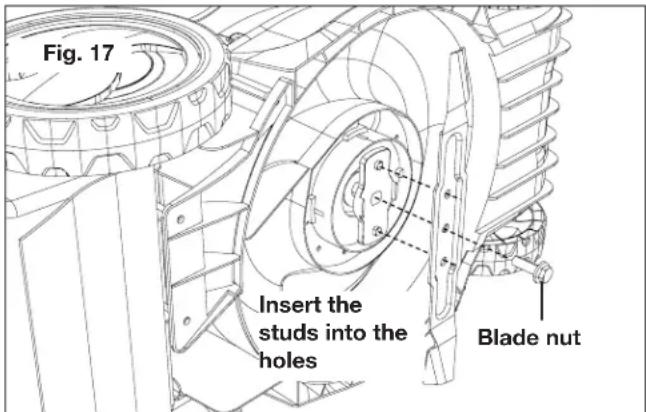

5. Fit the new blade on the same position by inserting the

2 small studs on the motor inside the holes of the blade, and secure with the original blade nut. Storage Follow the steps below to prepare the lawn mower for storage:

1. Remove the batteries and the safety key from the

battery compartment.

2. Remove the grass collection bag. Engage the height

adjustment lever in the lowest cutting height slot.

3. Clean the mower with a damp cloth or hand brush.

4. Inspect the mower carefully for worn, loose or damaged

parts. Check connections and screws and tighten if necessary. Pay special attention to the mower blade and replace/sharpen if it shows signs of wear. Refer to the Maintenance and Care section.

5. Store the mower indoors in a dry, clean and cool area

out of the reach of children. Do not store the unit next to corrosive materials, such as fertilizer and rock salt.

6. Do not cover the lawn mower with a solid plastic sheet.

Plastic coverings trap moisture around the mower, which can damage the unit. Fig. 16 Blade 13 mm wrench Fig. 17 Blade nut Insert the studs into the holes16

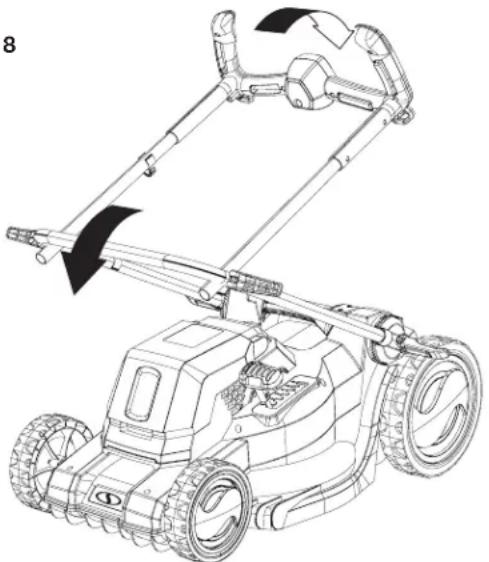

7. The handle on your lawn mower can be completely folded

for compact storage. Start by ip down all of the handle latches and fold down the upper handle frame. Then lower the lower handle frame completely (Fig. 18). Disposal Recycling + Disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards or keep it for long-term storage. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling regulations. Battery Caution + Disposal Always dispose of your battery packs according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual

for specic information.

2. Install only new batteries of the same type in your product

3. Failure to insert batteries in the correct polarity, as

indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Do not mix Alkaline, Standard (Carbon-Zinc) or

Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.

6. Do not dispose of batteries in re.

7. Batteries should be recycled or disposed of as per state

24V-X2-16LM-CT cordless lawn mower requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model + Serial Numbers When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal axed to the housing or handle of your mower. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product: Model #: 24V-X2-16LM-CT Serial #: Fig. 1817 Troubleshooting

• mWARNING! Remove the batteries and the safety key before carrying out maintenance on the machine or when checking that its parts are in proper working order.

• To avoid unnecessary hassles, consult the following table before contacting a qualied repair person with any mechanical issues. Mower fails to start Mower stops while mowing The mower cannot cut grass evenly a) The safety key is not inserted. b) The batteries are at. c) The batteries are not inserted securely. d) The motor/blade control is disengaged. e) The mower deck is clogged with grass or debris. f) The grass is too tall. a) Insert the safety key. b) Charge the batteries. c) Attach the battery packs to the mower; press them until you hear a click. d) Press safety lock button rst, then the on/o switch button. e) Clean the mower deck. Make sure the blade is free to move. f) Set the mower to a high cutting height. Lift the front wheels slightly by pressing down on the handle. a) The batteries are at. b) The grass is too tall. c) The mower deck is clogged with grass or debris. d) The batteries or the mower circuit is too hot. a) Charge the batteries. b) Reset the cutting height. c) Clean the mower deck. Make sure the blade is free to move. d) Cool down the batteries and the machine. a) The lawn is rough or uneven. b) The blade is not sharp enough. a) Adjust cutting height. b) Sharpen or replace the blade. Fault Possible Cause Remedy The mower cannot mulch properly a) The mower deck is clogged with grass or debris. b) The grass is too wet. c) The grass is too tall. d) The blade is not sharp enough. a) Clean the mower deck. Make sure the blade is free to move. b) Wait until the grass is dry. c) Adjust the cutting height to the high position to mow for the rst time, and mow again at the desired height setting. d) Sharpen or replace the blade. The mower is dicult to push a) The grass is too tall to cut. b) The blade or the mower rear is dragged by heavy grass. a) Adjust cutting height higher. The mower is vibrating at high speed a) The motor shaft is bent. b) The blade is unbalanced. c) The blade nut is loose. a) Stop the motor, remove the batteries and the safety key, and inspect the damage. Contact with a qualied repair person. b) Balance the blade by grinding each cutting edge equally or replace a new one. c) Tighten the blade nut.18 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. ModelAccessories Item

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
