USER MANUAL 24V-CRLM15-RM Sun Joe

A Division of Snow Joe ^13 , LLC

CORDLESS REEL MOWER

24V MAX* | 4.0 Ah | 15-INCH

Model 24V-CRLM15-RM

Form No. SJ-24V-CRLM15-RM-680E-M-V1

THANKS FOR YOUR PURCHASE OF A REMANUFACTURED PRODUCT.

To make sure you get the most out of your product, be sure to register online at

sunjoe.com

to enjoy full product support.

OPERATOR'S MANUAL

A Division of Snow Joe ^13 , LLC

CORDLESS REEL MOWER

24V MAX* | 4.0 Ah | 15-INCH

Model 24V-CRLM15-RM

Form No. SJ-24V-CRLM15-RM-680E-M-V1

IMPORTANT! Safety Instructions

All Operators Must Read These Instructions Before Use

Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

General Safety WARNINGS!

When using this cordless reel mower, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These precautions include:

⚠ WARNING! The use of any other accessory or attachment might increase the risk of injury.

⚠ WARNING! To reduce the risk of injury, inspect the grass collection bag frequently and replace with recommended replacement if there are signs of wear or deterioration.

Before using the reel mower, take the time to familiarize yourself with the controls, especially how to stop the reel mower in an emergency. The only individuals who should use the reel mower are those who have a thorough understanding of the instructions and who know how to operate the machine. Children should never be allowed access to the reel mower.

1. Do not overreach – Keep proper footing and balance at all times.
2. Stay alert – Always stay alert and watch what you are doing. Use common sense. Do not operate the reel mower when you are tired or under the influence of alcohol or drugs. This reel mower is not designed to be used by people (including children) with limited physical, sensory or mental capacities. It should also not be used by those lacking the proper experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person on how to safely use the equipment.
3. Prevent unintentional starting – Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
4. Remove the battery - Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
5. Store idle reel mower indoors – When not in use, the reel mower should be stored indoors in a dry, locked place out of the reach of children.

6. Maintain the reel mower with care – Keep cutting edges sharp and clean for best and safest performance. Inspect the reel mower cord periodically and if damage is found have it repaired by an authorized service facility.

7. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or bums.

8. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
9. Do not expose the battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 104°F (40.5°C) may cause explosion.
10. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
11. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

IMPORTANT! Safety Instructions for Walk-Behind Mowers

General Operation

• Read, understand, and follow all instructions on the machine and in the manual(s) before starting.
• Do not put hands or feet near or under the machine. Always stay clear of the discharge opening.
• Keep guards in place and in proper working order.

• Only responsible adults who are familiar with the instructions should be allowed to operate this machine.

• Do not operate the machine when you are tired or under the influence of alcohol or drugs.

• Never operate the reel mower in wet grass. Always be sure of your footing; walk, never run, with the reel mower.
• If the machine should start to vibrate abnormally, stop the engine (motor) and immediately check the machine to ascertain the cause. Vibration is generally a signal of trouble.
• Keep blades sharp.
• Keep hands and feet away from the cutting area.
  • Always wear eye protection when operating the machine.
• Objects struck by the reel mower blade can cause severe injuries. The mowing area should always be carefully examined and cleared of all objects prior to each mowing.
• If the reel mower strikes a foreign object, follow these steps:

i) Stop the reel mower by releasing the ON/OFF switch lever.
ii) Remove the battery.
iii) Inspect for damage.
iv) Repair any damage before restarting and operating the reel mower.

Slope Operation

Slopes are major factors related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never mow slopes following an up and down traverse. Exercise extreme caution when changing direction on a slope.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. These may cause an unexpected slip or fall.

Service

• Stop the machine and disconnect the safety key and the battery before servicing, cleaning, or removing grass from the reel mower.
• Keep all nuts and bolts tight.
• Never tamper with safety devices. Regularly check to ensure these devices are in place and in proper working order.
• Keep the reel mower free from grass, leaves, or other debris buildup.
• Never make any adjustments or repairs with the engine (motor) running. Always remove the battery before adjusting, cleaning, or repairing.
• Check the grass bag components frequently and replace with manufacturer's recommended parts when necessary
• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Maintain or replace safety and instruction labels, as necessary.
• If your power tool requires service, contact an authorized Snow Joe ^3 + Sun Joe ^3 dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563). Only identical replacement parts should be utilized for repairs. This will ensure that the safety of the power tool is maintained.
• If the battery charger cable is damaged, it must be immediately replaced to avoid a hazard. Contact the Snow Joe ^xx + Sun Joe ^xx customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Battery & Charger Safety Instructions

We pay a great deal of attention to the design of every battery

⚠ WARNING! Use only approved replacement batteries; other batteries may damage the cordless reel mower and cause it to malfunction, which can lead to serious personal injury.
⚠ WARNING! Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. Have your battery pack serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the battery pack is maintained.
⚠️ CAUTION! To reduce the risk of injury, charge the iON+24V lithium-ion battery pack only in its designated iON+24V lithium-ion charger. Other types of chargers present risk of fire, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a fire.
• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open flames near a charging battery pack. Vented gases may explode.
  NOTE: The safe temperature range for the battery is 41^ F – 105^ F ( 5^ C – 40.5^ C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull

• Charger 24VCHRG-QC is rated for 120 volt AC only – The charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of fire, electric shock or personal injury.
• Unplug charger when not in use – Make sure to disconnect battery pack from unplugged charger.

⚠ WARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate the battery pack – The battery pack may explode, causing personal injury or damage. Toxic fumes and materials are created when battery pack is burned.
• Do not crush, drop or damage battery pack – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, fire or exposure to toxic battery chemicals. If the battery or charger are damaged, contact an authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery fluids, wash the affected area with soap and water and rinse with vinegar. If eyes are exposed

Information about the battery

1. The battery pack supplied with your cordless reel mower is only partially charged. The battery pack has to be charged completely before you use the tool for the first time.
2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at 77^ F ( 25^ C) and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your reel mower, and therefore pose a safety risk.
5. Do not throw battery pack into an open fire as this poses a risk of explosion.
6. Do not ignite the battery pack or expose it to fire.
7. Do not exhaustively discharge the battery. Exhaustive discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after they have been fully charged.
8. Protect the battery and the tool from overloads. Overloads will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.
9. Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of more than one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be

Information about the charger and the charging process

1. Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a different mains voltage.
2. Protect the battery charger and its cord from damage. Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualified technician at an authorized Snow Joe ^4 + Sun Joe ^5 dealer or call the Snow Joe ^6 + Sun Joe ^3 customer service center at 1-866-SNOWJOE (1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack and the cordless tool out of the reach of children.
5. Do not use the supplied battery charger to charge other cordless tools.
6. During periods of heavy use, the battery pack will become warm. Allow the battery pack to cool to room temperature before connecting it to the charger to recharge.
7. Do not overcharge the battery. Do not exceed the maximum charging times. These charging times only apply to discharged battery. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave the battery in the charger for days on end.
8. Never use or charge the battery if you suspect that it has been more than 12 months since the last time it was charged. There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).

Protection from environmental influences

1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage.
3. Do not use the cordless tool or the battery charger near vapors and flammable liquids.
4. Use the battery charger and cordless tools only in dry conditions and at an ambient temperature of 41^ F – 105^ F ( 5^ C – 40.5^ C).
5. Do not keep the battery charger in places where the temperature is liable to reach over 105^ F ( 40.5^ C). In particular, do not leave the battery charger in a car that is parked in the sunshine.
6. Protect the battery from overheating. Overloads, overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with battery that have been overheated – replace it immediately, if possible.
7. Store the charger and your cordless tool only in dry locations with an ambient temperature of 41^ F – 105^ F ( 5^ C – 40.5^ C). Store your lithium-ion battery pack in a cool, dry place at a temperature of 77^ F ( 25^ C). Protect the battery pack, charger and cordless tool from humidity and direct sunlight. Only place fully charged battery in storage (charged to at least 40%).
8. Prevent the lithium-ion battery pack from freezing. Battery pack that was stored below 32^ F ( 0^ C) for more than 60 minutes must be discarded.
9. When handling batteries, be wary of electrostatic charge. Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	DANGER! Rotating blades.Keep hands and foot away.		Keep bystanders and children a safe distance away.
	Safety Alert. Caution.To reduce the risk of injury,user must read instruction manual.		Wear eye and hearing protection.For protection against injury, wear ear defenders and safety goggles.
	WARNING! Do not expose or operate the unit in rain or wet conditions. Keep dry.		Wear protective gloves and non-slip footwear when using the machine and handling debris.
	Slip on slope hazard - Use extra caution when mowing on slopes to prevent slip and fall accidents.		Severing of toes or fingers by rotary mower blade.
	Thrown objects and rotating blade can cause severe injury.		Keep bystanders a safe distance away from the work area.

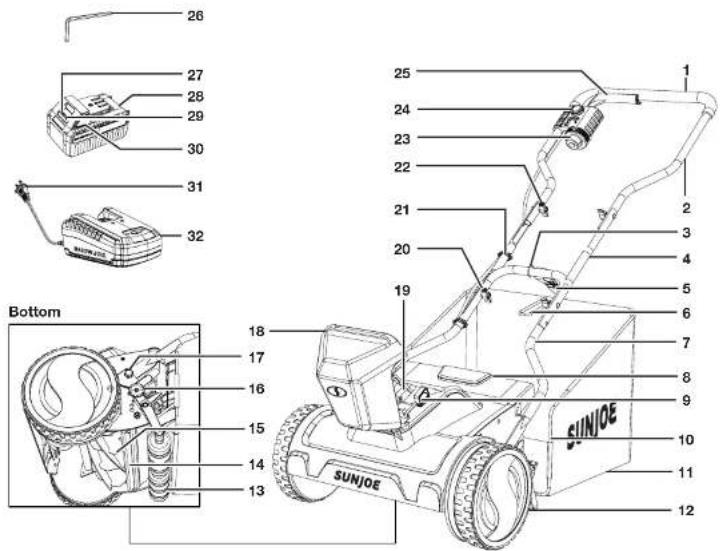

Know Your Cordless Reel Lawn Mower

Read the owner's manual and safety instructions carefully before operating the reel mower. Compare the illustration below to the reel mower in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

26 27 28 29 30 31 32 25 24 23 22 21 20 19 Bottom 18 17 16 15 14 13 SUNJOE 1 2 3 4 5 6 7 8 9 10 11 12

Technical Data

Motor 360 W

Battery Voltage Max ^* 24V D.C.

Battery Capacity 4.0 Ah

Battery Runtime Max 50 mins

cuts up to 4,910 sq. ft of grass

Charger Input 120V AC,

60 Hz, 75 W

Charger Output 26V DC, 2.2A

Charge Time Max 1 hr 50 mins

No Load Speed 1000 rpm

Rotor 5 steel blades

Cutting Width 15 in. (38 cm)

4-Position Cutting Heights ..... 0.6 in. | 1.0 in. | 1.5 in. | 2.0 in.

(15 mm | 28 mm | 39 mm | 50 mm)

Grass Collection 11.9 gal (45 L)

Bag Capacity

Net Weight 29.5 lbs (13.4 kg)

*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage

under typical load is 27.6 volts.

Unpacking

Carton Contents

• Cordless reel mower body connected with upper handle frame
• Middle handle bars (2)
• Lower handle frame
• Grass collection bag
  • Grass collection bag support rod

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless reel mower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Battery Pack Operation

The equipment is powered by a lithium-ion battery. The battery

pack is completely sealed and maintenance free.

Battery Charge Level Indicator

The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read off the battery charge level from the LEDs of the battery indicator:

• All 3 level monitoring LEDs are lit: Battery charge level is high.
• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is flat. Stop work IMMEDIATELY and charge the battery. Otherwise the battery's service life will be greatly shortened.

	Light IndicatorsLights
	Charge level button
	The battery is at 30% capacity and requires charging

To reduce the risk of electric shock, do not allow water to flow into the charger's AC/DC plug.

When to Charge the iON+ 24VBAT Lithium-iON Battery

NOTE: The iON+ 24VBAT lithium-ion battery pack does not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery pack before inserting the charger plug.

• Use the battery indicator lights to determine when to charge your ION+ 24VBAT lithium-ion battery pack.
• You can "top-off" your battery pack's charge before starting a big job or after a long day of use.

Charging the Battery

1. Open the battery compartment cover, and push the push lock buttons on the battery to pull the battery pack out from the battery compartment (Fig. 1).

Fig. 1 Battery compartment cover Battery pack SUNJOE

1. Place the battery pack into the charger by sliding the pack to lock it into position. When you insert the battery into the charger, the top right green light will go off, and the top left red light will illuminate to indicate that the battery is charging (Fig. 3).

Fig. 3 Battery pack Charging red Charger Fully Charged green

1. When the charger light turns green, the battery is fully charged (Fig. 3).

NOTE: A fully discharged pack with an internal temperature in the normal range will fully charge in 1 hr 50 mins (between 32°F/0°C and 113°F/45°C).

1. If the light indicators do not come on at all, check that the battery pack is fully seated into the bay. Remove the battery pack and reinsert. If the problem persists, contact an authorized Snow Joe ^b + Sun Joe ^b dealer or call the Snow Joe ^3 + Sun Joe ^3 customer service center at

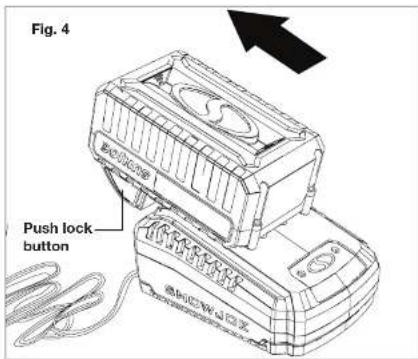

Fig. 4 Push lock button

1. Timely recharging of the battery will help prolong the battery's life. You must recharge the battery pack when you notice a drop in the equipment's power.
   IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the battery.

Charging a Hot or Cold Battery Pack

The green indicator light on the charger base indicates that the battery pack temperature is outside the charging range. Once the pack is within the acceptable range, normal charging will take place and the red light will be continuous. Hot or cold battery packs may take longer to charge.

Lithium-Ion Charging Status
	Charmer	Battery

Assembly

WARNING! Do not insert the battery and the safety key until assembly is complete. Failure to comply could result in accidental starting and serious personal injury.

⚠ WARNING! Before performing any maintenance, make sure the battery and the safety key are removed from the unit. Failure to heed this warning could result in serious personal injury.

WARNING! The product must be fully assembled before operation. Do not use a product that is only partially assembled or assembled with damaged parts.

NOTE: Before using the reel mower, follow these instructions to assemble the appliance.

Handle Assembly

1. Insert the ends of the lower handle frame into the sockets on both sides of the mower base. Lock with the lower handle knobs provided (Fig. 5).

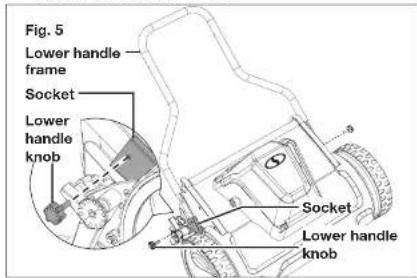

Fig. 5 Lower handle frame Socket Lower handle knob Socket Lower handle knob

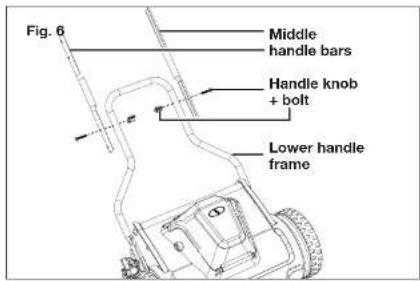

Fig. 6 Middle handle bars Handle knob + bolt Lower handle frame

1. Fit the upper handle frame on both middle handle bars, as shown, aligning the holes. Secure with the remaining two sets of handle knob and bolt (Fig. 7).

Grass Collection Bag Assembly + Fitting

The grass collecting bag prevents grass clippings being thrown across your lawn as you mow.

1. Fit the grass collection bag support rod into the tube of the grass collection bag (Fig. 9)

Fig. 9 Grass collection bag support rod SUNJOE Grass collection bag

1. Clip the protective leather profiles onto the support rod to secure the assembly (Fig. 10).

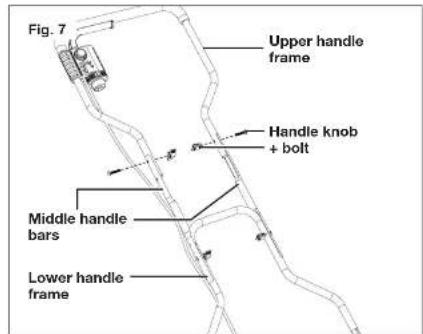

Fig. 7 Upper handle frame Handle knob + bolt Middle handle bars Lower handle frame

1. Secure the cable with the two cable clings, as shown

Fig. 10 Protective leather profiles SUNJO8

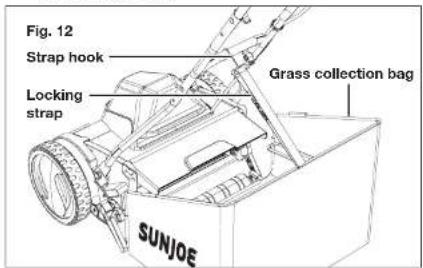

1. Hook the strap hook of the grass collection bag on the center bar on the lower handle frame (Fig. 12). Adjust the strap to an appropriate height so that the grass collection bag does not rub against the ground while mowling or transporting the unit.

Fig. 12 Strap hook Locking strap Grass collection bag SUNJOE

1. The mower can be used without the grass collection bag. When the grass collection bag is not attached, adjust the ejector flap to a suitable position to shield flying grass clippings (Fig. 13).

Fig. 13 Ejector flap

ALWAYS FOLLOW ALL SAFETY PRECAUTIONS AND RECOMMENDATIONS LISTED PREVIOUSLY IN THIS MANUAL.

1. Power off the reel mower and remove the battery and the safety key.
2. To adjust the cutting height, pull out the height adjustment knobs on both sides of the reel mower frame and insert the knobs to the desired setting (Fig. 14).

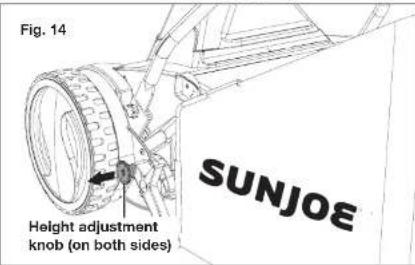

Fig. 14 Height adjustment knob (on both sides) SUNJOE

1. To adjust the reel to the highest cutting position, place the adjustment knobs through the top hole (position A) located on the sides of the reel mower frame. To adjust the reel to the lowest cutting position, place the adjustment knobs through the bottom hole (position B) located on the sides of the frame (Fig. 15).

Mechanical assembly diagram showing a wheel and gear mechanism (no text or symbols)

Fig. 16 Cutting height mark

Starting + Stopping

⚠ WARNING! Before switching on the reel mower, make sure that it is not in contact with any foreign objects. Keep your hands and feel a safe distance away from the rotating mower blades and the ejector opening. Failure to comply with these warnings can result in severe personal injury.

IMPORTANT: Do not start the reel mower in tall grass.

1. Make sure the unit's On/Off switch lever is not squeezed on. Insert the battery and the safety key in their slots (Fig. 17). Close the battery compartment cover.

Fig. 17 Battery pack Safety key Battery compartment cover

1. To stop the mower, release the On/Off switch lever.

⚠ WARNING! The mower blade will continue to rotate for a brief period after the unit has been switched off. Do not tilt or carry the unit while the motor is still running and do not touch the blade while it is still rotating. Failure to comply could result in severe personal injury.

Mowing Tips

⚠ WARNING! Inspect the area prior to mowing and remove all the stones, sticks, wires and other foreign objects that could be picked up and thrown by the rotating blade. Failure to comply not only will damage the mower blade, but can also lead to serious personal injury.

• Be sure to check the blades periodically for signs of wear and replace them at least once per year, as described in the maintenance section.
  NOTE: Sharp blades will greatly enhance the performance of the reel mower, especially when cutting tall grass.
• When cutting thick grass, reduce your walking speed in order to allow for a more effective cut and a proper discharge of the clippings. For a healthy lawn, always cut off one-third or less from the total length of the grass. The average lawn should be approximately 1.5 in. to 2 in. (3.8 cm to 5 cm) long during cool months, and more than 2 in. (5 cm) long during hot months. If there is growth, the lawn should be cut in the fall.
• The lawn will look better if it is always cut to the same height and in alternate directions.
• When crossing any gravelled surfaces, release the On/Off switch lever to turn off the mower. The stones can be picked up and thrown by the rotating blade.
• Set the mower to the highest cutting height when mowing on uneven ground or in tall weeds.

- For the best mulching performance, set the cutting height to remove approximately one third of the grass length, ideally no more than 1.5 in. at one time. If the grass is overgrown, it may be necessary to increase the cut height to make it easier to mow and to prevent overloading the motor. Slow your cutting pace in tall or thick grass conditions. For mulching extremely thick or tall grass, it is advisable to first cut at a high cut-height setting, and then re-cut to the final cut height. Otherwise, make narrower cuts and mow slowly. ALWAYS MAKE SURE THAT THE BLADE IS SHARP.

Maintenance

⚠ WARNING! Before cleaning, repairing, or inspecting the reel mower, stop the machine, disconnect the safety key and the battery. Verify that all moving parts have come to a complete stop.

General

• Always keep the reel mower clean and free of grass, dirt, or other debris.
- Keep the handles dry, clean, and free of oil and grease.
- After each cutting session, remove accumulated grass clippings and debris using either a dry cloth or hand brush. You may also clean the equipment with a damp cloth. Do not use cleaning agents or harsh solvents as they may damage the equipment's plastic components. Make sure that no water penetrates the equipment's interior as intake of water can destroy the switch mechanism and the electric motor.
- Do not clean the reel mower with running water, particularly with high-pressure water.
- Check all nuts, bolts, and screws for proper tightness before each use.
• Eorquently inspect the grace collection has for signs of

1. Place the mower on a flat surface. Remove the handles and the grass collection bag. Turn the mower upside down to expose the blades and the cutting bar.
2. Insert a piece of paper between the steel blades and the cutting bar, then slowly turn the wheel by hand (Fig. 19).

Fig. 19 Paper Cutting bar Steel blade Turn the wheel by hand

1. All the blades should slice the paper evenly along the entire length of the cutting bar while the wheel is turned smoothly. Repeat this testing on the other side of the mower.
2. If the mower cuts the paper intermittently, use the hex key wrench provided to tighten the adjustment bolt closest to where the intermittent cut was observed. Tighten the bolt on the appropriate end of the cutting bar by turning it clockwise approximately 1/8th of a turn until the steel blade contacts the cutting bar (Fig. 20).

Hex key Fig. 20

NOTE: If you have any questions, please call the Snow Joe ^® + Sun Joe ^® customer service department at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Cleaning and Storage

1. Clean the exterior of the machine thoroughly using a soft brush and cloth before storing. Do not use water, solvents, or polishes.
2. Turn the mower on its side to clean the blade area.

⚠ WARNING! Do not place your hands inside or near the cutting area. If grass cuttings are compacted in the blade area, remove them using a wood or plastic cleaning tool appropriate for blade cleaning.

1. Store the mower in a dry place. Do not place other objects on top of the mower during storage.

Maintenance Tips

Reel mowers are relatively low maintenance. For consistent cutting, follow the below instructions:

• Always keep the cutting blades properly adjusted. Refer to the instruction manual for further directions.
- Regularly clean and lubricate cutting edges with light spray oil.

IMPORTANT! Reel mowers have difficulty cutting tall weeds, such as dandelions, and will often bend, rather than cut, such weeds. Cut often to prevent this.

Disposal

Recycling the tool

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.
• Contact your local government agency for information

Battery Caution + Disposal

Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

⚠️CAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a fire or explosion.
WARNING! To reduce the risk of injury or explosion, never bum or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual for specific information.
2. Install only new batteries of the same type in your product (where applicable).
3. Failure to insert the battery in the correct polarity, as indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.
6. Do not dispose of batteries in fire.
7. Batteries should be recycled or disposed of as per state and local guidelines.

Service + Support

If your Sun Joe® 24V-CRLM15-RM cordless reel mower requires service or maintenance, please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE

24VCHRG-QC

Federal Communications Commission (FCC)

WARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Class B device:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Troubleshooting

• Remove the battery and the safety key before carrying out maintenance on the machine or when checking that its parts are
  in proper working order.
  • To avoid unnecessary hassles, consult the following table before contacting a qualified repair person with any
  mechanical issues.

Fault Possible Cause Remedy
Mower fails to start	a) The safety key is not insertedb) The battery is flatc) The battery is not inserted securelyd) The motor/blade control is disengagede) The mower deck is clogged with grass or debrisf) The grass is too tall	a) Insert the safety keyb) Charge the batteryc) Attach the battery pack to the mower; press it until you hear a click.d) Press safety lock button first ,then the On/Off switch levere) Clean the mower deck. Make sure the blade is free to movef) Set the mower to a high cutting height. Lift the front wheels slightly by pressing down on the handle bar.
Mower stops while mowing	a) The battery is flatb) The grass is too tallc) The mower deck is clogged with grass or debrisd) The battery or the mower circuity is too hot	a) Charge the batteryb) Reset the cutting heightc) Clean the mower deck. Make sure the blade is free to moved) Cool down the battery and the machine
The mower cannot cut grass evenly	a) The lawn is rough or unevenb) The blade is not sharp enough	a) Adjust cutting heightb) Sharpen or replace the blade
The mower is difficult to push	a) The grass is too tall to cutb) The blade or the mower rear is	a) Adjust cutting height higherb) Tighten the adiusting bolts

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this cordless reel mower. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless reel mower. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

			ModelAccesso
1		ION+ 24V 2.0 Ah Lithium-Ion BatteryBattery Runtime Max: 25 min (cuts up to 2,454 sq. ft of grass)	24VBAT-LTE
2		ION+ 24V 2.5 Ah Lithium-Ion BatteryBattery Runtime Max: 31 min (cuts up to 3,068 sq. ft of grass)	24VBAT-LT
3		ION+ 24V 4.0 Ah Lithium-Ion BatteryBattery Runtime Max: 50 min (cuts up to 4,910 sq. ft of grass)	24VBAT
4		ION+ 24V 5.0 Ah Lithium-Ion BatteryBattery Runtime Max: 62 min (cuts up to 6,135 sq. ft of grass)	24VBAT-XR
5		ION+ 24V lithium-ion Battery Quick Charger	24VCHRG-QC

NOTES

NOTES

NOTES

SNOW JOE ^® + SUN JOE ^® REFURBISHED GOODS WARRANTY

GENERAL CONDITIONS:

Snow Joe ^5 + Sun Joe ^4 operating under Snow Joo ^0 , LLC warrants this refurbished product to the original purchaser for 90 days against defects in material or workmanship when used for normal residential purposes. If a replacement part or product is needed, it will be sent free of charge to the original purchaser except as noted below.

The duration of this warranty applies only if the product is put to personal use around the household. It is the owner's responsibility to correctly perform all maintenance and minor adjustments explained in the owner's manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:

To obtain a replacement part or product, please visit snowjoe.com/help or email us at [e-mail] for instructions. Please be sure to register your unit beforehand to speed up this process. Certain products may require a serial number, typically found on the decal affixed to the housing or guard of your product. All products require a valid proof of purchase.

EXCLUSIONS:

- Wearing parts like belts, augers, chains and tines are not covered under this warranty. Wearing parts can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

Snow Joe ^® + Sun Joe ^® may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating Snow Joe ^® + Sun Joe ^® to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.

This warranty is intended to cover product defects only. Snow Joe ^® , LLC is not liable for indirect, incidental or consequential damages in connection with the use or misuse of the Snow Joe ^® + Sun Joe ^® products covered by this warranty. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Some states do not allow exclusions of incidental or consequential damages so the above exclusions may not apply in all states. This warranty may give you specific legal rights in your state.

HOW TO REACH US:

We're here to help Monday through Friday from 9AM to 7PM EST and Saturday and Sunday 9AM to 4PM. You can reach us at 1-866-SNOWJOE (1 866-766-9563), online at snowjoe/com, via email at [e-mail] or tweet us @snowjoe.

EXPORTS:

Customers who have purchased Snow Joe ^* + Sun Joe ^ products awarded from the United States and Canada should
