Product Type	360° Telescoping Sprinkler with Turbine Drive
Brand	Aqua Joe
Model	AJ6PSTBXL
Maximum Coverage Area	455.2 m²
Maximum Spray Diameter	24 m
Maximum Pressure	120 psi (8.3 bar)
Typical Working Pressure	60 psi (4.1 bar)
Maximum Flow Rate	35.2 L/min
Maximum Spray Range	12 m
Number of Spray Patterns	6 (multiple, mist, intense, flat, fan, mini)
Adjustable Spray Angle	5° to 360°
Tripod Height	95.3 cm to 132.3 cm (telescoping)
Tripod Material	Aluminum
Hose Connection	Standard garden hose end fitting
Net Weight	1.7 kg
Power Source	None (water pressure only)
Adjustments	Pattern, range, angle, flow
Maintenance	Purge after use, avoid freezing
Warranty	2-year limited (residential use)
Customer Service	1-866-SNOWJOE (1-866-766-9563)

Frequently Asked Questions - AJ6PSTBXL Aqua Joe

How to adjust the spray pattern?

Use the spray pattern adjustment (dial) to choose from six patterns: multiple, mist, intense, flat, fan or mini (see Fig. 1 in the manual).

How to adjust the spray range?

Turn the spray range adjustment (Fig. 2) to increase or decrease the watering distance, up to 12 m maximum.

How to adjust the sprinkling angle?

Slide the tabs on the sprinkler head to adjust the angle from 5° to 360° (Fig. 3). Intermediate positions are possible.

How to purge the sprinkler after use?

After use, shut off the water supply and purge the sprinkler by tilting the head to drain residual water. Never allow water to freeze inside.

What to do in case of freezing?

Water freezing can damage the sprinkler. Before winter, purge all water and store the unit away from frost. Do not store outdoors if temperatures drop below 0 °C.

How to assemble and adjust the tripod?

Unfold the three tripod legs and push the spikes into the ground. Adjust the height by loosening the locking collar, extend the telescopic rod, then lock by turning the collar clockwise.

How to connect the garden hose?

Screw the end of your standard garden hose onto the hose connector located at the base of the sprinkler (Fig. 8). Ensure the seal is tight.

What water pressure is recommended?

The typical working pressure is 60 psi (4.1 bar). The maximum allowable pressure is 120 psi (8.3 bar). Do not exceed this limit.

How to clean the sprinkler?

After use, purge the water then wipe the unit with a soft cloth. Do not use abrasive cleaners. Check that the nozzles are not clogged.

Where to find spare parts?

Wear parts (seals, etc.) are available at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

USER MANUAL AJ6PSTBXL Aqua Joe

Technical line drawing of a tripod-mounted mechanical device with three legs and a central handle (no text or symbols)

If you have any questions or comments, please call the Snow Joe® + Sun Joe® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

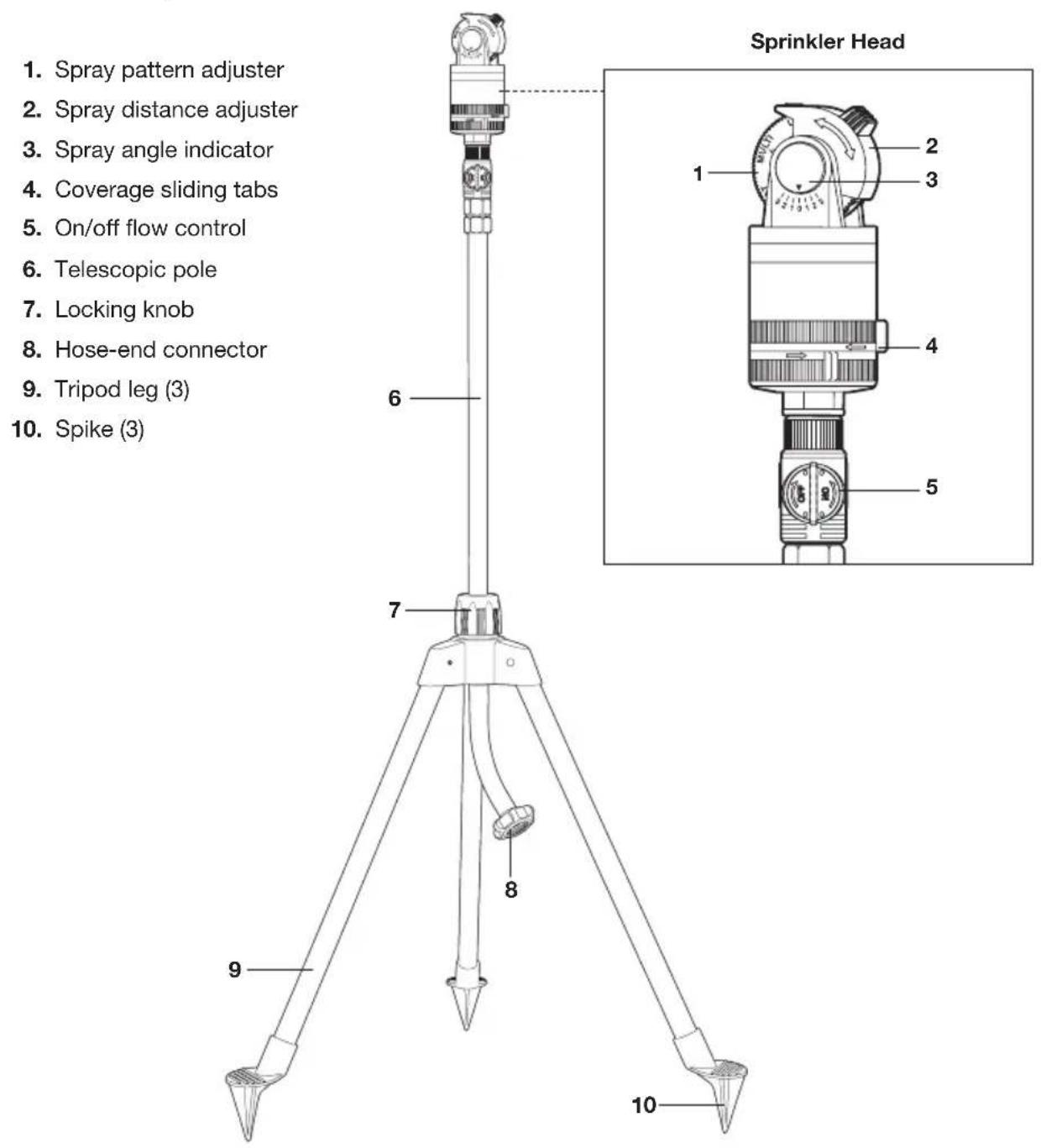

Know Your Turbo Drive 360° Telescoping Sprinkler

Read the owner's manual and safety rules carefully before using your telescoping sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Sprinkler Head 1. Spray pattern adjuster 2. Spray distance adjuster 3. Spray angle indicator 4. Coverage sliding tabs 5. On/off flow control 6. Telescopic pole 7. Locking knob 8. Hose-end connector 9. Tripod leg (3) 10. Spike (3)

Technical Data

Coverage Max 4900 sq ft

Spray Diameter Max 79 ft (24 m)

Max Pressure* 120 PSI

Max Flow with nozzle open .....9.3 GPM at minimum pressure (35.2 L/min)

Spray Distance Max 39.5 ft (12 m)

Spray Patterns 6

Adjustable Coverage .... Partial to full 360° circle

Telescopic Tripod Height ..... 37.5 in. to 51.7 in. (95.3 cm to 131.3 cm)

Base ...... Aluminum tripod

Fitting Size .... Standard garden hose

Net Weight 3.8 lbs (1.7 kg)

Operation

Six Selectable Spray Patterns

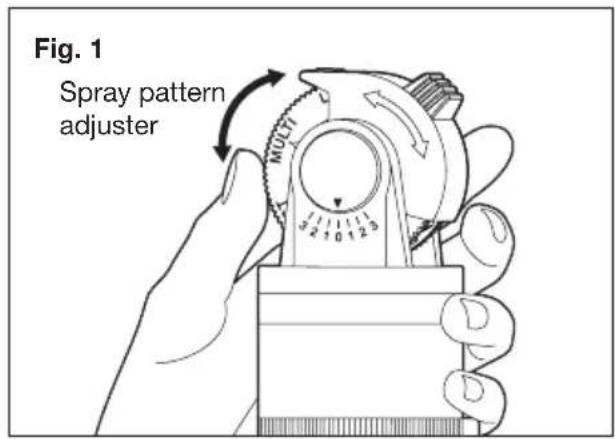

Use spray pattern adjuster to select desired spray pattern: multi, mist, large, flat, fan, mini (Fig. 1).

Fig. 1 Spray pattern adjuster

MULTI MIST

Simple line drawing of a spotlight illuminating a mechanical device (no text or symbols)

Diagram of a large industrial machine emitting light rays, labeled 'LARGE' (no other text or symbols)

Simple line drawing of a flat light source emitting a beam, with no text or symbols present.

Illustration of a fan with a triangular light source emitting rays, labeled 'FAN' below (no other text or symbols)

Diagram of a laser beam passing through a device labeled 'MINI' (no other text or symbols)

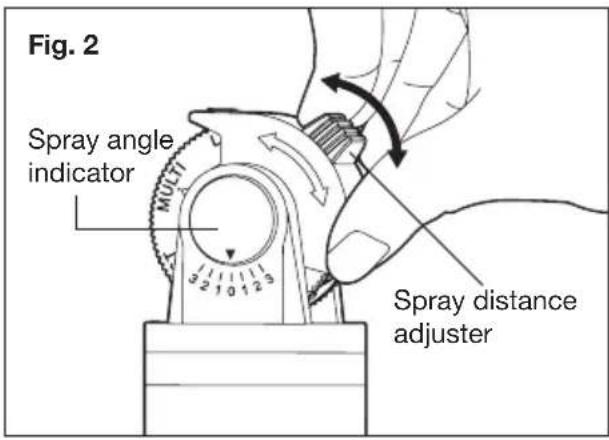

Distance Control

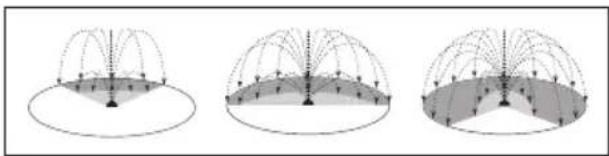

Use spray distance adjuster to adjust the length of the spray. (Fig. 2).

Fig. 2 Spray angle indicator MULTI Spray distance adjuster

Three diagrams showing a central fountain surrounded by curved daisies, with no text or symbols present.

Coverage Control

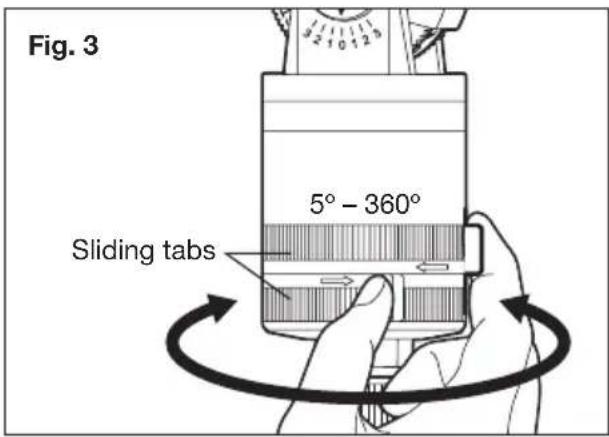

Sliding tabs allow for coverage adjustment from 5^-360^ (Fig. 3).

Fig. 3 5° - 360° Sliding tabs

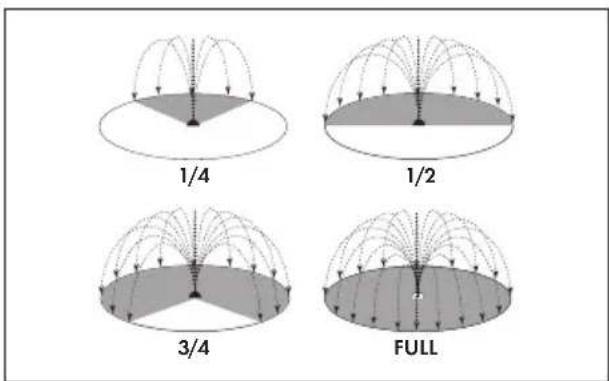

1/4 1/2 3/4 FULL

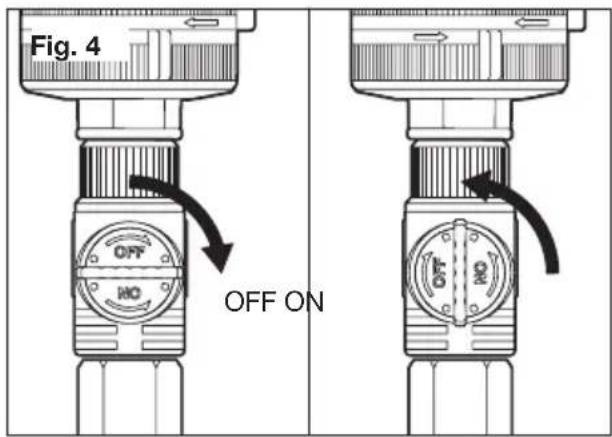

On/Off Flow Control

Turn the flow control clockwise to increase flow/turn on. Turn it counterclockwise to decrease flow/turn off. (Fig. 4).

Fig. 4 OFF ON

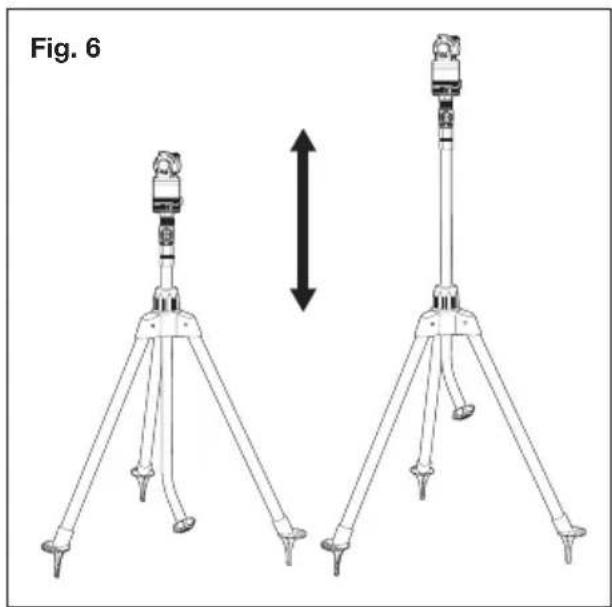

Telescopic Tripod

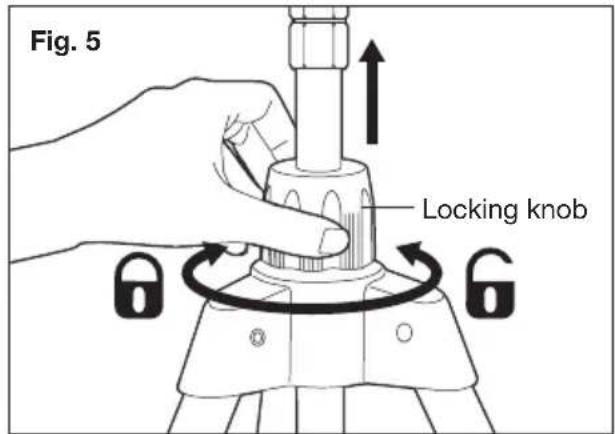

To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in position by turning the locking knob clockwise (Figs. 5 – 6).

Fig. 5 Locking knob

Technical line drawing of two tripod-mounted sensors with one upward and one downward, labeled Fig. 6 (no text or symbols on the devices themselves)

Spiked Legs

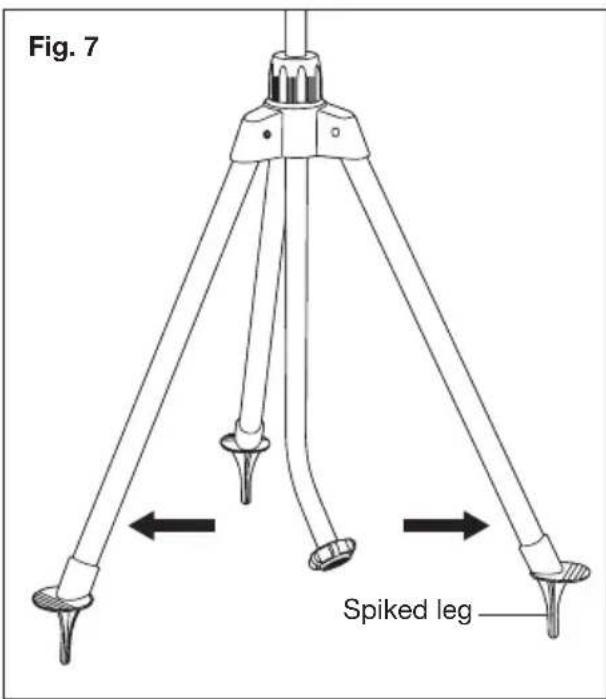

The spikes pierce the soil for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 7).

Open the spiked legs wide and push them into the soil.

Fig. 7 Spiked leg

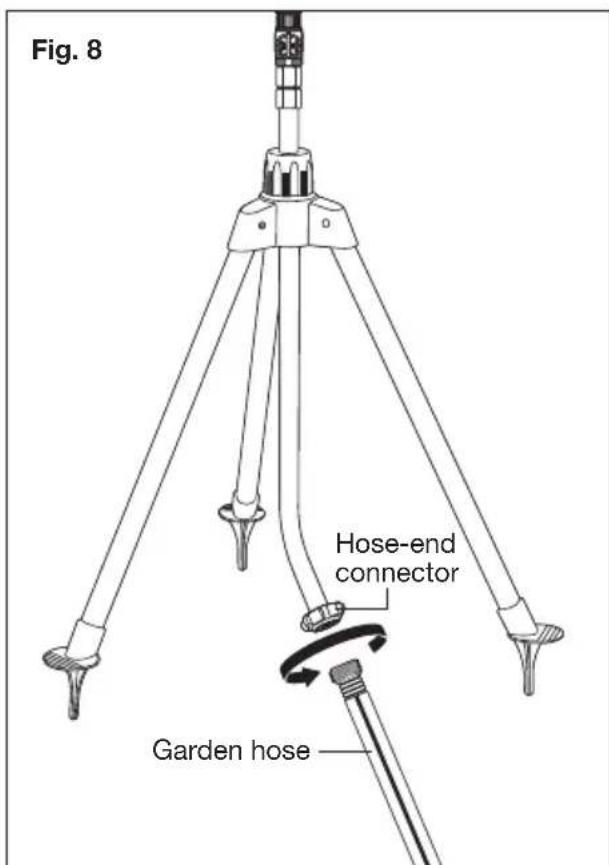

Connecting to the Garden Hose

Attach your garden hose to the hose-end connector (Fig. 8).

Fig. 8 Hose-end connector Garden hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32^ F ( 0^ C).

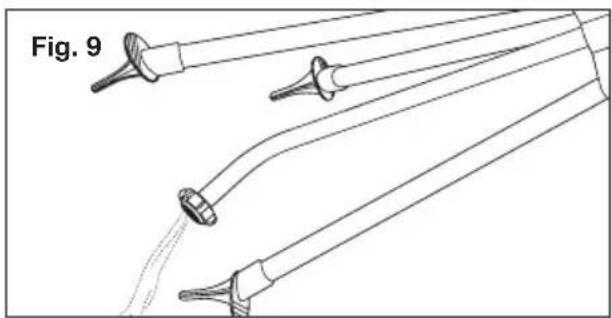

Maintenance

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 9).

Line drawing of medical or laboratory instruments with no visible text or symbols

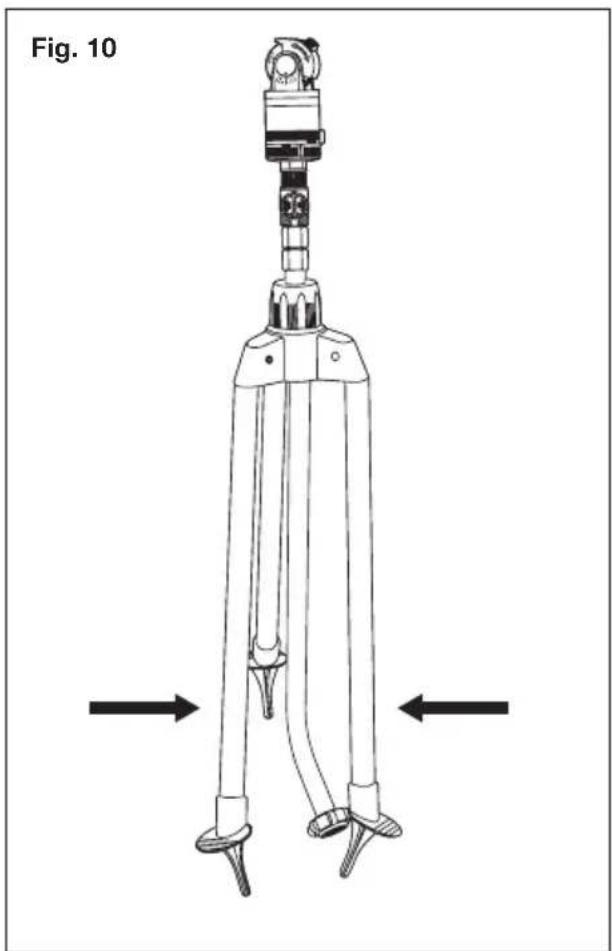

Storage

Collapse the tripod legs for storage (Fig. 10).

Technical line drawing of a mechanical device with three legs and a central shaft, shown with directional arrows (no text or symbols)

Service + Support

If your Aqua Joe ^® AJ-6PSTB-XL Turbo Drive 360° Telescoping Sprinkler requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: A | J | - | 6 | P | S | T | B | - | X | L | Serial #:

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

AQUAJOE®

ES

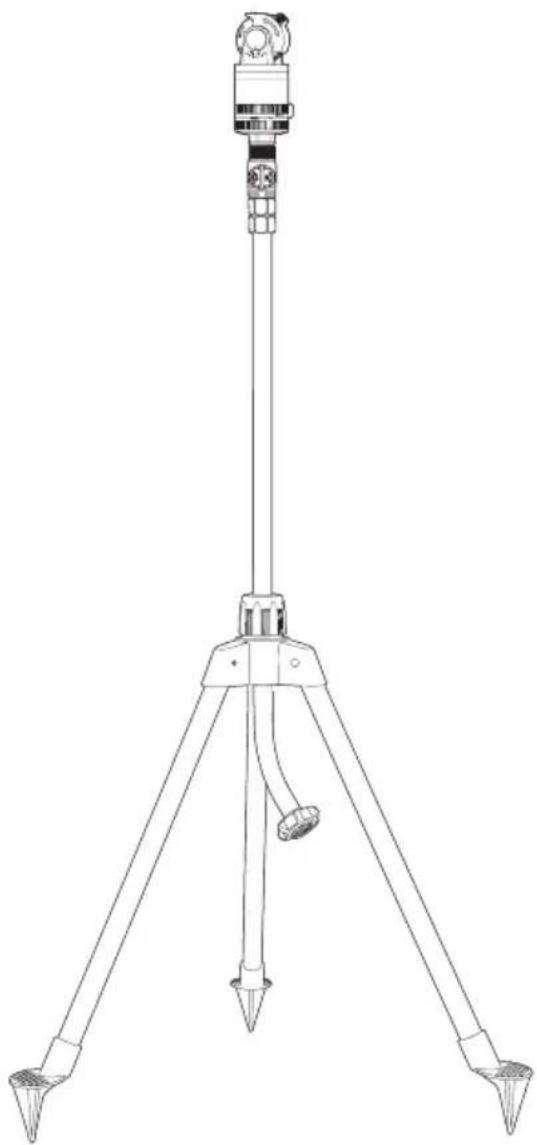

ROCIADOR TELESCÓPICO INDESTRUCTIBLE DE 360°
