USER MANUAL AJ6PSTBMAX Aqua Joe

Line drawing of a tripod-mounted scientific instrument with three legs and a central vertical component (no text or symbols)

If you have any questions or comments, please call the Snow Joe ^® + Sun Joe ^® customer service department at:

1-866-SNOWJOE (1-866-766-9563)

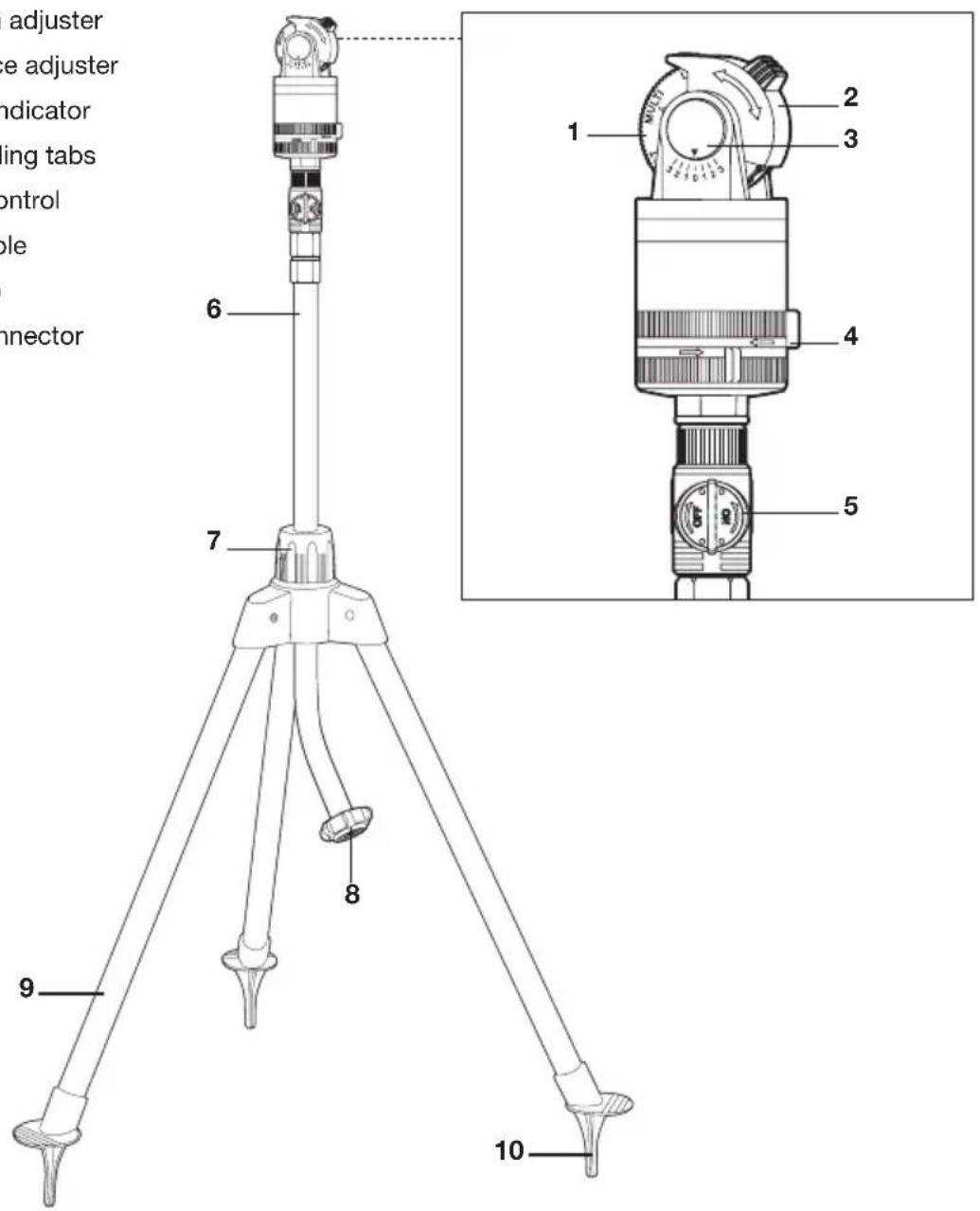

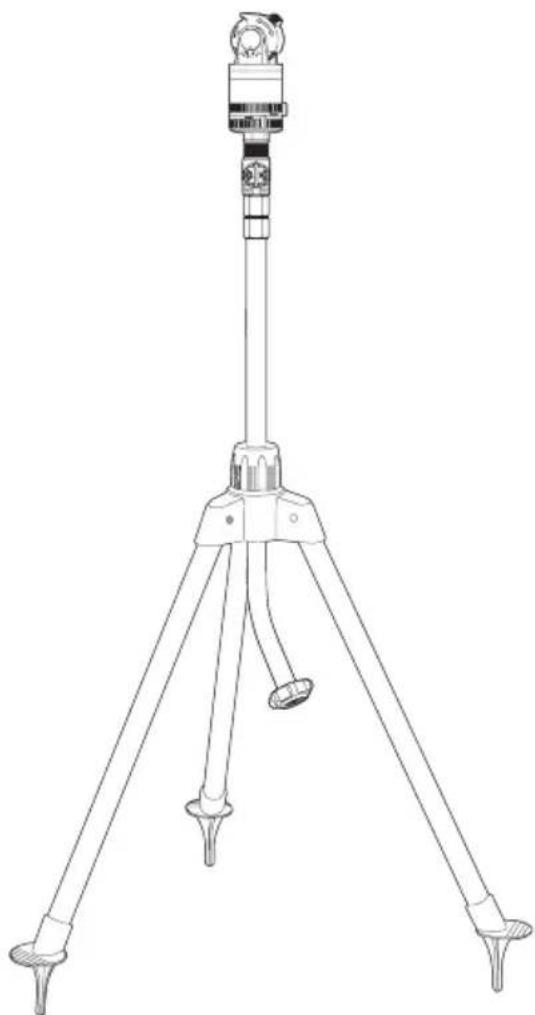

Know Your Turbo Drive 360° Telescoping Sprinkler

Read the owner's manual and safety rules carefully before using your telescoping sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Sprinkler Head

1. Spray pattern adjuster
2. Spray distance adjuster
3. Spray angle indicator
4. Coverage sliding tabs
5. On/off flow control
6. Telescopic pole
7. Locking knob
8. Hose-end connector
9. Tripod leg (3)
10. Spike (3)

adjuster e adjuster indicator ing tabs ontrol ple connector 1 2 3 4 5 6 7 8 9 10

Technical Data

Coverage Max 4100 sq ft

Spray Diameter Max ....72.2 ft (22 m)

Max Pressure....120 PSI at initial discharge

Rated Pressure....60 PSI under typical load

Max Flow with nozzle open....9.3 GPM at minimum pressure (35.2 L/min)

Spray Distance Max 36.1 ft (11 m)

Spray Patterns ....6

Adjustable Coverage.... Partial to full 360° circle

Telescopic Tripod Height......28 in. to 42.2 in. (71 cm to 107.2 cm)

Base ...... Aluminum tripod

Fitting Size ....Standard garden hose

Net Weight 2.8 lbs (1.3 kg)

Operation

Six Selectable Spray Patterns

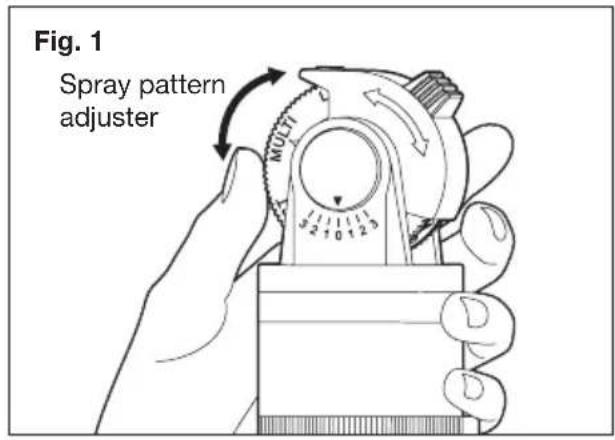

Use spray pattern adjuster to select desired spray pattern: multi, mist, large, flat, fan, mini (Fig. 1).

Fig. 1 Spray pattern adjuster

MULTI MIST

Simple line drawing of a spotlight beam projecting onto a mechanical component (no text or symbols)

Diagram of a large industrial machine emitting beams of light, labeled 'LARGE' (no other text or symbols)

Simple line drawing of a flat light source emitting a beam to a cylindrical object (no text or symbols)

Illustration of a fan with a triangular light source and a mechanical device (no text or symbols)

Diagram of a laser beam passing through a device labeled 'MINI' (no other text or symbols)

Distance Control

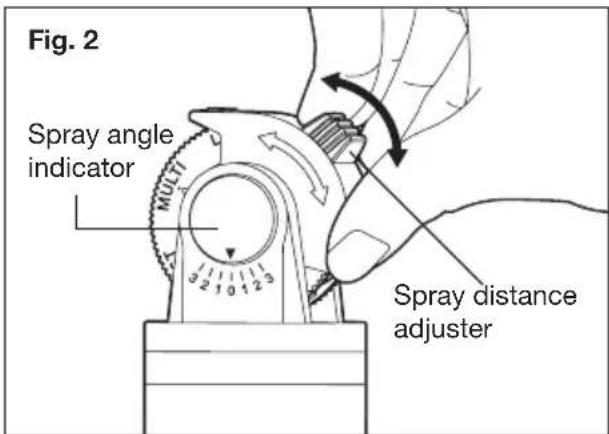

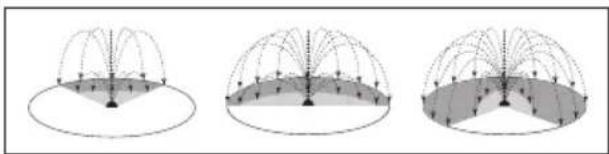

Use spray distance adjuster to adjust the length of the spray. (Fig. 2).

Fig. 2 Spray angle indicator MULTI Spray distance adjuster

Three diagrams showing a central fountain surrounded by water jets, with no text or symbols present.

Coverage Control

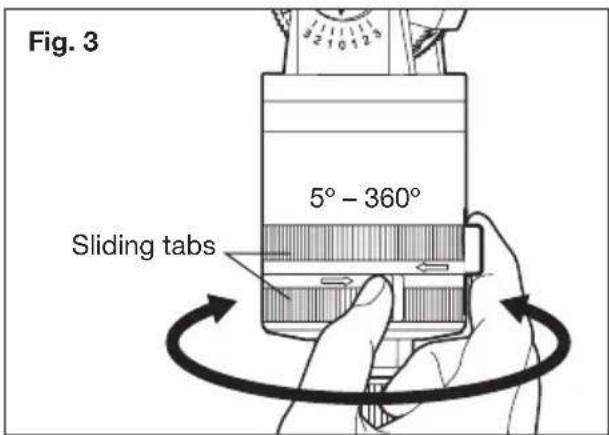

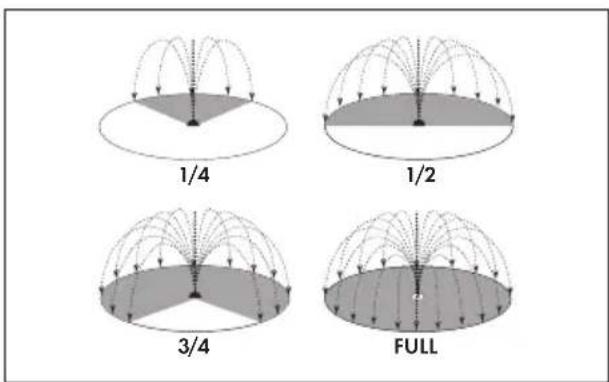

Sliding tabs allow for coverage adjustment from 5^-360^ (Fig. 3).

Fig. 3 5° - 360° Sliding tabs

1/4 1/2 3/4 FULL

On/Off Flow Control

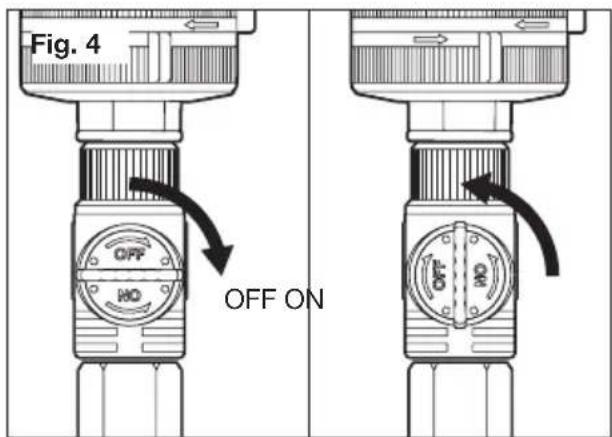

Turn the flow control clockwise to increase flow/turn on. Turn it counterclockwise to decrease flow/turn off. (Fig. 4).

Fig. 4 OFF ON

Telescopic Tripod

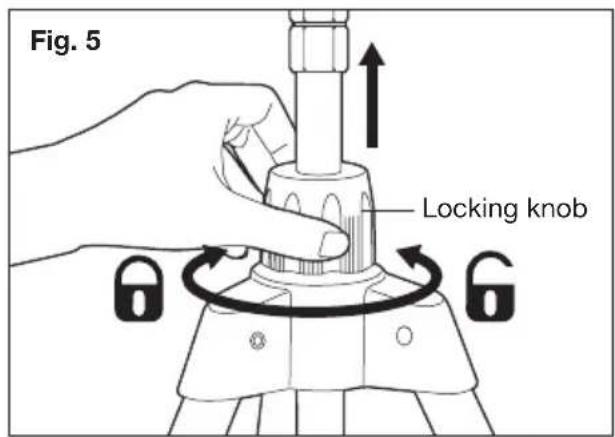

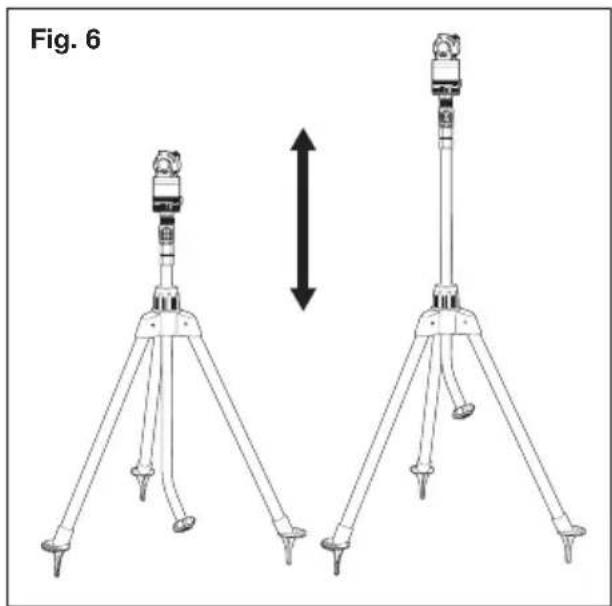

To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in position by turning the locking knob clockwise (Figs. 5 – 6).

Fig. 5 Locking knob

Technical line drawing of a tripod-mounted device with an upward arrow indicating vertical motion (no text or symbols)

Spiked Legs

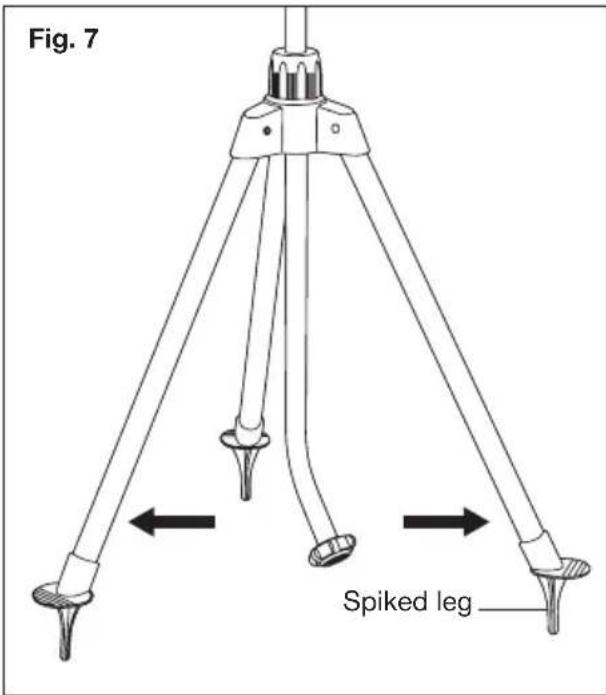

The spikes pierce the soil for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 7).

Open the spiked legs wide and push them into the soil.

Fig. 7 Spiked leg

Connecting to the Garden Hose

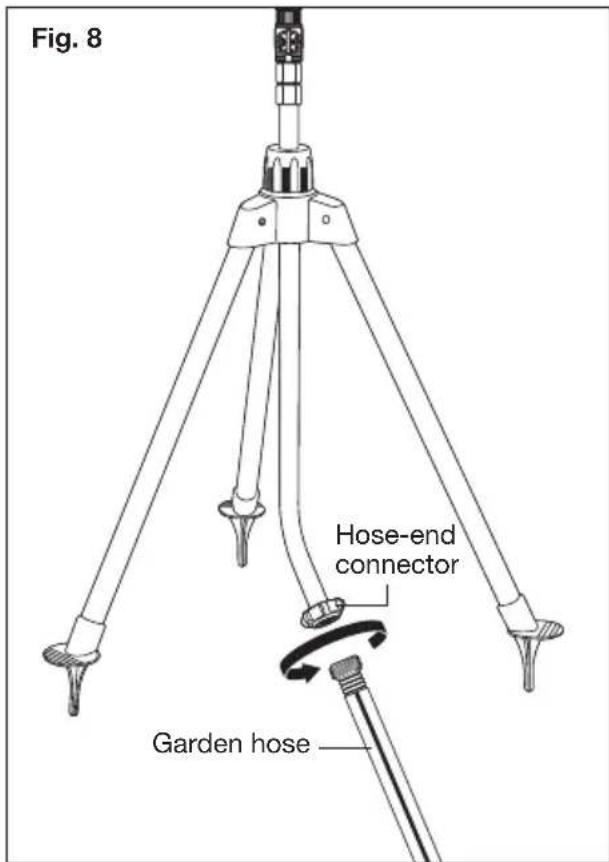

Attach your garden hose to the hose-end connector (Fig. 8).

Fig. 8 Hose-end connector Garden hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32^ F ( 0^ C).

Maintenance

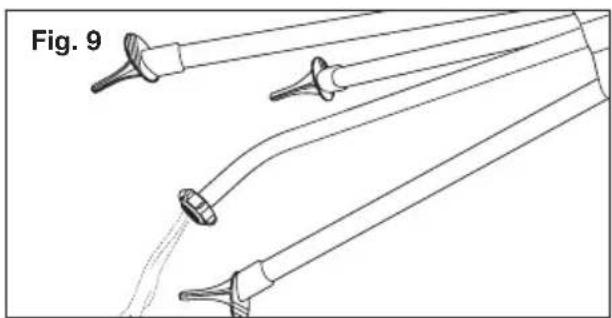

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 9).

Line drawing of medical or laboratory instruments with no visible text or symbols

Storage

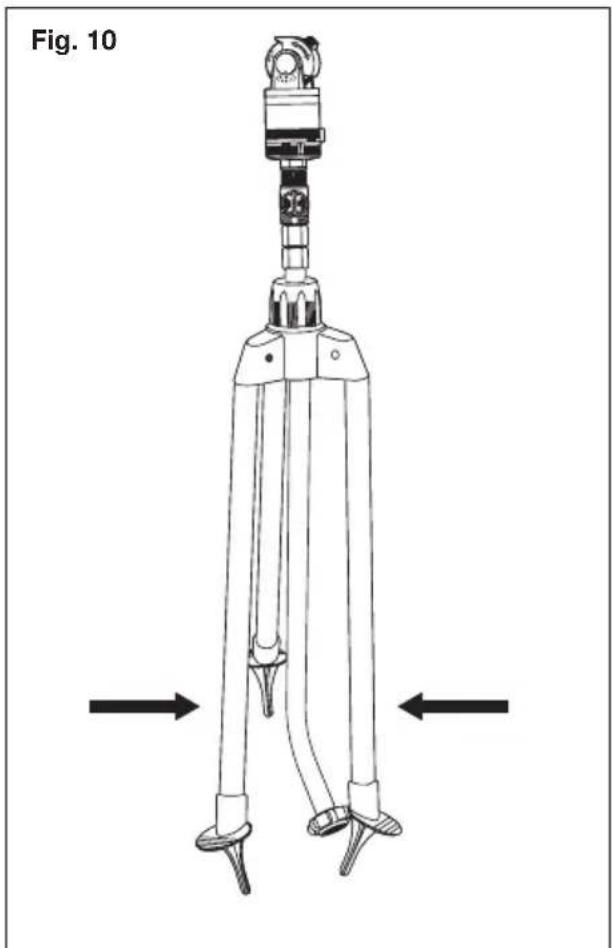

Collapse the tripod legs for storage (Fig. 10).

Technical line drawing of a mechanical device with three legs and a central shaft, shown with directional arrows (no text or symbols)

Service + Support

If your Aqua Joe ^® AJ-6PSTB-MAX Turbo Drive 360° Telescoping Sprinkler requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: A J - 6 P S T B - M A X Serial #:

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC ("Snow Joe") is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product ("Product") does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we have a Limited Warranty ("Warranty") for our Products.

OUR WARRANTY:

Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
