USER MANUAL SJI-OMS20 Aqua Joe

Model SJI-OMS20 Form No. SJ-SJI-OMS20-880E-MR3

Technical line drawing of a cylindrical mechanical component with internal channels and mounting holes (no text or symbols)

THANK YOU FOR YOUR PURCHASE!

SCAN

REGISTER

ONLINE TODAY

Place UPC sticker here

ACTIVATE YOUR 2 YEAR WARRANTY

RECEIVE 90 DAYS BONUS COVERAGE

VISIT SHOPJOE.COM/REGISTER

Failure to register your product purchase will not diminish your warranty rights. For more information visit shopjoe.com

+EXTENDED WARRANTY

UPGRADE YOUR COVERAGE AT SHOPJOE.COM/REGISTER

FOR UP TO 3, 4, OR 5 YEARS OF TOTAL TOOL COVERAGE

When we say we stand behind our product, we mean it! Now you can blow, mow, cut, saw or tend to any other yard task with confidence, knowing that if there is a problem with your tool within the warranty period, we will gladly solve it.

HAS YOUR SNOW JOE

EXPERIENCE LEFT

YOU SMILING?

TELL YOUR FRIENDS

AND TAG US!

We love to hear your feedback! Share your experience by writing comments and reviews on shopjoe.com, or connect with us on social media!

SNOWJOECO

GOWITHJOE

OR HAS SOMETHING

LEFT YOU LESS

THAN SATISFIED?

WE'RE SORRY

ABOUT THAT!

Our friendly customer service team is ready to

help you with any issues you may have,

Monday – Sunday from 9AM to 5PM EST

CALL US, EMAIL US, CHAT WITH US

[e-mail]

For fastest response

SHOPJOE.COM

1-866-225-9723

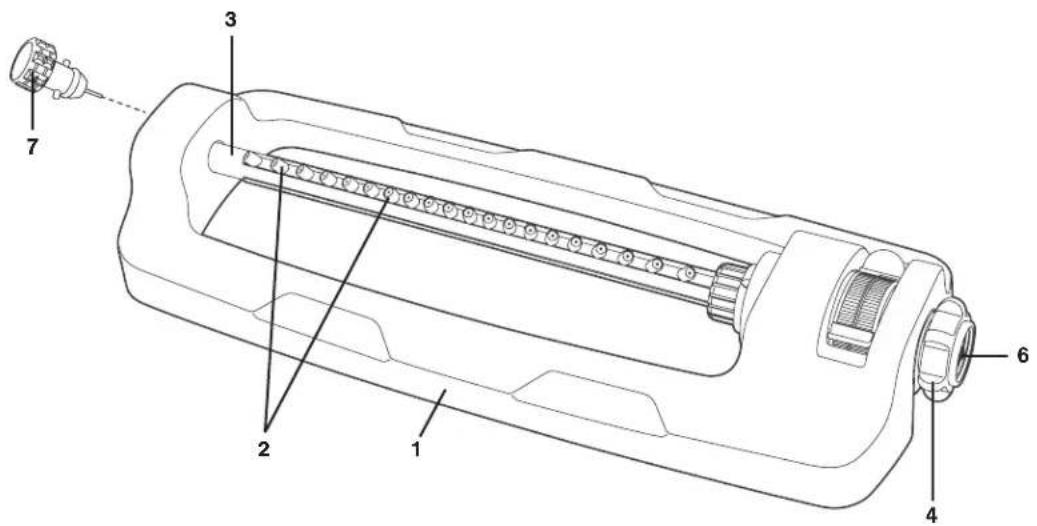

Know Your Sprinkler

1. Base
2. Spray nozzles (20)
3. Oscillator tube
4. Hose-end
5. Sliding tabs
6. Inlet filter
7. Cleaningpin

Technical diagram of a mechanical device with numbered components for identification

Technical Data

Plastic nozzle heads 20

Coverage Max....4400 sq ft (409 m²)

Spray Distance Max....70 ft (21.3 m)

Spray Width Max 63 ft (19 m)

* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.

Max Pressure* 150 PSI

Max Flow 8 GPM (30 l/min)

Motor....Turbo drive

Adjustable range control.....Yes

Net Weight....1.8 lbs (0.8 kg)

Operation

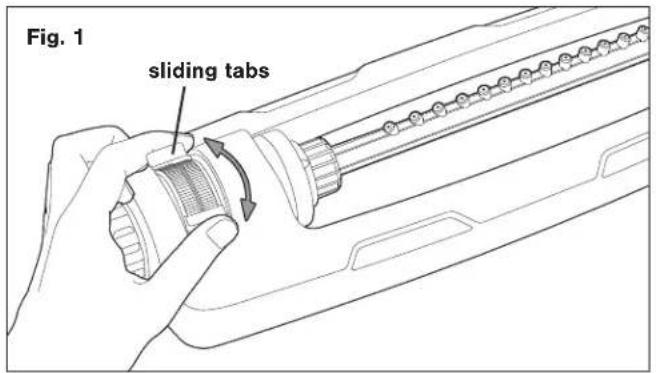

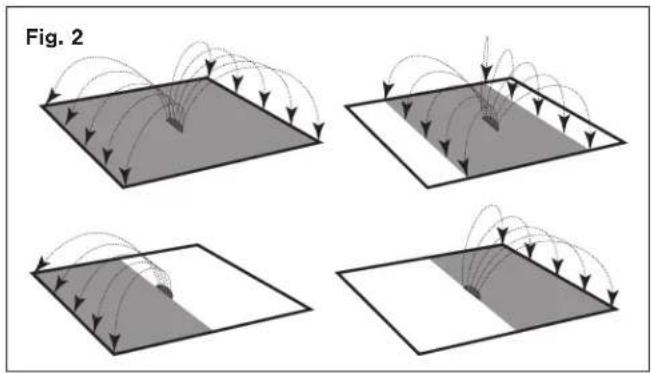

Use sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1). Refer to (Fig. 2) to see the different sprinkler options.

Fig. 1 sliding tabs

Fig. 2

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance + Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

1. Remove the inlet filter from the hose-end of the oscillator and run under water (Fig. 3).

Fig. 3

inlet filter

hose-end

inlet

filter

1. Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler (Fig. 6).

Fig. 6

cleaning pin

1. Remove the cleaning pin from the opposite end of the oscillator (Fig. 4).

Fig. 4

cleaning

pin

Storage

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 7).

Fig. 7

1. To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place (Fig. 5)

Fig. 5

hose-end

tube

Service + Support

If your Aqua Joe ^® SJI-OMS20 oscillating sprinkler requires service or maintenance, please call All Season Power customer service at 1-866-225-9723 for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product:

Model #:

Troubleshooting

Problem Cause Solution
Sprinkler does not oscillate Not enough pressure Ensure no kinks from hose and there is adequate pressure flowing into sprinkler
Sprinkler does not oscillate Dirt and grime are blocking the spray nozzles		Use the provided cleaning pin to clear any clogs from the spray nozzles
Sprinkler does not cover stated area Not enough pressure Ensure no kinks from hose and there is adequate pressure flowing into sprinkler

ALL SEASON POWER CUSTOMER PROMISE

ABOVE ALL ELSE, All Season Power LLC (“All Season Power”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® , or Auto Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

All Season Power warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of delivery of the Product to the original, end-user purchaser when purchased from All Season Power or from one of All Season Power's authorized sellers with proof of purchase. Because All Season Power is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, All Season Power will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-225-9723, or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow All Season Power to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by All Season Power to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com/support or by calling 1-866-225-9723.

CERTIFIED AUTHENTIC

Keep your warranty intact. Only use CERTIFIED AUTHENTIC Snow Joe ^® , Sun Joe ^® , Aqua Joe ^® + Auto Joe ^® replacement parts + accessories. Use of any other parts + accessories will void the warranty. Genuine parts + accessories can be found and purchased online at shopjoe.com/support by entering the model number of your product.
