USER MANUAL V2P5G31 ASUS

ASUS PC (Desktop Barebone)

Installation manual

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'F5', showing front and side views without any text or symbols on the cabinet bodies.

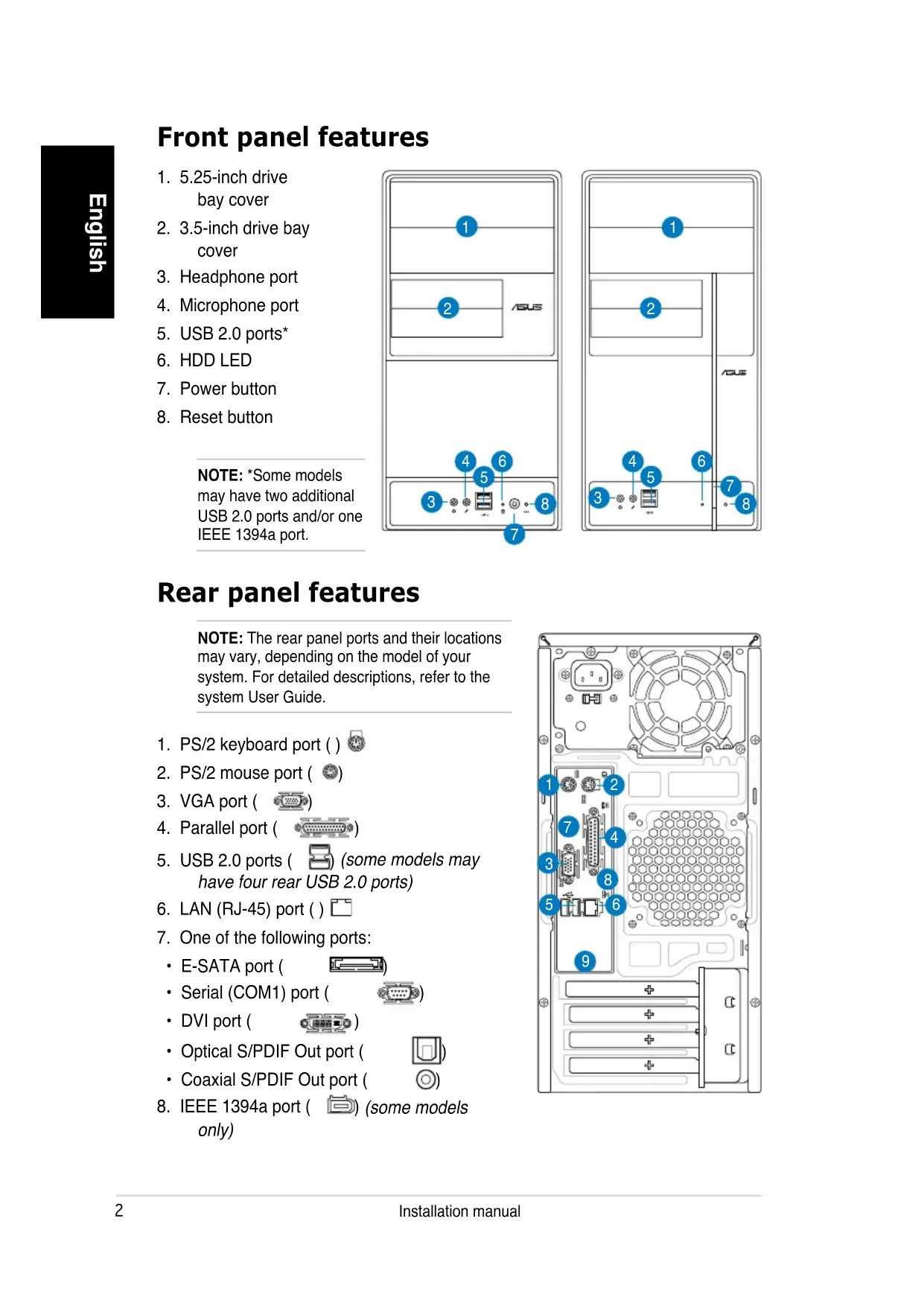

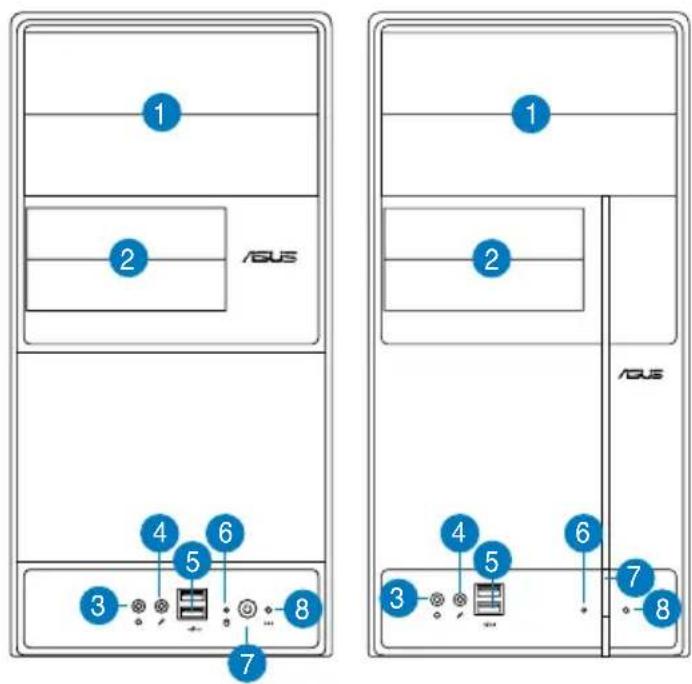

Front panel features

1. 5.25-inch drive bay cover
2. 3.5-inch drive bay cover
3. Headphone port
4. Microphone port
5. USB 2.0 ports*
6. HDD LED
7. Power button
8. Reset button

NOTE: *Some models may have two additional USB 2.0 ports and/or one IEEE 1394a port.

1 2 ASUS 4 5 6 3 8 7 1 2 4 5 6 3 7 8 ASUS

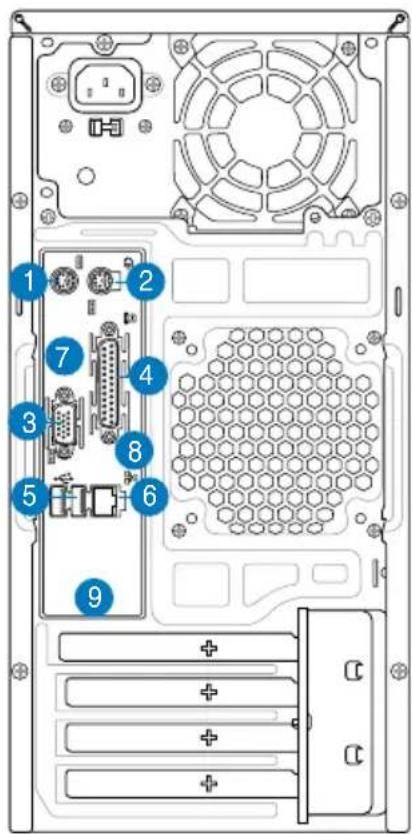

Rear panel features

NOTE: The rear panel ports and their locations may vary, depending on the model of your system. For detailed descriptions, refer to the system User Guide.

1. PS/2 keyboard port ( )
2. PS/2 mouse port ( Ⓞ)
3. VGA port ( )
4. Parallel port ( )
5. USB 2.0 ports ( ) (some models may have four rear USB 2.0 ports)
6. LAN (RJ-45) port ()
7. One of the following ports:

• E-SATA port (
- Serial (COM1) port (
• DVI port (
• Optical S/PDIF Out port (
- Coaxial S/PDIF Out port (

1. IEEE 1394a port ( ) (some models only)

Diagram of a computer tower rear panel with numbered components and labeled connectors

1. One of the following audio ports configurations:

- 6-channel

• 8-channel

Refer to the configuration table in the User Guide for details.

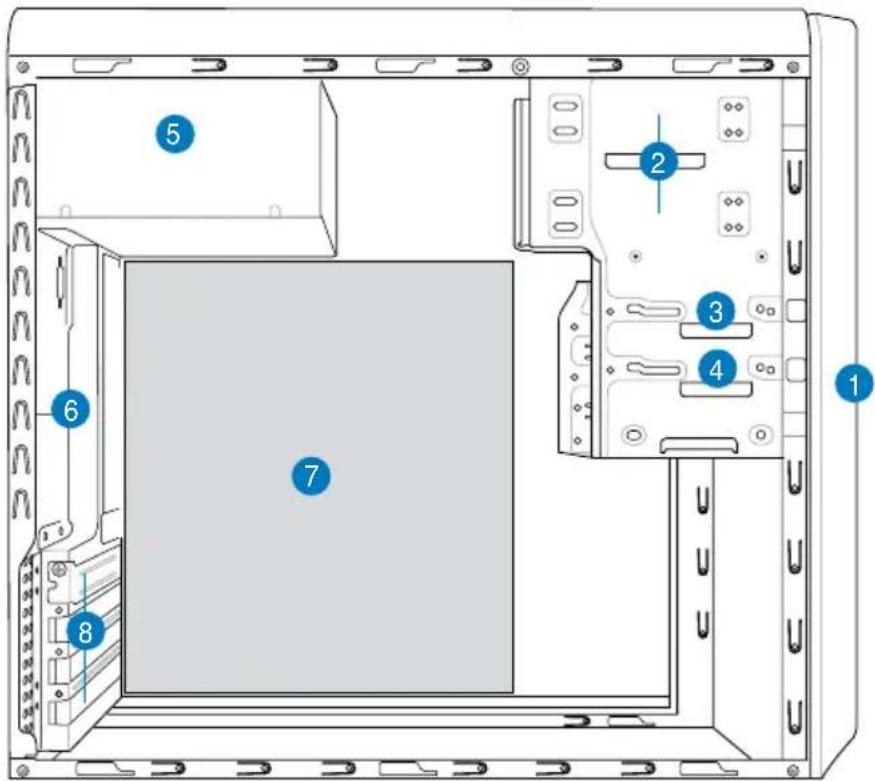

Internal components

Diagram of a computer tower case with numbered components for identification

1. Front panel cover
2. 5.25-inch optical drive bays
3. Floppy disk drive bay

4. Hard disk drive bay

5. Power supply unit

6. Chassis fan slot
7. ASUS motherboard*
8. Expansion slot metal brackets

NOTE: *Refer to the system User Guide for motherboard details.

Selecting the voltage

The system's power supply unit has a 115 V/230 V voltage selector switch located beside the power connector. Use this switch to select the appropriate system input voltage according to the voltage supply in your area.

If the voltage supply in your area is 100-127 V, set the switch to 115 V.

If the voltage supply in your area is 200-240 V, set the switch to 230 V.

115

NOTE: Refer to the system User Guide for the exact location of the voltage selector.

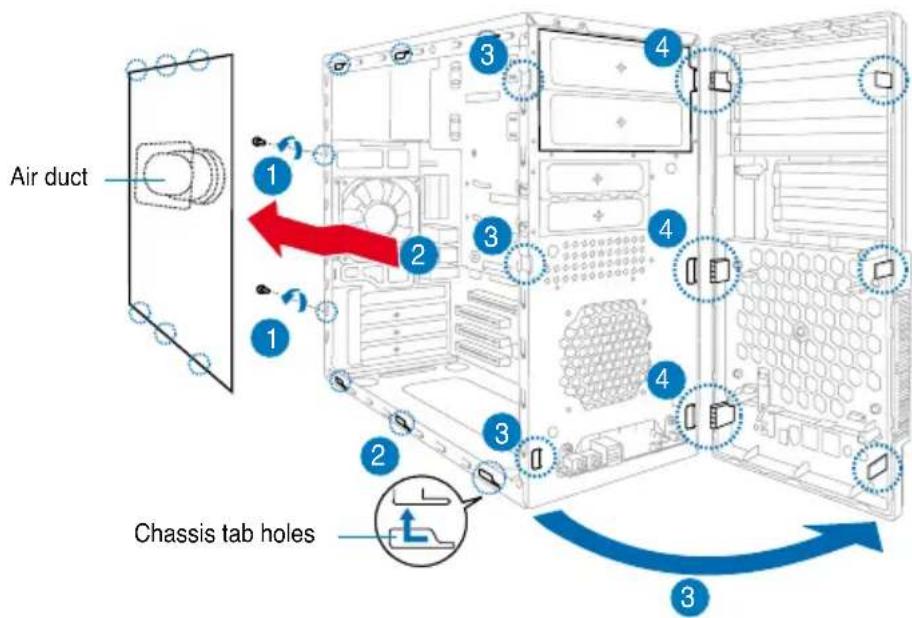

Removing the side cover and front panel assembly

1. Remove the cover screws on the rear panel.
2. Pull the side cover toward the rear panel until its hooks disengage from the chassis tab holes. Set the side cover aside.
3. Locate the front panel assembly hooks, then lift them until they disengage from the chassis.
4. Swing the front panel assembly to the right, until the hinge-like tabs on the right side of the assembly are exposed.
5. Remove the front panel assembly, then set aside.

Air duct Chassis tab holes

Installing a CPU

Installing an Intel® Pentium® 4 CPU in the LGA775 package

1. Locate the CPU socket on the motherboard.

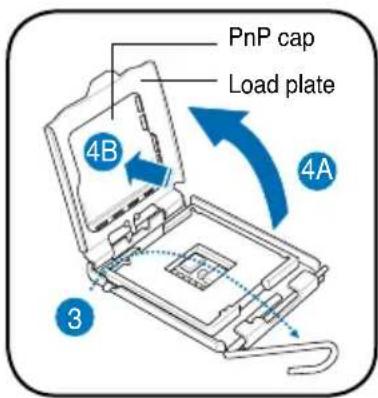

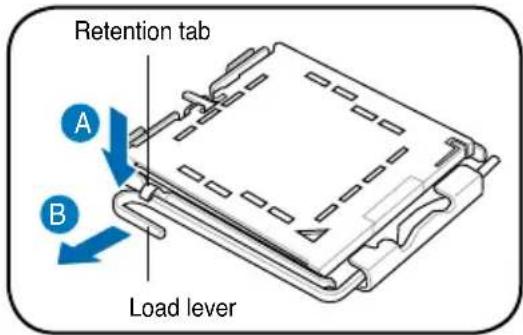

2. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab.

CAUTION. To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

Retention tab A B Load lever

1. Lift the load lever in the direction of the arrow to a 135^ angle.
2. Lift the load plate with your thumb and forefinger to a 100^ angle (4A), then push the PnP cap from the load plate window to remove (4B).

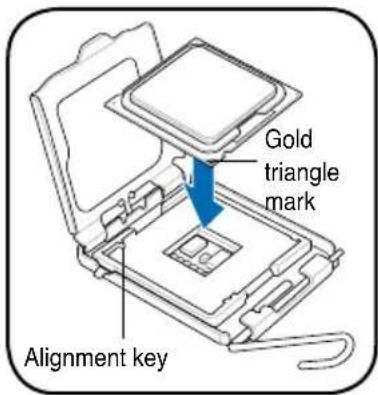

3. Position the CPU over the socket, making sure that the gold triangle is on the bottom-left corner of the socket. Fit the socket alignment key into the CPU notch.

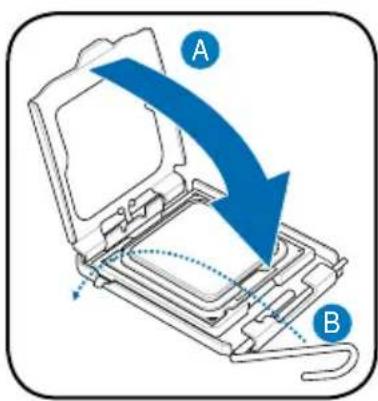

4. Close the load plate (A), then push the load lever (B) until it snaps into the retention tab.

PnP cap Load plate 4B 4A 3

Gold triangle mark Alignment key

A B

Installing an AMD CPU

1. Locate the CPU socket, then lift the socket lever to a 90° angle.
2. Install the CPU to the socket, making sure that the CPU corner with the gold triangle matches the socket corner with a small triangle.
3. Push down the socket lever to secure the CPU.

Diagram of a device with a rotating arrow indicating rotation (no text or symbols present)

Diagram of a wireless device with antenna and circular detail (no text or symbols)

Diagram showing a computer monitor with an icon and magnified view of its screen (no text or symbols present)

CAUTION: Incorrect installation of the CPU into the socket may bend the pins and severely damage the CPU!

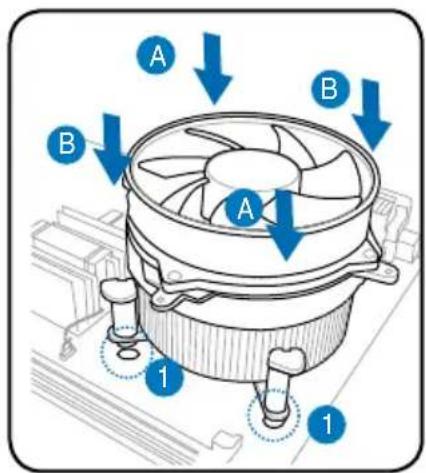

Installing the CPU fan and heatsink assembly Installing an Intel® Pentium® 4 CPU heatsink and fan

1. Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes on the motherboard.
2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.
3. When the fan and heatsink assembly is in place, connect the CPU fan cable to the connector on the motherboard.

A B A B 1 1

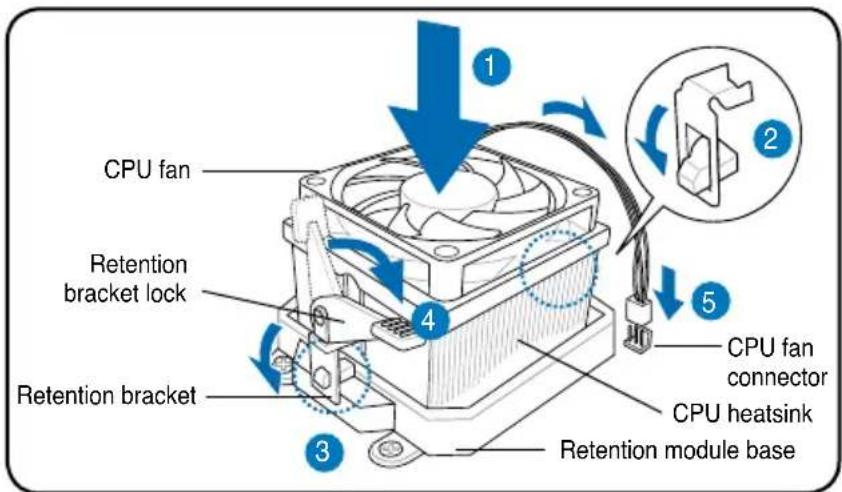

Installing an AMD CPU heatsink and fan

1. Place the heatsink on top of the installed CPU.

IMPORTANT. Make sure that the fan and heatsink assembly perfectly fits the retention mechanism module base; otherwise you can not lock the retention bracket.

1. Attach one end of the retention bracket to the retention module base.
2. Attach the other end of the retention bracket (near the retention bracket lock) to the retention module base until it clicks in place.

NOTE. Your boxed CPU should come with installation instructions for the CPU, fan/heatsink assembly, and the retention mechanism. If the instructions in this section do not match the CPU documentation, follow the latter.

1. Push down the retention bracket lock on the retention mechanism to secure the fan and heatsink to the module retention module base.
2. Connect the CPU fan cable to the connector on the motherboard.

CAUTION. Do not forget to connect the CPU fan connector! Hardware monitoring error can occur if you fail to plug this connector.

CPU fan Retention bracket lock Retention bracket CPU fan connector CPU heatsink Retention module base

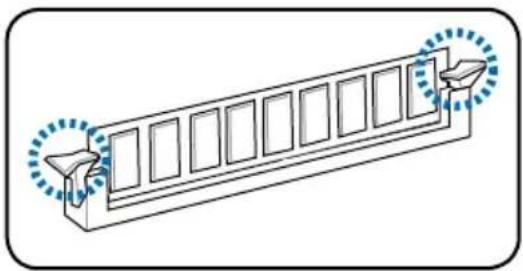

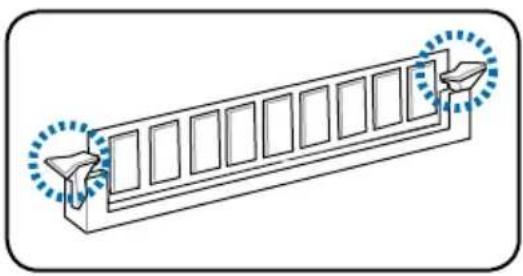

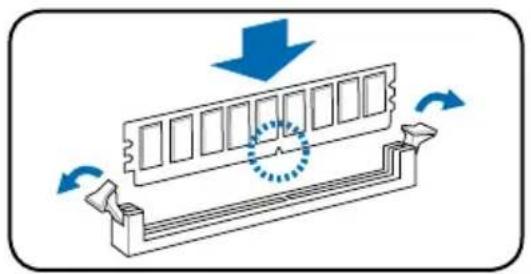

Installing a DIMM

1. Locate the DIMM sockets in the motherboard.

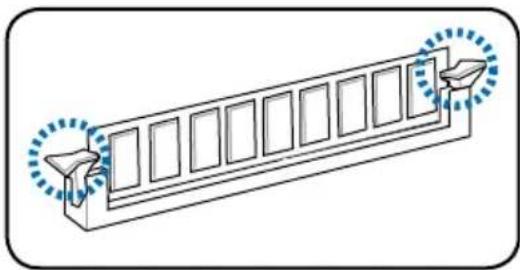

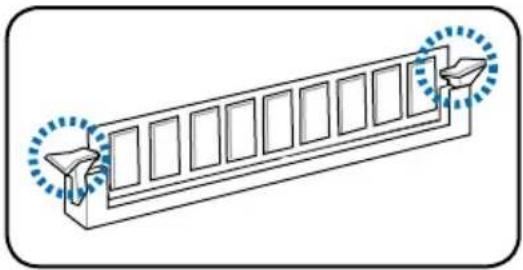

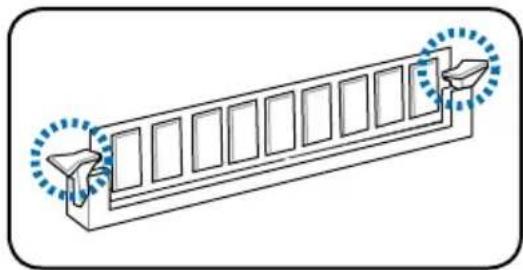

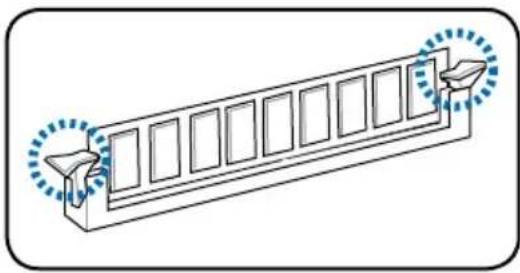

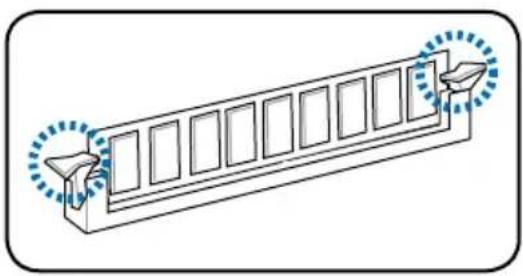

2. Unlock a DIMM socket by pressing the retaining clips outward.
3. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

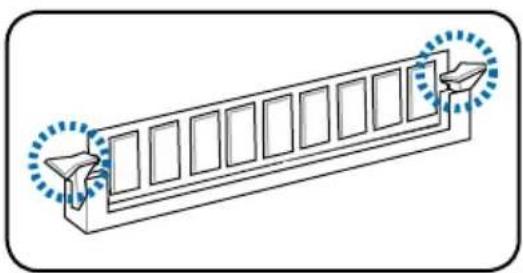

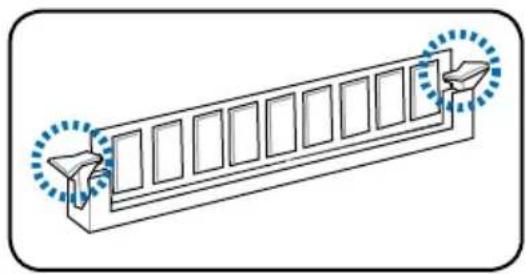

4. Push the DIMM to the socket until the retaining clips snap inward.

Diagram of a mechanical component with blue arrows indicating motion or force, showing internal structure and rotation (no text or symbols)

Diagram of a 3D rectangular structure with internal compartments and two blue dotted arrows pointing to the right side (no text or symbols)

CAUTION:

• Unplug the power supply before adding or removing DIMMs. Failure to do so may cause damage to the motherboard and/or components.
• A DDR DIMM is keyed with a notch so that it fits in only one direction. Do not force a DIMM into a socket to avoid damaging the DIMM.

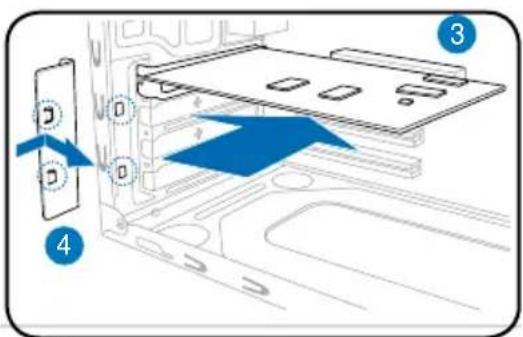

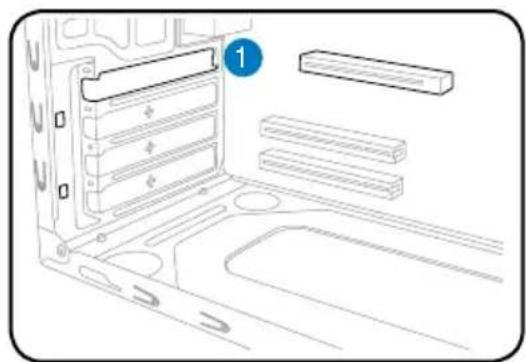

Installing an expansion card

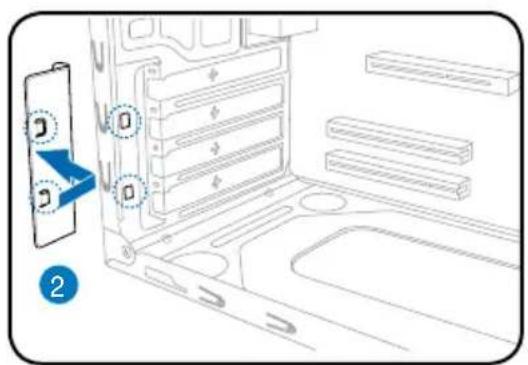

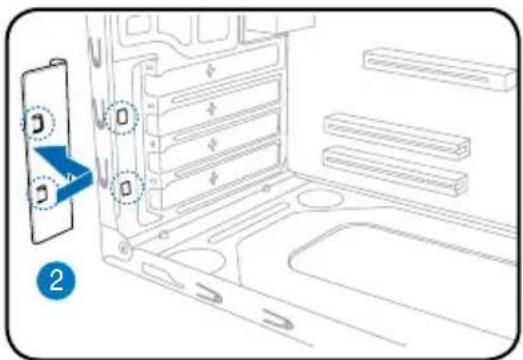

the slot that you intend to use.

Diagram of a computer tower case with labeled components, showing internal storage areas and mounting brackets (no text or symbols present)

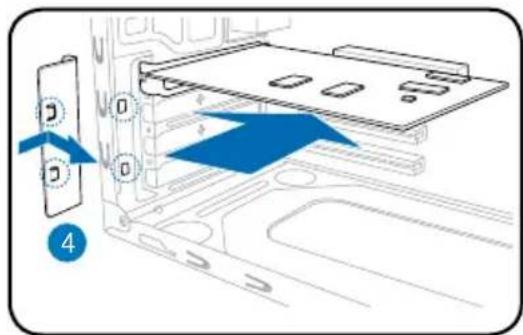

1. Insert the card connector to the slot, then press the card firmly until it fits in place.

2. Replace the metal bracket lock.

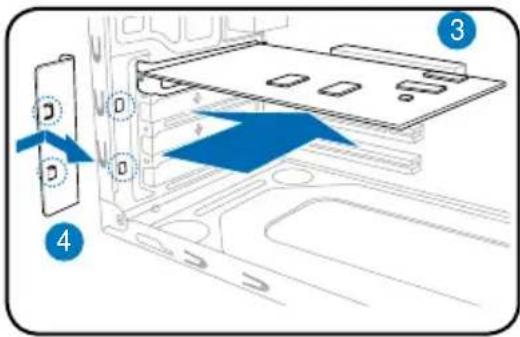

3. Remove the metal bracket lock.1. Remove the metal

Diagram showing a device panel with labeled ports and directional arrows, likely illustrating a system or installation process.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, numbered 3 and 4.

Installing storage drives

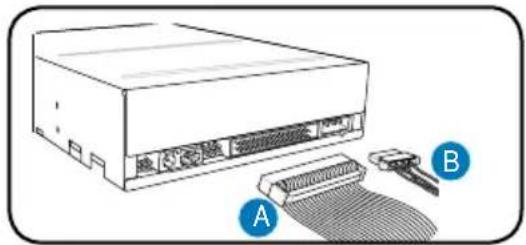

Optical drive

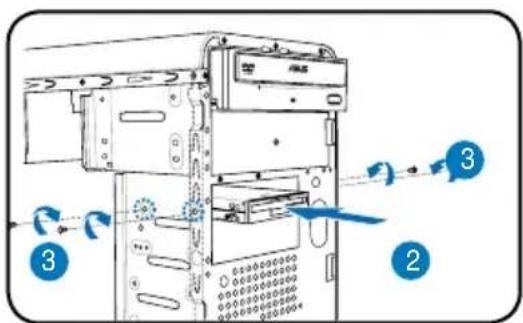

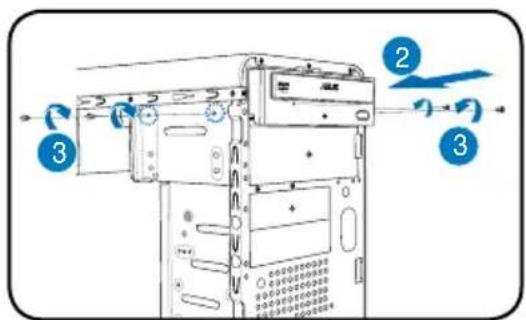

1. Place the chassis upright, then remove the upper 5.25" drive bay metal plate cover.
2. Insert the optical drive to the bay, then carefully push the drive until its screw holes align with the holes on the bay.
3. Secure the optical drive with two screws on both sides of the bay.

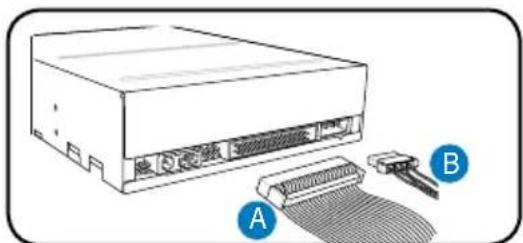

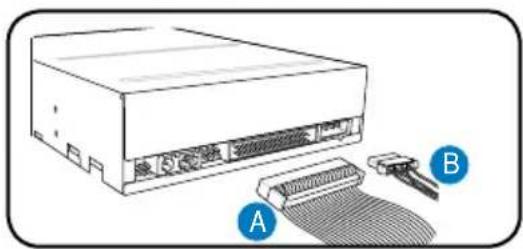

4. Connect the IDE (A) and power (B) plugs to connectors at the back of the drive.

Diagram of a computer system with labeled components and directional arrows indicating flow or movement.

Illustration of a computer drive with attached cable and connector (no text or symbols)

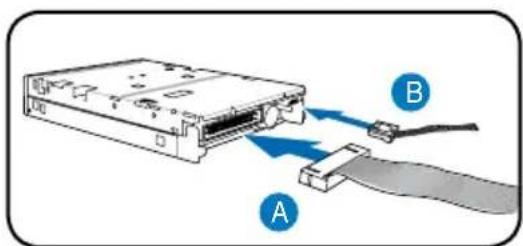

Floppy disk drive

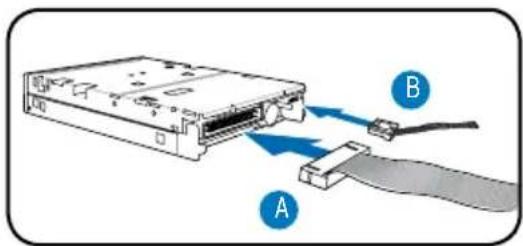

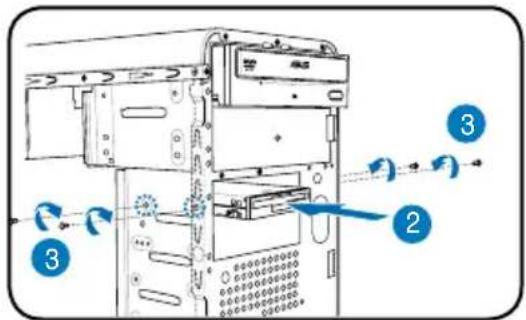

1. Place the chassis upright, then remove the lower 3.5" drive bay metal plate cover.
2. Insert the floppy disk drive to the bay, then carefully push the drive until its screw holes align with the holes on the bay.
3. Secure the floppy disk drive with two screws on both sides of the bay.

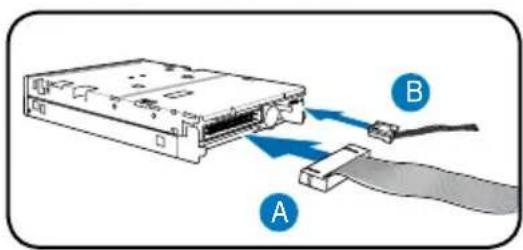

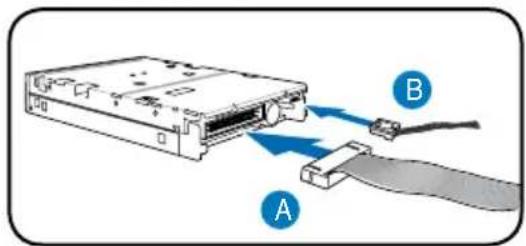

4. Connect the signal (A) and power (B) plugs to connectors at the back of the drive.

Diagram of a computer tower with labeled components and directional arrows indicating motion or signal flow

Diagram showing a computer drive with labeled components A and B, indicating cable or connection to the drive.

Hard disk drive

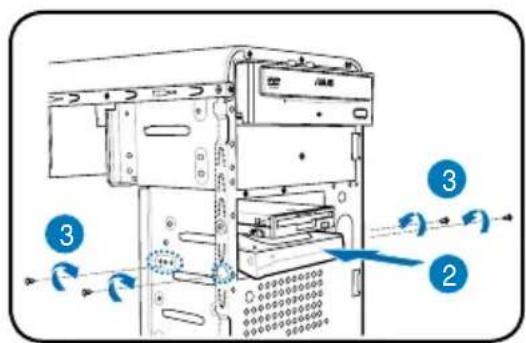

1. Place the chassis upright, then remove the upper 3.5" drive bay metal plate cover.
2. Insert the hard disk drive to the bay, then carefully push the drive until its screw holes align with the holes on the bay.
3. Secure the hard disk drive with two screws on both sides of the bay.

Diagram of a computer tower with numbered annotations indicating components and directional arrows

1. For SATA HDD: Connect the SATA signal and power plugs to the connectors at the back of the drive.

For IDE HDD: Connect the IDE and power plugs to the connectors at the back of the drive.

SATA IDE

Removing the bay covers and reinstalling the front panel assembly and side cover

If you installed an optical and/or floppy disk drive, remove the bay cover(s) on the front panel assembly before reinstalling it to the chassis. To do this:

1. Locate the bay cover locks.
2. Press the locks outward to release the bay cover.
3. Push the bay cover inward, then set it aside.
4. Follow the same instructions to remove the 3.5" drive bay cover.

Diagram of a mechanical or electrical component with blue arrows indicating direction, no text or symbols present

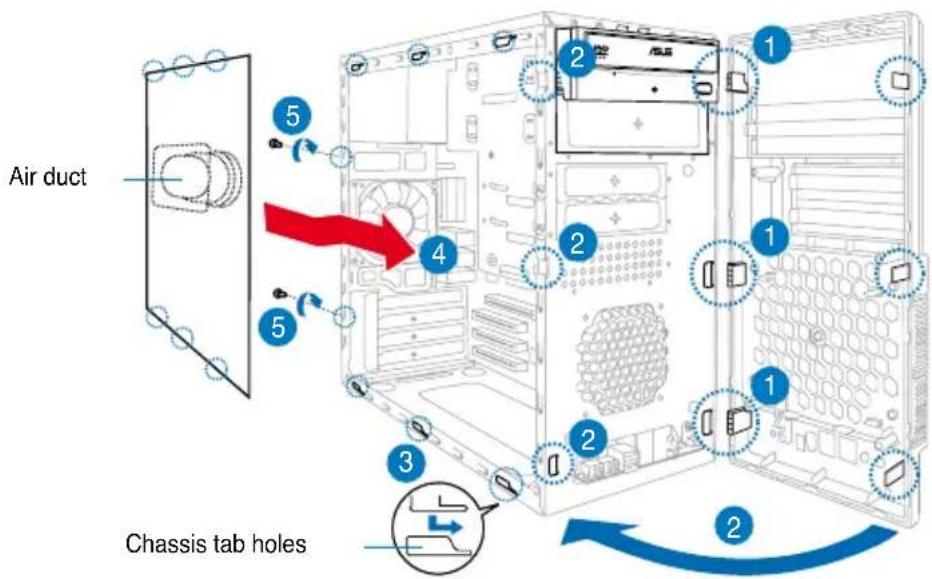

To reinstall the front panel assembly and side cover:

1. Insert the front panel assembly hinge-like tabs to the holes on the right side of the chassis.
2. Swing the front panel assembly to the left, then insert the hooks to the chassis until the front panel assembly fits in place.
3. Insert the six side cover hooks into the chassis tab holes.
4. Push the side cover to the direction of the front panel until it fits in place.
5. Secure the cover with two screws you removed earlier.

Air duct Chassis tab holes

ASUS

V-Série

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'F5', showing front and side views without any text or symbols on the cabinet bodies.

1 2 3 4 5 6 7 8 ASU

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a computer rack with numbered components for identification

Diagram of a device with a switch and arrow indicating rotation (no text or symbols)

Diagram of a device with a cable and a magnified view showing a small circular feature (no text or symbols)

Diagram showing a device with a magnified inset highlighting a component (no text or symbols present)

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a structural beam with multiple supports and directional arrows indicating force or movement (no text or symbols)

ATTENTION:

Diagram of a computer chassis showing internal components and labeled parts (no text or symbols present)

Diagram showing a device panel with labeled ports and directional arrows, likely illustrating a system or installation process.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, including numbered parts 3 and 4.

Diagram of a computer monitor with labeled parts and directional arrows indicating motion or signal flow

Illustration of a computer drive with labeled components A and B, showing internal components and a mesh texture (no text or symbols beyond labels)

Technical diagram of a computer tower with numbered components and airflow indicators

Diagram of an electronic device showing a cable being inserted into a drive, labeled A and B (no text or symbols beyond labels)

Diagram of a computer tower with numbered components and directional arrows indicating movement or flow

Diagram of a mechanical device with blue directional arrows indicating movement or flow (no text or symbols)

ASUS PC (Desktop Barebone)

Installationshandbuch

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'AS-US', showing front and side views without any text or symbols on the cabinet bodies.

Frontseite

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a server rack with numbered components for identification

Diagram of a mechanical component with blue arrows indicating motion, showing internal structure and rotation (no text or symbols)

Diagram of a structural beam with multiple supports and two directional arrows indicating force or movement (no text or symbols)

ACHTUNG:

Diagram of a computer tower rear panel with labeled components (no text or symbols present)

Diagram showing a device panel with labeled ports and directional arrows, likely illustrating a system or storage layout.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, marked as 3 and 4.

Diagram of a computer tower with labeled parts and directional arrows indicating flow or movement

Illustration of an electronic device with labeled ports A and B, showing internal components and a connector (no text or symbols beyond labels)

Diskettenlaufwerk

Technical diagram of a server rack with labeled components and airflow indicators

Diagram of a computer drive with cable and connector, showing internal components (no text or symbols)

Festplattenlaufwerk

Diagram of a computer tower with numbered parts and directional arrows indicating movement or system flow

Diagram of a mechanical component with blue arrows indicating direction, no text or symbols present

ASUS PC (Desktop Barebone)

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'AS-US', showing front and side views without any text or symbols on the cabinet bodies.

Diagram of a computer tower rear panel with numbered components and labeled connectors

Technical diagram of a server rack with numbered components for identification

Diagram of a computer monitor with a stand and scroll, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a wireless router with antenna and cable, showing a close-up view of its internal structure (no text or symbols)

Diagram showing a device with a magnified inset highlighting internal components (no text or symbols present)

Diagram of a mechanical component with blue arrows indicating motion or force, showing internal structure and rotation (no text or symbols)

Diagram of a rectangular structure with window-like panels and two directional arrows, no text or symbols present

ATTENZIONE.

Diagram of a computer chassis showing internal components and storage areas (no text or symbols)

Diagram showing a device panel with labeled ports and directional arrows, likely illustrating a system or installation process.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, numbered 3 and 4.

Diagram of a computer tower with numbered components and directional arrows indicating motion or flow

Illustration of an electronic device with labeled components A and B, showing internal wiring and a connector (no text or symbols beyond labels)

Lettore floppy

Diagram showing a computer drive with labeled components A and B, indicating cable connection or data transfer.

Disco fisso

Diagram of a computer tower with numbered components and directional arrows indicating movement or flow

Diagram of a mechanical or electrical component with blue arrows indicating direction, no text or symbols present

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'AS-US', showing front and side views without any text or symbols on the cabinet bodies.

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a server rack with numbered components for identification

Diagram of a mechanical component with blue arrows indicating motion or force, showing internal structure and rotation (no text or symbols)

Diagram of a mechanical component with multiple slots and two directional arrows, no text or symbols present

ADVERTENCIA:

Diagram of a computer tower compartment showing internal compartments and drive rails (no text or symbols)

Diagram showing a device panel with labeled ports and directional arrows, likely illustrating a system or storage layout.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, including numbered parts 3 and 4.

Diagram of a computer tower with labeled components and directional arrows indicating motion or flow

Illustration of a computer drive with labeled components A and B, showing internal components and a meshed cable (no text or symbols beyond labels)

Unidad de disquete

Diagram of a computer tower with labeled components and directional arrows indicating movement or flow

Diagram showing a computer drive with labeled components A and B, indicating cable or connection to the drive.

Diagram of a computer tower with numbered annotations indicating internal components and directional arrows

Diagram of a mechanical or electronic component with blue directional arrows indicating flow or movement (no text or symbols)

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'AS-US', showing front and side views without any text or symbols on the cabinet bodies.

Diagram of a computer tower rear panel with numbered components and labeled connectors

Technical diagram of a server rack with numbered components for identification

Diagram of a mechanical component with blue arrows indicating motion or force, showing internal structure and circular motion (no text or symbols)

Diagram of a mechanical component with multiple slots and two circular features, no text or symbols present

ВНИМАНИЕ:

Diagram of a computer tower case with labeled components and a numbered marker (1), showing internal storage areas and casing layout.

Technical diagram showing a device with labeled components and a blue arrow pointing to a component with 'D' and 'O'.

Diagram showing device port and cable routing with numbered annotations and directional arrows indicating movement or flow.

Diagram of a computer tower with labeled components and directional arrows indicating flow or movement.

Illustration of a computer drive with labeled components A and B, showing internal components and a meshed cable (no text or symbols beyond labels)

Дисковод

Diagram of a server rack with labeled components and directional arrows indicating flow or movement

Diagram showing a computer drive with labeled components A and B, indicating internal components and cable connection.

Жесткий диск

Diagram of a computer tower with numbered components and directional arrows indicating movement or flow

Diagram of a mechanical device with blue arrows indicating directional flow or movement, no text or symbols present

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'AS-US', showing front and side views without any text or symbols on the cabinet bodies.

Características do painel frontal

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a computer rack with numbered components for identification

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of a rectangular structure with window-like panels and two blue dotted arrows pointing to the right side (no text or symbols)

ATENÇÃO.

Diagram of a computer tower panel with labeled components (no text or symbols present)

Diagram showing a device panel with labeled buttons and directional arrows, likely illustrating a system or installation process.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, numbered 3 and 4.

Diagram of a computer rack with labeled parts and directional arrows indicating motion or movement.

Illustration of a computer drive with labeled components A and B, showing internal components and a mesh cable (no text or symbols beyond labels)

Diagram of a server rack with labeled components and airflow indicators

Diagram showing a computer drive with labeled components A and B, indicating cable connection or data transfer.

Diagram of a computer tower with numbered components and directional arrows indicating movement or flow

Line drawings of two different desktop computer cabinets, one labeled 'ASLS' and the other 'FBS', showing front and side views without any text or symbols on the cabinet bodies.

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a computer rack with numbered components for identification

Diagram illustrating three steps of a device's internal structure and component insertion, with Chinese annotations.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a structural beam with multiple supports and two highlighted corner points (no text or symbols)

UPOZORNĚNÍ.

Diagram of a computer tower case with labeled components and a numbered marker (1), showing internal storage areas and casing layout.

Technical diagram showing a device panel with labeled ports and directional arrows, likely illustrating a system or installation process.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, including a blue arrow pointing to a component.

Diagram of a computer tower with numbered components and directional arrows indicating motion or flow

电源 A B

Disketová jednotka

Diagram of a computer tower with labeled components and directional arrows indicating flow or movement

Diagram of a computer drive with labeled components A and B, showing internal components connected to a cable (no text or symbols beyond labels)

Pevný disk

Diagram of a computer tower with numbered components and directional arrows indicating movement or flow

Diagram of a mechanical or electrical component with blue arrows indicating direction, no text or symbols present

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'F5', showing front and side views without any text or symbols on the cabinet bodies.

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a server rack with numbered components for identification

Diagram illustrating three steps of a device's internal structure and component insertion, with Chinese annotations.

Diagram of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Diagram of a structural beam with multiple supports and two directional arrows indicating force or movement (no text or symbols)

UWAGA.

Diagram of a computer tower internal structure with labeled component (no text or symbols present)

Diagram showing a device panel with labeled components and a blue arrow pointing to a component with a magnified view.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, numbered 3 and 4.

Diagram of a computer tower with numbered components and directional arrows indicating motion or movement.

Illustration of a computer drive with labeled components A and B, showing internal components and a cable attachment (no text or symbols beyond labels)

Diagram of a server rack with labeled components and airflow indicators

Diagram of an electronic device showing a cable being inserted into a drive, labeled A and B (no text or symbols beyond labels)

Diagram of a computer tower with numbered components and directional arrows indicating movement or flow

Diagram of a vehicle door frame with blue directional arrows indicating movement or flow (no text or symbols)

Line drawings of two different desktop computer cabinets, one labeled 'ASUS' and the other 'AS-US', showing front and side views without any text or symbols on the cabinet bodies.

Az előlap elemei

Diagram of a computer tower rear panel with numbered components and labeled connectors

Diagram of a computer rack with numbered components for identification

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with multiple slots and two circular features, no text or symbols present

FIGYELEM!

Diagram of a computer tower case with labeled components (no text or symbols present)

Diagram showing a device interior with labeled ports and a blue arrow pointing to a device panel with 'D' and 'O'.

Diagram showing a device with labeled components and directional arrows indicating movement or flow, marked with number 4.

Diagram of a computer rack with labeled parts and directional arrows indicating motion or signal flow

Illustration of a computer drive with labeled components A and B, showing internal components and a mesh cable (no text or symbols beyond labels)

Diagram of a server rack with labeled components and directional arrows indicating movement or flow

Diagram of an electronic device showing a cable being inserted into a drive, labeled A and B (no text or symbols beyond labels)

Merevlemez-meghajtó

Diagram of a computer tower with numbered annotations indicating internal components and directional arrows

Diagram of a mechanical or electronic component with blue arrows indicating direction, no text or symbols present
