DTP9 - Thermometer VELLEMAN - Free user manual and instructions

Product type	Electronic probe thermometer
Brand	Velleman
Model	DTP9
Measurement range	-50 to +330 °C (-58 to +662 °F)
Resolution	±0.1 °C/°F
Power supply	1 CR1225 battery (3 V) included
Display	LCD, 27 x 13 mm
Probe length	147 mm
Total length	247 mm
Weight	42 g
Main functions	Temperature measurement, unit selection °C/°F, display hold, min/max mode, auto power off after 15 min
Buttons	On/Off, temperature, display hold
Care and cleaning	Clean with a damp cloth; do not use harsh solvents
Safety	Do not use in a lit oven; do not immerse; keep out of reach of children
Batteries	Observe polarity; remove if not used for extended periods; dispose of according to regulations
Warranty	24 months for manufacturing defects (EU consumers)
Included accessories	CR1225 battery
Intended use	Technical temperature measurement (non-food)

Frequently Asked Questions - DTP9 VELLEMAN

How to turn the DTP9 thermometer on and off?

Press the on-off button to turn the device on. To turn it off, press the same button again. The device also turns off automatically after 15 minutes of inactivity.

How to change the temperature unit (°C/°F)?

Press the temperature button (marked '°C/°F' or similar) to switch between Celsius and Fahrenheit.

How to use the display hold function?

Briefly press the 'display hold' button to freeze the displayed value. Press and hold this button to access min/max mode.

What battery does the DTP9 use and how to install it?

The thermometer works with a CR1225 3V battery included. Open the battery compartment on the back, insert the battery observing polarity, then close.

Is the thermometer suitable for measuring food temperature?

No, the DTP9 is designed for technical measurements. It is not suitable for measuring the temperature of food or drinks.

What is the minimum insertion depth of the probe?

Insert the probe at least 1 cm into the object to be measured to get an accurate reading.

How to clean the thermometer?

Clean the device occasionally with a damp cloth. Do not use harsh chemicals, solvents, or strong detergents.

What to do if the display seems frozen or incorrect?

Check that the battery is properly installed and sufficiently charged. Remove and reinsert the battery after a few seconds. If the problem persists, contact your dealer.

What are the important safety instructions?

Never leave the thermometer in a lit oven or microwave. Protect it from shocks, dust, humidity, and extreme temperatures. Keep it out of reach of children.

How to dispose of the used battery?

Do not throw the battery in household waste. Bring it to a collection point for used batteries in accordance with local environmental regulations.

USER MANUAL DTP9 VELLEMAN

DIGITAL PROBE THERMOMETER
DIGITALE TEMPERATUURSONDE
SONDE THERMIQUE NUMÉRIQUE
TERMÔMETRO DIGITAL CON SONDA
DIGITALTHERMOMETER
TERMOMETR CYFROWY Z SONDA
TERMÔMETRO COM SONDA DIGITAL

USER MANUAL 2
HANDLEIDING 5
MODE D'EMPLOI 8
MANUAL DEL USUARIO 11
BEDIENUNGSANLEITUNG 14
INSTRUKCJA OBSLUGI 17
MANUAL DO UTILIZADOR 20

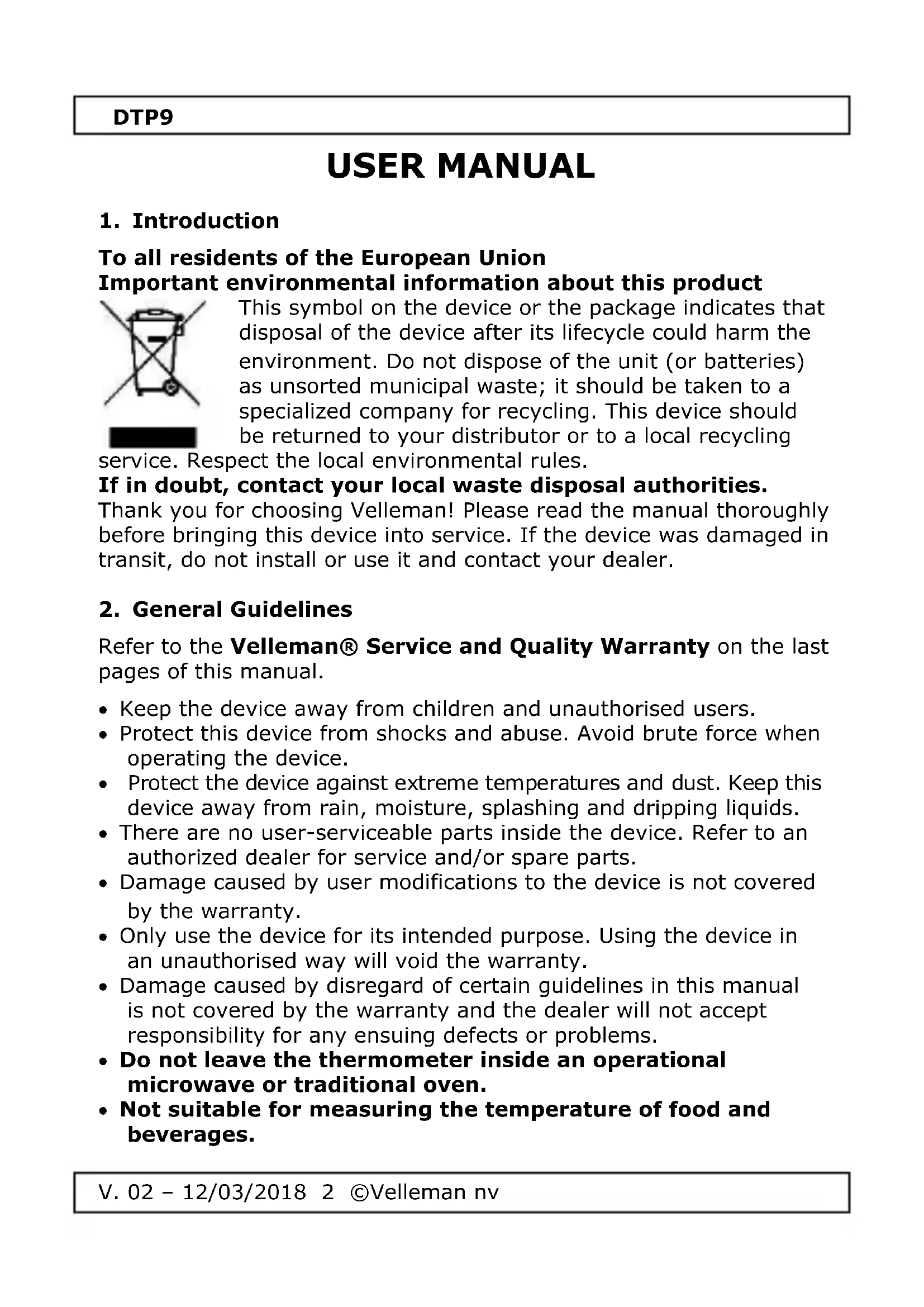

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling

service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Keep the device away from children and unauthorised users.
• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme temperatures and dust. Keep this device away from rain, moisture, splashing and dripping liquids.
• There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Do not leave the thermometer inside an operational microwave or traditional oven.
• Not suitable for measuring the temperature of food and beverages.

DTP9

3. Battery

1. Open the battery compartment at the back of the device.
2. Insert one CR1225 battery according to the correct polarity.
3. Close the battery compartment.

WARNING

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline).

Dispose of batteries in accordance with local regulations. Keep batteries away from children.

WARNING

Remove the batteries if you are no longer using the device or if the device is left unused for an extended period of time.

Remove used batteries promptly.

4. Operation

1. Press the on-off button to switch on the device.
2. Press the temperature selection button to select the temperature measuring unit.
3. Insert the tip at least 1 cm into the substance to be measured. Press the hold button to freeze the measurement on the display. Hold the button pressed to enter the min/max mode.
4. Switch off after use. Note that the device will automatically switch off after 15 minutes of inactivity.

5. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

DTP9

6. Technical Specifications

measuring range.....-50 to +330^ (-58 to +662^ )

resolution ± 0.1^ / ^

power supply 1 x CR1225 (3 V) battery (incl.)

LCD size 27 x 13 mm

probe length 147 mm

total length 247 mm

weight 42g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
