Product Type	Juice Extractor
Brand	Arendo
Model	303341
Power Supply	220-240 V ~ 50-60 Hz
Power Consumption	600 W
Protection Class	II
Juice Container Capacity	350 ml
Pulp Container Capacity	1 L
Noise Level	Approx. 73 dBA
Number of Speeds	2 (slow and fast)
Safety Functions	Thermal fuse, anti-drip protection, safety circuit (open lid)
Housing Material	Plastic
Removable Parts	Lid, strainer, collecting tray, juice container, pulp container
Maintenance	Clean after each use; wash removable parts with soapy water; wipe housing with a damp cloth
Repairability	Do not open yourself; contact the manufacturer or a specialist
Continuous Use Duration	1 minute operation, then 1 minute break; repeat up to 3 times, then 15 minutes cooling
Included Accessories	Juice container, pusher, instruction manual

Frequently Asked Questions - 303341 Arendo

Which fruits and vegetables can be used with the Arendo 303341 juicer?

You can use most firm fruits and vegetables, such as apples, carrots, beets, celery, etc. Avoid very soft fruits like bananas or avocados. Cut large pieces into small wedges to facilitate extraction.

How to clean the juicer after use?

Unplug the appliance. Disassemble all removable parts (lid, strainer, tray, containers). Wash them with warm water and mild detergent, preferably by hand. The strainer can be brushed with a fine-bristle brush. Clean the motor unit with a damp cloth. Let dry before reassembling.

Can the appliance run continuously?

No. The juicer should not run for more than one minute at a time. After one minute, let it cool for one minute. You can repeat this cycle up to 3 times, then let it cool for 15 minutes before using again.

How to use the anti-drip function?

Press the juice outlet upward to activate the anti-drip system. This allows you to change glasses without juice dripping. Release to resume flow.

What to do if the appliance does not start?

Check that the lid is properly closed and the locking mechanism is in place. The appliance has a safety circuit that prevents operation if the lid is open. Also ensure the plug is properly connected and the outlet works.

Can I juice green vegetables?

Yes, this juicer is suitable for green vegetables like kale, spinach, or parsley. Insert them together with firmer fruits for better extraction.

How to store the extracted juice?

The juice should be kept cool (refrigerator) and consumed within the day to avoid vitamin loss. Do not store it in metal containers, as fruit acid may alter the flavor.

What to do if the strainer is clogged?

Unplug the appliance and clean the strainer under running water with a brush. Ensure the holes are not blocked by residues. Never use metal objects that could damage the strainer.

Can I wash the motor unit with water?

No, never immerse the motor unit in water or any liquid. Clean it only with a slightly damp cloth.

Where can I find spare parts?

Contact the manufacturer Arendo or an authorized dealer. Use only original accessories to ensure safety and performance.

USER MANUAL 303341 Arendo

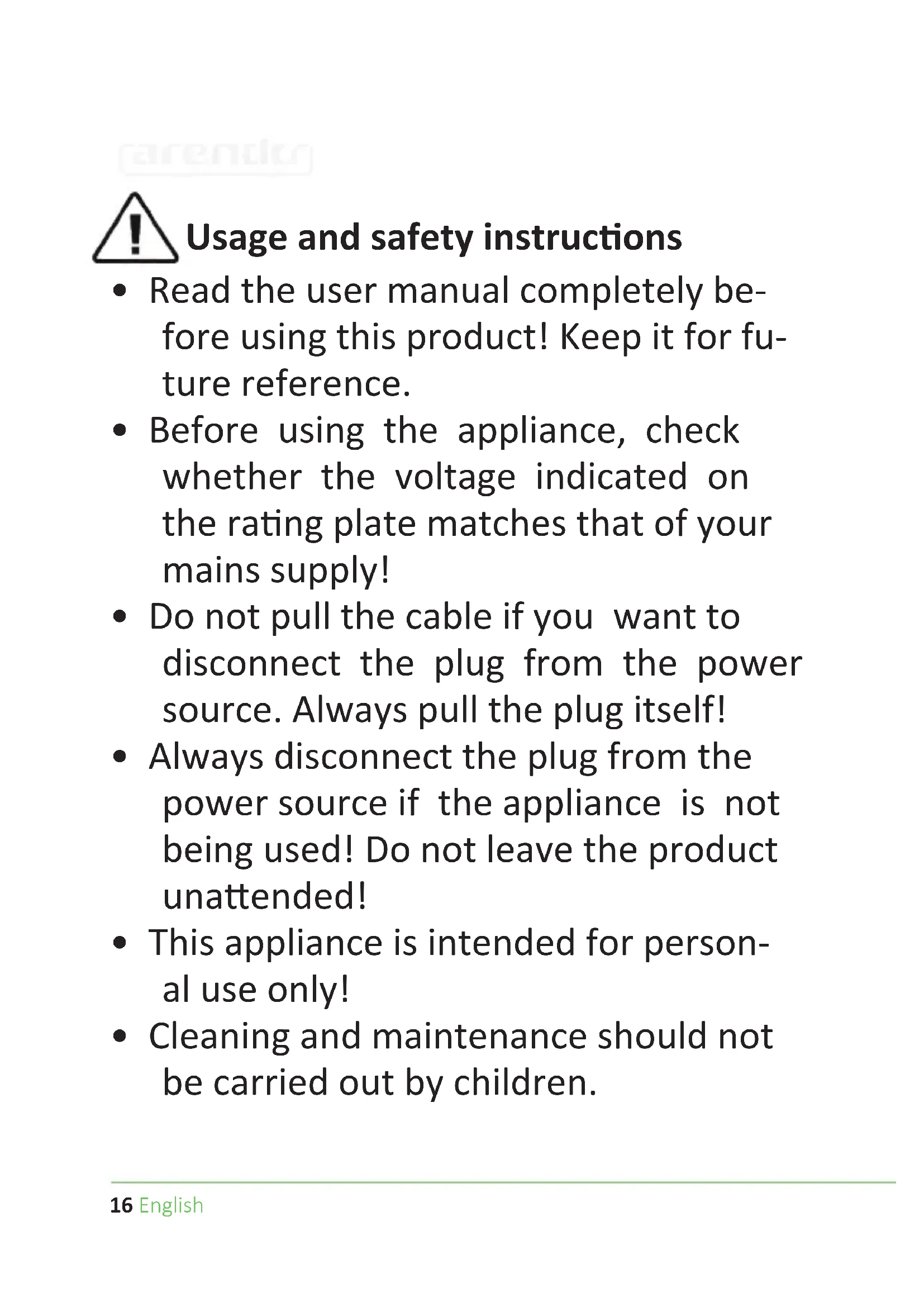

Usage and safety instructions

- Read the user manual completely before using this product! Keep it for future reference.

- Before using the appliance, check whether the voltage indicated on the rating plate matches that of your mains supply!

- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!

- Always disconnect the plug from the power source if the appliance is not being used! Do not leave the product unattended!

- This appliance is intended for personal use only!

- Cleaning and maintenance should not be carried out by children.

- This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and they understand the resultant dangers.

- Never immerse it in water for cleaning. Wipe the body with a dry cloth.

- Use the product only on a flat surface.

- Disconnect the appliance from the mains when it is not being used or during cleaning.

- Please ensure that the cable does not come into contact with any hot or moist surfaces.

- Do not turn on the appliance if you find a defect in the power cord. Con-

tact the manufacturer of the product in such cases.

• Never move the appliance during operation.
• The product should be opened or repaired only by qualified technicians!
• Remove the packaging material and check if the appliance is in proper working condition before using it.
• Ensure that children do not play with the appliance or the packaging material!
• In the interest of child safety, do not leave any packaging components (plastic bags, cardboard, polystyrene, etc.) lying around.
  • This product is not a toy!
• Close supervision is required if the product is used by or near children or frail persons.

- Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.

- Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry so as to avoid electric shock.

- This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.

- Never connect the appliance to an extension cable or power strip!

- Do not use the appliance outdoors!

- Use the product as described in this manual. Using the appliance for any

other purpose which is not recommended by the manufacturer may cause fire, electric shock or physical injury and void the guarantee.

• Never operate the appliance unsupervised. Always switch off the appliance if you leave the room. Disconnect the plug from the mains socket.
• Only use original spare accessories.
• Warning! Do not allow small children to play with the foil. Danger of suffocation!
• Use only fruits and vegetables from which you desire to extract the juice.
• Ensure that you keep body parts out of the appliance.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Juicer
• Juice container
• User manual

2. Technical data

Power supply 220-240 V, ~50-60 Hz
Power consumption 600 W
Protection class II
Capacity (juice container) max. 350 ml
Capacity (waste container) Max. 1L
Noise emission approx. 73 dBA
Features • Thermal fuse (overheating protection)• Drip guard• Safety circuit (appliance does not work if lid is open)

1. Product details


Technical diagram of a food blender with numbered parts for identification and assembly reference.

Figure 1

Number Description

1 Juice container

2 Speed level switch

3 Base unit/motor housing

4 Pulp container (waste container)

5 Locking latch

6 Spout with drip-stop function

7 Drip tray

8 Strainer

9 Transparent lid

10 Plunger

Note: When assembling, please ensure that the correct sequence (starting from 1 to 9) is followed, as shown in Figure 1.

4. Usage

Take the appliance out of the package and remove all the packaging material. Place it on a flat and firm surface.

• Connect the plug to a properly installed socket.
• Place the juice container (1) under the juice spout with a drip stop function (6).
• Push the juice spout (6) up to use the drip stop function (e.g., when changing the juice container).
• Close the locking latch (5).
• Switch on the appliance using the speed level switch (2). You have two speeds to choose from. Choose level 1 for a slow juice extraction and level 2 for a fast juice extraction.
  • Take the desired fruit or vegetable and place it at the top in the opening of the lid (9) and press it lightly with the plunger (10).

Caution! You can run the appliance for about 1 minute. Then please wait for 1 minute. This process can be repeated up to three times. Subsequently, allow the juicer to cool down for 15 minutes.

scendio

• It is always advisable to use the waste container (4) provided. This is the only one which fits the appliance properly.
• Before removing the juice container, press the spout upwards to use the drip stop function and prevent the juice from dripping out.
  • After usage, remove the power cord from the socket and then clean the appliance.

Note: Ensure that you refrigerate the juice after extraction. Remember that the juice should not be stored for more than one day. Do not keep the juice in metal containers because the acid in the juice may affect the surface and impair the taste.

7. Cleaning and Care

Disconnect the plug of the appliance from the mains socket before cleaning. Never immerse the base unit along with the motor in water!

Never use scouring or aggressive cleaning agents to clean the appliance. We recommend that you clean the juicer after each use.

Dismantle the appliance first as follows:

① Release the locking latch (5) on both sides of the appliance.
② Remove the transparent lid (9) of the appliance.
③ Then remove the strainer (8) and the drip tray (7). Please note that leftover fruits and vegetables may still be present. Proceed carefully.
④ Finally remove the waste container and empty it out.

• Clean the base unit with a slightly dampened cloth.
• The other components of the appliance can be cleaned with water and a mild cleaning agent.
• Clean the strainer with a brush having fine soft bristles.
• Allow the parts to dry adequately before assembling the appliance again.

Note: Reassemble the appliance after cleaning. When assembling, please ensure that the correct sequence (starting from 1 to 9) is followed, as shown in Figure 1.

Make sure that the strainer (8) locks properly before placing the lid (9) on the appliance.

Store the juicer with the lid in place to protect the components from dust. Store the appliance in the original packaging, if you do not want to use it for a long period.

8. Safety instructions and disclaimer

Never try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not water-proof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the appliance 303341/20200316FS028 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Figure 1
