USER MANUAL Parrilla 303490 Arendo

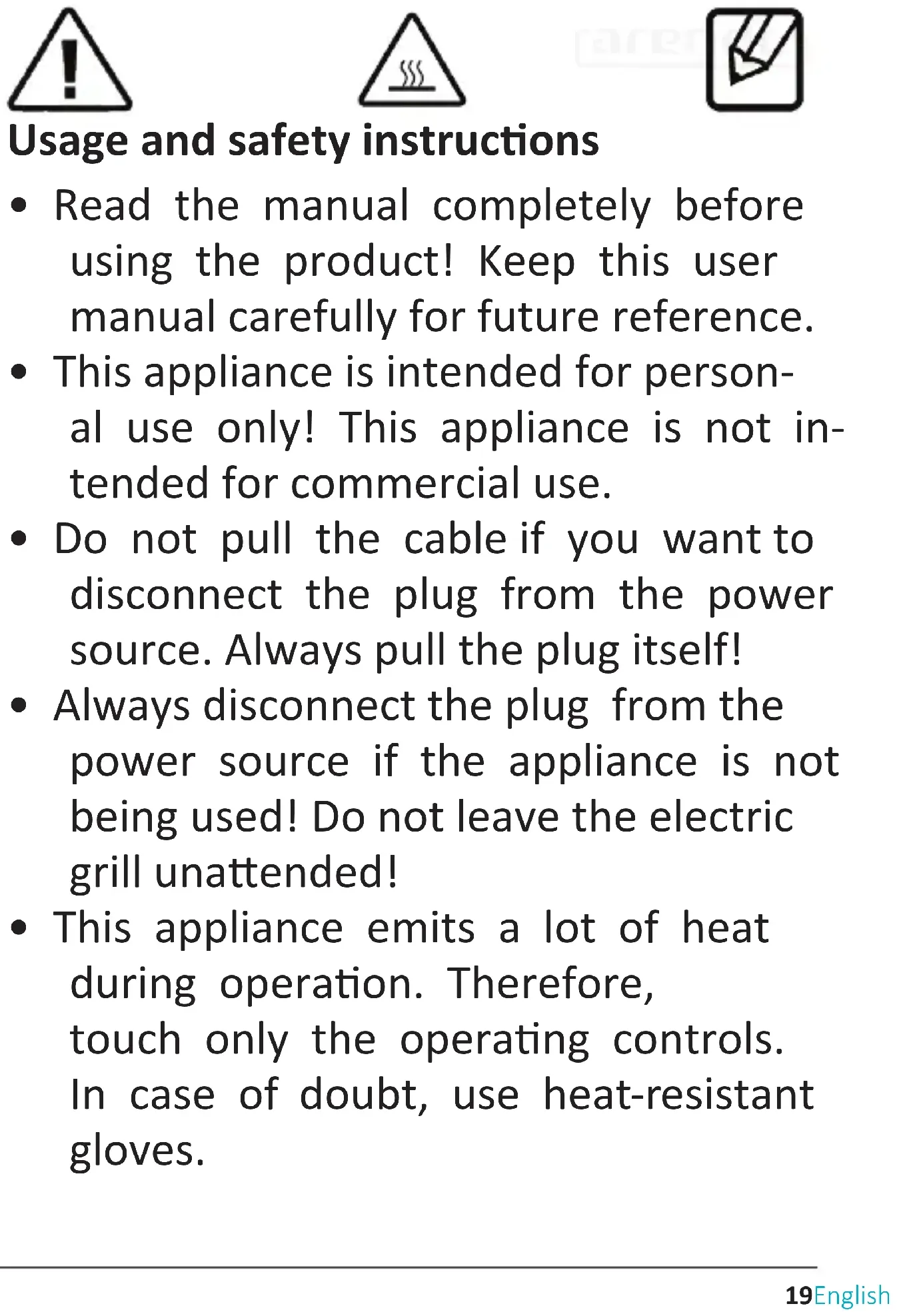

• Read the manual completely before using the product! Keep this user manual carefully for future reference.

• This appliance is intended for person- al use only! This appliance is not in- tended for commercial use.

• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!

• Always disconnect the plug from the power source if the appliance is not being used! Do not leave the electric grill unaended!

• This appliance emits a lot of heat during operaon. Therefore, touch only the operang controls. In case of doubt, use heat-resistant gloves.20 English

• Cleaning and maintenance should not be carried out by children.

• This appliance can be operated by children from 8 years of age and above, as well as by people with re- duced physical, sensory or mental capacies or who lack knowledge or experience, if they have been super- vised or instructed regarding safe use of the device, and they understand the resultant dangers.

• CAUTION! Some parts of the prod- uct may become very hot and cause burns. Be very careful if children or frail persons are present.

• Never immerse it in water for clean- ing. Wipe the body with a dry cloth.

• Place the appliance at a distance of least 1m from other objects.21English

• Use the product only on a at and sturdy surface.

• Disconnect the appliance from the mains when it is not being used or it is being cleaned.

• Keep the product at least 1m away from ammable materials, such as furniture, curtains, bedding, clothing or paper.

• Ensure that the cable does not come into contact with any hot or moist sur- faces.

• Do not turn on the appliance if you nd a defect in the power cord. Con- tact the manufacturer of the product in such cases.

• Never move the appliance during op- eraon.

• The appliance should be opened or repaired only by qualied technicians!

• Remove the packaging material and22 English check if the appliance is in proper working condion before using it.

• Ensure that children do not play with the appliance or the packaging mate- rial!

• This product is not a toy!

• Close supervision is required if the product is used by or near children or frail persons.

• Do not use the appliance aer a mal- funcon, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspecon, repair or replacement.

• Ensure that the appliance is switched o before disconnecng the mains cable. If you touch it, make sure that your hands are dry to avoid electric shock.23English

• Do not use the appliance in places such as garages, where petrol, paint, or other ammable materials are used or stored.

• This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.

• Never connect the appliance to an ex- tension cable or power strip!

• The appliance is not suited for out- door use.

• Use the contact grill only as described in this manual. Using the appliance for any other purpose, which is not recommended by the manufacturer, may cause re, electric shock or phys- ical injury and void the guarantee.

• Any modicaons to this appliance that are not expressly approved by the24 English manufacturer may nullify the safety and guarantee of its use for the user.

• When used in enclosed spaces, it is advisable to provide an exhaust hood or adequate venlaon for the room.

• Keep the appliance and the power cord out of the reach of children less than 8 years.

• Allow the appliance to cool down completely before storing or cleaning it!

• Use only accessories recommended by the manufacturer!

• Operate the appliance only with the lid closed!

• Please disconnect the mains plug before cleaning and allow it to cool down.25English

• CAUTION: This appliance should not be used with charcoal or similar fuels.

• CAUTION! Hot surface!26 English Thank you for choosing an Arendo product. Please read the following user manu- al carefully so that you can enjoy the purchased product for a long me.

1. Scope of delivery

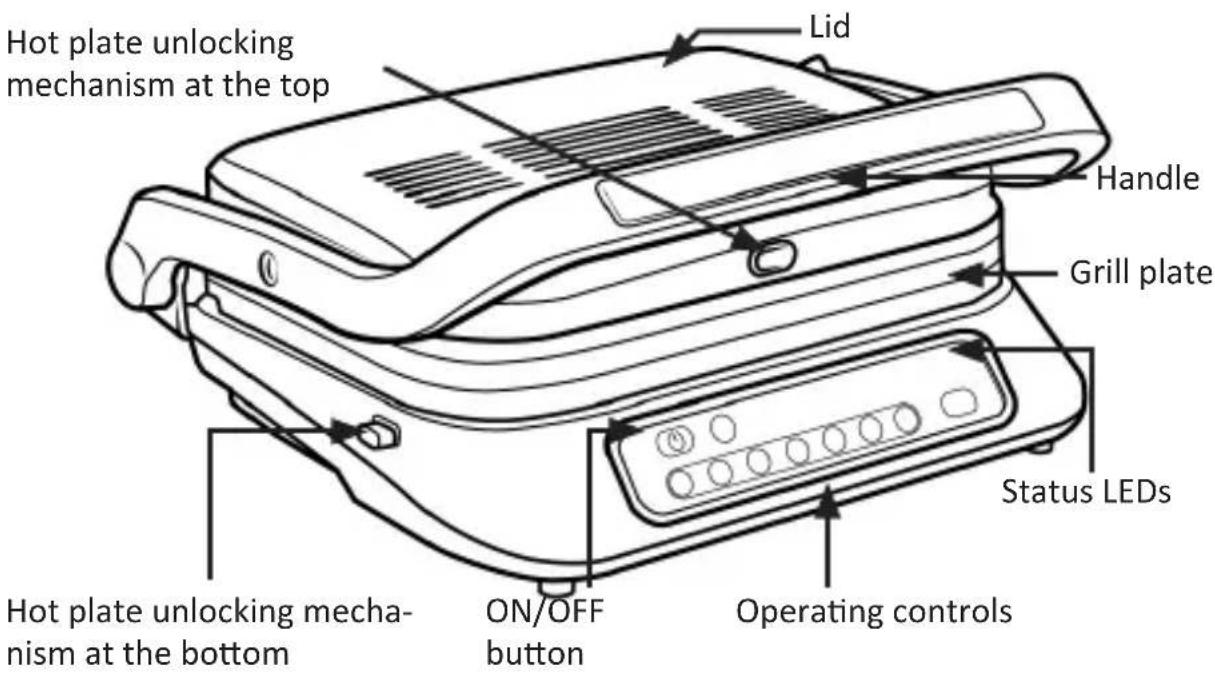

• Smart program funcon Hot plate unlocking mecha- nism at the boom Operang controls Handle Lid Grill plate Hot plate unlocking mechanism at the top Status LEDs ON/OFF buon27English

4. Assembly and inial use

CAUTION! Even if the appliance is not being used, always disconnect the mains plug from the socket before inserng the individual parts or cleaning.

1. Take the appliance out of the package and remove all the packaging materi-

al. Check the appliance for completeness.

2. Remove the grill plate by pressing the unlocking buons and take them

3. Before using it for the rst me, clean the grill plate with warm water and a

mild cleaning agent. Then thoroughly dry the components.

4. Replace the grill plates. Make sure that they lock in place to ensure a

5. Ensure that the drip tray is inserted correctly at the boom of the appli-

ance. The guide rail helps to insert the tray properly.

6. Connect the plug to a properly installed socket before commissioning.

Ensure that the voltage on the specicaon plate matches that of your domesc power supply. Note: Do not use any aggressive or chemical cleaning agents.

Smart mode The smart mode automacally sets the temperature and heang me depending on the selected program.

1. Insert the mains plug into the socket and you hear a beep.

2. Press the ON/OFF buon " " to start the appliance. The status indicator

light up again.28 English

3. Then select the appropriate mode (food category). If you want to roast

chicken for example, you can press the "Chicken" buon. Aer selecng the food category, the ve status LEDs glow together.

4. Press the "OK" buon if all the sengs are ok. Preheat the appliance. The

status LED "PRE-HEATING" glows accordingly.

5. When the temperature reaches the correct temperature, a beep is heard

which indicates that the preheang is completed. At this me, the status LED "PRE-HEATING" glows constantly and the indicator lamp "START" starts ashing.

6. Place the food on the base plate and close the lid. The thickness of the

food can be automacally detected in about 3 seconds, and the appliance selects the heang process accordingly. At this me the "PRE-HEATING" and "START" indicators glow constantly and the "RARE" indicator ashes.

7. For connuous heang, the indicator lights change gradually from "RARE"

to "MEDIUM" to "WELL DONE" to indicate the status of the food. Once a status is reached, the ashing indicator starts glowing steadily and the next indicator starts ashing. Mode Funcon Funcon opmised for frozen food Funcon opmised for bacon Funcon opmised for chicken Funcon opmised for sausages Funcon opmised for beef Funcon opmised for sh Funcon opmised for hamburger paes29English

8. If the "WELL DONE" indicator glows connuously, then the roasng process

is complete and you hear a beep. Then the appliance automacally switch- es o. Open the handle and check the food. Cauon! The smart mode cannot be used if the grille is used in the open posion. Manual mode

1. Insert the mains plug into the socket and you hear a beep.

2. Press the ON/OFF buon " " to start the appliance. Press the " "

buon to start the manual mode.

3. Then press the "OK" buon. The appliance starts to preheat. At this me,

only the "PRE-HEATING" indicator ashes.

4. When preheang is completed, you hear a beep. The "PRE-HEATING"

indicator glows connuously and the other four status LEDs ash one aer the other.

5. Place the food on the grilling surface and then close it. The appliance starts

the roasng process. In manual mode, the thickness of the food is not detected and there is no status reminder. Check the status of the food aer a few minutes. Helpful ps:

• For sasfactory results, apply a lile cooking oil or cooking spray to the plates.

• Close the grill plates during preheang. In manual mode, there is no detec- on funcon, which means that the appliance connues to run for about two hours unl it automacally turns o.30 English

• Open the cover only using the handle. Remove the food with a heat re- sistant plasc spatula. Never use metal tongs or a knife as these can cause damage to the non-sck coang of the cooking plates.

• The beep for "RARE" and "MEDIUM" is heard only when the beef funcon is used. For all other funcons there is only one beep for "WELL DONE".

6. Usage as an open grill

1. Place the grill on a clean, at and heat-resistant surface on which you want

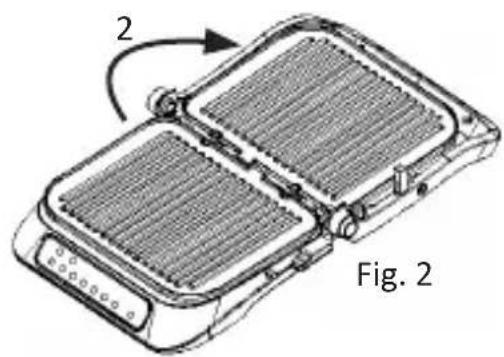

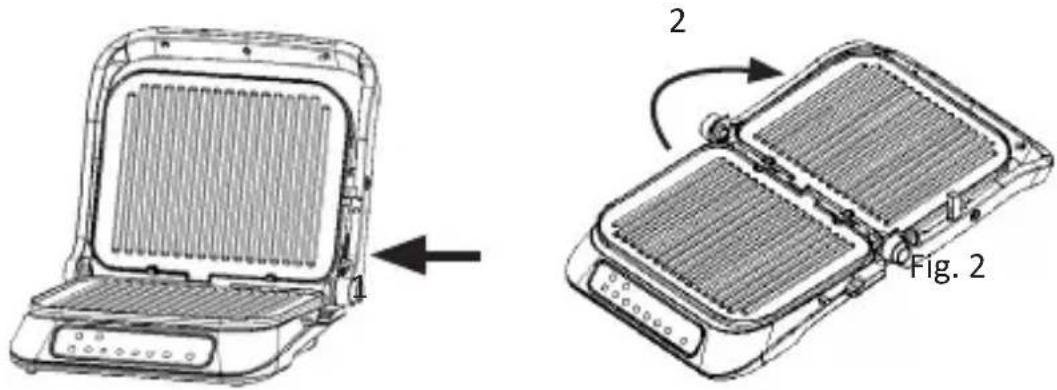

2. When the appliance is posioned as shown in Fig. 1, hold the top plate at

a slight angle forward and press the unlock buon (1). The upper cooking platen can be placed at 180 degrees with the lower cooking plate, as shown in Fig. 2.

3. Use the grill as an open grill to cook burgers, steaks, poultry, sh and

4. To return to the posion in Fig.1, simply li the upper cooking plate to the

inclined posion. When the unlocking buon of the hinge pops out, the upper plate is locked again. NOTE: The fan connues to run for 3 minutes aer you press the mains switch to turn it o. Fig. 1 Fig. 2

7. Cleaning and Care

Even if the appliance is not being used, disconnect the mains plug from the socket before cleaning it and/or the individual parts. This product does not contain any user serviceable parts.

1. Disconnect the appliance from the mains and allow it to cool down

completely. Cauon! The grill is sll very hot. It takes a while to cool down.

2. Press the unlock buons on the top and boom and removes the plates

3. Aer removing the grill plates, you can clean them in warm soapy water

or in the dishwasher. Dry the plates completely before placing them back on the grill.

4. Remove the drip tray at the boom of the appliance wearing gloves, emp-

ty the drip tray into a heat-resistant pan, rinse it in warm, soapy water or place it in the upper rack of the dishwasher and dry it thoroughly later. Note: Before removing the drip tray, make sure that the temperature of oil or oil residues is less than 40 ° C, otherwise it can cause burn injuries if it is too hot.

5. Wipe the other surfaces of the grille using a clean, damp cloth.

6. Finally replace the grill plates such that they lock into place.

1. Do not immerse the appliance in water or other liquids.

2. Do not use aggressive, abrasive cleaning agents or solvents.

3. Never use oven cloth, wire wool or soap pads.32 English

7. Clean the appliance completely before storing it.

8. Close the grill completely and always close it before storing.

9. Store the appliance in a dry place and out of reach of children. The grill

should not be stored vercally. Always place it on the stands.

8. Safety instrucons and disclaimer

Never try to open the device to carry out repairs or modicaons. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or heavy vibra- ons, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulaons and restricons. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modicaons to the appliance , which is not carried out by the original supplier, will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specicaons of the appliance may be changed without special prior noce.

9. Disposal instrucons

In line with the European WEEE direcve, electrical and electronic devices should not be disposed of along with domesc waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the elec- trical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the33English point of sale, or public collecon points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulaons. With this manner of sorng, recycling and disposal of used devices, you make an important contribuon towards protecng our environment.

10. Warranty and guarantee

Regardless of statutory warranty claims, the manufacturer provides a guarantee of at least 1 year (2 years in Germany) under the laws of your country. The warranty starts on the date of sale to the end user. The warranty only covers defects caused by material or manufacturing shortcomings. Warranty repairs should only be car- ried out by an authorized customer service centre. To assert your warranty claim, the original sales receipt (with date of sale) has to be enclosed. The following are excluded from the warranty: - Normal wear and tear - Improper use such as overloading the appliance, unapproved accessories - Damage caused by external inuences, use of force or by foreign bodies - Damage caused by not following the instrucons in the manual, such as con- necng to the wrong mains voltage or not following the assembly instrucons - Fully or parally dismantled appliances Within the EU, this symbol indicates that this product should not be disposed of with household waste. Used appliances contain valuable materials that should be recycled to prevent harm to the environment or human health caused by uncontrolled disposal of waste. Please dispose your old appliances via appropriate collec- on centres or send the appliance for disposal back to the place where you bought it. It will then be sent for recycling.34 English The company WD Plus GmbH hereby ceres that the device 303490 complies with the fun- damental requirements and all other relevant spulaons. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from our Internet address: hps://downloads.ganzeinfach.de/ WEEE direcve 2012/19/EU WEEE Register no.: DE 6789676135Français Consignes d'ulisaon et de sécurité
