Product type	Electric grill (grill plate)
Brand	Arendo
Model	303491
Dimensions (L x W x H)	160 mm x 380 mm x 320 mm
Weight	Approx. 3.5 kg
Power supply	220-240 V ~ AC, 50/60 Hz, 1800 W
Plate coating	Non-stick
Cooking modes	Smart mode and manual mode
Automatic programs	Bacon, chicken, sausages, beef, fish, burger, frozen
Features	Automatic thickness detection, preheating, auto shut-off, open grill possible
Display	Status LED (PRE-HEATING, START, RARE, MEDIUM, WELL DONE)
Grease drip tray	Removable, dishwasher safe
Plate maintenance	Removable plates, dishwasher safe
Safety	Auto shut-off after 2 h (manual mode), hot surface indicator, do not immerse
Warranty	1 year (2 years in Germany) from date of purchase
Spare parts	Contact manufacturer via www.ganzeinfach.de

Frequently Asked Questions - 303491 Arendo

How to use smart mode?

Plug in the appliance, press ON/OFF, then select the program corresponding to the food (e.g., chicken). Press OK to preheat. Once preheating is complete, place the food on the plate and close the lid. The appliance detects thickness and displays cooking progress from RARE to WELL DONE. A beep indicates the end.

Can I use the grill in open position?

Yes. Keep the upper plate tilted forward and press the unlock button (1) to open it to 180°. Then use it as an open grill for cooking hamburgers, steaks, etc. Smart mode is not available in open position.

How to clean the cooking plates?

Unplug the appliance and let it cool. Press the unlock buttons to remove the plates. Wash them in warm soapy water or in the dishwasher. Dry them completely before putting them back. The drip tray is also removable and cleans the same way. Do not use abrasive cleaners.

What to do in case of malfunction?

Unplug the appliance and do not use it. Contact the manufacturer via the website www.ganzeinfach.de for inspection, repair or replacement. Do not open the appliance yourself.

What is the power of the appliance?

The appliance has a power consumption of 1800 W and operates on a power supply of 220-240 V ~ AC, 50/60 Hz.

Does the grill shut off automatically?

Yes. In smart mode, it shuts off automatically when cooking reaches WELL DONE. In manual mode, it shuts off after 2 hours of continuous operation.

Why are the LEDs blinking?

The LEDs indicate the cooking status. During preheating, PRE-HEATING blinks. Afterwards, START blinks. During cooking, the RARE, MEDIUM and WELL DONE indicators blink in turn until the level is reached.

Can I use metal utensils?

No. Use only heat-resistant plastic spatulas. Metal tongs or knives can damage the non-stick coating of the plates.

How to store the appliance?

Clean it thoroughly, close the lid and store in a dry place, out of reach of children. Never store it upright, always on its feet.

What is the warranty?

The warranty is at least 1 year (2 years in Germany) from the date of purchase. It covers material and manufacturing defects. Keep the original receipt. Damage due to improper use is excluded.

USER MANUAL 303491 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Warning sign depicting steam rising inside a triangle, indicating heat hazard

Line drawing of a laptop with ventilation grilles and control panel, labeled with number 1 (no text or symbols on the device itself)

2 Abb. 2

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Usage and safety instructions

• Read the manual completely before using the product! Keep this user manual carefully for future reference.
• This appliance is intended for personal use only! This appliance is not intended for commercial use.
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Always disconnect the plug from the power source if the appliance is not being used! Do not leave the electric grill unattended!

• This appliance emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

• Cleaning and maintenance should not be carried out by children.

• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and they understand the resultant dangers.
• CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.

• Place the appliance at a distance of least 1m from other objects.

• Use the product only on a flat and sturdy surface.

• Disconnect the appliance from the mains when it is not being used or it is being cleaned.
• Keep the product at least 1m away from flammable materials, such as furniture, curtains, bedding, clothing or paper.
• Ensure that the cable does not come into contact with any hot or moist surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• Never move the appliance during operation.
• The appliance should be opened or repaired only by qualified technicians!
• Remove the packaging material and

check if the appliance is in proper working condition before using it.

• Ensure that children do not play with the appliance or the packaging material!
  • This product is not a toy!
• Close supervision is required if the product is used by or near children or frail persons.
• Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.

• Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry to avoid electric shock.

• Do not use the appliance in places such as garages, where petrol, paint, or other flammable materials are used or stored.

• This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.
• Never connect the appliance to an extension cable or power strip!
• The appliance is not suited for outdoor use.
• Use the contact grill only as described in this manual. Using the appliance for any other purpose, which is not recommended by the manufacturer, may cause fire, electric shock or physical injury and void the guarantee.
• Any modifications to this appliance that are not expressly approved by the

manufacturer may nullify the safety and guarantee of its use for the user.

• When used in enclosed spaces, it is advisable to provide an exhaust hood or adequate ventilation for the room.
• Keep the appliance and the power cord out of the reach of children less than 8 years.

- Allow the appliance to cool down completely before storing or cleaning it!

- Use only accessories recommended by the manufacturer!

- Operate the appliance only with the lid closed!

- Please disconnect the mains plug before cleaning and allow it to cool down.

• CAUTION: This appliance should not be used with charcoal or similar fuels.
  • CAUTION! Hot surface!

Warning sign depicting steam rising inside a triangle

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Electric grill
• User manual

2. Technical data

Power supply 220-240V ~ AC, 50/60Hz
Power consumption 1800W
Dimensions (H x W x D) 160mm x 380mm x 320mm
Properties	Uniform temperature distributionNon-stick coatingSmart program function

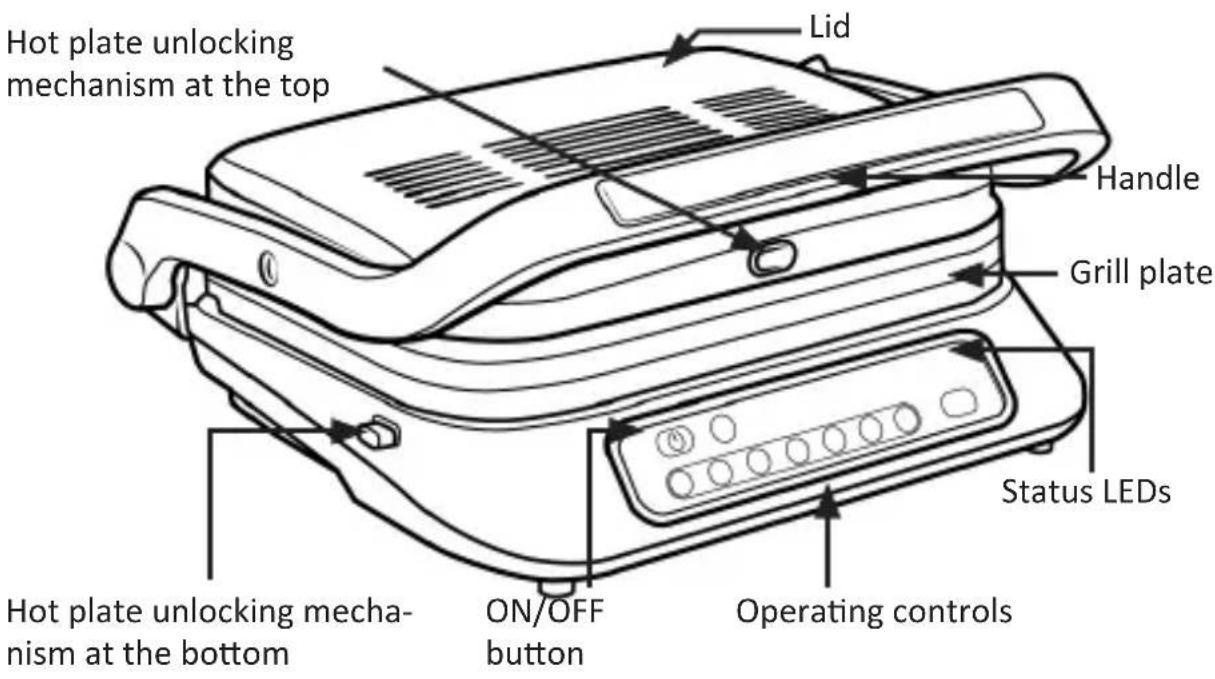

3. Product details

Hot plate unlocking mechanism at the top Lid Handle Grill plate Status LEDs Hot plate unlocking mecha-nism at the bottom ON/OFF button Operating controls

4. Assembly and initial use

CAUTION! Even if the appliance is not being used, always disconnect the mains plug from the socket before inserting the individual parts or cleaning.

1. Take the appliance out of the package and remove all the packaging material. Check the appliance for completeness.
2. Remove the grill plate by pressing the unlocking buttons and take them out.
3. Before using it for the first time, clean the grill plate with warm water and a mild cleaning agent. Then thoroughly dry the components.
4. Replace the grill plates. Make sure that they lock in place to ensure a proper fit.
5. Ensure that the drip tray is inserted correctly at the bottom of the appliance. The guide rail helps to insert the tray properly.
6. Connect the plug to a properly installed socket before commissioning. Ensure that the voltage on the specification plate matches that of your domestic power supply.

Note: Do not use any aggressive or chemical cleaning agents.

5. Modes

Smart mode

The smart mode automatically sets the temperature and heating time depending on the selected program.

1. Insert the mains plug into the socket and you hear a beep.

2. Press the ON/OFF button " " to start the appliance. The status indicator light up again.

3. Then select the appropriate mode (food category). If you want to roast chicken for example, you can press the "Chicken" button. After selecting the food category, the five status LEDs glow together.

Mode Function
	Function optimised for frozen food
	Function optimised for bacon
	Function optimised for chicken
	Function optimised for sausages
	Function optimised for beef
	Function optimised for fish
	Function optimised for hamburger patties

1. Press the "OK" button if all the settings are ok. Preheat the appliance. The status LED "PRE-HEATING" glows accordingly.

2. When the temperature reaches the correct temperature, a beep is heard which indicates that the preheating is completed. At this time, the status LED "PRE-HEATING" glows constantly and the indicator lamp "START" starts flashing.

3. Place the food on the base plate and close the lid. The thickness of the food can be automatically detected in about 3 seconds, and the appliance selects the heating process accordingly. At this time the "PRE-HEATING" and "START" indicators glow constantly and the "RARE" indicator flashes.

4. For continuous heating, the indicator lights change gradually from "RARE" to "MEDIUM" to "WELL DONE" to indicate the status of the food. Once a status is reached, the flashing indicator starts glowing steadily and the next indicator starts flashing.

1. If the "WELL DONE" indicator glows continuously, then the roasting process is complete and you hear a beep. Then the appliance automatically switches off. Open the handle and check the food.

Caution! The smart mode cannot be used if the grille is used in the open position.

Manual mode

1. Insert the mains plug into the socket and you hear a beep.
2. Press the ON/OFF button " " to start the appliance. Press the " " button to start the manual mode.
   M
3. Then press the "OK" button. The appliance starts to preheat. At this time, only the "PRE-HEATING" indicator flashes.
4. When preheating is completed, you hear a beep. The "PRE-HEATING" indicator glows continuously and the other four status LEDs flash one after the other.
5. Place the food on the grilling surface and then close it. The appliance starts the roasting process. In manual mode, the thickness of the food is not detected and there is no status reminder. Check the status of the food after a few minutes.

Helpful tips:

• For satisfactory results, apply a little cooking oil or cooking spray to the plates.

• Close the grill plates during preheating. In manual mode, there is no detection function, which means that the appliance continues to run for about two hours until it automatically turns off.

• Open the cover only using the handle. Remove the food with a heat resistant plastic spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cooking plates.

• The beep for "RARE" and "MEDIUM" is heard only when the beef function is used. For all other functions there is only one beep for "WELL DONE".

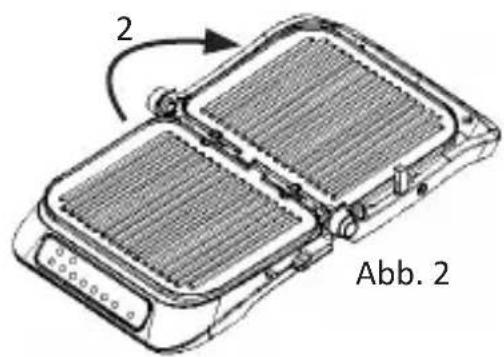

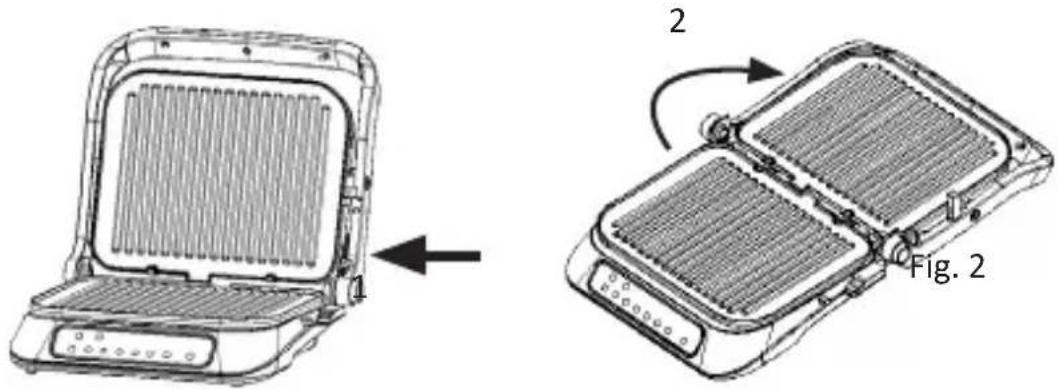

6. Usage as an open grill

1. Place the grill on a clean, flat and heat-resistant surface on which you want to cook.
2. When the appliance is positioned as shown in Fig. 1, hold the top plate at a slight angle forward and press the unlock button (1). The upper cooking platen can be placed at 180 degrees with the lower cooking plate, as shown in Fig. 2.
3. Use the grill as an open grill to cook burgers, steaks, poultry, fish and vegetables.

Fig. 1

Technical illustration of a laptop case with internal grid and ventilation slots, showing two views (labeled 1 and 2) without any text or symbols.

1. To return to the position in Fig.1, simply lift the upper cooking plate to the inclined position. When the unlocking button of the hinge pops out, the upper plate is locked again.

NOTE: The fan continues to run for 3 minutes after you press the mains switch to turn it off.

7. Cleaning and Care

Even if the appliance is not being used, disconnect the mains plug from the socket before cleaning it and/or the individual parts.

This product does not contain any user serviceable parts.

1. Disconnect the appliance from the mains and allow it to cool down completely.

Caution! The grill is still very hot. It takes a while to cool down.

1. Press the unlock buttons on the top and bottom and removes the plates from the grill.

2. After removing the grill plates, you can clean them in warm soapy water or in the dishwasher. Dry the plates completely before placing them back on the grill.

3. Remove the drip tray at the bottom of the appliance wearing gloves, empty the drip tray into a heat-resistant pan, rinse it in warm, soapy water or place it in the upper rack of the dishwasher and dry it thoroughly later.

Note: Before removing the drip tray, make sure that the temperature of oil or oil residues is less than 40^ C, otherwise it can cause burn injuries if it is too hot.

1. Wipe the other surfaces of the grille using a clean, damp cloth.

2. Finally replace the grill plates such that they lock into place.

Caution!

1. Do not immerse the appliance in water or other liquids.

2. Do not use aggressive, abrasive cleaning agents or solvents.

3. Never use oven cloth, wire wool or soap pads.

7.1 Storage

1. Clean the appliance completely before storing it.
2. Close the grill completely and always close it before storing.
3. Store the appliance in a dry place and out of reach of children. The grill should not be stored vertically. Always place it on the stands.

8. Safety instructions and disclaimer

Never try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings.

Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures.

Do not expose the appliance to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it was subject to impact or has been damaged in some other manner.

Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the

point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

10. Warranty and guarantee

Regardless of statutory warranty claims, the manufacturer provides a guarantee of at least 1 year (2 years in Germany) under the laws of your country. The warranty starts on the date of sale to the end user. The warranty only covers defects caused by material or manufacturing shortcomings. Warranty repairs should only be carried out by an authorized customer service centre. To assert your warranty claim, the original sales receipt (with date of sale) has to be enclosed.

The following are excluded from the warranty:

• Normal wear and tear
• Improper use such as overloading the appliance, unapproved accessories
• Damage caused by external influences, use of force or by foreign bodies
• Damage caused by not following the instructions in the manual, such as connecting to the wrong mains voltage or not following the assembly instructions
• Fully or partially dismantled appliances

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Within the EU, this symbol indicates that this product should not be disposed of with household waste. Used appliances contain valuable materials that should be recycled to prevent harm to the environment or human health caused by uncontrolled disposal of waste. Please dispose your old appliances via appropriate collection centres or send the appliance for disposal back to the place where you bought it. It will then be sent for recycling.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303490 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from our Internet address: https://downloads.ganzeinfach.de/

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Technical illustration of a laptop with two views: one open showing internal grid, the other closed showing heat sink (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard

Line drawing of a portable kitchen appliance with ventilation grilles and control panel (no text or symbols)

Diagram of a device with two panels, labeled 'Fig. 2', showing internal structure and rotation arrow (no text or symbols beyond labels)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard

Line drawing of a portable electric heater with ventilation grilles and control panel (no text or symbols)

Diagram of a device with two heat sinks and a labeled component (Fig. 2), showing internal grid structure without any text or symbols.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

We hope you enjoy your new product in every way! If there is still something you're concerned about please feel free to let us know. You're welcome to contact our service team at any time.
