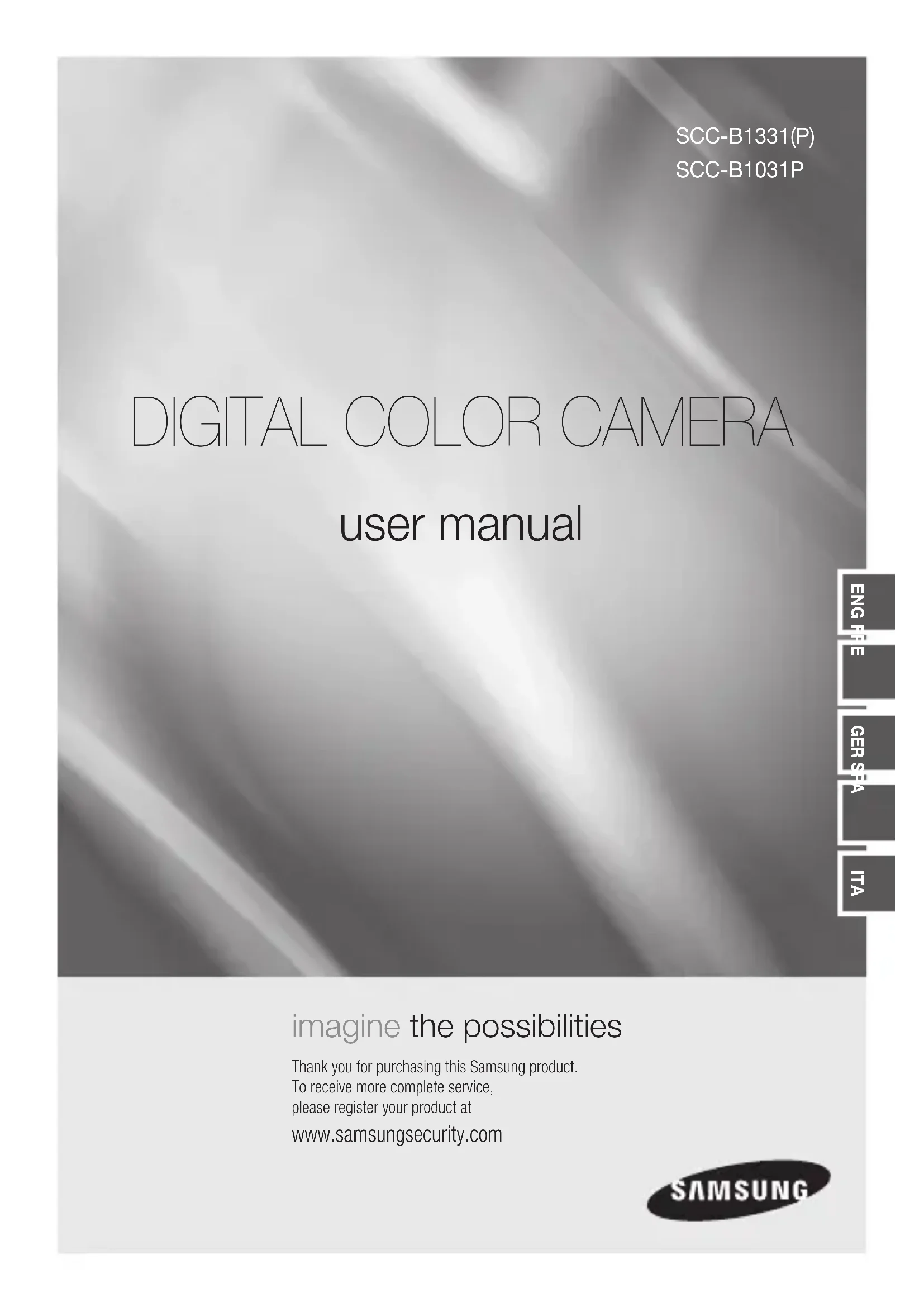

user manual SCC-B1331(P) SCC-B1031P imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsungsecurity.com ENG FRE GER SPA

ITA2 – DIGITAL COLOR CAMERA

Safety information CAUTION RISK OF ELECTRIC SHOCK.DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. WARNING To prevent damage which may result in fi re or electric shock hazard, do not expose this appliance to rain or moisture. WARNING Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet. Using any other adapter could cause fi re, electrical shock, or damage to the product Incorrectly connecting the power supply or replacing battery may cause explosion, fi re, electric shock, or damage to the product. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fi re. Securely plug the power cord into the power receptacle. Insecure connection may cause fi re. When installing the camera, fasten it securely and fi rmly. A falling camera may cause personal injury. Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers fi lled with water on top of the camera. Doing so may cause personal injury due to fi re, electric shock, or falling objects. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fi re or electric shock. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fi re or electric shock. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or attempted repair.)

9.English – 3 ENG Safety information d of nce nce

zed When cleaning, do not spray water directly onto parts of the product. Doing so may cause fi re or electric shock. CAUTION Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibrationor magnetic interference. Do not install in a location subject to high temperature (over 50°C), low temperature (below - 10°C), or high humidity. Doing so may cause fi re or electric shock. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fi re or damage to the product. Keep out of direct sunlight and heat radiation sources. It may cause fi re. Install it in a place with good ventilation. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the CCD image sensor. Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifi ers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specifi ed by the manufacturer. Use only with cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14.English – 5 ENG Contents Introduction Features 6 PRODUCT & ACCESSORIES 7 Part Names and Functions 8 Installation Connecting the Auto Iris Lens Connector 11 Mounting the lens 11 Connecting cables and checking operation 12 How to use OSD Menu Using Icons in the Menu 13 Main Menu 13 Profi le 14 Camera Setup 16 Intelligence 21 Privacy zone Setup

wide sult have y, or6 – DIGITAL COLOR CAMERA Introduction FEATURES High Resolution This camera has realized high resolution of 600 lines using the top-notch full digital image processing and special algorithm technologies. Intelligent Motion Detection & Tracking This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it sounds an alert if an object passes / enters /exits the virtual fence or virtual area. XDR (eXtended Dynamic Range) Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a certain pixel unit to determine the optimal visibility. DAY/NIGHT This function can make the IR Cut fi ltering function inactive under the illumination below the normal value. High Sensitivity It implements images of high sensitivity using the up-to-date SONY Super-HAD Progressive CCD. Low Illumination It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera identify objects even in the worst environment. Superior Backlight Adjustment When an object has a bright illumination or sunlight behind it, this camera automatically improves the shaded object picture quality. Digital Power Synchronization The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the operationability and reliability of this camera. Output Signal Setting You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy, Horizontal/Vertical profi ling, and digital zooming. OSD(On Screen Display) Menu OSD menu is provided to display the status of camera and to confi gure the functions interactively.

• English – 7 ENG Introduction and

PRODUCT & ACCESSORIES Product & Accessories❖ Accessories

Camera Camera Holder(Mount) Auto Iris Lens Connector User’s Manual Main Product

PART NAMES AND FUNCTIONS

Side View❖ Auto Iris Lens Connector This groove is used for screwing the mount adapter, a part of the bracket where the camera will be installed. Auto Iris Lens Control Cable This cable transmits the power and signals from the camera for controlling the Auto Iris Lens. Mount Adapter Fixing Grooves These grooves are used when fi xing screws of the mount adapter connected to the bracket when installing the camera on it.

Note : When the camera lens becomes dirty, softly clean it with a lens tissue or a cloth soaked in pure ethanol.

p10 – DIGITAL COLOR CAMERA Introduction n Input/Output Connector This connector has input and output ports for and alarm output signals.No. Function Description1 ALARM OUTAlarm out port for motion detection. (Open collector type)2 GND Grounding Port.3 TRIGGER INDisplays the current still image when it receives the Trigger signal.(Normal Open Type)4 SHUTTER (S0)This is a port for selecting an external high speed shutter mode. If connected in LOW (0V), it will become ON inside.5 SHUTTER (S1)This is a port for selecting an external high speed shutter mode. If connected in LOW (0V), it will become ON inside.6 SHUTTER (S2)This is a port for selecting an external high speed shutter mode. If connected in LOW (0V), it will become ON inside.7 5V OUTPower supply port for RS-485 JIG. Use within typical DC +5V 100mA o SETUP Switch This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the MAIN MENU appears.

(Left/Right) : By pressing this switch left or right, you can move left or right on the menu or change the displayed value. (Up/Down) : By pressing this switch up or down, you can move up or down on the menu. : When you press this switch in the menu, the selected function is confi rmed. To enter a submenu, press this button. p Power Display LED When the power is normally connected, the red LED lights. q Video OUT Port This is connected to the Video Input Port of the monitor and it outputs the Video signals. r GND This is a grounding port. s Power Connection Port This is connected to the Power cable.

e the ress Installation

CONNECTING THE AUTO IRIS LENS

CONNECTOR Connect each uncovered shutter control cables to the Auto Iris Lens Connector as the following Pin No. DC Control Type Video Control Type 1 Damp(-) Power (+12V) 2 Damp(+) Not applicable 3 Drive(+) Video Signal 4 Drive(-) Ground Note : You can switch a control type of the lens in the menu.

When using the CS lens Mount the CS lens by rotating it clockwise as shown in the picture: When using the C lens After mounting the C-mount adapter by rotating it clockwise, turn the C lens clockwise until it is fi xed as shown in the picture. CS 렌즈 CS lens C 렌즈 C lens12 – DIGITAL COLOR CAMERA Installation

Connect one end of the BNC cable to the VIDEO OUT Port on the rear of the camera. ② Connect another end of the BNC cable to the VIDEO IN Port on the monitor.

Finally connect the power adapter to the camera. You can connect 2 lines of the power adapter to the camera using the Slot Head screwdriver as shown in the picture. (GND: cable with the white stripe line)

Note : Connect any power source of AC 24V and DC 12V irrespective of polarity.

(EXIT) Exits the menu setting. Before you exits the menu setting, select SAVE to save your settings, or select QUIT to cancel. (RET) Returns to the previous menu. (HOME) Returns to the main menu. (SAVE) Used to save your settings of MASK AREA, PRIVACY ZONE and more. Once you save your settings, they will remain even if you select QUIT in the menu. (DEL) Used to deletes your settings of MASK AREA, PRIVACY ZONE and more. Once you delete your settings, they will not be restored even if you select QUIT in the menu.

PROFILE You can set a mode according to the camera installation conditions. CAMERA SET Confi gure Camera related functions and data. INTELLIGENCE You can confi gure the settings of motion detection,tracking and more. PRIVACY ZONE You can confi gure the privacy related settings. OTHER SET You can confi gure for Factory Defaults, and more. SYSTEM INFO. Displays the system information including the camera version and communication settings. LANGUAGE Select a preferred one from the supported languages.

STANDARD ITS BACKLIGHTGAMINGCUSTOM In the PROFILE menu, you can confi gure the following camera settings at once. CAMERA SET Menu

STANDARD ITS BACKLIGHT GAMING

Previous Menu Sub-menus

IRIS ALC ALC ALC ALC

WEIGHT User setting allowed User setting allowed MID User setting allowed WHITE BAL User setting allowed User setting allowed User setting allowed User setting allowed MOTION (F.FAST)--- (F.FAST)--- NORM SLOW

RED00 00 BLUE 0 0 0 0 DETAIL 2 2 2 2 ITS It will be set automatically so you can easily check the traffi c conditions. BACKLIGHT It will be set automatically so you can distinguish the object from the background in a severe backlighting scene. GAMING It will be set automatically to help you take a picture in a regular indoor lighting condition.

The IRIS menu is used if you want to adjust the intensity of radiation incoming to the camera. ALC (Automatic Light Control) ① If you press the SETUP switch with an ALC- based sub menu selected, you will see the appropriate screen.

ALCLENS DCLEVEL [00]----I----BACKLIGHT OFF

The LENS menu is used if you select a type of the AI lens. For normal operation, you must select DC for a DC-type lens, and select VIDEO for a VIDEO- type lens.

• English – 17 ENG How to use OSD Menu sign

The LEVEL menu is used to adjust the overall brightness, where “+” will increase the brightness and “–” will decrease it. ② If you set the BACKLIGHT option to BLC, you will see a menu where you can set the BLC area. you can set the desired BLC zone by defi ning the size and location. ALC LENS DC LEVEL [00]----I---- BACKLIGHT BLC AREA USER <SIZE> <LOCATION>

If you use an ordinary camera in a scene with an intensive backlight, the object will be displayed dark on the monitor affected by the backlight. To solve this problem, you can use the BLC(Back Light Compensation) function to improve the sharpness of the image in such a high contrast scene. Namely, it improves the sharpness of the picture in outdoor scenery as well as indoor. ELC (Electronic Light Control)

submenu is selected, the corresponding screen appears. You can make the ELC (Electronic Light Control) function active or not. ELC LEVEL [00]----I---- BACKLIGHT OFF

AGC [OFF, VERY LOW, LOW, MID, HIGH, VERY

The AGC (Auto Gain Control) menu is used to set the AGC level of the camera. When the AGC is active, the camera automatically increases the sensitivity by amplifying the Video signal when the strength of the signal falls below the normal value. If OFF or FIX mode is selected in the SENS-UP menu, you can specify the AGC level. If you press the SETUP switch with a USER sub menu selected, you will see the appropriate screen. AGC USER LEVEL [16]

In USER mode, you can break down the level in 16 steps from VERY LOW to VERY HIGH to your preference.

❖18 – DIGITAL COLOR CAMERA

How to use OSD Menu AGC FIX LEVEL [01]

If you press the SETUP switch with a FIX sub menu selected, you will see the appropriate screen. As a fi xed value of the AGC gain is used in FIX mode, you can select one of the 16 detailed levels from VERY LOW to VERY HIGH before fi xing it. DNR

[OFF,LOW,MID,HIGH, USER(1~16)]

You can confi gure the DNR (Digital Noise Reduction) related settings. Reduces the noise on the screen. This is especially useful for a severely distorted screen. You can set the level if you set DNR to USER. SHUTTER [OFF, AUTO 1/100(PAL:1/120), AUTO 1/250,

AUTO 1/500, AUTO 1/1000, AUTO 1/2000, AUTO

1/4000, AUTO 1/10K , 1/100(PAL:1/120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10K , EXT] The SHUTTER menu is used to set the fi xed high-speed electronic shutter, auto high speed electronic shutter and external high speed electronic shutter(EXT). You can select one of 7 options from 1/100(PAL:1/120) to 1/10K for the fi xed high speed electronic shutter, which is mostly used for imaging a fast moving object. The auto high speed electronic shutter operates as the fi xed high speed shutter in a high contrast scene but automatically focuses the target if the iris opens fully in a low contrast scene like in ELC mode. When it gets brighter back, the mode will switch to the fi xed high speed electronic shutter mode. However, the auto high speed shutter operates properly only in a camera featuring a DC or VIDEO

lens. In external high speed electronic shutter (EXT) mode, you can select one of 8 modes from OFF through 1/100(PAL:1/120) to 1/10K for the high speed electronic shutter. It works as the high speed electronic shutter. You can select an option using SHUTTER(S0), SHUTTER(S1) and SHUTTER(S2) on the rear. Connect each of the terminals to GND. See the below table for the operation. SHUTTER(S0) SHUTTER(S1) SHUTTER(S2) OFF (NTSC: 1/60, PAL:1/50)

1/10K ON ON ON Note : If the SHUTTER option is set to fi xed electronic shutter or EXT mode, the SENS-UP menu will be deactivated.

FLICKERLESS [OFF, ON]

If set to ON, the shutter speed will be fi xed to 1/100(PAL:1/120) second. This will prevent possible screen distortion due to a mismatch between the vertical sync frequency and the blinking frequency of the lighting. XDR (eXtended Dynamic Range)

[OFF, LOW, MID, HIGH]

Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a certain pixel unit to determine the optimal visibility.

• English – 19 ENG How to use OSD Menu

If you want to adjust the color scheme, use the WHITE BALANCE function. DAY In DAY mode, you can set the color values of RED and BLUE. The screen will be displayed in colors according to your settings. WHITE BALDAY/NIGHT DAY MODE AWC RED [00]----I---- BLUE [00]----I---- R-GAIN [0248] B-GAIN [0247] Note : You can set the values of R-GAIN and B-GAIN only in AWC mode. NIGHT Use the NIGHT mode if you want to set the white balance differently according to the ambient luminance. If the NIGHT mode is set to OFF, the white balance will always operate as set in DAY mode; if not to OFF, the camera will switch to as set in DAY/NIGHT mode according to the brightness. In NIGHT mode, you can set the values of RED, BLUE and BRIGHTNESS. The screen will be displayed in colors according to your settings.

Note : You can set the values of R-GAIN and B-GAIN only in AWC mode. If AGC is set to OFF or FIX, you can not access the NIGHT menu. For adjusting the white balance, the following 5 modes are provided: ATW1(Auto Tracing White Balance mode 1): The camera can automatically adjust the color temperature in real time, according to the ambient conditions. The color temperature ranges from approx. 2500K to 9300K. ATW2: The color temperature ranges from approx. 2,000K to 10,000K. AWC ( Auto White Balance Control): If you press the SETUP switch in the appropriate item position, Auto White Balance will perform once. 3200K : Set color temperature to 3200K 5600K : Set color temperature to 5600K RED : Adjusts the strength of the red color. BLUE : Adjusts the strength of the blue color. R-GAIN/B-GAIN : Enables you to set the current color temperature manually. BRIGHTNESS : Select a brightness level in switching from setting in DAY mode to setting in NIGHT mode.

DIGITAL ZOOM [ON/OFF]

You can set the digital zoom factor and position. If you press the SETUP switch with the DIGITAL ZOOM function set to ON, you will see the appropriate screen. When the zoom factor and position are defi ned, the digital zoom function will operate.

DIGITAL ZOOMRATIO [X1.0]< LOCATION >

LOCATION : If you press the SETUP switch in the condition where the image is enlarged as much as the ratio setting, you can watch an invisible area of the effective screen as well using the cdef switch. Note : If the digital zoom factor is set to larger than 1x, the FENCE function will be deactivated. The DIGITAL ZOOM function enlarges the pixel itself, which can cause deterioration of the quality. DETAIL [0~3] Controls the horizontal or vertical distinction.

Select the vertical sync mode for INT or LINE. If you select INT, the camera will use the internal synchronization. If selecting LINE, the camera will use the external power source frequency for the synchronization. You can adjust the LL-PHASE. Note : Use of DC 12V will fi x V-SYNC to INT, which can not be changed.

Adjust the color scheme according to the AGC value.

REVERSE [OFF, H, V, H/V]

Mirrors video signals horizontally, vertically, or both.

Output as it is or mirror the video brightness signal.

Displays a sub image together with the main image on the same screen using the Picture In Picture function. Note : If more than one privacy zone is set and the PRIVACY SET is set to ON, the PIP function will be deactivated. If the INTELLIGENCE function is set to FENCE mode, the PIP menu will be deactivated.

Digital Image Stabilization will set the anti-shake compensation. Note : If you set DIS to ON, the compensation area will be enlarged as set in the digital zoom factor. If you set the digital zoom factor to greater than the enlarged zoom factor for the compensation, the DIS function will be deactivated.

TRACKING Detects and tracks a moving object. DETECTION Detects a moving object. MASK AREA [1~4] Specify a detection exception area to mask. Select a mask number and specify the size and position.

With the DISPLAY option set to ON, a motion or a set ADVANCED function will be displayed on the screen, if detected.

SENSITIVITY [1~7] Set the sensitivity of the motion detection. RESOLUTION [1~5] If setting it to high, the camera can detect even a trivial movement of the target. ALARM OUT If you set a desired menu item to ON, the camera will sound an alert if it detect the appropriate motion.

The PRIVACY function will protect your privacy by screening the privacy area that you have specifi ed during monitoring. You can specify up to 12 privacy zones. If you set the PRIVACY SET to ON, your PRIVACY ZONE settings will be applied. You can change the style to adjust the mosaic size and color of the PRIVACY ZONE. ePRIVACY ZONEf 1 2 3 4 5 6 7 8 9

Use the cdef switch to select one from PRIVACY 1 through 12. Select one from PRIVACY 1~12 and press the SETUP switch to confi rm your setting. You can specify a pixel that moves as you change the PIXEL LEVEL to set the position. PRIVACY ZONE SET1PIXEL LEVEL [4]<POINT> <POSITION>

- How to set the point You can set each position of the 4 points. ① If you press the SETUP switch in <POINT>, you will see the points available in the PRIVACY ZONE. Each time you press the SETUP switch, the points available will move. ② Use the cdef switch to set the position of each point. Set each position of the four points and press the SETUP switch to complete the positioning. - How to set the position You can move the position of the overall area. ① By pressing the SETUP switch in <POSITION>, you can move the overall position of the privacy zone. ② Use the cdef switch to move the position and press the SETUP switch to confi rm it. Note : If more than one PRIVACY ZONE is specifi ed and the PRIVACY SET is set to ON, the PIP function will be deactivated. If the 12th PRIVACY ZONE is specifi ed, the LINE function of FENCE will be deactivated.

ction OTHER SET eOTHER SETfFACTORY DEFAULTS OSD COLOR BW FACTORY DEFAULTS All the settings will be restored to the factory default. However, the settings of LANGUAGE will not be restored to the default.

OSD COLOR [BW, R/G/B]

You can set the OSD(On-screen Display) color to COLOR or B/W.

SYSTEM INFORMATION eSYSTEM INFOfTYPE 3_BOX_NOR_PSERIAL NO. 000000000000000CAMERA VER. 0.50_090101 You can view the system information including the serial number, camera version.. LANGUAGE eLANGUAGEfÃENGLISHFRANÇAISDEUTSCHESPAÑOLITALIANO The camera supports 5 different languages. Select a preferred language.24 – DIGITAL COLOR CAMERA How to use OSD Menu Initial Confi guration Table Camera Confi guration

LED Indicator Yes Physical Specifi cation Dimensions (WxHxD) Net SCC-B1331P : 64(W) x 58(H) x 109.2(D) mm SCC-B1031P : 64(W) x 58(H) x 129.2(D) mm Package 173(W) x 99(H) x 115(D) mm Weight Net SCC-B1331P : Approx. 305g SCC-B1031P : Approx. 395g Package SCC-B1331P : Approx. 530g SCC-B1031P : Approx. 620g Color Body SilverCorrect Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.CAMERA NUMERIQUE COULEUR Manuel d’utilisation SCC-B1331(P) SCC-B1031P Imaginez les possibilités Nous vous remercions d’avoir choisi ce produit Samsung. Pour bénéfi cier d’un service plus complet, veuillez enregistrer votre produit sur le site www.samsungsecurity.com

PRODUIT ET ACCESSOIRES

IRIS ALC ALC ALC ALC

OBJECTIF DC DC DC DC

JOUR JOUR/NUIT JOUR JOUR

BLENDE ALC ALC ALC ALC

OBJEKTIV DC DC DC DC

OSD-FARB [S/W, R/G/B]

IRIS ALC ALC ALC ALC

IRIS ALC ALC ALC ALC

AGC [OFF, MOLTO BASSO, BASSO, MID,

SENZA SFARF. [OFF, ON]

Se si effettua l’impostazione su ON, la velocità di scatto viene fi ssata a 1/100 (PAL:1/120) secondi. Questo impedisce una possibile distorsione della schermata dovuta a una mancata corrispondenza tra la frequenza di sincronizzazione verticale e la frequenza di lampeggio dell’illuminazione. XDR (Gamma Dinamica Estesa)

[OFF, BASSO, MID, ALTO]

USCITA ALLARMIATTIVITÀ ON
