| Brand | Bimar |
| Model | VBOX38T |
| Product type | Fan |
| Use | Domestic |
| Power supply | Mains 220-240 V ~ 50 Hz |
| Number of speeds | 3 (low, medium, high) |
| Timer | Yes, adjustable from 0 to 120 minutes |
| Oscillation function | Yes (diffuser rotation) |
| Control type | Rotary knobs (speed selector and timer) |
| Electrical class | Class II (double insulation) |
| Maximum ambient temperature | 40 °C |
| Installation | Stable, horizontal surface, away from heat sources and liquids |
| Cleaning | Soft, slightly damp cloth; do not immerse |
| Maintenance | Unplug before cleaning; keep motor ventilation holes clear |
| Safety | Do not use with external timer or programmer; unplug if not used for extended period |
| Warning | Keep out of reach of children; do not insert objects into the grille |
| Weight (estimated) | Approximately 2.5 kg |
Frequently Asked Questions - VBOX38T Bimar
User questions about VBOX38T Bimar
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual VBOX38T - Bimar and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VBOX38T by Bimar.
USER MANUAL VBOX38T Bimar
If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.
This symbol show: the appliance is class II equipment, for which the power cord plug is without of the pole to the ground.
GENERAL NOTICES
- This device is intended for home use only, to ventilate rooms, and in the manner described in this manual: do not use it for an purpose. Any other use is to be considered inappropriate therefore dangerous. The manufacturer cannot be he responsible for eventual damage caused by inappropriate improper or irresponsible use and/or for repairs made product by unauthorized personnel.
This appliance is intended to be used in household and s applications such as:
- staff kitchen in shops, offices and other working environments;
- farm houses
- by clients in hotels, motels and other residential type environments
- bed and breakfast type environments
- Do not touch the appliance with wet hands or feet.
- Do not insert any tool, or your fingers, into the grille protecting the blades.
- This appliance can be used by children aged from 8 years above and persons with reduced physical, sensory or capabilities or lack of experience and knowledge if they
given supervision or instruction concerning use of the app a safe way and if they understand the hazards involved. It shall not play with the appliance. Cleaning and user main shall not be made by children without supervision.
- This appliance can be used by children aged 8 and older persons with reduced physical, sensory or mental capability of experience and knowledge if they are properly supported or if they have received instructions regarding the safe use of appliance and have understood the related dangers. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older years of age and are supervised.
- The appliance must be kept out of children's reach.
- Attention: when using electric appliances, the basic precautions must always be observed to avoid risks of fire shocks and physical injury.
- Do not use the appliance if it is not operating correctly damaged; if in doubt, contact professionally qualified pe
- Make sure that the appliance is working correctly: if not appliance off and have it checked by professionally personnel.
- Always unplug the appliance before you assemble, disas make adjustments to the appliance.
- Do not move the appliance when it is operating.
- Unplug the appliance when not in use.
- Do not use the device at room temperatures above 40 °C
- Do not move the appliance when it is in function.
- Do not leave the device exposed to the weather (sun, rai
- Do not pull on the cord to disconnect the plug from the
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person to avoid a hazard.
INSTALLATION
- After removing the packing materials, check the integrity of the heater; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger.
- Before connecting the appliance, check that the voltage values shown on the data plate correspond to those of the electricity supply network. In the event of incompatibility between the electric outlet and the plug of the heater, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the section of the wires of the outlet is appropriate for the absorbed power of the heater. In general, the use of adapters or extension cords is not recommended; if their use is indispensable, they must conform to existing safety standards and their current capacity (amperes) must not be less that the maximum of the appliance.
- The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
- To not place the appliance near sinks or other container of liquids (minimum distance of 2 meters) to avoid the risk of it falling in.
- Keep the fan far away from fabrics (curtains, etc.) or unstable materials that could obstruct the air intake grille; make sure that the front is free of unstable materials (dust, etc.).
- Make sure that the electric cord is not touching rough, hot or moving surfaces and not twisted or wrapped around the appliance.
- Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
- Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane (the appliance could upset).
- In the event of a breakdown or poor operation, turn the fan heater off and ask for professionally qualified help.
USE INSTRUCTIONS
Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

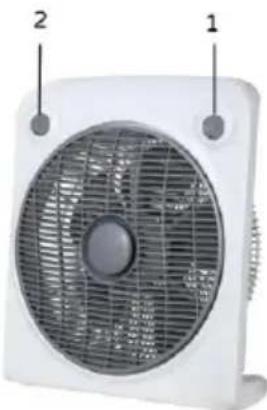

- Speed Knob
- Timer Knob
- The appliance has a timer for automatic switching off at the end of the time set; to set the time turn the timer knob (2) clockwise to the position corresponding to the desired operating time (0-120 min.); in order to operate the appliance in a continuous manner, and to therefore exclude use of the timer, turn the knob anticlockwise to the “ON” position
Ventilation
- set the speed using the knob, turn the selector knob (1) to the position corresponding to the desired power setting "1-2-3", (see a ref. picture on the side)
1= Speed minimum 2= Speed medium 3= Speed maximum
3
2
1
- set the speed and rotation of the front grid turn the knob clockwise to the position corresponding to the desired power setting "1-2-
3", of these positions " ", (see a ref. picture on the side) 1 = Speed minimum 2 = Speed medium 3 = Speed maximum
To switch off the appliance, turn the selector knob to the "0" position and turn the timer knob to the "OFF" position, and then remove the plug from the socket. When not in use for long periods, the plug must always be removed from the socket.
CLEANING AND MAINTENANCE
Attention: before normal cleaning, remove the plug from the socket.
- Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
- Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket.
Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help. - It is essential that the motor's air holes be kept from dust and lint.
- If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.
- Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous parts harmless if children are allowed to play with them (such as the blade).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
