Live Flex - Wireless Earbuds JBL - Free user manual and instructions

Product type	In-ear wireless headphones
Brand	JBL
Model	Live Flex
Speaker size	12 mm / 0.47 inches
Power supply	5 V ⎓ 1 A
Weight of earbuds	5.05 g each (10.1 g combined)
Weight of charging case	37.94 g
Battery type (earbuds)	Lithium-ion polymer (54 mAh / 3.85 V)
Battery type (case)	Lithium-ion polymer (690 mAh / 3.85 V)
Full charge time	2 hours
Playback time (BT on, ANC off)	Up to 8 hours
Playback time (BT and ANC on)	Up to 6 hours
Talk time	Up to 4 hours
Frequency response	20 Hz - 20 kHz
Impedance	32 ohms
Sensitivity	101 dB SPL at 1 kHz
Bluetooth version	5.3
Bluetooth profiles	A2DP 1.3.2, AVRCP 1.6.2, HFP 1.7.2
Active noise cancellation (ANC)	Yes, with adaptive mode
VoiceAware	Yes (ambient noise level control)
Multipoint connection	Yes, up to 2 devices
Voice assistants	Google Assistant, Alexa, Siri
Wireless charging	Yes (Qi compatible)
Water resistance	Not specified (sweat resistant likely)

Frequently Asked Questions - Live Flex JBL

How to connect the JBL Live Flex to my phone?

Take the earbuds out of the case; they automatically enter pairing mode. Enable Bluetooth on your phone and select "JBL LIVE FLEX" from the list.

How to reset the earbuds to factory settings?

Place the earbuds in the case, then press and hold the button on the case for 10 seconds until the indicator flashes white.

What is the battery life of the earbuds with noise cancellation enabled?

With Bluetooth and ANC active, the battery life is about 6 hours. Without ANC, it can reach 8 hours.

Are the earbuds water resistant?

The manual does not mention an IP rating, but they are designed for daily use. Avoid immersion and wipe them after exercise.

How to use the touch controls?

Touch or hold your finger on the earbud to control playback, calls, ANC, and assistants. You can customize gestures via the JBL Headphones app.

Can I use a single earbud?

Yes, thanks to the Dual Connect + Sync feature, you can use the left or right earbud independently in mono mode.

How to charge the case?

Use the provided USB-C cable or place the case on a Qi-compatible wireless charging pad. The LED indicator shows the charging status.

Is the JBL Headphones app necessary?

It is recommended to customize the equalizer, controls, ANC, and activate voice assistants. It is available on Android and iOS.

How to activate Google Assistant or Alexa?

Connect the earbuds to the JBL Headphones app, then select the desired assistant in the settings. Then, long press the earbud to invoke it.

What to do if one earbud is not working?

Place both earbuds in the case, wait a few seconds, then try again. If the problem persists, perform a factory reset.

USER MANUAL Live Flex JBL

Close-up of a smiling woman with blonde hair wearing an orange top, outdoors with blurred background (no text or symbols visible)

LIVE FLEX

JBL

HARMAN

WHAT'S IN THE BOX

Two identical white outline diagrams of a stylized device with circular ends and labeled ports (no text or symbols beyond '1' and '200')

SCAN ME

Line drawing of a JBL-branded electronic device with no visible text or symbols on the body

APP

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

QR code with central logo containing 'JBL' text and headphones icon

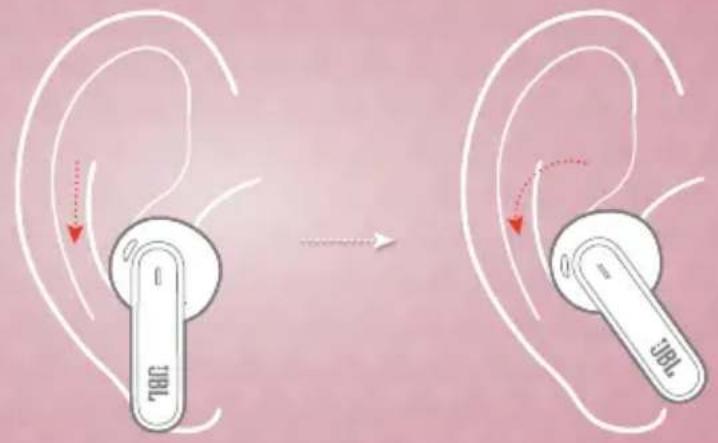

HOW TO WEAR

Diagram illustrating ear ear replacement process with labeled devices and directional arrows

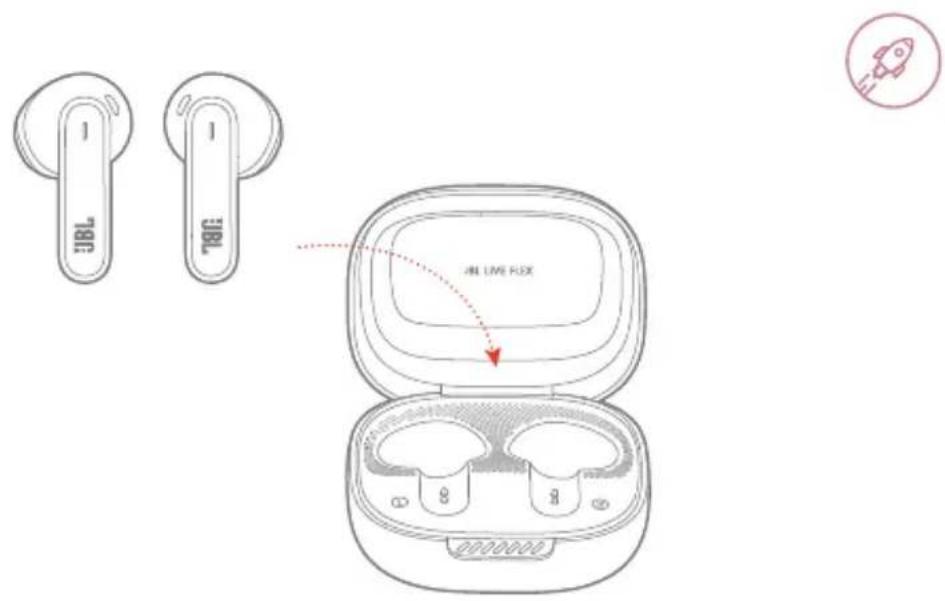

FIRST TIME USE

3JBL 3JBL IN LIME FLEX

POWER

ON &

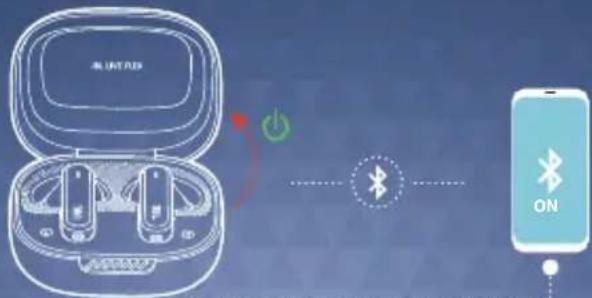

CONNECT

Diagram illustrating wireless earbuds connected to a smartphone via Bluetooth signal and power icons

OTHERS

Settings Bluetooth Bluetooth DEVICES JBL LIVE FLEX Connected Now Discoverable

ANDROID™ 6.0+

JBL LIVE FLEX

Tap to pair. Device will be tied to Your Google Account

Fast Pair

White laptop with a white Bluetooth symbol on its screen, labeled 'ON' (no additional text or symbols)

WINDOWS 10 V1803+

MICROSOFT SWIFT PAIR

DUAL CONNECT + SYNC

100 L 100 R

STEREO MODE MONO MODE

Simple line drawing of a UBL-branded electronic device (no text or symbols on body)

Line drawing of a UBL brand electronic device with a stylized logo on the lid (no text or symbols beyond branding)

MULTI-POINT CONNECTION

TAP × 1 HOLD (5 s)

(MAXIMUM 2 DEVICES)

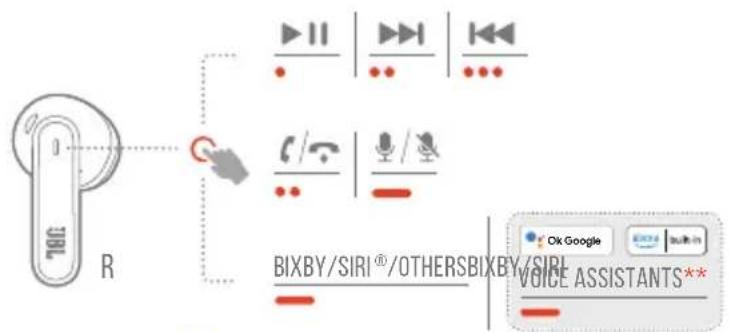

CONTROLS

TAP × 1 TAP × 2 TAP × 3 HOLD [2s]

L UBL ANC* ← OFF* / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /OTHERS

* ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL LIVE FLEX TO JBL HEADPHONES APP

** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

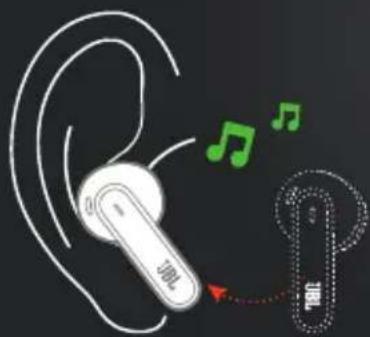

AUTO PLAY/PAUSE

Diagram illustrating earbuds with music notes and a hand gesture, showing ear with 'TJ00L' and 'TJ100L' labels.

Diagram showing ear and earbuds with labels 'TRAIL' and 'TRAIL' indicating wireless device components

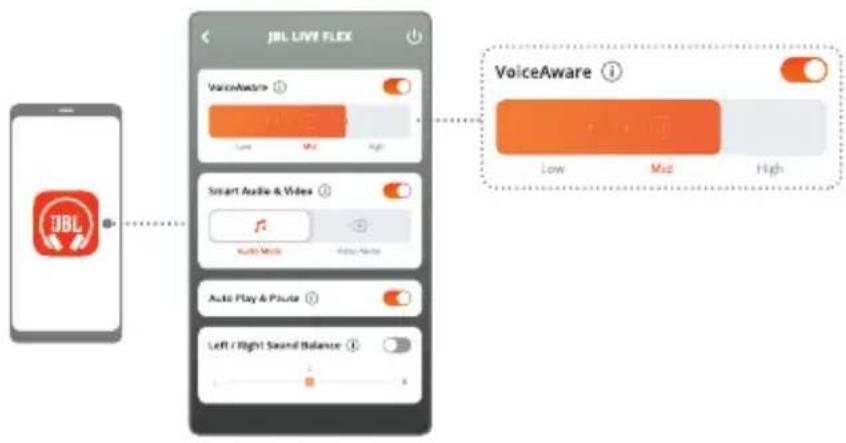

JBL LIVE FLEX VoiceAware ① Low High Smart Audio & Video ① Audio Mask Your Work Active Play & Frame ① Left / Right Sound Balance ①

VOICEAWARE

Diagram illustrating ear behavior with a speaker and sound waves, showing a positive signal from a baseline to the right.


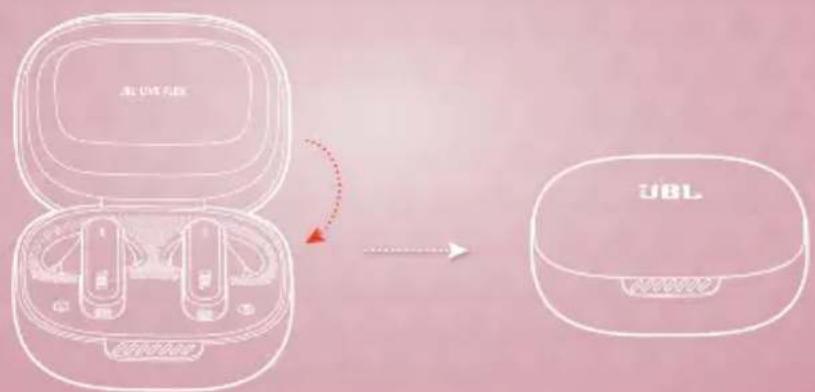

POWER OFF

JBL JBL

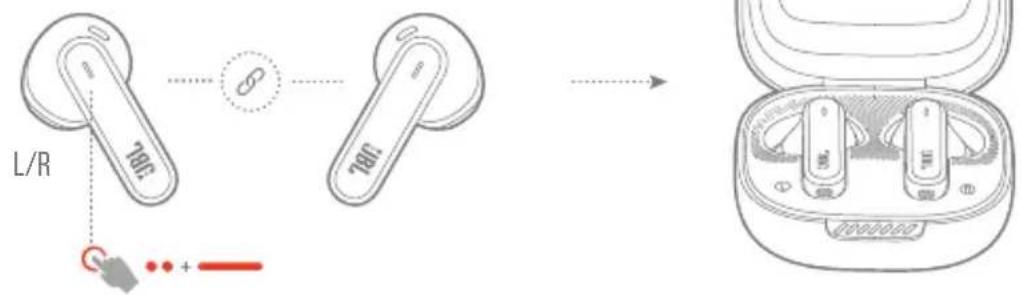

FACTORY RESET

55

TAP × 2

-

HOLD (5 s)

L/R 780.1 780.1 0000000

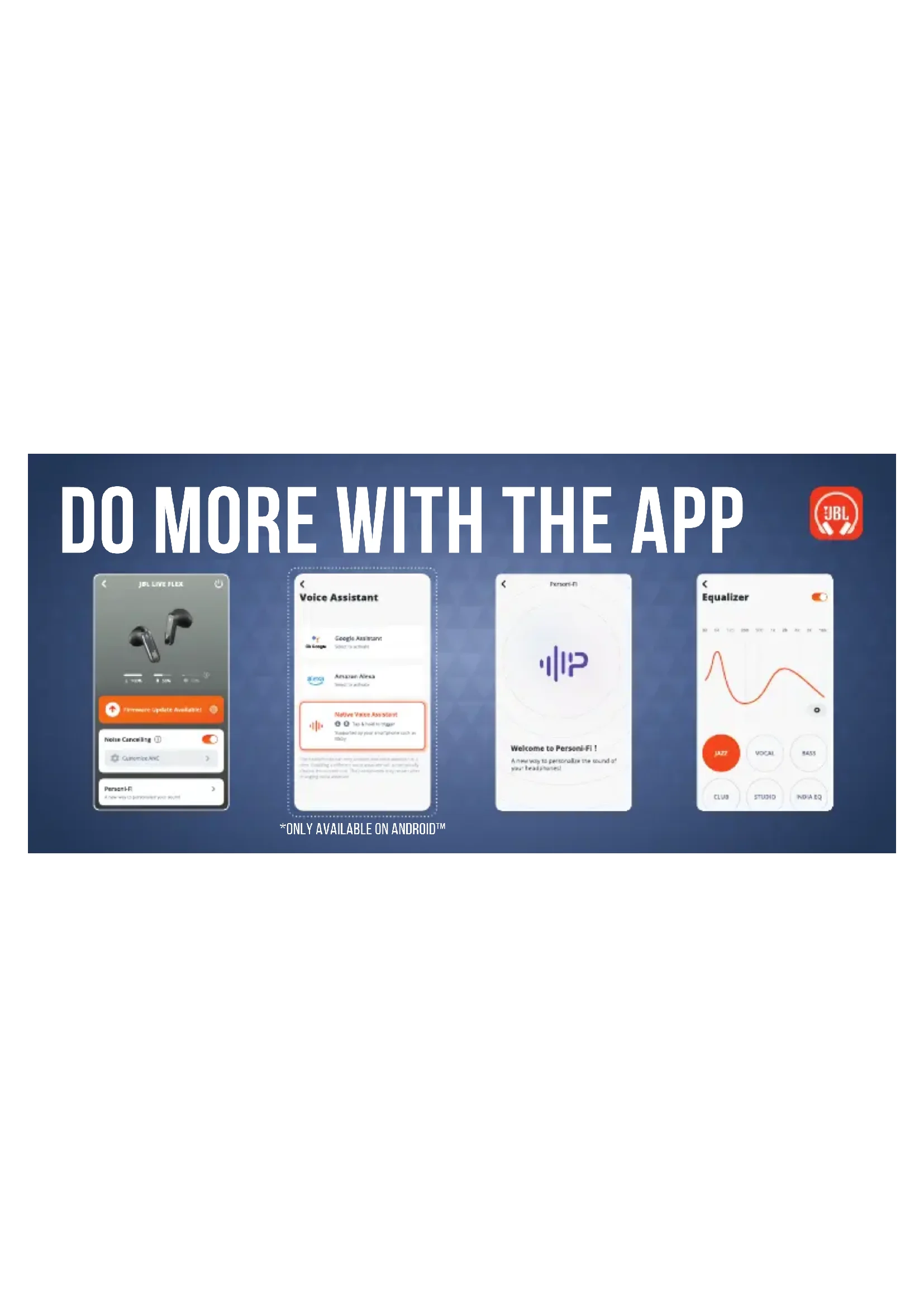

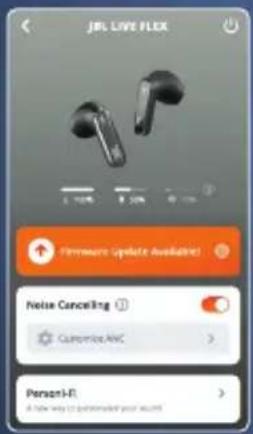

DO MORE WITH THE APP

JBL LIVE FLEX Firmware Update Available! Noise Canceling Customize ANC Person-F: A new way to be announced your secret

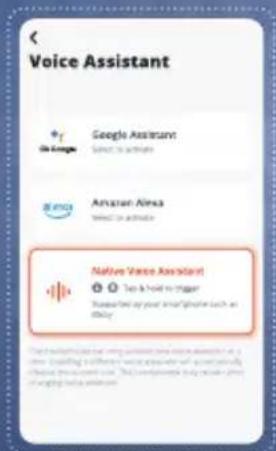

Voice Assistant +T Go Google Google Assistant Select to activate Amazon: AirAsia Select to activate Native Voice Assistant Yes & Hold to trigger Please feel up your voice assistant such as this day.

Personi-FFI Welcome to Personi-FFI ! A new way to personalize the sound of your headplanned!

*ONLY AVAILABLE ON ANDROID™

HANDS-FREE VOICE CONTROL

GET MORE DONE ON THE GO. SAY "OK GOOGLE" TO GET STARTED.

"Play my Workout playlist"

"Turn on noise canceling"

"Turn off ambient mode"

"What's my schedule today?"

"Set an alarm for 7 AM"

Ok Google

NOTE: ONLY AVAILABLE ON ANDROID™ | PRE-SET UP IS REQUIRED

HANDS-FREE VOICE CONTROL

ASK ALEXA TO PLAY MUSIC, ANSWER QUESTIONS, PLAY THE NEWS, CHECK THE WEATHER, SET ALARMS, CONTROL COMPATIBLE SMART HOME DEVICES, AND MORE.

"Alexa, play today's hits"

"Alexa, volume up."

"Alexa, skip this song."

"Alexa, what's the weather?"

"Alexa, turn off the TV."

"Alexa, start my commute"

built-in

NOTE: ANDROID™ 6.0 OR HIGHER IS REQUIRED FOR FULL ACCESS TO ALEXA FEATURES WHEN USING THIS DEVICE. ALEXA ISN'T AVAILABLE IN ALL LOCATIONS.

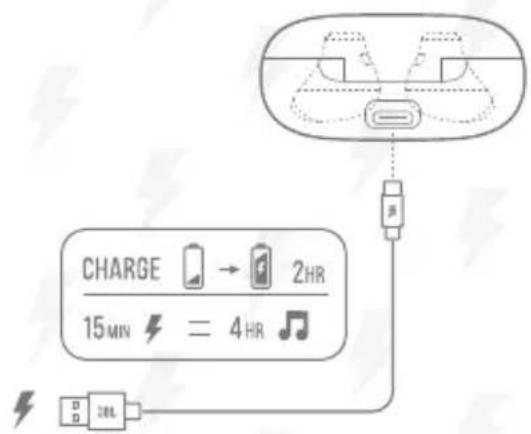

CHARGING

CHARGE → 2HR 15MIN = 4HR

UBL UBL

CHARGING THROUGH A QI-CERTIFIED WIRELESS CHARGING PAD (NOT INCLUDED)

Diagram of a device with two ports and a digital display (no text or symbols)

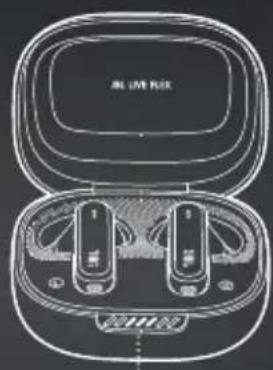

LED BEHAVIORS

Line drawing of an open wireless earbuds case with two buttons and a tray, no text or symbols present.

BT CONNECTING

BT CONNECTED

BT NOT CONNECTED

LOW BATTERY

CHARGING

FULLY CHARGED

TECH SPEC

Model: LIVE FLEX

Driver size: 12 mm/4.7" Dynamic Driver

Power supply: 5V ===1A

Earbud: 5.05 g per pc (10.1 g combined)/

0.011 lbs per pc (0.022 lbs combined)

Charging case: 37.94 g/ 0.0836 lbs

Earbud battery type: Lithium-ion polymer (54 mAh/ 3.85 V)

Charging case battery type: Lithium-ion polymer (690 mAh/ 3.85 V)

Charging time: 2 hrs from empty

Music playtime with BT on

and ANC off: Up to 8 hrs

Music playtime with BT on

and ANC on: Up to 6 hrs

Music playtime with BT on

and Adaptive ANC on: Up to 5 hrs

Talk time with ANC off: Up to 4 hrs

Talk time with ANC on: Up to 4 hrs

Frequency response: 20 Hz - 20 kHz

Impedance: 32 ohm

Sensitivity: 101 dB SPL@1 kHz

Maximum SPL: 93 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.3

Bluetooth profile version: A2DP 1.3.2, AVRCP 1.6.2, HFP 1.7.2

Bluetooth transmitter

frequency range: 2.4 GHz – 2.4835 GHz

Bluetooth transmitter power: <12 dBm

Bluetooth transmitter

modulation: GFSK, π/4-DQPSK, 8DPSK

Maximum operation

temperature: 45 °C

FRD

CONTENU DE LA BOÎTE APPLICATION

HVAD ER DER I AESKEN

APP

ANC (Aktives Noise-Cancelling)*

Aus*

Bixby/Siri®/Weitere

Sprachassistenten**

Headphones, ative o assistente

DETTA FINNS I LÄDAN APP

FLERPUNKTSANSLUTNING

Knacka på

Håll inne

Max 2 enheter

KONTROLLER

ANC*

Av ^*

Bixby / Siri® / Övriga

Röstassistenter*

* Aktivera avancerade kontroller

KEGUNAAN LAIN APLIKASI

*Hanya tersedia di perangkat

Android™

MENGISI DAYA

한쪽 0.011lbs(양쪽 0.022lbs)

[0] 3000000000000000000000000000000000000

** JBL Headphones ənɔ̃ððyɔ̃ɔ̃ðɔ̃ ɔ̃ðɔ̃ Voice Assistant ɔ̃ð ɔ̃ð

Qi-aseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseaseases

###:(###)##############################################################################

LED

ANC Buru Guo: Oguo-9 deo

ந்தேக்க்: ஒத்தெவை-

20 Hz - 20 kHz

ඉංිජාජ්‍යේ දශ්‍යේ

32 ohm

అంధించ్టిక్రి:

101 dB SPL@1 kHz

### SPL-

93 dB

HANDSFREE-RÖSTSTYRNING

"Aktivera brusreducering"

The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC:6132A-JBLLIVEFLEX) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 1.071 W / kg.

The device was tested for typical bodily operations where the product was kept 5 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC:6132A-JBLLIVEFLEX

WPT: 30.44 dBuA/m at 3m distance

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

ANATEL

Google, Android and Google Play are trademarks of Google LLC.

built-in

Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Product specifications and app screens are subject to change without notice.
