Xemio659MIX - Mp3 player LENCO - Free user manual and instructions

Product type	MP3/MP4 Player
Brand	Lenco
Model	Xemio659MIX
Screen	1.8-inch color TFT
Internal memory	None (requires Micro SD card)
External storage	Micro SD card up to 32 GB
Supported audio formats	MP3, WMA, WAV (among others)
Supported video formats	AMV (conversion required)
Image formats	JPEG, BMP (among others)
Text formats	TXT (e-book)
Connectivity	USB 2.0 (charging and data transfer)
Headphone jack	3.5 mm jack
Microphone	Built-in for voice recording
Power supply	Built-in rechargeable battery (via USB)
Battery life	Several hours (depending on usage)
Dimensions	Approximately 80 x 40 x 10 mm
Weight	Approximately 30 g
Main functions	Music playback, video playback, voice recorder, radio? (not specified), e-book, image viewer, settings
Equalizer	Yes (presets)
Repeat	Yes (single track, list, random)
Hearing protection	High volume warning
Operating temperature	0 to 35 °C
Maintenance and cleaning	Soft dry cloth, no solvents
Safety	Do not expose to moisture, do not open, use recommended accessories
Spare parts and repairability	Standard warranty, repair by authorized dealer

Frequently Asked Questions - Xemio659MIX LENCO

How to turn on the player?

Set the ON/OFF switch at the bottom of the player to ON, then press and hold the center button until the screen turns on.

How to transfer music from my computer?

Insert a Micro SD card into the player, connect it to the computer via the provided USB cable. Once recognized, drag the audio files to the removable disk corresponding to the card.

Why does my player not show a removable disk on the computer?

The player has no internal memory. Make sure you have inserted a Micro SD card. If the card is missing, the computer may recognize the player without showing a disk.

How to charge the battery?

Connect the player to a computer or USB charger via the USB cable. The battery indicator displays during charging. Set the switch to OFF for optimal charging.

How to adjust the volume?

Use the VOL+ and VOL- buttons on the side of the player. During video playback, pause first to see the level.

How to change the menu language?

From the main menu, select Settings > Language and choose the desired language using the arrow keys, then confirm with the center button.

How to format the SD card?

Go to Settings > Format Device, select OK to format the card. Caution: This operation erases all data.

How to play videos on this player?

First convert your videos to AMV format (resolution 160x128) using the provided tool amvtransform.exe. Copy the converted files to the SD card, then select the Movie icon in the main menu.

How to set the sleep timer?

In Settings > Power off > Sleep Timer, choose a duration from 0 to 120 minutes. The player will automatically turn off after this time.

How to reset the player to factory settings?

Go to Settings > Restore device, select OK to confirm. The player will restart with default settings.

USER MANUAL Xemio659MIX LENCO

User Manual – MP3/4 player with 4GB micro SD card

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.

3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The apparatus can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.

4. Avoid using the device near strong magnetic fields.

5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

8. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.

9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit could maybe not work properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.

10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Keep away from rodents. Rodents enjoy biting on power cords.

13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

16. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the apparatus.

18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial use.

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this apparatus.

22. Never place this apparatus on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

25. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor :

28. If any trouble occur, disconnect the AC power card and refer servicing to qualified personnel.

29. To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.

30. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
    ● Unplug this device during lightning storms or when unused for a long period.
    ● The socket outlet must be installed near the equipment and must be easily accessible.

31. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
    ● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    ● Devices with class 2 construction do not require a earthed connection.
    ● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
    ● Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

32. If the product contains or is delivered with a remote control containing coin / cell batteries:

Warning:

• "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
  ● [The remote control supplied with] This product contains a coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Caution about the use of Batteries:

● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
- Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
● Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

GETTING TO KNOW THE PLAYER

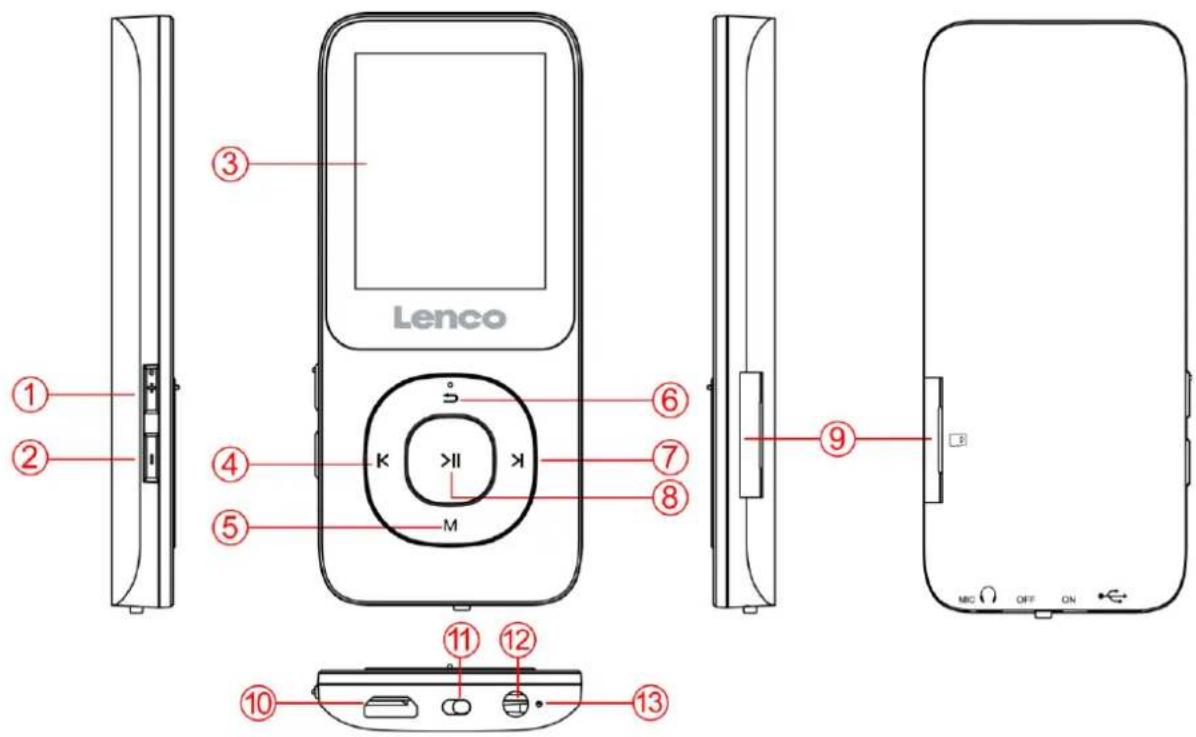

● Appearance and Controls

1): VOL+	Increase the volume.
2): VOL-	Decrease the volume.
3): Display	1.8inch TFT.
4): K	Short press for previous track/long press to fast backwards.
5): M	In play mode, press M to change play options.
6): ⇔	Return to previous menu.
7): >I	Short press for next track/long press to fast forward.
8): >II	Enter/Play and Pause/long press to power on/off.
9): [IMAGE]	support up to 32GB Micro SD card.
10): [IMAGE]	Data transferring & recharging
11): [IMAGE]	ON/OFF switch.
12): [IMAGE]	3.5mm earphone jack
13): MIC hole	Recording voice

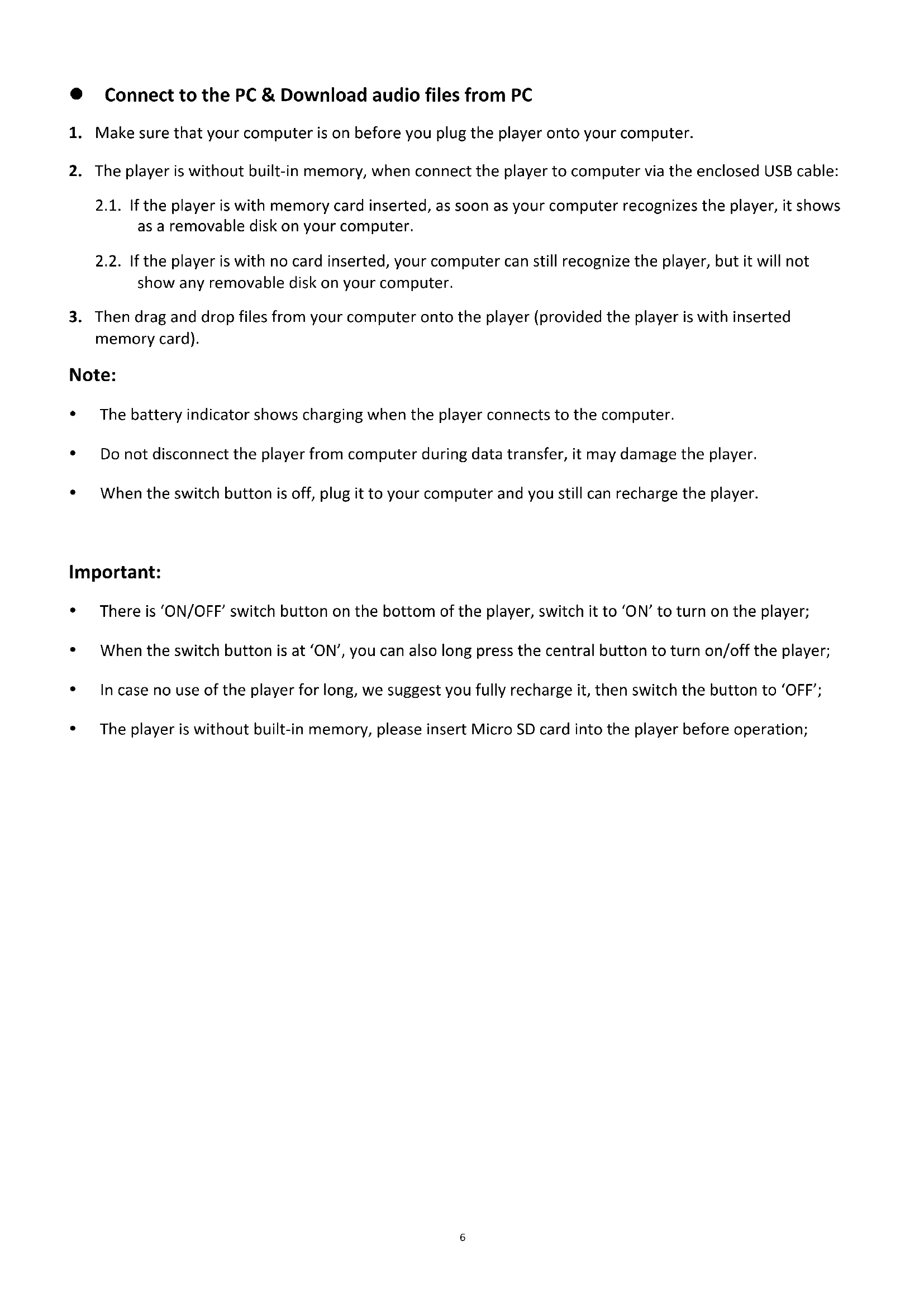

- Connect to the PC & Download audio files from PC

1. Make sure that your computer is on before you plug the player onto your computer.
2. The player is without built-in memory, when connect the player to computer via the enclosed USB cable:

2.1. If the player is with memory card inserted, as soon as your computer recognizes the player, it shows as a removable disk on your computer.
2.2. If the player is with no card inserted, your computer can still recognize the player, but it will not show any removable disk on your computer.

1. Then drag and drop files from your computer onto the player (provided the player is with inserted memory card).

Note:

• The battery indicator shows charging when the player connects to the computer.
- Do not disconnect the player from computer during data transfer, it may damage the player.
- When the switch button is off, plug it to your computer and you still can recharge the player.

Important:

• There is 'ON/OFF' switch button on the bottom of the player, switch it to 'ON' to turn on the player;
• When the switch button is at 'ON', you can also long press the central button to turn on/off the player;
  • In case no use of the player for long, we suggest you fully recharge it, then switch the button to 'OFF';
• The player is without built-in memory, please insert Micro SD card into the player before operation;

BASIC FUNCTIONS

● Power ON/OFF

1. Turn the switch to 'ON' and the player will power on.
2. If the player does not power on, then press and hold the central button to power on.
3. When there is no operation on the player, it will power off automatically after 120s idle time.

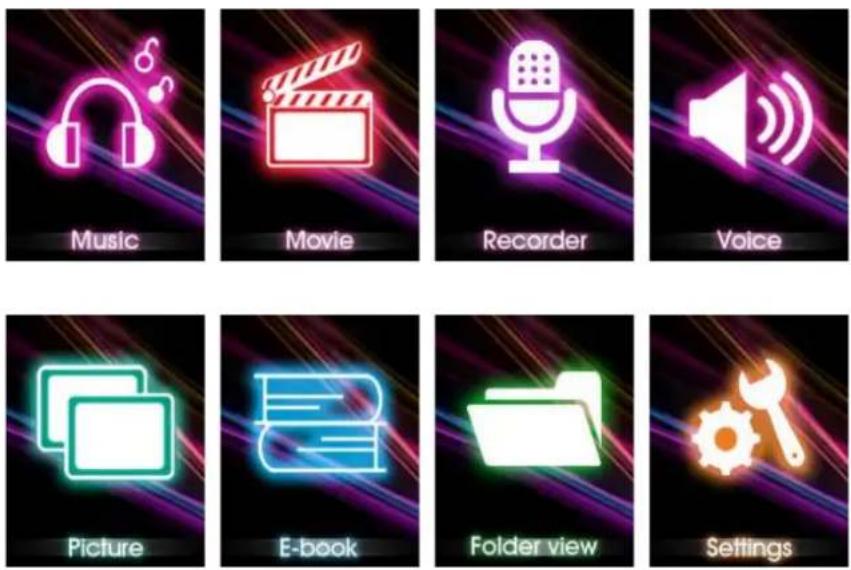

- Main menu

Each time you push the arrow button 'K/X', it will move you to one of the icons: Music, Movie, Recorder, Voice, Picture, Ebook, Folder view, and Settings.

- Listen to Music

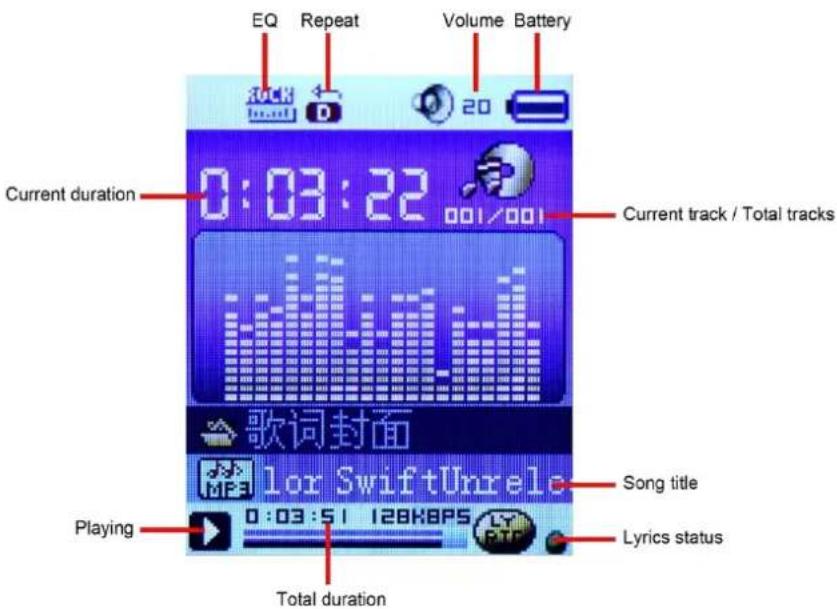

Select icon Music and push the central button to enter, the playing interface will appear as below:

1) Press the central button toPlay/Pause the current track.

2) Press right or left arrow key to go to next/previous track.

3) Press and hold right or left arrow key to fast forward/rewind.

4) Press the button M to enter sun-menus: Repeat, Equalizer, Variable speed, Replay, Exit. Then push the central button >B setup accordingly.

5) When there's a lyric file with same name as the current track, the 'Lyrics status' will appear green, press and hold the button. For a while, the lyrics will appear synchronously on the display; press return button to exit lyrics.

6) Push the volume button to increase/decrease the volume.

Note:

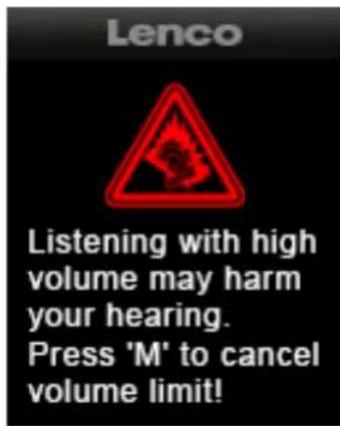

The player is with 'Ear protect' function, when increase the volume to a certain high level, a warning image will appear as below, please press the button No confirm understanding of the warning, also the volume limit will be cancelled.

- Movie

Select icon Movie in the main menu, and push the central button to enter,

Please refer to above MUSIC operation instruction, they are almost the same.

Note:

1) Volume adjustment: Adjusting volume when playing the video is not visible in display, only when pause the video firstly

2) Video conversion: please convert the video file on your computer firstly with the preloaded toolkit, then copy the converted video to the micro SD card and insert the card to the player; video without conversion to 160*128 may not be supported on this player, for more information of video conversion go to support on Lenco.com.

- Recorder

Select icon Recorder in the main menu, and push the central button to enter,

1) Press central button >|| to start voice recording, press it again to pause the recording;
2) You can press the button M before recording to enter sub-menus, Select "Cardfolder", "REC type" or "exit" menu;
3) Press the return button ↩ to exit recording and the recorded files will be saved automatically;

Note:

The recorded files will be stored in an individual folder 'VOICE' on your micro SD card inserted, you are requested to return to main menu and enter 'Voice' to play the recorded files.

- Voice

Select icon Voice in the main menu, and push the central button to enter,

1) Press again the central button >|| to Play/Pause the current recorded file.
2) Press right or left arrow key to go to next/previous file.
3) Press and hold right or left arrow key to fast forward/fast backward.
4) Press the button M to enter sun-menus: Repeat, Replay mode, Exit.
5) Push the volume button to increase/decrease the volume.


Select icon Picture in the main menu, and push the central button to enter,

1) Press right or left arrow key to go to next/previous image.
2) Press the return button to exit.

E-Book

Select icon Ebook in the main menu, and push the central button to enter,

1) Press right or left arrow key to select an E-book and push the central button to start playing.
2) During playing, press right or left arrow key to select next/previous page.
3) Press the return button to exit.

- Folder view

Select icon Folder view in the main menu, and push the central button to enter,

1) Press the central button on 'Card folder' to enter, all supported files will be listed.
2) Press right or left arrow key to select one file, and push the central button to start playing.
3) Press the return button to exit.

- Settings

Select icon Settings in the main menu, push the central button to enter, and a list of settings will appear as below:

1) LCD set: push central button on 'Backlight' to enter, push the right or left arrow key to select from 0-60 sec, the display will get dark after the certain time set, the player is still on, just the display is off.
2) Language: push the right or left arrow key to select a language, then press the central button to confirm.
3) Power off:

• Off time: Select from '0-200 Sec' and press the central button to confirm, if the player is in idle, then it will be shut down automatically after the set time.
• Sleep time: Select from '0-120 Min' and press the central button to confirm, the player will be compulsively shut down after the set time, regardless the Player is working or not; Select '0 Min off' to disable this function.

4) Memory info: press the central button and it will show information of the 'Card Capacity'.
5) Format Device: press the central button to enter, select 'Ok' to format the micro SD card inserted into the player, then all files on the card will be deleted.
6) Firmware info: press the central button to enter, it will display 'Version' & 'Date' on the display.
7) Key tone: press the central button to enter, select from '0-40' and push the central button to confirm, when press any button there will be tone heard from the earphone.
8) Restore device: Restore factory settings, select 'OK' and push the central button to confirm restoring, the player will reboot;

Note:

Please backup your files on the micro SD card before you confirm to 'Format Device'.

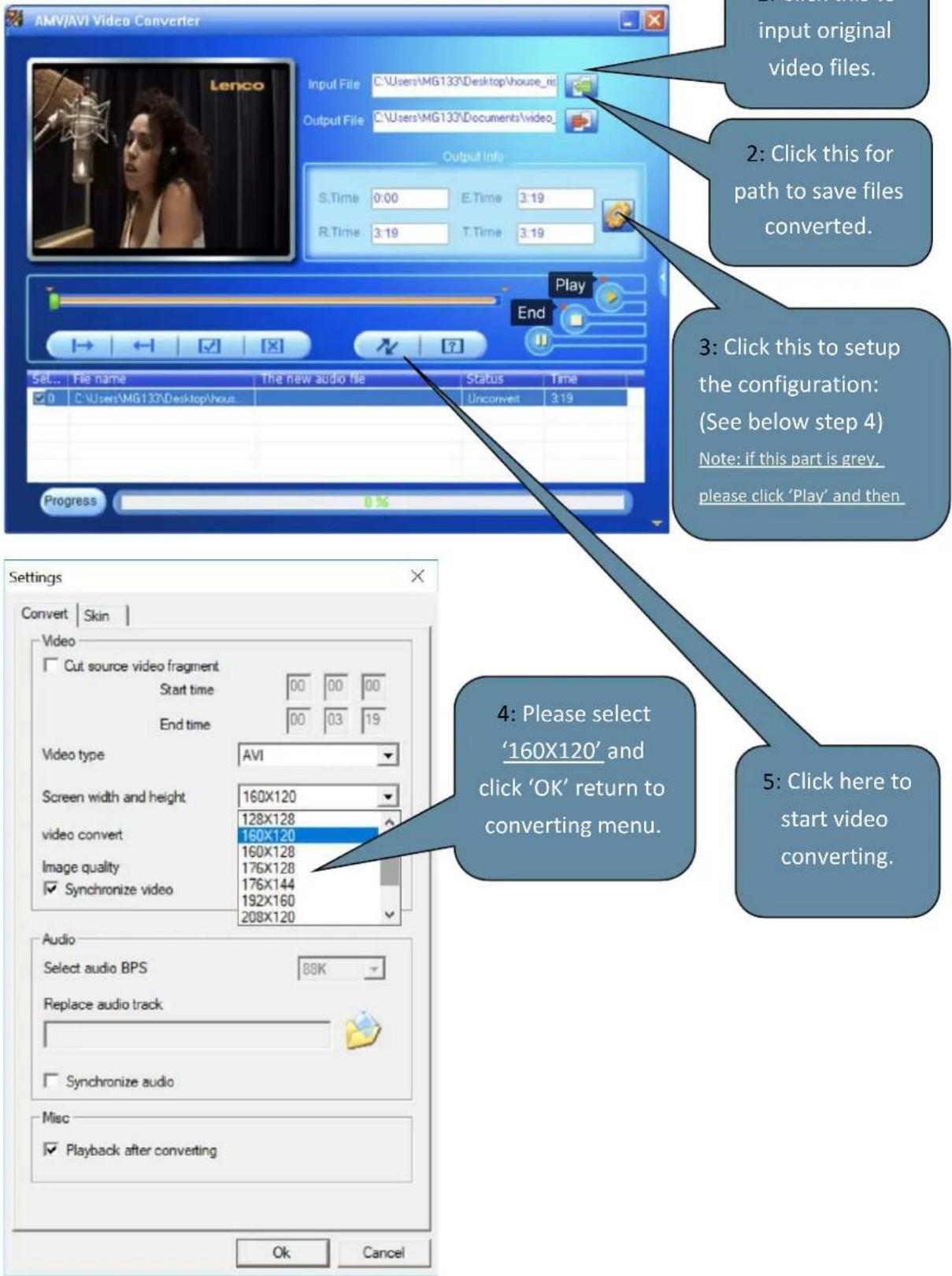

Install the video converting tool

1. Double click

amvtransform.exe

to run the video conversion tool.

2. Convert the video files.

Please follow below steps to complete the video convert:

Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

Disposal of the Old Device

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

CE Marking

Products with the CE marking comply with the EMC Directive (2014/30/EU) and the Low Voltage Directive (2014/35/EU) issued by the Commission of the European Community. Hereby, Lenco Benelux BV, Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential requirements.

The declaration of conformity may be consulted at [e-mail]

Service

For more information and helpdesk support, please visit www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands.

LET OP:

Film

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Film

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Purple neon-style icon of headphones with musical notes and a 'Music' label, set against a dark abstract background (no text beyond the label)

Icon of a movie clapperboard with glowing effect and 'Movie' text below (no other symbols or text)

Purple microphone icon with abstract light streaks and the word 'Recorder' below (no additional text or symbols)

Purple speaker icon with sound waves on black background, labeled 'Voice' at bottom (no other text or symbols)

Two overlapping document icons with a glowing teal border, set against a dark abstract background (no text or symbols)

Icon of stacked books with glowing blue lines on dark background, labeled 'E-book' below (no other text or symbols)

Icon of a folder with glowing effect against abstract background (no text or symbols)

Icon of a wrench and gear with light effects on a dark background, labeled 'Settings' at bottom (no other text or symbols)

Film

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Peli

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
