USER MANUAL Definitive BW740D KRUPS

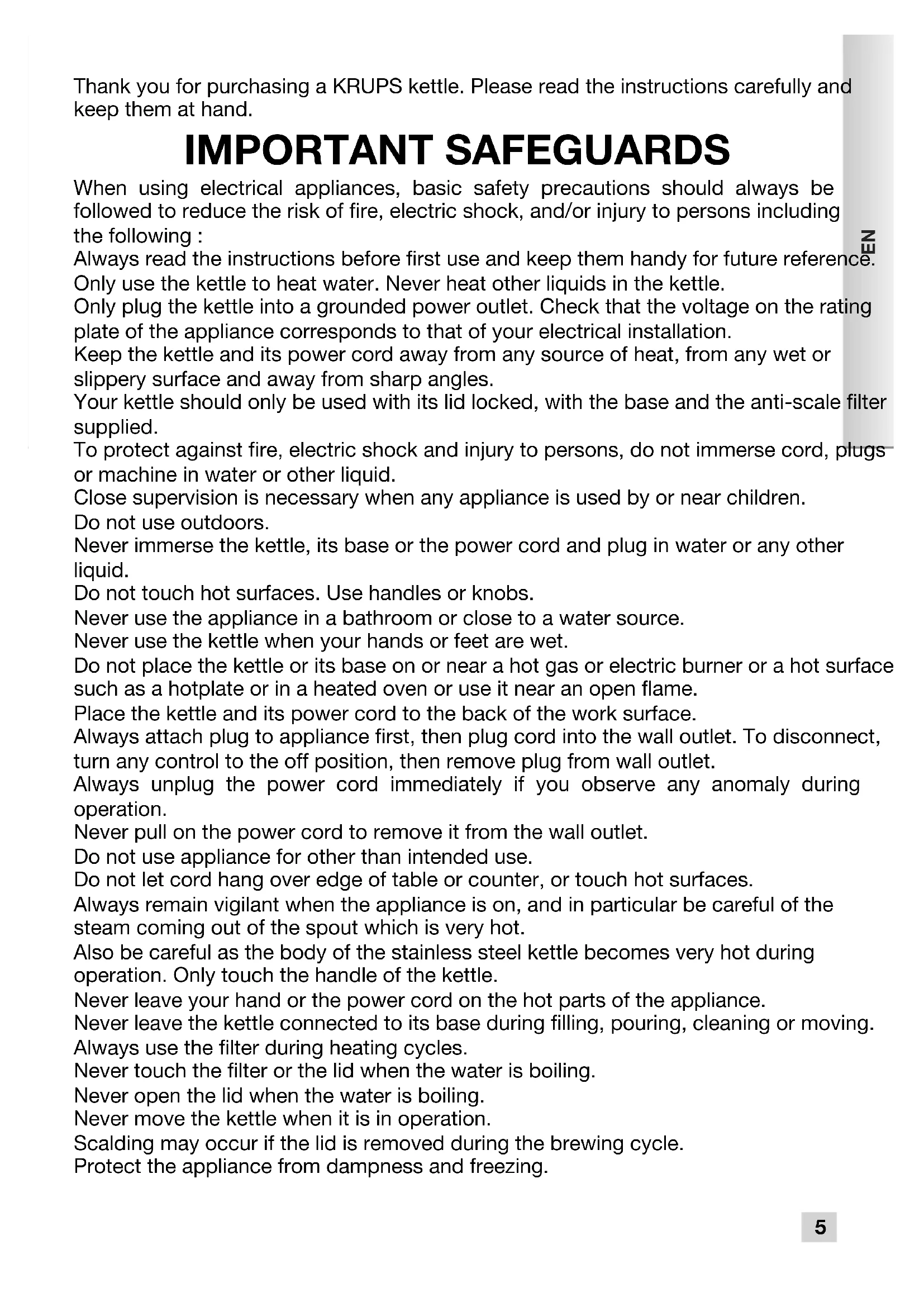

Thank you for purchasing a KRUPS kettle. Please read the instructions carefully and keep them at hand. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following : Always read the instructions before first use and keep them handy for future reference. Only use the kettle to heat water. Never heat other liquids in the kettle. Only plug the kettle into a grounded power outlet. Check that the voltage on the rating plate of the appliance corresponds to that of your electrical installation. Keep the kettle and its power cord away from any source of heat, from any wet or slippery surface and away from sharp angles. Your kettle should only be used with its lid locked, with the base and the anti-scale filter supplied. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid. Close supervision is necessary when any appliance is used by or near children. Do not use outdoors. Never immerse the kettle, its base or the power cord and plug in water or any other liquid. Do not touch hot surfaces. Use handles or knobs. Never use the appliance in a bathroom or close to a water source. Never use the kettle when your hands or feet are wet. Do not place the kettle or its base on or near a hot gas or electric burner or a hot surface such as a hotplate or in a heated oven or use it near an open flame. Place the kettle and its power cord to the back of the work surface. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to the off position, then remove plug from wall outlet. Always unplug the power cord immediately if you observe any anomaly during operation. Never pull on the power cord to remove it from the wall outlet. Do not use appliance for other than intended use. Do not let cord hang over edge of table or counter, or touch hot surfaces. Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout which is very hot. Also be careful as the body of the stainless steel kettle becomes very hot during operation. Only touch the handle of the kettle. Never leave your hand or the power cord on the hot parts of the appliance. Never leave the kettle connected to its base during filling, pouring, cleaning or moving. Always use the filter during heating cycles. Never touch the filter or the lid when the water is boiling. Never open the lid when the water is boiling. Never move the kettle when it is in operation. Scalding may occur if the lid is removed during the brewing cycle. Protect the appliance from dampness and freezing. KR_KETTLE_NC00113221-06_NAFTA_Mise en page 1 14/02/13 17:11 Page56 Never use the kettle if the power cord or the plug are damaged. To avoid any danger, always have them replaced by an authorized KRUPS After Sales Service Center. If your appliance has been damaged or if it is not working properly, do not use it and never attempt to disassemble it. We recommend that you have the appliance inspected. Any work required on the appliance, except for cleaning and descaling according to the instructions for use must be performed by a KRUPS After Sales Service Center. The warranty covers manufacturing defects and residential use only. Any breakage or damage resulting from a failure to comply with these instructions for use is not covered by the warranty. Any supply connection error will void the warranty. The warranty does not cover kettles that fail to operate or operate badly due to a failure to perform descaling operations. Unplug the appliance if you intend to not use it for an extended period of time or during cleaning operations. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Never use scouring pads for cleaning purposes. To remove the anti-scale filter, remove the kettle from its base and allow it to cool down. Never remove the filter when the appliance is filled with hot water. Never use any descaling method other than the one recommended. All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use. This appliance is not designed to be used by children or people without knowledge or experience with the product, unless they are supervised or given prior instruction concerning use of the appliance by a person responsible for their safety. Keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance. Never heat the kettle when it is empty. Never fill the kettle past the maximum water level mark, nor below the minimum water level mark. If the kettle is too full, some water may spray out. Your appliance is designed for residential use only. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

SAVE THESE INSTRUCTIONS

CAUTION This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized Krups Service Center. Visit our website at www.krupsusa.com in the USA or www.krups.ca in Canada or contact your respective country's Consumer Service department for the service center nearest to you. To reduce the risk of fire or electric shock, do not attempt to disassemble the machine. Repair should be done by an authorized Krups Service Center only.

SHORT CORD INSTRUCTIONS

A. A short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally. B. Longer detachable power cords or extension cords are available and may be used if care is exercised in their use. KR_KETTLE_NC00113221-06_NAFTA_Mise en page 1 14/02/13 17:11 Page67

1) the marked electrical rating of the detachable power cord or extension cord should

be at least as great as the electrical rating of the appliance.

2) If the appliance is of the grounded type, the extension cord should be a grounding

3) the longer cord should be arranged so that it will not drape over the counter where

it can be pulled on by children or tripped over accidentally. The appliance may have a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in anyway. Krups reserves the right to modify the characteristics or components at any time in the interests of the consumer. 1 Remove all of the various packaging, stickers or accessories from both the inside and outside of the kettle. 2 Adjust the length of the cord by unwinding it under the base. Wedge the cord into the notch. (fig 1) Throw away the water from the first two/three uses as it may contain dust. Rinse the kettle and the filter separately. 1 To open the lid: Press down on the locking system button. (fig 2) When you press on the locking system button the lid will lift automatically. To lock the lid push down on the top part of the locking system button. Note: Do not use your kettle without its lid. In case the lid is lost or broken, please contact your after sales service center. 2 Place the base on a flat, stable, heat-resistant surface away from water splashes and any sources of heat. Note: Kettle is only to be used with the base provided. 3 Fill the kettle with the desired amount of water. (fig 3a and 3b) You can fill it through the spout, which ensures better maintenance of the filter. Never fill the kettle when it is on its base. Do not fill it above the maximum level, or below the minimum level. If the kettle is too full, boiling water may spill out. Do not use without water. Check that the lid is closed properly before use. The kettle must always be used with its own anti-scale filter. 4 Position the kettle on its base. Plug it into the wall outlet.

BEFORE USING FOR THE FIRST TIME

USE KR_KETTLE_NC00113221-06_NAFTA_Mise en page 1 14/02/13 17:11 Page78 5 To start the kettle. Press the on/off button positioned on the bottom of the handle. (fig 4) 6 The kettle has a on/off light. 7 The kettle will switch off automatically. As soon as the water reaches boiling point. You can stop it manually, before removing it from its base to pour the water. The interior light and the indicator light will go out when the water reaches boiling point. Make sure that the on/off button is in the off position after boiling and that the kettle has switched off before removing it from its base. Do not leave water in the kettle after use as this quickens the formation of scale. Cleaning your kettle. Unplug it. Let it cool down and clean the outside with a damp sponge. Never immerse the kettle, its base, the cord or the electric plug in water: the electrical connections or the switch must not come into contact with water. Do not use scouring pads. Cleaning the filter. (fig 5) The removable filter consists of mesh to retain the particles of scale and prevent them from falling into your cup when pouring. This filter neither treats nor removes the hardness of the water. It thus conserves all the qualities of the water. With very hard water, the filter can clog very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, put it under a running tap, if dry, then brush it gently. Sometimes the scale will not detach itself; it will then need descaling. To remove the anti-scale filter, lift the unit to kettle off its base and allow to cool. Never remove the filter when the appliance is full of hot water. Open the lid then pull the filter out of the spout and clean it. De-scale regularly, preferably at least once a month or more frequently if your water is very hard. To de-scale your kettle: Using white vinegar: - fill the kettle with 19 Oz of vinegar, - leave to stand for 1 hour without heating. Using citric acid: - boil 19 Oz of water, - add 25 g of citric acid and leave to stand for 15 min. To de-scale your filter: Soak the filter in white vinegar or diluted citric acid. Never use a de-scaling method other than that recommended.

CLEANING AND MAINTENANCE

There is no evident damage to your kettle. The kettle does not work or stops before coming to the boil. - Check that your kettle is properly connected. - The kettle has been switched on without water or an accumulation of scale has caused the unit to overheat: allow the kettle to cool and fill it with water. Descale first if scale has accumulated. Switch it on: the kettle should start working again after about 15 minutes. Operate your kettle for the first time using water to rinse it. Make the operation 3 to 5 times. IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE. Return your kettle to your KRUPS After-Sales Service Center, only they are authorized to carry out repairs. See the warranty conditions and list of centers in the booklet supplied with your kettle. The type and serial number are shown on the bottom of your kettle. This warranty covers manufacturing defects and domestic use only. Any breakage or damage resulting from failure to comply with the instructions for use is not covered by the warranty. - KRUPS reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer. - Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices. - If the supply cord is damaged, it must be replaced by the manufacturer, its after-sales service center or a similarly qualified person, in order to avoid any danger. For a child, a burn or scald, even if slight, can sometimes be serious. As they grow up, teach your children to beware of hot liquids to be found in the kitchen. Position the kettle and its supply cord well to the back of the work surface, out of the reach of children. If an accident does occur, run cold water over the scald immediately and call a doctor if necessary. - In order to avoid any accident: do not carry your child or baby at the same time as drinking or carrying a hot drink.

PREVENTION OF DOMESTIC ACCIDENTS

IN THE EVENT OF PROBLEMS

ENVIRONMENTAL PROTECTION Let’s all help protect the environment ! Your appliance contains many recyclable materials that can be recovered or recycled. Leave it at a local civic waste collection point. KR_KETTLE_NC00113221-06_NAFTA_Mise en page 1 14/02/13 17:11 Page910 : www.krups.com With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options. Your help to sustain the environment is appreciated! After sales service The appliance isn't user-serviceable. If it's not working properly, check that: - You've followed the instructions correctly; - The main supply fuse/circuit breaker hasn't blown/tripped. If it still doesn't work, consult your retailer. The Warranty This product is warrantyd by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase. The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights. The Krups warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At Krups’s choice, a replacement product may be provided instead of repairing a defective product. Krups’s sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement. Conditions & Exclusions The Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a Krups authorized service centre. Full address details for each country’s authorized service centre are listed on the Krups website (www.krups.com ) or by calling the appropriate telephone number listed below to request the appropriate postal address. Krups shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow Krups instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following: -using the wrong type of water -scaling (any de-scaling must be carried out according to the instructions for use); -ingress of water, dust or insects into the product; -mechanical damages, overloading -damages or bad results due to wrong voltage or frequency -accidents including fire, flood, lightning, etc -professional or commercial use -damage to any glass or porcelain ware in the product

MANUFACTURER’S WARRANTY

This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one: a) The Krups warranty duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different warranty duration. b) The Krups warranty does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups d) In cases where the product is not repairable in the new country, the Krups warranty is limited to a replacement by a similar product or an alternative product at similar cost, where possible

Consumer Statutory Rights This Krups manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion. Additional information Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in Krups internet site. : www.krups.com CANADA GROUPE SEB CANADA 345 Passmore Avenue Toronto, ON M1V 3N8 MEXICO Groupe SEB MEXICO S.A. de C.V. Goldsmith 38 Desp. 401 Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F. MEXICO U.S.A.
