Brand	CombiSteel
Model	7455.2235
Product type	Commercial refrigerator (refrigerated beverage display)
Usage	Indoor use only
Power supply	Single-phase, dedicated wall socket (voltage varies by country)
Refrigerant	R290 (refer to specific warnings)
Cooling system	Forced cold air circulation
Defrost	Automatic, with drain tray
Temperature adjustment	Adjustable mechanical thermostat (turn right for colder, left for warmer)
Load capacity per shelf	30 kg maximum
Door material	Glass
Safety instructions	Unplug before cleaning; do not use flammable products; do not damage the refrigeration circuit
Maintenance	Clean exterior with a soft dry cloth; interior with mild detergent and a damp cloth
Repairs	Entrust only to a qualified technician
Installation conditions	Well-ventilated place, 10 cm clearance around, solid and level floor
Manual available in	French, German, English, Dutch

Frequently Asked Questions - 7455.2235 CombiSteel

How to adjust the temperature of my CombiSteel 7455.2235 refrigerator?

Turn the thermostat knob to the right to lower the temperature (colder) and to the left to increase it (less cold). A setting that is too low unnecessarily increases electricity consumption.

What if the appliance does not cool at all?

First check the power socket and connection. Make sure the thermostat is not set to the minimum position. If the problem persists, contact a qualified technician.

How to clean the refrigerator properly?

Always unplug the appliance before cleaning. Use a soft dry cloth for the exterior. For the interior, a damp cloth with mild detergent is suitable. Never splash water directly onto the appliance.

Can I use an extension cord or power strip?

No, never use an extension cord or power strip. Always plug the appliance into a dedicated wall socket to avoid risk of electric shock, overheating, and fire.

What to do in case of gas leak?

Do not touch the refrigerator. Immediately close the gas supply and open doors to ventilate the room. Gas leaks can cause an explosion or fire.

The appliance makes excessive noise, what to check?

Make sure the appliance is level and its feet are in contact with the floor. Check that no objects (boxes, cloths) are touching the appliance. Abnormal noise can also come from lack of leveling.

How to correctly install the refrigerator?

Place the appliance in a well-ventilated location, away from direct sunlight and heat sources. Leave at least 10 cm of space between the appliance and the wall. The floor must be solid and level.

Can I place heavy objects on top of the appliance?

No, never place heavy objects or objects containing water on top. They could fall and cause injury or damage the appliance.

How to save energy with this refrigerator?

Open the door as little as possible and close it quickly. Install the appliance in a cool, well-ventilated area. A temperature setting that is too low increases consumption.

What if water accumulates on the floor?

Check that the drain hose is properly inserted into the drain tray. If not, reposition it. Empty the drain tray if necessary (once a day in high humidity).

USER MANUAL 7455.2235 CombiSteel

CombiSteel catering equipment

Upright Glass Door Cooler 7455.22xx series / 7455.24xx series

User Manual Gebruikershandleiding Gebrauchsanweisung Le mode d'emploi

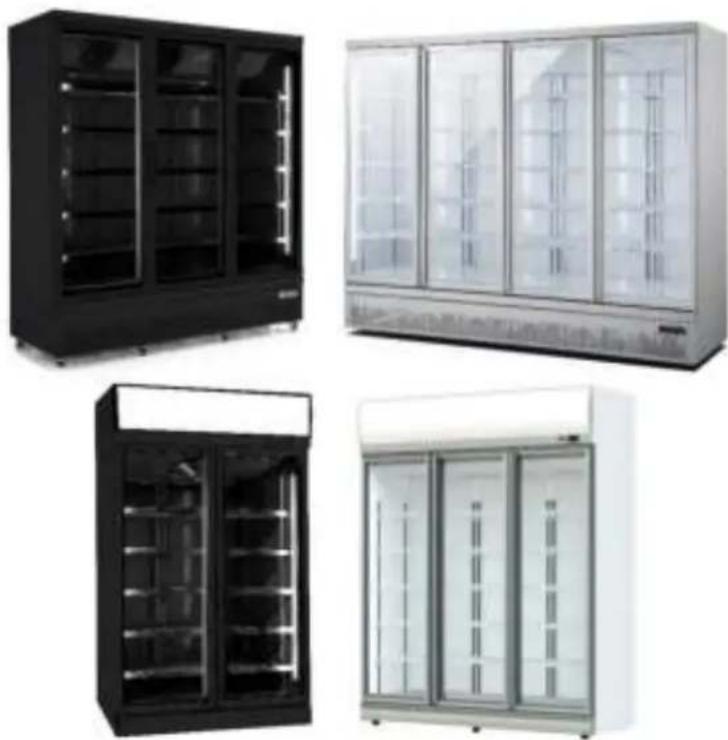

Four different types of refrigerators shown from front and side views, no visible text or labels.

MODELS

7455.2200 refrigerator 2 glass doors silver colour
7455.2205 refrigerator 3 glass doors silver colour
7455.2210 refrigerator 4 glass doors silver colour
7455.2215 freezer 2 glass doors silver colour
7455.2220 freezer 3 glass doors silver colour

7455.2230 refrigerator 2 glass doors black colour
7455.2235 refrigerator 3 glass doors black colour
7455.2240 refrigerator 4 glass doors black colour
7455.2245 freezer 2 glass doors black colour
7455.2250 freezer 3 glass doors black colour

7455.2400 refrigerator 2 glass doors white colour
7455.2405 refrigerator 2 glass doors black colour
7455.2410 refrigerator 3 glass doors white colour
7455.2415 refrigerator 3 glass doors black colour
7455.2420 freezer 2 glass doors white colour
7455.2425 freezer 2 glass doors black colour
7455.2430 freezer 3 glass doors white colour
7455.2435 freezer 3 glass doors black colour

CONTENT

ENGLISH

SAFETY PRECAUTIONS .... 4

HOW TO USE....7

CLEANING 8

TROUBLESHOOTING....8

WARNINGS....9

NEDERLANDS

VEILIGHEIDSMAATREGELEN....10

HOE TE GEBRUIKEN 13

REINIGEN 14

PROBLEEMOPLOSSING 15

WAARSCHUWINGEN 16

DEUTSCH

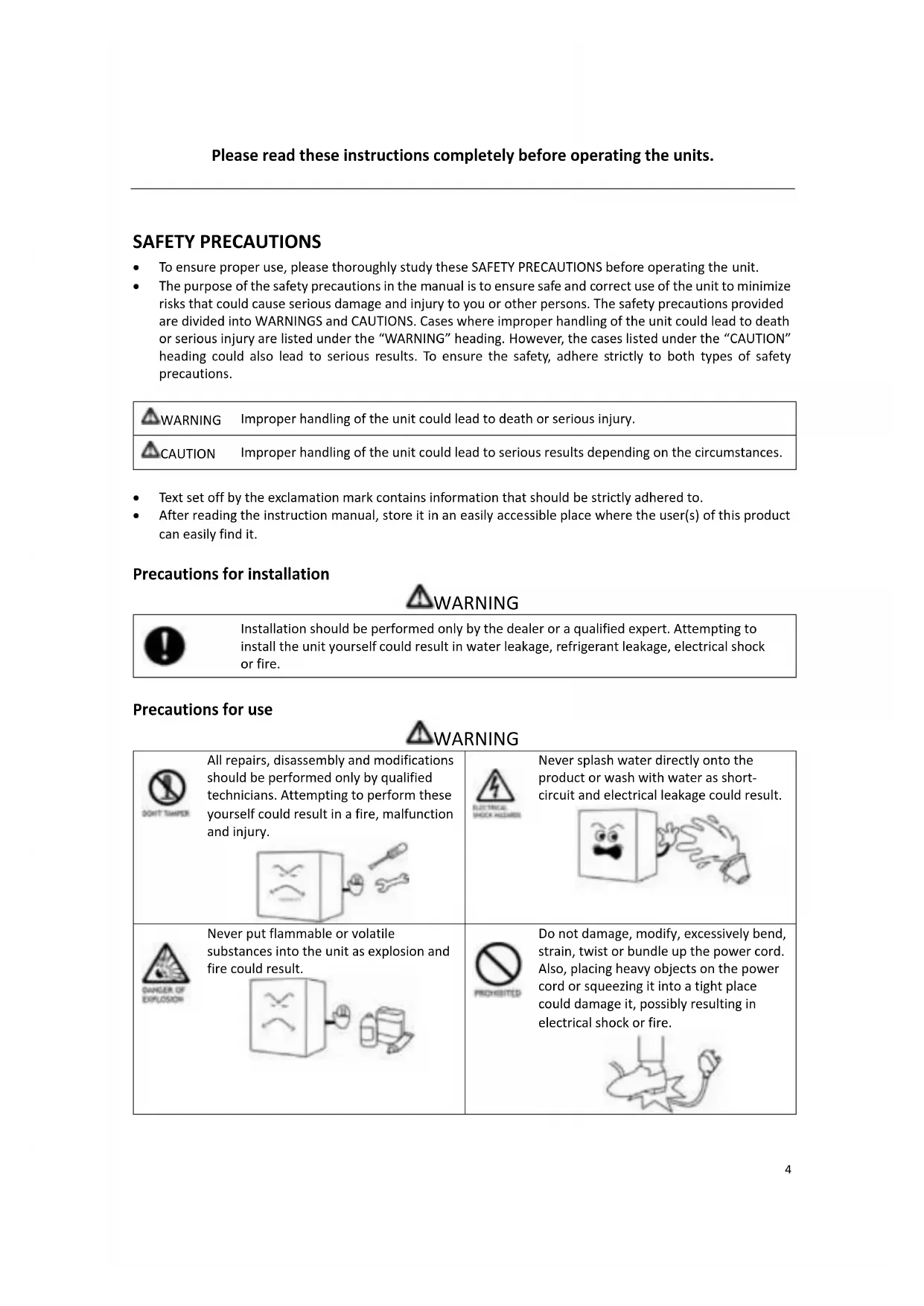

• To ensure proper use, please thoroughly study these SAFETY PRECAUTIONS before operating the unit.
- The purpose of the safety precautions in the manual is to ensure safe and correct use of the unit to minimize risks that could cause serious damage and injury to you or other persons. The safety precautions provided are divided into WARNINGS and CAUTIONS. Cases where improper handling of the unit could lead to death or serious injury are listed under the "WARNING" heading. However, the cases listed under the "CAUTION" heading could also lead to serious results. To ensure the safety, adhere strictly to both types of safety precautions.

WARNING

Improper handling of the unit could lead to death or serious injury.

CAUTION

Improper handling of the unit could lead to serious results depending on the circumstances.

• Text set off by the exclamation mark contains information that should be strictly adhered to.
- After reading the instruction manual, store it in an easily accessible place where the user(s) of this product can easily find it.

Precautions for installation

WARNING

Installation should be performed only by the dealer or a qualified expert. Attempting to install the unit yourself could result in water leakage, refrigerant leakage, electrical shock or fire.

Precautions for use

WARNING

DON'T SIMPER	All repairs, disassembly and modifications should be performed only by qualified technicians. Attempting to perform these yourself could result in a fire, malfunction and injury.		Never splash water directly onto the product or wash with water as short-circuit and electrical leakage could result.
GANGER OF EXPLOSION	Never put flammable or volatile substances into the unit as explosion and fire could result.Use a dedicated wall outlet. Do not use extension cords or convenience receptacles as this could result in overheating, which could lead to fires or an electrical shock.	PROCHITED	Do not damage, modify, excessively bend, strain, twist or bundle up the power cord. Also, placing heavy objects on the power cord or squeezing it into a tight place could damage it, possibly resulting in electrical shock or fire.Never use flammable spray cans or leave flammable substances near the unit.Sparks from electrical switches could result in explosion and fire.
	The cooler is intended for storage and display of beer and beverages for sale. Do not use for other purpose than the intended as this could adversely affect items placed in the unit.		Never attempt to insert fingers, sticks, etc. into the cold air suction outlet.A circulation fan is rotating at high speed inside the outlet. Injury, electrical shock and improper operation could result.
	For indoor use only. Using the unit in a location exposed to rain could result in electrical leakage and electrical shock.		Never place heavy objects or items containing water on top of the unit. Objects could fall down and cause injury and spilled water could deteriorate the insulation of electrical components and result in electrical leakage.
[XXXX]	Install the unit in a location where the floor is sturdy enough to support the load of the unit. If the floor is not sturdy enough or installation is incorrectly performed, the unit could tip over and falling shelves and products could cause personal injury.		If you find gas leakage, please don't touch the cooler. Close all gas valves and open the door(s) for ventilation. Gas leakage could cause explosion or start a fire which can cause a fire injury.
	Store the unit in a location where it is not exposed to rain. Using a unit that has been exposed to rain could result in electrical leakage and electrical shock.Leave disassembly and disposal of the unit to qualified experts.		Place the unit away from hot air sources.The cooling performance will be reduced if the unit is placed near heat sources such as hot plates and stoves and if it is exposed to direct sunlight.Should the unit need temporary storage, make sure not to store the unit in a location where children play and take precautions so that the door(s) cannot be completely closed. This will minimize the risk that a child becomes trapped inside the compartment.
	WELL VENTILATED PLACEPlease leave more than 10cm space between unit and the wall. If there is no space, the cooling capacity will be reduced.		If installation in a damp location is unavoidable, please install an electrical leakage circuit breaker. If no electrical leakage circuit breaker is installed, electrical shock could result.
	Never hang from the door or climb onto the unit. The unit could tip over or fall and cause material damage or injury.		Disconnect the power cord plug from the wall outlet before moving the unit and make sure that the power cord is not damaged during transport. A damaged power cord could result in electrical shock and/or fire.
	Grasp the handle when closing the door.Holding at other positions could result in pinched fingers and injury.		Do not apply excessive force to the glass surfaces as the glass could break/smash and cause personal injury.
	When disconnecting the power cord plug from the wall outlet, hold at the plug main body close to the outlet. Pulling the cord could cause wire breakage, possible resulting in overheating and fire.		Make sure that the unit does not tip over or fall when it is moved. A falling unit could cause serious injury.
	Do not throw items onto the shelves and do not place items totalling more than 30kg on each shelf. The shelf could fall down, possibly causing injury or break the shelf itself.		Be sure to attach and secure shelves correctly. An improperly attached shelf could fall down and cause injury or break the shelf.

HOW TO USE

Before use

• Remove shipping package, tape, etc. Also leave the door(s) open for ventilation for a while.
• The unit is cleaned before shipment. However, clean the compartment interior once after delivery.
• Please insert power supply plug into the wall outlet, single-phase to cat voltage.
• Allow the unit to operate for about 1 hour to cool the compartment before placing items in the cooler.

WAIT 5 MINUTES OR MORE BEFORE RE-STARTING

- Restarting the unit immediately after it has been turned off may cause fuses to blow and activate the circuit-breaker, thus, the compressor may be overloaded and/or other damage may occur.

Temperature adjustment

- Thermostat was adjusted using temperature at factory. To adjust it, turn right could cause temperature in showcase to go down. To raise the temperature, turn it left. Excessive refrigeration will increase electricity consumption unnecessarily.

Drain tray

• Defrosting is performed automatically and drain water is collected in the drain tray.
- Water in the drain tray is evaporates automatically. In humid surroundings, there will be large amounts of water in the drain tray, so please throw away drain water at least once a day.

Efficient use

Please follow the instructions below, to save energy.

• To prevent cold air from escaping, open and close the door(s) quickly and keep the door(s) opened for as short a time as possible.
• Please install the unit in the place which is well-ventilated.

Shelf height adjustment

The shelf height can be adjusted. Arrange the shelves in accordance with the dimensions of the items to be placed in the cooler.

Placing items in the showcase

This showcase employs a forced circulation of cold air system. If circulation of cold air is obstructed, the items will not be adequately refrigerated. Pay attention to the following points:

• Do not let items obstruct the cold air inlet and suction outlet.
• Place items so that they do not protrude from the shelves. The gap between the shelves and the door(s) is used for circulation of cold air.
• Place items evenly on all shelves.
• Please do not display goods on the bottom. Please put goods on the shelf.

CLEANING

WARNING

To prevent any electrical shock hazards or injury by rotating circulation fan, always disconnect the power cord plug from the wall outlet before cleaning.

Exterior and cooler compartment

Wipe the exterior and cooler compartment of the unit with a soft, dry cloth. If very soiled, wipe with a cloth that has been moistened with a detergent. Then wipe with a cloth that has been dipped in water.

WARNING

Do not splash water directly onto the cooler and do not wash with water. Short-circuiting and electrical shock could result.

• Clean the cooler regularly to keep it clean at all times.
• Never use polishing powder, soap powder, gasoline, oil or hot water as these will damage the painting and plastic components.

Scrub brush Water drop can Bottles AIDS Gasoline Thermo

Checks after cleaning

To ensure the safety, perform the following checks after cleaning the unit.

• Make sure that the power plug is firmly inserted into a dedicated wall outlet. Confirm that the plug is not abnormally hot.
• Check the power cord for cracks and damage. Should the slightest irregularity be observed, contact the dealer form whom you have purchased the unit.

TROUBLESHOOTING

In case the unit shows operating problems, check the following before calling the authorized service agent.

Problems	Possible Causes	Possible Solutions
The unit is not operating	Faulty electrical contact	Verify electrical connections.
	Poor electrical power	Check the power connection and electrical outlet.
	Thermostat set to the minimum position	Adjust the thermostat setting to a higher number.
Not reaching the desired temperature	Unit is exposed to direct sunlight.	Relocate the unit to a shaded area.
	Thermostat is not properly adjusted.	Adjust the thermostat setting to a higher number.
	Door(s) not properly closed	Check the levelling of the unit and door seal.
	Products poorly distributed or excess product load	Redistribute the product load according start instructions.
	Clogged condenser	Clean the condenser.
	Blocked grills	Clean the grills of any debris collected.
	For models with electronic temperature controller, indicates E0 or E1.	Unplug the unit from the outlet. If the error continues, contact an authorized service technician.
Excessive noise	The unit is not properly levelled.	Level the unit, making sure all the feet are in firm contact with the floor.
	Something is in contact with the appliance, e.g. boxes, mops, brushes, etc.	Keep the objects away from the appliance.
Water on the floor	Drain hose is outside of the drain pan.	Lovate the hose in the drain pan.

WARNINGS

• WARNING: Keep ven la on openings, in the unit enclosure or in the in the built-in structure, clear of obstruc on.
• WARNING: Do not use mechanical devices or other means to accelerate the defros ng process, other than those recommender by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction on concerning use of the appliance in a safe way and understand the hazards involved.
• WARNING: Children shall not play with the appliance.
• WARNING: Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The following warnings only used for the product with refrigerant R290

• WARNING: Equipment is only allowed to transport and place in the normal way, during transport on, we need to ensure heat from sun radiation to equipment is not more than 60^ C, so as to protect refrigeration unit.
• WARNING: Equipment should be installed in a well-ven lated place, avoid larger thermal radia on. (Prohibit in front of a heater or heating equipment)
• WARNING: For any types of maintenance and well-keeping, need to stop power supply rst, and professional personnel is required.
• WARNING: R290 discharge is only allowed to operate in well-ven lated room or outdoor, open ame is prohibit.
• WARNING: LED light is not allowed to replace by oneself, but by professional maintenance personnel.
• WARNING: Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

VEILIGHEIDSMAATREGELEN

Simple line drawing of a cube with crossed eyes and a handle, connected to tools (no text or symbols)

Cartoon illustration of a surprised cube with a surprised face and waving hand, next to a cup (no text or symbols)

Water can Brine Acetate Creatine Thermic Scrub brush

Controles

Simple line drawing of a cube with crossed eyes and a wrench, connected to a tool (no text or symbols)

Cartoon illustration of a surprised cube with a winking face and waving, next to a hand holding a cup (no text or symbols)

Scrub brush Water bath Bunsen Water bath Cassette Thermostat

Kontrollen

Simple line drawing of a cube with angry faces and tools, no text or symbols present

Cartoon illustration of a surprised cube with a surprised face and a waving hand, next to a steaming cup (no text or symbols)

Utilization efficace
