7455.2500 - Fridge CombiSteel - Free user manual and instructions

Product type	Refrigerator
Brand	CombiSteel
Model	7455.2500
Refrigerant	R290
Main use	Storage and display of beer and beverages
Power supply	Mains (dedicated wall outlet)
Load capacity per shelf	30 kg maximum
Defrosting	Automatic
Drain pan	Automatic evaporation, manual emptying if necessary
Cleaning	Soft dry cloth; no direct water
Air circulation	Forced
Thermostat	Adjustable (turn right for colder)
Shelf height	Adjustable
Ventilation required	Minimum 10 cm clearance around the appliance
Use	Indoor only
Installation	By a qualified professional
Repairs	By authorized technician; LED not user-replaceable
Safety	Do not obstruct air inlets/outlets; do not damage the refrigeration circuit

Frequently Asked Questions - 7455.2500 CombiSteel

How to set the temperature of my CombiSteel 7455.2500 refrigerator?

Turn the thermostat to the right to lower the temperature, to the left to raise it. Avoid excessive refrigeration to save energy.

What to do if the refrigerator does not cool?

Check the power outlet, make sure the thermostat is not at minimum, and that the grilles are not obstructed. Clean the condenser if necessary.

How to clean the appliance?

Unplug first. Wipe with a soft dry cloth. For stubborn dirt, use a cloth moistened with a mild detergent, then wipe with a damp cloth. Never splash water directly.

Can I install the appliance myself?

No, installation must be performed by a dealer or qualified expert to avoid water leaks, refrigerant leaks, or electrical hazards.

What to do in case of excessive noise?

Check that the appliance is level and that nothing is touching its walls. Adjust the feet to stabilize it.

How to prevent frost formation?

Defrosting is automatic. Ensure the drain pan is not obstructed and empty it if necessary in high humidity.

What is the maximum capacity per shelf?

Each shelf supports up to 30 kg. Distribute items evenly.

Can the appliance be used outdoors?

No, for indoor use only. Exposure to rain may cause electrical leaks.

What to do if the power cord is damaged?

It must be replaced by the manufacturer, its service agent, or a qualified person to avoid any hazard.

How to install stacked cabinets (stacking)?

Align the top cabinet with the bottom one, left, right, and back sides, then lower it gently. Use the rear bracket and screw it in. A second person is recommended.

USER MANUAL 7455.2500 CombiSteel

CombiSteel catering equipment

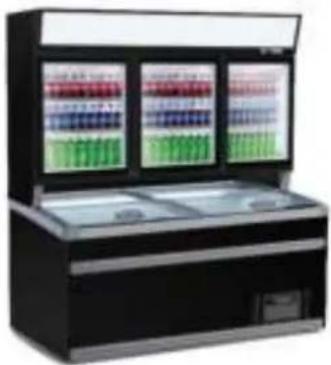

Wall Mounted Cooling/Freezer Unit 7455.25xx series

User Manual Gebruikershandleiding Gebrauchsanweisung Le mode d'emploi

Exterior view of a modern stainless steel beverage refrigerator with dual compartments filled with colorful beverage bottles (no visible text or labels)

Exterior view of a modern stainless steel refrigerant with three side compartments filled with colored test tubes (no visible text or labels)

Exterior view of a modern black and white refrigerated stainless steel counter with dual side screens (no visible text or symbols)

Exterior view of a black and white refrigerated beverage machine with three side bays (no visible text or symbols)

MODELS

7455.2500	Wall mounted cooler/freezer unit 2 glass doors white colour
7455.2505	Wall mounted cooler/freezer unit 3 glass doors white colour
7455.2510	Wall mounted cooler/freezer unit 2 glass doors black colour
7455.2515	Wall mounted cooler/freezer unit 3 glass doors black colour

7455.2520	Wall mounted freezer unit 2 glass doors white colour
7455.2525	Wall mounted freezer unit 3 glass doors white colour
7455.2530	Wall mounted freezer unit 2 glass doors black colour
7455.2535	Wall mounted freezer unit 3 glass doors black colour

CONTENT

ENGLISH

SAFETY PRECAUTIONS 4

HOW TO USE....7

CLEANING 8

TROUBLESHOOTING....8

WARNINGS....9

NEDERLANDS

VEILIGHEIDSMAATREGELEN....11

HOE TE GEBRUIKEN 14

REINIGEN 15

PROBLEEMOPLOSSING 15

WAARSCHUWINGEN 16

DEUTSCH

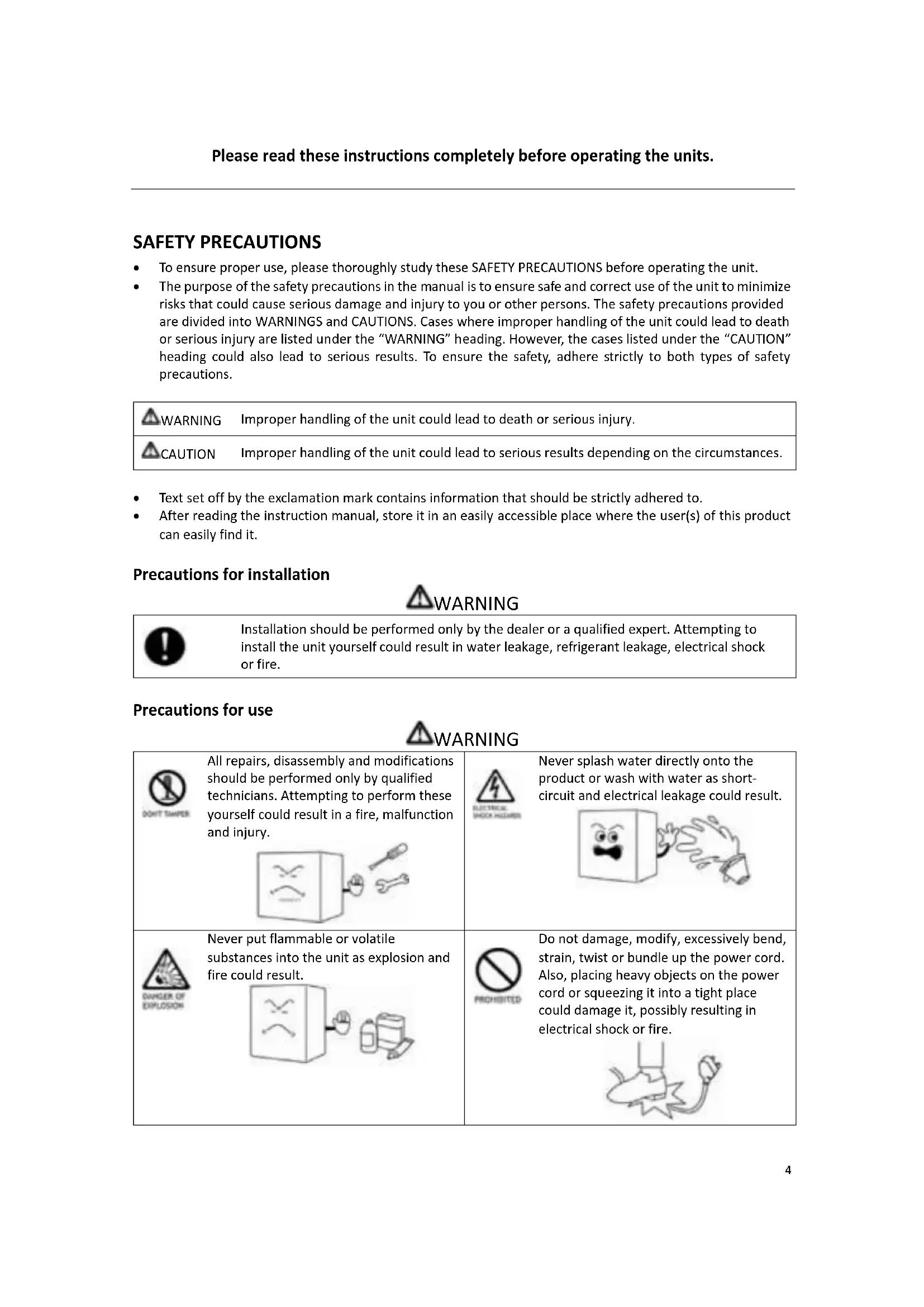

• To ensure proper use, please thoroughly study these SAFETY PRECAUTIONS before operating the unit.
- The purpose of the safety precautions in the manual is to ensure safe and correct use of the unit to minimize risks that could cause serious damage and injury to you or other persons. The safety precautions provided are divided into WARNINGS and CAUTIONS. Cases where improper handling of the unit could lead to death or serious injury are listed under the "WARNING" heading. However, the cases listed under the "CAUTION" heading could also lead to serious results. To ensure the safety, adhere strictly to both types of safety precautions.

WARNING

Improper handling of the unit could lead to death or serious injury.

CAUTION

Improper handling of the unit could lead to serious results depending on the circumstances.

• Text set off by the exclamation mark contains information that should be strictly adhered to.
- After reading the instruction manual, store it in an easily accessible place where the user(s) of this product can easily find it.

Precautions for installation

WARNING

Installation should be performed only by the dealer or a qualified expert. Attempting to install the unit yourself could result in water leakage, refrigerant leakage, electrical shock or fire.

Precautions for use

WARNING

DON'T CAMPES	All repairs, disassembly and modifications should be performed only by qualified technicians. Attempting to perform these yourself could result in a fire, malfunction and injury.	PROHIBITED	Never splash water directly onto the product or wash with water as short-circuit and electrical leakage could result.
GANGER OF EXPLOSION	Never put flammable or volatile substances into the unit as explosion and fire could result.Use a dedicated wall outlet. Do not use extension cords or convenience receptacles as this could result in overheating, which could lead to fires or an electrical shock.	PROHIBITED	Do not damage, modify, excessively bend, strain, twist or bundle up the power cord. Also, placing heavy objects on the power cord or squeezing it into a tight place could damage it, possibly resulting in electrical shock or fire.Never use flammable spray cans or leave flammable substances near the unit.Sparks from electrical switches could result in explosion and fire.
	The cooler is intended for storage and display of beer and beverages for sale. Do not use for other purpose than the intended as this could adversely affect items placed in the unit.		Never attempt to insert fingers, sticks, etc. into the cold air suction outlet.A circulation fan is rotating at high speed inside the outlet. Injury, electrical shock and improper operation could result.
	For indoor use only. Using the unit in a location exposed to rain could result in electrical leakage and electrical shock.		Never place heavy objects or items containing water on top of the unit. Objects could fall down and cause injury and spilled water could deteriorate the insulation of electrical components and result in electrical leakage.
	Install the unit in a location where the floor is sturdy enough to support the load of the unit. If the floor is not sturdy enough or installation is incorrectly performed, the unit could tip over and falling shelves and products could cause personal injury.		If you find gas leakage, please don't touch the cooler. Close all gas valves and open the door(s) for ventilation. Gas leakage could cause explosion or start a fire which can cause a fire injury.
	Store the unit in a location where it is not exposed to rain. Using a unit that has been exposed to rain could result in electrical leakage and electrical shock.Leave disassembly and disposal of the unit to qualified experts.		Place the unit away from hot air sources. The cooling performance will be reduced if the unit is placed near heat sources such as hot plates and stoves and if it is exposed to direct sunlight.Should the unit need temporary storage, make sure not to store the unit in a location where children play and take precautions so that the door(s) cannot be completely closed. This will minimize the risk that a child becomes trapped inside the compartment.
	WELL VENTILATED PLACEPlease leave more than 10cm space between unit and the wall. If there is no space, the cooling capacity will be reduced.		If installation in a damp location is unavoidable, please install an electrical leakage circuit breaker. If no electrical leakage circuit breaker is installed, electrical shock could result.
	Never hang from the door or climb onto the unit. The unit could tip over or fall and cause material damage or injury.		Disconnect the power cord plug from the wall outlet before moving the unit and make sure that the power cord is not damaged during transport. A damaged power cord could result in electrical shock and/or fire.
	Grasp the handle when closing the door. Holding at other positions could result in pinched fingers and injury.		Do not apply excessive force to the glass surfaces as the glass could break/smash and cause personal injury.
	When disconnecting the power cord plug from the wall outlet, hold at the plug main body close to the outlet. Pulling the cord could cause wire breakage, possible resulting in overheating and fire.		Make sure that the unit does not tip over or fall when it is moved. A falling unit could cause serious injury.
	Do not throw items onto the shelves and do not place items totalling more than 30kg on each shelf. The shelf could fall down, possibly causing injury or break the shelf itself.		Be sure to attach and secure shelves correctly. An improperly attached shelf could fall down and cause injury or break the shelf.

HOW TO USE

Before use

• Remove shipping package, tape, etc. Also leave the door(s) open for ventilation for a while.
• The unit is cleaned before shipment. However, clean the compartment interior once after delivery.
• Please insert power supply plug into the wall outlet, single-phase to cat voltage.
• Allow the unit to operate for about 1 hour to cool the compartment before placing items in the cooler.

WAIT 5 MINUTES OR MORE BEFORE RE-STARTING

- Restarting the unit immediately after it has been turned off may cause fuses to blow and activate the circuit-breaker, thus, the compressor may be overloaded and/or other damage may occur.

Temperature adjustment

- Thermostat was adjusted using temperature at factory. To adjust it, turn right could cause temperature in showcase to go down. To raise the temperature, turn it left. Excessive refrigeration will increase electricity consumption unnecessarily.

Drain tray

• Defrosting is performed automatically and drain water is collected in the drain tray.
- Water in the drain tray is evaporates automatically. In humid surroundings, there will be large amounts of water in the drain tray, so please throw away drain water at least once a day.

Efficient use

Please follow the instructions below, to save energy.

• To prevent cold air from escaping, open and close the door(s) quickly and keep the door(s) opened for as short a time as possible.
• Please install the unit in the place which is well-ventilated.

Shelf height adjustment

The shelf height can be adjusted. Arrange the shelves in accordance with the dimensions of the items to be placed in the cooler.

Placing items in the showcase

This showcase employs a forced circulation of cold air system. If circulation of cold air is obstructed, the items will not be adequately refrigerated. Pay attention to the following points:

• Do not let items obstruct the cold air inlet and suction outlet.
• Place items so that they do not protrude from the shelves. The gap between the shelves and the door(s) is used for circulation of cold air.
• Place items evenly on all shelves.
• Please do not display goods on the bottom. Please put goods on the shelf.

CLEANING

WARNING

To prevent any electrical shock hazards or injury by rotating circulation fan, always disconnect the power cord plug from the wall outlet before cleaning.

Exterior and cooler compartment

Wipe the exterior and cooler compartment of the unit with a soft, dry cloth. If very soiled, wipe with a cloth that has been moistened with a detergent. Then wipe with a cloth that has been dipped in water.

WARNING

Do not splash water directly onto the cooler and do not wash with water. Short-circuiting and electrical shock could result.

• Clean the cooler regularly to keep it clean at all times.
• Never use polishing powder, soap powder, gasoline, oil or hot water as these will damage the painting and plastic components.

Cleanwater Biscure Aged Gasoline Thermostat Scrub brush

Checks after cleaning

To ensure the safety, perform the following checks after cleaning the unit.

• Make sure that the power plug is firmly inserted into a dedicated wall outlet. Confirm that the plug is not abnormally hot.
• Check the power cord for cracks and damage. Should the slightest irregularity be observed, contact the dealer form whom you have purchased the unit.

TROUBLESHOOTING

In case the unit shows operating problems, check the following before calling the authorized service agent.

Problems	Possible Causes	Possible Solutions
The unit is not operating	Faulty electrical contact	Verify electrical connections.
	Poor electrical power	Check the power connection and electrical outlet.
	Thermostat set to the minimum position	Adjust the thermostat setting to a higher number.
Not reaching the desired temperature	Unit is exposed to direct sunlight.	Relocate the unit to a shaded area.
	Thermostat is not properly adjusted.	Adjust the thermostat setting to a higher number.
	Door(s) not properly closed	Check the levelling of the unit and door seal.
	Products poorly distributed or excess product load	Redistribute the product load according start instructions.
	Clogged condenser	Clean the condenser.
	Blocked grills	Clean the grills of any debris collected.
	For models with electronic temperature controller, indicates E0 or E1.	Unplug the unit from the outlet. If the error continues, contact an authorized service technician.
Excessive noise	The unit is not properly levelled.	Level the unit, making sure all the feet are in firm contact with the floor.
	Something is in contact with the appliance, e.g. boxes, mops, brushes, etc.	Keep the objects away from the appliance.
Water on the floor	Drain hose is outside of the drain pan.	Lovate the hose in the drain pan.

WARNINGS

• WARNING: Keep ven la on openings, in the unit enclosure or in the in the built-in structure, clear of obstruc on.
• WARNING: Do not use mechanical devices or other means to accelerate the defros ng process, other than those recommender by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction on concerning use of the appliance in a safe way and understand the hazards involved.
• WARNING: Children shall not play with the appliance.
• WARNING: Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The following warnings only used for the product with refrigerant R290

• WARNING: Equipment is only allowed to transport and place in the normal way, during transport on, we need to ensure heat from sun radiation to equipment is not more than 60^ C, so as to protect refrigeration unit.
• WARNING: Equipment should be installed in a well-ven lated place, avoid larger thermal radia on. (Prohibit in front of a heater or heating equipment)
• WARNING: For any types of maintenance and well-keeping, need to stop power supply rst, and professional personnel is required.
• WARNING: R290 discharge is only allowed to operate in well-ven lated room or outdoor, open ame is prohibit.
• WARNING: LED light is not allowed to replace by oneself, but by professional maintenance personnel.
• WARNING: Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

COMBI-CABINETS STACKING INSTRUCTIONS

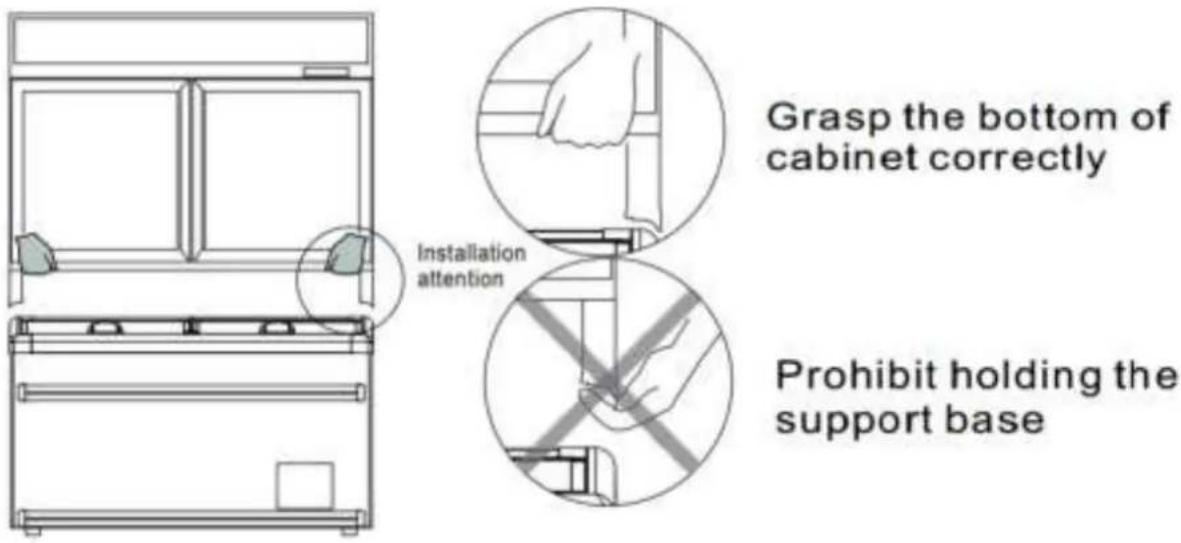

1. Hold the up cabinet align, the left side, right side and back side, slowly lay down, fine turn till perfect match.

Grasp the bottom of cabinet correctly Installation attention Prohibit holding the support base

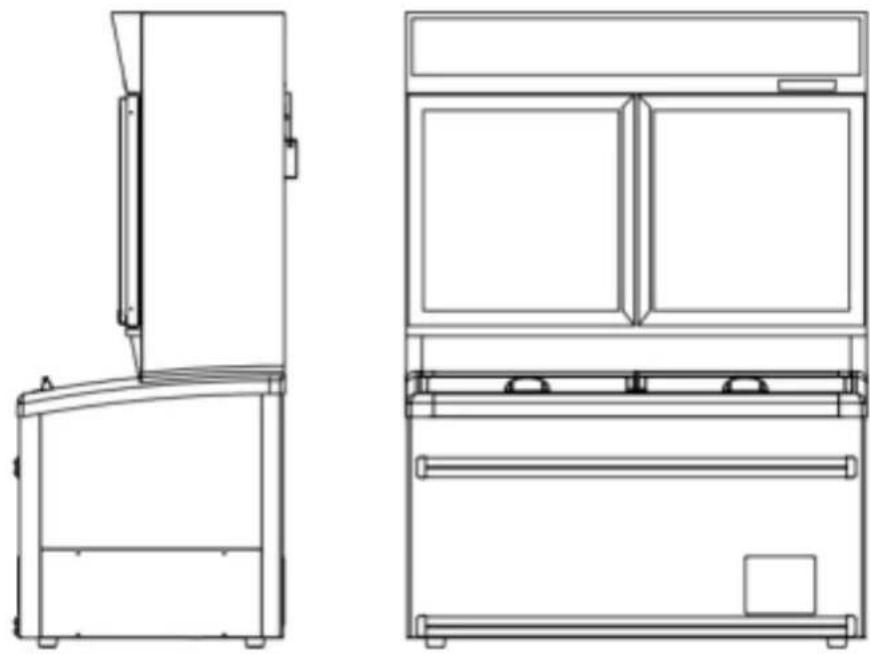

1. Correct Stacking state: Up cabinet and Bottom cabinet left side, right side and back side lined up properly, both left and right Arc part perfectly match up and down.

Technical line drawing of a refrigerator and its side view (no text or symbols)

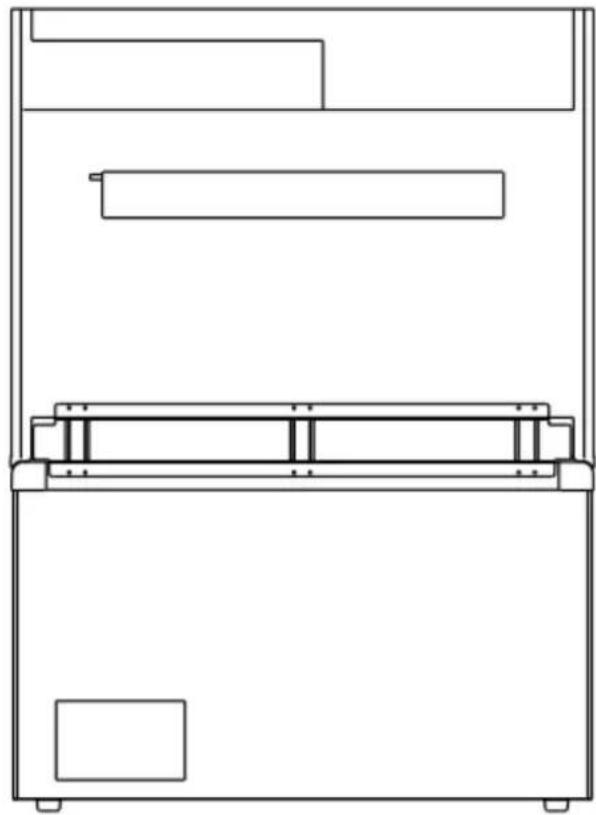

1. Insert the rear prop (back support block) into the placeholder, reinforcement with screws. (Attention: Request one person to hold the up cabinet during the Insert installation process)

Technical line drawing of a mechanical device with no visible text or symbols

VEILIGHEIDSMAATREGELEN

Cartoon illustration of a surprised cube with a surprised face and waving hand, next to a cup (no text or symbols)

Diagram showing a box with crossed-out faces connected to a hand holding a bottle and a pencil, suggesting a warning or safety hazard.

Grasp the bottom of cabinet correctly Installation attention Prohibit holding the support base

Technical line drawing of a refrigerator with front and side views (no text or symbols)

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

Diagram showing a cube with facial expressions and three tool icons: a wrench, a screwdriver, and a wrench head.

Cartoon illustration of a smiling cube with a surprised face and waving, accompanied by a hand holding a cup (no text or symbols)

Scrubs brush Water bottles Airbrush Gasoline Thermos

Kontrollen

Grasp the bottom of cabinet correctly Installation attention Prohibit holding the support base

Technical line drawing of a refrigerator and its side view, showing front and top views (no text or symbols)

Technical line drawing of a mechanical assembly or enclosure with no visible text or symbols

CONSIGNES DE SÉCURITÉ

Diagram showing a cube with angry faces and a wrench, alongside tools including a wrench and a screwdriver.

Cartoon illustration of a surprised cube with a surprised face and a waving hand, next to a steaming cup (no text or symbols)

Utilization efficace

Grasp the bottom of cabinet correctly Installation attention Prohibit holding the support base

Technical line drawing of a refrigerator and its side view (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols
