7450.0027 - Fridge CombiSteel - Free user manual and instructions

Product type	Professional refrigerator (cold well)
Brand	CombiSteel
Model	7450.0027
Capacity	6 x 1/4 GN (gastronorm)
Power supply	220-240 V / 50 Hz
Temperature range	Adjustable via thermostat (default temperature preprogrammed)
Display	Digital, indicates current and set temperature
Thermostat	Electronic with adjustment buttons (SET, +, -)
Material	Stainless steel (interior and exterior)
Refrigerant gas type	CFC-free, environmentally friendly
Compressor	PCB-free oil
Installation	Dry and ventilated place, away from sunlight and heat sources
Commissioning	Wait 2 hours after horizontal transport before plugging in
Cleaning	Unplug before cleaning; use unscented dish soap; do not use chlorine products
Condenser maintenance	Clean with vacuum cleaner and stiff brush; never wash with large amounts of water
Safety	Do not store flammable or explosive substances
Troubleshooting	Check plug, fuse; contact dealer with reference and serial number
Disposal	Follow local regulations for electrical appliance disposal

Frequently Asked Questions - 7450.0027 CombiSteel

How to adjust the temperature of my CombiSteel 7450.0027 refrigerator?

Press the SET button for more than 3 seconds. The display shows the set temperature. Use the + or - buttons to increase or decrease the temperature. Press SET again to confirm. The display flashes then returns to the current temperature.

What does the error code 'P1' on the display mean?

The flashing 'P1' code indicates a defective thermostat probe. The device will attempt to maintain the set temperature until repair. Contact your dealer.

Can I use my refrigerator immediately after horizontal transport?

No, after horizontal transport, it is imperative to wait 2 hours before plugging in the appliance to allow the compressor oil to settle.

How to clean my CombiSteel refrigerator?

First unplug the appliance. Clean the interior and exterior with an unscented dish soap. Use a stainless steel cleaner on the exterior if needed. Never use chlorine or harsh products.

How to clean the condenser and compressor compartment?

Use a vacuum cleaner with a stiff brush to clean the condenser and compressor compartment. Never wash with large amounts of water to avoid short circuits.

What is the required power supply?

The refrigerator requires a 220-240 V / 50 Hz power outlet. Electrical installations must be carried out by a qualified electrician.

Can I store flammable products in the refrigerator?

No, never store gas, lighters, gasoline, ether, or any other flammable or explosive product inside.

What to do if the refrigerator does not cool?

Check that the plug is fully inserted, the fuse is intact, and there is no power outage. If the problem persists, contact your dealer with the reference and serial number (located on the label inside).

How to dispose of my refrigerator at end of life?

Follow local disposal regulations for electrical appliances. Do not throw it away with household waste and respect specific conditions.

Where to find the serial number and reference of my appliance?

They are on a label located inside the refrigerator, top right. Note this information before contacting customer service.

USER MANUAL 7450.0027 CombiSteel

CombiSteel catering equipment

Refrigerated Counter Tops

User Manual Gebruikershandleiding Gebrauchsanweisung Le mode d'emploi

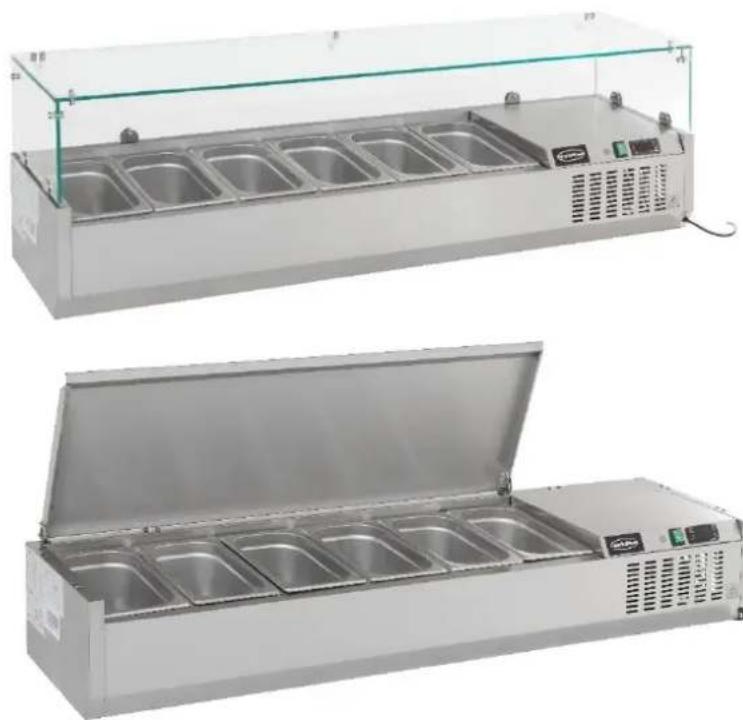

Two views of a stainless steel restaurant grater with multiple side dishes and open lid (no visible text or labels)

CONTENT

Models....3

ENGLISH

Important safety instrucons ....4

Unpacking and installaon 4

Electrical conncon 4

Start-up of the counter top....4

Thermostat 5

Maintenance and cleaning 5

Service 6

Disposal....6

NEDERLANDS

Important safety instrucons

1. To obtain full use of the counter top, we recommend reading this instrucon manual.
2. It is the user's responsibility to operate the appliance in accordance with the instrucons given.
3. Contact your dealer immediately in case of any malfuncons.
4. Place the counter top in a dry and venlated place.
5. Keep the counter top away from strongly heat-emitting sources and do not expose it to direct sunlight.
6. Always keep in mind that all electrical devices are sources of potential danger.
7. Do not store inammable material such as thinner, gasoline etc. in the counter top.
8. We declare that no asbestos nor any CFC are used in the construcon.
9. The oil in the compressor does not contain PCB.

Unpacking and installaon

Remove the wooden pallet and the packing. External surfaces are supplied with a protecon foil, which must be removed before installaon

Electrical conncon

The counter top operates on 230 V/50 Hz.

The wall socket should be easily accessible.

All earthing requirements spulated by the local electricity authorities must be observed. The counter top plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or authorized electrician.

The exible cord ed to this appliance has three cores for use with a 3-pin 13-Amp or 3-pin 15Amp plug. If a B.S. 1363 (13-Amp) fused plug is used, it should be ed with a 13-Amp fuse.

The wires in this mains lead are coloured in accordance with the following code: Green/Yellow: Earth, Blue: Neutral, Brown: Live.

The main electrical connecons must be done by skilled electricians.

Start-up of the counter top

Before use, we recommend that the counter top is cleaned, see the secon on maintenance and cleaning.

Important!

If the counter top has been vercally placed during transport, please wait 2 hours before starng up the counter top. Connect the counter top to a socket and turn on the switch on the control panel, see g. 1.9.

Fig. 1.9 888 0

Thermostat

The thermostat is placed in the control panel, see g. 2.0.

SET * * + -8.0 °C

Fig. 2.0

The thermostat has been pre-set and in most cases it is not necessary to adjust the sengs.

When turning on the counter top the display will show the current temperature in the counter top.

Display set temperature:

Press this key and the display will show the set temperature. Press the key again to return to normal reading

Set new temperature:

Press this key connuously for more than 3 seconds and the display shows the set temperature.

Press this key to increase the set temperature.

Press this key to lower the set temperature.

Press this key to save the new sengs. The display will ash with the new value and will then return to normal reading.

Alarm codes:

'P1' Flashing in the display: indicates that the counter top sensor is defective. The counter top will strive to keep the set temperature until it has been repaired.

Maintenance and cleaning

Switch the cooler o at the socket.

The counter top must be periodically cleaned. Clean the external and internal surfaces of the counter top with a light soap soluon and subsequently wipe dry. External surfaces can be maintained using steel oil.

Do NOT use cleansers containing chlorine or other harsh cleansers, as these can damage the stainless steel surfaces and the internal cooling system.

Clean the condenser and the compressor compartment using a vacuum cleaner and a s brush.

Do NOT hose the compressor compartment with water as this can cause short circuits and damage on the electrical parts.

Service

The cooling system is a hermecally sealed system and does not require supervision, only cleaning.

If the counter top fails to cool, check if the reason is a power cut.

If you cannot locate the reason to the failure of the counter top, please contact your supplier. Please inform model and serial number of the counter top. You can nd this informaon on the rang label which is placed inside the counter top in the top right hand side.

Disposal

Disposal of the counter top must take place in an environmentally correct way. Please note existing regulaon on disposal. There may be special requirements and conditions which must be observed.
