Ez Clean SW6100 - Waffle Maker TEFAL - Free user manual and instructions

Product type	Waffle maker
Brand	TEFAL
Model	Ez Clean SW6100
Power supply	230 V, 50 Hz
Power	1000 W
Main functions	Cooking waffles and croque-monsieur, automatic preheating
Cooking plates	Removable, non-stick coating, dishwasher safe
Indicator lights	Red light (heating) and green light (temperature reached)
Safety system	Steam guard system protecting the handle
Handle	General handle with closure lock
Storage	Vertical storage possible, closure latch, cord wrap
Cooking time	3 to 5 minutes depending on recipe
Body maintenance	Clean with sponge and dish soap, do not immerse
Plate care	Dishwasher safe, do not use scouring pads
Usage	Household use only
Accessories	Interchangeable plates (waffles and croques), plastic or wooden spatula recommended
Precautions	Do not touch hot surfaces, unplug after use, let cool for 2 hours before cleaning

Frequently Asked Questions - Ez Clean SW6100 TEFAL

How to clean the plates of the Tefal Ez Clean SW6100 waffle maker?

The removable plates can be cleaned in the dishwasher. For the appliance body, use a sponge and dish soap. Never immerse the appliance in water.

Can I put the plates in the dishwasher?

Yes, the cooking plates are dishwasher safe. However, avoid using scouring pads or abrasive powders.

How to change the cooking plates?

Make sure the appliance is cool and unplugged. Open the appliance, press the release buttons while holding the plate, then remove it by the side handles. To replace a plate, position it at an angle, inserting the stops into the slots, then press to lock it.

What to do if the green light does not come on?

Check that the appliance is plugged in and the cord is properly inserted. If the red light remains on, wait for the appliance to preheat. If the problem persists, contact customer service.

How long does it take to preheat the appliance?

The preheating time is approximately 3 to 5 minutes. The green light comes on when the optimal temperature is reached.

How to store the appliance to save space?

The appliance can be stored vertically. Close it and lock it with the closure latch. Wrap the cord in the designated area.

Can I use extension cords with this appliance?

Yes, but make sure the electrical ratings of the extension cord are at least equal to those of the appliance (230 V, 1000 W). Arrange the extension cord to avoid any tripping hazard.

How much waffle batter should I put?

Pour the batter onto the plates without exceeding the separator bar between the imprints. This prevents overflow during cooking.

What to do if the appliance emits smoke during first use?

This is normal. A slight odor or smoke may occur during first use. Make sure the appliance is clean and use a little oil on the plates before the first cooking.

What recipes can I make with this waffle maker?

This waffle maker can make waffles and croque-monsieur. The manual includes recipes for chocolate waffles, banana and pecan waffles, oatmeal and apple waffles, as well as croques like Croque-Roquefort or Dessert Croque.

USER MANUAL Ez Clean SW6100 TEFAL

Black and white photo of a black plastic object with a circular top and small circular base (no text or symbols visible)

Instructions for use Mode d'emploi Instrucciones de uso

T-fal a division of Groupe SEB USA, 1 Boland Drive, West Orange, New Jersey 07052 Groupe SEB CANADA INC., 345 Passmore Avenue, Toronto, ON., M1V - 3N8 CANADA G.S.E.B. MEXICANA, S.A. de C.V. Goldsmith 38 Desp. 401, Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F.

IMPORTANT SAFEGUARDS

When using electrical appliance, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs or appliance in water or other liquid.
4. Not intended for use by children. Close supervision is necessary for any appliance being used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Do not use the appliance for other than intended use.
12. Before use, check that your local voltage corresponds with the specifications shown on the appliance nameplate located under the appliance.
13. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
14. The temperature of accessible surfaces may be high when the appliance is operating.
15. Check that the electrical installation is compatible with the wattage and voltage stated on the bottom of the appliance.
16. If this appliance has a polarized plug (one blade is wider than the other), it is to reduce the risk of electric shock. This plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS.

Safety instructions

• Never leave the appliance unattended when in use.
• Do not immerse the appliance in water.
• Do not immerse the appliance, the control panel or power cord in water.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Never leave the appliance plugged in when not in use.
• Do not place the hot plate under water or on a fragile surface.
• If you have any problems, contact the authorized after-sales service center or the internet address www.t-falusa.com.

Short Cord instructions

A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a long detachable power-supply cord or extension cord is used :

1) The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord; and
3) The longer cord should be arranged so that it does not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally.

THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD ONLY

Diagram showing two steps of a device operation: adding a component to a device, then adding a device into a container (no text or symbols present)

To remove the plates - Pour enlever les plaques - Para retirar las placas

Diagram illustrating three steps of assembling a mechanical component, labeled 1, 2, and 3 with directional arrows indicating assembly direction.

B2 B3B1

To replace the plates - Pour remettre les plaques - Para colocar las placas

Technical diagram illustrating the assembly of a vehicle chassis with labeled CLIC components and directional arrows indicating movement.

C

Illustration of a hand inserting a plug into an electrical outlet socket, with no text or symbols present.

G

2H

H

Diagram illustrating three steps of device installation: opening a device, adding a component, and finally adding a final device.

I2 I3I1

Illustration of a hand cleaning a washing machine with a digital soap bottle and smartphone nearby (no text or symbols)

]

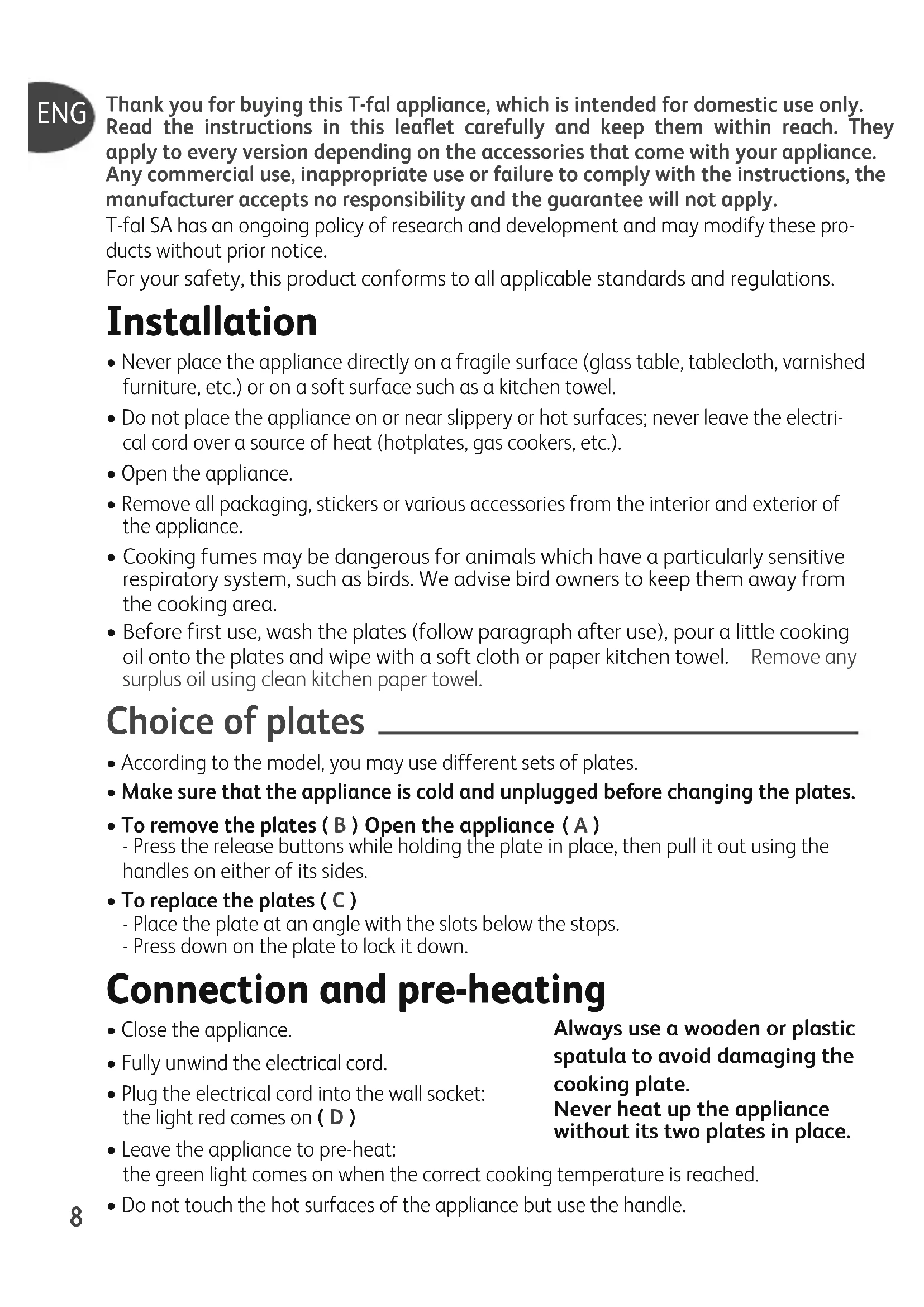

Thank you for buying this T-fal appliance, which is intended for domestic use only. Read the instructions in this leaflet carefully and keep them within reach. They apply to every version depending on the accessories that come with your appliance. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

T-fal SA has an ongoing policy of research and development and may modify these products without prior notice.

For your safety, this product conforms to all applicable standards and regulations.

Installation

• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a kitchen towel.
• Do not place the appliance on or near slippery or hot surfaces; never leave the electrical cord over a source of heat (hotplates, gas cookers, etc.).
• Open the appliance.
• Remove all packaging, stickers or various accessories from the interior and exterior of the appliance.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.
• Before first use, wash the plates (follow paragraph after use), pour a little cooking oil onto the plates and wipe with a soft cloth or paper kitchen towel. Remove any surplus oil using clean kitchen paper towel.

Choice of plates

• According to the model, you may use different sets of plates.
• Make sure that the appliance is cold and unplugged before changing the plates.

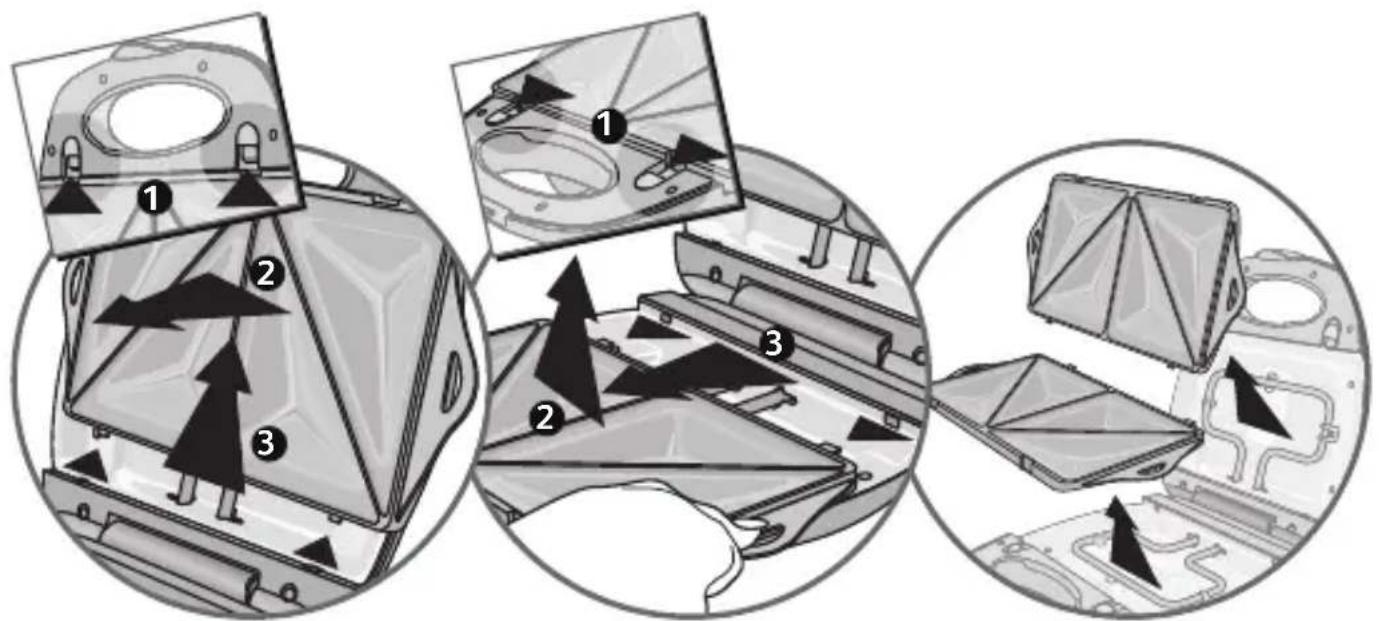

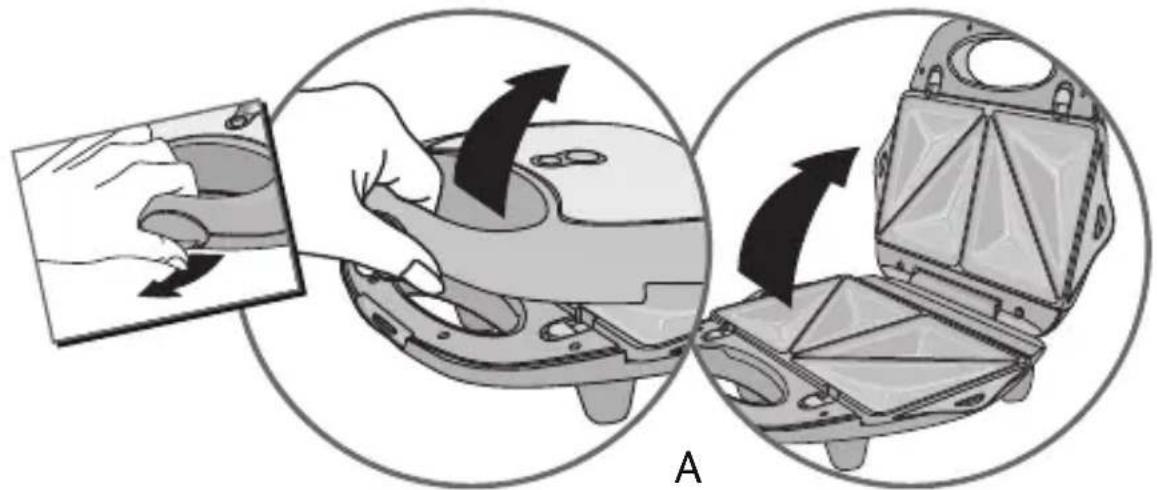

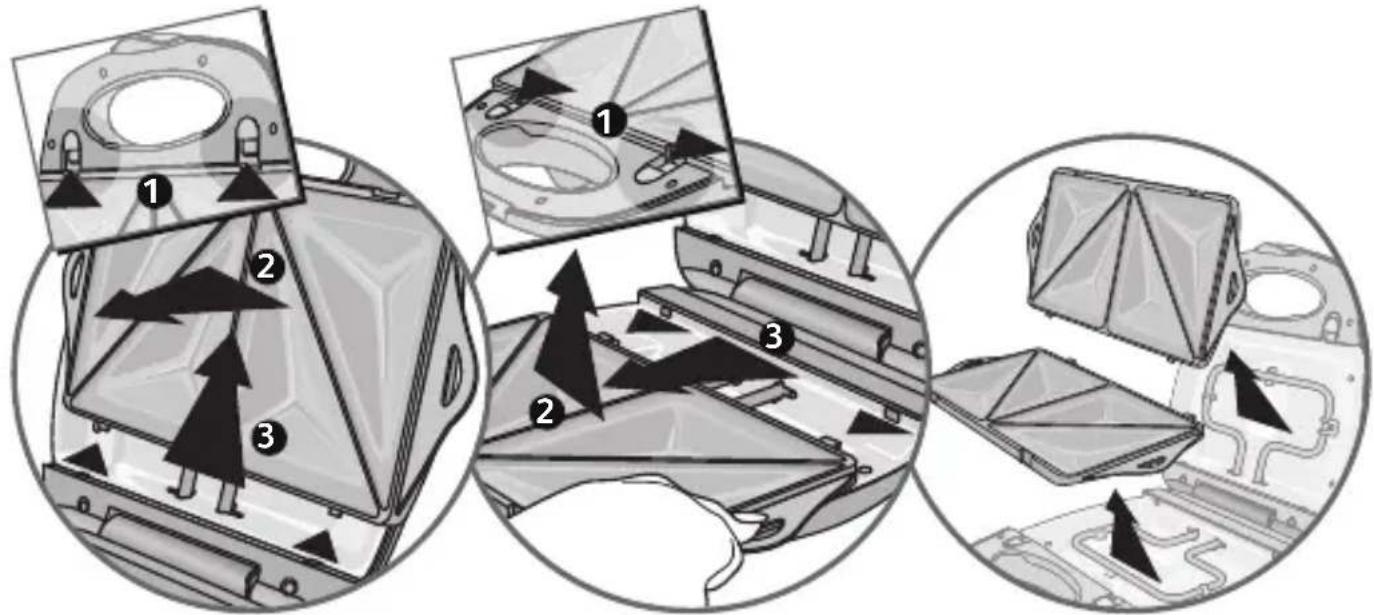

• To remove the plates (B) Open the appliance (A)
• Press the release buttons while holding the plate in place, then pull it out using the handles on either of its sides.

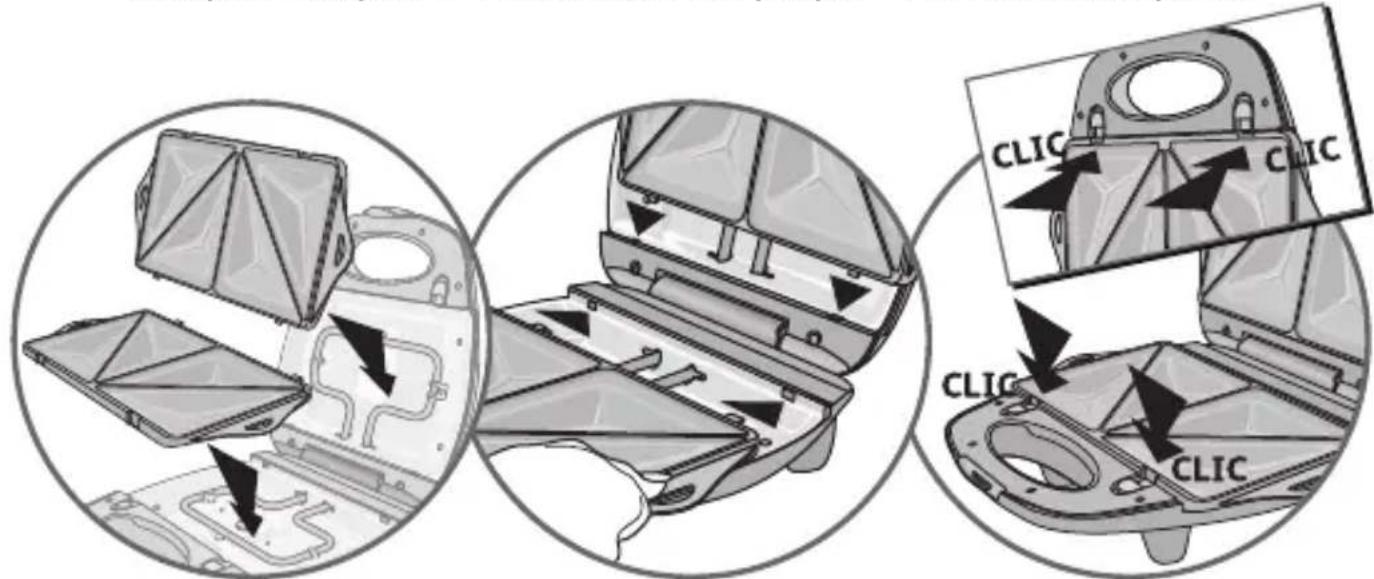

  • To replace the plates ( C )
• Place the plate at an angle with the slots below the stops.
• Press down on the plate to lock it down.

Connection and pre-heating

• Close the appliance.
• Fully unwind the electrical cord.
• Plug the electrical cord into the wall socket: the light red comes on (D)

- Leave the appliance to pre-heat: the green light comes on when the correct cooking temperature is reached.

- Do not touch the hot surfaces of the appliance but use the handle.

Always use a wooden or plastic spatula to avoid damaging the cooking plate.

Never heat up the appliance without its two plates in place.

- Never run the appliance empty.

Cooking

- Every time you start cooking, wait until the green indicator light comes on before pouring the mixture.

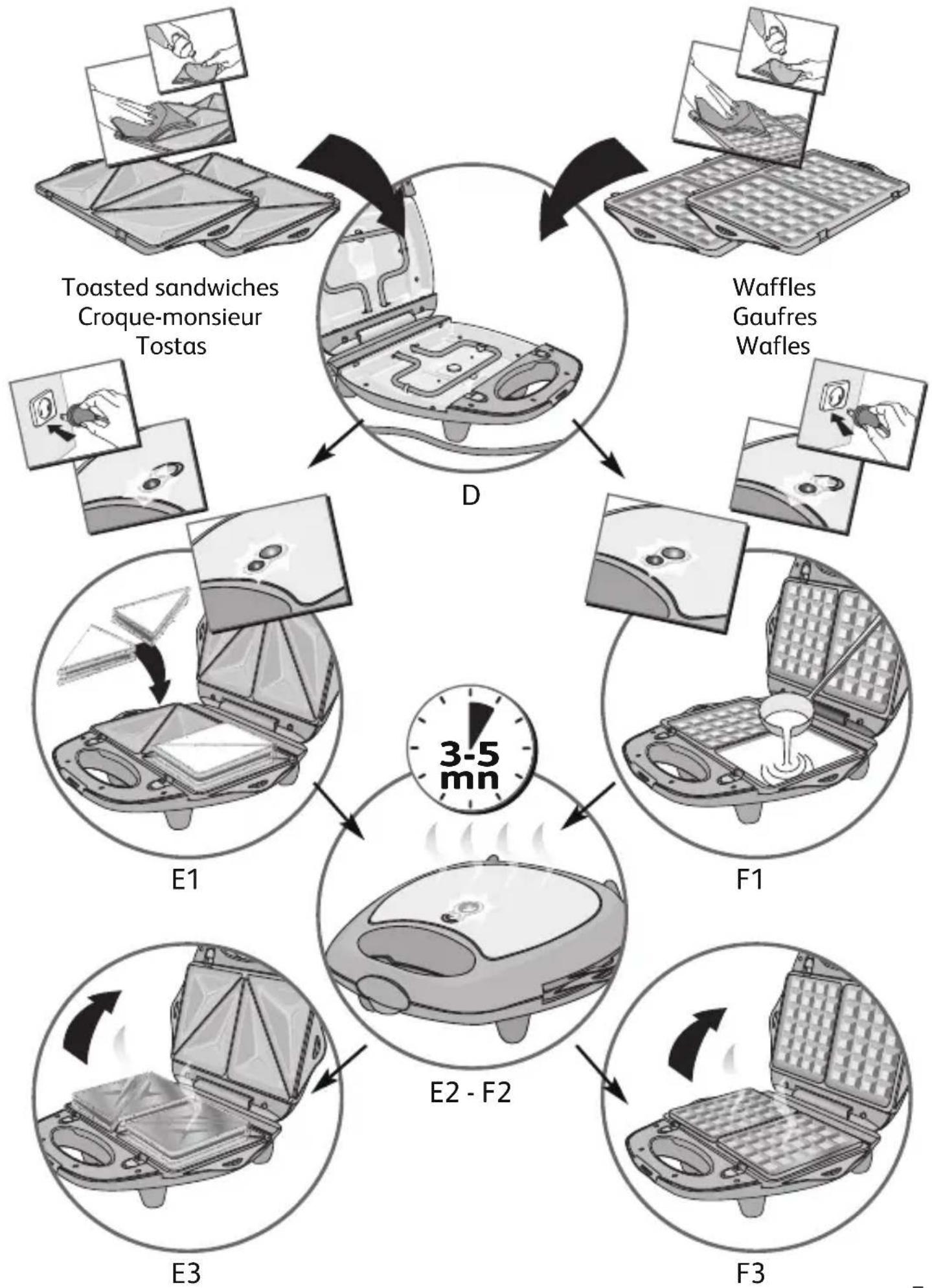

Toasted sandwich function (E1 - E2 - E3)

• Open the appliance and place the sandwiches prepared on the hotplates.
• Close the appliance during cooking, using the handle.
• Leave the toasted sandwiches to cook for the time recommended by the recipe.
• Remove the toasted sandwiches when they are golden brown.

Cooking times may vary

When using for the first time, a slight odour or small amount of smoke may be given off; this is normal.

During the cooking time, it is normal that the pilot light green turns on and off intermittently.

(between 3 to 5 minutes) depending on the type and quantity of bread used.

Waffle function (F1 - F2 - F3)

• Open the appliance and pour the waffle mix over the hotplates (the amount of waffle mix poured should not exceed the height of the separation between the cooking patterns on the hotplates).
• Close the appliance during cooking, using the handle.
• For your own safety, the appliance has a steam deflector that protects the handle from cooking steam.
• Leave the waffles to cook for the time recommended by the recipe.
• Remove the waffles using a spatula.

Cooking times may vary (between 3 to 5 minutes) depending on the type and quantity of the waffle mix used.

After use

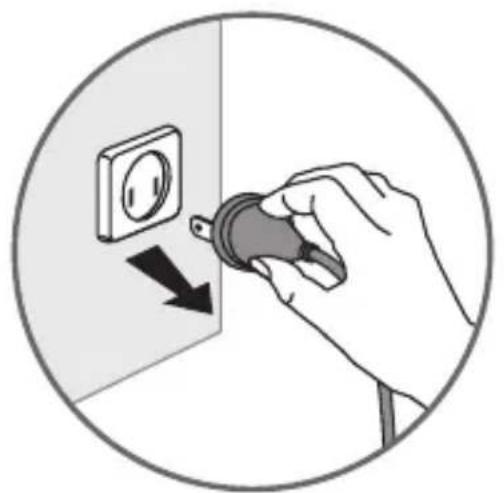

• Unplug the electrical cord from the wall socket (G).

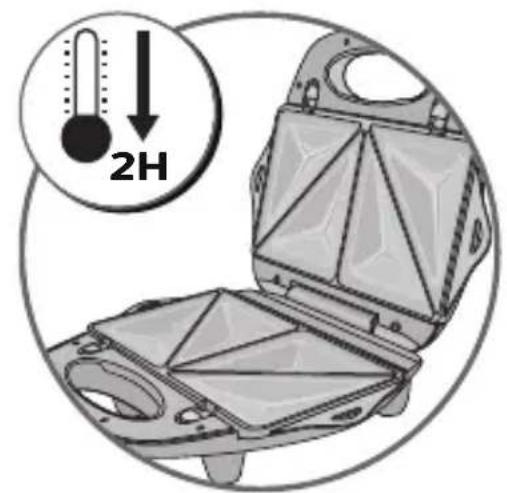

• Leave the appliance open to allow it to cool for at least two hours (H).
• Remove the plates ( I ).

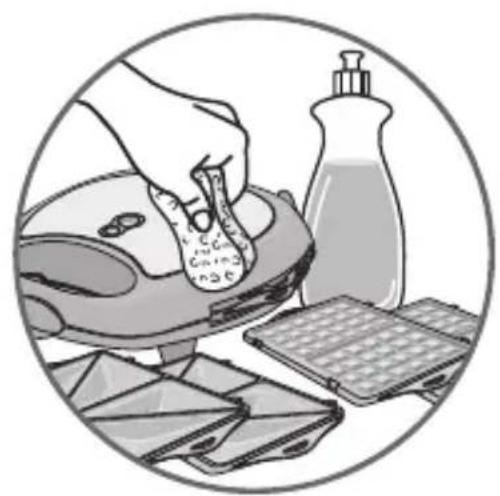

• Clean the plates and body of the appliance using a sponge and washing-up liquid (J). The plates can be washed in a dishwasher (M).

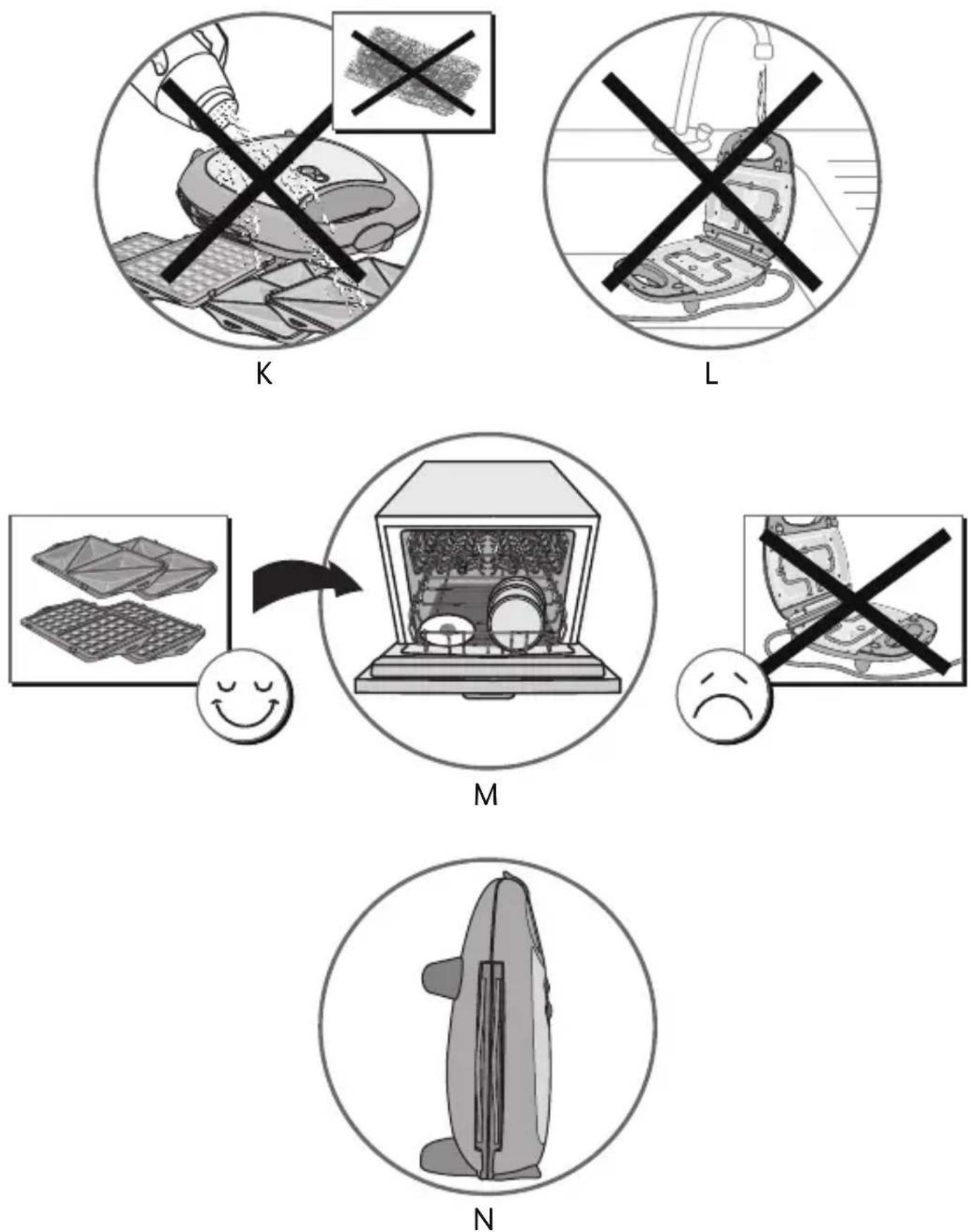

• Do not use a scouring pad or scouring powder (K).
• Never immerse the appliance or electrical cord in water. They are not dishwasher safe (L-M).

Storage

• The appliance can be stored vertically to save space (N).
• Close the appliance and lock it shut with the closing clip.
• Wind the electrical cord in the space designed for storage.

Recipes

Waffles recipes (makes about 12 waffles)

Install the waffle plates. Pour on the mixture, taking care to fill each plate without it overflowing. Leave to cook for around 4 min. according to the desired degree of cooking. Avoid opening the appliance during cooking. Place the waffles on a cooling rack and wait for 1 min. before eating them: this makes them crunchier. Cooks note: 1 American cup is equivalent to 237 ml or 8 fl oz.

Chocolate waffles

- 2 cups of packet pancake or waffle mix (about 210 g) • 3 tbsps of unsweetened cocoa • 2 tbsps of sugar • 1/4 cup of chocolate chips (about 40 g) • 1/3 cup of finely chopped walnuts (about 40 g) • 1,5 cups of milk (255 ml) • 1/3 cup of vegetable oil (about 80 ml) • 2 large eggs • 1 /2 tsp of vanilla essence

In a large bowl, mix the pancake mix, cocoa powder, sugar, chocolate and walnuts according to taste.

In another bowl, mix the milk, oil, eggs and vanilla essence. Add the liquid ingredients to the pancake mix and stir until even. Leave the mixture to rest for 5 min.

Pour the desired amount of mixture into the waffle-maker.

Leave to cook until there is no more steam, i.e. after around 4 min.

Serve with whipped cream and chocolate sauce.

Banana and Pecan nut waffles

- 2 very ripe crushed bananas • 1 cup of milk (about 237 ml) • 2 tbsps of vegetable oil • 1 large egg • 1/2 tsp of vanilla essence • 2 cups of packet pancake or waffle mix (about 210 g) • 1/4 cup of finely chopped Pecan nuts (about 30 g)

In a large bowl, mix the bananas, milk, oil, eggs and vanilla essence.

Stir the pancake mixture and the walnuts evenly.

Leave the mixture to settle for 5 min.

Pour the desired amount of mixture into the waffle-maker.

Leave to cook until there is no more steam, i.e. after around 4 min.

Serve with maple syrup.

Oat, apple and cinnamon waffles

- 2 cups of packet pancake or waffle mix (about 210 g) • 1/4 cup of oats (quick-cooking type) • 2 tbsps of caster sugar • 1 tsp of ground cinnamon • 1,5 cups of milk • 2 tbsps of vegetable oil • 1 large egg • 3/4 cup of peeled McIntosh or Braeburn apples cut into small pieces

In a large bowl, stir in the pancake mix, oats, sugar, and cinnamon.

In another bowl, mix the milk, oil, egg and apples. Add the liquid ingredients to the pancake mix and stir until even. Leave the mixture to settle for 5 min.

Pour the desired amount of mixture into the waffle-maker.

Leave to cook until there is no more steam, i.e. after around 4 min.

Toasted sandwiches recipes

Install the sandwich plates. Place the sandwiches in the hollows of the plates with the butter on the outside surface of the bread. Close the appliance and gradually clamp the handles together to seal the slices of bread together. Leave to cook for around 3 to 4 min. according to the desired degree of cooking

Croque-Roquefort

- 4 slices of white bread • 30 g of butter - 8 walnuts • 50 g of Roquefort cheese

Butter the slices of bread on the outer faces.

Remove the walnuts from their shells and cut them into pieces.

Mix with 10 g of butter and the Roquefort.

Spread the preparation onto two slices then cover them with the other two slices.

Croque-monsieur Virginia

- 4 slices of white bread • 20 g of butter • 1 small onion - chives • 4 tblsp of drained cottage cheese • 1 tblsp of cream • salt - paprika

Butter the slices of bread on the outer surfaces.

Peel the onion and cut it into thin slices. Wash the chives and cut them into small pieces using scissors.

In a dish, mix the onion and chives with the cottage cheese, the cream, a pinch of salt and half a teaspoon of paprika.

Spread the mixture onto the unbuttered side of two slices then cover them with the other two slices, so the butter is on the outside.

Croque dessert

- 4 slices of white bread • 20 g of butter • 2 bars of plain chocolate • half a banana

Butter the slices of bread on the outer surfaces.

Place two chunks of chocolate, the banana cut into round slices and two more chunks of chocolate onto the unbuttered side of two slices of bread.

Then cover with the other slices of bread, with the butter on the outside.
