WARNING: READ INSTRUCTIONS

CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, adjust or operate the heater.

Combustion by products produced when using this product contains carbon monoxide, a chemical known to the State of California to cause cancer and birth defects (or other reproductive harm). This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING: Failure to comply with the precautions and instructions provided

with this heater, can result in death, serious bodily injury and property loss or damage from hazards of re, explosion, burn, asphyxiation, carbon monoxide poisoning, and/or electrical shock. Only persons who can understand and follow the instructions should use or service this heater. If you need assistance or heater information such as an instructions manual, labels, etc. Contact the manufacturer. Save these instructions for future reference.

DANGER: CARBON MONOXIDE CAN KILL YOU

This heater produces carbon monoxide. Do not use in occupied spaces. Ventilate building, room or other enclosed spaces where heater has been used before entering. Never use in a vehicle, camper or tent.

WARNING: Not for home or recreational vehicle use. Do not use to cook or

WARNING: Fire, burn, inhalation, and explosion hazard. Keep solid

combustibles, such as building materials, paper or cardboard, a safe distance away from the heater as recommended by the instructions. Never use the heater in spaces which do or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals.

WARNING: RISK OF FIRE OR EXPLOSION

• Do not use gasoline, naphtha or volatile fuels.

• Stop heater and allow to cool before adding fuels.

• Always ll outdoors away from open ame.

• Do not use external fuel source.

• Do not operate heater where ammable liquids or vapors may be present.

• Do not start heater when chamber is hot.

• Do not start heater when excess fuel has accumulated in the chamber.

WARNING: RISK OF ELECTRICAL SHOCK

• Plug power cord into a properly grounded 3-wire receptacle.

• Do not operate in wet or damp conditions. Denitions: Safety Guidelines The denitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNING: Fuels used in liqueed propane gas appliances, and the products

of combustion of such fuel, can expose you to chemicals including benzene, which is known to the State of California to cause cancer and cause birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals including lead and lead

• compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. Wash your hands after handling this product. For more information visit www.P65Warnings.ca.gov.English Specications CAUTION: CSA certied for use with only No. 1-K kerosene fuel. Factory Tested: No.2-K kerosene, No.1 or No.2 Diesel, No.1 or No.2 fuel oil or JP8 Jet A fuel CONTENTS WARNINGS p. 2
• -3 HEATER SPECIFICATIONS p. 3
• OPERATING PRECAUTIONS p. 4
• SAFETY PRECAUTIONS p. 4

• Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS?

• DO NOT try to light any appliance.

• DO NOT operate any electrical switches.

• DO NOT use any telephone in building. Immediately call the local gas supplier from an outside telephone. Follow the gas supplier’s instructions.

• DO NOT touch any electrical switch; do not use any phone in your building.

5. Use in well ventilated areas, provide at least 2 sq. ft. (0.19 sq. m.) of opening

near the oor and 2 sq. ft. (0.19 sq. m.) near the ceiling directly to outdoors. Increase air openings as marked for each additional heater.

6. Always keep combustibles, like paper and wood at least 8 ft. (2.4 m) from the

heater outlet and 3 ft. (1.0 m) from the top, sides and inlet. Locate 10 ft. (3.0 m) from canvas or plastic coverings and secure them to prevent apping movement.

7. Caution: Due to the high surface and exhaust temperatures, adults and children

must observe clearances to avoid burns or clothing ignition. Do Not Touch. Keep children, clothing, and combustible away.

8. Install the heater such that it is not directly exposed to water spray, rain and / or water.

9. Never use in occupied spaces and /or where children may be present.

10. Operate only on a stable, level surface.

11. Do not use with duct work. Do not restrict inlet or exit.

12. Use only with electrical power specied. The electrical connection and

grounding must comply with National Electrical Code – ANSI/NFPA 70 (USA) and CSA C22.1 Canadian Electrical Code, Part 1 (Canada).

13. Use only a properly grounded 3-prong receptacle or extension cord.

14. Do not move, handle, or service while hot or while in operation.

15. Use only in accordance with local, state (provincial) or national requirements,

ordinances and codes.

16. Roll cage on these units is for the heaters protection only. Do not stand or sit

on the heater Do not use the frame around the unit as a table, saw horse.

17. The storage box mounted under the barrel of these units is intended for the

storage of items that are not sensitive to heat. Please use the storage box only for small replacement parts, gloves, small hand tools, etc. Operating Instructions UNPACKING

1. Remove heater from carton.

2. Remove all protective material which may have been applied to the heater for

3. Check the heater for possible shipping damage. If any damage is found

immediately contact the manufacturer at 855-805-5745. Safety Precautions

1. Certied for use with No.1-K kerosene fuel. Factory tested for use with No.2-K

kerosene, No.1 or No.2 Diesel, No.1 or No.2 fuel oil or JP8 Jet A fuel and these fuels may be used as well. Never use gasoline, oil drained from crank cases, naphtha, paint thinners, alcohol or any other highly ammable fuels. Only store kerosene in containers marked Kerosene or Kerosine.

2. Check the heater thoroughly for damage. DO NOT operate a damaged heater.

3. DO NOT modify the heater or operate a heater which has been modied

from its original condition.

4. Suitable for outdoor use. For either outdoor or indoor use where adequate

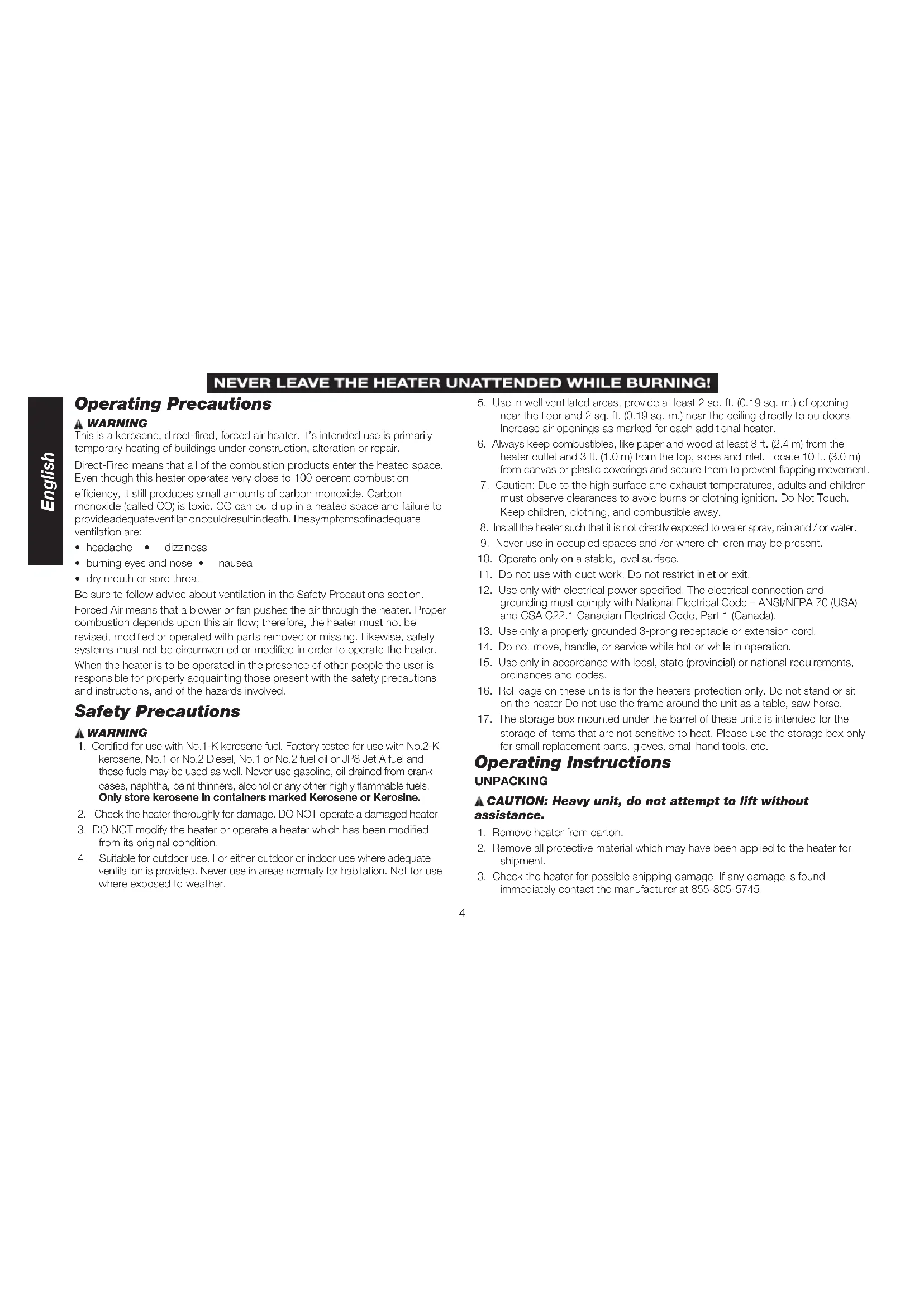

ventilation is provided. Never use in areas normally for habitation. Not for use where exposed to weather. Operating Precautions This is a kerosene, direct-red, forced air heater. It’s intended use is primarily temporary heating of buildings under construction, alteration or repair. Direct-Fired means that all of the combustion products enter the heated space. Even though this heater operates very close to 100 percent combustion efciency, it still produces small amounts of carbon monoxide. Carbon monoxide (called CO) is toxic. CO can build up in a heated space and failure to provide adequate ventilation could result in death. The symptoms of inadequate ventilation are:

• headache • dizziness

• burning eyes and nose • nausea

• dry mouth or sore throat Be sure to follow advice about ventilation in the Safety Precautions section. Forced Air means that a blower or fan pushes the air through the heater. Proper combustion depends upon this air ow; therefore, the heater must not be revised, modied or operated with parts removed or missing. Likewise, safety systems must not be circumvented or modied in order to operate the heater. When the heater is to be operated in the presence of other people the user is responsible for properly acquainting those present with the safety precautions and instructions, and of the hazards involved. WARNING WARNING CAUTION: Heavy unit, do not attempt to lift without assistance.English

NOTICE: Before lling fuel tank the rst time or after extended storage periods, drain the fuel tank of any moisture or condensation.

4. Locate heater at a safe distance from combustible materials.

1. Turn thermostat to lowest setting, make sure “ON/OFF” switch is “ON”.

Plug the heater into a grounded 115V, 60 Hz, 1 Ø outlet. Turn thermostat to highest setting. Start heater by pushing toggle switch to “I” position (light signies switch is in “I” position). Adjust thermostat to desired setting. Heater will cycle on/off as heat is required. EXTENSION CORD REQUIREMENTS: Up to 100’ (30.5m) use 16 awg. conductor. 101’ - 200’ (30.5 - 61.0m) use 14 awg. conductor. For all models:

• In cold weather (below 10° F), starting may be improved by holding a nger over the vent hole of the pump adjustment screw cap until the heater starts.

• This unit is equipped with an interrupt circuit. The reset is integrated into the “ON/OFF” switch. If the unit does not start, toggle the switch to “OFF”, wait 5 min. and toggle the switch to “ON”.

Push “ON/OFF” switch to “OFF” position. For extended shutdown, unplug heater from power source.

RESTART AFTER SAFETY SHUTDOWN

Toggle switch to “OFF” position, wait 5 minutes. Restart. Maintenance and Storage To prevent personal injury, unplug the heater from the wall outlet before servicing. For maximum efciency and trouble-free service, make the following periodic maintenance, cleaning and inspections. ASSEMBLY (For 135,000, 190,000 and 215,000 BTU/hr models only, see gure 1, page 9.) Wheels and handles are found in the shipping carton along with mounting hardware. The wheels, axle and mounting hardware are in a package. Tools required are a 5/16” nut driver, 3/8” open or adjustable wrench and standard pliers.

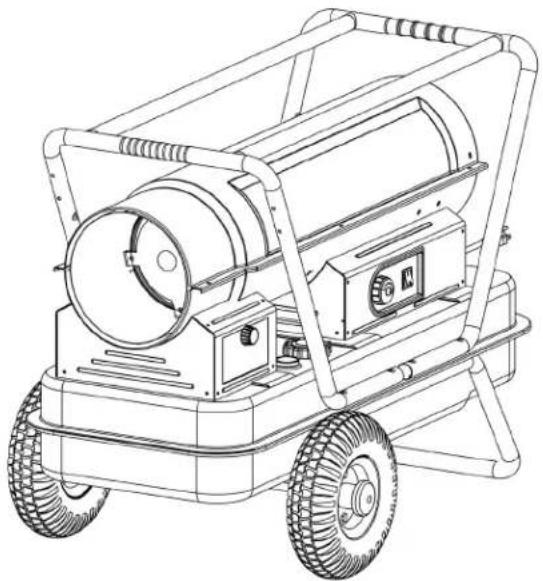

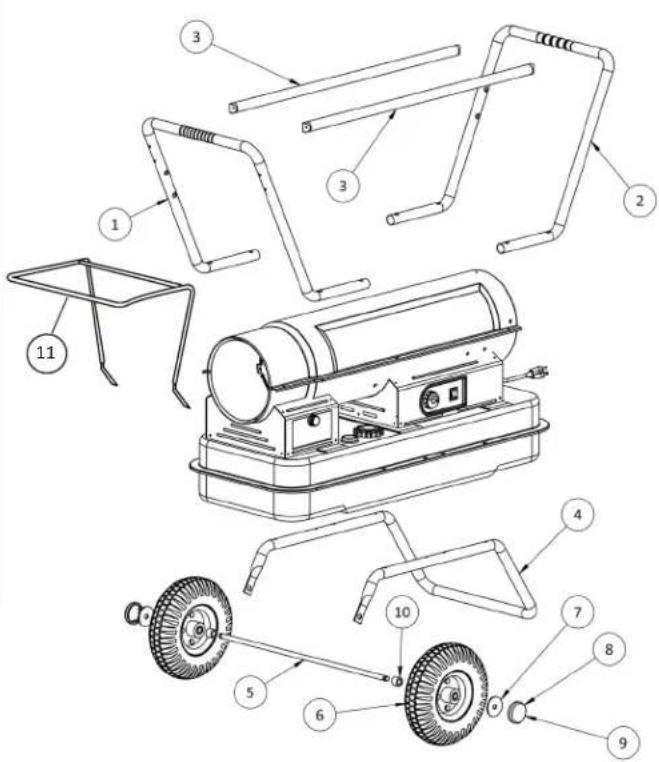

1. Assemble the wheels onto the wheel support as shown.

a. Install one of the cotter pins into the hole on one end of axle. b. Slide the large washer, then wheel onto the axle next to the cotter pin. c. Slide the spacer onto the axle next to the wheel. d. Slide the partially assembled axle through the wheel support frame. e. Slide the spacer onto the axle next to the wheel support. f. Slide the wheel then large washer onto the axle and hold in place with the remaining cotter pin. g. Install the caps over the larger washers to nish the wheel assembly.

2. Position the heater on the wheel support frame assembly with the exit opposite

3. Use eight screws and nuts to attach the handles to the top of the tank ange.

The screws will go through the handles, tank ange and wheel support frame. Install the nuts and nger tighten only until all nuts are installed.

4. Tighten all the nuts.

5. Attach cross-bar support to front and rear upright handle with screws and

6. Attach drape guard with included screws. (Canadian requirement).

PREPARING FOR OPERATION

1. Check the heater for possible shipping damage. If any is found, immediately

contact the manufacturer at 855-805-5745.

2. Follow all WARNINGS and Precautions found in this manual.

3. Fill the fuel tank with clean kerosene. In extremely cold weather, condensation

may develop in the tank and it is recommended that a tablespoon of de-icer be added for each gallon (4 liters) of fuel in the tank. When lling the heater, use at least 2 gallons (8 liters) of fuel. Be sure heater is level and do not overll. Use a funnel or can with a long ll spout.

WARNING:Due to varying fuel viscosities and normal component wear the pump pressure

on this heater may need to be adjusted. The heater should only be operated at the manufacturer’s recommended burner setting. Pressure Adjustment Screw (located at the rear of the heater) ADJUSTMENT PROCEDURE:

3. Locate the fuel pressure adjustment screw. The pressure adjustment screw

is located at the rear of the heater, in the air lter housing cover (slotted adjustment screw).

4. The plug directly under the adjustment screw can be used to install a

pressure gauge. It is not a second adjustment screw.

5. Using a at bladed screw driver, turn the pump pressure adjustment screw

clockwise to increase pump pressure and/or counter-clockwise to decrease pump pressure. Base pump pressures can be found in the specications chart on page 3 of the “Operating Instructions and Owners’ Manual”.

6. For best results, the nose cone in the combustion chamber should be cherry red

with no dark spots and the ame should not extend beyond the nose cone.

IMPROPER PRESSURE ADJUSTMENT

Problem: Heater does not have a strong consistent ame. Heater smokes and spits raw fuel. Nose cone does not get cherry red. English

Daily Maintenance Schedule

1. GENERAL. Make general visual inspection of heater for loose or damaged

parts. Check nuts and bolts to insure against looseness caused by vibration or rough handling. Damaged parts should be repaired or replaced before using heater again. Check heater operation to be sure it is operating normally (See “Servicing” section for description of normal operation).

2. FILTERS. Dirty air or fuel lters will cause an imbalance in the air-fuel mixture.

The best indication that this condition exists is an increase in odors or difculty getting your heater to ignite. This heater should never be operated without the lters in place. If required, clean lters as described under “500 Hours” and “Annual Schedules”. 500 Hour Maintenance Schedule

1. AIR INTAKE FILTER. Remove and wash the lter element with a mild detergent,

dry thoroughly and replace. Do not oil the lter element. If your heater is used where there is considerable dust or dirt, clean as often as necessary (approximately every 50 hrs.).

2. REMOVE DUST. Clean heater twice a season (more often under dusty

conditions). Remove accumulated dust from the transformer, burner, motor and fan blades with compressed air. Wipe area clean with a clean dry cloth. Inspect area to insure all foreign materials are removed, especially around the burner and combustion area. Safety glasses should be worn when using compressed air.

3. CAD CELL. Clean the glass portion of the cad cell with a soft dry cloth.

4. NOZZLE. Accumulation of dirt from fuel and carbon from the compressor vanes

will eventually ll up the passages in the nozzle, resulting in reduction of fuel and air ow. Pressure will gradually increase giving improper fuel-air mixture and excess odor and smoke. If this occurs, replace the fuel nozzle.

5. FUEL TANK. Clean twice a season (during frequently used periods, clean twice

a month). Drain and ush the fuel tank with clean fuel oil. Make sure to dispose of waste fuel properly.

ADJUSTING PUMP PRESSURE

Adjustment: Pump pressure is too low. Turn adjustment screw clockwise to increase pump pressure. Problem: Flame extends beyond the end of the heater. Adjustment: Pump pressure is too high. Turn adjustment screw counter clockwise to decrease pump pressure.English

CAUTION:The parts lists and wiring diagram show the heater as it was con- structed. Do not use a heater which is different from that shown. Heater perfor- mance is effected by air pressure setting. If there is any uncertainty about the air pressure setting, have it checked. A heater which is not working right must be repaired, but only by a trained, experienced service person. Wiring DiagramAnnual Maintenance Schedule

1. AIR OUTPUT FILTER. Remove the air output lter and tap the contaminated

side gently on a solid object to remove contaminates. Compressed air or liquids should not be used to clean this lter. Reinstall cleaned lter in lter body in the same position as it was when removed. If the lter appears extremely dirty, replace it with a new lter of the same type. When replacing the lter cover, be sure the gasket is rmly in place and the screws in the lter cover are tight to prevent air leaks.

2. FUEL FILTER. Remove the fuel lter from fuel line and direct compressed air

through the lter in the opposite direction of fuel ow. Safety glasses should be worn when using compressed air.

3. AIR AND FUEL LINES. If the air or fuel lines are removed during cleaning, be sure

all connections are tight before operating unit. STORAGE Store the heater in a dry location free from fumes or dust. At the end of each heating season, clean the heater as described in the MAINTE- NANCE section. Drain and ush the fuel tank with clean fuel. The manufacturer recommends completely lling the tank with fuel for extended storage to minimize condensation inside the tank. SERVICING A hazardous condition may result if a heater is used that has been modied or is not functioning properly. When the heater is working normally:

• The ame is contained within the heater.

• The ame is essentially yellow.

• There is no strong disagreeable odor, eye burning or other physical discomfort.

• There is no smoke or soot internal or external to the heater.

• There are no unplanned or unexplained shut downs of the heater. WARNING Immediately shut down and do not use a heater that is not working normally. Do not attempt to re-start and use the heater until it has been serviced by qualied service personnel.English

Diagnostic Safety Shutdown and Trouble Shooting These instructions are applicable for DXH135HD, DXH190HD, DXH215HD

SYMPTOM TROUBLE SHOOTING

High limit switch Open Circuit 1) Make sure heater is cooled off, toggle switch to “O” position, wait 5 minutes and retry. Sparks, calling for ame, but 1) Check wiring to motor (per wiring schematic in manual). no or slow motor operation 2) Make sure that the pressure gauge plug is in place and not damaged.

3) Adjust pressure for proper heater operation per manual.

4) With heater disconnected from AC source, rotate fan clockwise to verify motor is free.

5) Remove air lter housing from motor and inspect the pump rotor for damage. If damaged, replace rotor assembly.

6) If wiring is correct, pump rotor is okay, and motor is not rotating freely, replace motor or power-pack assembly.

7) If problem persists, replace oil ame control assembly.

8) Check for spark arcing from the electrode assembly, to the combustion cylinder.

9) Check the cad cell for continuity.

No Spark 1) Check length and gauge of extension cord for proper amp. draw. (Check requirements on page 5.)

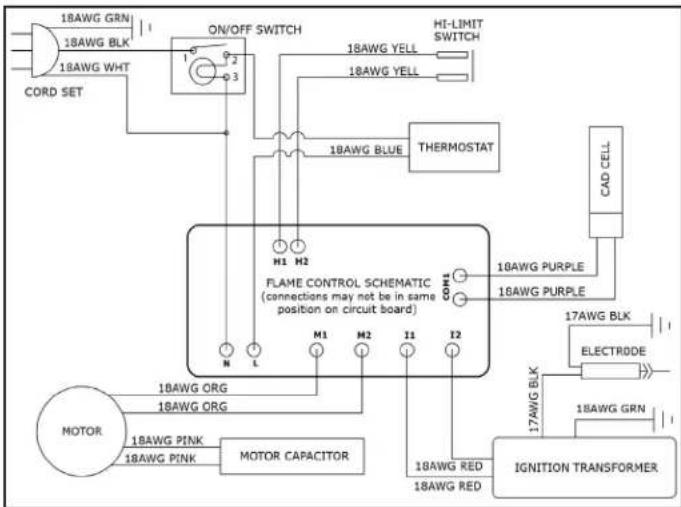

2) Check wiring to igniter (per wiring schematic in manual).

3) Check gap between electrode probes (2.3 - 3 mm).

4) Still no spark, replace igniter assembly.

Abnormal Motor Operation - 1) Motor speed too low (Motor should operate at 3450rpm, except 50K at 1550rpms) - Replace motor. Motor overheats or Stops 2) With heater disconnected from AC source, rotate fan clockwise to verify motor is free.

3) Remove air lter housing from motor and inspect the pump rotor for damage. If damaged, replace rotor assembly.

4) If wiring is correct, pump rotor is okay, and motor is not rotating freely, replace motor or power-pack assembly.

a) Slide cad cell out of cad cell holder. b) Push the photo cell out of the black rubber cad cell housing by pushing on the 2 purple wires. c) Clean the photo cell with a soft cloth and rubbing alcohol. d) Pull the photo cell back into the cad cell housing and reinstall into holder. e) Test heater.

3) If the heater still does not operate, replace cad cell.

Flame Control Failure 1) Check wiring in heater (per wiring schematic in manual).

2) Replace oil ame control assembly.9

• Not shown in the drawing DXH135HD DXH190HD DXH215HD DXH135HD DXH190HD DXH215HD English

DXH135HD, DXH190HD, DXH215HD

PARTS ORDERING INFORMATION: Use only manufacturer’s replacement parts. Use of any other parts could cause injury or death. Replacement parts are only available direct from the factory and must be installed by a qualied service agency.

PURCHASING: Accessories may be purchased at any DeWALT

local dealer or direct from the factory FOR INFORMATION REGARDING SERVICE: Please call Toll-Free 855-805-5745 www.dewalt.com Our ofce hours are 8:00 AM – 5:00 PM, EST, Monday through Friday. Please include the model number, date of purchase, and description of problem in all communication. LIMITED WARRANTY: DeWALT

warrants its heaters and accessories to be free from defects in material and workmanship for a period of 1 year from date of purchase. DeWALT

will repair or replace this product free of charge if it has been proven to be defective within the 1-year period, and is returned at customer expense with proof of purchase to DeWALT

within the warranty period.

UL-733, CSA B140.8, CSA B140.9.3

DeWALT®, GUARANTEED TOUGH® and the yellow and black color scheme are trademarks of the DeWALT Industrial Tool Co., used under license. ©2020 DeWALT. EGI/Enerco Group Inc. Under license from DeWALT Industrial Tool CoINSTRUCTION MANUAL
