Product type	Clock radio
Brand	Schneider
Model	Viva SC310ACLWHT
FM band	87.5 to 108 MHz
Display	LED
Number of alarms	2 (AL1, AL2)
Alarm type	Buzz or radio
Power supply	230 V ~ 50 Hz
Power consumption	6.6 W
USB charging port	Yes, 500 mA max
Station memory	20 FM stations
Backup battery	CR2032 (included)
Snooze	Yes (6 minutes default)
Brightness control	Yes
FM antenna	Swivel cable

Frequently Asked Questions - Viva SC310ACLWHT SCHNEIDER

How to set the time on the clock radio?

In standby mode, press and hold the SET button until the hours flash. Use the H and M buttons to set hours and minutes. Press SET to confirm.

How to set the alarm?

Press and hold the AL1 or AL2 button until the digits flash. Set with H and M, then confirm with the same AL button. Set the function selector to BUZZ or RADIO.

How to disable the programmed alarm?

Set the function selector AL1 or AL2 to the OFF position.

How to use the snooze function?

When the alarm sounds, press SNOOZE/DIMMER to snooze it. The alarm will sound again after 6 minutes by default.

How to listen to FM radio?

Press the ⏻ button to turn on the radio. Use the TUNE ▲/▼ buttons to search for stations. Adjust the volume with the VOLUME control.

How to memorize an FM station?

Turn on the radio and tune to the station. Press and hold SET until P01 flashes, press SET to memorize. For subsequent stations, use TUNE to change the preset number (P02, etc.) and confirm with SET.

How to adjust the screen brightness?

Press and hold the SNOOZE/DIMMER button to adjust the brightness of the LED screen.

How to program the auto-off timer?

In radio mode, press SNOOZE/DIMMER repeatedly to select the duration (120, 90, 60, 45, 30, 15 min or OFF). The radio will turn off automatically after this time.

How to charge a phone via the USB port?

Connect your phone to the USB port using a USB cable (not included). The port provides a charge of 500 mA maximum. Note that the USB port does not support audio playback.

What to do if the display is abnormal after a power cut?

Unplug the device from the mains and remove the backup battery. Wait one minute, then plug it back in. The device will reset and you will need to reconfigure the settings.

USER MANUAL Viva SC310ACLWHT SCHNEIDER

Location of controls 25

Operations....27

Trouble shooting....32

Specifications....33

Nederlands

Specifications....49

Españ ol

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Purple icon depicting a person walking with arrows, enclosed in a circle (no text or symbols)

Important safety instructions – please read carefully and keep for future reference

Black triangular warning symbol with a white lightning bolt inside (no text or numbers)

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION!

Dangerous tension inside the product! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently-aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.
• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.
• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
• This product must be connected to an electrical supply 230V \~ 50Hz.
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.
• Do not use the product with a battery different from the one provided.

WARNING

• Do not ingest the battery, Chemical Burn Hazard; this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

EU declaration of conformity

Hereby, SCHNEIDER CONSUMER GROUP declares that the radio equipment type Radio alarm clock is in compliance with the essential requirements and other provisions of and the Radio Equipment Directive (RED) 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.schneiderconsumer.com

- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4, 2012 concerning the waste on electrical and electronic equipment (WEEE).

- The presence of dangerous substances in the electrical and electronic equipments can have potential consequences

on the environment and human health in the cycle of reprocessing this product.

- Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.

- As the end user, your role is of prime importance in the cycles of reusing, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.

- You have the obligation to use the selective waste collection systems put in place by your local authorities.

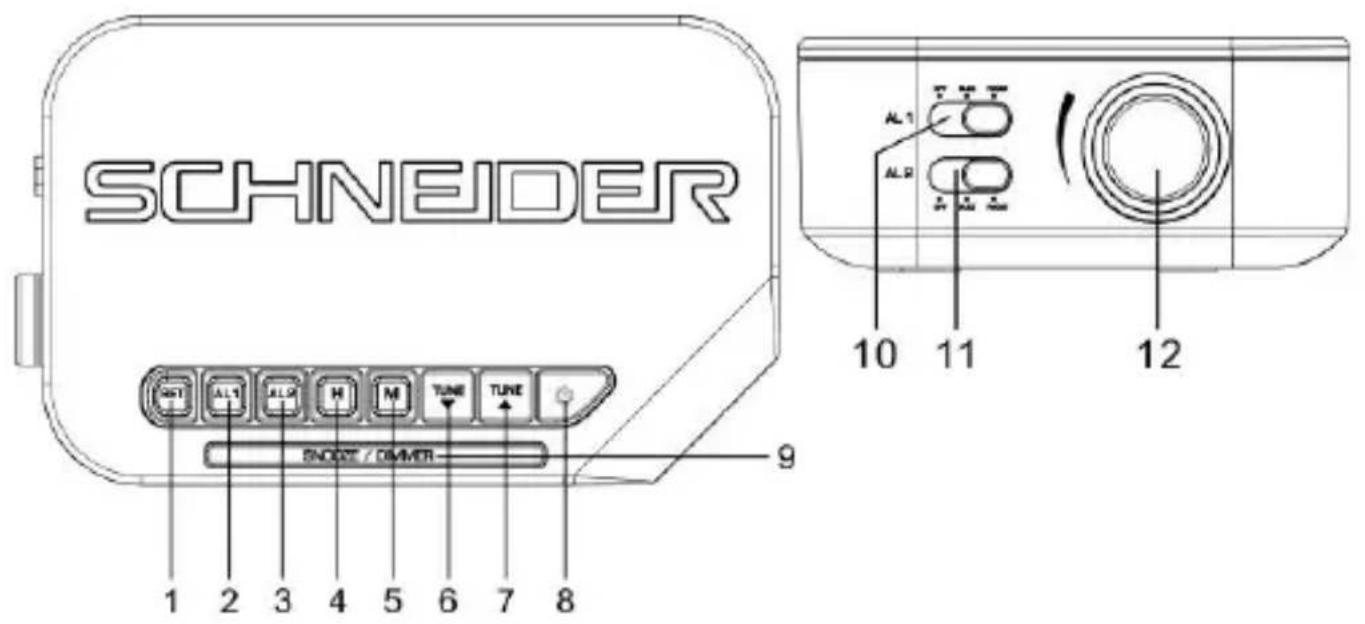

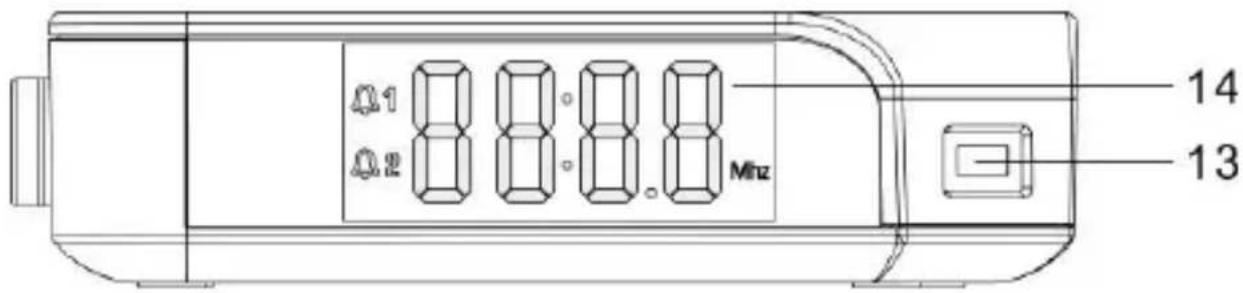

LOCATION OF CONTROLS

SCHNEIDER 1 2 3 4 5 6 7 8 SNDOT / DIMMER 9 AL1 AL2 AL3 TUNE TUNE 10 11 12

14 13 Ø1 8 8 8 8 Ø2 8 8 8 8 Mhz

1. SET
2. ALARM1
3. ALARM2
4. HOUR
5. MINUTE
6. TUNE BACKWARDS

7. TUNE FORWARDS

8. STANDBY

9. SNOOZE/DIMMER
10. AL1 FUNCTION SELECTOR
11. AL2 FUNCTION SELECTOR
12. VOLUME KNOB
13. USB PORT FOR CHARGING
14. LED DISPLAY

OPERATIONS

Connecting mains power

Connect the AC power cord to the power supply outlet. Your clock radio is ready to work for you.

Backup battery installation

Your clock radio requires one CR2032 lithium battery (included) to provide backup power to the clock in the event of a temporary power interruption.

1. Open battery cover located at the back of the unit. A screwdriver (not provided) is necessary in order to protect young children.
2. Insert one CR2032 lithium battery into the battery compartment with the “+” side facing up.
3. Close the battery cover.

If AC power is interrupted, the LED display will go off and both the radio and the alarm will stop. The backup battery will keep the time and all settings of your unit. Make sure a new CR2032 lithium battery is used.

Note: Do not use old battery for backup, which may lead to abnormal display appears. In case abnormal display appears, please take out the backup battery and then unplug the clock radio.

Setting time

1. In standby mode, long-press the SET button, the time digits flash.
2. Press H button repeatedly to set the current hour.
3. Press M button repeatedly to set the current minute.
4. Short-press SET button again to confirm the setting.

Setting the alarms

1. Long-press AL1 or AL2 till the time digits flash.
2. Press H button repeatedly to set Alarm1 or Alarm2 hour.
3. Press M button repeatedly to set Alarm1 or Alarm2 minute.
4. Short-press AL1 or AL2 again to confirm the alarms setting.
5. Move the AL1 or AL2 selector to position BUZZ or RADIO to select the alarm tone, the related alarm is turned on, and or 1 icon keep lighting up on the display

Stopping and resetting the alarm to come on the next day

When Alarm 1 or 2 is sounding, the related or icon flashes. Press

button once to stop the alarm and reset it to come on the following day. After that t is t keep lighting up on the display.

Note: When AL1 or AL2 selector is moved to position BUZZ, short-press AL1 or AL2 can stop the alarm also and reset it to come on the following day.

Cancel the Alarm

Move the AL1 or AL2 selector to position OFF, then the alarm function will be cancelled.

Snooze operation (default snooze duration is 6 minutes)

When alarm is sounding, short-press SNOOZE/DIMMER button once, the alarm will be silent and come on again after the default snooze duration.

Note: If your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

When alarm is in the snooze mode, short-press ⏻/ AL1/ AL2 can stop the snooze mode, alarm is reset to come on the next day.

Using the dimmer

Make a long press on the SNOOZE/DIMMER button to adjust the brightness of the LED display.

Listening to FM radio

1. To turn on the radio, press ⏻ button once, the display shows radio frequency in Mhz.
2. Press TUNE ▲ / ▼ to tune the radio to a desired station. Long-press TUNE ▲ / ▼ to scan the radio programs directly.
3. To adjust the volume, turn the VOLUME knob to the position you want.
4. Press button to turn off the radio.

Note: For better FM reception, there is a built-in FM antenna wire at the rear of the unit. Move the wire around to obtain the best reception.

Using the preset memory

This clock radio features a total of 20 preset memories of FM stations. These allow you to preset your favorite stations and access them quickly.

1. Turn on the radio and select a radio station you like to memorize.

2. Long-press the SET button until « P01 » flashes. Short-press SET to store Memory 1.

3. Press TUNE ▲ or ▼ to select another station you like to memorize. Then long-press SET until « P01 » flashes. Press TUNE ▲ or ▼ once, « P02 » appears. Press SET once to store Memory 02.
4. Repeat Step 2 and 3 to preset memories 3 through 20.
5. To access a preset station at any time, short-press the SET button at a time while the radio is on.

To use the sleep timer (Applicable in radio mode)

1. Short-press the SNOOZE/DIMMER button repeatedly as needed to adjust the sleep timer from 120, 90, 60, 45, 30, 15 or OFF.
2. When the display changes back to show the time, short-press SNOOZE/DIMMER button again to show the remaining sleep time.
3. The radio will play for the programmed sleep time and then shut off automatically.
4. To turn off the radio before the sleep time has elapsed, press ⏻ button once.

To use the USB port for charging

Connect your mobile phone with the USB port by a USB charging cable (not provided) to charge.

Note:

1. The USB port is only for USB recharging function, and it cannot support USB player to play music
2. When USB jack is recharging the mobile phone, the maximum current is 500MA. Please choose other device in case of fast recharge.

TROUBLE SHOOTING

1. If your clock displays irrelevant time or does not function properly, which may be caused by electro-static discharge or other interference, disconnect the AC power (and remove the backup battery). The clock radio will reset to default settings and you need set it again.
2. If abnormal display appears, please take out the backup battery and then unplug the clock radio. Replug the clock radio after 1-2 minutes.
3. The USB port is only for recharging function, and it cannot support music playback with a USB key.

SPECIFICATIONS

FM Band: 87.5 to 108 MHz

Power Supply: 230V \~ 50 Hz

Power Consumption: 6.6W

Battery type :1xCR2032

USB charging Jack: maximum 500mA current
