Conga Popstar 15300 Ash - Vacuum Cleaner CECOTEC - Free user manual and instructions
Find the device manual for free Conga Popstar 15300 Ash CECOTEC in PDF.
| Brand | Cecotec |
| Model | Conga Popstar 15300 Ash |
| Product Type | Canister Vacuum Cleaner |
| Reference | 05563 |
| Power Supply | 220-240 V AC, 50/60 Hz |
| Nominal Power | 1500 W |
| Dust Container Capacity | Not specified in the manual |
| Filtration Type | High-efficiency filter + metal mesh filter + cloth filter |
| Included Accessories | XXL 40 mm metal nozzle, metal crevice nozzle, floor head, extension tubes, furniture accessory |
| Ash Vacuuming Function | Yes, up to 60 °C |
| Container Full Indicator | Yes, red light |
| Cable Length | Not specified |
| Weight | Not specified |
| Dimensions (L x W x H) | Not specified |
| Usage | Domestic use only |
| Filter Cleaning | Wash with water and dry recommended |
| Warranty | 2 years from date of purchase |
| After-Sales Service | +34 9 63 21 07 28 |
| Manufacturing | Made in China, designed in Spain |
Frequently Asked Questions - Conga Popstar 15300 Ash CECOTEC
User questions about Conga Popstar 15300 Ash CECOTEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual Conga Popstar 15300 Ash - CECOTEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Conga Popstar 15300 Ash by CECOTEC.
USER MANUAL Conga Popstar 15300 Ash CECOTEC
-
Parts and components 32
-
Before use 32
-
Product assembly 33
-
Operation 33
-
Cleaning and maintenance 33
-
Troubleshooting 34
-
Technical specifications 34
-
Disposal of old electrical appliances 34
-
Technical support and warranty 35
SOMMAIRE

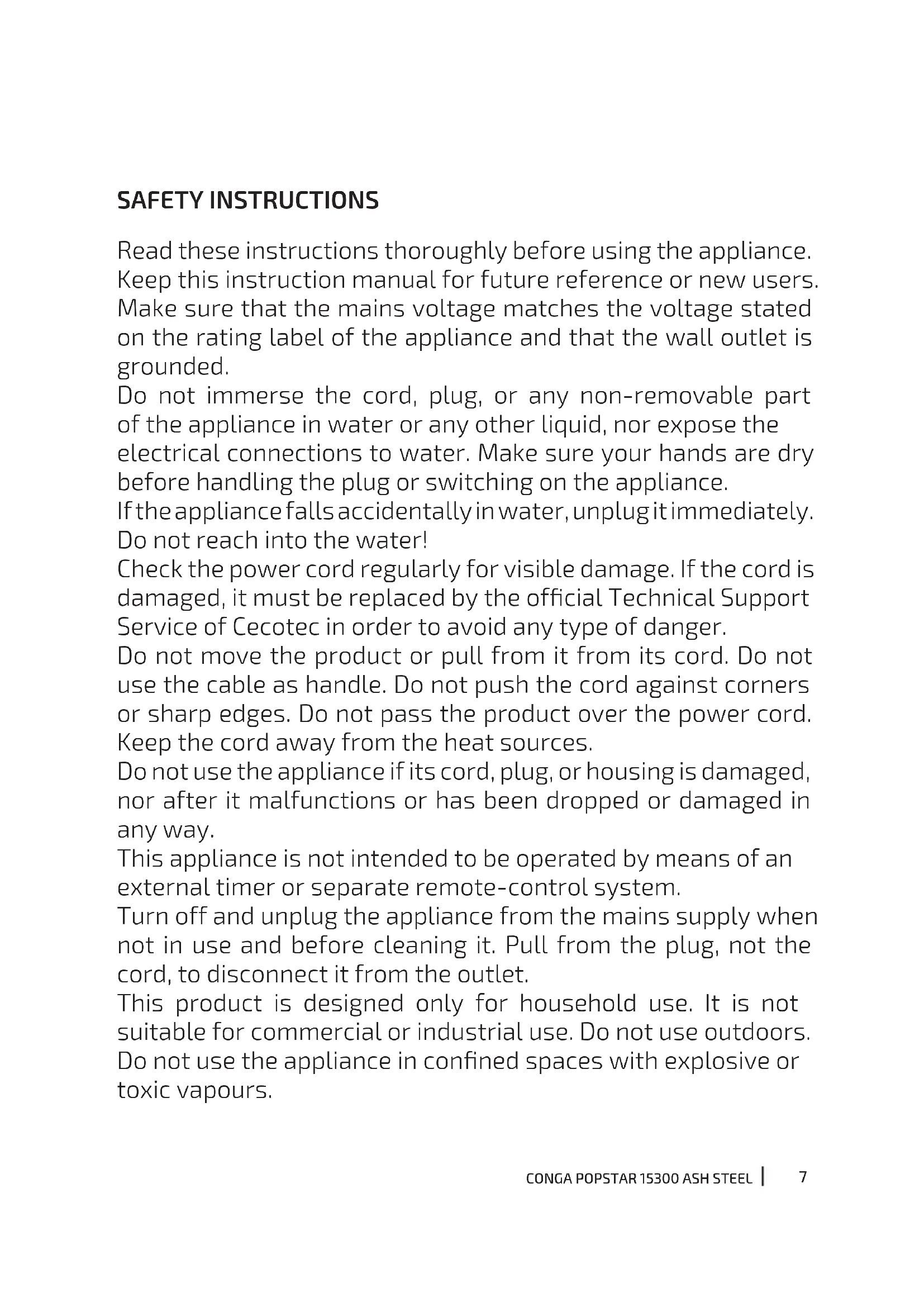

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
If the appliance falls accidentally in water, unplug it immediately. Do not reach into the water!
Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
Do not move the product or pull from it from its cord. Do not use the cable as handle. Do not push the cord against corners or sharp edges. Do not pass the product over the power cord. Keep the cord away from the heat sources.
Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.
This appliance is not intended to be operated by means of an external timer or separate remote-control system.
Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cord, to disconnect it from the outlet.
This product is designed only for household use. It is not suitable for commercial or industrial use. Do not use outdoors.
Do not use the appliance in confined spaces with explosive or toxic vapours.
Do not use the product to vacuum liquids nor burning objects. Do not vacuum sharp objects, toner dust, or plaster.
Allow dust to cool down to at least 50 °C before vacuuming it. The device is specifically designed to remove warm( < 60°C) or cold (not burning) ash.
Do not try to exceed the capacity of the tank. Stop using the appliance once the dust container is full and empty it accordingly.
Do not put any objects into the openings of the appliance. Do not use the appliance if its openings are blocked. Do not restrict the airflow through the appliance. Keep all openings free of dust, lint, hair, and anything that may reduce the airflow.
If the suction openings of the unit or the flexible tube are blocked, switch off the vacuum cleaner and remove the blocking substance before starting the unit again.
Do not use the appliance if the accessories or parts are not properly fastened.
Make sure the nozzle or the brush do not touch the furniture's surface.
Do not use the appliance if the accessories or parts are not properly fastened.
Do not vacuum flour or cement in order to avoid overloading the tank.
Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the appliance.
Do not leave the product unsupervised during operation. Unplug the device after use and when you leave the room where it is installed.
Do not try to repair the device by yourself. Contact the official Technical Support Service of Cecotec for advice.
Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before cleaning it. Cleaning and maintenance tasks must not be carried out by children.
Store the appliance and its instruction manual in a safe and dry place when not in use.
No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.
The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
This product can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Close supervision is necessary when the appliance is being used by or near children. Keep this appliance and its power cord out of reach of children under the age of 8.
INSTRUCTIONS DE SÉCURITÉ
Made in China | Designed in Spain
8. RECICLAJE DE ELECTRODOMÉSTICOS
- Full tank indicator
- Switch
- Dust tank release button
- Vacuuming hole
- Casters
- Base
- Tank
- Vacuuming hose
- Hook
- Supply cord
- 40-mm XXL metallic nozzle
- Metallic nozzle for gaskets
- High-efficiency filter
- Metal mesh filter
- Floor suction head
- Extension tubes
- Accessory for furniture
- Fabric filter
2. BEFORE USE
Take the product out of the box and remove all packaging materials.
Make sure the product is in good conditions.
Inspect all parts of the appliance for visual damage. Unwind the power cord completely and inspect it for damage. Do not use the appliance if it or its cord have been damaged or are not working properly.
In case of damage, contact the official Technical Support Service of Cecotec for advise, repairs, or returns.
Make sure you have read and understood all instructions and warnings in this instruction manual. Pay particular attention to the safety instructions on previous pages.
3. PRODUCT ASSEMBLY
Assemble the high-efficiency filter to the dust tank.
Cover the high-efficiency filter with the metal mesh filter.
Assemble the dust tank to the device.
Install the fabric filter on the dust tank border.
Insert one end of the hose to the suction hole.
Install the XXL metal nozzle or the extension tube.
Choose an accessory and attach it to the suction hole or the hose.
4. OPERATION
Before turning the device on, make sure all the filters are correctly assembled.
Unwind the power cord.
Plug the device on to a socket and switch it on.
When the full tank indicator turns on red, clean or replace the filter. If the suction power decreases, press the dust tank release button. Keep the aluminium nozzle end covered during self-cleaning.
After using the device, unplug it and disassemble it.
5. CLEANING AND MAINTENANCE
Disconnect the appliance from the power supply and allow it to cool down before cleaning.
Use a soft, damp cloth to clean the device's surface.
Do not immerse the appliance in water or other liquid.
Do not use abrasive cleaners or scouring pads to clean the product.
Take the dust tank out.
Remove the high-efficiency filter.
Empty the dust tank.
Clean the high-efficiency filter and the fabrics filter with water and dry them.
Assemble all the components back in place.
6. TROUBLESHOOTING
| Problem Possible cause Solution | ||
| The motor does not start. Power | cord not plugged into a socket. | Plug the device on firmly. |
| Socket damaged. Check the outlet. | ||
| The device is not turned on. Switch the device on. | ||
| Suction power decreased. Blocked | outlets. Remove the blocking particles. | |
| High-efficiency filter needs to be cleaned. | Clean the high-efficiency filter. | |
| Dust tank not assembled correctly. | Attach the dust tank back to the device. | |
| Filter blocked. Clean the filter edge. | ||
7. TECHNICAL SPECIFICATIONS
Product name: Conga PopStar 15300 Ash Steel
Reference number: 05563
220-240 V AC, 50/60 Hz
1500 W
Made in China | Designed in Spain
8. DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.
Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.
9. TECHNICAL SUPPORT AND WARRANTY
This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.
The warranty will not cover the following situations:
The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
Faults deriving from the normal wear and tear of its parts, due to use.
The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at +34 963 210 728.
