Product Type	Professional Immersion Blender
Brand	Robot Coupe
Model	MP 350 Turbo
Power Supply	120 V / 60 Hz, 5.5 A
Power	660 W (estimated)
Working Capacity (mixing)	Up to 50 quarts (approx. 47 L)
Main Functions	Mixing (blade)
Included Accessories	Tube, stainless steel bell, blade, wall bracket
Materials	Aluminum motor block, stainless steel bell and blade
Shaft Length	Approx. 50 cm (unspecified, estimate)
Weight	Approx. 5 kg (unspecified, estimate)
Integrated Safety Features	Double control button, thermal protection, overcurrent protection, undervoltage protection
Cleaning	Motor block with damp cloth; tube, bell and blade hand washable (not dishwasher safe)
Periodic Maintenance	Replace blade and seals as needed based on wear
Warranty	1 year (parts and labor) for original purchaser
After-Sales Service	USA: 1-800-824-1646
Spare Parts Available	Yes: blade, seals, whip (for compatible models), cartridge, etc.

Frequently Asked Questions - MP 350 Turbo Robot Coupe

How to start the MP 350 Turbo?

Plug in the appliance, immerse the tube in the preparation, press the safety button (SB) then the control button (CB). Release SB. For continuous operation, after pressing CB, activate the locking button (LB) then release CB and LB.

What to do if the appliance does not start?

Check that you followed the start-up procedure (SB then CB). If the appliance is hot, wait 30 minutes for it to cool down. Check the power supply and the condition of the cord.

How to clean the immersion blender?

Always unplug the appliance. Clean the motor block with a slightly damp cloth (never immerse). The tube, bell and blade can be washed with clean water and wiped dry. Do not put in the dishwasher.

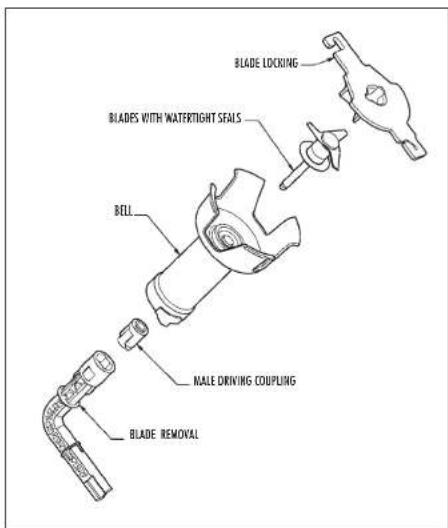

Can the blade be replaced?

Yes, the blade is a wear part. Disassemble the bell, remove the blade with a locking tool, replace it and reassemble. It is recommended to also change the sealing ring.

The appliance stops during use, what to do?

This may be due to thermal protection (wait 30 minutes) or overload. Check the free rotation of the blade and remove any obstacle. If the indicator flashes (MP 600/800 models), the preparation is too thick.

Can I use the blender with an extension cord?

No, it is not recommended to use an extension cord. Plug directly into an outlet protected by a residual current circuit breaker.

What is the maximum capacity of the MP 350 Turbo?

It can work up to 50 quarts (approx. 47 liters) of preparation. For the whip (compatible models), up to 50 egg whites.

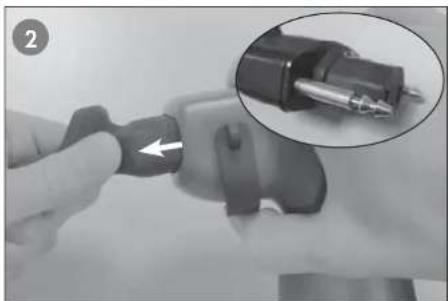

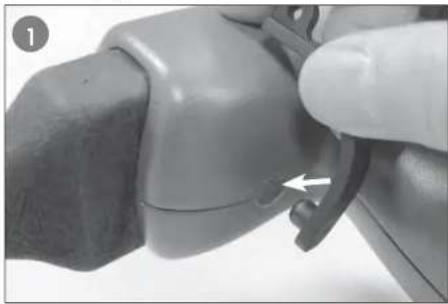

How to replace the power cord?

Use the disassembly tool provided with the new cord. Press on the connector and pull the worn cord. Install the new cord following the instructions (page 26 of the manual).

What to do if liquid penetrates the motor block?

Immediately unplug the appliance and do not use it. Contact after-sales service. Do not attempt to repair it yourself.

Where to find spare parts?

Contact Robot Coupe USA at 1-800-824-1646 or your authorized dealer. Parts are available under reference (see nomenclature in the manual).

USER MANUAL MP 350 Turbo Robot Coupe

KEEP THESE INSTRUCTIONS IN A SAFE PLACE

WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment correctly. The operation manual should be kept within easy access to all users for reference and should be read completely by all first time users of the machine.

UNPACKING

• Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items.
• Warning: Some parts are very sharp e.g.blade.Wear cutting gloves when handling the blade.

STORAGE

• You are advised to install the wall bracket provided with the machine and to store your Power Mixer on it. Hang the mixer with the motor unit UP.

POWER SUPPLY

a. Connect the mixer to 110-120 Volt 60Hz Power supply.
b. Connect the mixer only to Ground Fault Interrupt (GFI) Safety type outlet.
c. Do not connect the mixer with extension type power cord.
d. GFI type outlets protect the machine from expensive damage and protect the operator from serious injury or death.

SPECIFICATIONS

• MP 350 Turbo - 120V/60Hz / 5,5 Amp. "Series C"
• MP 450 Turbo - 120V/60Hz / 6 Amp. "Series C"
  MP 550 Turbo - 120V/60Hz / 7 Amp. "Series C"
• MP 600 Turbo - 120V/60Hz / 7,7 Amp. "Series C"
• MP 800 Turbo - 120V/60Hz / 8,3 Amp. "Series C
• MP 350 Turbo V.V. "Series C" - MP 350 Turbo Combi "Series C" - 120V/60Hz / 5,5 Amp.
• MP 450 Turbo V.V. "Series C" - MP 450 Turbo Combi "Series C". - MP 450 Turbo FW "Series C" - MP 450 Turbo FW XL "Series C" - 120V/60Hz / 6 Amp.

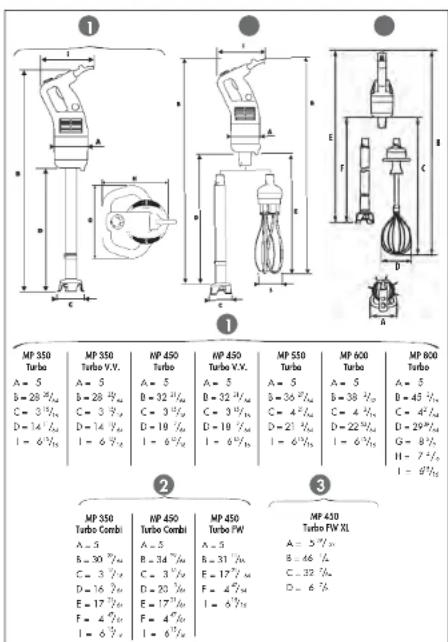

DIMENSIONS (In Inches)

Blade Attachment Capacities

• Thanks to a very powerful motor, the MP 350 Turbo can process up to 50 quarts, the MP 450 Turbo up to 100 quarts, the MP 550 Turbo up to 200 quarts, the MP 600 Turbo up to 300 quarts and the MP 800 Turbo up to 400 quarts. The quality of the finished product is outstanding.

Whisk Attachment Capacities

• Using the whisk attachment all three models process from 2 to 50 egg whites and 30kg of mashed potatoes or 60 litre of industrial puree.
  Each power mixer is supplied with a wall support for easy storage.

SAFETY FEATURES

- Safety on Control Switches :

This safety mechanism prevents any unintentional starting of the power mixer. Two buttons must be pressed to start the power mixer. See section ON OPERATING THE POWER MIXER (page 6).

- Safeties on motor thermal protection :

If the machine is overused, the thermal protection will stop the unit. In this case, wait for the unit to cool down (a period of up to 30 minutes) before restarting and proceed to the steps of THE OPERATING SECTION (page 6).

- No volt release safety (Supply failure):

if there is a power failure or the machine is unplugged, the power mixer will not restart by itself. See section ON OPERATING THE POWER MIXER (page 6).

- Safeties on motor overload protection :

If there is an obstruction in the container (a spoon or ustensil) or the machine is overused and becomes hot, the unit will stop. This stop indicates that the preparation is too thick or is not adapted for a power mixer. To restart the machine, see section ON OPERATING THE POWER MIXER (page 6).

robot ±b coupe

OPERATING INSTRUCTIONS

MANUAL DE INSTRUccion

We reserve the right to alter at any time without notice the technical specifications of this appliance.

None of the information contained in this document is of a contractual nature. Modifications may be made at any time. © All rights reserved for all countries by: ROBOT-COUPE s.n.c.

• Unpacking
  Storage
  Power supply
• Specifications
  Dimensions
  Safety features
• Warning

Operation
Continuous operation
Variable-speed operation
- Mashed potatoes function
Power cord

WORKING POSITION

• Function blade
• Function whisk

ASSEMBLY/DISASSEMBLY

• Function blade
• Function whisk
• Mixing tool function

CLEANING

Motor housing
Tube and bell
- Blade
Aluminum
Plastic
Whisk gearbox
Whisks
- Mixing tool housing
- Mixing tool

MAINTENANCE

• Blade
  Tube Seal
  Seal Ring
  Whisks
  Power cord
• Cartridge

TROUBLE SHOOTING

SERVICE

TECHNICAL DATA

Exploded views
- Electrical and wiring diagrams

ROBOT COUPE U.S.A., INC. LIMITED WARRANTY

YOUR NEW ROBOT COUPE PRODUCT IS WARRANTED TO THE ORIGINAL PURCHASER FOR A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE.

This LIMITED WARRANTY is against defects in the material and/or workmanship, and includes labor for replacement of defective parts, provided repairs are performed by an authorized service agency (see attached list).

The Customer must inform the Service Agency of the possibility of warranty coverage and provide a copy of the dated sales or delivery receipt BEFORE WARRANTY REPAIRS ARE BEGUN.

Replacement parts and accessories are warranted for ninety (90) days from the date of purchase when purchased separately and will be verified by dated sales receipt OR packing slip which lists that item.

All parts or accessories replaced under warranty must be returned to the Service Agency.

THE FOLLOWING ARE NOT COVERED BY THE ROBOT COUPE U.S.A., Inc. LIMITED WARRANTY:

1 - Damage caused by abuse, misuse, dropping, or other similar damage caused by or resulting from failure to follow assembly, operating, cleaning, user maintenance or storage instructions.
2 - Labor to sharpen and/or replacements for blades that have become blunt, chipped or worn after a normal or excessive period of use.
3 - Materials or labor to replace or repair scratched, stained, chipped, pitted, dented or discolored surfaces, blades, knives, attachments or accessories.
4 - Any alteration, addition, or repair that has not been carried out by the company or an approved service agency.
5 - Transportation of the appliance to or from an approved service agency.
6 - Labor charges to install or test new attachments or accessories (i.e., bowls, plates, blades, attachments), which have been replaced for any reason.

7 - The cost of changing direction-of-rotation of three-phase electric motors (Installer is responsible).
8 - SHIPPING DAMAGES. Visible and/or hidden damage is the responsibility of the freight carrier. The consignee must inform the carrier and consignor immediately, or upon discovery in the case of hidden defects.

KEEP ALL ORIGINAL CONTAINERS AND PACKING MATERIALS FOR CARRIER INSPECTION.

Neither ROBOT COUPE U.S.A., Inc. nor its affiliated companies or any of its distributors, directors, agents, employees, or insurers will be liable for indirect damage, losses, or expenses linked to the appliance or the inability to use it.

The ROBOT COUPE U.S.A., Inc. warranty is given expressly and in lieu of all other warranties, expressed or implied, for merchantability and for fitness toward a particular purpose and constitutes the only warranty made by ROBOT COUPE U.S.A., Inc.

IMPORTANT WARNING

WARNING

KEEP THESE INSTRUCTIONS IN A SAFE PLACE

WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment correctly. The operation manual should be kept within easy access to all users for reference and should be read completely by all first time users of the machine.

UNPACKING

• Carefully remove the equipment from the packaging and take out all the boxes or packets containing attachments or specific items.
• Warning: Some parts are very sharp e.g.blade.Wear cutting gloves when handling the blade.

STORAGE

• You are advised to install the wall bracket provided with the machine and to store your Power Mixer on it. Hang the mixer with the motor unit UP.

POWER SUPPLY

a. Connect the mixer to 110-120 Volt 60Hz Power supply.
b. Connect the mixer only to Ground Fault Interrupt (GFI) Safety type outlet.
c. Do not connect the mixer with extension type power cord.
d. GFI type outlets protect the machine from expensive damage and protect the operator from serious injury or death.

SPECIFICATIONS

• MP 350 Turbo - 120V/60Hz / 5,5 Amp. "Series C"
• MP 450 Turbo - 120V/60Hz / 6 Amp. "Series C"
  MP 550 Turbo - 120V/60Hz / 7 Amp. "Series C"
• MP 600 Turbo - 120V/60Hz / 7,7 Amp. "Series C"
• MP 800 Turbo - 120V/60Hz / 8,3 Amp. "Series C
• MP 350 Turbo V.V. "Series C" - MP 350 Turbo Combi "Series C" - 120V/60Hz / 5,5 Amp.
• MP 450 Turbo V.V. "Series C" - MP 450 Turbo Combi "Series C". - MP 450 Turbo FW "Series C" - MP 450 Turbo FW XL "Series C" - 120V/60Hz / 6 Amp.

DIMENSIONS (In Inches)

Blade Attachment Capacities

• Thanks to a very powerful motor, the MP 350 Turbo can process up to 50 quarts, the MP 450 Turbo up to 100 quarts, the MP 550 Turbo up to 200 quarts, the MP 600 Turbo up to 300 quarts and the MP 800 Turbo up to 400 quarts. The quality of the finished product is outstanding.

Whisk Attachment Capacities

• Using the whisk attachment all three models process from 2 to 50 egg whites and 30kg of mashed potatoes or 60 litre of industrial puree.
  Each power mixer is supplied with a wall support for easy storage.

SAFETY FEATURES

- Safety on Control Switches :

This safety mechanism prevents any unintentional starting of the power mixer. Two buttons must be pressed to start the power mixer. See section ON OPERATING THE POWER MIXER (page 6).

- Safeties on motor thermal protection :

If the machine is overused, the thermal protection will stop the unit. In this case, wait for the unit to cool down (a period of up to 30 minutes) before restarting and proceed to the steps of THE OPERATING SECTION (page 6).

- No volt release safety (Supply failure):

if there is a power failure or the machine is unplugged, the power mixer will not restart by itself. See section ON OPERATING THE POWER MIXER (page 6).

- Safeties on motor overload protection :

If there is an obstruction in the container (a spoon or ustensil) or the machine is overused and becomes hot, the unit will stop. This stop indicates that the preparation is too thick or is not adapted for a power mixer. To restart the machine, see section ON OPERATING THE POWER MIXER (page 6).

Robot-Coupe has developed a complete line of power mixers. The features of each are described in the table below.

Models	Variable Speed	Mixer attachment	Whisk attachment	Mixing tool attachment
MP 350 Turbo		●
MP 350 Turbo V.V.	●	●
MP 450 Turbo		●
MP 450 Turbo V.V.	●	●
MP 550 Turbo		●
MP 600 Turbo		●
MP 800 Turbo		●
MP 350 Turbo Combi	●	●	●
MP 450 Turbo Combi	●	●	●
MP 450 Turbo FW	●		●
MP 450 Turbo FW XL	●			●

The Robot-Coupe Power Mixers perform a host of culinary feats. The mixer attachment will allow you to make soups, vegetable purees and pulps while the whisk attachment is ideal for making pancake batter, mayonnaise, beaten egg whites, chocolate mousse, butter sauces, whipped cream or smooth fromage frais.

The variable speed function will enable you to adjust the speed to suit each preparation and to start the processing at a lower speed in order to reduce splashing.

The power mixer is easily assembled and disassembled for maintenance and cleaning.

The machine is supplied with a single-phase moulded plug.

Before connecting the machine, connect necessarily the power cord to the machine. (see opposite picture)

Make sure that the grip of the power cord is pushed well (it is necessary to cross necessarily 2 notches of the grip, if it is not the case it will be impossible to put on the control button.

The power mixer is equipped with electrical current and temperature overload protection. If the power mixer stops unexpectedly you may try to restart it by following steps 3-5 below. If the power mixer does not restart, allow it to cool for a period of up to 30 minutes and the temperature overload will automatically reset. You should then be able to restart following steps 3-5 below.

1. Check that the control button (CB) is in the released position.
2. Connect the cord to the power supply
3. Put the tube into the product with the bell completely immersed and the splash guard in place.
4. Press and hold down the safety button (SB).
5. Press the control button (CB) and the power mixer will start.
6. Release the safety button (SB).
7. To stop the power mixer, release the control button (CB).

1. Follow steps 1-6 above, then: While the control button (CB) is pressed, press the locking button (LB).
2. Release the control button (CB).
3. Release the locking button (LB), and the power mixer will run continuously.
4. To stop the power mixer, press and release the control button (CB).

Follow steps 1 to 6 above, then change the speed of the motor by turning the button (VS) toward the maximum or minimum as required. It is advisable to start at a low speed when using the whisk.
Principal of automatic speed regulation : Once you have selected the right speed, allow the mixer to run on it's own. The speed will remain the same, even if the consistency of the product changes.
- MASHED POTATOES FUNCTION (MP 350 Turbo Combi, MP 450 Turbo Combi, MP 450 Turbo FW).

A self-regulating speed system has been specially developed for pureeing tasks using the whisk.

A white circle marked on the speed variation switch indicates the speed dedicated to mashed potatoes preparation. To reach this speed, turn the knob counterclockwise until it stops and a slight detent is felt. Under load the mixer will stop and start at one seconds intervals.

- POWER CORD

After cleaning the machine, wind the cord around the specially designed lugs, without stretching it too much. This will prolong its lifespan.

WORKING POSITION

- BLADE FUNCTION

1) Hold the power mixer firmly by the handle and the bottom of the motor base and tilt it at a slight angle. Move the mixer around in the container for complete processing.

2) The power mixer can be rested against the rim of the container but must be tilted so that it does not touch the bottom of the container.

MP 800 Turbo.

An handle which will help you to have a good grip and facilitate the moving of the machine.

3) If using the power mixer support (optional accessory), on the top of the container, the power mixer should be positioned in the middle of the support and at a slight angle.

Do not operate the power mixer with the bell straight up-and-down against the bottom of the container

4) The splashguard should always be in place.
5) For optimum efficiency two thirds 2/3 of the tube should be immersed in the product.
6) Always make sure that the bell is completely immersed to avoid splashing and that the ventilation openings in the motor housing do not come into contact with any liquid!

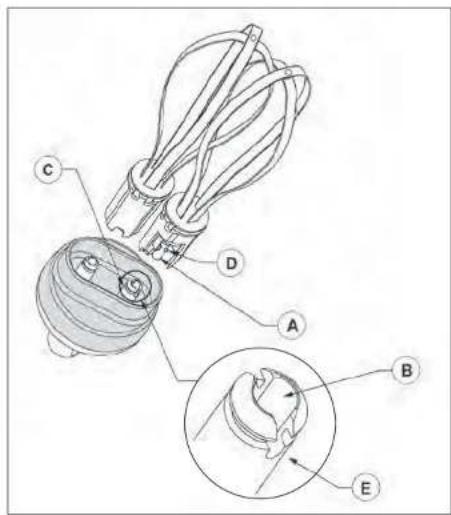

WHISK FUNCTION

We recommend that you hold the power mixer by the handle and the bottom of the motor unit. You can also hold the appliance by the handle with one hand, leaving the other hand free to hold the bowl, if necessary.
While processing we recommend that you move the whisk around in the bowl, in order to ensure that the mixture is completely homogeneous.
We strongly advise you to keep the whisk from touching the sides of the bowl. For maximum efficiency, at least one-fifth of the whisk length should be immersed. We also strong processing at a low speed

Handle conveniently located on the mixing tool for a better grip.

ASSEMBLY / DISASSEMBLY

- BLADE FUNCTION

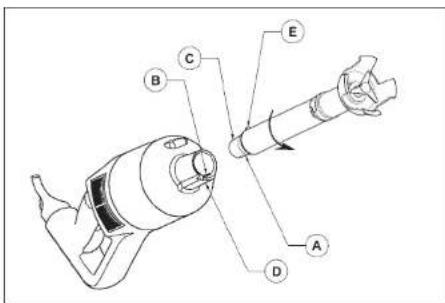

Attaching the tube to the motor unit, Except for MP 350 Turbo, MP 450 Turbo, MP 550 Turbo, MP 600 Turbo].

• Unplug the power mixer.
  Unplug the machine then, align the flat side of A the conical part Cof the tube with catch B in the aluminum casing.
• Insert the narrow portion of conical part of the tube into the aluminum casing.
• Turn the tube in the direction of the arrow (see figure) until it is snugly in place.

Removing the tube from the casing

• Unplug the power mixer.
  Turn the tube in the opposite direction of that used to attach it.
• When it will not go any further, remove the tube from the conical part.

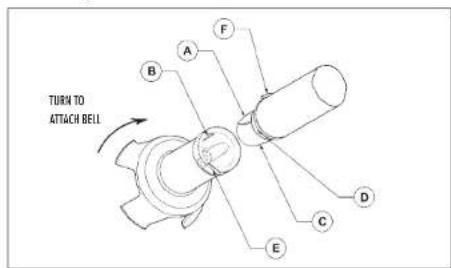

Attaching the bell to the tube

• Unplug the power mixer.

Align the flat side of A the conical part of the tube with catch 6 on the inside of the bell.
- Insert the conical part into the bell. With the washer touching the tube seal , turn the bell in the direction of the arrow (See figure) to lock the bell lug and tube lug snugly together.

Disassembling the bell from the tube

• Unplug the power mixer.
• Turn the bell in the direction of the arrow (see next figure) to separate the bell lug from the tube lug.
• Remove the bell.

Removing the blades

Unplug the machine. Turn the bell in the direction of the arrow ① (see next figure) to separate the bell ⑤ from the foot lug ⑥. Remove the bell.

To safely remove the sharp blades, hold with the provided blade locking tool. Using the blade disassembling tool, unscrew the male drive coupling. As the drive coupling is unscrewed disengage the blade for easy cleaning.

WHISK FUNCTION

(MP 350 Turbo Combi, MP 450 Turbo Combi, MP 450 Turbo FW)

Attaching the whisk gearbox to the motor unit

• Unplug the power mixer.

• Align the flat side of the conical part of the whisk gearbox with the catch on the inside of the aluminum casing.

• Insert the conical part © of the whisk gearbox into the aluminum casing.
• Turn the whisk gearbox in the direction of the arrow (see figure) until it is snugly locked into place.

Removing the gearbox

• Unplug the power mixer.
• Turn the whisk gearbox in the opposite direction from that used to attach it.
• When it will go no further, remove the whisk gearbox from the aluminum casing.

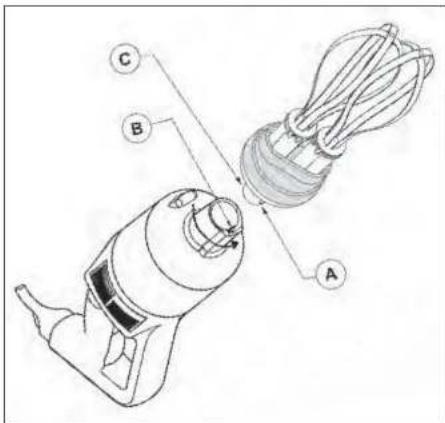

Fitting the whisk into the whisk gearbox

• Grasp the holder in one hand.
• With the other hand, take the first whisk and insert the shaft A into the bore B of the whisk gearbox drive shaft. Make sure the drive lugs D are properly aligned with the notches.
• As you push the whisk into the holder drive shaft, rotate it slightly in order to slide the drive lugs into the notches of the drive shaft, thereby locking the whisk into place inside the shaft.
• To check that the whisk is properly fixed inside the shaft ©, gently pull the metal wires.
• Repeat this procedure with the second whisk. If you cannot push it in properly, remove it, rotate it 90^ and start again.

Removing the whisk from the whisk gearbox

While gripping the ejector A in one hand and the holder B in the other, pull the ejector in the direction of the arrow.

Removing the ejector

Hold the whisk by the wires in one hand.

With the other hand, pull the ejector in the direction of the arrow (see figure).

- MIXING TOOL FUNCTION

(MP 450 Turbo FW XL)

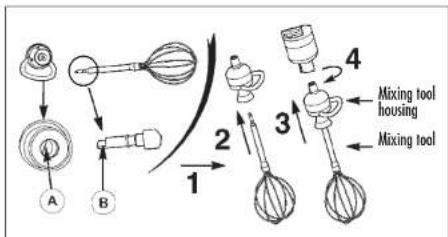

ATTACHING THE MIXING TOOL TO THE MIXING TOOL HOUSING:

Line the flat side of the mixing tool B up with the flat side of the housing A.

Once the mixing tool has been attached to the housing, simply insert the latter into the motor unit, turning it in an anticlockwise direction.

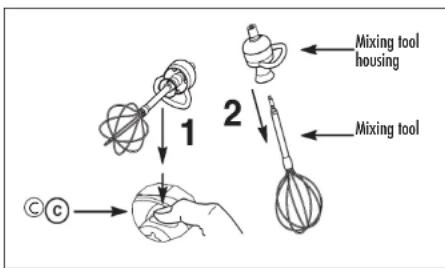

DETACHING THE MIXING TOOL FROM ITS HOUSING:

To release the mixing tool from its housing, simply press the button. All that then remains to be done is to remove the housing from the motor unit.

CLEANING

WARNING

Always unplug the power mixer before cleaning it!
Always dilute bleach according to the instructions on the label
- Never run the motor assembly through a dish machine.
The type and concentration of the sanitation agent must comply with 21 CFR 178 1010 regulations.
- Clean according to local health department regulations.

- THE MOTOR HOUSING

The power mixer must be clean through all stages of production. Clean between each job using a detergent or disinfectant. Dilute the detergent / disinfectant following the instructions normally specified on it's packaging container. Use a cloth lightly dampened (not dripping) with the cleaning solution.

Do not allow liquid to come into contact with the electrical components contained within the housing. Be careful when cleaning around vents do not allow liquid to drip or seep into the housing. Use a cloth lightly dampened (not dripping) with water to remove detergent / disinfectant then dry using a clean cloth.

After using the power mixer in a hot mixture, cool the bottom of the tube in cold water before disassembling the bell from the tube.

Clean immediately after use to prevent product from sticking to surfaces.

WARNING

Never immerse motor housing and/or handle in liquid! The housing contains the electrical components and is not sealed against liquid. Contact with liquid can cause damage to the blender and serious injury to the operator.

- THE TUBE AND BELL

There are two ways to proceed:
- Simple cleaning procedure after each different use
- Submerge the tube and bell in water and run for a few seconds to clean.
- Unplug the power cord.

Complete cleaning procedure on a daily basis

• Unplug the power mixer and rinse the bell under a water tap.
• Remove the bell from the tube, then remove the blade (wear cutting gloves)! Be careful to avoid damaging the surface of the blade shaft and the watertight seals.
• Always dilute the detergent/disinfectant (see above).
• Thoroughly dry all parts before reassembling.

BLADE

The blade can be removed from the bell for thorough cleaning.

Always dry thoroughly to avoid spotting.

ALUMINUM

Use soft-metal-safe cleaning agents!

PLASTIC

Be careful, many cleaning agents are corrosive and are not safe for use on plastics!

Do not use strong alkaline detergent (having a high concentration of soda or ammonia).

WHISK GEARBOX

Never immerse the whisk gearbox in water. Clean it with a cloth lightly dampened (not dripping).

Never run the whisk gearbox through a dishwasher.

WHISKS

The whisks can be cleaned either by hand or in a dishwasher.

To ensure effective cleaning, always remove the whisk ejector.

Never immerse the mixing tool housing in water or put it in the dishwasher. Instead, clean it with a slightly damp cloth.

- MIXING TOOL

The mixing tool can be washed either by hand or in the dishwasher. You can also clean it with a slightly damp cloth.

MAINTENANCE

BLADE

Over time the blades will become worn and will need to be replaced. The washer and seals should also be replaced at this time. A blade service kit is available.

TUBE SEAL

In order to maintain a watertight seal between the tube and bell, inspect the seal for wear and replace it if necessary.

- SEAL RING

The seal ring can be lubricated using a suitable food grade grease. In order to maintain a watertight seal, check the seal ring for wear and replace it if necessary.

WHISKS

The performance of the whisks depends on the condition of the wires. The metal wires may become worn over time. In order to ensure optimum performance, they will need to be replaced. Do not use a defective or damaged whisk!

- POWER CORD:

For your safety, make sure the power cord is always in good condition. The cord is subjected to considerable wear and tear, and must be replaced if it is damaged in any way (cuts, burns, etc.).

Procedure for replacing the power cord:

1) Use the dismantling tool supplied with the new replacement cord.
2) Press the push button (see photo) and pull on the cord without releasing the dismantling tool. Installing the new cord:

Turn to page 6

CARTRIDGE

You need to change the cartridge :

If liquid starts seeping into the foot If there is any play in the blade

1) Cartridge dismantling :

Position the knife dismantling tool on the cartridge. Remove the cartridge from its place by knocking on the knife dismantling tool with a plastic mallet.

2) Cartridge mounting :

Direct the ears of cartridge in order to be aligned with the groove of the bell. Push the cartridge with the hand in the direction of arrow, then clip on into the bell thanks to the knife dismantling tool.

TROUBLE SHOOTING

- THE POWER MIXER DOES NOT START.

1. Did you follow the previous operating instructions? (See section-Operating The Power Mixer).

2. Is the machine too hot? Allow the power mixer to cool. Then retry.

3. Pull the plug and try another outlet.

4. Check the GFI trip indicator on your outlet. Check the circuit breaker.

5. Call local Robot Coupe authorized service agency.

- THE POWER MIXER STOPS DURING (WHILE) PROCESSING.

See the section On Operating the Power Mixer.

• The first paragraph describes the overload protection. It may be necessary to allow the machine to cool for up to 30 minutes before restarting.

If you cannot locate the cause of the problem

• Release the control button (CB).

• Unplug the power mixer.

• Are the blades free to rotate in the bell?

Is the drive shaft free to rotate? To check this, unplug the power mixer, remove the bell and test the rotation of the end of the drive shaft manually.

Check the condition of the plug and the power cord.

- THE POWER MIXER STARTS TO SMELL HOT OR SMOKE

• Turn the power mixer off and unplug it.

• Call your local authorized service agency.

- THE MACHINE TRIPS THE GFI (Ground fault Interrupt) OUTLET

The motor or controls are wet or damaged. Do not attempt to use the mixer until it has been repaired by qualified service persons.

OVERLOAD WARNING LIGHT (MP 600 Turbo and MP 800 Turbo)

In case of overload or use of the mixer in a too sticky preparation, the intensity warning flashes for 5 seconds to inform you that the motor will stop shortly. This stop indicates that the preparation in process is too thick or can not be made with a stick blender.

In this case, you can still restart your mixer. However, your machine will stop again if the consistency of the preparation is not modified.

WARNING

• THE BLADES ARE SHARP! It is recommended that cutting gloves be worn when handling the blades. Handle and store the blades with safety in mind.
• Never try to defeat the safety mechanisms!
• Never put anything (utensils etc.) but food material near the blades on the power mixer!
• Never overload the power mixer!
• Never turn the power mixer on unless the bell is completely immersed in the product.
  Always unplug the power mixer before doing any cleaning or maintenance!

SERVICE

See warranty first then;

Should your unit require service, check with your distributor to see where local service is available. If not or if you wish your unit to be serviced at the factory, call for return instructions and ship the unit prepaid to our factory address.

PH:1-800-824-1646

Service Department Repair

264 South Perkins Street

Ridgeland, MS 39157

For service in Canada contact the Robot-Coupe USA factory for repair instructions.

INDICE

GARANTIA

264 South Perkins St.,

Ridgeland, MS 39157

Para el service de postventa en el Canada, contacta la fabrica de Robot Coupe en USA.

SOMMAIRE

GARANTIE

PRECAUTIONS IMPORTANTES

(MP 450 Turbo FW XL)

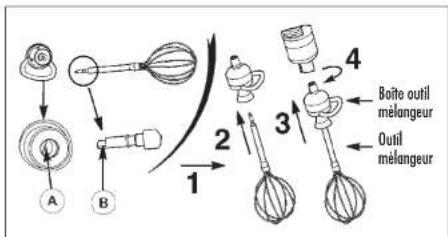

MONTAGE DE L'OUTIL MELANGEUR SUR LA BOITE OUTIL MELANGEUR :

264 South Perkins St.,

Ridgeland, MS 39157
