USER MANUAL GrandHeat 2300 Flatbed Touch CECOTEC

1. Parts and components 61

5. Cleaning and maintenance 65

8. Disposal of old electrical appliances 66

9. Technical support and warranty 67

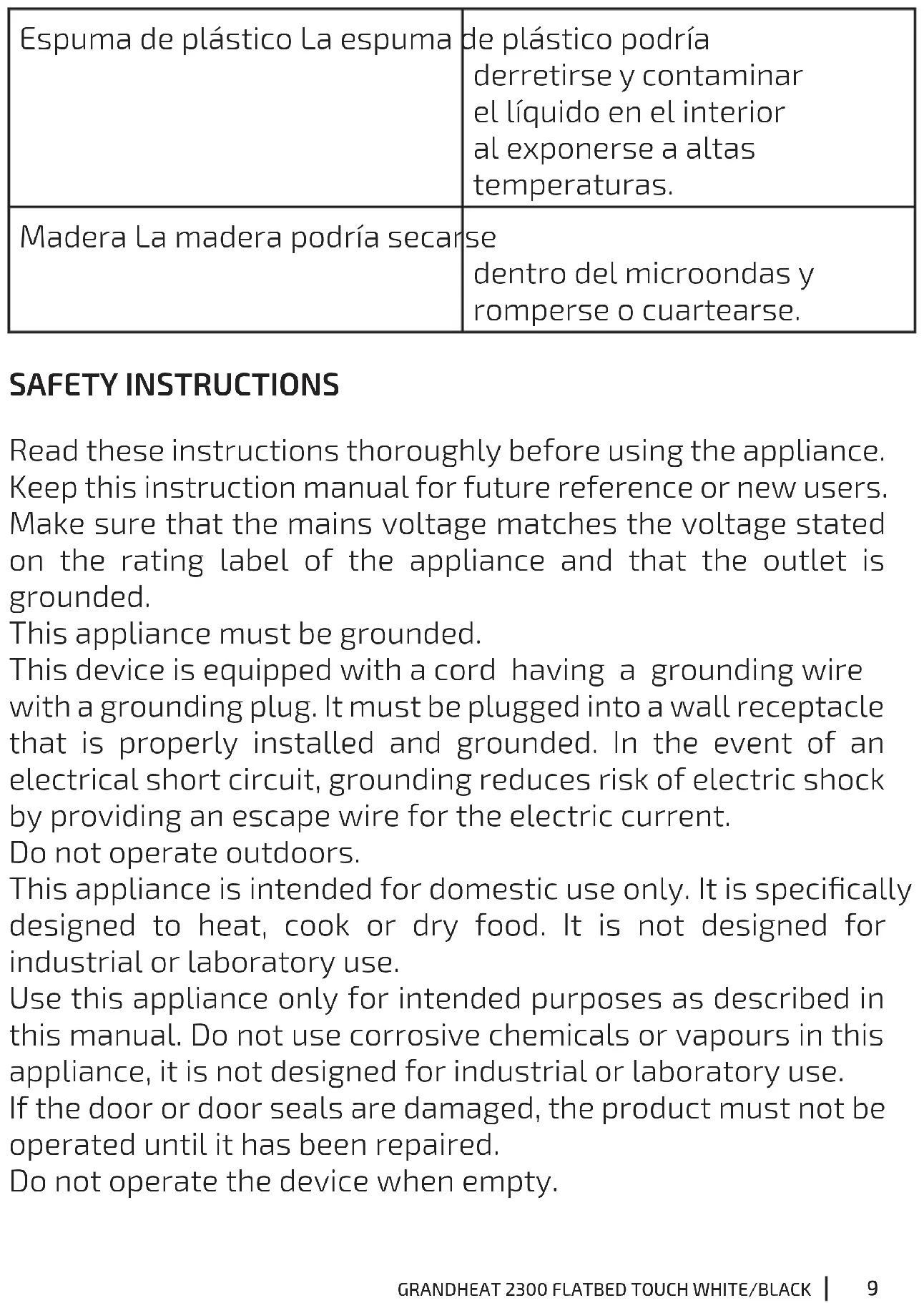

Espuma de plástico La espuma de plástico podría derretirse y contaminar el líquido en el interior al exponerse a altas temperaturas. Madera La madera podría secarse dentro del microondas y romperse o cuartearse. SAFETY INSTRUCTIONS Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the outlet is grounded. This appliance must be grounded. This device is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. Do not operate outdoors. This appliance is intended for domestic use only. It is specically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. Use this appliance only for intended purposes as described in this manual. Do not use corrosive chemicals or vapours in this appliance, it is not designed for industrial or laboratory use. If the door or door seals are damaged, the product must not be operated until it has been repaired. Do not operate the device when empty.10

GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

Do not attempt to operate the device with the door open since open door operation can result in harmful exposure to microwave energy. Do not operate this appliance if it has a damaged cord or plug or if it is not operating properly. In case the device does not operate correctly, please contact our Technical Support Service of Cecotec. Only use utensils that are suitable for microwaves. Make sure utensils do not touch the interior walls during operation. Do not use the microwave cavity for storage purposes. Do not attempt to deep-fry in this device. In order to reduce re risk: Do not overcook food. Remove wire twist-ties from paper or plastic bags before placing them inside the microwave. Do not place the device where heat, moisture, or high humidity are generated, or near combustible materials. Do not heat liquids or other foods in sealed containers. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. In case of smoke or re inside the device, keep the door closed, turn the product o and disconnect it from the power supply. After operating, the container is likely to be very hot. Use gloves in order to avoid burns and injuries. All parts of the device will be very hot during and after operation, including door and top part of the microwave. Remember to use gloves or any other type of protection. Technical service and reparations that involve cover removals or exposure to cables must always be carried out by a competent, professional and qualied person.11

GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

Supervise young children to make sure that they do not play with the appliance. It can be used by children over 8 if they are continually supervised. This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved. Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children. This product is a Group 2 Class B ISM equipment. The denition of Group 2 which contains all ISM (Industrial, Scientic and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for domestic use and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose. Microwave-safe materials Utensils Remarks12

GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

Browning dish Follow the manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5 mm) above the glass tray. Incorrect usage may cause the glass tray to break. Dinnerware Microwave-safe only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove the lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant microwave glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Microwave cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short–term cooking/ warming only. Do not leave microwave unattended while cooking.13

GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometer Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in microwaves14

GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

Utensils Remarks Aluminium tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal-trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a re in the microwave. Paper bags May cause a re in the microwave. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave and may split or crack.

4. Safety lock system

Take the product out of the box. If the microwave has a protective lm, tear it o before starting operation. Check carefully if there is any damage, and if there is, immediately notify the Technical Support Service. The product must be placed on a at, stable and dry place and kept away from corrosive materials, heat and humidity, such as gas burners or water. The product must be placed in such way that the plug is accessible and must ensure an eective grounding in case of leakage in order to avoid electric shocks. The microwave door must be closed in order to operate. In case there is any manufacturing rests in the microwave cavity or on the heating elements, leave the microwave open to ensure good ventilation. In such case, it is recommended to heat a glass of water at high power for several times.

Warning: Do not remove the light brown mica cover that is attached to the microwave cavity

to protect the magnetron.

3. PRODUCT INSTALLATION

Countertop installation Place the appliance on a at, stable surface.

ENGLISH Fig. 2. The minimum installation height is 85 mm. The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the microwave, a minimum clearance of 20 cm is required between the microwave and any adjacent walls. Do not remove the legs from the bottom of the microwave. Blocking the intake and/or outlet openings can damage the microwave. Place the microwave as far away from radios and TV as possible. Operation of microwave may cause interference to your radio or TV reception. Plug the appliance into a power supply.

Warning: Do not install microwave over a range cooktop or other heat-producing appliance.

If installed near or over a heat source, the microwave could be damaged, and the warranty would be void.

Clock setting When the device is plugged in, it will beep once. Tap the clock icon to set the time. The hour digits will blink. Tap “+” or “-“ to set the desired hour, from 00-23. Tap the clock icon. The minutes digits will blink. Tap “+” or “-“ to set the desired minutes, from 00-59. Tap the clock icon to save the time settings. Note: If the clock is not set, the current time will not be displayed when the device is turned on. During the process of clock setting, press " STOP/CLEAR ", to go back to the previous status automatically. Timer Tap the timer icon, the display will show 00:00. Tap “+” or “-“ to set the desired cooking time. The maximum time is 95 minutes. Tap the Start/+30sec/Conrm icon to conrm. When the set time is over, the device will beep 5 times. Note: If the clock has been set (24-hour system), the display will show the current time. Microwave cooking Tap the microwave icon once. “P100” will be displayed on the screen.GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

ENGLISH Tap the microwave icon several times or use “+” and “-“ to select the microwave power, from P100 to P10. Tap the Start/+30sec/Conrm icon to conrm. Tap “+” or “-“ to set the desired cooking time. The set time should be 0:05-95:00. Tap the Start/+30sec/Conrm icon to start cooking. 0---1 min: 5 seconds 1---5 min: 10 seconds 5---10 min: 30 seconds 10---30 min: 1 minute 30---95 min: 5 minutes Microwave power chart Press 1 time 2 times 3 times 4 times 5 times Microwave power P100 P80 P50 P30 P10 Weight defrost Tap the Weight defrost icon, the display will show “dEF1.”. Tap “+” or “-“ to set the desired defrost time. Weight must be from 100 to 2000 grams. Tap the Start/+30sec/Conrm icon to start the defrost process. Time defrost Tap the Time defrost icon, the oven will display “dEF2”. Tap “+” or “-“ to set the desired defrost time. The maximum time is 95 minutes. Tap the Start/+30sec/Conrm icon to start the defrost process. Express cooking In standby mode, tap the Start/+30sec/Conrm icon to operate the appliance at 100 % power level for 30 seconds. Each touch on the same icon will increase the cooking time by 30 seconds. The maximum time is 95 minutes. Tap “-“ to adjust the cooking time. After setting the cooking time, tap the Start/+30sec/Conrm icon to start cooking at 100 % power level. During operation, each touch on the same icon will increase the cooking time by 30 seconds. Note: This option is not available under Weight defrost or Auto menu cooking modes. Multi-sequence cookingGRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

ENGLISH A maximum of 2 sequences can be set for a cooking process. If one of the sequences included is defrosting, it should be set as the rst one. Note: Auto menu and Express cooking menu cannot be set as one of the multi-sequences. Example: Defrost food for 5 minutes, then cook with 80 % microwave power for 7 minutes. Tap the Weight defrost icon, the display will show “dEF2.”. Tap “+” or “-“ to set 5 minutes of defrost time. Tap the Microwave icon twice to select 80 % microwave power. Tap the Start/+30sec/Conrm icon to conrm. Tap “-“ to adjust the cooking time to 7 minutes. Tap the Start/+30sec/Conrm icon to start cooking. Checking settings During operation, tap the Microwave icon, the current power level will be displayed for 3 seconds. During operation, tap the Clock icon, the current time will be displayed for 3 seconds. Child lock system In standby mode, tap the Stop/Clear for 3 seconds. The device will emit a long beep indicating this function has been activated. The current time will be displayed if the clock is set. The following icon will also be displayed: Fig. 4. In standby mode, tap the Stop/Clear for 3 seconds. The device will emit a long beep indicating this function has been deactivated. Auto menu In standby mode, tap the “+” icon to select the Auto menu function. Tap “+” or “-“ to set the desired menu. Tap the Start/+30sec/Conrm icon to conrm the menu. Tap “+” or “-“ to select the food weight. Tap the Start/+30sec/Conrm icon to start cooking. Menus: Menu Weight Display A-1 Pizza 200 g 200 400 g 400GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

The device, as well as food rests, must be cleaned and removed regularly. Unplug the cable from the power supply before starting the cleaning. Do not immerse the product in water or any other uid during cleaning. The lack of maintenance and cleaning of the product may cause a deterioration on its surface and aect its lifespan. Do not use strong detergents, powder abrasives or metal brushes to clean the device. Do not remove the mica plate. When the microwave has been used for a long time, some strong odours may arise from inside.GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

ENGLISH In order to get rid of them, follow one of the steps below: Place several lemon slices in a cup and heat them at high power for 2 or 3 minutes. Place a cup of red tea inside the microwaves and heat it at high power for 2 or 3 minutes. Place orange peels inside the microwaves and heat it at high power for 1 minute. Use a dampened soft cloth to clean enclosures, door, interior walls and the door frame.

Warning: All maintenance tasks must be strictly carried out by qualied technical personnel.

Problem Cause Solution The device does not turn on The power cord is not plugged in properly. Disconnect it and connect it again after 10 seconds. Fuse blow or short circuit. Contact the Technical Support Service of Cecotec. Faulty power outlet. Test the power outlet with a dierent appliance. The device does no heat Door not closed properly. Close the door properly.

7. TECHNICAL SPECIFICATIONS

01359 GrandHeat 2300 Flatbed Touch White 01360 GrandHeat 2300 Flatbed Touch Black Rated input power: 1270 W Rated output power: 800 W 230 V ~ 50 Hz Capacity: 23L Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), species that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recyclingGRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK

ENGLISH of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual. The warranty will not cover the following situations: The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer. The product has been disassembled, modied, or repaired by persons, not authorised by the ocial Technical Support Service of Cecotec. Faults deriving from the normal wear and tear of its parts, due to use. The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].GRANDHEAT 2300 FLATBED TOUCH WHITE/BLACK
