ProClean 5110 - Microwave Oven CECOTEC - Free user manual and instructions

Product type	Microwave oven
Brand	Cecotec
Model	ProClean 5110
Capacity	20 L
Microwave power (output)	700 W
Grill power	800 W
Input power	1150 W
Supply voltage	230 V / 50 Hz
Microwave frequency	2450 MHz
Functions	Microwave, grill, combined (2 modes), defrosting, automatic cooking (8 programs), delayed start, multi-step cooking (up to 4 phases)
Controls	Buttons and rotary selector
Display	Digital screen
Safety	Door lock, child safety
Turntable	Included
Grill rack	Included
Available colors	Red, Blue, Yellow, Green (depending on variant)
Cleaning	Easy to clean interior with a damp cloth; do not use steam
Repairability	Repairs by the official Cecotec After-Sales Service
Warranty	Compliant with regulations; contact customer service at [phone]

Frequently Asked Questions - ProClean 5110 CECOTEC

How to set the time on the Cecotec ProClean 5110 microwave?

After plugging in the appliance, the ':' symbol flashes. Press the Preset/Clock button once, then turn the selector to set the hour. Press the button again to confirm the hour, then turn the selector to set the minutes. Press the button again or wait 5 seconds to confirm.

How to use the defrost function?

Press the Defrost button to select the type of food (d.1 for meat, d.2 for poultry, d.3 for seafood). Turn the selector to enter the weight (between 100 g and 3 kg depending on the option). Press Start. Halfway through, two beeps will tell you to turn the food over.

What to do if the microwave does not heat?

First check that the appliance is plugged in and the door is properly closed. Make sure the voltage matches (230 V). If the problem persists, contact the official Cecotec After-Sales Service at [phone]. Do not attempt to repair it yourself.

Can I use metal containers in this microwave?

No, metal containers or those with metal decorations are not compatible. Metal can cause arcing and damage the appliance. Use only microwave-safe utensils.

How to clean the ProClean 5110 microwave?

Unplug the appliance before cleaning. Wipe the interior with a damp cloth to remove residue. For odors, heat slices of lemon or black tea at high power for 2-3 minutes. Never immerse the appliance or use a steam cleaner.

How to activate the child lock?

Press the Pause/Cancel button for 3 seconds. The display will show an indicator. To deactivate, repeat the same action. All buttons will be locked.

What is the maximum power of the microwave?

The maximum output power is 700 W for microwave mode. You can select different levels: 100P (700 W), 80P, 60P, 40P, 20P. The grill power is 800 W.

How to program a delayed start?

First set the current time. Select the desired power and cooking time. Press and hold the Preset/Clock button for 3 seconds, then set the desired start time. Press the button to confirm. The microwave will start automatically at the programmed time.

How to use the grill or combined function?

Press the Grill/Combi button one to three times to choose G (grill only), C.1 (30% microwave + 70% grill) or C.2 (55% microwave + 45% grill). Set the time with the selector and press Start. Beware of hot surfaces.

What to do in case of smoke or fire inside the microwave?

Keep the door closed to smother the flames, turn off the appliance and unplug it. Do not open the door. If necessary, call emergency services. Do not operate the appliance empty.

USER MANUAL ProClean 5110 CECOTEC

Yellow microwave oven with digital display and control buttons (no visible text or symbols)

White microwave oven with digital display and control buttons (no visible text or symbols)

Red microwave oven with digital display and control buttons (no visible text or symbols)

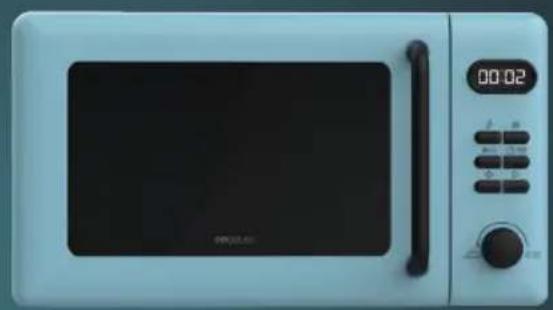

Front view of a modern microwave oven with digital display and control buttons (no visible text or symbols)

Safety instructions 9

1. Parts and components 66
2. Before use 66
3. Operation 67
4. Tips 74
5. Cleaning and maintenance 76
6. Technical specifications 76
7. Disposal of old electrical and electronic appliances 77
8. Technical support and warranty 77
9. Copyright 77

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

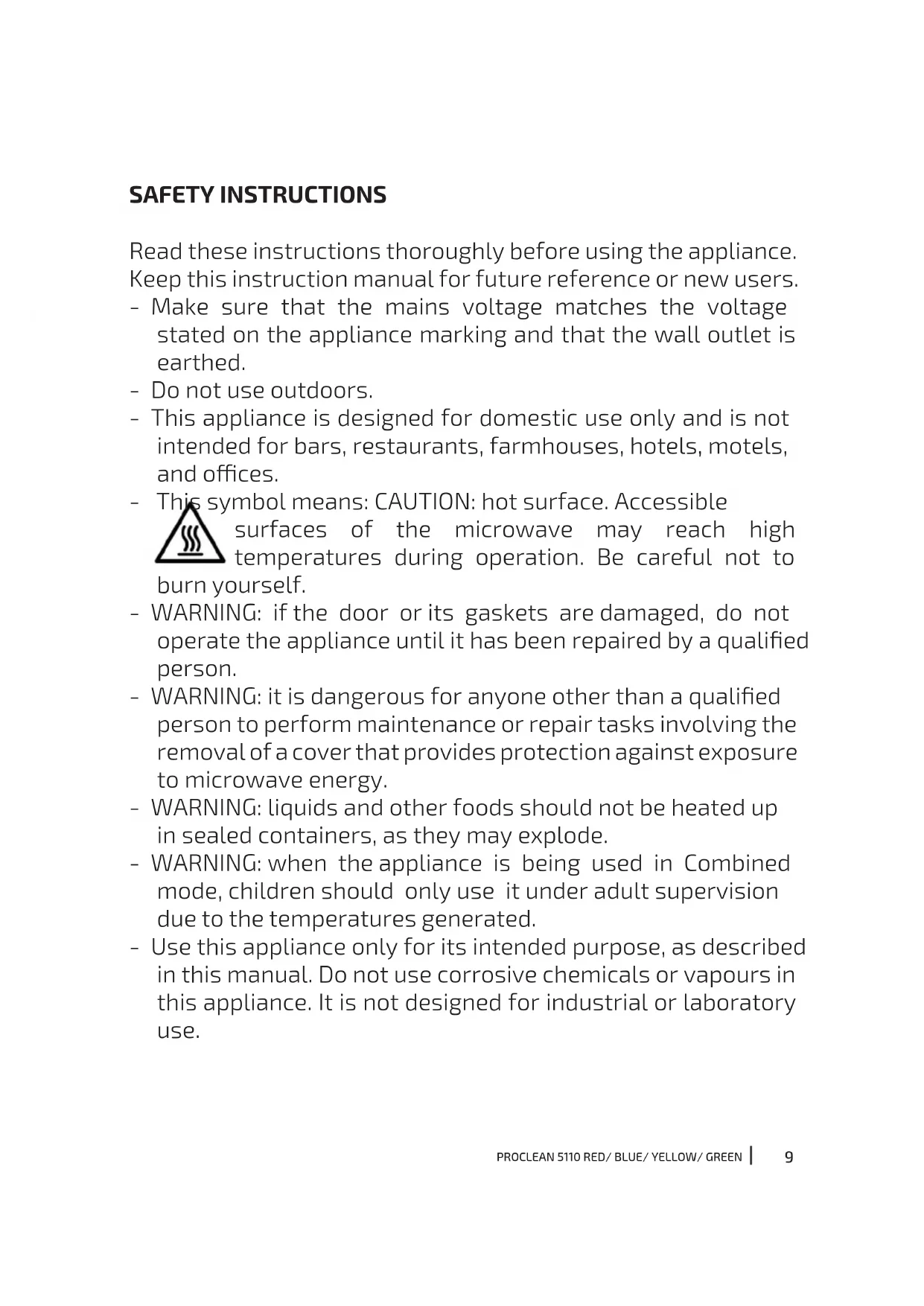

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• Do not use outdoors.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• This symbol means: CAUTION: hot surface. Accessible

surfaces of the microwave may reach high temperatures during operation. Be careful not to ourself.

- WARNING: if the door or its gaskets are damaged, do not operate the appliance until it has been repaired by a qualified person.

- WARNING: it is dangerous for anyone other than a qualified person to perform maintenance or repair tasks involving the removal of a cover that provides protection against exposure to microwave energy.

- WARNING: liquids and other foods should not be heated up in sealed containers, as they may explode.

- WARNING: when the appliance is being used in Combined mode, children should only use it under adult supervision due to the temperatures generated.

- Use this appliance only for its intended purpose, as described in this manual. Do not use corrosive chemicals or vapours in this appliance. It is not designed for industrial or laboratory use.

• This appliance is intended for heating beverages and food. Drying of food or clothing and heating of pillows, shoes, sponges, wet clothes, and similar items may involve risk of injury, ignition, or fire.
• Heating up beverages may cause them to boil. For this reason, precautions must be taken when handling the container.
• The contents of bottles and jars of baby food should be swirled or shaken, and the temperature should be checked before consumption to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwaves, since they may explode even after microwave heating has ended.
• Do not operate the microwave when empty.

• This microwave is not intended to be built-in or installed in furniture. It must be freely positioned ensuring the following separation distances:

• Top: at least 20 cm apart.

• Between the appliance and any adjacent wall: at least 5 cm.
• Rear: leave 10 cm of separation.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified personnel to avoid hazards or injuries.

- Do not use the appliance if the cable or plug are damaged or if it doesn't work properly. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.

- You must be careful to ensure that the turntable does not shift when the containers are removed from the appliance.

- Only use cookware that is suitable for microwave use. Make sure cookware does not touch the interior walls during operation.

• Do not use the appliance for storage purposes.
• Do not attempt to fry food in the microwave.
• In order to reduce fire risk:

A Do not overcook food.
B Remove wire twist-ties from paper or plastic bags before placing them inside the microwave.
C The microwave should be watched when heating food in plastic or paper containers.

• In case of smoke or fire inside the appliance, keep the door closed, turn the appliance off, and unplug it from the power supply.
• Do not place hot or frozen food or cookware on the turntable to prevent breakage.
• After operation, the container is likely to be very hot. Use gloves to avoid burns and injuries.
• The appliance must be cleaned regularly, and you must remove any food remains. You must clean the door gaskets, cavities, and adjacent parts of the microwave as indicated in the cleaning and maintenance section.
• The appliance cannot be cleaned with steam.
• Failure to keep the microwave clean could lead to deterioration of the surface and could adversely affect the shelf life of the appliance and cause hazards.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by children unless they are over 8 years of age and under supervision. Keep this appliance and

its power cable out of reach of children under the age of 8.

• This appliance is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for domestic use and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose.
• Metal food and beverage containers must not be used during microwave cooking.
• The appliance is not intended to be operated by means of external timers or separate remote control systems.

INSTRUCTIONS DE SÉCURITÉ

1. Door lock system
2. Viewing window
3. Turntable ring assembly
4. Turntable shaft
5. Turntable
6. Control panel
7. Rack
8. Mica plate

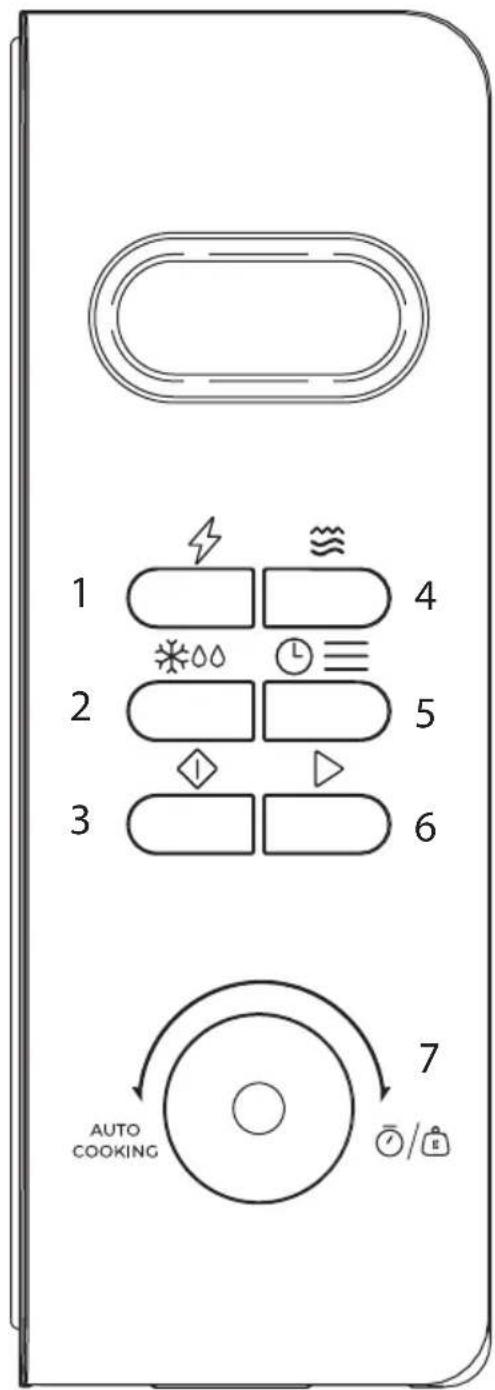

Control panel

Fig. 2

1. Power
2. Defrost
3. Pause/Cancel
4. Grill/Combi
5. Preset/Clock
6. Start
7. Knob

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

• Microwave
• Turntable
• Rack
• Instruction manual

Note:

After leaving the factory, some oil may remain in the interior cavity of the microwave or on the heating elements, which may cause a slight smell or even some smoke the first few times it is used. This is a normal phenomenon that will disappear with use. However, we recommend that you keep the door open to ensure good ventilation.

Recommendation:

To prevent this from happening while cooking food, we advise you to place a cup of water in the microwave, select maximum power and turn the microwave on several times until this no longer occurs.

3. OPERATION

3.1. Mains connection

1. When you connect the microwave to the mains, the display will flash 3 times.
2. Then the “:” symbol will flash reminding you to set the time.

3.2. Knob: Automatic cooking - time/weight selection

- You can increase or decrease the cooking time or adjust the weight of the food by turning the knob.

3.3. Pause/Cancel button

Before starting the programme

- Press once: cancels the selection.

During an on-going programme:

• Press once: pauses the programme.
• Press twice: cancels the programme.

End of cooking beeping

• "End" will be shown on the display and three beeps will sound.
• If you do not press the Pause/Cancel button once or do not open the door, a beep will sound every three minutes.

ENGLISH

3.4 Express cooking

• Standby mode: press the start button to start at the highest power for one minute.
• To increase or decrease the time: turn the knob.

3.5 Setting the time

1. When the microwave is connected to the mains, the ":" symbol will flash.
2. Press the Preset/Clock button once.
3. To set the hour, turn the knob to the desired time value.
4. Press the Preset/Clock button again to confirm the hour.
5. To set the minutes, turn the knob to the desired minute value.
6. Press the Preset/Clock button again or wait 5 seconds for the setting to be confirmed.

Example: setting the clock at 12:30
	Steps Display
1 When the microwave is connected to the mains, the ":" symbol will flash.		:
2 Press the Preset/Clock button once. 00:00
3 Turn the knob to set the hour value. 12:00
4	Press the Preset/Clock button again.	12:00
5	Turn the knob to set the minutes.	12:30
6	Press the Preset/Clock button again or wait 5 seconds without performing any operation for the setting to be confirmed.

3.6 Cooking/warming in the microwave

Press the power button to adjust the power. The selected power level will appear on the display (options: 100P - 80P - 60P - 40P - 20P).

High power	100 % microwave power. This power level is suitable for heating food quickly.
Medium-high power	80 % microwave power. This power level is suitable for heating food quickly but without using the maximum power.
Medium power	60 % microwave power. This power level is suitable for steam heating.
Medium-low power	40 % microwave power. This power level is suitable for defrosting food.
Low power	20 % microwave power. This power level is suitable for keeping food warm.

Important recommendations

• Maximum time: the maximum programmable time is 60 minutes.
• Caution: do not operate the microwave if it is empty.
• Max. power: if you use the microwave at maximum power, this will be automatically reduced after a certain period of time to extend the lifespan of the appliance.
• Interruption to turn food: if you need to turn the food while cooking, press the Start button to resume cooking after doing so.
• Early stop: if you wish to remove the food before the programmed time is up, press the Pause/Cancel button to avoid an unintentional restart of the microwave.

Example: cooking at medium-high power for 10 minutes.
	Steps Display
1 When the microwave is connected to the mains, the ":" symbol will flash.		:
2	Select the desired microwave power by pressing the Power button consecutively.	80P
3 Set the cooking time by turning the knob. 10:00
4	Press the Start button to start cooking. The display will show the remaining time.

3.7 Grill function or combined function

Press the Grill/Combi button 1 to 3 times, depending on the desired option. The display will show G, C1 or C2, depending on your selection:

G Grill		If you select the Grill function, the heating element will start. This function is suitable for browning thin beef steaks, sausages or chicken wings.
C.1	Combination function 1	If you choose this function, the food will be cooked in the microwave for 30% of the selected time and the remaining 70% of the time, the Grill function will be activated.
C.2	Combination function 2	If you choose this function, the food will be cooked in the microwave for 55% of the selected time and the remaining 45% of the time, the Grill function will be activated.

ENGLISH

When the Grill function is on, all internal parts of the microwave, as well as the grill rack and the cooking containers, reach high temperatures. Be careful when removing any item from the microwave. To avoid burns, use thick cloths or oven oven mitts.

Example: cooking food with combination function 2 for 10 minutes.
	Steps Display
1 W	When the microwave is connected to the mains, the “:” symbol will flash.	:
2 P	Press the Grill/Combi button to select the desired function. C.2
3 S	Set the cooking time by turning the knob. 10:00
4 P	Press the Start button for the microwave to start cooking.

3.8 Defrost

This function is used for defrosting food. When the defrost button is pressed, the display will show d.1, d.2 or d.3, depending on the selected option:

d.1 This option is suitable for defrosting meat weighing between 100 gr and 2 kg.

d.2 This option is suitable for defrosting poultry weighing between 200 gr and 3 kg.

d.3 This option is suitable for defrosting seafood weighing between 100 gr and 900 gr.

Recommendations:

• It is recommended to turn the food over halfway through the defrosting process.
• Defrosting normally takes longer than cooking food.
• When the food can be easily cut with a knife, it means that it is completely defrosted.
• Microwaves penetrate about 4 cm into most food.
• Eat defrosted food as soon as possible. It is not advisable to put them back in the fridge and freeze them again.

Example: for defrosting 400 gr of poultry meat
	Steps Display
1 W	When the microwave is connected to the mains, the ":" symbol will flash.	:
2	Press the Defrost button to select the type of food.	d.2
3 T	Turn the knob to set the food weight. 0.4
4 P	Press the Start button to start the microwave.
5	During defrosting, two beeps will sound to prompt you to turn the food over Open the door and turn the food over. Then, close the door. Press the Start button again to continue the defrosting process.

3.8 Automatic cooking function

• This microwave has an automatic cooking function. When the ":" symbol flashes on the display, turn the knob. The display will show A.1, A.2 ... A.8, depending on your selection.
• Choose the appropriate option according to the type and weight of food, and strictly follow the instructions in the table below.

Display Food type Method
A.1 Popcorn		This option is suitable for popping a bag of popcorn weighing no more than 85 gr. When you see the corn kernels stop popping, press the Pause/Cancel button to stop the process.
A.2 Popcorn		This option is suitable for popping a bag of popcorn weighing no more than 100 gr.
A.3 Pizza		This option is suitable for heating a refrigerated pizza slice of up to 150 gr.
A.4 Drinks		This option is suitable for heating a 250 ml cup of liquid. The temperature of this liquid must be between 5 and 10 °C. Use a cup or a wide-mouthed glass and do not cover it.
A.5 Drinks		This option is suitable for heating a 500 ml cup of liquid. The temperature of this liquid must be between 5 and 10 °C. Use a cup or a wide-mouthed glass and do not cover it.
A.6 Potatoes		This option is suitable for cooking potatoes cut into strips. The total weight must not exceed 450 gr. Place the potatoes cut into strips in a large bowl and cover with cling film to prevent the potatoes from losing moisture.
A.7	Potatoes	In this case, the total weight of the potatoes must not exceed 650 gr.

ENGLISH

A.8 Fish

This option is suitable for steaming fish fillets up to 450 gr. After washing the fish and removing the scales, cut a slit in the skin of the fish and place it in a shallow dish of 22-27 cm diameter. Sprinkle lightly with toppings and cover with cling film to prevent water loss. When finished cooking, leave to stand for 2 minutes.

• The temperature of the food before cooking should be between 20 and 25^ . If it is lower or higher than these values, you will have to increase or decrease the cooking time.
• The temperature, weight, and shape of the food will strongly influence the microwave effect on the cooking process. If the characteristics of the food do not completely match those described, adjust the cooking time for best results.

Example: steaming 450 gr of fish
	Steps Display
1 W	When the microwave is connected to the mains, the “:” symbol will flash.	:
2 T	Turn the knob to choose the desired cooking option. A.8
3	Press the Start button to start cooking. The display will show the remaining time.

3.9 Delay start function

If you do not want the selected programme to start immediately, you can set the Delay start function. Follow the steps below:

1. Set the time.
2. Select the desired option and cooking time.

Example: it is currently 12:30 and you want the microwave to start automatically at maximum power for 9 minutes and 30 seconds at 14:20.
	Steps Display
1 Wh	en the microwave is connected to the mains, the ":" symbol will flash.	:
1.1	Press the Preset/Clock button.	00:00
1.2	Set the hour value by turning the knob.	12:00
1.3	Press the Preset/Clock button again to confirm the hour setting.	12:00
1.4	Set the minutes by turning the knob.	12:30
1.5	Press the Preset/Clock button again or wait 5 seconds without performing any operation for the setting to be confirmed. Once the setting is confirmed, the minutes will stop flashing.	12:30
2 Select the desired option and cooking time.
2.1 Select the desired power by pressing the corresponding button. 100 P
2.2 Set the cooking time by turning the knob. 9:30
2.3	Press and hold the Preset/Clock button for 3 seconds to return to the current clock.
3	Set the time at which you want cooking to start. Repeat steps 1.2, 1.3 and 1.4.
4	Press the Preset/Clock button again to confirm the setting. At this point, the Delay start function will be activated. The microwave will start at 14:20.
5	You can check the preset Delay start time by pressing the Preset/Clock button.

3.10 Multi-stage cooking

Some recipes require cooking in several stages. You can schedule this process as follows:

Example: you want to cook the food at maximum power for 3 minutes and, after this time, you want the microwave to operate at low power for 9 minutes. This is the 2-stage configuration.
	Steps Display
1	The first stage consists of running the microwave at maximum power for 3 minutes.
1.1	To select the power level, press the corresponding button.	100 P
1.2 Set the cooking time by turning the knob. 3:00
2	The second stage consists of running the microwave at low power for 9 minutes.
2.1	To select the power level, press the corresponding button.	20P
2.2	Set the cooking time by turning the knob.	9:00
3	Press the Start button to start the microwave.

ENGLISH

• When the first stage is finished, the microwave will start the next stage automatically.
• A maximum of 4 stages can be established at any one time.

3.11 Safety child lock

• Use this function to lock the control panel when cleaning or to prevent children from using the microwave without supervision. If you activate this function, all buttons will be inoperative.
• To enable the Child Lock: Press and hold the Pause/Cancel button for 3 seconds.
• To disable the Child Lock: Press and hold the Pause/Cancel button again for 3 seconds.

4. TIPS

• Placing the food: place the thickest parts of the food towards the edge of the turntable. Try to avoid overlapping food.
• Watch the cooking time: cook for the shortest amount of time at first, and add more minutes if necessary. Overheating food can cause it to smoke or burn.
• Cover food while cooking: covering the food you are going to cook avoids spattering and allows for a more even cooking.
  – Turn or stir food 1 time during the cooking process (e.g., hamburgers or steaks).
• Follow the recommended pre-heating time. Pre-heating time specified on the food label must not be exceeded.
• Switch the food in the middle of the process, e.g., place the meatballs first on top and then on the bottom, and the meatballs on the outside to the inside and vice versa.
• The use of round or oval plates is recommended rather than square plates, as the food in corners tends to overcook.
• It is important to use materials and containers which are suitable and safe for microwave cooking. The table below shows which materials are suitable and which are not:

Container material	Suitable	WARNINGS:
Browning dish	Yes	Follow the manufacturer's instructions. The bottom of the browning dish must be at least 5 mm above the turntable. A misuse may break the turntable.
Cookware	Yes	Suitable for microwaves only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Yes Always remove the lid. Use them only to slightly heat food.Most glass jars are not heat resistant and may break.
Glassware Yes Heat-resistant microwave glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Microwave cooking bags	Yes Follow the manufacturer's instructions. Do not close with a metal tie. Make slits to allow steam to escape.
Paper towels	Yes	Use to cover food for reheating and absorbing fat. Use with care for short-term cooking/warming only.
Baking paper Yes Use as a cover to prevent splattering or a wrap for steaming.
Plastic Yes Microwave-safe only. Follow the manufacturer's instructions. It must be labelled as "microwave safe". Some plastic containers soften, as the food inside gets hot. Boil-in bags and closed plastic bags should be cut or punctured slightly if indicated on the appliance.
Plastic wrap	Yes	Microwave-safe only. Use it to cover food during cooking and retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Yes	Microwave-safe only (meat and candy thermometers).
Aluminium tray No May cause arcing. Move food into a microwave-safe dish or container.
Food carton with metal handle	No May cause arcing. Move food into a microwave-safe dish or container.
Metal or metal-trimmed cookware	No The metal diverts energy away from the food. The metal trim could cause an electric arc.

ENGLISH

Metal twist ties No	May cause	arcing. Move food into a microwave-safe dish or container.
Paper bags No May	cause a fire	in the microwave.
Plastic foam	No	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood No Wood may dry out in		inside the microwave and may split or crack.

5. CLEANING AND MAINTENANCE

WARNINGS:

• Disconnect the power cable from the socket before cleaning the appliance. Do not immerse in water or any other liquid when cleaning.
• If you do not clean the microwave regularly, its service life will be affected.
• Do not use abrasive cleaning products or scouring pads to clean the microwave.
• Do not remove the mica plate.
• If you notice that the microwave is emitting unpleasant odours, follow one of the 3 cleaning methods below:

A Place several lemon slices in a cup and heat them at high power for 2 to 3 minutes.
B Place a cup of red tea and heat it on high power.
C Put in some orange peels and heat on high power for 1 minute.

- When you have finished using the microwave, wipe the inside surfaces that have come into contact with food with a damp cloth to remove any residue and then dry them thoroughly. Accumulated grease can overheat and start to smoke or catch fire.

• Also clean the exterior, door, seals, viewing window and adjacent parts.
• When the microwave is not in use, place it in a dry and ventilated place.

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_101129 / EU01_101130 / EU01_101131 / EU01_101132

Product: Proclean 5110 Red / Proclean 5110 Blue / Proclean 5110 Yellow / Proclean 5110 Green

Rated input power: 1150 W

Rated output power: 700 W

Rated grill power: 800 W

Microwave frequency: 2450 MHz

Voltage: 230 V

Frequency: 50 Hz

Capacity: 20 l

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Technical diagram of a microwave oven with numbered parts for identification and assembly reference.

Fig./Img./Abb./Afb./Rys./Obr.1

1 2 3 4 5 6 7 AUTO COOKING

Fig./Img./Abb./Afb./Rys./Obr.2

www.cecotec.es
