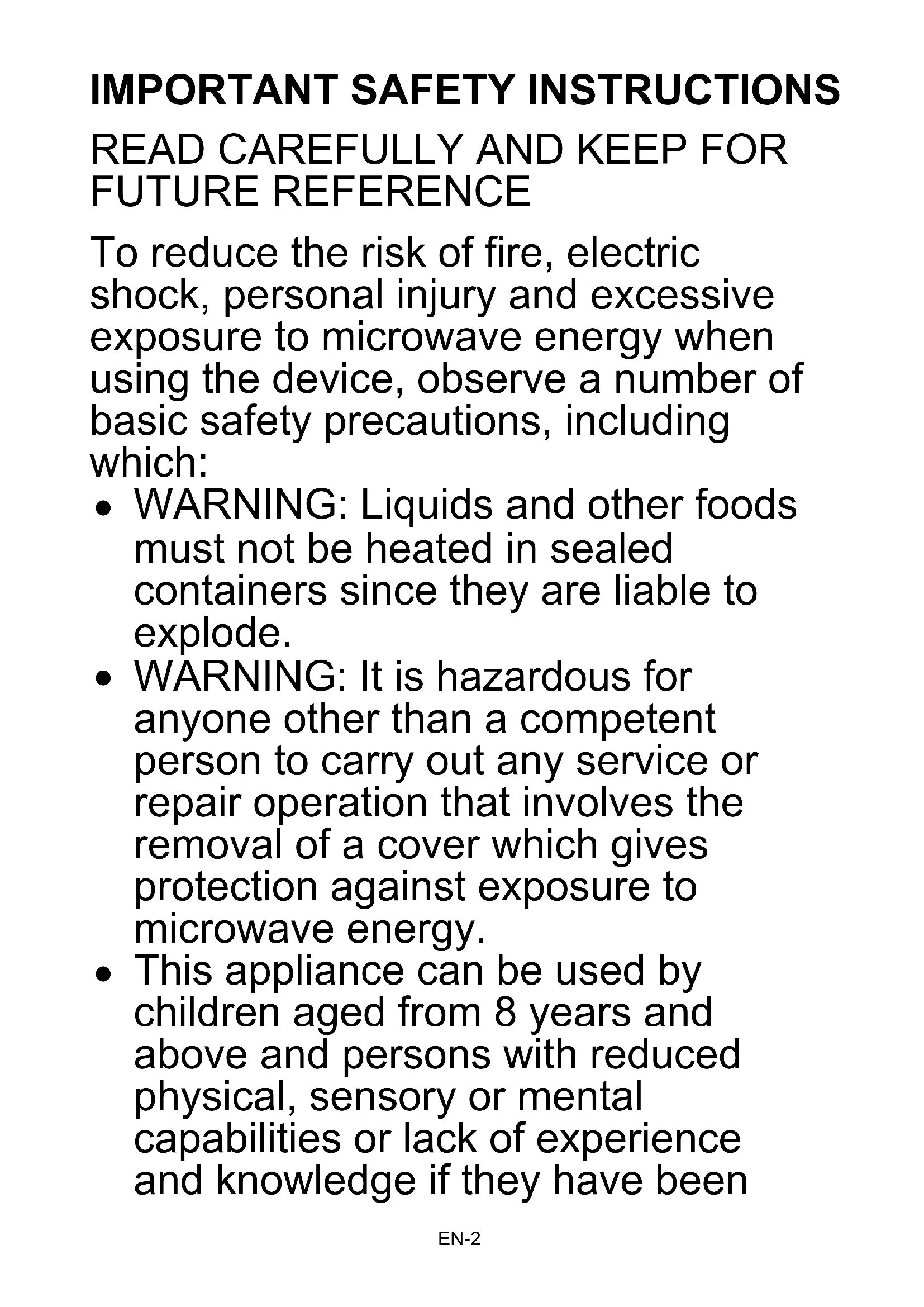

USER MANUAL SCMW20GDS SCHNEIDER

READ CAREFULLY AND KEEP FOR

FUTURE REFERENCE To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which:

WARNING: Liquids and other foods

must not be heated in sealed containers since they are liable to explode.

WARNING: It is hazardous for

anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have beenEN-3 given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Refer to the section "Operating Instructions " on page 15 and paragraph

"Cleaning and maintenance" on page

Make sure the device and the power cable are out of reach of children under 8 years.

Only use utensils that are suitable for use in microwave ovens.

The oven should be cleaned regularly and any food deposits removed.

Please read and follow these instructions: "PRECAUTIONS TO

When heating food in plastic orEN-4 paper containers, keep an eye on the oven due to the possibility of ignition.

If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Do not overcook food.

Do not use the oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven.

Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven.

Install or position the microwave oven in accordance with the installation instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the oven and each wall. Refer to the section "Installation" on page 11.

Eggs in their shell and whole hard-EN-5 boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

This device is intended solely for domestic use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not use and do not store the device outdoors.

Do not use this oven near a place where there is water, in a wet basement or near a swimming pool.

Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents.

Do not leave the cable hanging from a table edge or counter.EN-6

If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.

To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperatureshould be checked before consumption.

• Liquid heated microwave oven may boil suddenly after being baked. Handle containers with care.

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.

The appliance shall not be cleaned with a steam cleaner.

The unit is heated to a high temperature during operation. BeEN-7 careful not to touch the resistors located inside the oven.

Only use the temperature probe recommended for this oven (for ovens provided with a facility for using a temperature sensing probe.)

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must be left out unless they are supervised at all times.

The back of the device must be placed against a wall.

The microwave oven should not be installed in a closet.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Metallic containers for food and beverages are not allowed during microwave cooking.EN-8

are damaged, the oven must not be operated until it has been repaired by a competent person.

This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

by clients in hotels, motels and other residential environments;

bed and breakfast type environments.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities andEN-9 adjacent parts, refer to the following paragraph of the user manual.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance must not be placed in a cabinet.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING: When the appliance is

operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

The microwave oven is intended to be used freestanding.EN-10 This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.EN-11 Installation

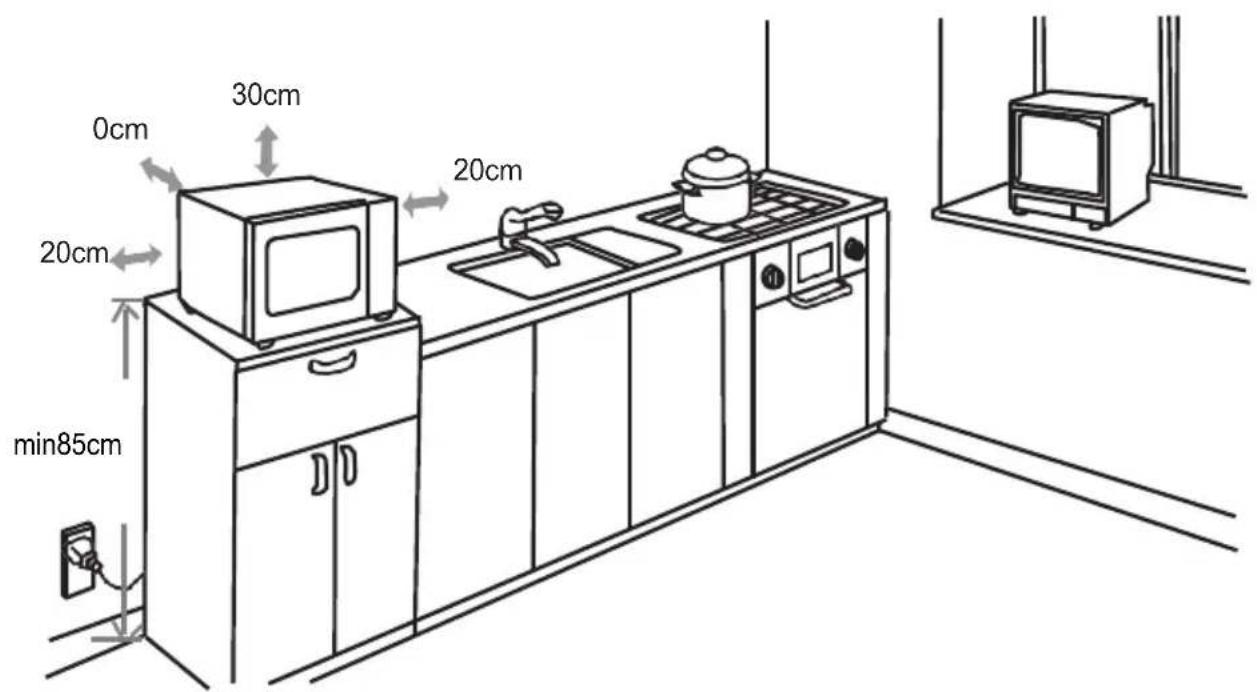

Select a level surface with a sufficient open space for the inlet openings and / or air outlet. (1) The minimal mounting height is 85 cm. (2) The back of the device must be placed against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the oven and each wall. (3) Do not remove the feet underneath the microwave oven. (4) Block the inlet and / or air outlet apertures may damage the oven. 30cm 0cm 20cm 20cm min85cm(5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

Plug your oven into a wall outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit. WARN ING: Do not install oven over a cooktop or other device that produces heat. If the oven is installed near or above a heat source, it may cause damage and void your warranty. EN-12IMPORTANT It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person. If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents. For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard. Disposal and environmental responsibility In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information. This product complies with the requirements of Directive 2014/35/ EU (repealing Directive 73/23/EEC as amended by Directive 93/68/ EEC) and 2014/30/EU (repealing Directive 89/336/EEC). EN-13Instructions : Micro./Grill/Combi. (Microwave / grill / Combi) Weight / Time Defrost (defrosting according to the weight / length) Clock Pre-set (Clock / Programming) Stop / Clear (Stop / Cancel) Start / + 30 Sec./Confirm (Start / + 30sec. / Confirm) Automatic menu Control panel Automatic menu

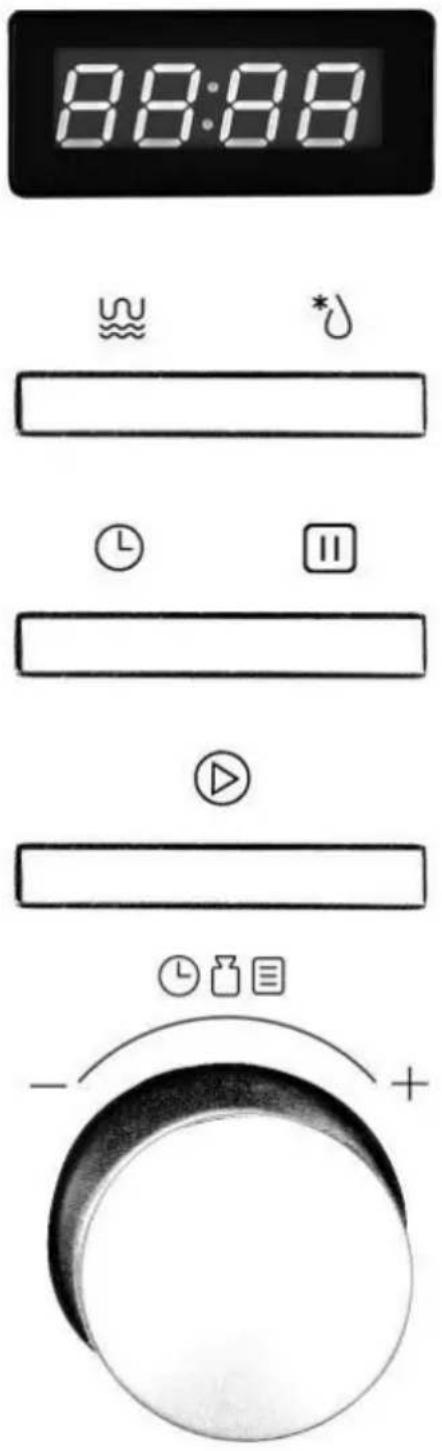

Pizza AT 8 Soup EN-14Operating Instructions This microwave oven is equipped with a modern electronic control system cooking parameter setting, enabling it to better fit your needs.

Setting the clock When you plug the microwave oven, "0: 00" appears on the screen and a tone sounds again.

Press "CLOCK / PROGRAMMING" the hour digits are flashing:

turn " " To set the hour digits from 0 and 23.

Press "CLOCK / PROGRAMMING", the minute figures will flash.

turn " " To adjust the minute digits from 0 and 59.

Press "CLOCK / PROGRAMMING" to confirm the clock setting. The colon ":" will flash. Note :

If the clock is not set, it will not work when the power is turned on. ii. While setting the clock, if you perform no operation for 1 minute, automatically return the display to the previous status.

Repeatedly press "Micro / Grill / Combi" or turn of the microwaves, "P100", "P80", "P50" "P30" and "P10" appear successively in this order.

Press "START / + 30SEC / CONFIRM" to confirm. " for select the power

Turn " " To adjust the cooking time. (You can set the time between 0:05 and 95:00)

Press "START / + 30SEC / CONFIRM" to start cooking. Note: The time programming accuracy changes depending on cooking time:

Repeatedly press "Micro / Grill / Combi" or turn " " for select the power of the grill.

Press "START / + 30SEC / CONFIRM" to confirm when "G" is displayed on the screen.

Turn " " To adjust the cooking time to grill. (You can set the time between 0:05 and 95:00)

Press "START / + 30SEC / CONFIRM" to start cooking. Note: half the cooking time by grill, oven bell will sound twice, which is normal alert. For a better effect of grilling on your food, then you can turn the food, close the oven door and press the "START / + 30SEC / CONFIRM" to continue cooking. If you do not do this, the continuous cooking itself.

Repeatedly press "Microwave / Grill / Combi" or turn " " To select the power of combined cooking " C-1 "(55% microwave + grill 45%) and" C-2 "(36% microwave + grill 64%) is displayed in this order.

Press "START / + 30SEC / CONFIRM" to confirm. EN-164) turn " " To adjust the cooking time. (You can set the time between 0:05 ET 95:00)

Press "START / + 30SEC / CONFIRM" to start cooking.

In standby mode, press "START / + 30SEC / CONFIRM" to start cooking for 30 seconds at 100% power. Each press of the same button increases 30-second cooking time. The maximum cooking time is 95 minutes.

While cooking with microwave, grill, combination and during defrosting, press the "START / + 30SEC / CONFIRM" to increase the cooking time.

In standby mode, turn " " To the left to directly select a cooking time. After selecting a time, press sure "START / + 30SEC / CONFIRM" to start cooking. The power of the microwave is 100%. Note: In modes Auto menu and thawing the weight, it is not possible to increase the cooking time by pressing "START / + 30SEC / CONFIRM".

turn " " To select a food weight. You can select a weight included between 100 and 2000 g.

Press "START / + 30SEC / CONFIRM" to start defrosting.

thawing according to ed hard

Turn " " To select the cooking time The maximum time is 95 minutes.

Press "START / + 30SEC / CONFIRM" to start defrosting. The default power is P30 and can not be changed. EN-178. Cooking multistage Two stages can be set simultaneously. If one phase is thawed, you must program it first. The bell rang once at the end of each stage and before the next stage begins. Example: To defrost for 5 minutes, then cook for 7 minutes at 80% of maximum power of the microwave, follow these steps:

turn " " To adjust defrost time of 5 minutes.

Press once "Microwave / Grill / Combi" and "P100" is displayed.

Repeatedly press "Microwave / Grill / Combi" or turn " " To choose a power of 80% and the display will show "P80".

Press "START / + 30SEC / CONFIRM" to confirm.

turn " " To adjust the cooking time of 7 minutes.

Press "START / + 30SEC / CONFIRM" to start cooking.

First, set the clock. (Refer to the instructions on setting the clock).

Set a cooking program. You can program two steps at most. Defrosting should not be used in the programming function. Example: To cook for 7 minutes at 80% of maximum power, do the following:

Press once "Microwave / Grill / Combi" and "P100" is displayed.

Press again "Microwave / Grill / Combi" and turn " " To choose a power of 80% and the display will show "P80".

Press "START / + 30SEC / CONFIRM" to confirm.

turn " " To adjust the cooking time of 7 minutes; After performing the above operations, do not press sure "START / + 30SEC / CONFIRM", follow these steps:

Press "CLOCK / PROGRAMMING". The hours are flashing.

Setting the hour by turning the key " "; the number should be between 0 and 23.

Press "CLOCK / PROGRAMMING", the minute figures will flash.

Set the minute by turning the key " "; the number should be between 0 and

Press "START / + 30SEC / CONFIRM" to confirm the setting. ": " Flashes. The EN-18bell rang twice at the scheduled time, and cooking starts automatically. Note: you must first set the clock. Otherwise, the program function will not work.

In standby mode, turn " " To the right to select one of the menus "A- 1" to "A-8 ".

Press "START / + 30SEC / CONFIRM" to confirm the menu selection.

turn " " To set the weight of food.

Press "START / + 30SEC / CONFIRM" to start cooking. 5)Once cooked, the buzzer sounds five times.

Child-safety lock Lock: In standby mode, hold down the "STOP / CLEAR" for 3 seconds; a long beep sounds and the screen displays

" Indicating that the unit is in child-safety lock. Unlock: When locked, press and hold "STOP/ CLEAR "for 3 seconds; a long beep is sounded, indicating that the device is unlocked.

In the method of cooking in the microwave, grill or combination, press "Microwave / Grill / Combi"; cooking power will be displayed for 3 seconds.

In the programming mode, press "CLOCK / PROGRAMMING "for the set time of cooking start. The programmed time will flash for 3 seconds, then the screen will display the clock again.

During cooking, press "CLOCK / PROGRAMMING" to display the current time. The time is displayed for 3 seconds.

The bell rang again when you start to turn the knob.

You must press "START / + 30SEC / CONFIRM" to resume cooking if you open the door during cooking.

Once a cooking program has been set, if you do not press the button "START / + 30SEC / CONFIRM" in 1 minute, the clock will appear and the program will be canceled.

80% 100g (With 800 ml water)

A-6 POTATO 200g 200 100% 400g 400 600g 600 A-7 PIZZA 200g 200 100% 400g 400 A-8 SOUP 200ml 200 80% 400ml 400 EN-20Troubleshooting Normal The microwave oven interference created It is normal for the microwave oven in use can disrupt the reception of your radios and televisions. It is a phenomenon that we find with other small appliances, such as mixers, vacuum cleaners and fans. low oven light In low power mode, it is normal that the microwave cooking is slower. Vapor accumulates and hot air exits the ducts During cooking, the food can release vapor. But some steam may accumulate on cold surfaces such as the oven door. It's normal. The oven was accidentally

turned on while not food contains. It is forbidden to operate the oven without food inside. It's very dangerous. EN-21Problem Possible Cause Solution Can not turn on the oven.

Power is not properly connected Wait 10 seconds and then reconnect.

2. Blown fuse or circuit

breaker is activated. Replace the fuse or reset the breaker switch (repairs must be performed by a professional society).

3. There is a problem

with the power outlet. Test it with other appliances. The oven is not heating.

closed. Securely close the door. Maintenance and Cleaning Be sure to disconnect the unit from the power supply.

1. After use, clean the oven cavity with a damp cloth.

2. Clean accessories with soapy water.

3. The door frame, seal and nearby parts must be thoroughly cleaned

with a damp cloth when they are dirty.

4. Do not use abrasive cleaning products or hard metal scraper to clean the

glass oven door, as they will scratch the surface of the glass, which can break.

5. Cleaning Tip - To facilitate cleaning of the inner walls of the oven may come into

contact with cooked food: Place half a lemon in a bowl, add 300 ml (1/2 pint) of water and heat with 100% power microwave for 10 minutes. Wipe the oven with a dry cloth. EN-22Technical specifications Model: SCMW20GDS Nominal voltage : 230V ~ 50Hz Maximum power consumption: 1050W Power restored (microwave) 700 W Power restored (grill): 1000 W Oven Capacity: 20 L Turntable Diameter: 255 mm External dimensions: 440 x 359 x 259mm Net weight : Approximately 10.5 kg If that logo appears on the device, this means that it must be discarded in accordance with Directive 2012/19 / EU on electronic and electrical equipment (WEEE). All hazardous substances in electrical and electronic equipment can have adverse effects on the environment and human health. Consequently, when this unit is out of use, it should not be disposed of with municipal unsorted waste. As an end user, your role is essential to ensure the reuse, recycling or other forms of value creation for this device. There are several systems of collection and recovery implemented by your local authority (recycling centers) and distributors. You have an obligation to use those systems. GUARANTEE: The warranty does not cover product wear parts, no problems or damage resulting from: (1) surface damage due to normal wear of the product; (2) defects or damage due to contact of the product with liquid and due to corrosion caused by rust or the presence of insects; (3) any incide nt, abuse, misuse, modification, unauthorized removal or repair; (4) the improper operation maintenance, not in accordance with product instructions or connection to improper voltage; (5) any use of accessories not supplied or approved by the manufacturer. The warranty is void if the elimination of plate and / or the product serial number. This product is imported by SCHNEIDER CONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCEDE-2 WICHTIGE SICHERHEITSHINWEISE
