MANUEL D'INSTRUCTIONS

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ LISEZ ATTENTIVEMENT ET CONSERVEZ CES INSTRUCTIONS POUR TOUTE FUTURE RÉFÉRENCE.

INSTRUCTION MANUAL

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE FOR FUTURE REFERENCE.

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ

Control panel interface with icons for water, fire, and alarm buttons, plus a progress indicator showing +30S speed.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To reduce the risk of fire, electric shock, personal injury and excessive exposure to microwave energy when using the device, observe a number of basic safety precautions, including which:

- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Refer to the section "Instruction for use" on page 15 and paragraph
• "Cleaning and maintenance" on page 23.
• Make sure the device and the power cable are out of reach of children under 8 years.
• Only use utensils that are suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits removed.
• Please read and follow these instructions: "PRECAUTIONS TO AVOID EXCESSIVE EXPOSURE TO MICROWAVE ENERGY".
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Do not overcook food.

• Do not use the oven for storing food or containers. Do not store food (such as bread, cookies, etc.) in the oven.

- Remove all fasteners and metal handles of the bags / containers of paper or plastic before placing them in the oven.

- Install or position the microwave oven in accordance with the installation instructions provided. The minimum installation height is 85 cm. The back of the device should be placed against a wall. Leave a minimum gap of 30 cm above the oven and 20 cm between the oven and each wall. Refer to the section "Installation" on page 10.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- This device is intended solely for domestic use.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not use and do not store the device outdoors.
• Do not use this oven near a place where there is water, in a wet basement or near a swimming pool.
• Accessible surfaces can be subjected to high temperatures during operation. The surfaces may become hot during use. Be sure to keep it away power cable from hot surfaces. Do not cover any of the oven vents.
• Do not leave the cable hanging from a table edge or counter.
• If the oven is not regularly cleaned, the walls may deteriorate; this phenomenon is potentially dangerous and can shorten the furnace life.
• To avoid burns, baby bottles and baby jars should absolutely be mixed or shaken after heating in a microwave oven, and the contents of the temperature should be checked before consumption.
• Liquid heated microwave oven may boil suddenly after being baked. Handle containers with care.
• Appliances are not intended to be operated by means of an external

timer or separate remote-control system.

- Accessible parts may be subjected to high temperatures during operation. The young children must be kept away.

- The appliance shall not be cleaned with a steam cleaner.

- The unit is heated to a high temperature during operation. Be careful not to touch the resistors located inside the oven.

- Only use the temperature probe recommended for this oven (for ovens provided with a facility for using a temperature sensing probe.)

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching the heating elements. Children under 8 must be left-out unless they are supervised at all times.

- The back of the device must be placed against a wall.

- The microwave oven should not be installed in a closet.

- The microwave oven is intended for heating food and beverages. Drying

of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

• Metallic containers for food and beverages are not allowed during microwave cooking.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• This appliance is intended to be used in household and similar applications such as:

▶ staff kitchen areas in shops, offices and other working environments;
▶ farm houses;
by clients in hotels, motels and other residential environments;
▶ bed and breakfast type environments.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or

shaken and the temperature checked before consumption, in order to avoid burns.

- Regarding the instructions for cleaning and use maintenance, especially of door seals, cavities and adjacent parts, refer to the following paragraph of the user manual.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

- The appliance must not be placed in a cabinet.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

- The microwave oven is intended to be used freestanding.

This product is a Group 2 ISM equipment class B. Group 2 includes all equipment ISM (Industrial, Scientific and Medical) radio frequency energy which is intentionally generated and / or used in the form of radiation

Electromagnetic for the treatment of materials and equipment EDM. The Class B includes equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies domestic premises.

Installation

1. Select a level surface with a sufficient open space for the inlet openings and / or air outlet.

0cm' 30cm' 20cm' 20cm' min85cm'

(1) The minimal mounting height is 85 cm.
(2) The back of the device must be placed against a wall. Leave a minimum gap of 30 ~cm above the oven and 20 ~cm between the oven and each wall.
(3) Do not remove the feet underneath the microwave oven.
(4) Block the inlet and / or air outlet apertures may damage the oven.

(5) Make sure that the microwave oven is as far away as possible from TVs and radios. Using a microwave oven can cause interference disturbing the reception of your radio or television.

1. Plug your oven into a wall outlet. Make sure that the voltage and frequency of the current it supplies are identical to those indicated on the nameplate of the unit.

WARNING: Do not install oven over a cooktop or other device that produces heat. If the oven is installed near or above a heat source, it may cause damage and void your warranty.

IMPORTANT

It is forbidden to replace the power cable by yourself. If damages must be repaired by the service of local distributors, by the manufacturer or by a qualified person.

If the unit is fallen visit qualified to check before using again. Internal damage may cause accidents.

For all types of problems or repairs, please contact the after-sales service of local dealer, the manufacturer or qualified person to avoid hazard.

Disposal and environmental responsibility

In order to be environmentally friendly, we encourage you to take this device correctly. You can contact your local authorities or recycling centers for more information.

Read the instructions carefully before use.

This product complies with the requirements of Directive 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).

CE

Description of your product

Names of parts and accessories from the oven

Remove the microwave oven and all parts of the box.

The oven comes with the following:

Glass 1

Guide ring 1 Instruction Manual 1

A B E D C B F

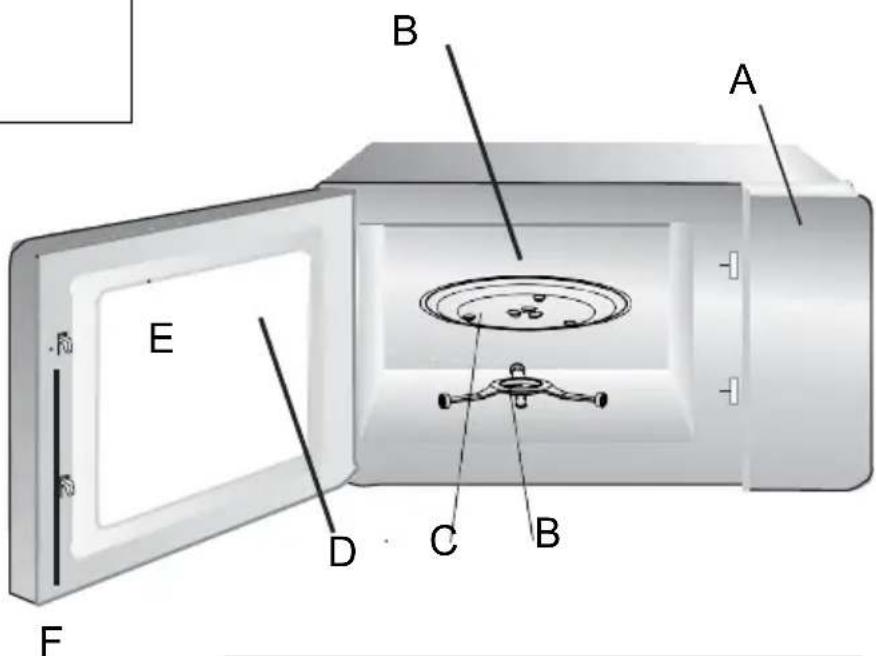

A. Control panel
B Axis of the turntable
C. Glass tray
D. Observation Window
E. Door assembly
F. Safety interlock system

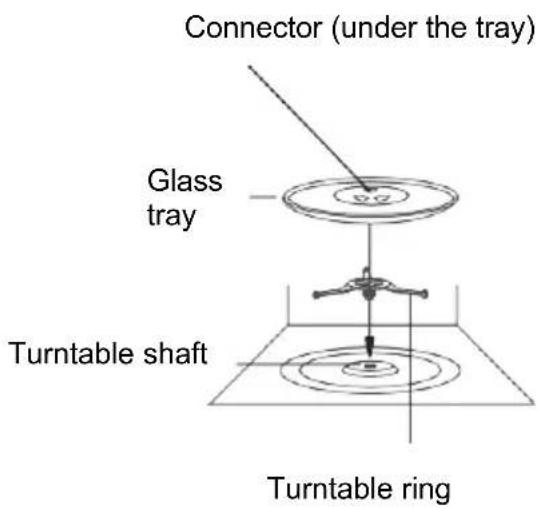

Connector (under the tray) Glass tray Turntable shaft Turntable ring

a. Never place it upside down glass top. Make sure that the rotation of the glass tray is not obstructed.
b. The glass tray and the turntable support should always be installed in the microwave during use.
c. All food and food containers must always be placed on the glass tray for cooking.
d. If glass tray or turntable cracks or breaks, contact your authorized service center after sales service.

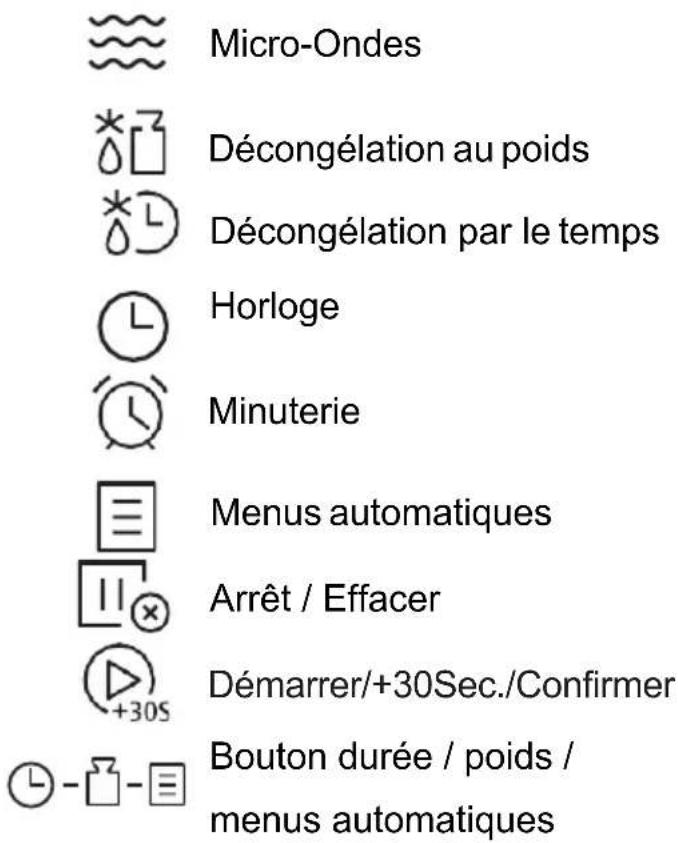

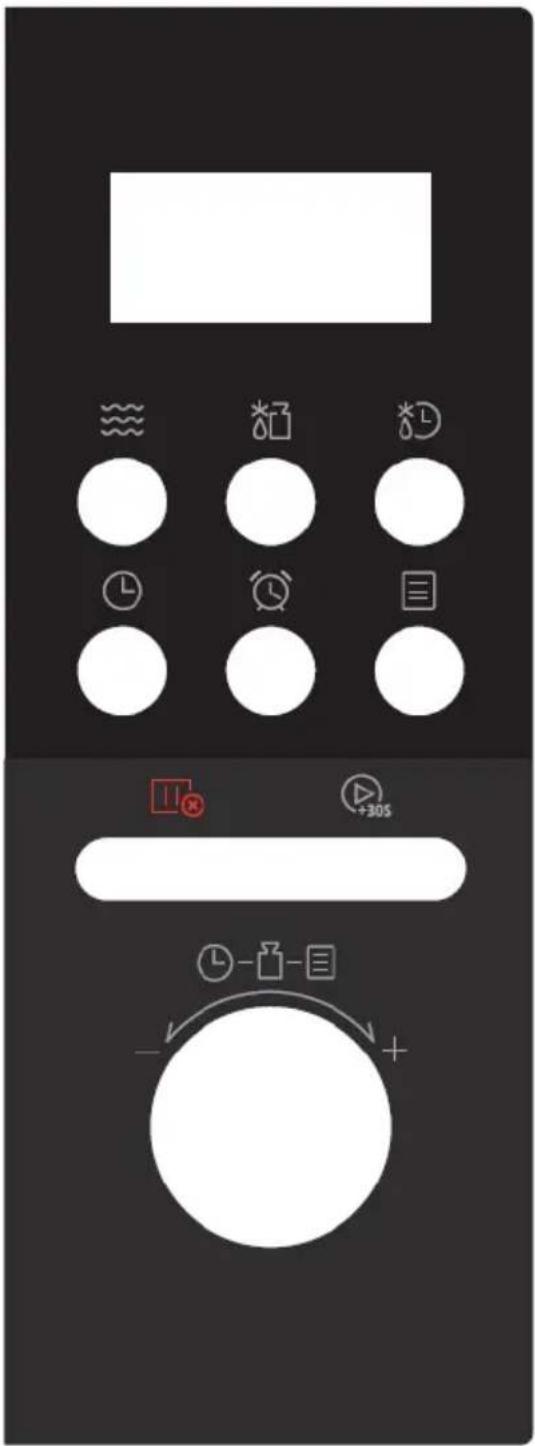

Control panel interface with icons for weather, alarm, and display settings

Microwave

Weight defrost

Time defrost

Clock

Kitchen timer

Auto menu

Stop/Clear

Start/+30Sec./Confirm

Timer-Weight-Auto menu

Operation instruction

Installing the microwave oven on a worktop

Remove all accessories and packaging elements. Examine the oven and make sure it does not include damage such that the door is not broken and it is not dented. Do not install the microwave oven if it is damaged.

Materials you can use in microwave oven
Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Baking paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and confection thermometers).
Wax paper	Use as a cover to prevent splattering and retainmoisture.

Materials to be avoided in microwave oven
Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Twisted metal ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

Instructions for Use

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) In waiting state, press "Clock" twice, the screen displays "0:00" and the hour figure will flash.
2) Turn " 🔍 " to adjust the hour figures. The input time should be within 0--23.
3) Press "Clock", the minute figures willflash.
4) Turn " 🔍 " to adjust the minute figures. The input time should be within 0--59.
5) Press "Clock" to finish clock setting.

Note: 1) The clock will not work if it is not set when powered.

2) After step 5, if you do not press "Clock" within 5 minutes, the oven will go back to the previous status automatically.

2. Kitchen Timer

1) In waiting state, press "Kitchen Timer" once, the screendisplays "00:00".
2) Turn " "to set the kitchen timer. (The maximum cooking time is 95minutes).
3) Press " Start/+30Sec./Confirm " to confirm setting.
4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set (24-hour system), the screen will display the current time.

Note: The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

3. Microwave Cooking

1) Press " Microwave " once, " P100 " will flash on the screen.
2) Press " Microwave " repeatedly or turn " " to select microwave power from P100 to P10.
3) Press the "Start/+30Sec./Confirm" to confirm the power.
4) Turn " 🔍 " to adjust the cooking time. (The maximum cooking time is 95 minutes.)
5) Press the "Start/+30Sec./Confirm" key to start cooking.

NOTE: The step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Level	High	M.High	Med	M.Low	Low
Power	P100	P80	P50	P30	P10

4. Defrost by W.T.

1) In waiting state, press "WeightDefrost" once, the screen displays "d01".
2) Turn " " to select the weight of food. The weight should be 100g-2000g.
3) Press " Start/+30Sec./Confirm " key to start defrosting.

5. Defrost by Time

1) In waiting state, press "Time Defrost" once, the screen displays "d02".
2) Turn " " to adjust cooking time.(The maximum cooking time is 95 minutes.)

3) Press " Start/+30Sec./Confirm " key to start defrosting.

6. Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

Note: Kitchen Timer, Auto menu or Preheating cannot be set as one of the multi-stages.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " Time Defrost " once, the screen will display " d02";
2) Turn " 🔍 " to adjust the defrost time of 5 minutes;
3) Press " Microwave " once, " P100 " will flash on the screen.
4) Press " Start/+30Sec./Confirm " to confirm the function. " P100 " will display.
5) Turn " " to choose 80% microwave power till " P80 " display;
6) Press " Start/+30Sec./Confirm " to confirm;
7) Turn " 🔍 " to adjust the cooking time of 7 minutes;
8) Press " Start/+30Sec./Confirm " to start cooking.

7. Quick Microwave cooking

1) In standby state, press "Start/+30Sec./Confirm" to start cooking with 100% power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In Standby state, turn " 🔥 " right to choose cooking time directly then press " Start/+30Sec./Confirm " key to cook with 100% microwave power.

8. Lock-out Function for Children

• Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and the oven will display "0:00".
• Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is deactivated.

9. Inquiring Function

1) In states of microwave cooking, press "Microwave" the current power will be displayed for 3 seconds. After 3 seconds the oven will turn back to the former state:
2) In cooking state, press "Kitchen Timer/Clock" to display the cooking time. The cooking time flashes for 3 seconds.

10. Auto Menu

1) In waiting state, turn " 🔥 " left to choose the menu, and " A-8 " to " A-1 " will display.
2) Press " Start/+30Sec./Confirm " to confirm the menu you need.
3) Turn " 🔍 " to choose the weight of menu, and "g" indicator will light.
4) Press " Start/+30Sec./Confirm " to start cooking.

Auto menu chart

Menu	Weight	Display
A-1REHEAT	200g	200
	400g	400
A-2MEAT	250g	250
	350g	350
	450g	450
A-3VEGETABLE	200g	200
	300g	300
	400g	400
A-4PASTA	50g (with water 450 g)	50
	100g (with water 800 g)	100
A-5POTATO	1	1
	2	2
	3	3
A-6FISH	250g	250
	350g	350
	450g	450
A-7Beverage	1(about 120ml)	1
	2(about 240ml)	2
	3(about 360ml)	3
A-8Popcorn	50g	50
	100g	100

Troubleshooting

Normal
The microwave oven interference created	It is normal for the microwave oven in operation can interfere with the reception of your radios and televisions. It is a phenomenon that we find with other small appliances, such as mixers, vacuum cleaners and fans.
Low microwave oven light	In low power mode, it is normal that the microwave cooking is slower.
Vapor accumulates and hot air exits the ducts	During cooking, the food can release vapor. Some steam may accumulate on cold surfaces such as the microwave oven door. It's normal.
The microwave oven was accidentally turned on while not food contains.	It is forbidden to operate the microwave oven without food inside. It's very dangerous.

Problem	Possible Cause	Solution
Cannot turn on the microwave oven.	(1) The cable Power is not properly connected	Wait 10 seconds and then reconnect it.
	(2) Blown fuse or circuit breaker is activated.	Replace the fuse or circuit breaker switch on again (repairs must be performed by a professional society).
	(3) There is a problem with the power outlet.	Test it with other appliances.
The microwave oven is not heating.	(4) The door is not closed.	Securely close the door.
The glass tray makes a noise when the microwave oven is in operation.	(5) The guide ring or the bottom of the inner compartment of the microwave is dirty.	Refer to paragraph Clean your microwave-ondes for cleaning surfaces rooms.

Care and Maintenance

Be sure to disconnect the unit from the power supply.

1. After use, clean the microwave oven cavity with a slightly damp cloth.
2. Clean accessories with soapy water.
3. The door frame, seal and nearby parts must be thoroughly cleaned with a damp cloth when they are dirty.
4. Do not use abrasive cleaning products or hard metal scraper to clean the glass microwave oven door, as they will scratch the glass surface, which can break it.
5. Cleaning Tip - To facilitate cleaning of the inner walls of the microwave oven can contact cooked food: Place half a lemon in a bowl, add 300 ml of water and heat with 100% power microwave for 10 minutes. Wipe the microwave oven with a dry cloth.

Technical specifications

model:	SCMW2028SDB
Nominal voltage:	230V ~ 50Hz
Rated Input Power(microwave):	1400W
Rated Output Power(microwave):	900 W
Oven Capacity:	28 L
Turntable Diameter:	288 mm
External dimensions:	495*395*290mm
Net weight:	Approximately 12.88kg

This symbol on the product indicates that this appliance must be discarded in accordance with Directive 2012/19/EU on Equipment of Electric Waste and Electronic (WEEE).

The electronic and electrical equipment containing hazardous substances which could have consequences on the environment and human health during reprocessing cycle of the product.

Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste.

Your role as final consumers is crucial in terms of reuse, recycling and obtaining other types of value creation from this. You have the choice of different collection systems and exchanges organized by local authorities (recycling centers) and distributors. It is your duty to use these opportunities.

The warranty does not cover product wear parts, no problems or damage resulting from:

(1) Surface damage due to normal wear of the product;
(2) Defects or damage due to contact of the product with liquid and due to corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, modification, unauthorized removal or repair;
(4) Any improper maintenance operation, not in accordance with product instructions or connection to improper voltage.
(5) Any use of accessories not supplied or approved by the manufacturer.

The warranty is void if the elimination of plate and / or the product serial number.

SCHNEIDER
