Brand	Numatic
Model	Henry Wash HVW3702
Category	Carpet cleaner/extractor
Usage	Indoor, commercial use (hotels, schools, hospitals, etc.)
Suction type	Dry and wet
Spray and extraction function	Yes, for carpet and fabric cleaning
Solution tank capacity	10 L
Recovery tank capacity	10 L
Power supply	230 V ~ 50 Hz
Nominal power	1200 W
Gross weight	12 kg
Dimensions (L x W x H)	55 x 40 x 45 cm
Power cord length	10 m
Filtration	Diffuser filter, safety float valve
Noise level	75 dB(A)
Recommended maintenance	Clean filters and float valve regularly; rinse system with clean water after use
Safety	Automatic shut-off if foam or liquid escapes; unplug before maintenance
Spare parts	Power cord, hose, floor tool, tubes, dust bag (if applicable)
Repairability	Repairs by qualified personnel with original Numatic parts
Standards	EN/CEI 60335-2-68 and 60335-2-69
Warranty	2 years (standard)

Frequently Asked Questions - Henry Wash HVW3702 Numatic

What types of waste can be vacuumed with the Henry Wash HVW3702?

This vacuum can pick up dry and wet waste, but not hot ashes, lit cigarette butts, explosive dust, or biological waste.

How to use the spray mode to clean carpets?

Fill the solution tank with an approved detergent, then use the spray trigger on the floor tool. After use, rinse the system with clean water.

What to do if foam or liquid comes out of the exhaust port?

Immediately stop the machine, unplug it, empty the container, check the float, and restart. Remaining liquid in the power brush may drain upon restart.

How to clean the vacuum filters?

Filters should be cleaned regularly and replaced if worn. The diffuser filter must remain clean. Refer to the manual for detailed instructions.

What is the electrical power of the Henry Wash HVW3702?

The nominal power is approximately 1200 W at 230 V ~ 50 Hz.

Can this vacuum be used outdoors?

No, the machine is intended for indoor use and must be stored indoors. Do not use it in the rain.

How to maintain the float valve?

Clean the float valve regularly to ensure it is not damaged and works correctly. It limits the water level.

What to do if the vacuum loses suction?

Unplug the machine, check that the floor tool, tubes, and hose are not blocked. If the float valve has activated, empty the container. Otherwise, replace the dust bag and clean the filter.

Is this vacuum suitable for non-professionals?

It is mainly designed for commercial use, but can be used by individuals provided safety instructions are followed. Children and persons with reduced abilities should not use it without supervision.

Where to find spare parts for the Henry Wash HVW3702?

Spare parts must be original Numatic parts and installed by a qualified person. Contact your local dealer or after-sales service.

USER MANUAL Henry Wash HVW3702 Numatic

GB, DE, FR, NL, PT, IT, ES. PL

HVW 370

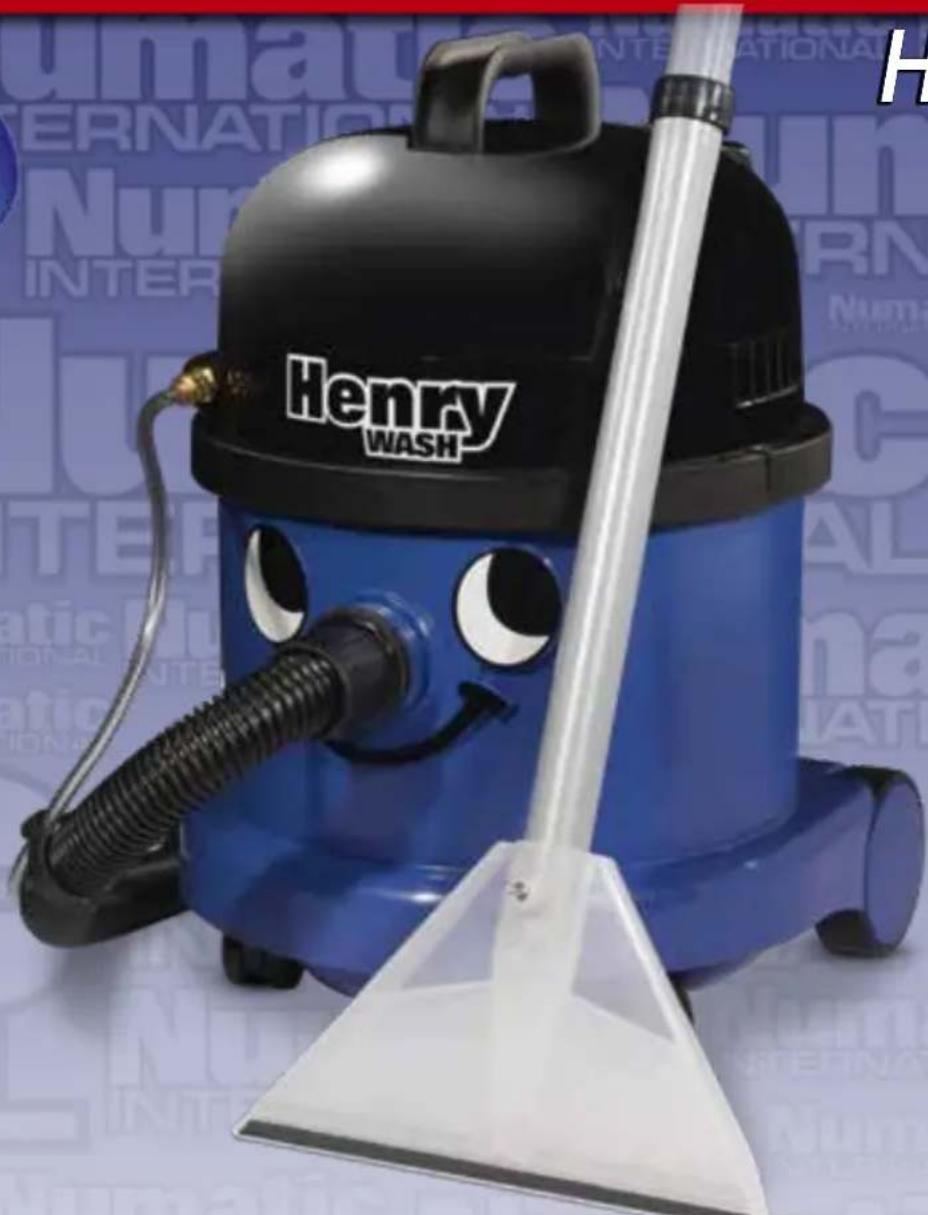

Blue Henry WASH vacuum cleaner with black hood and white handle, displayed against a patterned background (no readable text or symbols on the device itself)

Henry WASH

Warning!

Read instructions before using the machine.

Warnhinweis:

Collection of various automotive electrical components including hoses, cables, sensors, and motors (no text or symbols visible)

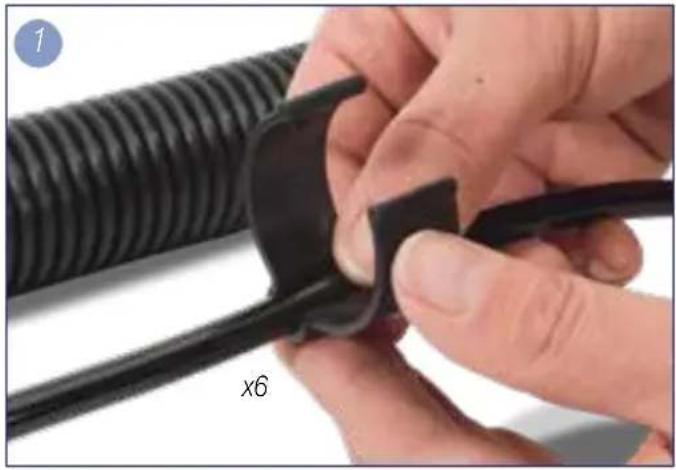

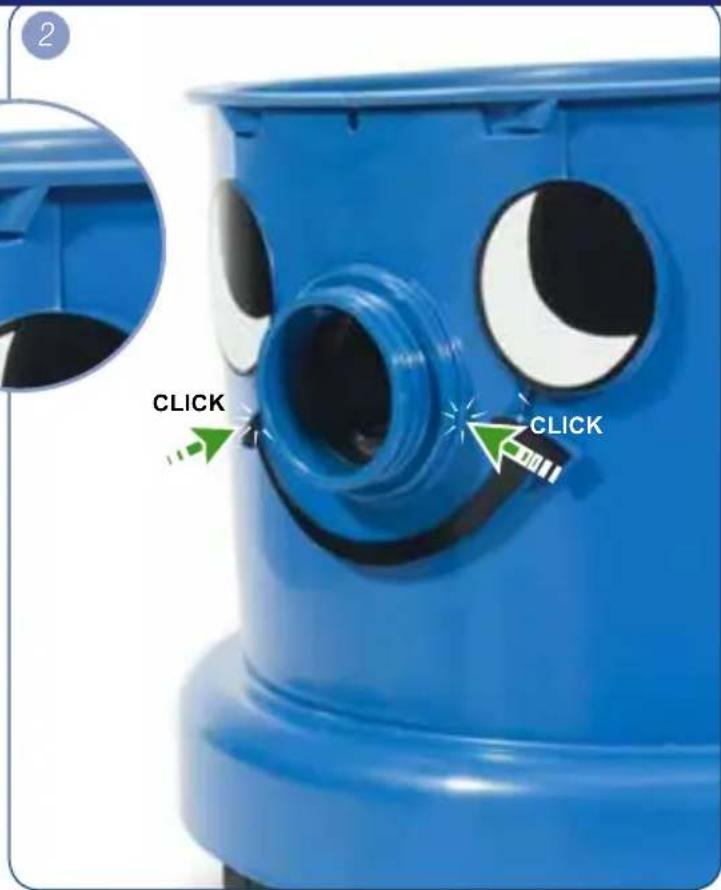

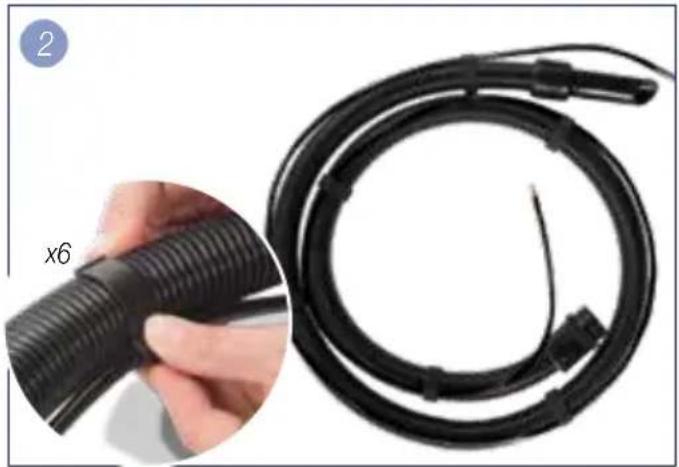

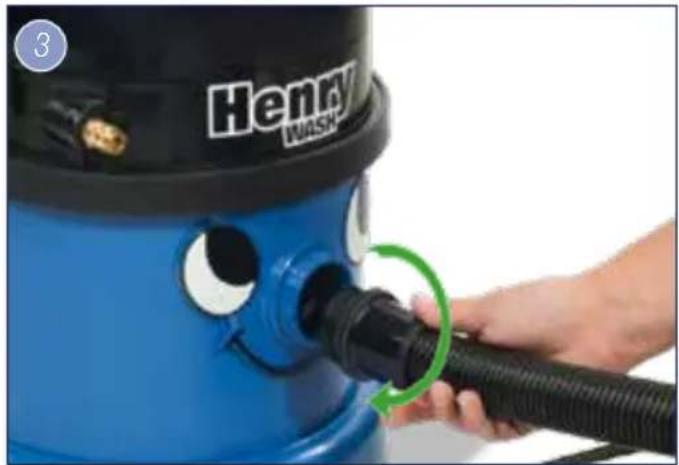

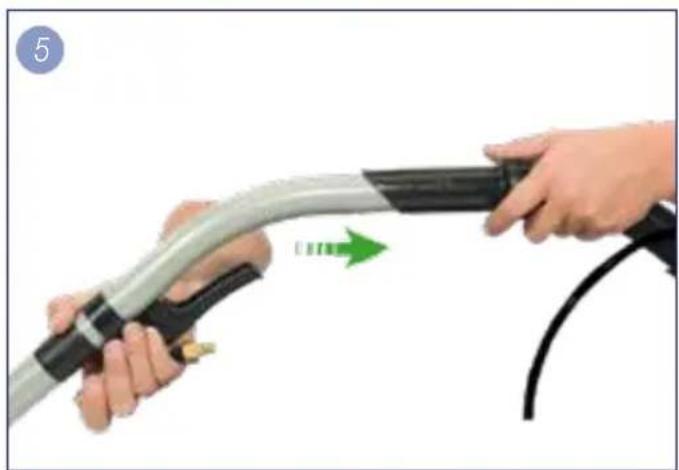

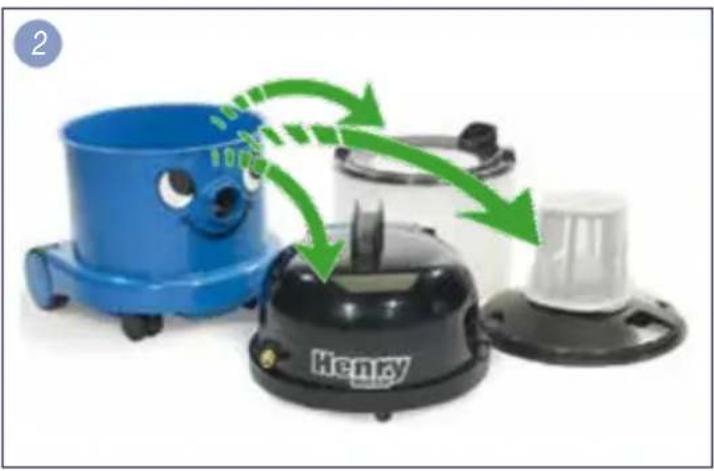

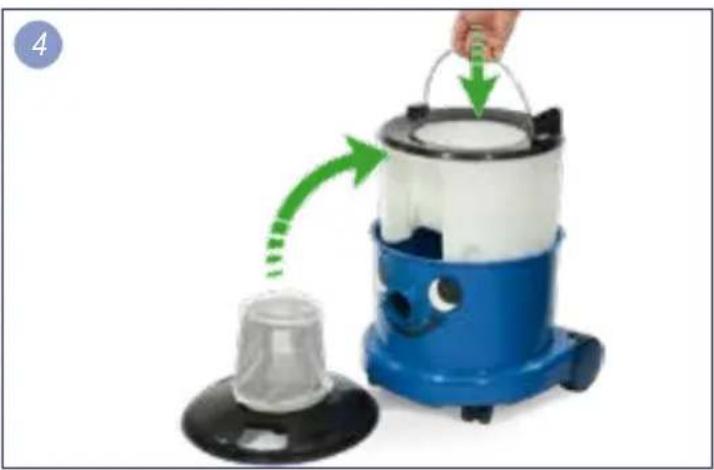

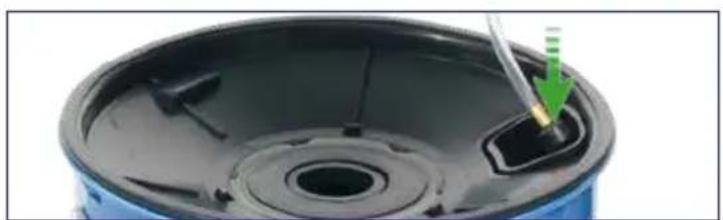

Assembly - Zusammenbau - Assemblage - Samenstelling - Conjunto - Montaggio - Ensamblaje - Montaź

Product photo of a blue and black HPV vacuum cleaner with green arrows indicating rotation or assembly (no text or symbols)

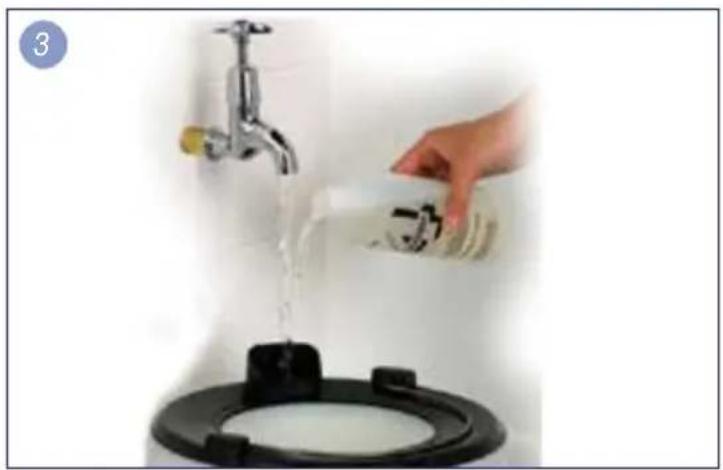

Person pouring water from a bottle into a faucet, with a black base and circular tank nearby (no text or symbols visible)

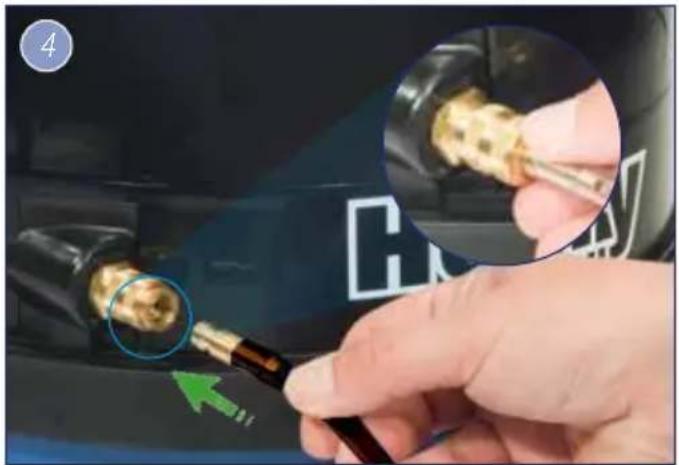

Blue and gray vacuum cleaner with green arrows indicating process flow (no text or symbols)

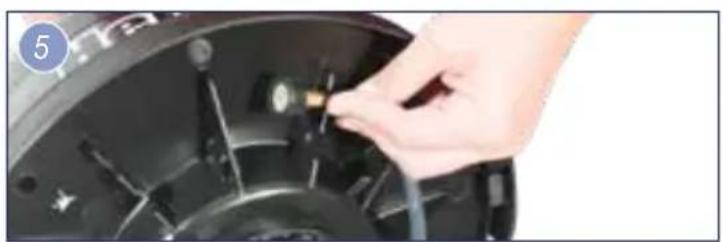

Close-up of a hand adjusting a black mechanical component with a small orange pin (no visible text or symbols)

Close-up of a blue cylindrical container with a black lid and a green arrow pointing to a small object inside (no text or symbols visible)

Close-up of hands holding a black plastic clip attached to a coiled black cable, labeled 'x6' (no text or symbols on the object itself)

Close-up of a black flexible hose with attached wires, showing a hand holding the bulb (no text or symbols visible)

Close-up of a blue Henry WASH vacuum cleaner with a hand inserting a black hose, no visible text or symbols on the device itself.

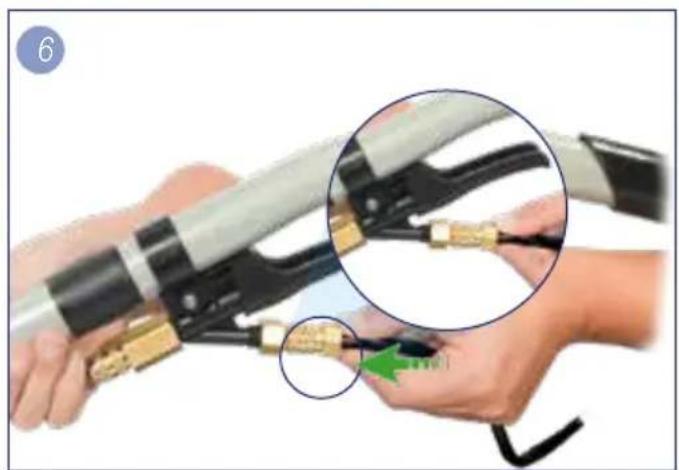

Close-up of a hand holding a pen with a magnified inset showing a tool interacting with a car (no visible text or symbols)

Close-up of hands holding a flexible electric shock absorber with a black cable, showing a green arrow indicating motion (no text or symbols)

Close-up of hands using a hairpin tool to connect two wires, with magnified inset showing the cable being inserted (no text or symbols visible)

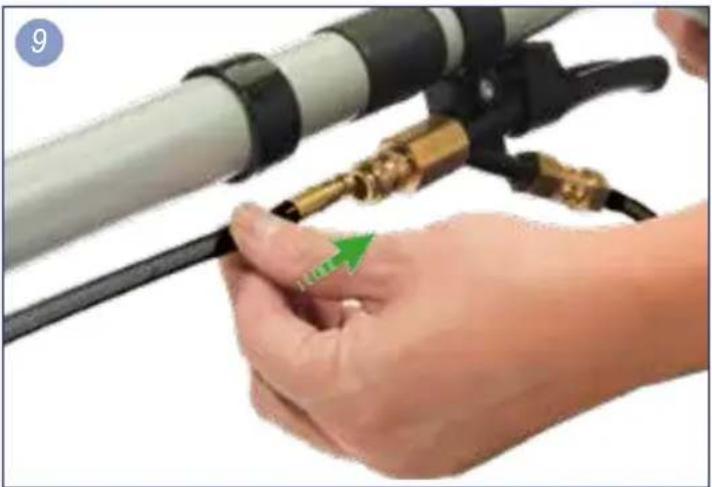

Close-up of hands performing a physical manipulation or massage technique on a metallic tool, with green arrows indicating motion direction (no text or symbols)

Close-up of a hand holding a pen with green arrows indicating motion, accompanied by an inset showing the same hand's curved arrow (no text or symbols)

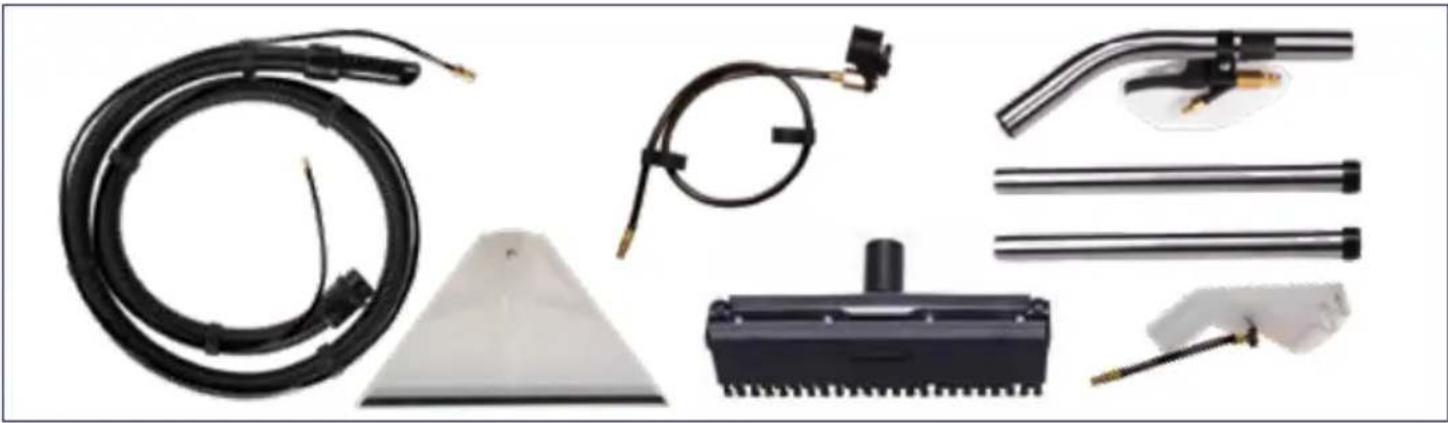

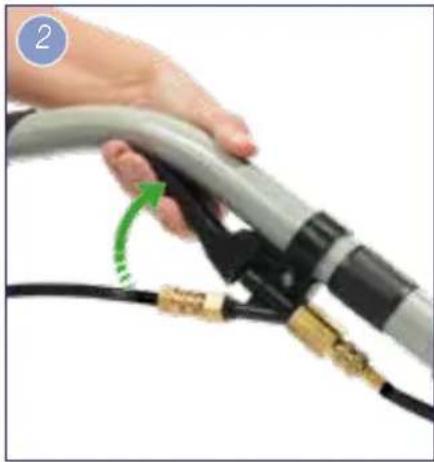

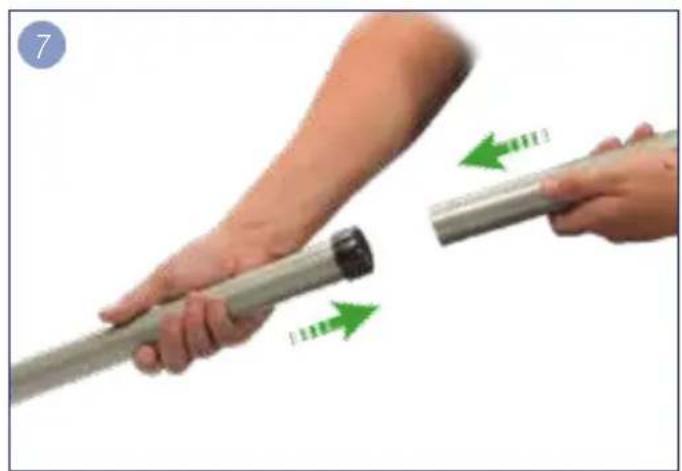

Carpet Cleaning Assembly-Teppichreiniger-

Baugruppe-Montage de l'accessoire pour moquette-Opzetstuk voor het reinigen van tapijten-Unidade de limpeza de alcatifas-Gruppo di pulizia per tappeti-Montaje para limpieza de alfombras-Zespół do czyszczenia dywanów

Close-up of hands using a curling iron on a cable, with a green arrow indicating the cable's tip (no text or symbols visible)

Person operating a blue and black Hens vacuum cleaner in a living room setting (no visible text or symbols)

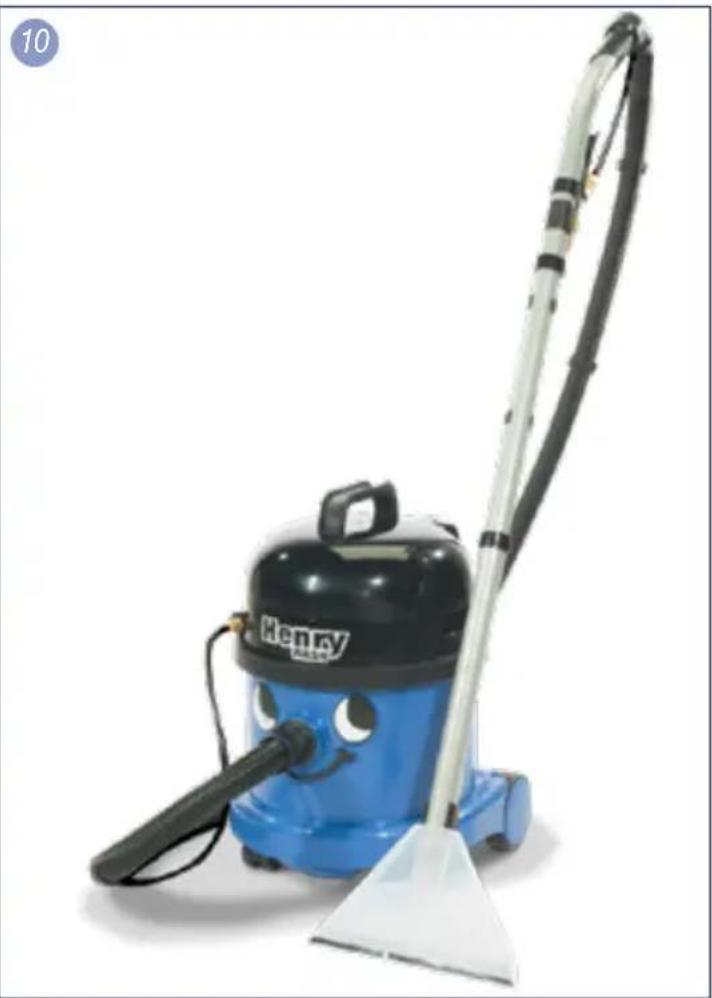

Blue and black HPV vacuum cleaner with a long-handled brush, no visible text or symbols on the device itself.

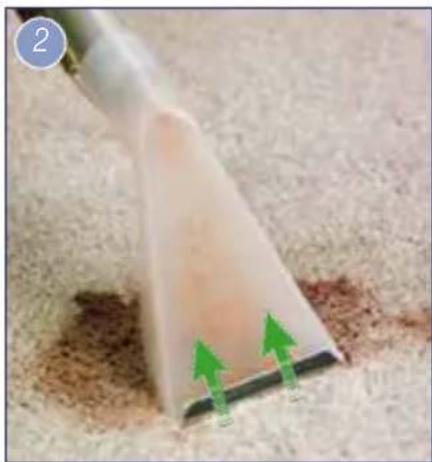

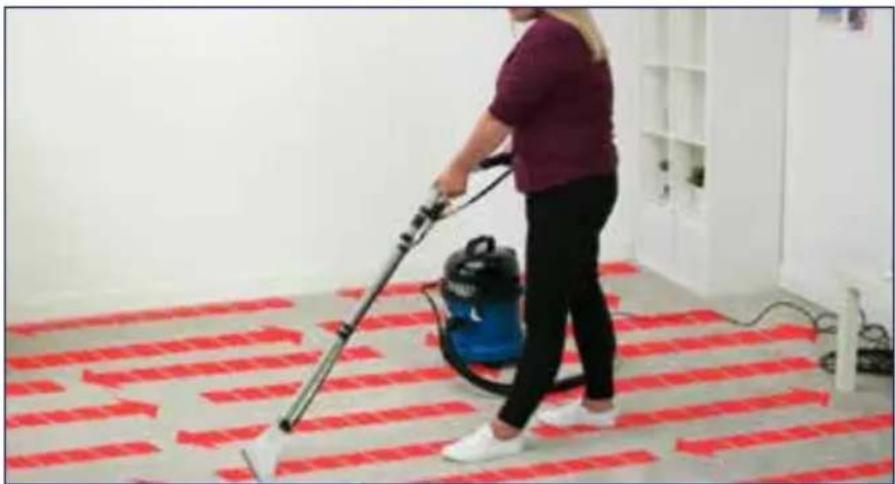

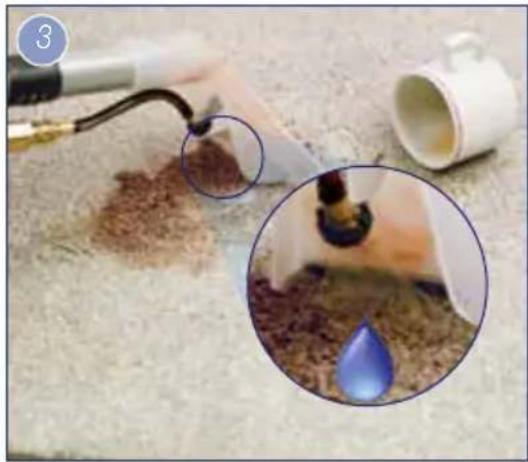

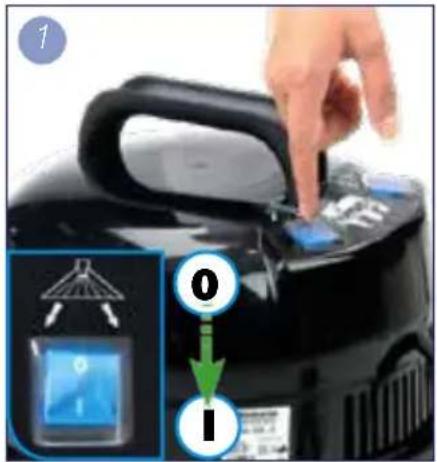

Using your machine (Carpet Cleaning)-Bedienung der Maschine (Teppichreinigung)-Utilisation de la machine (nettoyage de moquette)-Bediening van de machine (tapijten reinigen)-Utilização da máquina (limpeza de alcatifas)-Uso della macchina (pulizia di tappeti)-Uso de la máquina (limpieza de alfombras)-Obsługa urządzenia (czyszczenie dywanów)

Close-up of a hand holding a flexible hose with black and gold connectors, no visible text or symbols

Close-up of a soldering iron on a textured surface with a magnified inset showing a droplet being poured into a container (no text or symbols visible)

Close-up of a white cream cone with green arrows pointing to it, placed on a textured surface (no text or symbols visible)

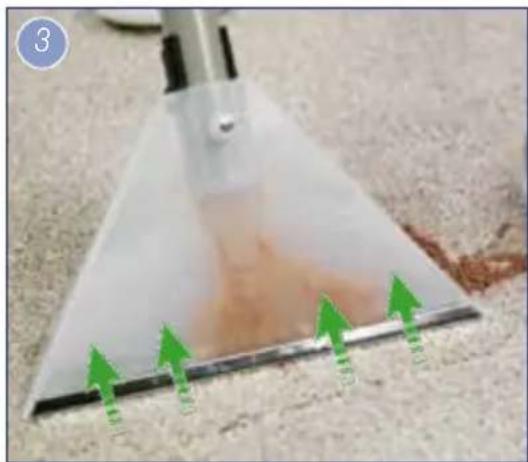

Close-up of a white triangular object with green arrows pointing to its surface, placed on a textured surface (no text or symbols visible)

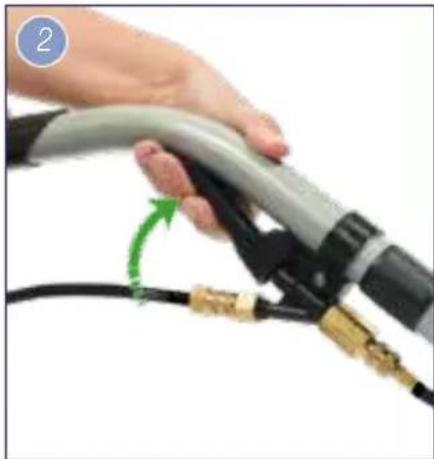

Close-up of a hand holding a white spray gun with black hoses and brass connectors, showing a green directional arrow (no text or symbols)

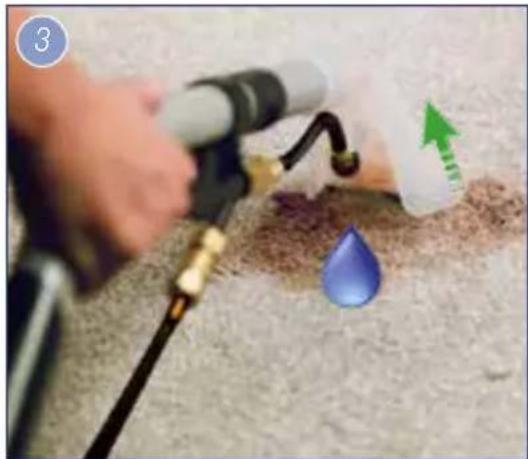

Close-up of a hand using a coiled iron to spray blue liquid onto a textured surface, with an upward arrow and droplet symbol nearby (no text or symbols present)

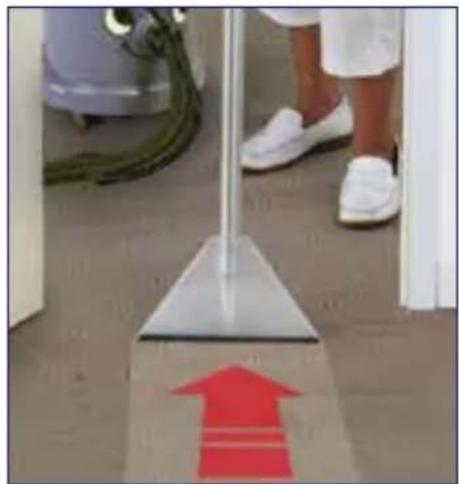

Person cleaning a room with a vacuum cleaner and red patterned floor tiles (no visible text or symbols)

Interior view of a room with a red upward arrow and floor-mounted equipment (no visible text or symbols)

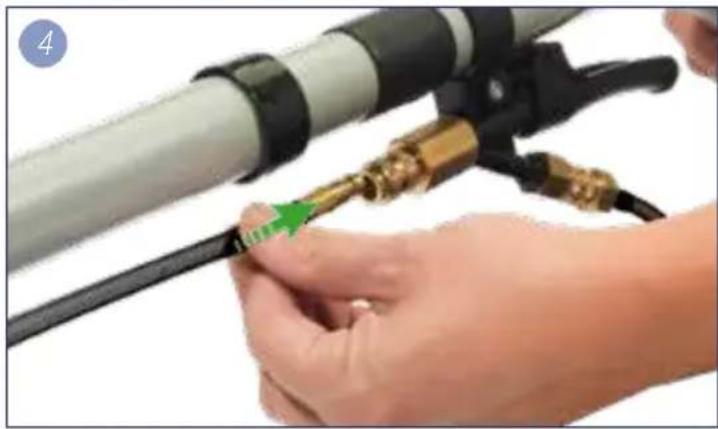

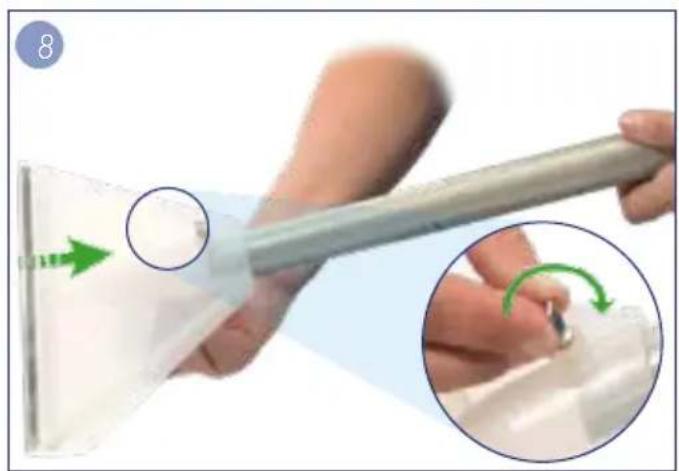

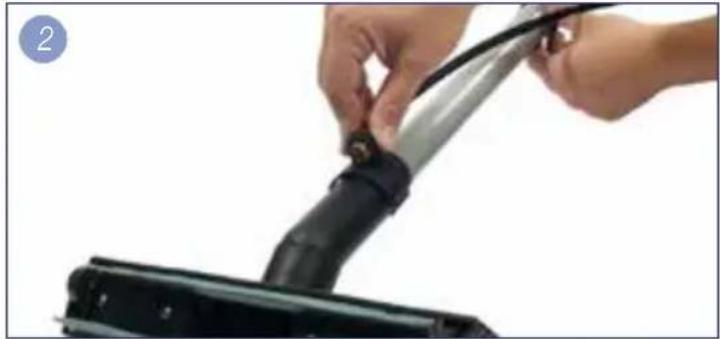

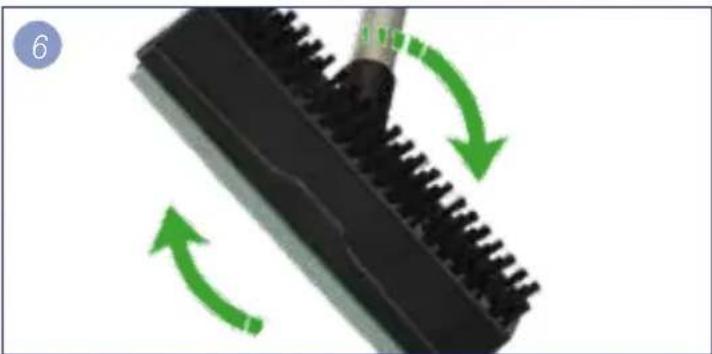

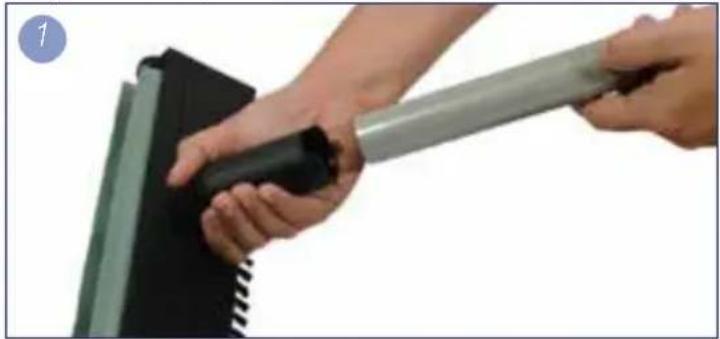

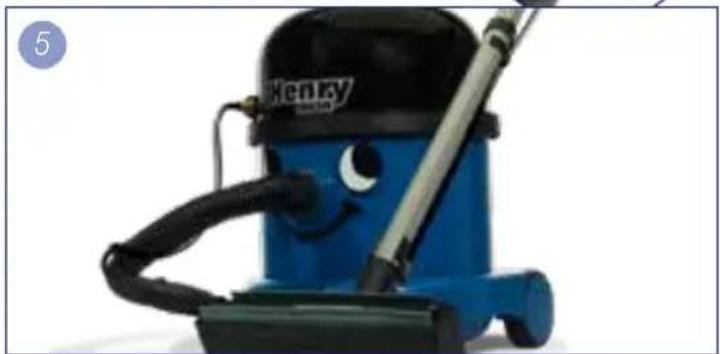

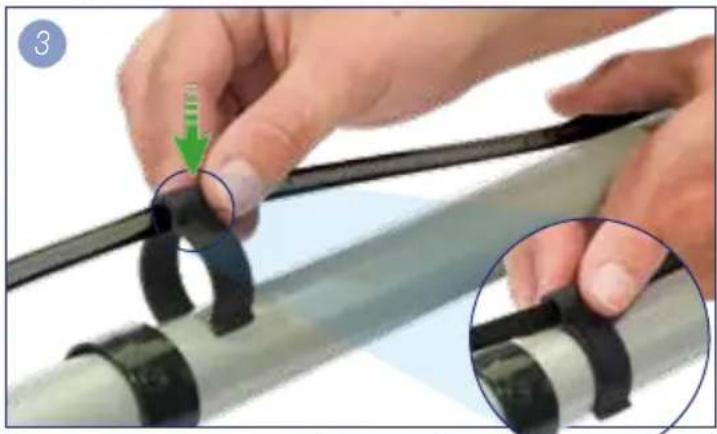

Hard Floor Assembly-Hartboden-Baugruppe-Montage de l'accessoire pour sols durs-Opzetstuk voor harde vloeren-Unidade para pavimentos duros-Gruppo per pavimenti duri-Montaje para limpieza de suelos-Zespół do czyszczenia twardych pokryć podłogowych

Assemble machine steps 1-5 (Page 3), Zusammenbau der Maschine – Schritt 1–5 (siehe Seite 3), Assemblage de la machine, étapes 1 à 5 (cf. page 3), Montage van de machine stappen 1 t/m 5 (zie pagina 3), Passos para montagem da máquina 1-5 (ver a página 3), Fasi di montaggio della macchina 1-5 (vedere pag. 3), Montaje de la máquina, pasos 1-5 (véase la página 3), Montaż urządzenia kroki 1-5 (patrz strona 3)

Close-up of hands using a handheld device to interact with a black object (no visible text or symbols)

Close-up of hands using a cable to lift a black cable into a device (no text or symbols visible)

Close-up of hands holding a flexible cable with black clips, showing a green arrow indicating the process (no text or symbols visible)

Close-up of hands using a hair curling iron on a cable, with a green arrow indicating the cable's tip (no text or symbols visible)

Blue Henry vacuum cleaner with black cover and hose, no visible text or symbols on device body

Close-up of a black textured brush with serrated texture, showing green circular arrows indicating rotation or movement (no text or symbols)

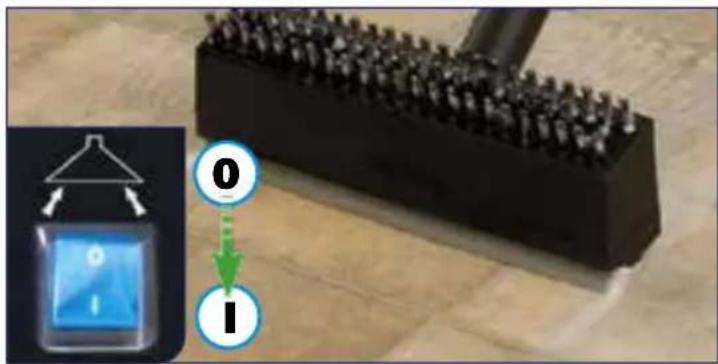

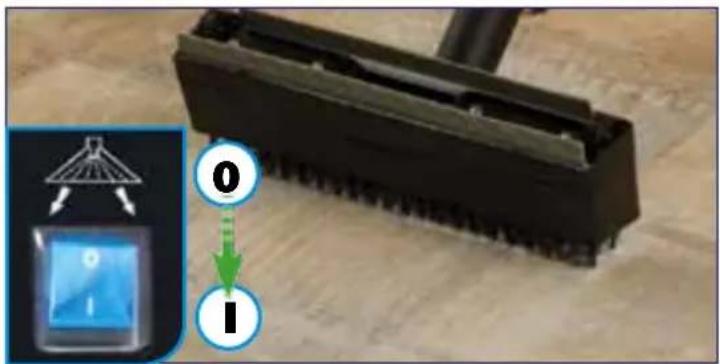

Using your machine (Hard Floor Cleaning)-Bedienung der Maschine (Hartbodenreinigung)-Utilisation de la machine (nettoyage de sols durs)-Bediening van de machine (harde vloeren reinigen)-Utilização da máquina (limpeza de pavimentos duros)-Uso della macchina (pulizia di pavimenti duri)-Uso de la máquina (limpieza de suelos)-Obsługa urządzenia (czyszczenie twardych powierzchni podłogowych)

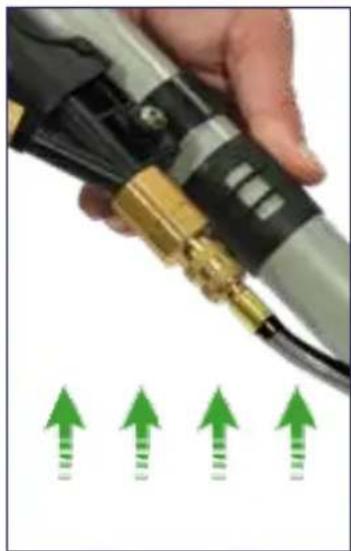

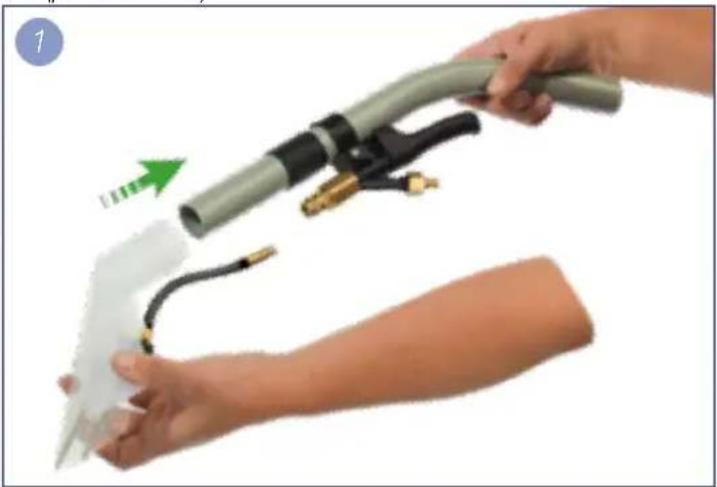

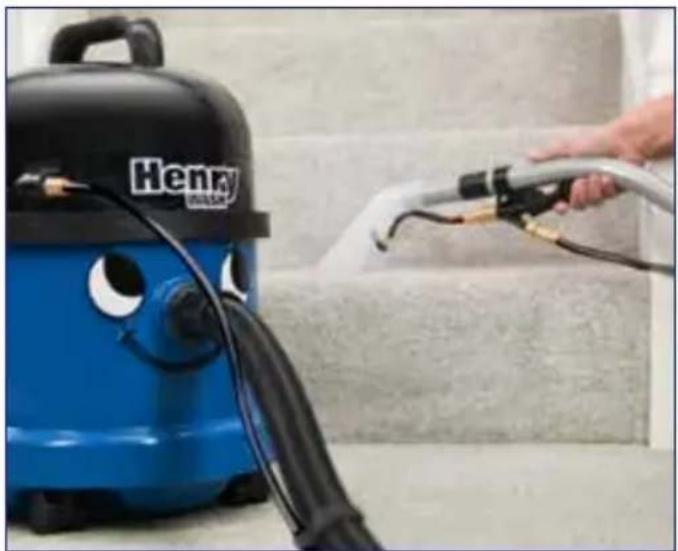

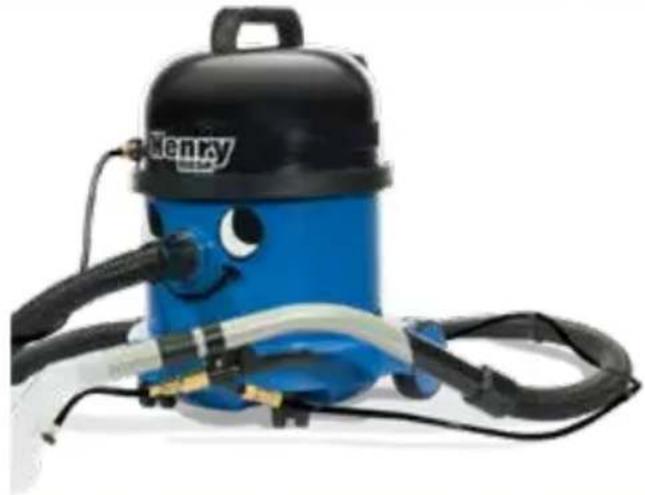

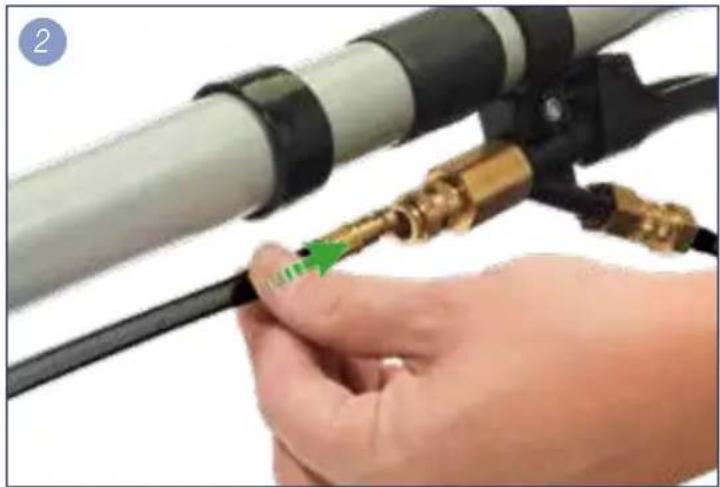

Upholstery Cleaning Assembly -Polsterreiniger-Baugruppe-Montage de l'accessoire pour garnitures d'ameublement-Opzetstuk voor het reinigen van bekleding-Unidade de limpeza de estofos-Gruppo di pulizia per tappezzeria-Montaje para limpieza de tapicerías-Zespół do czyszczenia tapicerki

Assemble machine steps 1-4 (Page 3), Zusammenbau der Maschine – Schritt 1–4 (siehe Seite 3), Assemblage de la machine, étapes 1 à 4 (cf. page 3), Montage van de machine stappen 1 t/m 4 (zie pagina 3), Passos para montagem da máquina 1-4 (ver a página 3), Fasi di montaggio della macchina 1-4 (vedere pag. 3), Montaje de la máquina, pasos 1-4 (véase la página 3), Montaż urządzenia kroki 1-4 (patrz strona 3)

Person holding a spray gun with attached hose and arm, showing motion direction (no text or symbols)

Close-up of a hand using a hair curling iron on a black cable, with a green connector inserted (no text or symbols visible)

Blue and black electricity purifier with hoses and a 'Henry' label (no other text or symbols visible)

Using your machine (Upholstery Cleaning)-Bedienung der Maschine (Polsterreinigung-Utilisation de la machine (nettoyage de garnitures d'ameublement))-Bediening van de machine (bekleding reinigen))-Utilização da máquina (limpeza de estofos)-Uso della macchina (pulizia di tappezzeria)-Uso de la máquina (limpieza de tapicerías)-Obsługa urządzenia (czyszczenie tapicerki)

Blue industrial vacuum cleaner with black hood and hose, placed on stone steps (no visible text or symbols)

Close-up of a hand holding a handheld device with four green upward arrows below indicating motion or pressure (no text or symbols)

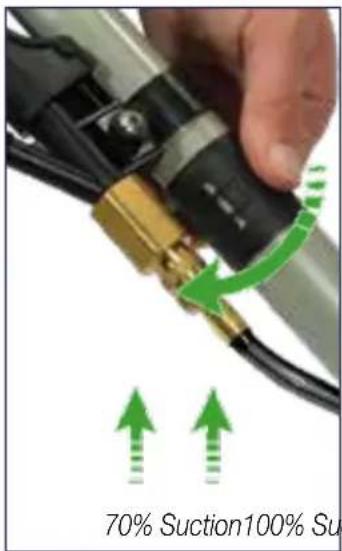

70% Suction100% Suction

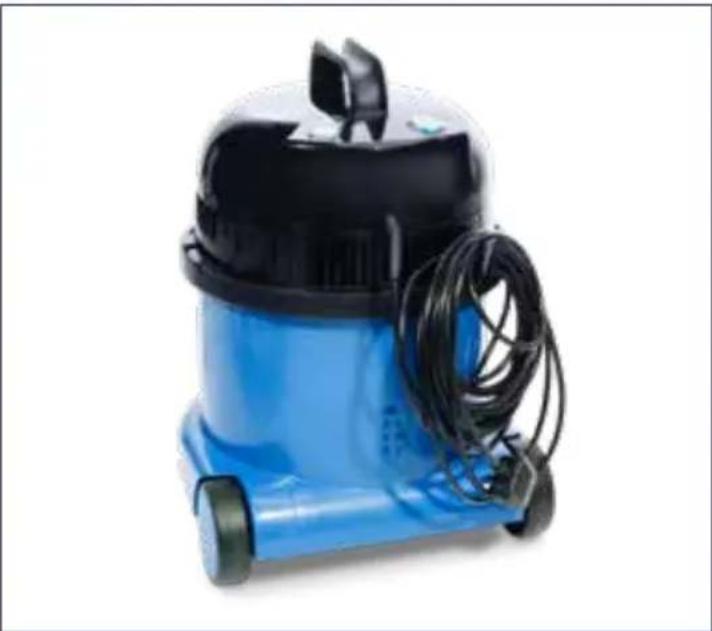

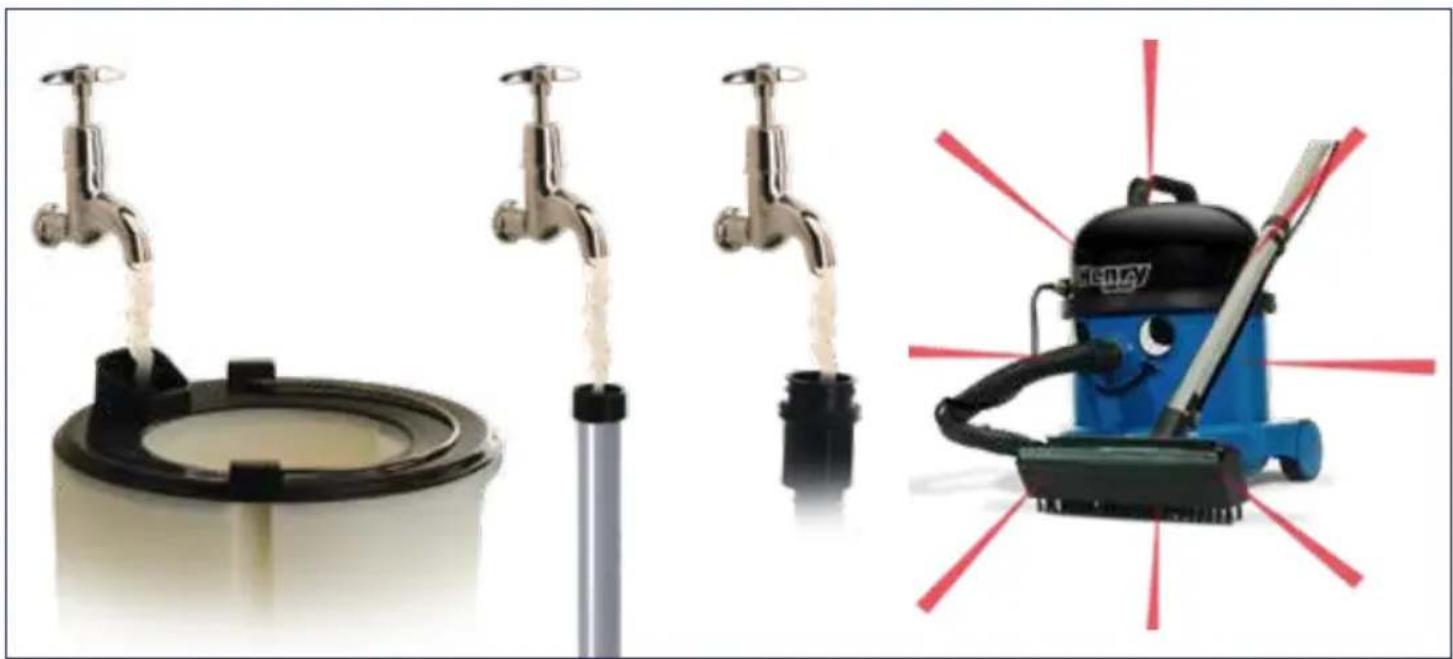

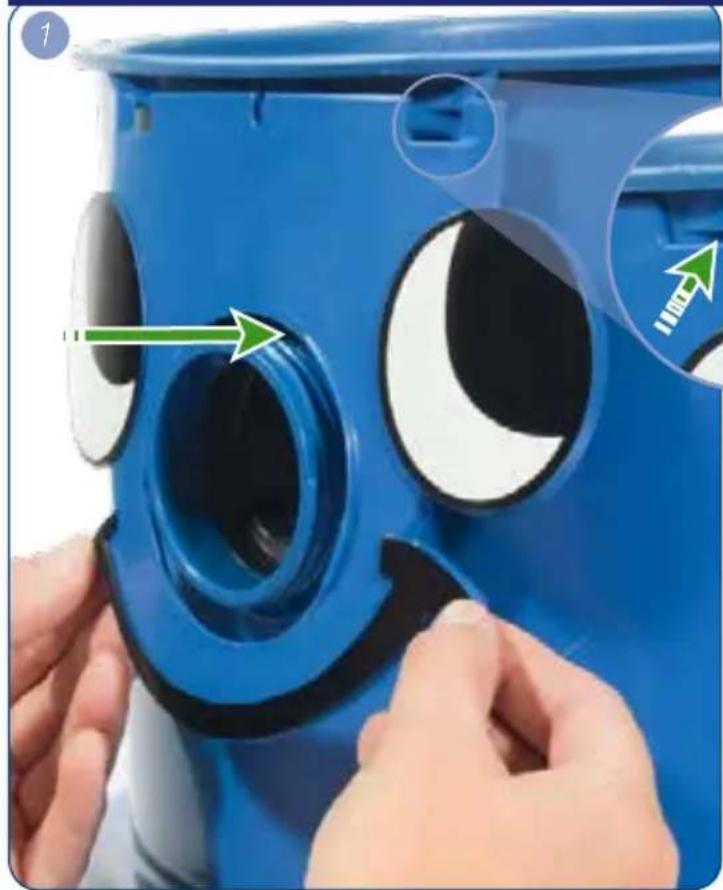

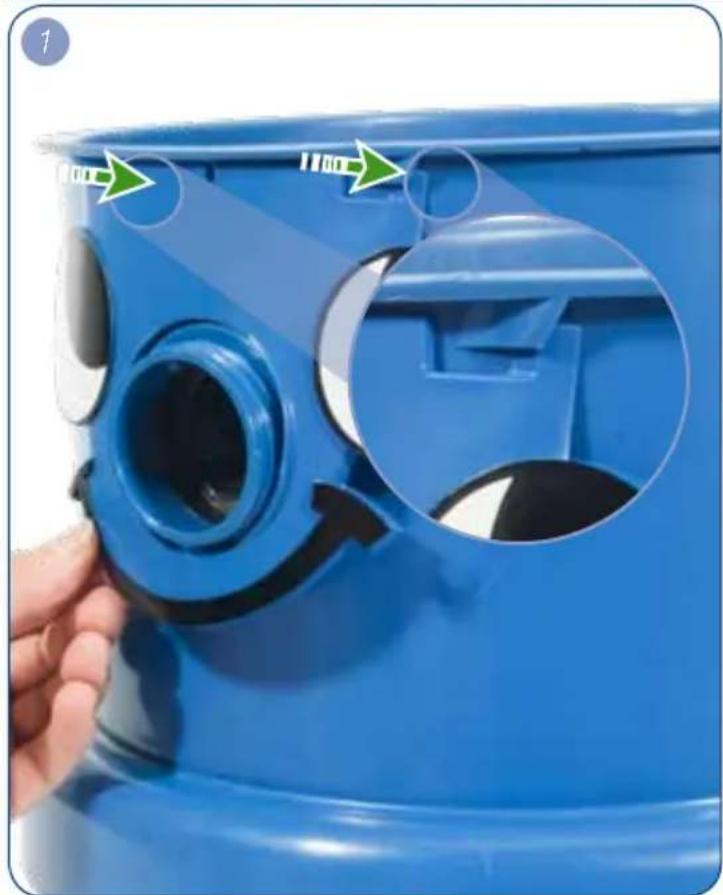

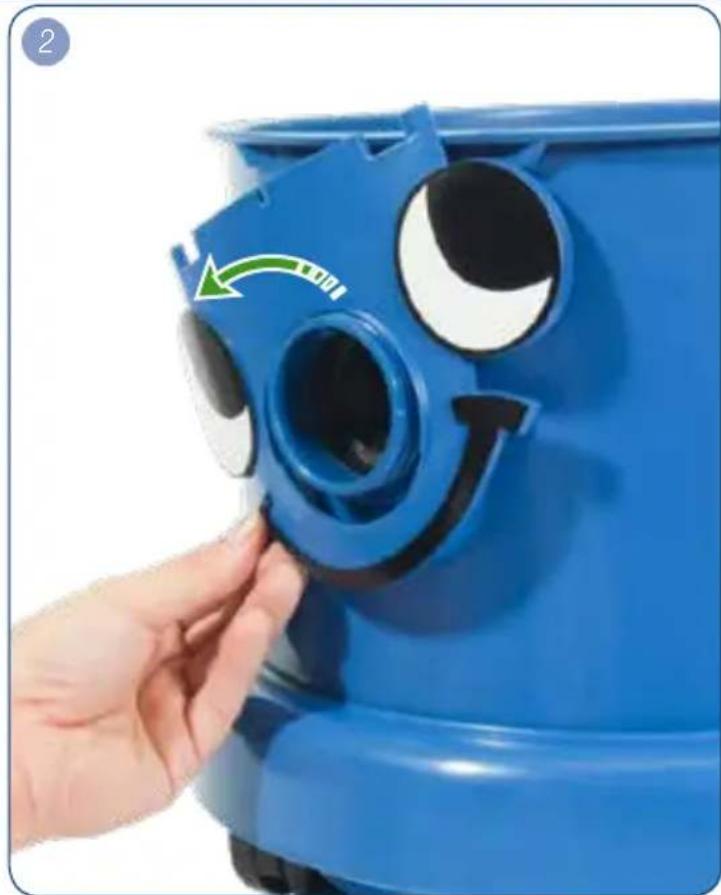

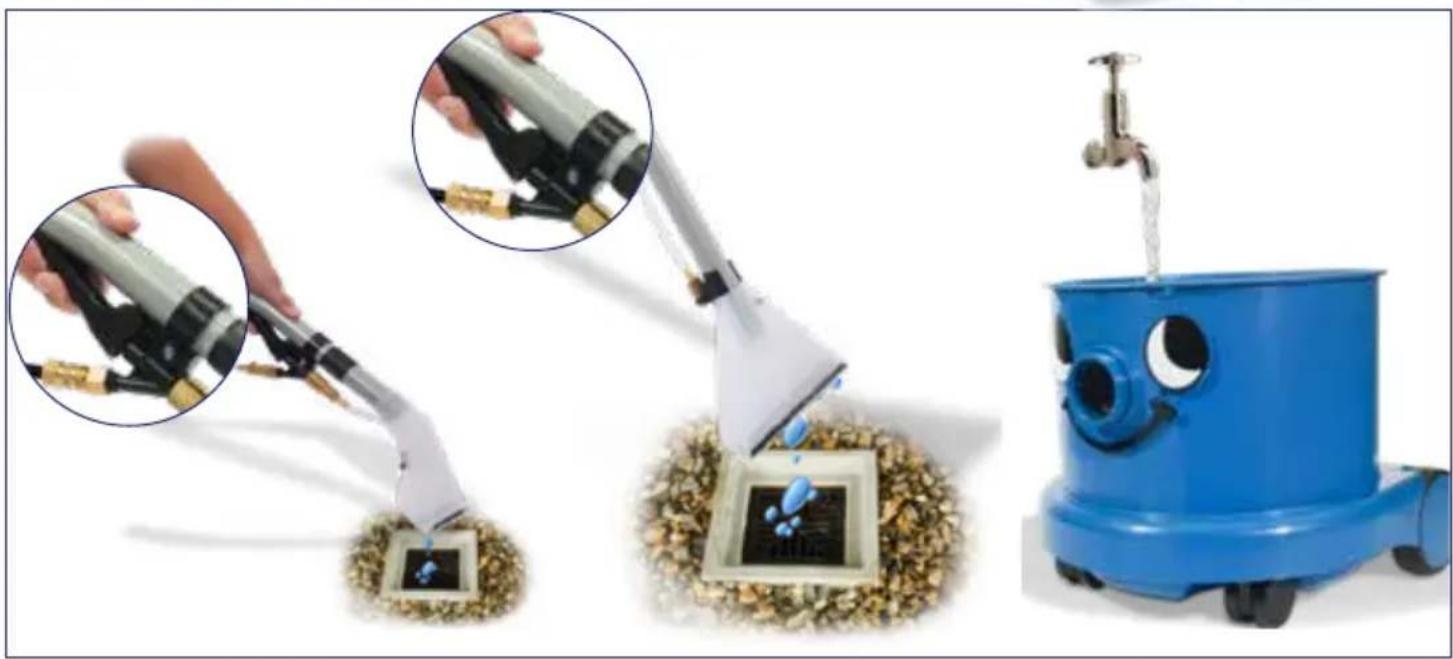

Cleaning - Staubfilterwechsel - Nettoyage - Reiniging - Limpeza-Pulizia apparecchio - Limpieza-Czyszczenie maszyny

Illustration of a blue industrial machine with water being processed using a tool, showing mechanical components and a hand operating it (no text or symbols present)

Illustration of industrial water pumps and a vacuum cleaner with red warning signs (no text or symbols on main objects)

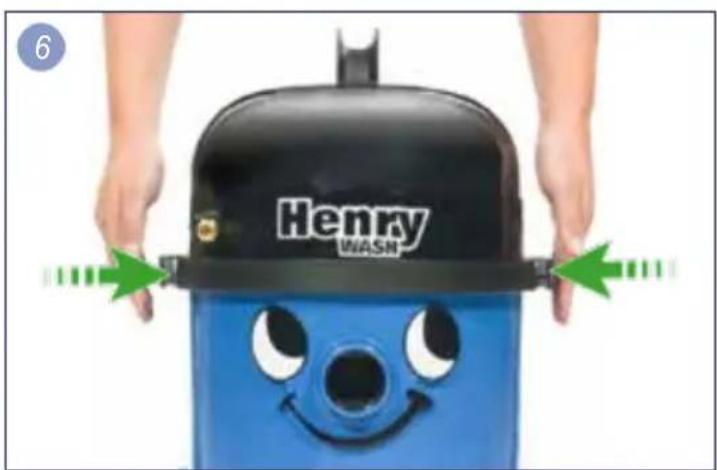

Fitting the Face - Aufstecken des Gesichts Montage du visage - Het gezicht aanbrengen - Colocar a cara -Montaggio frontale - Montaje de la cara- Zakładanie obudowy

Close-up of hands installing a blue plastic container with cartoon eyes and a handle, showing mechanical components (no text or symbols visible)

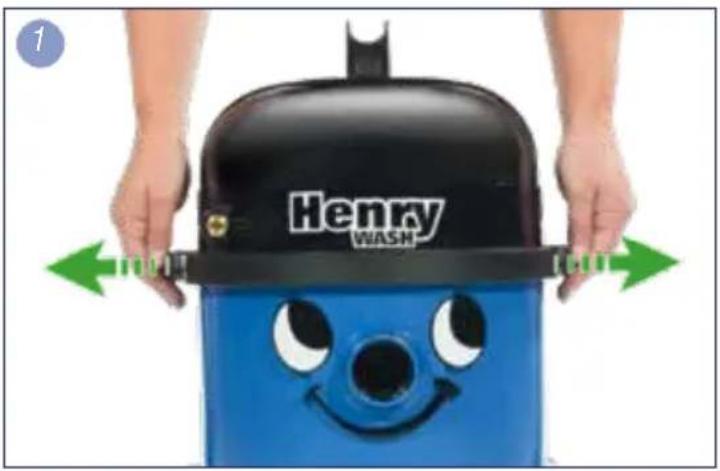

Removing the Face - Entfernen des Gesichts - Démontage du visage - Het gezicht verwijderen - Retirar a cara - Smontaggio frontale - Desmontaje de la cara - Zdejmowanie obudowy

Close-up of a blue plastic container with circular cutouts and a hand adjusting it (no text or symbols visible)

Close-up of a hand inserting a plastic bin into a blue recycling bin with cartoon eyes and a green arrow indicating rotation (no text or symbols)

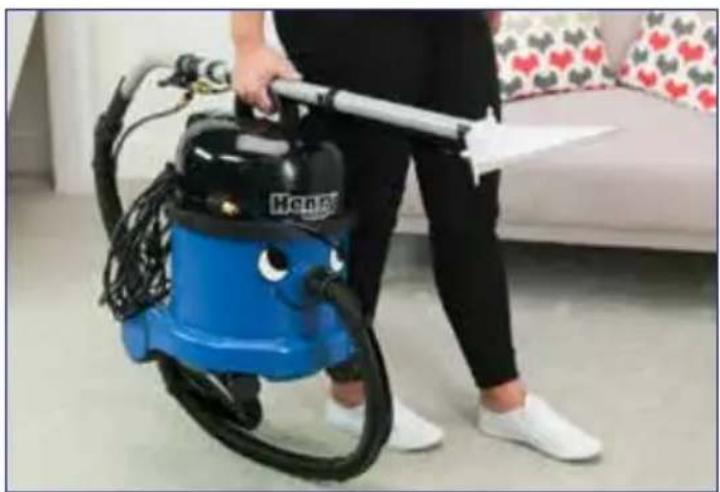

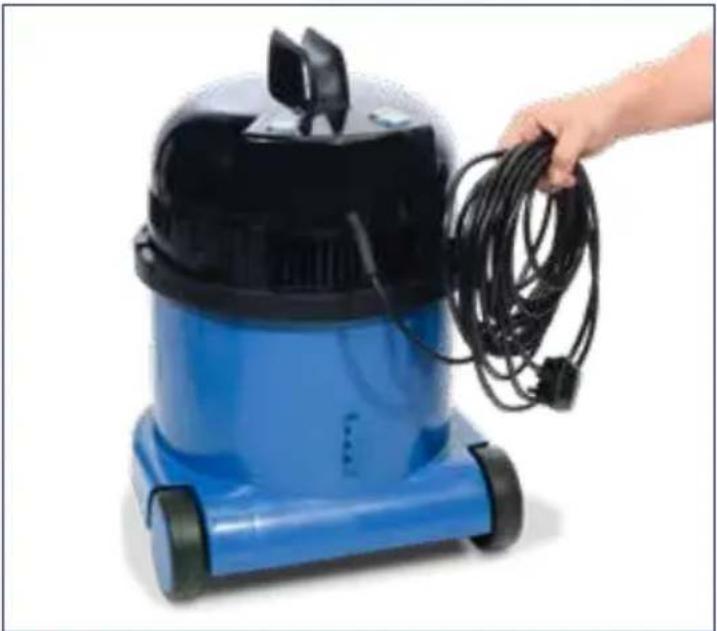

Carrying your Henry Wash & Cable Storage-Transport des Henry Wash & Cable Storage-

Person using a blue and black HEPAN vacuum cleaner in a living room with patterned pillows (no visible text or symbols)

Blue and black vacuum cleaner with attached cable, no visible text or symbols

Blue and black vacuum cleaner with coiled cable, isolated on white background (no text or symbols visible)

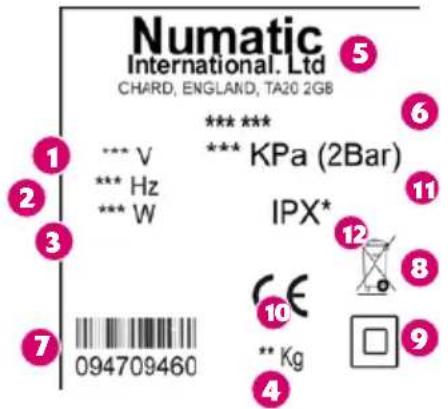

1	Voltage	7	Machine yr/wk Serial number
2	Frequency	8	WEEE Logo
3	Rated Input Power	9	Protection Class 2 Symbol
4	Weight (ready to work)	10	CE Mark
5	Company Name & Address	11	MAX pressure
6	Model	12	Splash proof rating

PPE (personal protective equipment) That may be required for certain operations.

Ear Protection Safety	Footwear Head Protection	Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	hi Vis Jacket	Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Components

Mains Leads:

HO5-W-F 10 x 2 x 1.00 mm²

WEEE Legislation

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline [phone].

Warning!

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

The machine is not to be used by children or persons with reduced physical, sensory or

mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

Caution

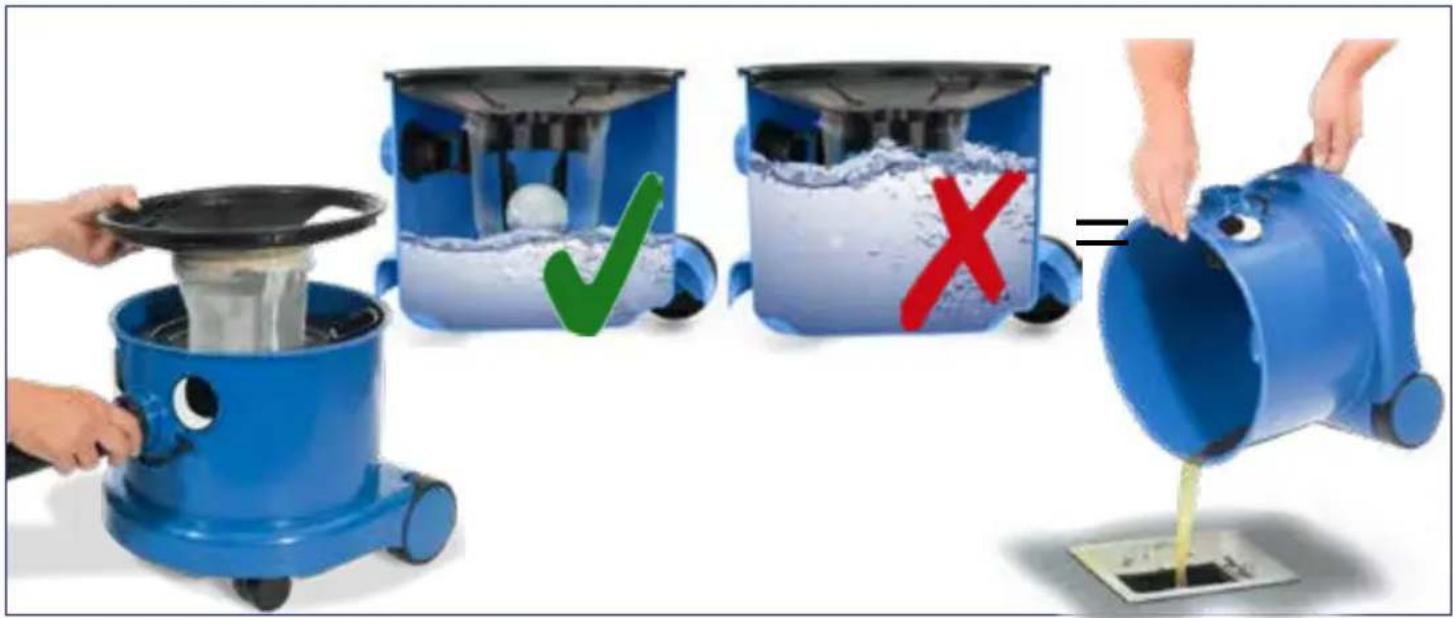

If foam/liquid comes out of machine exhaust, switch off immediately.

Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dust. You should contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only.

When moving from one place to another, consider the weight of the machine.

Notes

This product complies with the requirements of IEC/EN 60335-2-68.

This product complies with the requirements of IEC/EN 60335-2-69.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices. If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage, switch off, remove the plug from the socket outlet, and inspect the floor tool, wands and hose for debris. If the floor tool, wands and hose are clear.

The vacuum cleaner should be inspected after use for damage.

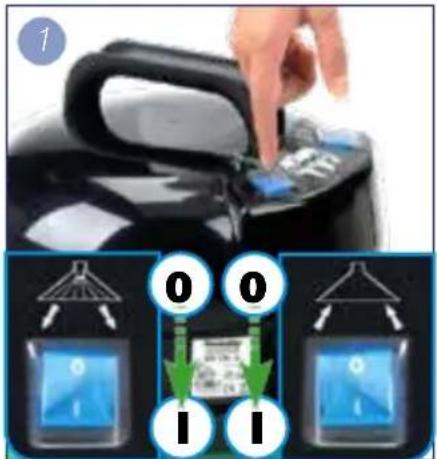

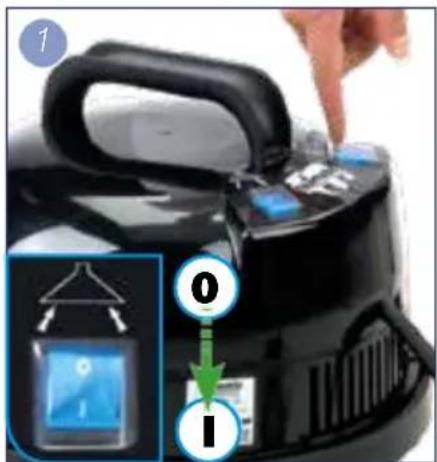

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

Do

• Keep your machine clean.
• Keep filters clean.
  • Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part.
• Keep diffuser filter (where fitted) clean.

Don't

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
- Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.
• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
• Walk on clean carpets until fully dry.
• Spray onto people or animals.
- Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.

Fault Finding

This machine can be used for wet pick up and cleaning carpet and upholstery

Spray extraction machines only

• Use only approved cleaning preparations.
• Use defoamer if necessary.

Use of detergents

When using any detergent with this machine, please ensure you have read the safety data on the container and you are familiar with the procedures to clear up spills, inhalation, skin and eye contact.

Wet mode / Spray extraction maintenance/fault finding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies.

If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

If the spray nozzle is blocked a pin maybe used to clear the blockage.

No spray from nozzle and the pump tone changes, the solution tank is empty, refill the solution tank.

Flush the system with clean water after use.

After use always inspect the machine for damage.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

DE

Warnung!

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

FR

Attention!

Simple line drawing of a trash bin with diagonal lines crossing through it (no text or symbols)

NL

Waarschuwing!

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

We hereby declare under our sole responsibility that the following equipment fulfs all the relevant provisions of the following EU Directives

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EJ

RoHS Directive 2011/65/EU

Machine Description: vacuum claims

Machine Type: GVF, CT, CTT, HUW Series

Relevant standards upon which conformity is declared include:

EN 60315-1: 2012 + AC:2014 + A11:2014

EN 60315-2-69:2012

FN 80935.2.68: 2017

EN 550:4-1:2026+A1:2009+A2:2013

EN SSD.4-2:1997+A1:2001+A2:2008

EN 62231:2078

A technical construction file for this equipment is retained at the manufacturer's address under the authorisation of the following signatory:

Name:

Allyn Boyes

Position:

Development Manager

Signed

Mauratic International Ltd

Chel's Sachevler Zahlinger

THIS DOI

www.mszq.com.cn

GB

17

EU

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Intrinsic International (2d

CHINSONIET

1925.200

www.96maec.com

DE

17

DECLARATION

DE

CONFORMITE EUROPEENNE

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Type: GVE, CT, CTT, HYW Series.

Nueritas International Ltd

Chard Sumnerlet

10.25

2014年1月1日

FR

17

EU

CONFORMITEITSVERKLARING

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Model: GVE, CT, CTT, HVW Series

Berkshire International Ltd

E420-268

www.ryematic.co.uk

NL

17

DECLARAÇÃO DE

CONFORMIDADE

DA UNIÃO

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Tipo: GVE, CT, CTT, HVW Series

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Modello: GVE, CT, CTT, HVW Series.

Numatic International Ltd

Chard Sonario

TA20 168

www.noahore.com

IT

17

DECLARACION DE

CONFORMIDAD

DE LA UNIÓN EUROPEA

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Numeric International Ltd

Chard Somerset

TAJO 218

ES

17

EUROPEJSKA DEKLARACJA

ZGODNOŚCI

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

Model: GVE, CT, CTT, HVW Series.

producenta as upcaskioniem:

Imię i Nazwisko

Allyn Bayes

Numatic International Limited.

Chard, Somerset TA20 2GB ENGLAND

Tel.: [phone] www.numatic.co.uk

Numatic International GmbH. Fränkische Straße 15-19

D-30455 Hannover, DEUTSCHLAND

Tel.: [phone] www.numatic.de

Numatic International SAS. 13 / 17 rue du Valengelier

77500 CHELLES, FRANCE

Tel: [phone] www.numatic.fr

BeNeLux Distribution, Numatic International BV

16th & Pharmaceutical Roads, Midrand, Gauteng, SOUTH AFRICA 1685

Tel: [phone] www.numatic.co.za

Numatic International Schweiz AG.

Sihlbruggstrasse 142, 6340 Baar. SCHWEIZ

Tel: [phone] - 0 www.numatic.ch

This Product has been comprehensively inspected and checked during every stage of its manufacture, including an in-depth electrical safety and functionality test.

Specification subject to change without prior notice

www.numatic.co.uk © Numatic International Limited
