Device Type	Filter Coffee Machine
Manufacturer Reference	1025-06
Power	1,080 W
Tank Capacity	1.25 liter (10 cups)
Weight	2.40 kg
Dimensions (H x W x D)	335 x 240 x 210 mm
Carafe Type	Glass Carafe
Filter Format	1x4
Strength Selector	Patented AromaSelector (mild to strong)
Programmable Keep Warm	20, 40, or 60 minutes
Automatic Shut-off	Yes
Removable Tank	Yes
Integrated Anti-drip	Yes
Limescale Protection	3-in-1 (indicator, programmable hardness, automatic descaling)
Dishwasher Compatibility	Carafe, lid, filter insert
Materials	Stainless steel and plastic

Frequently Asked Questions - Look V Perfection MELITTA

How many cups can be prepared with the Melitta Look V Perfection?

The coffee maker can prepare up to 10 cups at once. The removable reservoir has a capacity of 1.25 liters, with readable graduations in the number of cups for precise dosing.

How to adjust the coffee intensity with the AromaSelector?

Simply turn the patented AromaSelector before starting the preparation. It allows you to choose between a mild and a strong intensity by adjusting the water flow over the coffee grounds.

How to program the warming duration?

Before starting the preparation, select the desired duration: 20, 40, or 60 minutes. Once this time has elapsed, the machine automatically turns off to save energy.

What paper filters should be used with this drip coffee maker?

Use filters of size 1x4, the standard size for drip coffee makers. The swing filter holder makes it easy to insert and remove the used filter.

How does the automatic shut-off work?

The Look V Perfection automatically turns off at the end of the warming duration you have programmed (20, 40, or 60 minutes). This safety feature is active with every use.

Can the carafe be removed during preparation?

Yes. The filter holder features a drip-stop system that stops the flow as soon as you remove the carafe, preventing stains or overflow on the warming plate.

How to descale the Look V Perfection?

The machine is equipped with a 3-in-1 limescale protection: a calcification level indicator, a programmable water hardness setting, and an automatic descaling program. When the indicator lights up, follow the guided program steps described in the manual.

How to set the water hardness to adjust descaling?

The water hardness is programmable directly on the machine. This setting allows you to adjust the maintenance frequency to your region. The more calcareous the water, the more frequent the descaling cycles will be.

Which parts are dishwasher safe?

The glass carafe, its lid, the reservoir lid, and the filter insert are dishwasher safe. The main body of the machine should never be immersed in water.

Why does the coffee flow slowly or overflow from the filter?

This issue is often caused by too fine a grind or too much coffee in the filter. Use a grind suitable for drip coffee makers (medium granularity). If the flow remains slow, run a descaling cycle.

How to easily fill the water reservoir?

The reservoir is fully removable: remove it, fill it at the tap to the graduation corresponding to the desired number of cups, and then replace it on the machine.

What is the power of the coffee maker and is it noisy?

The Look V Perfection operates with a power of 1,080 watts. Like all drip coffee makers with a resistance, the heating noise is moderate and limited to the preparation duration (a few minutes).

USER MANUAL Look V Perfection MELITTA

Line drawing of a coffee maker with digital display and control buttons (no text or symbols)

Inhaltsverzeichnis

Technical line drawing of a car interior showing structural components and mounting points (no text or labels)

Technical line drawing of a funnel-shaped device with internal blades and a circular housing (no text or symbols)

Electrical and Electronic Equipment).

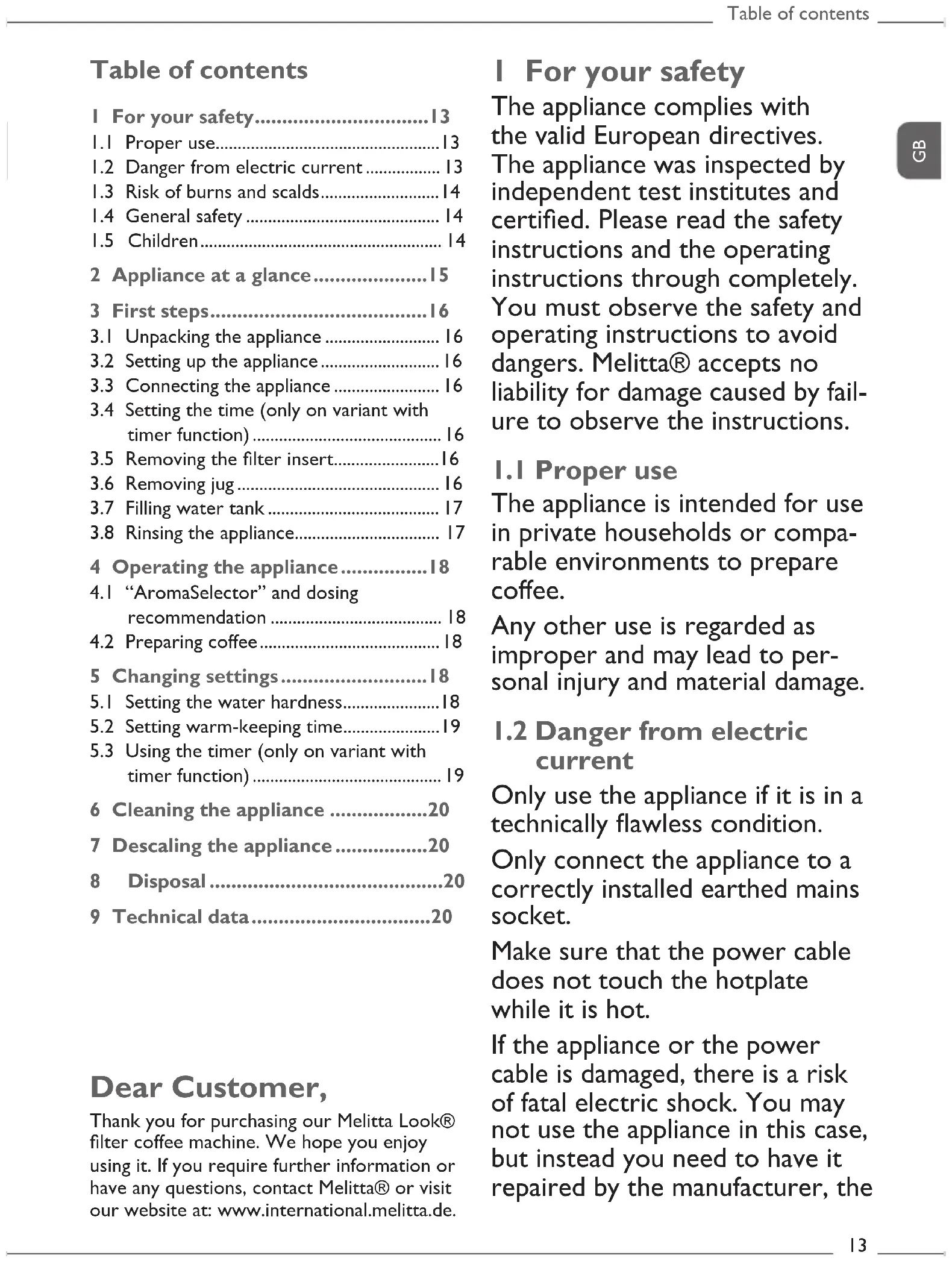

Table of contents

I.1 Proper use....13
1.2 Danger from electric current.... 13
1.3 Risk of burns and scalds....14
1.4 General safety 14
1.5 Children.... 14

I For your safety......13
2 Appliance at a glance......15
3 First steps....16
3.1 Unpacking the appliance .... 16
3.2 Setting up the appliance....16
3.3 Connecting the appliance 16
3.4 Setting the time (only on variant with timer function)....16
3.5 Removing the filter insert....16
3.6 Removing jug....16
3.7 Filling water tank 17
3.8 Rinsing the appliance.... 17
4 Operating the appliance......18
4.1 "AromaSelector" and dosing recommendation .... 18
4.2 Preparing coffee....18
5 Changing settings......18
5.1 Setting the water hardness.....18
5.2 Setting warm-keeping time....19
5.3 Using the timer (only on variant with timer function)....19
6 Cleaning the appliance ....20
7 Descaling the appliance......20
8 Disposal......20
9 Technical data....20

Dear Customer,

Thank you for purchasing our Melitta Look® filter coffee machine. We hope you enjoy using it. If you require further information or have any questions, contact Melitta® or visit our website at: www.international.melitta.de.

I For your safety

The appliance complies with the valid European directives. The appliance was inspected by independent test institutes and certified. Please read the safety instructions and the operating instructions through completely. You must observe the safety and operating instructions to avoid dangers. Melitta® accepts no liability for damage caused by failure to observe the instructions.

I.1 Proper use

The appliance is intended for use in private households or comparable environments to prepare coffee.

Any other use is regarded as improper and may lead to personal injury and material damage.

I.2 Danger from electric current

Only use the appliance if it is in a technically flawless condition.

Only connect the appliance to a correctly installed earthed mains socket.

Make sure that the power cable does not touch the hotplate while it is hot.

If the appliance or the power cable is damaged, there is a risk of fatal electric shock. You may not use the appliance in this case, but instead you need to have it repaired by the manufacturer, the

customer services or a service partner.

You must not immerse the appliance in water or let the power cable come into contact with water.

Disconnect the appliance from the power supply when left unsupervised for a long time.

I.3 Risk of burns and scalds

The coffee and steam produced are very hot. Avoid direct contact with the flowing coffee and the steam. Do not open the hinged filter holder during preparation.

The jug and the hotplate become very hot during preparation and also remain hot for a long period after preparation. Do not touch the jug or the hotplate when they are hot. Touch the hot jug only by the jug handle.

I.4 General safety

Do not operate the appliance in a cabinet.

Do not reach into the interior of the appliance during operation.

You may not open the housing or manipulate the appliance in any other way.

You may not use the jug in a microwave.

Do not use abrasive cleaning agents or scouring milk to clean parts that come into contact with food. Remove the remains of the cleaning agents with clear water.

1.5 Children

Children must not be allowed to play with the appliance.

You must keep children who are younger than 8 years away from the appliance.

This appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, but only if they are supervised or have been instructed in using the appliance safely and understand the resulting risks.

Cleaning and maintenance must not be undertaken by children younger than 8 years of age.

Children older than 8 years of age must be supervised during cleaning and maintenance.

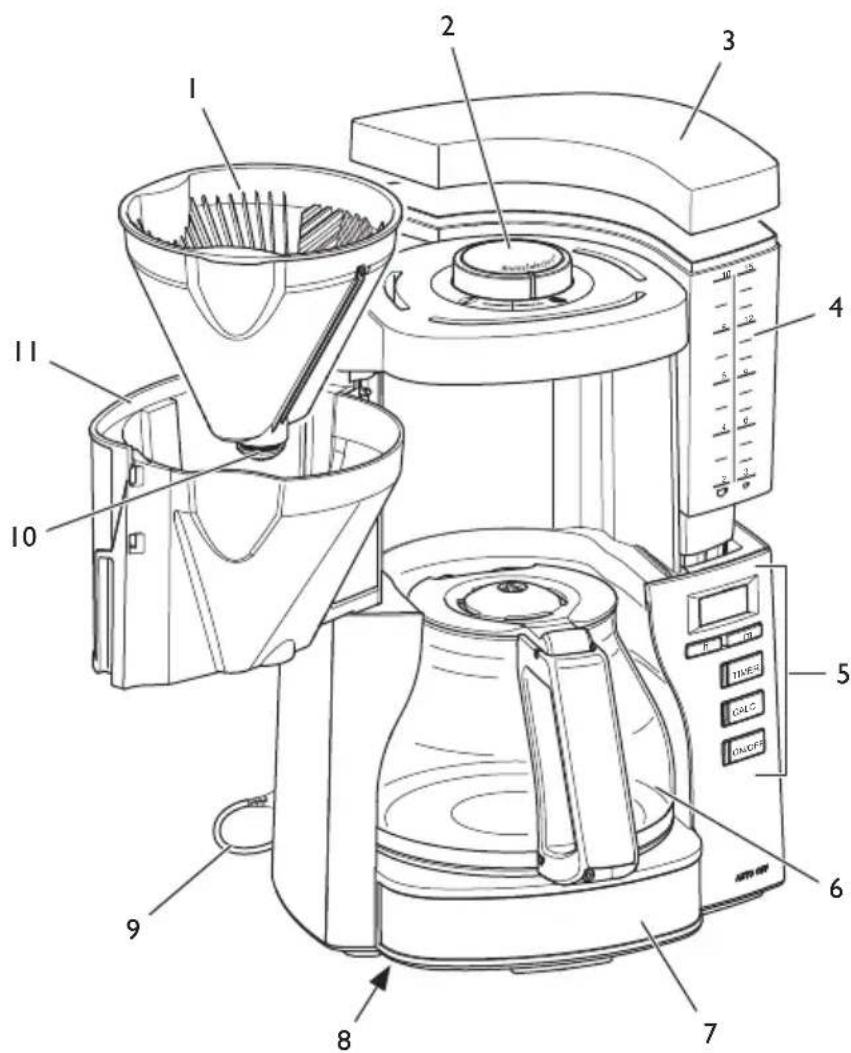

2 Appliance at a glance

I Filter insert
2 AromaSelector
3 Water tank lid
4 Water tank
5 Control panel
6 Jug with jug lid
7 Hotplate
8 Cable-winding facility
9 Power cable
10 Drip stop
II Hinged filter holder

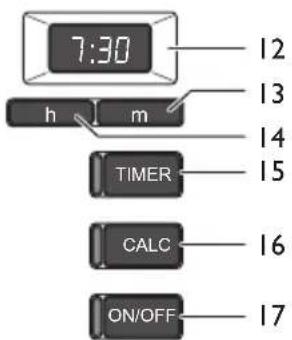

Variant with timer function

12 Display
13 "Minutes" button
14 "Hours" button
15 "TIMER" button with white lamp
16 "CALC" button with red lamp
17 "ON/OFF" button with green lamp

Variant without timer function

16 "CALC" button with red lamp
17 "ON/OFF" button with green lamp

3 First steps

3.1 Unpacking the appliance

Remove the packaging material and the adhesive strips from the appliance. Please keep the original packaging.

3.2 Setting up the appliance

■ Set up the appliance in a dry room.
- Set up the appliance on a stable, flat and dry surface. The surface may not be hot. The appliance may not be placed in the vicinity of sinks or the like.
- Route the power cable so it does not lie over edges or cannot be damaged by hot surfaces or the hotplate.

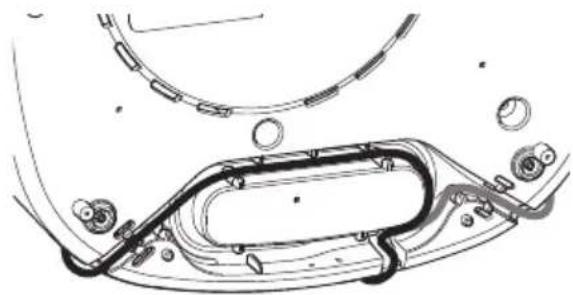

■ Store the length of cable that you do not need in the cable-winding facility in the base of the appliance.

Technical line drawing of a mechanical assembly with no visible text or symbols

3.3 Connecting the appliance

Only connect the appliance to an easily accessible, properly installed earthed mains socket. After connecting, all lamps will illuminate briefly one after the other.

Full isolation from the mains is achieved by disconnecting the mains plug.

3.4 Setting the time (only on variant with timer function)

After connecting, the time will flash on the display and ask you to set the time. The appliance will not be ready for use until you set the time.

m

Press the "Hours" and "Minutes" buttons to set the

time. Hold down the buttons to run through the hours or minutes faster.

When you disconnect the appliance from the mains and connect it again, you need to set the time again.

You can switch the display lighting on and off with the "Hours" and "Minutes" buttons. Simultaneously press the two buttons for longer than 2 seconds.

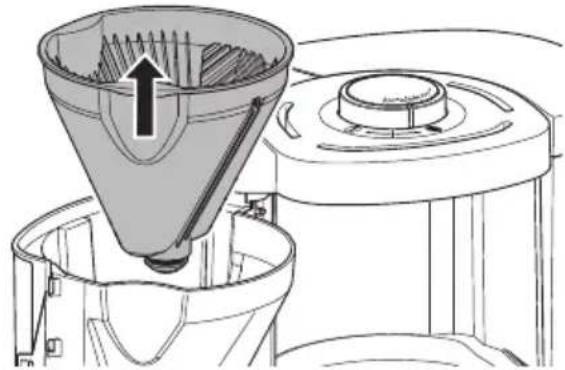

3.5 Removing the filter insert

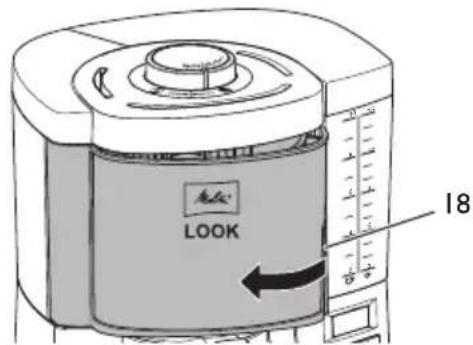

To open the hinged filter holder, reach into the recessed handle (18) and swing out the hinged filter holder to the left up to the stop.

Technical line drawing of a funnel-shaped device with internal blades and a circular control knob (no text or symbols)

Remove the filter insert.

Fit the filter insert before closing and swing the hinged filter holder to the right until you hear it click into place.

Do not use the appliance without the filter insert.

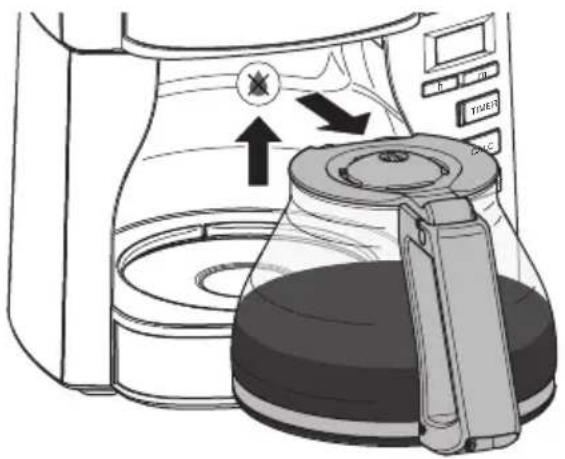

3.6 Removing jug

Always hold the jug by the jug handle when removing and inserting it.

Place the jug correctly on the hotplate so that the jug lid pushes the drip stop up slightly. This opens the drip stop and the coffee can flow into the jug. The drip stop stops coffee dripping when you remove the jug.

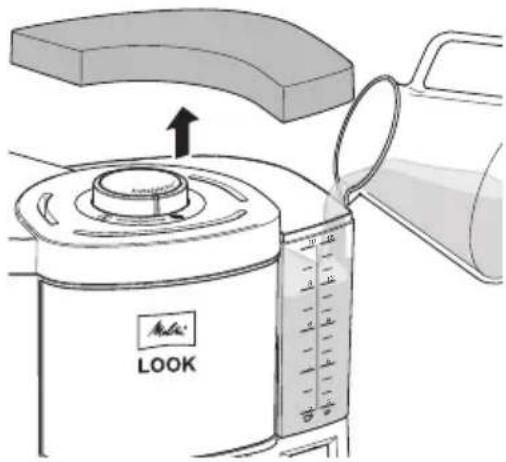

3.7 Filling water tank

The markings on the water tank correspond with the number of cups that you prepare during a brewing process.

Approx. 85 ml coffee per cup

Approx. 125 ml coffee per cup

The brewing process will always use up all of the water in the water tank. Therefore, fill only the quantity of water that you require for the subsequent brewing process. The filled quantity of water may not exceed the 10/15 cup marking as the jug will otherwise overflow.

Fill fresh, clean tap or drinking water into the water tank. Do not use carbonated water or any other liquids.

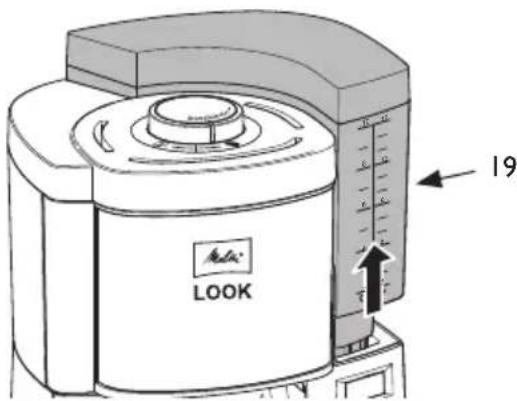

1. Take hold of the recessed handle (19) and pull the water tank vertically upwards out of the appliance.

2 Remove the water tank lid.

1. Fill the water tank with the required quantity of water.

2. Close the water tank with the water tank lid.

3. Insert the water tank vertically from above into the appliance.

Alternatively, you can fill water directly into the water tank while it is still in the appliance by using a suitable vessel.

3.8 Rinsing the appliance

Before using for the first time and after descaling, you need to rinse the appliance twice. You should also rinse the appliance if you do not use the appliance for a longer period.

Rinsing is done without a filter paper and without coffee powder.

I. Fill the water tank with fresh, clear tap water up to the 10/15-cup marking.
2 Make sure that the filter insert is in the hinged filter holder and that the hinged filter holder is closed.
3. Place the jug with closed jug lid under the hinged filter holder.
4. ON/OFF Start the rinsing process with the "ON/OFF" button.

» The "ON/OFF" lamp lights up.
» The rinsing process ends once the water has completely run through.

1. ON/OFF Switch off the hotplate with the "ON/OFF" button.

» The "ON/OFF" lamp goes out.

1. Empty the jug.

Always allow the water to flow through completely and empty the jug.

4 Operating the appliance

Observe the following instructions during preparation:

• Use Melitta® filter papers in the size 1x4®.
• After preparation, dispose of the used filter paper.
• You can end preparation at any time by pressing the "ON/OFF" button again. Some water will continue to flow after you press the button.
• The hotplate also remains switched on after preparation. The hotplate switches off automatically only at the end of the set keep-warm time and the "ON/OFF" lamp goes out.
• Switch off the hotplate with the "ON/OFF" button if there is not a jug with brewed coffee in the appliance.

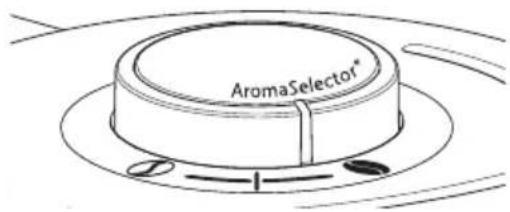

4.1 "AromaSelector" and dosing recommendation

The “AromaSelector” allows you to change the taste with the same quantity of coffee.

① Turn the “AromaSelector” clockwise for a milder coffee.
Turn the "AromaSelector" anticlockwise for a stronger coffee.

Use approx. 6 to 8 g of ground coffee per large cup according to your taste. This figure corresponds with the middle position of the "AromaSelector".

4.2 Preparing coffee

I. Fill the water tank with the required quantity of water.
2 Swing the hinged filter holder to the left up to the stop.

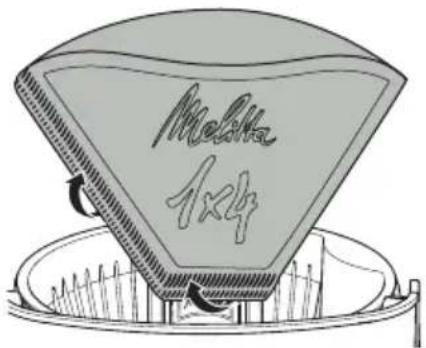

3. Fold a filter paper along the stamped seam.
4. Fit the filter paper in the filter insert. Press it down lightly and into the edges of the filter insert.

1. Fill the filter paper with coffee powder according to the filled quantity of water and your taste.
2. Close the hinged filter holder.
3. Place the jug with closed jug lid under the hinged filter holder.
4. ON/OFF Start the brewing process with the "ON/OFF" button.

» The “ON/OFF” lamp lights up.

» The brewing process ends once the water has completely run through.

5 Changing settings

5.1 Setting the water hardness

The hardness of the tap water influences how often you have to descale the appliance. The harder the tap water, the more frequently you have to descale the appliance.

Contact your local water provider to find out the water hardness.

Or check the water hardness with a water hardness test strip available from retailers. Follow the instructions on the water hardness test strip and the information in the table Water hardness.

Water hardness
Water hardness	°dH Display (with timer)		“CALC” lamp flashing rhythm (without timer)
I<7 | ...			■....■....
II 7 to I	4 2 ....		■■....■■....
III 14 to	2 | 3 ....		■■■....■■■....
IV*	>2 |	4 ....	■■■■....■■■■....

* Factory setting

Variant without timer function

To set the water hardness, press the “CALC” button for longer than 2 seconds. The “CALC” lamp starts to flash. The flashing rhythm indicates the set water hardness.

I. CALC Press the "CALC" button for longer than 2 seconds. » The "CALC" lamp flashes.
2. CALC Press the “CALC” button repeatedly until the required water hardness is set. The flashing rhythm indicates the set water hardness, see table Water hardness.
3. CALC Press the "CALC" button for longer than 2 seconds to save the setting.

The setting is retained even when you disconnect the appliance from the electricity mains.

Variant with timer function

I. CALC Press and hold the "CALC" button.
2. m Also press the "Minutes" button until the required water hardness is shown on the display, see table Water hardness.

After you release the “CALC” button, the setting is saved and retained even when you disconnect the appliance from the electricity mains.

5.2 Setting warm-keeping time

The taste of the coffee changes when the jug is kept on the hotplate for longer periods. The coffee tastes bitter. To prevent this, you should enjoy your coffee as fresh as possible immediately after preparation. Also, unnecessarily keeping the coffee warm costs valuable energy.

Variant without timer function

1. ON/OFF Press the "ON/OFF" button for longer than 2 seconds. » The "ON/OFF" lamp flashes.
2. ON/OFF Press the "ON/OFF" button repeatedly until the desired warm-keeping time is set. The flashing rhythm indicates the set warm-keeping

time, see the following table Warm-keeping time.

1. ON/OFF Press the "ON/OFF" button for longer than 2 seconds to save the setting.

The setting is retained even when you disconnect the appliance from the electricity mains.

Warm-keeping time
Warm-keeping time	Flashing rhythm“ON/OFF” lamp
20 minutes ....	■....■....
40 minutes* ....	■■....■■....
60 minutes ....	■■■....■■■....

* Factory setting

Variant with timer function

I. ON/OFF Press and hold the "ON/OFF" button.
2. m Also press the "Minutes" button until the required warm-keeping time is shown on the display.

After you release the "ON/OFF" button, the setting is saved and retained even when you disconnect the appliance from the electricity mains.

5.3 Using the timer (only on variant with timer function)

The appliance is equipped with a timer function. This allows preparation to start automatically at a time you set.

Setting the timer

I. TIMER Press and hold the "TIMER" button.

» The display flashes.

h m Also press the “Hours” and “Minutes” buttons to set the starting time. Hold down the buttons to run through the hours or minutes faster.

2 Release the "TIMER" button.

» The current time appears on the display.

When you disconnect the appliance from the mains and connect it again, you need to set the timer again.

Activating the timer

I. Prepare the appliance for a brewing process, see chapter 4 Operating the appliance on page 18.
2. TIMER Press the "TIMER" button to activate the timer for the next brewing process.

» The “TIMER” lamp lights up.
» The starting time appears briefly on the display.
» The brewing process starts at the set starting time.

Press the "TIMER" button again to deactivate the timer.

6 Cleaning the appliance

Regular cleaning and maintenance of the appliance guarantee the consistent high quality of your coffee.

Attention! Unsuitable cleaning agents can damage the appliance. Only use the recommended cleaning agents.

Always allow the appliance to cool down before cleaning it.

Do not immerse the appliance or the mains plug in water.

• Clean the outer surfaces of the housing, including the hotplate with a soft, moist cloth.
• Clean the jug and the filter insert after every use.
• Rinse the jug, the filter insert, the water tank and the water tank lid with clear, warm water and a small quantity of washing up liquid.
• You can also clean the jug, filter insert and water tank lid in the dishwasher.

7 Descaling the appliance

After you have used the appliance for a while, limescale deposits will build up inside it. To ensure that your appliance works perfectly and has a long life, you need to descale it on a regular basis. Descaling takes approximately 25 minutes and should not be interrupted.

The illuminated "CALC" lamp asks you to descale the appliance soon.

Use Melitta® Anti Calc liquid descaling agent for filter coffee machines.

Caution! Descaling agent causes eye irritation. If it accidentally comes into contact with your eyes, you should rinse them with clear water for several minutes. Consult a doctor if symptoms persist.

I. Remove the filter paper from the filter holder.
2 Close the hinged filter holder.
3. Fill at least 500 ml of descaling fluid into the water tank. Follow the instructions on the packaging of the descaling agent.
4. Place the jug with closed jug lid under the hinged filter holder.

1. CALC Start descaling with the "CALC" button.

» The “CALC” lamp flashes.
» The display shows the remaining time (only on the variant with timer function).
» Descaling ends automatically.
» The “CALC” lamp goes out.

1. After descaling, you must rinse the appliance to remove all remains of the descaling agent, see chapter 3.8 Rinsing the appliance on page 17.

8 Disposal

Appliances marked with this symbol are subject to the European Directive for WEEE (Waste Electrical and Electronic

Equipment).

Electrical appliances do not belong in domestic waste. Dispose of the appliance in an environmentally friendly way via suitable collection systems.

The packaging materials are raw materials and recyclable. Please return them to the raw materials cycle.

9 Technical data

You find detailed technical data via the following link.

Sommaire

Technical line drawing of a car interior frame with mounting fixtures and structural components (no text or symbols)

Technical line drawing of a funnel-shaped device with internal blades and a circular housing (no text or symbols)

Retirer le support-filtre.

Technical line drawing of a car interior showing structural components and mounting holes (no text or labels)

Technical line drawing of a funnel-shaped device with internal blades and a circular control knob (no text or symbols)

3.7 Watertank vullen

Waste Electrical and Electronic Equipment).

Sommario

Technical line drawing of a car interior frame with mounting fixtures and structural components (no text or symbols)

Technical line drawing of a funnel-shaped device with internal blades and a circular base (no text or symbols)

Estrarre l'inserto filtro.

Technical line drawing of a car interior frame with no visible text or symbols

3.3 Conectar la cafetera

Technical line drawing of a funnel-shaped device with internal blades and a circular base (no text or symbols)

Illustration of a coffee maker with a lid and control panel, showing no text or symbols on the device itself.

Indholdsfortegnelse

I For din sikkerhed......61

I.1 Formålsbestemt brug......61

I Filterindsats
2 AromaSelector
3 Vandtankslag
4 Vandtank
5 Betjeningsfelt
6 Kande med kandelåg
7 Varmholdeplade
8 Kabeloprulning
9 Netkabel
10 Drypstop
II Drejefilter

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a funnel-shaped device with internal blades and a circular control knob (no text or symbols)

Electronic Equipment).

I Filterinsats
2 AromaSelector
3 Vattentankslock
4 Vattentank
5 Kontrollpanel
6 Kanna med kannlock
7 Varmhållningsplatta
8 Kabelvinda
9 Strömkabel
10 Droppstopp
II Vridbart filter

Technical line drawing of a mechanical assembly with no visible text or symbols

3.3 Anslutning

Technical line drawing of a funnel-shaped device with internal blades and a circular base (no text or symbols)

Ta ut filterinsatsen.

Innhold

I Filterinnsats
2 AromaSelector
3 Vanntanklokk
4 Vanntank
5 Kontrollpanel
6 Kanne med lokk
7 Varmeplate
8 Kabeloppvikling
9 Strømkabel
10 Dryppstopp
II Svingfilter

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a funnel-shaped device with internal blades and a control knob (no text or symbols)

Illustration of a toaster oven with a waffle and control panel (no text or symbols)

Stille inn tidsuret.

Sisällysluettelo

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a funnel-shaped device with internal blades and a circular base (no text or symbols)

Spis treści

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a funnel-shaped device with internal blades and a circular component (no text or symbols)

Melitta Europa GmbH & Co. KG

Division Household Products

Ringstr. 99

D-32427 Minden

Germany

www.melitta.de

Editorial department:

ZINDEL AG

www.zindel.de
