Product type	Compact Hi-Fi system with radio
Brand	Ruark Audio
Model	R5
Dimensions (H × W × D)	142 × 520 × 300 mm
Weight	9.5 kg
Power supply	100-120 V or 200-240 V AC, 50-60 Hz
Nominal power consumption	13 W
Standby power consumption	2.0 W
Fuse	250 V, T 3.15 A
Radio	DAB, DAB+, FM with RDS, Internet radio
CD player	CD, CD-ROM, CD-R/RW, MP3, WMA, AAC
Bluetooth	V4.0, SBC, AAC, A2DP, aptX, aptX HD
Wi-Fi	802.11b/g/n, security WEP, WPA, WPA2
Supported audio formats	MP3, AAC, FLAC, WAV, WMA
Inputs	Phono (MM), optical (TOSLINK), Line in, USB
Outputs	Line out, 3.5 mm headphone jack
Amplifier	Class AB, 90 W
Speakers	2 x 75 mm neodymium magnet drivers, 130 mm subwoofer
Additional features	Multi-room audio, Spotify Connect, Amazon Music, Deezer, TIDAL, alarms, sleep timer, remote control
Maintenance	Clean with a slightly damp, lint-free cloth. Do not use wax-based dusting products.
Safety	Do not expose to rain or moisture. Do not open the device. Keep batteries out of reach of children.
Warranty	2 years (3 years after registration on the Ruark Audio website)

Frequently Asked Questions - R5 Ruark Audio

How to turn the Ruark R5 on and off?

Press the STANDBY button on the device or remote control to turn on or off. For automatic standby, set the sleep timer in the menu System > Date and Time > Sleep Timer.

How to connect my phone via Bluetooth?

Select the Bluetooth source on the R5. On your phone, enable Bluetooth and choose Ruark R5 from the device list. If necessary, enter the code 0000. The indicator flashes during pairing.

How to listen to DAB radio?

Press SOURCE to select DAB. The first time, an automatic station scan is performed. Use the >> or << buttons to change stations, or access the list via MENU > Station List.

How to set the time and date?

Go to MENU > System > Date and Time. The time synchronizes automatically via DAB/FM. You can also set it manually by disabling automatic update.

How to use the CD player?

Insert a CD into the slot on the front (printed side facing right). Playback starts automatically. Use ▶II for pause/resume, >> to skip, and the eject button next to the slot to remove the disc.

How to create an alarm?

Go to MENU > System > Date and Time > Alarms. Choose Alarm 1 or 2, set the frequency (once, daily, etc.), time, source (radio, CD, or tone), and volume. Confirm with Save.

How to connect the R5 to Wi-Fi?

On first power-up, the setup wizard guides you. Otherwise, go to MENU > System > Network > Network Wizard. Select your network and enter the password if needed.

What to do if the sound is low or distorted with an external source?

Adjust the input level in MENU > Input Level. For Line in, choose between -3 dB and +24 dB depending on the source. For Phono, adjust according to the cartridge voltage (2-8 mV).

How to use multi-room audio?

Go to MENU > Multi-room > Create new group. Give it a name and select up to 5 compatible devices on the network. All devices in the group will play the same synchronized music.

How to reset the R5 to factory settings?

Go to MENU > System > Factory Reset and confirm. This erases all presets and settings. Warning: Do not power off during reset.

USER MANUAL R5 Ruark Audio

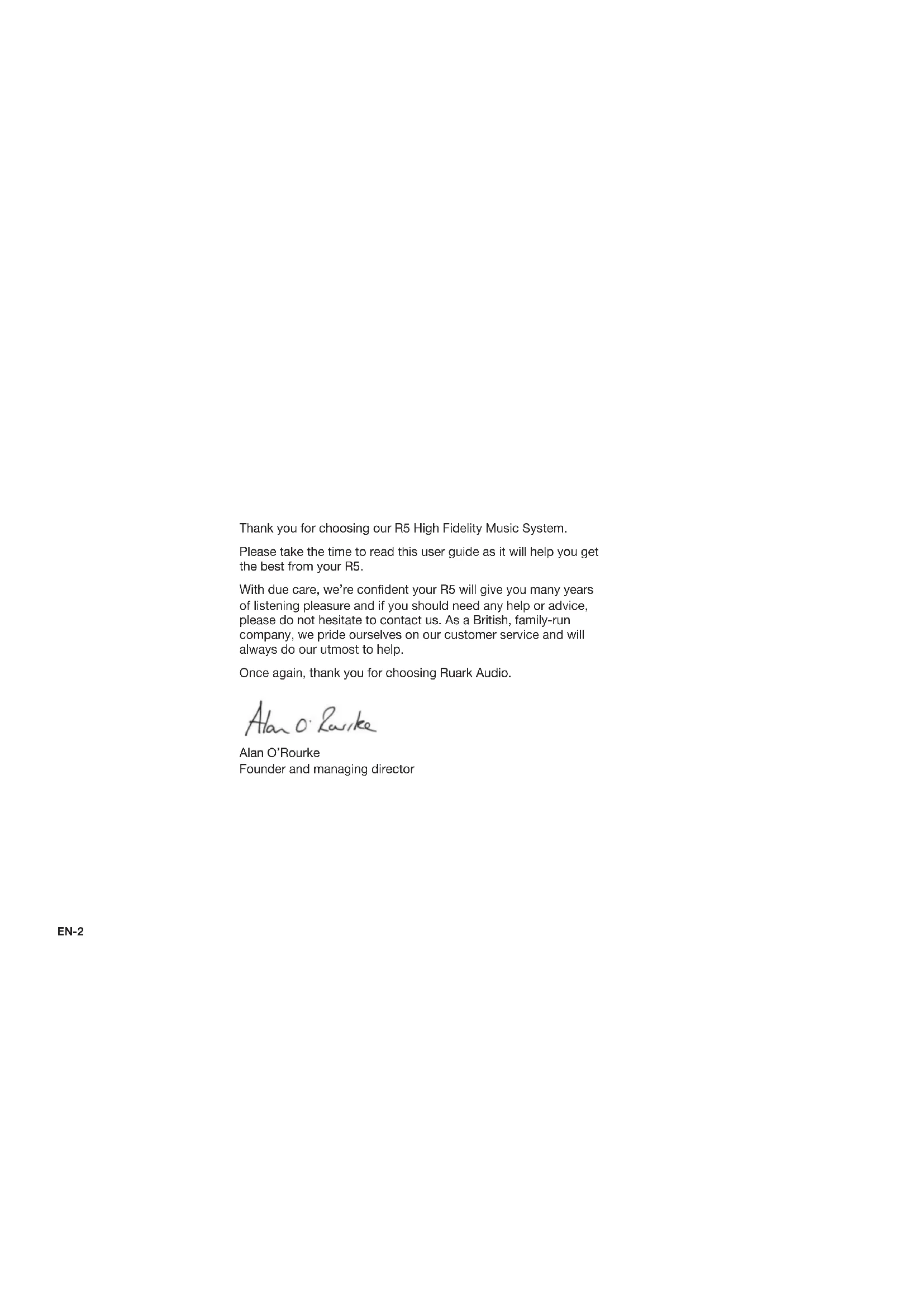

Thank you for choosing our R5 High Fidelity Music System.

Please take the time to read this user guide as it will help you get the best from your R5.

With due care, we're confident your R5 will give you many years of listening pleasure and if you should need any help or advice, please do not hesitate to contact us. As a British, family-run company, we pride ourselves on our customer service and will always do our utmost to help.

Once again, thank you for choosing Ruark Audio.

Alan O. Rawke

Alan O'Rourke

Founder and managing director

Contents

What's in the box 4

Controls 5

Overview 6

Getting started 8

Common functions 10

System settings 13

FM radio 15

DAB radio 16

Internet radio 17

CD player 19

Bluetooth 20

Music player 22

DLNA media streaming 24

Music streaming services 25

Line in and optical 26

Phono 26

Input level adjustment 26

Multi-room 27

App control 28

Alarms, snooze and sleep 28

Specifications 29

Safety and regulatory information 30

Troubleshooting 31

Guarantee 32

General care 32

Copyright and trademarks 32

What's in the box

Ensure that all parts listed below are in the box.

If any part is missing, do not use the R5 and contact us directly if purchased in the UK, or your Ruark Audio dealer if purchased outside the UK.

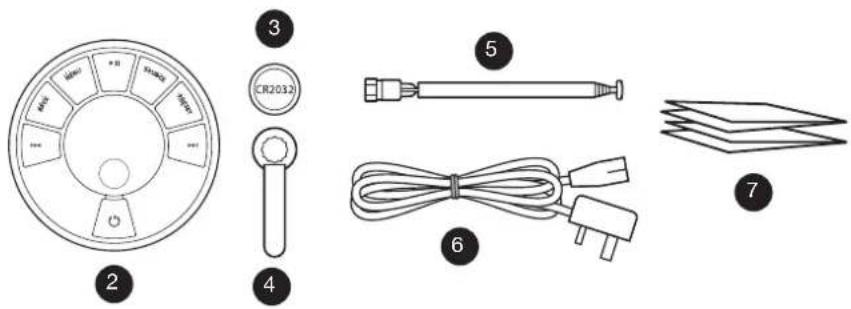

1. R5
2. Remote control
3. Remote battery (CR2032) ^*
4. Antenna spanner
5. Telescopic antenna
6. Mains power cord
7. User guide & other documents

If possible, please retain the carton and all packaging materials.

*The battery may already be fitted to the remote.

Controls

The controls on the R5 and on the remote are exactly the same.

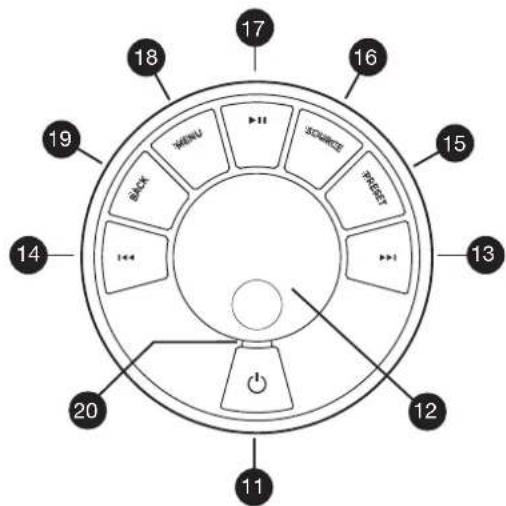

1. ⏻ - STANDBY

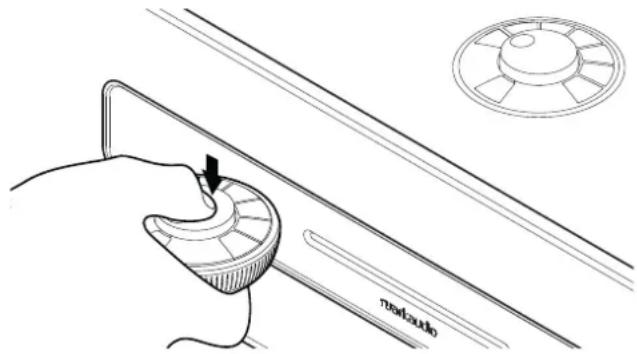

2. CONTROL KNOB / SELECT

Rotate to adjust volume from a Now Playing screen

Rotate to browse menus, tracks or station lists*

Press to SELECT

1. ▶▶▶ – press to skip to next station or track, press and hold to fast forward
2. • press to skip to previous station or track, press and hold to rewind
3. PRESET – press to recall a saved station or playlist, press and hold for two seconds to save a station or playlist
4. SOURCE – press to change audio source
5. ▶II – press to play/pause a track or mute audio inputs and radio
6. MENU – press to view the menu
7. BACK – press to return to the previous menu or list screen
8. INDICATOR LIGHT

On the R5 it indicates your music system is on and flashes when Bluetooth is ready to pair or when using the remote.

On the remote it flashes when pressing a key or using the control knob and when the battery is low, the light will change from blue to amber.

*You can also press ▶ or to browse menus, tracks, sources or station lists

How long you press a key is important

Press = tap or press and immediately release

Press and hold = press and release after two seconds

EN

Overview

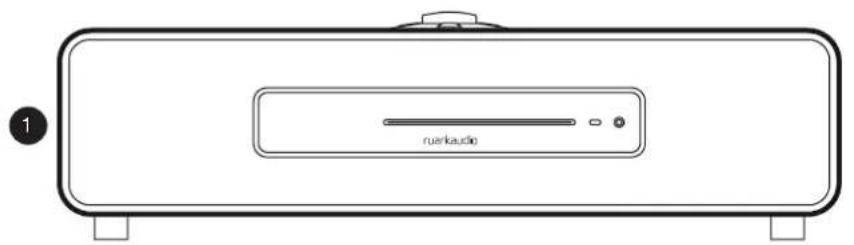

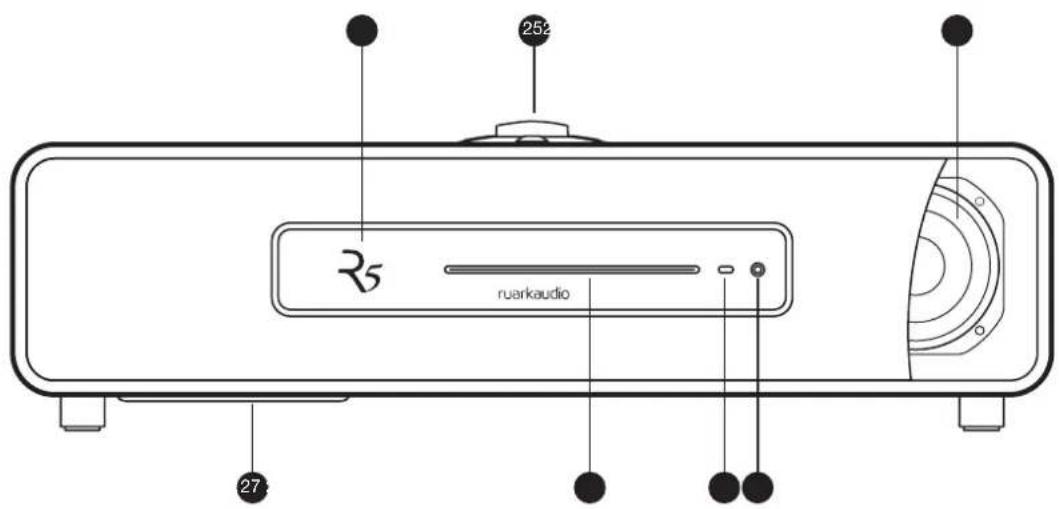

1. Neodymium full-range drivers

2. Controls

3. Headphone out

4. OLED Display

5. CD eject button

6. Subwoofer

7. CD loading slot

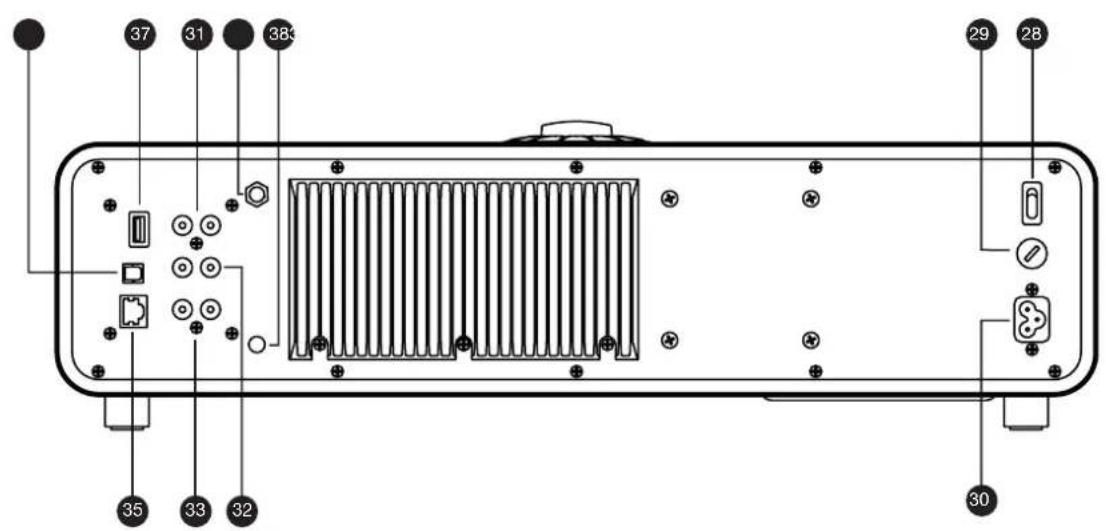

1. Mains power switch

2. DAB-FM antenna

3. Mains power fuse

4. Ethernet

5. Mains power cord inlet

6. Optical input

7. Phono input

8. USB

9. Line in

10. Grounding terminal

11. Line out

Getting started

1 Activate remote

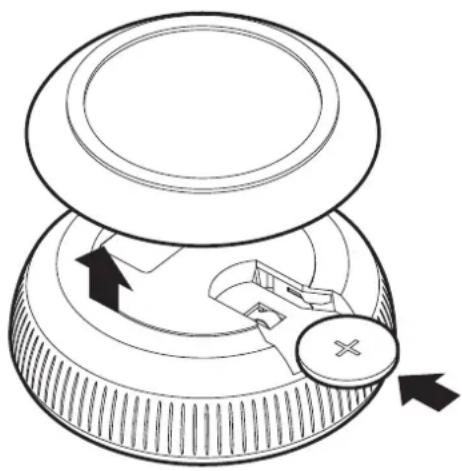

Gently pull off the magnetic steel base and with the remote face down, slide the battery (type CR2032) into the slot, ensuring the flat side marked with + faces up. Replace the steel base. Depending on model, you may also need to remove the screw securing the plastic battery cover and then sliding the cover out.

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

2 Connect the aerial

Fit the telescopic aerial to the DAB/FM antenna socket on the back of your R5 and gently tighten it using the supplied spanner.

3 Connect to AC mains

Plug the mains power cord into the mains power socket on the back of your music system and then plug it into an AC mains outlet.

4 Switch on

Switch the mains power switch on the back of your music system to the ON position. Your R5 is now in standby.

To turn your R5 on, press STANDBY on the controls on the cabinet and the R5 logo will appear on the screen.

Please note that the remote may not work until it is paired with the main system (see step 6).

5 Select language

Rotate the CONTROL KNOB until your preferred choice is highlighted, then press SELECT.

6 Pair your remote

When you are prompted to pair your remote control, hold it very close to the display and then press and hold SELECT on the remote until Remote paired is displayed.

Press SELECT to continue.

You won't normally need to pair it again but if you if do, simply hold it very close to the screen and press and hold any key until you see the confirmation message. You can do this in any mode.

7 Setup wizard

When you turn on your R5 for the first time, setup wizard will help you configure the clock and connect to your network.

To start the setup wizard, rotate the CONTROL KNOB to highlight YES and then press the knob to SELECT. If you choose NO, your R5 will start without configuring time/date and network settings.

8 Select a source

When your setup is complete, your R5 will display a menu with a list of the available sources. Use the CONTROL KNOB to choose a source and press SELECT.

9 Enjoy your music!

Common functions

Switch on and to standby

Press STANDBY to turn your music system on. Press again to switch to standby.

Now Playing screens

Unless you're adjusting a setting, the screen will look similar to the example below with the clock above and station/track/album/artist information below.

The on-screen icons below are shown when their respective functions are active.

Menu screens

The menus enable you to set the various options such as adjusting the bass and treble. To change a setting, press MENU to display the list of available options, rotate the CONTROL KNOB to highlight the one you wish to change, then press the knob to confirm your selection.

Browsing menus, track and station lists

To change settings – press MENU

To scroll through options - rotate CONTROL KNOB

To select option – press CONTROL KNOB

To exit menu – press MENU or wait for a few seconds

To return to the previous menu/list – press BACK

How long you press a key is important

Press = tap or press and immediately release

Press and hold = press and release after two seconds

Adjust volume

Rotate the CONTROL KNOB from any Now Playing screen.

Speaker volume and headphone volume are adjusted separately, so when headphones are plugged in the volume is shown as Volume (HP).

NOTE: rotating the CONTROL KNOB when a menu or track/station list is displayed will scroll through the menu and not change the volume.

Change audio source

Press SOURCE to view the current source, rotate the CONTROL KNOB to cycle through the list of sources, then press the knob to select one currently displayed. (You can also press SOURCE repeatedly to cycle through the list of sources instead of rotating the knob.)

Internet radio

Multi-room

This device is fully compatible with Ruark Audio multi-room and enables you to stream music seamlessly from one room to another. See ‘Multi-room’ section for more details.

Pause track or mute audio

Press ▶II and then press again to resume listening.

Play next/previous track

Press ▶▶to skip to the next track in the folder or album, press ◀◀◀ to skip to the start of the current track, press again to skip to the previous track.

Fast forward or rewind track

Press and hold ▶▶ or ▶ (may not work with Bluetooth).

Change FM radio station

Press ▶▶ for ▶ to seek the next or previous station. See 'FM' section for more details.

Change DAB radio station

Press ▶▶ or ▶ to tune to the next or previous station.

You can also view the multiline station list by selecting MENU > Station list.

See 'DAB' section for more details.

Change station or track information

Change the station/track information displayed by selecting one of the options from MENU > Info.

To return to the previous menu level or station list, press BACK

Save radio station preset

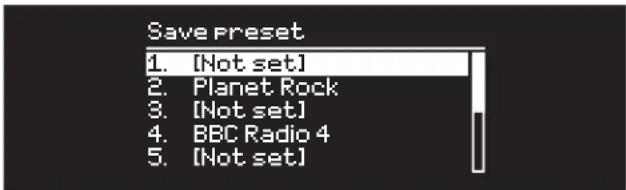

Press and hold PRESET until 'Save preset' is shown then rotate the CONTROL KNOB to choose the preset number and press the knob to save the current station. Presets are either marked with the station name, frequency or as '[Not set]'.

If you save a station over an existing preset, the new station will replace it.

Recall radio station preset

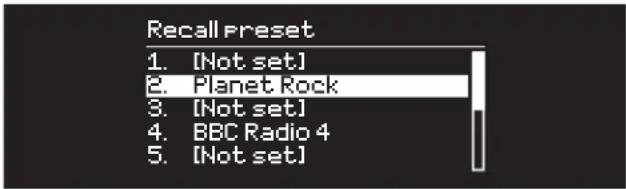

Press PRESET, rotate the CONTROL KNOB to scroll through the preset station list, then press the knob to select a station.

Connect a Bluetooth device

When you change the source to Bluetooth, your R5 will attempt to automatically connect to the last connected device. If you have not yet paired your device or the previous device is not available, your R5 will enter into pairing mode. See 'Bluetooth' section for more details.

Headphones

Connect your headphones to the 3.5mm stereo jack socket on the front of your R5.

Headphone volume is adjusted independently from speaker volume, so when headphones are plugged in the volume is shown as Volume (HP).

USB charging

The USB socket on your R5 is rated at 5W (5V 1.0A) and will power most smart devices and USB powered accessories.

Please note that: MENU > System > Audio means press MENU, select System and finally select Audio

System settings

Bass, treble and sub

MENU > System > Audio > Bass, Treble or Sub level Adjust the bass and treble levels using the CONTROL KNOB then press it to save the setting.

Loudness

Loudness automatically boosts the treble and bass frequencies at lower volumes.

MENU > System > Audio > Loudness

3D sound

3D widens the stereo sound stage and creates a more immersive and involving sound.

MENU > System > Audio > 3D

Date and time

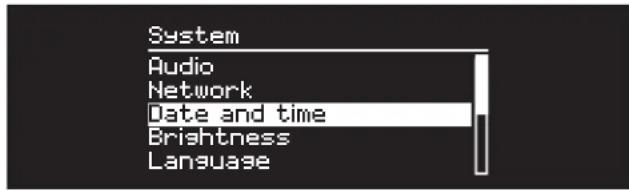

MENU > System > Date and time

The time and date are automatically synchronised with national time signals broadcast over DAB, network and FM (FM time synchronisation may not always be available).

You can also set the time manually by turning auto update off and change the time and date format.

Display brightness

MENU > System > Brightness

Independently adjust the brightness of the display when your R5 is on and in standby.

When the brightness is set to 0 the display will automatically switch off after a few seconds. The display will then briefly illuminate whenever any key is pressed.

You can also adjust the standby brightness when your R5 is in standby by pressing ▶▶ or ◀◀

Language

MENU > System > Language

Change the menu language.

Software update

MENU > System > Software update

Your R5 is set to automatically check for software updates. If one is available, you will be asked whether you want to download and install it.

CAUTION: Disconnecting the power during a software update could permanently damage your R5.

Factory reset

MENU > System > Factory reset

Resets all settings and clears presets.

Currently saved settings are marked with an asterisk ( )

Setup wizard

MENU > System > Setup wizard

Runs the setup wizard to guide you through setting up the clock and network.

Inactive standby

Your R5 is set to automatically switch itself to standby if there is no audio for more than 20 minutes. To change this select MENU > System > Inactive standby.

Network wizard

For a guided process to help you connect to a wired or Wi-Fi network, select MENU > System > Network > Network wizard.

Network profiles

Your R5 will automatically attempt to connect to any network it has previously connected to.

To see the list of saved networks, select MENU > System > Network > Network profile. To delete an unwanted network, highlight it, press the CONTROL KNOB and select YES.

Keep network connected

MENU > System > Network > Keep connected

Choose whether your R5 always remains connected to your network, even in standby (default). We recommend you set it to keep connected as it will ensure your R5 is always accessible using Spotify or DLNA music streaming. We also recommend this if you have set your clock to update from Network.

System information

Shows details of your R5 including the software version, unique radio ID code and friendly name.

Advanced network settings

There are other advanced network settings for experienced users for manual configuration or diagnosing and fixing network problems.

Friendly name

The friendly name is how your R5 shows up on networks, Spotify and Bluetooth. You can change this to something more descriptive like “Ozzie’s R5” or “Living room R5”.

You can view your R5's status and change its friendly name by viewing its web page in a browser. In Windows, your R5 will typically show up as a Media Device, double clicking on the icon will open the configuration page in your browser.

For more information visit www.ruarkaudio.com/support.

FM radio

When listening to FM, your R5 displays the station name and other RDS/RBDS* programme information when available.

*Radio Data System/Radio Broadcast Data System

14:08

BBC Radio 4

The Archers

Change station

Press ▶▶ or ▶▶ automatically tune to the next available FM station. If RDS/RBDS is unavailable the frequency is displayed instead.

14:08

93.90 MHz

[No RadioText]

Scan setting

You can change the scan setting to only stop at stations with a strong signal by selecting Menu > Scan setting > Strong stations only.

Programme information

Choose from radio text, programme type, frequency, signal strength and date by selecting MENU > Info.

Manual tune

Select MENU > Manual tune then either rotate the CONTROL KNOB or press ▶▶ or ▶▶ change the frequency.

Save preset

You can store 10 FM stations in your preset list. The station name will be stored only when RDS/RBDS is available. See 'Common functions' section.

Recall preset

See 'Common functions' section.

Mono

As an FM signal becomes weaker, the level of hiss will increase. To reduce this, select Menu > Mono.

To further reduce hiss on weaker FM stations, we recommend turning 3D sound OFF

DAB radio

When listening to DAB/DAB+, your R5 displays the station name and other DLS* programme information when available.

The first time you use your R5, or if the station list is empty, it will automatically perform a full scan to identify available stations.

*Dynamic Label Segment

Change station

Press ▶▶ or ▶ to tune to the next/previous station.

Station list

To view a list of available DAB stations select MENU > Station list or press ▶▶ or ◀ highlight the station you wish to listen to and press SELECT.

Programme information

Choose from radio text, programme type, signal strength, signal format and date by selecting MENU > Info.

Save preset

You can store 10 DAB stations in your preset list. See 'Common functions' section.

Recall preset

See 'Common functions' section.

Secondary services

Some DAB radio stations have one or more secondary stations associated with them. If a secondary station is available ‘>>’ is shown after the current station name in the station list.

Secondary stations are indicated with ‘<<’ before the station name.

Station order

The DAB station list can be ordered by Alphanumeric, Ensemble or Valid. Alphanumeric puts the stations in alphabetical order, Ensemble groups stations from the same broadcaster together, Valid shows available stations first and places invalid stations (marked with ‘?’) last.

To change station order, select Menu > Station order and select Alphanumeric (default), Ensemble or Valid.

Invalid stations have '?' in front of the station name

Station scan

If the station list is empty the radio will automatically perform a full scan as soon as you switch to DAB.

In any case, we recommend you do a full scan from time to time to update the station list because:

• New stations sometimes become available
  • Stations close or may no longer be received
• Reception was poor during the original scan (for example the aerial wasn't properly fitted)
• You move the radio to a different region

To do a full scan, select MENU > Scan.

Remove weak or invalid stations

Weak (burbling) or invalid stations have '?' in front of the station name and can be removed by selecting MENU > Prune invalid.

Internet radio

Your R5 can play thousands of internet radio stations and podcasts from all over the world (internet connection required).

Main menu

The first time you listen to internet radio you will see the main menu for this mode.

If you have listened to internet radio stations on your R5 before, it will automatically play the last listened station.

Last listened

To access a list of recently listened to stations select MENU > Last listened.

When you use your R5 for the first time, the list will be empty.

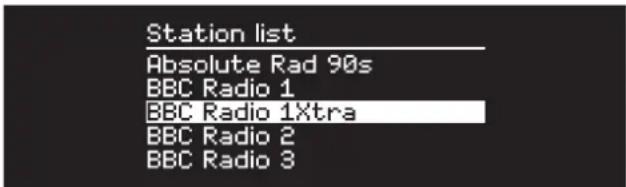

Station list

You can browse or search the extensive list of stations by selecting MENU > Station list and selecting from the various options, including genre, location and popularity.

Now playing information

The station name is shown along with additional information like artist and track name. To change what is displayed select MENU > Info and choose from radio text, genre, signal quality, track name, location, and date.

Search for a station

Search for a station by selecting MENU > Station list > Stations > Search stations and then entering the name of the station you're looking for.

Podcasts

Many stations will have associated podcasts which you can browse and search for just like internet radio stations.

Mute

Press ▶II to mute and press again to resume listening.

Save a preset

You can store 10 Internet radio stations in your preset list. See 'Common functions' section.

Recall a preset

See 'Common functions' section.

CD player

To insert a CD, gently push it into the CD slot. Once loaded it will play automatically.

Now playing information

Generally, track number and time is shown on audio CDs and track and album name is shown on MP3 CDs.

19:15

Kings of Leon

Use Somebody

To change what is displayed select MENU > Info and choose from album and artist information, progress bar or filename (options will vary according to the type of CD).

Play / Pause

Press ▶ to play or pause a track

Stop play

Long press ▶II

Skip track

Press ▶▶ or ▶ to skip to the next or previous track

Fast-forward or rewind

Press and hold ▶▶ or ▶to fast-forward or rewind

Eject

Press the eject button next to the CD slot

Shuffle

To play tracks in random order select

MENU > Shuffle > On

Repeat

To repeat a single track or all tracks, select

MENU > Repeat > One or All

Any folder structure on MP3/WMA/AAC disks will be ignored and the tracks will show in a single list

Rights-protected WMA and AAC cannot be played

Bluetooth

Your R5 supports aptX for CD quality streaming and aptX HD for 24-bit hi-res streaming. It will automatically connect to your bluetooth device using the highest quality connection supported by your device.

Pairing your Bluetooth device

When you have changed the source to Bluetooth, wait until Awaiting connection... is shown and the indicator light on top flashes.

Use the Bluetooth setup on your smart device to pair and connect it to your R5. It will appear in the list of paired devices as Ruark R5*. When connected, BT Connected + your device name (eg Ozzie's phone) is displayed.

It may take a few seconds for your R5 to appear in the list on your device, and in some cases you may need to input "0000" as the pairing password.

If you do not connect within a few minutes, your R5 will stop attempting to connect and show No connection. To connect, select MENU > Connect device.

Connecting your Bluetooth device

As soon as you switch to Bluetooth, your R5 will display Connecting as it attempts to connect to the last device it was paired with.

If that device isn't available, it displays Awaiting connection... To connect to your R5, ensure the Bluetooth function on your device is on and select Ruark R5* from the paired devices list on your Bluetooth device.

Friendly name

*Your R5 will shown up as Ruark R5 on Bluetooth devices, however, you can change this to something more descriptive like "Ozzie's R5" or "Living room R5". See 'System settings'.

Play audio

Once connected, audio from your Bluetooth device will play through your R5. For more information on playing audio from your Bluetooth device, refer to your device's documentation. NOTE: you may need to select your Ruark R5 or Bluetooth as your audio output on your device.

Pause track

Press ▶ and then press again to play.

Play next/previous track

Press ▶▶▶ to skip to the next track in the folder or album, press ▶◀◀ to skip to the start of the current track, press again to skip to the previous track.

Adjust volume

We recommend that you adjust the volume on your Bluetooth device so that the playback volume is about the same as other sources. You can then use the volume control on your R5 to adjust overall playback volume.

Now Playing information

Artist, album and track name will show if your Bluetooth device and app support Bluetooth metadata. You can also show the name of the connected device. Select what is shown from MENU > Info.

Operating range

This is typically up to 10 metres (30 feet) from your R5, although obstructions such as walls will reduce this.

Connect device

To disconnect the current device and connect a new one, select MENU > Connect device.

Pairing additional devices

You can pair up to 7 devices, although you will only be able to play audio from one device at a time.

Clearing the paired devices list

If you are having trouble connecting your Bluetooth device, we recommend you clear all pairing information. To do this, select MENU > Clear devices.

You will also need to delete Ruark R5 from the paired devices list on your Bluetooth device before pairing it to your R5 again. For more information visit www.ruarkaudio.com/support.

You cannot use the Bluetooth function on your R5 to connect to Bluetooth headphones

Music player

Music player enables you to play audio files stored on a computer on your network, a USB memory stick or portable hard drive.

USB music player

To play audio from a USB mass-storage device (must be FAT32 format) such as a USB Flash stick or USB hard drive, connect it to the USB socket on the back of your R5.

When you first connect a USB mass-storage device, your R5 will automatically ask if you want to view the track list. Otherwise, to view the track list select Menu > USB.

Network music player

Your R5 is fully DLNA compatible and will play music stored in shared media libraries on other devices on your network. A shared library might be on a laptop, smartphone or tablet, but it could also be on a dedicated music server such as a NAS drive (Network Attached Storage).

Most computers running Windows are already configured as media servers as are most NAS drives and some routers will

also work as media servers. There are many apps available for Mac, iOS, Linux, Android, Windows phone, Blackberry, Symbian, etc. that will turn your MP3 player, smartphone or tablet into a music server.

To play music shared by devices on your network select Menu > Shared media. After your R5 has scanned your network for shared media you will see a list of music servers consisting of the computer name and shared media name, for example .

The menus after this are generated by the media server, although in most cases you will find options to browse by genre, folder, artist, album etc.

If your R5 is not connected to a network it will attempt to connect.

For more information visit www.ruarkaudio.com/support

Browse and play music

Rotate the CONTROL KNOB to scroll though the track lists, then press the knob to open the highlighted folder/album or play the track.

To go back to the previous screen press BACK.

Pause track

Press ▶ and then press again to play.

Rights-protected WMA and AAC tracks cannot be played on your R5.

Skip track

Press ▶▶▶ to skip to the next track in the folder or album, press ◀◀◀ to skip to the start of the current track, press again to skip to the previous track.

Fast-forward or rewind

Press and hold ▶▶ or ▶to fast-forward or rewind.

Shuffle

To play tracks in random order, select MENU > Shuffle and press the CONTROL KNOB to toggle shuffle play on and off. NOTE: It may not be possible to use this function if the folder contains a large number of tracks.

Repeat

To repeat a single track or all the tracks in the current folder, select MENU > Repeat and press the CONTROL KNOB to choose one, all or off.

My playlist

You can create your own playlist and queue of up to 500 tracks. These can be a mixture of tracks from any available media servers and an attached USB device. To manage your playlist, select Menu > My playlist.

To add a track or folder to your playlist, highlight it then press and hold the CONTROL KNOB for two seconds.

To remove a track from your playlist, highlight the track in My playlist and then press and hold the CONTROL KNOB for two seconds.

Please note that your playlist will stored as long as your R5 remains on or in standby but will be cleared if you turn it off.

Now Playing information

Typically, the track name is shown with additional information below. To change what is displayed select MENU > Info and choose from album and artist information, show the progress bar or data format.

Prune servers

Your R5 will automatically store the name of media servers it has connected to and that are not currently available are shown with a question mark before their name eg '?Home-Laptop'. You can remove them from the list by selecting MENU > Prune servers > YES.

DLNA media streaming

You can also stream audio to your R5 from a Digital Living Network Alliance (DLNA) compatible media server. This is where you browse for music on the server itself and play it through your R5. There are many apps available for Mac, iOS, Linux, Android, Windows phone, etc that will turn your smartphone, tablet or laptop into a DLNA media server.

Windows Media Player even has a 'Play to' function built in that allows you to stream music stored on your computer directly to your R5.

With DLNA media streaming, your R5 functions as a Digital Media Renderer (DMR) so you browse for music on your smartphone or laptop and then stream it to your R5 over your network.

Your R5 will automatically change to DMR mode when you select your R5* as your chosen player – DMR is not a mode that can be selected using the SOURCE key.

Similarly, all the Now playing information will be controlled by the server so there are no settings you can change.

For more details refer to the documentation for your device or app or visit www.ruarkaudio.com/support.

DLNA media streaming requires that your R5 is connected to your network so we recommend that you set it to keep network connected. See system settings section.

Music streaming services

Your R5 supports the music streaming services shown below.

Spotify Connect

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Amazon Music

For more details, visit www.amazon.com

Deezer

For more details, visit dzr.fm/airable

TIDAL

For more details, visit tidal.com/try-now Please note that TIDAL high quality is not supported in multi-room mode. To listen to TIDAL in multi-room mode, change the audio quality to normal using the Ruark Link app.

The range of supported music services may change without notice.

EN-25

EN

Line in and optical

You can listen to audio from an external analogue audio source by connecting it to Line in or a digital source by connecting it to Optical.

Phono

Your R5 includes a high-fidelity phono stage pre-amplifier for use with a moving magnet (MM) turntable cartridge.

It is not designed for a moving coil type cartridge.

To connect a turntable to your R5, we recommend high quality phono leads.

Input level adjustment

For best audio performance, we recommend you balance the volume level of an external device (eg portable music player or turntable) so its volume is about the same as inbuilt sources like CD or USB.

If the volume is lower, increase the input level.

If the volume is higher or distorts, decrease the input level.

You can adjust the input level by selecting MENU > Input level and choose your desired level.

If your external audio source has a volume control you may also need to adjust that.

Line in input levels

• 3dB (devices with high output level)
• 0dB (devices with standard 2.1Vrms line level output)
  +6dB (default)
• 12dB (eg smartphones with high headphone output level)
• 18dB (eg smartphones with standard headphone output level)
• 24dB (eg smartphones with low headphone output level)

Phono input levels

These are designed to work with the most common moving magnet (MM) cartridges, please check the specification of your cartridge and select the most appropriate setting.

For best audio performance, we recommend you balance the volume level of external devices by adjusting input levels

Multi-room

This device is fully compatible with Ruark Audio multi-room and enables you to stream music seamlessly from one room to another.

To create a group select MENU > Multi-room > Create new group, enter a name for the group and select OK. From the list of other compatible devices found on your network, select up to 5 devices to join the group and then press MENU to confirm your selection and exit. All devices in the group will now play synchronised audio.

To add devices to the current group, select MENU > Multi-room > Add to group

To remove other devices to the current group, select MENU > Multi-room > Remove from group

To remove the current device from the group select MENU > Multi-room > Leave group

To delete the current group select MENU > Multi-room > Dissolve group. The group is dissolved and multi-room playback will stop.

You can also setup and control multi-room playback using the UNDOK app.

For more information visit www.ruarkaudio.com/support.

Multi-room mode does not support FLAC format

App control

You can also control your R5 and set up multi-room playback using the UNDOK app. Find it on the Apple/Android app store.

For more information visit www.ruarkaudio.com/app.

App access PIN

Set up a PIN to restrict access to your R5 so only authorised users can control it from the UNDOK app.

MENU > System > Network > App access PIN.

Alarms, snooze and sleep

Setting an alarm

An active alarm is indicated by the alarm icon and when it sounds, the icon flashes.

Select MENU > System > Date and time > Alarms and choose alarm 1 or alarm 2 using the CONTROL KNOB.

Choose when the alarm will sound (off, daily, once, weekends or weekdays), set the time and then choose to have the alarm play a radio station, CD or sound a tone and choose the volume. Finally, select save to save the alarm and exit the set up menu.

NOTE: it is not possible to use a Bluetooth source, USB or network music server for the alarm.

Snooze

Press the CONTROL KNOB to temporarily silence a sounding alarm, press it again to increase the snooze period (5, 10, 15 or 30 minutes).

To cancel an alarm that is sounding or in snooze mode, press and hold the CONTROL KNOB for two seconds.

Sleep timer

To set the time after which your R5 will automatically switch to standby, select MENU > System > Date and time > Sleep.

Choose the delay in minutes (Off, 15, 30, 45, 60) and finally press the knob to confirm your selection. The display then dims to standby brightness, returns to the Now-playing screen and displays the sleep icon.

Specifications

Amplifiers and drivers

2 × 75mm full-range neodymium drivers

130mm long-throw subwoofer

90W Class AB power amplifier

Integrated MM phono preamplifier

Enhanced digital 3D audio processor

Tuner

DAB, DAB+ and FM Tuner with RDS

75 Ohm F-type DAB/FM aerial input

CD player

CD, CD-ROM, CD-R/RW disks

MP3, WMA, AAC 320kbps

Digital audio

Audiophile 32-bit 112dB audio stereo DAC

Internet radio, Spotify Connect, Amazon Music, Deezer, TIDAL, UPnP™ DLNA

802.11b/g/n Wi-Fi supports WEP, WPA & WPA2 security

MP3 48kHz 320kbps, AAC 96kHz 320kbps,

FLAC 24-bit 48kHz, WAV 16-bit 48kHz / 24 bit 44.1kHz,

WMA 44.1kHz 320kbps

Bluetooth V4.0, SBC, AAC, A2DP, aptX, aptX HD

Inputs and outputs

MM phono input (RCA) 2-8mV

Digital optical (TOSLINK) 24-bit 192kHz

Line input (RCA) 2.3Vrms

Line line out (RCA) 2.0Vrms

Ethernet (RJ45)

USB 2.0 5W (5V 1A)

3.5mm headphone jack, 25mW into 16-32 Ohm

Power

Mains input 100-120/200-240V AC 50 - 60Hz

Fuse 250V T3.15A

Nominal consumption 13W

Standby consumption 2.0W

Physical

H142 × W520 × D300mm

(H5.6 x W 20.5 x D 11.8in)

Weight 9.5kg (20.9lbs)

Specification and design subject to modification without notice.

Safety and regulatory information

• Read this user guide and follow all instructions, it will help you set up and operate your product properly.
• Heed all warnings and keep this user guide for future reference.
• Do not attempt to use a damaged device as this could result in a dangerous electric shock.
• Do not open the unit or remove any panels to expose the electronics. No user serviceable parts inside.
• Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
• This device is intended to be operated ONLY from the AC voltages listed on the back panel or included power supply. Operation from voltages other than those indicated may cause irreversible damage to the device and void the product warranty.
• Ensure that the mains plug or mains connector into the unit is readily accessible in case disconnection from the mains is required.
• The mains adapter, mains plug or mains connector must be removed from the socket to completely disconnect the system from mains power.
• Do not place any naked flame sources, such as lighted candles, on or near the device. Do not install near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.

• Avoid exposure to extreme heat or cold.

• Only use attachments/accessories specified for this device. Make no modifications to the system or accessories. Unauthorised alterations may compromise safety, regulatory compliance, and system performance.

• Only use the supplied aerial or an approved replacement.
• To reduce the risk of fire or electrical shock, do not expose the device to rain or moisture. Do not expose this device to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the device. As with any electronic products, use care not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.
• Unplug this device during lightning storms or when unused for long periods of time to prevent damage to this device.
• To prevent risk of fire or electric shock, avoid overloading wall outlets, extension cords, or integral convenience receptacles.
• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods.
• Do not install this device in a confined space. Always leave a space of at least 10cm around the device for ventilation and ensure that curtains or other objects never cover ventilation openings on the device.

LITHIUM COIN CELL SAFETY NOTICE. The remote control contains a lithium coin cell battery which if ingested, may cause chemical burns. Keep new and used batteries out of reach of small children. If you think batteries may have been ingested, seek immediate medical attention. Do not handle leaking or damaged batteries. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

This device is labelled in accordance with European Directive 2012/19/EU concerning waste electrical and electronic equipment. This symbol indicates that the product or associated batteries should not be disposed of as general household waste. As with any electrical equipment, please dispose of it according to local regulations.

CE COMPLIANCE INFORMATION

This product conforms to all EU Directive requirements as applicable by law. Hereby, Ruark Audio, declares that this device complies with the essential requirements and other relevant provisions of the European Radio Equipment Directive 2014/53/EU.

You can download the full CE Declaration of Conformity at www.ruarkaudio.com/doc/R5doc.pdf

UK CONFORMITY ASSESSMENT INFORMATION

This product conforms to all UK Conformity Assessment regulations as applicable by law. You can download the full UKCA Declaration of Conformity at www.ruarkaudio.com/doc/R5UKCA.pdf

Troubleshooting

For help with your product, please refer to the FAQ (Frequently Asked Questions) page in the support area of our website.

For more information visit www.ruarkaudio.com/support

EN

Guarantee

Register your product to get an extended three-year guarantee.

As standard, this product is guaranteed to be free from defects for a period of two years from date of purchase, but this is extended to three years if you register your product at www.ruarkaudio.com.

This guarantee remains valid providing this product has been treated with due care and attention. Product failure through accidental damage, excessive wear and tear, negligence or unauthorised modification will void this guarantee.

If this product was purchased in the UK and it develops a fault, please contact the retailer from which it was purchased, or contact us directly via our website www.ruarkaudio.com/support.

For products purchased outside the UK the distributor in the country of purchase guarantees the product. For details, please contact the local Ruark distributor or outlet.

If returning this product, please ensure it is packed in its original packaging and a proof of purchase is included.

This guarantee in no way varies or removes the purchaser's statutory rights.

Errors and omissions excepted.

General care

• Clean with a soft, lint-free duster or slightly dampened cloth. Do not use wax sprays or other substances as these may damage the surface finish or impair performance.
• Do not expose your unit to direct sunlight, high humidity, dust, excessive vibration or extreme temperatures, all of which can affect the finish, performance and reliability of the unit.
• Recommended operating temperature range is 5^ to 40^ .
• Natural wood finish cabinets will vary and lighten or darken with age, particularly when exposed to sunlight.

Copyright and trademarks

© Ruark Audio. All rights reserved. Ruark Audio, the Ruark Audio logo, and other Ruark Audio marks are owned by Ruark Audio and may be registered. All other trademarks are the property of their respective owners. Ruark Audio assumes no responsibility for any errors that may appear in this manual and the information contained in it may change without notice.

Bluetooth® and associated logos are registered trademarks owned by Bluetooth SIG, Inc.

Qualcomm aptX and aptX HD are products of Qualcomm Technologies International, Ltd.

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

All other trademarks are the property of their respective owners.

ruarkaudio

R5 HiFi Musiksystem

Brugervejledning

Betjening

Diagram of a mechanical knob or knob with directional arrows indicating rotation and movement (no text or symbols)

Gennemse menuer, spor- og stationslister

For at skifte indstillinger – tryk på MENU

For at rulle igennem valg – drej KONTROLKNAPPEN

MENU > System > Date and time

MENU > System > Network > Keep connected

*Dynamic Label Segment

Skift station

Tryk på▶▶ eller ▶ for at tune ind på den næste/forrige station.

Stationsliste

Internet radio, Spotify Connect, Amazon Music, Deezer, TIDAL, UPnP™ DLNA

Wi-Fi 802.11b/g/n understøttet WEP-, WPA- og WPA2-sikkerhed

MP3 48kHz 320kbps, AAC 96kHz 320kbps,

FLAC 24-bit 48kHz, WAV 16-bit 48kHz / 24 bit 44.1kHz,

WMA 44.1kHz 320kbps

Bluetooth V4.0, SBC, AAC, A2DP, aptX, aptX HD

Indgange og udgange

MM phono indgang (RCA) 2-8mV

Digital optisk (TOSLINK) 24-bit 192kHz

Line indgang (RCA) 2.3Vrms

Steuerung

Diagram of a mechanical device with directional arrows indicating rotation or movement (no text or symbols)

*Dynamic Label Segment

Sender wechseln

Kings of Leon Use Somebody

Download on the App Store

GET IT ON Google Play

Internet radio, Spotify Connect, Amazon Music, Deezer, TIDAL, UPnP™ DLNA

H142 × B520 × T300mm

Gewicht 9,5kg

Controles

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

*Dynamic Label Segment

Cambiar emisora

Line in et Optical 26

Tourne-disque 26

Audio multi-pieces 27

Boutons

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Changer de station radio FM

Changer de station radio DAB

*Dynamic Label Segment

Changer de station

Radio Internet, Spotify Connect, Amazon Music, Deezer, TIDAL, UPnP™ DLNA

Prises Line, RCA 2.3Vrms

Prise Line out, RCA 2.0Vrms

Prise Ethernet (RJ45)

USB 2.0 5W (5V 1A)

Prise casque 3,5mm, 25mW 16-32 Ohm

Puissance

CE INFORMATIONS SUR LA CONFORMITÉ À LA CE

Ingressi Line in e optical 26

Phono 26

Livelli in entrata 26

Multi-room 27

Controllo app 28

Comandi

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

MENU > System > Date and time

MENU > System > Network > Keep connected

*Dynamic Label Segment

Cambio di stazione

Kings of Leon Use Somebody

Ingressi Line in e optical

Download on the App Store

GET IT ON Google Play

Radio DAB, DAB+ FM con RDS

Radio Internet, Spotify Connect, Amazon Music, Deezer, TIDAL, DLNA UPnP™

Wi-Fi 802.11b/g/n con sicurezza WEP, WPA e WPA2

MP3 48kHz 320kbps, AAC 96kHz 320kbps,

FLAC 24-bit 48kHz, WAV 16-bit 48kHz / 24 bit 44.1kHz, WMA 44.1kHz 320kbps

Bluetooth V4.0, SBC, AAC, A2DP, aptX, aptX HDh

Ingressi e uscite

Consumo in stand-by 2,0W

Knoppen

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Fast-forward of rewind track

MENU > System > Date and time

MENU > System > Network > Keep connected

Van station wisselen

Van station wisselen

Kings of Leon Use Somebody

Fast-forward of rewind

Netwerkmuziekspeler

Fast-forward of rewind

2 x 75mm in neodymium highfidelity drivers

130mm long-throw subwoofer

90W Klasse AB versterker

75 Ohm F-type DAB/FM-antenne-invoer

CD-speler

CD, CD-ROM, CD-R/RW disks

MP3, WMA, AAC 320kbps

Digitaal audio

Audiofiele 32-bits 112dB audiostereo DAC

Internetradio, Spotify Connect, Amazon Music, Deezer, TIDAL, UPnP™ DLNA

Wi-Fi 802.11b/g/n ondersteunt WEP, WPA & WPA2 veiligheid

MP3 48kHz 320kbps, AAC 96kHz 320kbps,

FLAC 24-bit 48kHz, WAV 16-bit 48kHz / 24 bit 44.1kHz,

WMA 44.1kHz 320kbps

Bluetooth V4.0, SBC, AAC, A2DP, aptX, aptX HD

H142 × B520 × D300mm

Gewicht 9,5kg

Kontroller

Kontrollene på R5 er akkurat de samme som på fjernkontrollen.

1. ⏻ - STANDBY
2. KONTROLLKNAPP / SELECT

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

MENU > System > Network > Keep connected

*Dynamic Label Segment

Endre stasjon

75 Ohm F-type DAB/FM antenne-inngang

CD spiller

CD, CD-ROM, CD-R/RW disker

MP3, WMA, AAC 320kbps

Digital lyd

Audiofil 32-bit 112dB lydstereo DAC

Internett radio, Spotify Connect, Amazon Music, Deezer, TIDAL, UPnP™ DLNA

Wi-Fi 802.11b/g/n støtter WEP, WPA & WPA2 sikkerhet

MP3 48kHz 320kbps, AAC 96kHz 320kbps,

FLAC 24-bit 48kHz, WAV 16-bit 48kHz / 24 bit 44.1kHz, WMA 44.1kHz 320kbps

Bluetooth V4.0, SBC, AAC, A2DP, aptX, aptX HDh

H142 × B520 × D300mm

Vekt 9,5kg

Silhouette of a tree with no text or symbols visible

Generelt vedlikehold

59 Tailors Court, Temple Farm Industrial Estate,

Southend on Sea, Essex, SS2 5TH, UK

www.ruarkaudio.com

GREAT BRITISH DESIGN

20210304.1
