USER MANUAL EH512AC Vonroc

Original Instructions 03 This product is only suitable for well insulated spaces or occasional use.

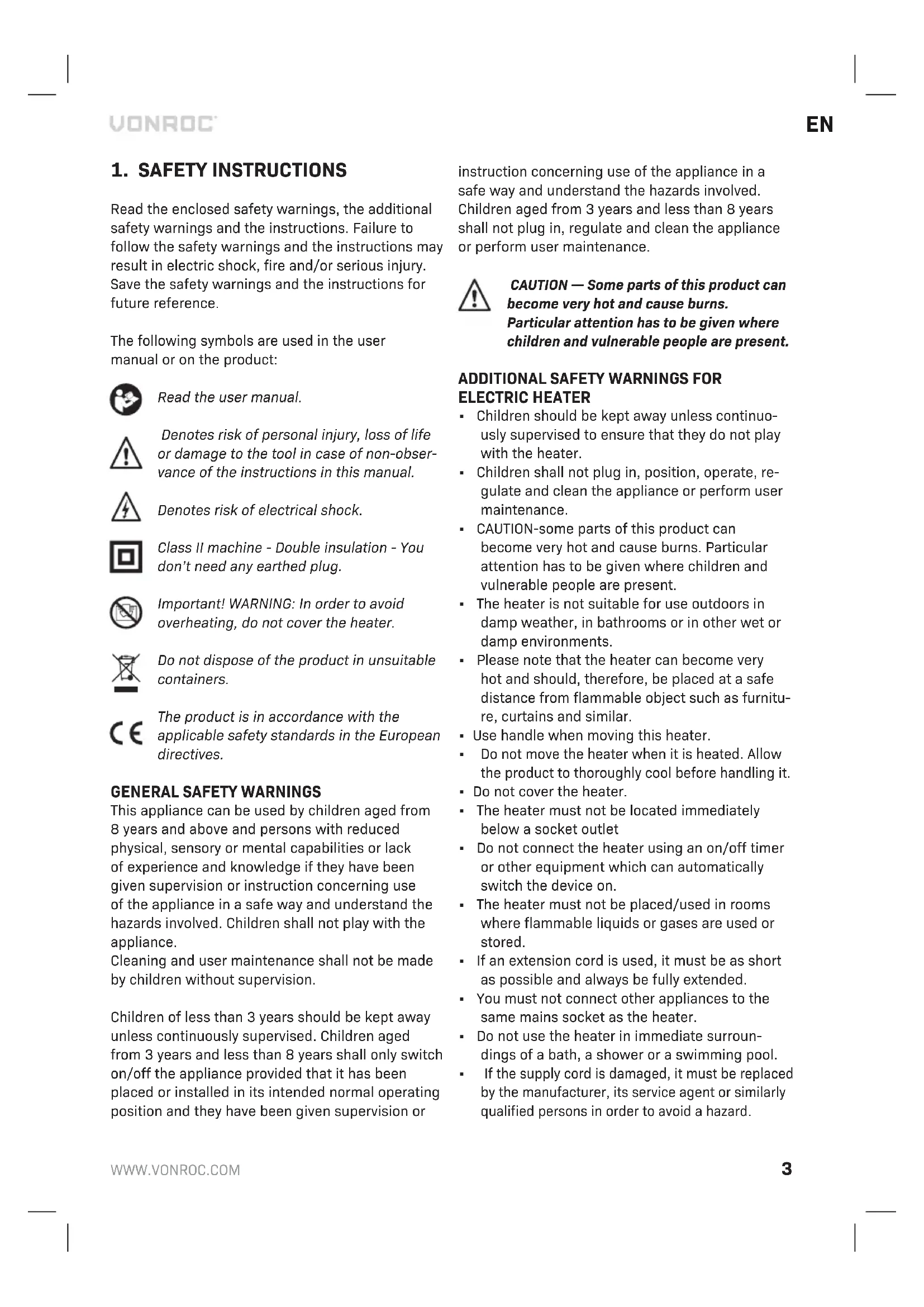

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference. The following symbols are used in the user manual or on the product: Read the user manual. Denotes risk of personal injury, loss of life or damage to the tool in case of non-obser- vance of the instructions in this manual. Denotes risk of electrical shock. Class II machine - Double insulation - You don’t need any earthed plug. Important! WARNING: In order to avoid overheating, do not cover the heater. Do not dispose of the product in unsuitable containers. The product is in accordance with the applicable safety standards in the European directives.

GENERAL SAFETY WARNINGS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Children should be kept away unless continuo- usly supervised to ensure that they do not play with the heater.

• Children shall not plug in, position, operate, re- gulate and clean the appliance or perform user maintenance.

• CAUTION-some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• The heater is not suitable for use outdoors in damp weather, in bathrooms or in other wet or damp environments.

• Please note that the heater can become very hot and should, therefore, be placed at a safe distance from flammable object such as furnitu- re, curtains and similar.

• Use handle when moving this heater.

Do not move the heater when it is heated. Allow the product to thoroughly cool before handling it.

• Do not cover the heater.

• The heater must not be located immediately below a socket outlet

• Do not connect the heater using an on/off timer or other equipment which can automatically switch the device on.

• The heater must not be placed/used in rooms where flammable liquids or gases are used or stored.

• If an extension cord is used, it must be as short as possible and always be fully extended.

• You must not connect other appliances to the same mains socket as the heater.

• Do not use the heater in immediate surroun- dings of a bath, a shower or a swimming pool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.4

Make sure the heater is always under surveillan- ce and keep children and animals away from it.

• Do not place/use the heater on moving vehicles or some where easy to be tripped over.

• When the heater is not used for a long time, unplug the heater form its means. Pull the plug straight out, never remove the plug by pulling the cord.

• Keep the heater far from curtain or places whe- re the air inlet van easily be blocked.

• The power coupler is waterproof when not in use. In order to prevent possible electric shock or leakage current, never use the heater with wet hand or operate the heater when there is water on the power cord.

• Do not dispose of electrical appliances as un- sorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliance are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Warning! Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Warning! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet. Electrical safety When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions. Always check that the voltage of the power supply corresponds to the voltage on the rating plate label. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

2. MACHINE INFORMATION

Intended use The electrical heater is intended for indoor, non-commercial, household use for temporarily heating residential rooms. Do not use the product for any other purpose. The heater can be used in enclosed rooms in a free standing position for room heating. The heater may only be used completely mounted and standing vertically on a stable surfa- ce. It incorporates a thermostat and a self-resetting thermal cut-out to control the heating element and therefore the temperature. TECHNICAL SPECIFICATIONS Model No. EH512AC Power supply 220-240 V ~/ 50 HzPower rating 1800 WSettings Fan / 1200 W / 1800 WHeating capacity 20 mProtection class Class IILength of cord 1.6 mWeight 1.6 kg DESCRIPTION The numbers in the text refer to the diagrams on page 2.

Check the device for damage before use and only use in good working condition. When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of stainless steel and was coated with protection oil by production. The smoke is caused by the left oil when heated. Placing the electric heater

• Place the heater upright on a firm and a level surface.

• Keep a minimum distance of 1 m between the front of the housing and walls and 30 cm from all other housing surface areas. Keep away from wet environments. Warning! Make sure to place the heater in a safe spot, so you cannot easily trip over the machine and cable. Make sure to place the heater where it cannot fall down / of. Starting the electric heater (Fig. A, B)

• Plug in the cable (11) to the mains.

• Set the thermostat knob (10) to the Max.

• The heater will switch on when the function knob (9) is set to one of the function settings. - OFF: Power off - FAN: Fan only - HEAT: Low heat – 1200 W - HOT: High heat – 1800 W - FAN: Fan with oscillation - HEAT OSC: Low heat with oscillation - HOT OSC: High heat with oscillation

The power indicator light (8) will turn on.

• Once the room reaches the required tempe- rature, turn the thermostat knob (10) back slowly until you hear a click and the LED-light turns off.

• The heater starts and stops automatically to keep the room temperature constant. Once the ambient temperature in the room reaches the desired target temperature, the heating element will be in standby mode. Once the ambient temperature starts to decrease, the heating element will be switched on again. Tip-over switch (5) (Fig. A) This heater has a mechanical tip-over protection. This protection ensures when the heater is not placed upright on a firm and level surface or when the heater tip over, the system will automatically shut the heater off. If this occurs, put the heater on a firm and level surface and start the heater again. Automatic Overheat Safety Control This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off. Stopping the electric heater Let the machine cool down before turning off by using the ventilation function.

• Turn the thermostat knob (10) to lowest position and turn the function knob to fan position (9).

• Let the fan cool down the appliance for a few minutes.

• Turn the function knob (9) to off position.

• Pull the plug out of the mains. Storing the electric heater

• Always let the heater cool down completely before storing the machine.

• Never wrap the cable around the heater Warning! Never store the machine in a wet or dusty environment

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains. Cleaning Let the machine cool down completely before cleaning.

• Clean the heater with a dry towel or vacuum cleaner.

• In order to protect the enclosure, don’t splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater.

• When you store the heater, let it cool down first and, keep it dry.6

Trouble shooting In case the electric heater does not work well, we give you subjoined some possible causes and their solutions. Problem Possible cause Treatment The heater does not operate, even when it is plugged in and the switch, thermostat are switched on. The plug is loose, bad connection Pull out the plug, check the connection of the plug and socket. Then connect again. No power in socket outlet Insert the plug in a proper socket The heating element glowing The input voltage is too high or too low Use power supply according to the rating on the label The air inlet grill is blocked Keep the heater far way from articles like curtain, plastic bag, paper and other things which can cover the inlet or can be easily cover on the air inlet The appliance didn’t heat up, only ventilator worked The switch was not put at heating setting Turn the switch to heat setting The thermostat operated Turn the thermostat and listen if there is open/close voice. If there is no click and the thermostat is not damaged, the heater will automatic switch on when the appliance cooled down The self-retting cut-out operated Turn the heater off and inspect the blockage of inlet or outlet. Disconnect the plug and wait at least 10 minutes for the protection system to reset before attempting to restart the heater. Abnormal noise The appliance is not stands upright Put the heater on a level surface ENVIRONMENT Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations. Only for EC countries Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way. WARRANTY VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;

• The tool has been abused, misused or improperly maintained;

• Non-original spare parts have been used. This constitutes the sole warranty made by compa- ny either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the im- plied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to change. Specifications can be changed without further notice.EN

Model identifier(s): EH512AC Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space hea- ters only (select one) Nominal heat output Pnom 1.8 kW manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin 1.2 kW manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output Pmax,c 1.8 kW electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output No At nominal heat output elmax 0 kW Type of heat output/room temperature control (select one) At minimum heat output elmin 0 kW single stage heat output and no room temperature control

In standby mode elSB 0 kW Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control Yes electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection
