USER MANUAL DCF070A5WCDB DANBY

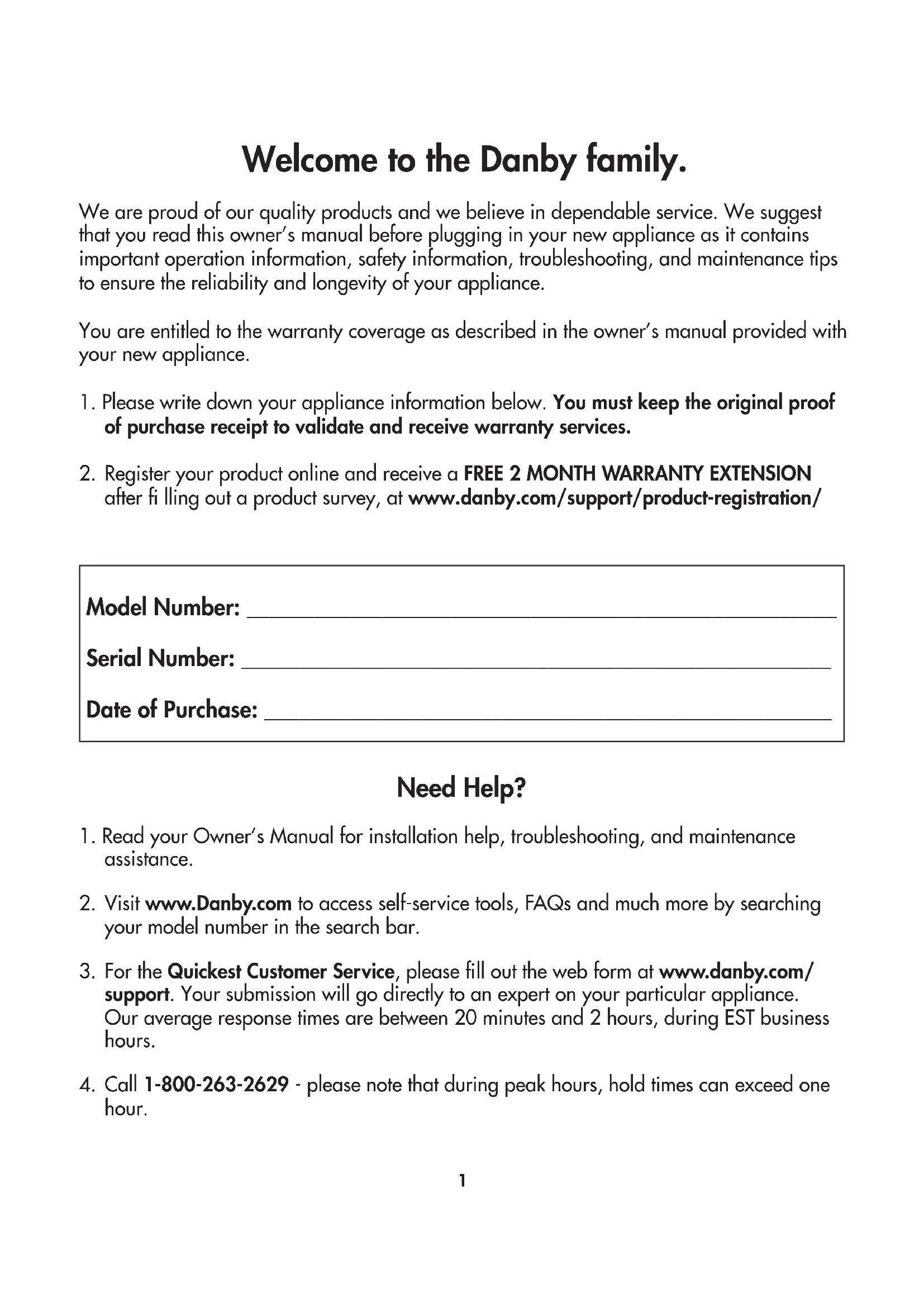

Manual del propietario.................................................17 - 241 Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner’s manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance. You are entitled to the warranty coverage as described in the owner’s manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof

of purchase receipt to validate and receive warranty services.

2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION

after fi lling out a product survey, at www.danby.com/support/product-registration/ Need Help?

1. Read your Owner’s Manual for installation help, troubleshooting, and maintenance

2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching

your model number in the search bar.

3. For the Quickest Customer Service, please fi ll out the web form at www.danby.com/

support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.

4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one

refrigerant used. Do not puncture refrigerant tubing.

• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.

• Consult repair manual or owner’s guide before attempting to service this product. All safety precautions must be followed.

• Dispose of properly in accordance with federal or local regulations.

• Follow handling instructions carefully.

• Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing

away an old appliance:

• Remove the door or lid.

• Leave shelves in place so that children may not easily climb inside. This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety. Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS! This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offi ces and other working environments;

• Farm houses and by clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments;

• Catering and similar non-retail applications. GROUNDING INSTRUCTIONS This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for. WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualifi ed electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualifi ed person in order to avoid hazard.LOCATION

• Two people should be used when moving the appliance. Place the appliance on a fl oor that is strong enough to support it when it is fully loaded.

• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.

• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.

• Do not use the appliance near water, for example, in a wet basement or near a sink.

• This appliance is intended for indoor household and garage use only. Freezers are tested to perform in temperatures ranging from -17 - 43°C (0 - 110°F). It is not designed for outside installation, including anywhere that is not temperature controlled.

• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• This appliance is 82.7 cm (32.6 inches) wide by

84.6 cm (33.3 inches) high by 55.6 cm (21.9

• Allow 12.7 cm (5 inches) of space between the back and sides of the appliance and all adjacent walls for proper air ventilation.

• This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction. FEATURES

appliance is connected to a working power source.

2. Freezer indicator light: Illuminates when the

appliance is set to run as a freezer.

LEVELING INSTRUCTIONS There are two adjustable legs on the bottom of the appliance that can be turned up or down to ensure that the appliance is level. It is important that the appliance is level to minimize noise and vibration. Move the appliance to its fi nal location. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the cabinet. Slowly turn the leveling leg clockwise until the appliance is level.4 OPERATING INSTRUCTIONS TEMPERATURE SETTING This appliance can be used as a refrigerator or a freezer. The temperature can be controlled by setting the thermostat dial on the front of the cabinet. Refrigerator Use To use the appliance as a refrigerator, set the thermostat dial in the “REFRIGERATOR” range. Using this setting allows the appliance to store fresh food and beverages. The internal temperature will be between 0 - 8°C (32 - 46.4°F). There are refrigerant lines in the cabinet walls that will get very cold. When using the appliance as a refrigerator, keep food items away from the cabinet walls to avoid freezing food. Freezer Use To use the appliance as a freezer, set the thermostat dial in the “FREEZER” range. Using this setting allows the appliance to store frozen foods and ice. The internal temperature will be between -12 - -24°C (10.4 - -11.2°F). Do not place liquid items in sealed bottles or containers into the appliance when it is being used as a freezer to avoid damage cause by expansion and cracking of the container. IMPORTANT This appliance is considered “Garage Ready” if it is being used as a freezer. If the thermostat dial is set in the “REFRIGERATOR” range, the appliance should only be used in climate controlled spaces. Conversion Notes When using the appliance as a refrigerator, condensation may form on the walls and bottom of the cabinet. This is normal and does not impact the operation of the appliance. This condensed water can be removed from the cabinet using the defrosting instructions. If the appliance has been used as a freezer and will be converted to use as a refrigerator, a large amount of condensation may form on the cabinet walls. Please check that all food items have been removed to avoid unwanted food defrosting. Defrost and clean the appliance before resuming use to avoid water accumulation inside the cabinet. Other Important Notes

• MIN indicates the warmest setting.

• MAX indicates the coldest setting.

• Setting the thermostat dial in the middle of the MIN-MAX range should be suffi cient for regular home use.

• Setting the thermostat to MAX in the “FREEZER” range will cause the compressor to run continuously and will make the interior very cold. It is not recommended to run the appliance at this setting for long periods of time.

• The temperature inside the appliance can vary based on ambient room temperature, the frequency that the lid is opened and the amount of fresh food that has recently been added.

• Do not overload the appliance as this can affect performance. Do not freeze large quantities of fresh food at the same time.

• The lid may be diffi cult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the appliance and the warm air that has just entered the appliance when the lid was opened. The pressure will equalize within a few minutes. If the lid is especially diffi cult to open, wait 5 minutes to allow the pressure to equalize and then try again.IMPORTANT Never use electrical appliances during defrosting. Do not use pointed or sharp objects to remove frost as this can damage the refrigerant lines. If these lines are accidentally pierced it will render the freezer inoperable and void the manufacturer’s warranty.

DEFROSTING OR REMOVING CONDENSED WATER

This appliance should be defrosted approximately twice a year or when the layer of frost inside the cabinet is 6 mm (1/4 inch) thick. If the appliance is being used as a refrigerator, this process should be used to remove the condensed water that will accumulate inside the cabinet. Condensed water should be removed regularly to prevent water from soaking and damaging food items.

1. To prepare, unplug the appliance and either move it to an area

that has a fl oor drain or place the provided drain pan in front of the drain on the front of the cabinet.

2. The interior drain is located on the inside fl oor of the cabinet.

Remove the cover from the drain. Defrosted or condensed water will fl ow into the hole and out through the exterior defrost drain cap.

3. The exterior defrost drain cap is located on the front of the

cabinet. Gently pull out approximately 20 - 25 mm, until the water hole is visible.

4. Twist the exterior drain cap so that the arrow points downward.

Make sure that the drain or pan is under the hole to collect the water. Allow the appliance to stand with the lid open as it defrosts or drains. Check the appliance regularly to ensure that the water is not overfl owing.

5. When all water has been drained, twist the drain cap until the

arrow is pointing upwards and then push inward until it is fl ush with the cabinet.

6. Replace the cover in the interior defrost drain. Set the thermostat

to MAX for approximately 2 hours before returning to the desired temperature setting.

OPERATING INSTRUCTIONSCLEANING

• Ensure the appliance is unplugged before cleaning.

• Clean the inside and outside of the appliance with a soft, damp cloth and some mild detergent.

• It is important to keep the area where the lid seals against the cabinet clean to ensure a tight seal. Clean this area with a soapy cloth. Rinse with a damp cloth and dry.

• Do not use cleaners containing ammonia or alcohol as these can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

• Allow the interior of the appliance to completely dry before plugging it back in and returning food items. POWER FAILURE Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the lid is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents. Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight. Do not overload the unit or block any ventilation openings.

VACATION You may leave the appliance operating during vacations of less than three weeks. If the appliance will not be used for several months, remove all items and unplug the appliance. Defrost, clean and dry the interior thoroughly. To prevent odor and mold growth, leave the lid open slightly, blocking it open if necessary. MOVING

• Remove all items and ensure the interior of the appliance is clean and dry.

• Be sure the appliance stays secure in the upright position during transportation.

• Protect the outside of the appliance with a blanket or similar item.

• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain in its operating position for 6 hours to reduce the possibility of a malfunction in the cooling system. DISPOSAL This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government offi ce. Disposal of this appliance should be in accordance with federal and local regulations. CARE & MAINTENANCE7

TROUBLESHOOTING AND FREQUENTLY ASKED QUESTIONS

PROBLEM OR QUESTION POSSIBLE CAUSE AND SOLUTIONS No power • A fuse may be blown or the circuit breaker tripped; check the fuse box or circuit breaker

• Plug not fully inserted into the wall outlet; make sure the power cord is plugged in Internal temperature not cold enough

• Temperature setting is too warm; turn the temperature setting down

• The lid is not shut properly or opened excessively; make sure the lid is completely closed

• Recently added a large quantity of warm food to the cabinet; remove some of the new items until the freezer cools down

• Close proximity to heat source or direct sunlight; move the freezer to another area

• Ambient temperature or humidity is very high; move the freezer to another area Appliance runs continuously

• Temperature setting is too cold: turn the temperature setting up

• The lid not shut properly or opened excessively: make sure the lid is completely closed

• Recently added a large quantity of warm food to the cabinet: remove some of the new items until the freezer cools down

• Close proximity to heat source or direct sunlight; move the freezer to another area

• Ambient temperature or humidity is very high; move the freezer to another area The appliance is making a gurgling noise; why? This noise is completely normal. The refrigerant inside the appliance will make a gurgling noise as it changes from a liquid to a gas and back again. What is the electrical rating? This information can be found on the rating place located on the back or side of the cabinet. How much does it cost to run the appliance per year? Please refer to the energy guide found at www.Danby.com Can I use an extension cord? No, an extension cord may not be used Can I use this appliance in a garage? Yes, this appliance is considered “Garage Ready” when it is being used as a freezer. If the appliance is being used as a refrigerator, it should only be used in climate controlled spaces. I am having trouble opening the lid; why? The appliance lid may be diffi cult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the freezer and the warm air that has just entered the appliance when it was opened. The pressure will equalize within a few minutes.LIMITED IN-HOME APPLIANCE WARRANTY This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.TERMS OF WARRANTY Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided. First Year During the rst twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser. To obtain Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any app liance Service requiring service outside the limited boundaries of “In Home Service” , it will be the consumer’s responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Serv ice” below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualied service technician. If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial appli cation, all obligations of Danby under this warranty shall be void. Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be In Home Service delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualied and certif ied for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are t he responsibility of the purchaser. Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other c ontents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.EXCLUSIONS Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, m ade or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditio ns, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall no t be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction o f the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or propert y caused by the unit. GENERAL PROVISIONS No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

2) Damage in transit or when moving the appliance.

3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating con ditions (extremely high or low room temperature).

5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).

6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, oods etc.

7) Service calls resulting in customer education.

8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for out door application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.Danby Products LimitedPO Box 1778, Guelph, Ontario, Canada N1H 6Z9Telephone: [phone] FAX: [phone]Danby Products Inc.PO Box 669, Findlay, Ohio, U.S.A. 45840Telephone: [phone] FAX: [phone] Warranty ServiceIn-home Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of “In Home Service”, will be the consumer’s responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser. During the first five (5) years, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the original purchaser. Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.First 5 yearsTo obtain service Boundaries ofin-home service

LIMITED “IN HOME” WARRANTY

This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.TERMS OF WARRANTY Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided. Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.EXCLUSIONS Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.GENERAL PROVISIONS No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following: 1) Power failure.2) Damage in transit or when moving the appliance.3) Improper power supply such as low voltage, defective house wiring or inadequate fuses. 4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence). 6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.7) Service calls resulting in customer education. 8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled). Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot. Warranty Service In Home Danby Products Limited PO Box 1778, Guelph, Ontario, Canada N1H 6Z9 Telephone: [phone] FAX: [phone] Danby Products Inc. PO Box 669, Findlay, Ohio, U.S.A. 45840 Telephone: [phone] FAX: [phone] Bienvenue dans la famille Danby. Nous sommes fi ers de nos produits de qualité et nous croyons en un service fi able. Nous vous suggérons de lire ce manuel du propriétaire avant de brancher votre nouvel appareil car il contient des informations de fonctionnement importantes, des informations de sécurité, des conseils de dépannage et d’entretien pour assurer la fi abilité et la longévité de votre appareil. Vous avez droit à la couverture de la garantie décrite dans le manuel du propriétaire fourni avec votre nouvel appareil.

2) Damage in transit or when moving the appliance.

3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating con ditions (extremely high or low room temperature).

5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).

6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, oods etc.

7) Service calls resulting in customer education.

2) Damage in transit or when moving the appliance.

3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating con ditions (extremely high or low room temperature).

5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).

6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, oods etc.

7) Service calls resulting in customer education.
