Product Type	Amplified loudspeaker (active speaker)
Brand	Turbosound
Model	TCS12296AN
Category	Loudspeaker
Built-in Amplification	Yes, digital amplifier with DSP
DSP Processing	Parametric EQ, crossover, limiter, delay, notch filters, FBD (feedback detection)
Audio Inputs	Combo XLR/TRS (balanced/unbalanced), ULTRANET IN (RJ45/etherCON)
Audio Output	LINK XLR (unprocessed copy), ULTRANET THRU (RJ45/etherCON)
Network Connectivity	Proprietary ULTRANET up to 16 channels, USB for software control and firmware update
Power Supply	AC via locking Neutrik powerCON connector
Control and Display	LCD screen, rotary encoder, SETUP, PROCESS, ENTER, EXIT, POWER buttons
DSP Presets	20 user presets (LOAD/SAVE) with customizable name
LCD Indicators	Inverted text (black on white) when parameter is modified from default
Mounting Options	M10 suspension points (top, bottom, sides, rear), optional wall/ceiling brackets (WB-35, CB-35), flying kits (TCS-FK1, TCS-FK2, TCS-FK3)
HF Horn Rotation	Possible 90° rotation to change horizontal/vertical dispersion
Safety	Grounding mandatory, overheating protection, automatic shutdown when alert
Maintenance and Cleaning	Clean with a dry cloth; do not obstruct ventilation slots
Warranty	Limited warranty, see musictribe.com/warranty

Frequently Asked Questions - TCS12296AN Turbosound

How to connect the speaker to an ULTRANET network?

Use a CAT5 cable with RJ45/etherCON connectors. Connect the cable from the source (e.g., digital mixer) to the ULTRANET IN jack. To daisy-chain multiple speakers, connect the ULTRANET THRU jack of the first to the input of the next. Up to 7 devices can be connected in series.

How to load a user preset?

Press the SETUP button to access the main menu, turn the encoder to select LOAD, then choose a number from 1 to 20. Press the encoder or ENTER to confirm and load.

How to adjust the crossover frequency?

In the DSP menu, use the PROCESS button to navigate to the XOVER module. Turn the encoder to choose from presets (HP 100 Hz, HP 120 Hz, etc.) or select User to manually adjust frequency and phase.

How to rotate the HF horn?

Lay the speaker on its back, remove the grille (10 screws), disconnect the woofer, unscrew the nuts from the compression driver bracket, then remove the horn/motor assembly. Rotate the horn 90° as per the desired dispersion, then reassemble in reverse order. Observe cable polarity (white/red for +, black/blue for -).

What to do if the LCD screen shows an overheat alert?

The alert indicates that the amplifier has reached an excessive temperature. The speaker will mute until it cools down. Check that the ventilation slots are not obstructed and that the speaker is not exposed to a heat source. Reduce the sound level if necessary.

How to update the DSP firmware?

Download the DSP control software and the latest firmware from turbosound.com. Connect the speaker to a PC via the USB port, launch the software and follow the update instructions. Make sure not to interrupt the power during the process.

How to reset a feedback filter (FBD)?

In the DSP menu, access the FBD module via the PROCESS button. Select Reset to reset all feedback filters. You can also use Learn for automatic feedback frequency search (be careful with high volume).

What type of cable to use for the audio input?

Use high-quality professional speaker cables with an XLR (balanced) or 6.35 mm TRS jack (balanced or unbalanced). The combo jack accepts both types. For an ULTRANET connection, use a CAT5 cable.

How to mount the speaker on the wall with the Turbosound bracket?

Separate the bracket into wall plate and speaker plate. Attach the speaker plate to the rear of the cabinet with the provided bolts. Fix the wall plate to the wall with appropriate fixings (not supplied). Lift the speaker onto the wall plate, reassemble the bracket, adjust the vertical angle and tighten all bolts.

How to adjust the delay to align speakers?

In the DSP menu, use the PROCESS button to access the DELAY module (sometimes under SETUP). Turn the encoder to adjust the delay from 0 to 300 ms (equivalent to about 105 m). Use the Unit option to switch between ms, meters and yards. Measure the distance between speakers and adjust the delay accordingly.

USER MANUAL TCS12296AN Turbosound

Exterior view of a set of black audio/video amplifiers arranged in a row (no text or symbols visible)

TCS-AN SERIES

TCS122/64-AN (-WH), TCS122/94-AN (-WH), TCS122/96-AN (-WH), TCS152/64-AN (-WH), TCS152/94-AN (-WH), TCS152/96-AN (-WH), TCS115B-AN (WH), TCS218B-AN (WH)

Arrayable 2,500 Watt 2 Way Full Range Loudspeakers with Dendritic Waveguides 6,000 Watt and Arrayable 3,000 Watt Subwoofers Klark Teknik DSP Technology and ULTRANET Networking

2 TCS-AN SERIES Quick Start Guide 3

EN

ES

EN Important Safety Instructions

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. the only high quality professional speaker tables with 15" TS or twist-locking plugs pre installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts include. Refer servicing to qualified personnel.

Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as wares, shall be plated on the apparatus.

Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.
2. Keep these instructions.
3. Here all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not have any ventilation openings, install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as rotators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsoierte outlet.

10. Protect the power cord from being vialled on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug in damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a MUNG socket outlet with a protective earthing connection.

4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain nearly operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEE Directive (2012/19/EU) and

should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (ELEC). The misunderstanding of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with ELEC. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service. 18. Do not install in a confined space, such as a book case or similar unit.

1. Do not place naked flame sources, such as lighted candles, on the apparatus.

2. Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.

3. This apparatus may be used in tropical and moderate climates up to 45°C.

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Clark Teknik, Lab Suggers, Lake, Tammy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Institut Microraphes and Codaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at musictribe.com/warranty.

ES

BESCHRÄNKTE GARANTIE

Thank you for choosing a Turbosound loudspeaker product for your application. If you would like further information about this or any other Turbosound product, please visit our website at turbosound.com.

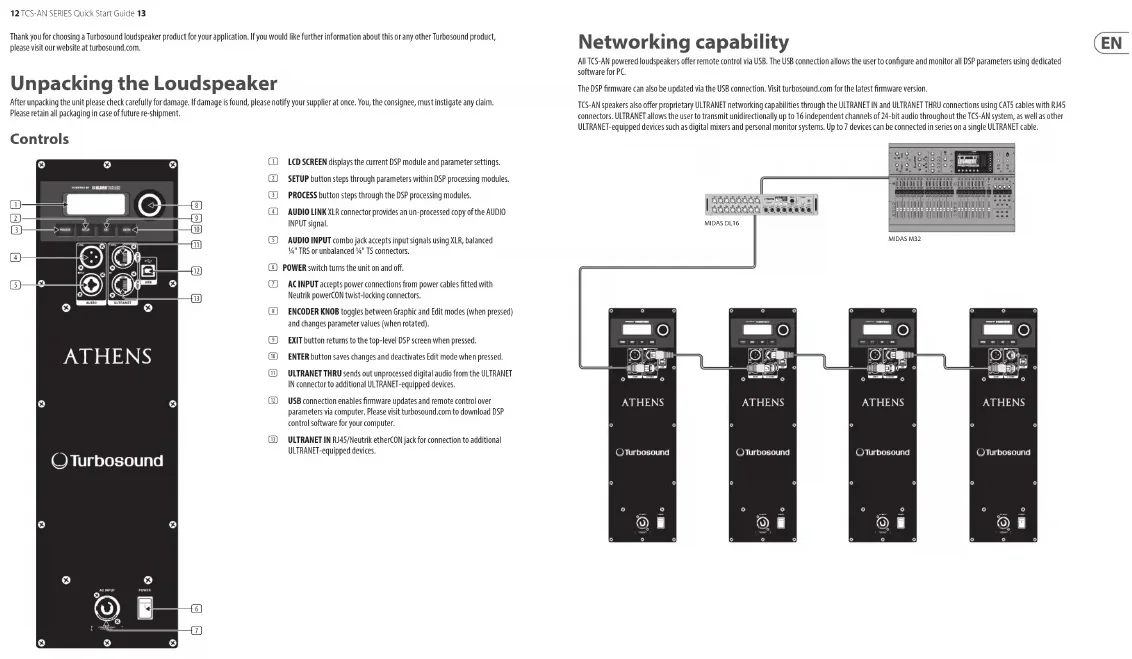

Unpacking the Loudspeaker

After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.

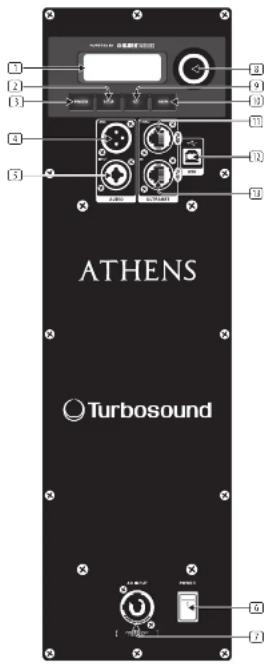

Controls

ATHENS Turbosound

[1] LCD SCREEN displays the current DSP module and parameter settings.
② SETUP button steps through parameters within DSP processing modules.
(1) PROCESS button steps through the DSP processing modules.
(4) AUDIO LINK XLR connector provides an un-processed copy of the AUDIO INPUT signal.
[5] AUDIO INPUT combo jack accepts input signals using XLR, balanced N° TRS or unbalanced N° TS connectors.
5 POWER switch turns the unit on and off.
[7] AC INPUT accepts power connections from power cables fitted with Neutrik powerCON twist-locking connectors.
① ENCODER KNOB toggles between Graphic and Edit modes (when pressed) and changes parameter values (when rotated).
(5) EXIT button returns to the top-level DSP screen when pressed.
18 ENTER button saves changes and deactivates Edit mode when pressed.
⑪ ULTRANET THRU sends out unprocessed digital audio from the ULTRANET IN connector to additional ULTRANET-equipped devices.
USB connection enables firmware updates and remote control over parameters via computer. Please visit turbosound.com to download DSP control software for your computer.
⑪ ULTRANET IN RJ45/Neutrik etherCON jack for connection to additional ULTRANET-equipped devices.

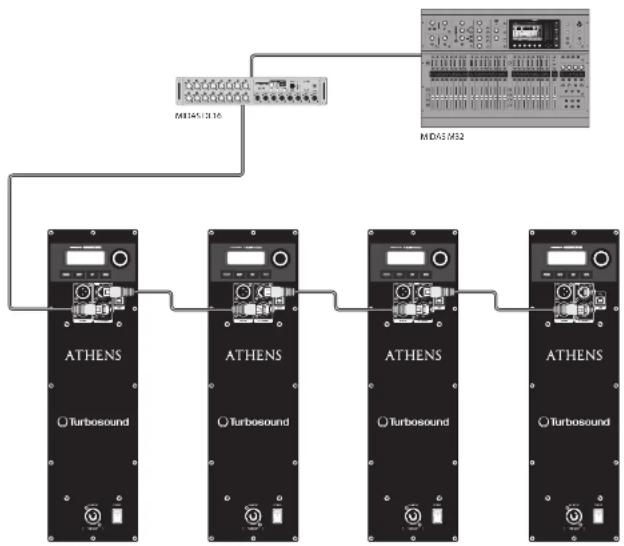

Networking capability

All TCS-AN powered loudspeakers offer remote control via USB. The USB connection allows the user to configure and monitor all DSP parameters using dedicated software for PC.

The DSP firmware can also be updated via the USB connection. Visit turbosound.com for the latest firmware version.

TCS-AN speakers also offer proprietary ULTRANET networking capabilities through the ULTRANET IN and ULTRANET THRU connections using CATS cables with RATS connectors. ULTRANET allows the user to transmit unidirectionally up to 16 independent channels of 24-bit audio throughout the TCS-AN system, as well as other ULTRANET-equipped devices such as digital mixers and personal monitor systems. Up to 7 devices can be connected in series on a single ULTRANET cable.

		Fullrange Subwoofer Function
	POSITION	Free		For positioning the speaker in free suspension or ground stacked away from walls.
		Wall	Floor	For positioning the speaker on or not to a wall, or on the floor (subwoofer)
		Ceiling	Wall	For positioning the speaker over the ceiling and wall, or front and wall isubwoofer
		Corner Corner		For positioning the speaker in a corner next to the ceiling (fixed install) or in a corner on the floor (subwoofer)
Screenion update.	DELAY	Delay	Delay	Adjusts the amount of delay (max 300 msec = 103 m or 138 feet).
		Unit	Unit	Selects between them, meters and feet.
	LIMIT LIMITER	Limit Limit		Adjust the limit threshold for the input signal from OFF up to 30 dB. This threshold adjustment allows you to set time output power which is below the loudspeaker system's rated into output.
LOAD START SWITCH	SETUP(page 2)		Version Version Displays the installed firmware version.
	LOAD	1, 20, 1, 20.		To load a specific preset, turn the encoder to select the desired preset 'number', and then press rather than ENTER button or the encoder. When asked for content press the encoder again or ENTER to abort.
	SAVE	1, 20, 1, 20.		To save a preset choose the respective preset due and press ENTER or the encoder.
	Sub Menu		Save Preset Save Preset	Name the preset by choosing the character with the encoder and pressing to confirm each character. When finished, press the ENTER button to save the preset.
	SOLO	Contrast	Contract	Adjust LCD panel contrast. The default contrast value is 15.
	ATCHENS	Screen Screen		One LCD screen saw (default) turns on automatically after approve, 2 minutes. OFF LCD turns off automatically after approve, 5 minutes.
	SUB MENU	Lock	Lock	Lock the device and create a password by choosing the password characters with the encoder and pressing to confirm each character. After finished press the ENTER button, unlock the device by entering the password or according the unit via USB to a PC running proprietary remote software. The software does not require a password.
		Warning	Warning	In one of overrunning, an alert appears on the LCD screen, and the amplifier will shut down until the unit costs.

LCD Graphic Indicators

To help the user immediately recognize that a parameter has been selected and changed from the initial default setting, the parameter's related text on the top-level screen will invert and change to black text on a white background. As an example, the following screenshots show how the text for the EQ function changes when the TCS-AN default EQ setting has been changed:

This indicator function occurs only on the main DSP menu level and works for all DSP-related functions, except for the LOAD, SAVE and SETUP sub-sections on the second page of the top-level SETUP menu.

Mounting and Fixing

The table below summarises the rigging parts or kits required for various applications, and some examples of the possible rigging options are illustrated.

TCS-AH series cabinets are designed with multiple internal rigging points to suit many possible mounting methods in permanent installations. All cabinets can be simply suspended using optional MB or MTR shoulder eyebrows coupled to the internal rigging points provided. Remove the appropriate countersunk screws and replace them with eyebrows, which must have a thread length of at least 18mm. Use the rear rigging point to single the cabinet for optimum room coverage. Cabinets may be hung upside down if required. Turbosound WB-55 and CR-55 wall and ceiling brackets are optimally available for TCS-AH series cabinets, and these are also compatible with industry standard wall and ceiling brackets which use 50 mm x 60 mm hole spacing.

Model	Wall	Ceiling	Downfill	Array Kit	Eyebulls
TCS122 W8-55 CB-55				TCS122/PTCS-F61TCS-F62	B4-10-40
TCS152 W8-55 CB-55				TCS152/PTCS-F61TCS-F62	B4-10-40
TCS1158				TCS115-PTCS-F63	B4-10-40
TCS Subscaler 1B-10-40

TCS Subscribers EB 1040

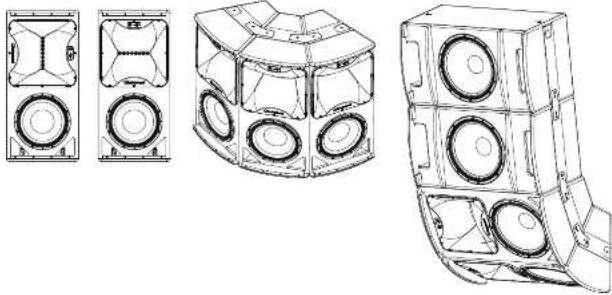

Some typical examples of the possible rigging options are shown here:

Technical line drawings of a multi-chamber speaker housing assembly (no text or symbols)

TCS-AN Series Flying Components

Wall and Ceiling Brackets

To install a loudspeaker using Turbosound wall and ceiling brackets, first separate the brackets into their wall/ceiling plate and speaker plate component parts. Remove the countersunk bolts on the rear panel of the cabinet. Attach the speaker plate to the cabinet with the bolts supplied. Fix the wall/ceiling plate in the venue using appropriate fixings (not supplied). Lift the loudspeaker on to the wall plate and re-assemble the bracket parts, adjust the vertical angle and tighten all bolts.

Loudspeaker Arrays and Clusters

An array of two or more cabinets requires the use of kits of flyplates and inter-cabinet couplers, which are fixed to the cabinet sides through the MTD rigging points and assembled together in a 'daisy chain' fashion to build up the required array. For all loudspeaker arrays consisting of two or more cabinets:

The number of inter cabinet coupler kits required - the number of boxes - 1, The number of flyplate kits required - the number of boxes.

Illustrated here are the components parts available for TCS cabinets.

TCS152-IP(MII) B, Flax B1 K1 TCS152

7CS122-P-3W1 R/Flex-R/Kr7CS122

© © © © 2: NIO Bokwesen

□ □ □ □ /sV1086388

① ② ③ ④ ⑤

TCS-RCT/AM Intr Genet Goules B for TCS12c or TCS152 Consors: 2 cEX

125-35(###) Into: Cai#r#e Coupie 19.04-7251158 Contents 1-10C

TCB2 (HK) Inter-Channel CounterFilter (CS12) or (CS13) Generic - 1x10

B 1140 Erbcl V100 mm Color: 12Fptd

Suspending with Eyebolts

TCS-MN cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. The simplest method is to use the two rigging points on the top and a single pull-back rigging point in the centre of the rear panel.

Remove the appropriate countersunk screws and replace them with shoulder eyebrows, which must have a thread length of at least 18 mm. Use the rear rigging point to angle the cabinet for optimum mom coverage. Cabinets may be hung upside down if required.

IMPORTANT NOTE FOR ALL INSTALLATION METHODS: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualified personnel with the required experience and certification to perform the necessary tasks. Walls, floors or ceilings must be capable of safety and securely supporting the actual load. The mounting accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling.

When mounting rigging components on walls, floors or ceilings, ensure that all fixings and fasteners used are of an appropriate size and load rating. Wall and ceiling claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular fixing arrangement can be safely employed for a particular load. Cavity plugs or other specialist fixings, if required, must be of an appropriate type, and must be fitted and used in accordance with the maker's instructions.

The operation of your speaker cabinet as part of a flown system, if installed incorrectly and improperly, can potentially expose persons to serious health risks and even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualified and certified (by local state or national authorities) personnel prior to any installation or flying.

Make sure that speaker cabinets are set up and flown by qualified and certified personnel only, using dedicated equipment and original parts and components delivered with the unit. If any parts or components are missing please contact your Dealer before attempting to set up the system.

Be sure to observe the local, state and other safety regulations applicable in your country. Music Tribe, including the Music Tribe companies listed on the enclosed "Service Information Sheet", assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular checks must be conducted by qualified personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is flown, the area underneath the speaker is free of human traffic. Do not fly the speaker in areas that can be entered or used by members of the public.

Speakers create a magnetic field, even if not in operation. Therefore, please keep all materials that can be affected by such fields (discs, computers, monitors, etc) at a safe distance. If safe distance is usually between 1 and 2 metres.

Rotating the HF horn pattern

The high frequency hom in all TCS122 and TCS152 models can be rotated through 90° in order to swap the horizontal and vertical dispersion patterns, particularly useful when assembling clusters or for example to retain the original dispersion when the cabinet is installed in a horizontal orientation.

1. Place the cabinet on its back on a suitable work surface.
2. Remove the 10 post-drive screws that hold the grille in place and set the grille aside (Fig 1).
3. Remove and disconnect the bass driver (fig 2) to access the compression driver retaining brace, making a note of the bass driver polarity for later reconnection.
4. Reach in through the bass driver cavity and loosen the two wing nuts securing the compression driver retaining brace (Fig 3).
5. Remove the horn fixing screws that secure the horn to the enclosure and lift out the horn and compression driver assembly (fig 4); (if required for servicing or replacement, disconnect the cables from the compression driver, making a note of the polarity for later reconnection.)
6. Rotate the nom to achieve the desired coverage pattern [fig 5].
7. Re-assemble the cabinet and drivers by reversing steps 1-5.
8. If the compression driver cables have been disconnected, reconnect the cables while observing the correct polarity (white cable to the -ve terminal, black cable to the -ve terminal).
9. Place the horn and compression driver back into the cabinet, making sure that the driver cables pass underneath the compression driver retainer and that the compression driver fits squarely back into the retaining brace.
10. Tighten the wing nuts back onto the compression driver retaining brace [fig 3].
11. Replace the horn fixing screws and tighten to secure the horn back into the enclosure (Fig 4).
12. Reconnect the bass driver cables, observing the correct polarity (red cable to the +ve terminal, blue cable to the -ve terminal).
13. Check all components and confirm the horn orientation is correct [fig 6].
14. Replace the grille (fig 1) and phase check the cabinet before use.

kg.1

Fig.2

图3

图2-15-10.6

ATHENS Turbosound

Technical line drawings of four different speaker housing configurations (no text or symbols)

⑤ ⑥ ⑦ ⑧ 4:NICRA Mo#a

① ② ③ ④ ⑤

⑤ ⑥ ⑤ ⑥ 4xMD/Fat/Walers

IC-PC10K rbc-camC:coaRtBcIcIIS2/cclRS (###) - 7.6K

25-43-MH In-line data (appr) for 12/19/1 Somatic Jol.

TCS B214K Intra Gau et Goula B1 for TCS122 or TCS152 (crem: 3 eK)

B 114 E,abc(10)240mm (cubcl: 1cylcbl)

ATHENS Turbosound

Technical line drawings of a multi-tiered speaker tower assembly (no text or symbols)

© © © 4: NICOLI Market

20 20 20 20 20 20

© © © © 4-MD/10/Sales

TCS RELIAR In the case of the TCS12 or TCS15 Consors: 2 cEX

73 PB (MH) Min (Max Cap) for 725.193 Goroux 1-0X

TC-49210M info-Casal-Code#8.16.01.52/ce11353 (www.casal)

E-11-1 Lybe1/21a 4mm Linde: 1cl,yeed

ATHENS Turbosound

Technical line drawings of a multi-tiered speaker tower assembly (no text or symbols)

CS122 FP 941 By Fire Bt for CS122

TCS115 FAM Famale 2013/158

4: NID-114 Market

12月10日

4.001 W/500

TCR1/AR inter-Correct Cooler II for TGT22 or TGT32 Cofactors: 2x100.

12 B3/MH Inter-Chine (exp) 12/159

TCS-02 (A) Intra-Caust-Guolar B1 for TCS123 or TCS152 Convers. To Beclit

E_1abc (V) Do 40mm Census:

ATHENS Turbosound

Technical line drawings of four different speaker housing components (no text or symbols)

Componentes Voadores Série TCS-AN

Suportes de parede e teto

7CS122 FP 3W-1 By Fire Bt for CS122

TCS115 47 (AM) By: 0.0283 (CS115)

4: NID-114 Market

© © © © 12/01/14 Mod.

4.001 W/500

TCS-RCI/MK Inter-Carrel Complex I for TCS22 or TCS32 Contents: 1 eKL

123 83 (MHz) Inter-Cabinet Couple: 123159 Iomert: 2 c10

TCS-02 (A) Intra-Caixt-Coala B for TCS12c r TCS152 Covers 1 dX

14-11-4 E 1 abc1V10a 40mm Cenara: 1cE 1 abc

ATHENS Turbosound

Technical line drawings of four different speaker housing configurations (no text or symbols)

© © © © 4-MD/10/Sales

TCS RELIAR In the case of the TCS12 or TCS15 Consors: 2 cEX

725 PB3(MH) Min (Lead Copper) for 725.193 Conex 161X

TC-49210M mio-Canul-Lozzer B1 for IT (527 or 835) (see next.) eKI

E3-11-7 Lybe1/25h 4mm Linde: Telpeell

ATHENS Turbosound

Technical line drawings of a multi-tiered speaker tower assembly (no text or symbols)

7CS122 FP 3W-1 By Fire Bt for CS122

TCS115 47 (AM) By: 0.0283 (CS115)

4: NID-114 Market

© © © © 12/01/14 Mod.

4.001 W/500

TCS-RC1 (AB) Inter-Context Similar to for TCS12c: TCS12 Contents: 3 eK1

725 83 (MHI Inter-Calvin-Couple) Ref: 725-159 Icelerich - 3 (01)

105402 [M] In a Corneal Cochrane for TGS129 or TGS130 Corrorka 2 e130

14-15-0 Ejede IV 1024(###) C##t##. 1#Ejede#.

ATHENS Turbosound

Technical line drawing of a multi-tiered mechanical housing or enclosure with circular components (no text or symbols)

Flygkomponenter i TCS-AN-serien

Vägg- och takfästen

© © © © 2: NIO Bokwesen

□ □ □ □ /sV108636

10 10 10 10 10

TCS-RCT/AM Incr. Caneet Goula B for TCS12c or TCS152 Comms. 2 dEX

125-35(###) Into: Cai#r#e Coupie 19.04-7251158 Contents 1-10C

TCB2 (HK) Inter-Channel CounterFilter (CS12) or (CS13) Generic - 1x10

B 1140 Erbcl V100 mm Color: 12Fptd

ATHENS Turbosound

Subsolvency 1CS 18-040

Technical line drawing of a multi-tiered mechanical housing or enclosure with circular components (no text or symbols)

7CS122 FP 3W-1 By Fire Bt for CS122

TCS115 47 (AM) By: 0.0283 (CS115)

4: NID-114 Market

② ③ ④ ⑤ ⑥ ⑦

4-100% of Sales

TCS-RCI/MK Inter-Carrel Complex I for TCS22 or TCS32 Contents: 1 eKL

123 83 (MHz) Inter-Cabinet Couple: 967-125159 Contents: 2 e10

TCS-02 (M) Intra-Caustal Cation B for TCS12c or TCS152 Cortex 2 dX

14-11-4 E,abc(1/2)0.40mm Cenon: 1cE,abc
