USER MANUAL XDM10005 JL Audio

• Installation requires appropriate tools and safety equipment. Professional installation is recommended.
• This product is water-resistant. Do not submerge or subject to high-pressure water spray.
• Before installation, turn off the audio system and disconnect the battery system from the audio system.
• When possible, install in a dry, well-ventilated location that does not interfere with factory-installed systems. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.
• Do not install in the engine compartment, any areas of extreme heat or where it will be directly exposed to the elements.
• Before cutting or drilling, check for potential obstacles behind mounting surfaces.
• Carefully route all system wiring away moving parts and sharp edges; secure with cable ties or wire clamps and use grommets and loom where appropriate to protect from sharp edges.

SAFETY CONSIDERATIONS

• Only use this product with 12 volt, negative-ground electrical systems. This product is not certified or approved for use in aircraft.
• Mount this product securely to prevent damage or injury in severe conditions.
  An appropriate fuse (or circuit breaker) at the main power wire is vital for vehicle/wessel safety and must be installed within 18 inches (45cm) of the positive battery connection.
  For ABYC and NMEA applications, circuit protection is required within 7 inches (18 cm) of the battery, unless the cable is in an enclosure or conduit.
• Listen to your audio system at levels appropriate for operating conditions and hearing safety.

CONNECTIONS

	Connection Description Notes
1	+12 VDC Positive (+12V) Power Connection				• 4 AWG wire (required) • Install 80A fuse at (-) battery post
	Ground Negative (GND) Ground Connection - 4 AWG wire (required)
	Remote Positive (+12V) Activation Connection				• 18-12 AWG wire capacity • See ↑urn On Mode for more info
2	CH. 1 Input Left Input Signal, Black RCA				• Accepts 200mV-4V input voltage • See ↑put Mode for more info
	CH. 2 Input Right Input Signal, Red RCA
	CH. 3 Input Left Input Signal, Black RCA
	CH. 4 Input Right Input Signal, Red RCA
	SUB CH. Input Left Subwoofer Input Signal, Black RCA
	SUB CH. Input Right Subwoofer Input Signal, Red RCA
3	Remote Level Control	Remote Level Controller Connection (optional) (HD-RLC or NHD-RLC)			• Operates as an attenuator only: Fully counter-clockwise = Level Muted Fully clockwise = Level Unaffected
4	CH. 1 (L)Speaker Output	⊕	(+) Positive Speaker Output Ch	1&2 Bridged (+)	• Minimum impedance load: Stereo mode >2 ohms Bridged mode ≥4 ohms • 16-8 AWG wire capacity
		●	(-) Negative Speaker Output
	CH. 2 (R)Speaker Output	⊕	(+) Positive Speaker Output
		●	(-) Negative Speaker Output Ch	1&2 Bridged (-)
	CH. 3 (L)Speaker Output	⊕	(+) Positive Speaker Output Ch	3&4 Bridged (+)
		●	(-) Negative Speaker Output
	CH. 4 (R)Speaker Output	⊕	(+) Positive Speaker Output
		●	(-) Negative Speaker Output Ch	3&4 Bridged (-)
5	Mono Subwoofer Output	⊕	(+) Positive Subwoofer Output		• Both positive (-) connections are con- nected in parallel internally • Both negative (-) connections are con- nected in parallel internally • Minimum impedance load: ±2 ohms • 16-8 AWG wire capacity
		⊕	(+) Positive Subwoofer Output
		●	(-) Negative Subwoofer Output
		●	(-) Negative Subwoofer Output

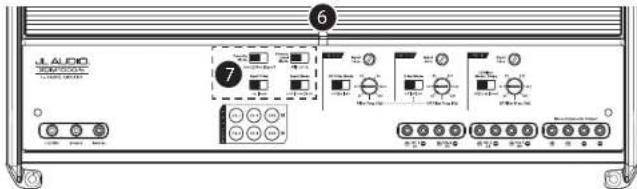

CONTROLS

	Control (Function) Setting Description
6	Status LED (Indicates operating status)	Flashing Green	Amplifier Powering Up, Audio Output Muted
		Green On	Normal Operation, Active Audio Output
		Red	On-Safe Mode, Over-Temperature Condition, Audio Output Reduced • Reverts to normal operation when temperature returns to a safe level
		Amber (yellow)	On Safe Mode, Over Current Condition, Audio Output Muted • May exhibit repetitive, audible ticking or thumping noise in the output • Inspect for speaker/wire short circuit or low impedance
		LEDs Off	Amplifier Turns Off (unexpected), Low-Voltage Condition • Occurs when battery or remote turn-on voltage drops below 10V • Reverts to normal operation when voltage rises above 11V
7	Turn On Mode (Configures activation method)	Remote	+12V Remote Turn-On (Preferred) • Controlled by a switched +12V circuit or turn-on output of your source unit/OEM interface
		Offset	DC Offset Sensing (Automatic) • Turns On by detecting the presence of small DC signal in OEM audio outputs and turns Off after the signal is removed
		Signal	Signal Sensing (Automatic) • Turns On by detecting full-range OEM audio signals and turns OFF after the signal is removed (within 30 seconds)
	Input Filter (Configures input filter application)	Car Select	For most installations (automotive or marine)
		Boat Select	Select if experiencing interference from high current mechanical switches/devices
	Input Mode (Configures input signal connections)	2 Ch.	Select when using CH. 1&2 inputs only • CH. 3 will operate with CH. 1 signal • CH. 4 will operate with CH. 2 signal • SUB CH. signal will be the sum of CH. 1&2 signals
		4 Ch.	Select when using CH. 1&2 and CH. 3&4 Inputs • SUB CH. signal will be the sum (non fading) of all four input signals
		6 Ch.	Select when using all six Inputs • SUB CH. inputs accept stereo or mono signals • If only one subwoofer channel signal is available, a Y-adaptor is recommended to feed both SUB CH inputs.
	Remote Level Mode (configures HD RLC operation -optional)	All Adjust levels of all channels equally
		Sub Ch. Adjust levels of subwoofer channel only

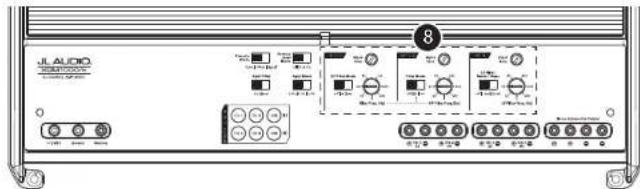

CONTROLS

Control (Function) Setting Description
Input Sens.(adjusts each channel pair's input stage)		Variable	Use to match the source unit's output voltage with the inputs of each pair of amplifier channels. See Appendix A for detailed information.
CH 1Hz	HP Filter Mode( configures the high-pass filter of CH 182)	Off Filter defeated; passes full range of frequencies present at the inputs
		x1	Attenuates frequencies below the CH 182 "Filter Freq. (Hz)" dial, at a rate of 12dB/ octave
		x10	Attenuates frequencies ten times higher than below the CH 182 "Filter Freq. (Hz)" dial, at a rate of 12dB/ octave
	Filter Freq. (Hz)(adjusts the high-pass filter cutoff frequency)	Variable	Use with the "HP Filter Mode" switch to adjust the cutoff frequency of channel 182's high-pass active filter: x1 = 50 Hz - 500 Hz / 12dB per octave x10 = 500 Hz - 5,000 Hz / 12dB per octave
	Filter Mode(configures the high pass or band-pass filter of CH 384)	Off Filter defeated; passes full range of frequencies present at the inputs
		BP	Attenuates frequencies below the CH 384 "HP Filter Freq. (Hz)" dial AND above the CH 182 "Filter Freq. (Hz)" setting, at a rate of 12dB/ octave
		HP	Attenuates frequencies below the CH 384 "HP Filter Freq. (Hz)" dial, at a rate of 12dB/ octave
	HP Filter Freq. (Hz)(adjusts the high-pass filter cutoff frequency)	Variable	Use to adjust the cutoff frequency of channel 384's high-pass active filter, from 50 Hz - 500 Hz / 12dB per octave
SUB CH	LP Filter Mode/Slope(configures the low-pass filter and slope of SUB CH)	Off Filter defeated; passes full range of frequencies present at the inputs
		12dB	Attenuates frequencies above the SUB CH "LP Filter Freq. (Hz)" dial, at a rate of 12dB/ octave
		24dB	Attenuates frequencies above the SUB CH "LP Filter Freq. (Hz)" dial, at a rate of 24dB/ octave
	LP Filter Freq. (Hz)(adjusts the low-pass filter cutoff frequency)	Variable	Use to adjust the cutoff frequency of the subwoofer channel's low-pass active filter, from 50 Hz - 500 Hz / 12dB per octave

APPENDIX A:

Input Sensitivity Level Setting

Follow the steps below to adjust the input sensitivity of each amplifier

channel pair to achieve overall system balance.

Necessary Equipment

Digital AC Voltmeter
- Line-wave test tone recorded at 0 dBfs reference level in the frequency range to be amplified.
Do not use attenuated test tones (-10 dB, -20 dB, etc.).
Full range channel/amplifier applications: 1 kHz Subwavelength channel/amplifier applications: 50 Hz
- Depending on your type of source unit, the sine wave may be played via a CD, USB thumb drive, portable media player or Bluetooth audio source. Make sure to disable any CD/DPSP modes on your portable media player during level settings.

The Nine-Step Procedure

1. Disconnect the speaker(s) from the amplifier's speaker output connectors.
2. Turn off all processing (basis/trobble, loudness, EO, etc.) on the source unit, processors (if used); and amplifier. Set the facer control to center position and the subwoofer level control to 3/4 of maximum, if used.
3. Turn all "Input Sens." controls all the way down.
4. Set the source unit volume to 3/4 of full volume. This will allow for reasonable gain overlap with moderate clipping at full volume.
5. Using the chart below, determine the target voltage for input sensitivity adjustment according to the nominal impedance of the speaker system connected to the amplifier outputs.
6. Verify that you have disconnected the speakers before proceeding. Play a track with an appropriate sine wave (within the frequency range to be amplified) at 3/4 source unit volume.
7. Connect the AC voltmeter to the speaker output terminals of the amplifier. If the channel pair is operating in stereo, it is only necessary to measure one channel if bridged, make sure you test the voltage at the correct terminals (L1 and R-).
   B. Increase the "Input Sens." control until the Target voltage is observed with the voltmeter.
8. Once you have adjusted each channel section to its maximum low-distortion output level, reconnect the speaker(s). The "Input Sens," controls can now be adjusted downward if the amplifier requires attenuation to achieve the desired system balance.

IMPORTANT!

• Do not increase any "Input Sens" setting for any amplifier channel or channel pair in the system beyond the maximum level established during this procedure. Doing so will result in audible distortion and possible speaker damage.
• It will be necessary to re-adjust the "Input Sens." if any equalizer boost is activated after setting the "Input Sens" with this procedure. This applies to any EO boost circuit, including source unit tone controls or EO circuits. EO cuts will not require re-adjustment.

Nominal Impedance	Target AC Voltage
	Main CH (Stereo) Main CH (Bridged) Subwoofer CH
8Ω 17.3 V	24.6V 40.0 V
4Ω 17.3 V	28.3V 40.0 V
3Ω	16.2 V	not recommended	38.7 V
2Ω	14.1 V	not recommended	34.6 V

SPECIFICATIONS

Amplifier Section
Amplifier Topology	NexD® Ultra-High Speed Class D
Power Supply Type	Unregulated MOSFET Switching
Minimum Copper Power/GND Wire	4 AWG (Note: CCA/Copper Clad Aluminum wire is not recommended.)
Recommended Fuse	80 A
Rated RMS Power @ 14.4V, <1% THD+N	Main @ 4 Ω 75W x 4	Main @ 2 Ω 100W x 4	Main @ 4 Ω Bridged 200W x 2
	Sub @ 4 Ω 400W x 1	Sub @ 3 Ω 500W x 1	Sub @ 2 Ω 600W x 1
Rated RMS Power @ 12.5V, <1% THD+N	Main @ 4 Ω 60W x 4	Main @ 2 Ω 90W x 4	Main @ 4 Ω Bridged 180W x 2
	Sub @ 4 Ω 360W x 1	Sub @ 3 Ω 480W x 1	Sub @ 2 Ω 600W x 1
Frequency Response	Main Channels: 12 Hz - 22 kHz (+0,-1dB) Sub Channel: 10 Hz - 1 kHz (+0,-1dB)
S/N Ratio (A-weighted, 20 Hz-20 kHz noise bandwidth)	Main Channels: >104 dB (Referred to rated power), >84 dB (Referred to 1 W) Sub Channel: >100 dB (Referred to rated power), >80 dB (Referred to 1 W)
Damping Factor	Main Channels: >150 / 50 Hz @ 4 Ω, >75 / 50 Hz @ 2 Ω Sub Channel: >120 / 50 Hz @ 4 Ω, >75 / 50 Hz @ 2 Ω
Input Section
Number of Inputs	(Three Stereo Pairs)
Input Type	Differential-Balanced with RCA jack inputs
Input Voltage Range	200mV - 4V RMS
Signal Processing
Filter Type	CH. 1&2 CH. 3&4 SUB CH.
	Active, 12dB/octave, High-Pass (50 - 5,000 Hz), defeatable	Active, 12dB/octave, High-Pass (50 - 500 Hz) or Bandpass (CH. 1&2 as Low-Pass), defeatable	Active, 12dB or 24dB/octave Low-Pass, (50 - 500 Hz), defeatable
Remote Level Control	HD-RLC or MHD-RLC (optional). Full mute to 0 dB range.
Dimensions
L x W x H	14.73 in. x 7.09 in. x 2.05 in. (374 mm x 180 mm x 52 mm)
