Highway 200 - Mp3 player PURE - Free user manual and instructions

Product Type	MP3 player with DAB+ digital radio and FM transmitter
Brand	Pure
Model	Highway 200
Power supply	12 V DC via cigarette lighter adapter (dual USB port included)
Audio connectivity	Line Out (3.5 mm) and FM transmitter (87.6 - 107.9 MHz)
Auxiliary input	Yes, for mobile device
Digital radio	DAB+ with 20 presets
Antenna	DAB film antenna with magnetic grounding end
Display	Screen with icons: signal strength, FM frequency, mode, etc.
Auto standby	Adjustable from 1 to 8 hours (default 4 hours)
Display languages	Multilingual (French, English, German, etc.)
Operating temperature	-20°C to +60°C
Storage temperature	-40°C to +85°C
FM band	87.6 - 107.9 MHz
Maximum FM power	51.78 dB (μV/m)
Software version	v1.1
Box contents	Antenna, control unit, bracket, 12 V dual USB adapter, cleaning cloth, cable ties

Frequently Asked Questions - Highway 200 PURE

What to do if I hear no sound?

Check that the Line Out cable is properly plugged into your vehicle's auxiliary input, or that the FM frequency of the transmitter is correctly tuned on your car radio. Also ensure that the volume of the vehicle and the connected device is sufficient.

How to install the DAB antenna?

Stick the DAB film antenna on the passenger side windshield, as high as possible and out of the wiper area. Insert the magnetic end into the headliner for grounding. Connect the cable to the control unit.

How to save a radio station?

In Digital Radio mode, press and hold the Presets button. Choose a memory number (20 max) using the < and > keys, then press and hold Select or Presets to save.

How to switch to AUX input mode?

Connect your mobile device to the Aux In cable of the unit. Press Home, then select AUX Input using the < and > keys and confirm with Select.

How to adjust screen brightness?

Go to Settings > Display > Brightness > Manual. Use the < and > keys to choose a level. You can also set the timeout in Settings > Display > Timeout.

How to change the menu language?

Press Home, then go to Settings > Display > Language. Select the desired language from the list.

Why is the sound distorted with the Line Out cable?

The gain setting might be too high. Go to Settings > Audio output and select Low gain, or switch to FM transmission.

How to enable traffic announcements?

Press Home, then Settings > Digital Radio > Traffic messages. Choose On to receive them. During an announcement, press Back to cancel.

What to do if the Highway frequently loses DAB signal?

Check the DAB coverage in your area, then the antenna installation (position, grounding). Turn off devices that may cause interference (GPS, camera) and use the supplied 12 V adapter.

How to update the Highway software?

Go to pure.com/highway-update to download updates and follow the instructions. The current software version is v1.1.

USER MANUAL Highway 200 PURE

PURE

Highway 200

Safety

Before you use your Highway, read the following safety instructions.

1. Follow the operating instructions provided and take note of any warnings.
2. If you do not follow the operating instructions provided, it may compromise the safety of your product and this may invalidate the warranty.
3. Only use the supplied 12V power adapter with your product.
4. Do not install your product in a way that may interfere with the safe operation of the vehicle, or affect the deployment of air bags or other safety items. Do not install cables and wires near the steering wheel.
5. Do not place your product on or near sources of your vehicle's heat or ventilation.
6. Do not use your product in a way that may cause careless driving or improper control of your vehicle.
7. Keep your product dry and only clean with a dry cloth.
8. Do not expose your product to naked flames.
9. Do not use your product in extremely hot or cold temperature.
10. If you need to connect your product to the rear of your vehicle's head unit, remove any power before you start to install your product. When you have safely installed your product, you can reconnect the power. See your vehicle's owner's manual for more information.
11. Do not use the product if it is damaged.
12. Product repairs should only be carried out by authorised personnel.

Symbols on the product and in the user manual

Potentially serious risk to your personal safety. To avoid possible injury 1_br USB socket rated at 1 amp maximum death, obey all safety notices with this symbol.

Caution. Read the user manual before use.

Where to switch on or off the product, or put it in standby.

12V DC

12V DC power supply.

Contents

Safety 1

Contents 2

Overview 3

What's in the box 3

Display icons 4

Controls 5

Getting started 6

Installing your Highway 6

Where to install your Highway 7

Positioning the antenna 8

Positioning the controller 10

Connecting the antenna to the controller

Connecting the controller to your vehicle

Switching your Highway on for the first time

Switching your Highway on and off

Digital radio 14

Listening to digital radio 14

Digital radio presets 14

FM transmission frequencies 15

Auxiliary input 16

Listening to music on a mobile device 16

Settings 17

Changing between the Line Out cable and FM

transmission 17

Setting your Highway to enter standby automatically 17

Switching phantom power to the aerial on and off 18

11 Radio settings 18

12 Display settings 19

13 Updating the software 21

13 Troubleshooting 22

Overview

What's in the box

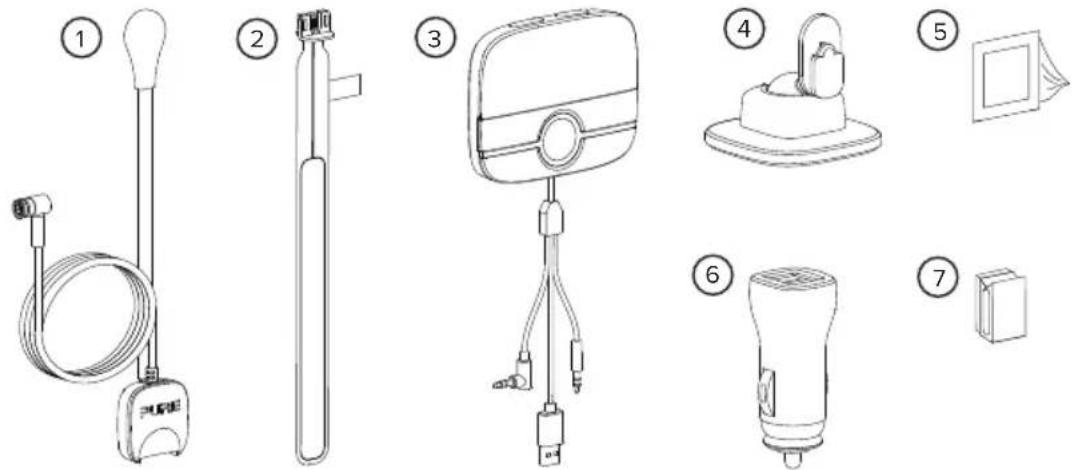

Before you get started, check you have everything below.

1 Antenna, with magnetic grounding tail attached

5 Cleaning cloth

2 DAB film aerial

6 12V power adapter (dual USB port)

3 Controller with USB power and audio connectors

7 Self-adhesive cable clips

4 Controller bracket

Restrictions for use - to be used only with items shown on this page and configured/installed/used according to this manual.

Display icons

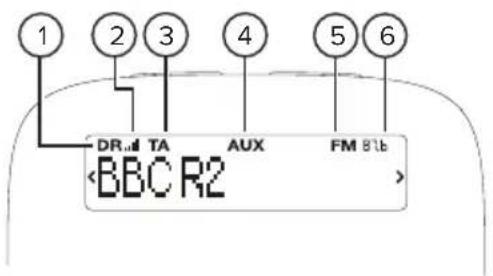

The icons below appear on the screen of the controller.

1 Digital radio mode 4 Auxiliary input mode

2 Digital radio signal strength 5 FM tran smit enabled

3 Traffic announcements enabled 6 FM tranmit frequency

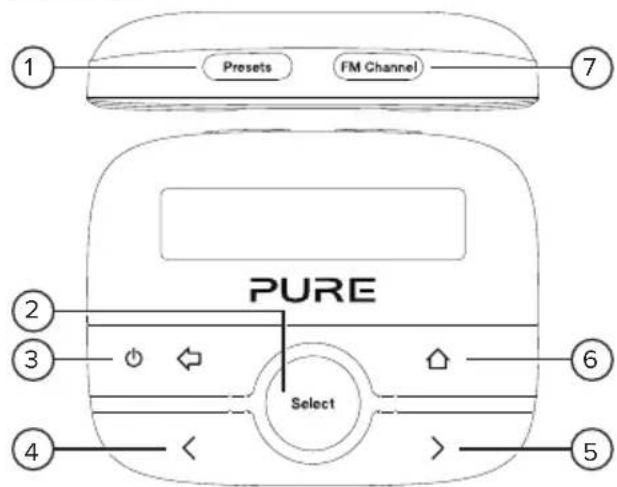

Controls

1 Presets Press to view your digital radio presets. When in menu, press and hold to save the current station to preset number.
2 Select Press to select a radio station or menu option.
3 Power / Press to switch your Highway on. Press and hold Back put your Highway in standby. Press to go back to previous screen or cancel an action.
4 Previous Press to choose the previous radio station or menu option.
5 Next Press to choose the next radio station or menu option.
6 Home Press to open the main menu.
7 FM Channel Press to view stored FM transmission frequencies. When in this menu, press and hold to store the cu FM frequency to an FM channel.

EN

Getting started

Installing your Highway

Before you can start using your Highway, you need to do the following:

1. Position the antenna in your vehicle.
2. Position the controller in your vehicle.
3. Connect the antenna to the controller.
4. Connect the controller's power and audio cables to your vehicle.
5. Switch your Highway on for the first time.

To watch a video showing how to install your Highway, search for 'Highway 200 installation' on YouTube

Vehicle requirements

• Fitted audio system with auxiliary (3.5mm) port or FM receiver.
• Standard 12V negative earth power supply. Your Highway is not suitable for use with a 24V power supply.

Getting the best DAB signal

As with FM radio, DAB signal coverage changes depending on your location. As you use the Highway in your vehicle, you may travel through areas where DAB signal coverage is poor.

To help get the best DAB signal when coverage is poor or there is a weak signal:

• Follow the installation instructions carefully.
• Use the supplied 12V power adapter, as other third-party adapters can cause interference.
• Switch off other devices in your vehicle that aren't in use. Devices such as satellite navigation systems and dashboard cameras can cause interference.

Where to install your Highway

It's important to install your Highway in a safe location in your vehicle. Do not fit any components in locations that may interfere with safe operation of the vehicle, or affect the deployment of air bags or other Keep cables and wires away from the steering wheel.

Where to install the antenna

We recommend you install the antenna for your Highway in the top corner of the windscreen, on the passenger's side of your vehicle.

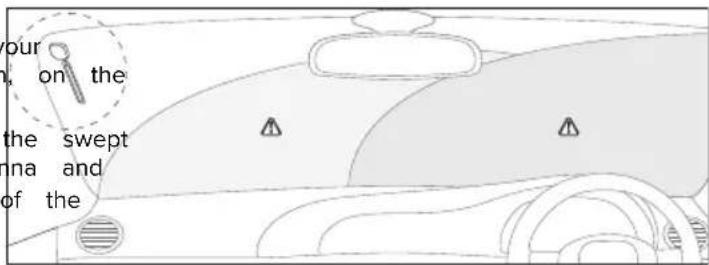

Install the antenna so that it is not within the swept area of the windscreen. Make sure the antenna and wireless controller do not obstruct the view of the driver.

If you have a heated windscreen in your vehicle, or the windscreen contains metallic UV filters, it can cause interference for the DAB signal. Install the antenna on a part of the windscreen that does not contain heating elements c

For more information on where to safely and legally install your Highway in your vehicle, contact your office. To find local fitters that can install your Highway professionally, visit pure.com/store-locator.

Positioning the antenna

Illustration of hands adjusting a car's seatbelt, showing hand positioning and a circular inset highlighting the seat area (no text or symbols)

1. Choose a position for the antenna, so that it's as high as pos the windscreen and at least 4cm from the side of the screen.

⚠ Make sure the antenna does not obstruct the view of the c

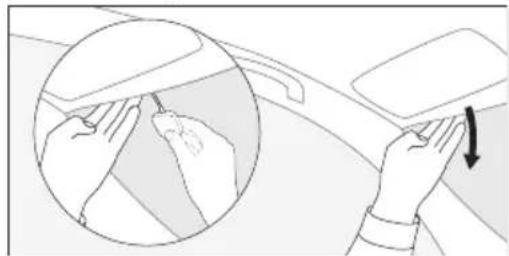

1. Gently pull down the front of the roof liner in your vehicle, ur a small gap.

2. Push the magnetic grounding tail through the gap, with the silver-coloured magnet facing upwards. Make sure the magnet touches your vehicle's metal bodywork.

Line drawing of a mechanical component with a handle and lever (no text or symbols)

Diagram of a cable connector with a switch and cable outlet, showing no text or symbols

1. Clean the chosen area of the windscreen with a cleaning wait for it to dry.

2. Unpeel the backing from the antenna and stick the antenna windscreen.
   EN

3. Insert the DAB film aerial into the slot in the antenna.

4. Gently unpeel the backing from the DAB film aerial and stick aerial onto your windscreen. Take care not to fold or twist t

Positioning the controller

Diagram showing a wall-mounted device with a plug inserted into a base, no text or symbols present

1. Choose an area on your vehicle's dashboard where you want to the controller. Clean the surface with a cleaning cloth and wait dry.

⚠️ Make sure the controller does not obstruct the view of the

1. Peel off the backing from the controller bracket and gently stick onto your dashboard. Gently press the bracket to ensure it's att securely.

2. Slide the controller onto the bracket, until it clicks into place.

Connecting the antenna to

Line drawing of a car interior showing dashboard, seats, and dashboard (no text or symbols)

Diagram of a device's internal components with a bolt and connector (no text or symbols)

the controller

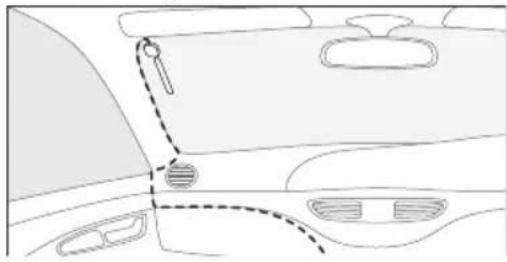

1. Place the antenna cable so that it follows a path to the your vehicle's dashboard.

Note: To prevent interference to the DAB signal, keep cables from display units such as LCD screens.

1. If possible, tuck the cable behind the trim down the side of windscreen. Alternatively, secure the cable to your windscreen a dashboard with self-adhesive clips.

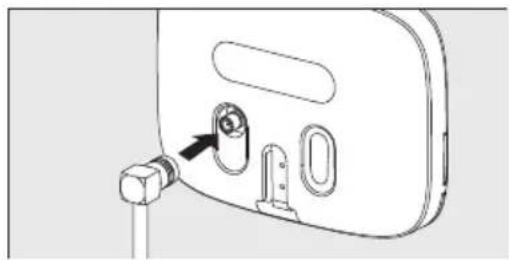

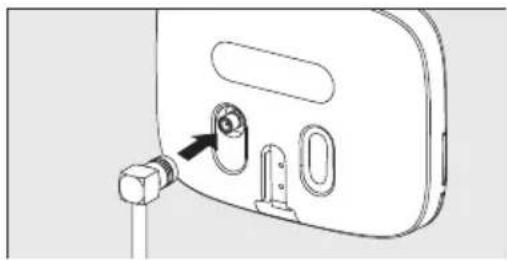

2. Insert the antenna cable into the connector on the rear of t controller.

Note: Push the antenna cable in firmly, to ensure it's fully in

EN

Connecting the controller to your vehicle

1. If required, gently pull apart the controller's power and audio ca separate them.

Note: To prevent interference to the DAB signal, keep cables a from display units such as LCD screens.

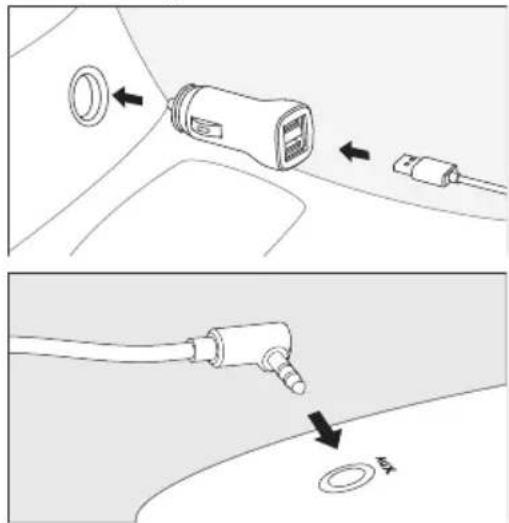

1. Insert the USB power cable into the supplied 12V power adapter insert the power adapter into your vehicle's power socket.

2. If you're connecting your Highway with the Line Out cable, insert the cable into your vehicle's auxiliary socket. If you're connecting you Highway by FM radio, you can store the Line Out cable so it's out of the way.

We recommend you connect your Highway with the Line Out cable to get the best audio quality.

Switching your Highway on for the first time

After you've installed your Highway, switch it on to finish setting it up.

1. Turn on your vehicle's ignition to make sure your Highway is switched on.
2. Press < and > to change the display language, then press Select to choose it.

3. Press <> and Select to choose how to connect your Highway to your vehicle.

4. If you've connected your Highway with the Line Out cable, choose 'Line out'. Then press<> and Select to choose 'Normal gain'. If you later find that audio is distorted, you can change the gain setting. Read more on page 17.

5. If you're connecting your Highway by FM radio, choose 'FM transmit' and then choose an FM radio station isn't using the frequency you choose.

Tune your vehicle's audio system to the same FM frequency as your Highway. To easily fir frequency in the future, save it as a preset on your vehicle's audio system.

After you've chosen how to connect your Highway, it starts tuning to digital radio stations. When the autotune is complete, you can start listening to digital radio.

Switching your Highway on and off

• To switch on your Highway press.
• To put your Highway in standby and use less power, press and hold.

Note: By default, the controller automatically enters standby after 4 hours. To change the delay, see page 17.

Digital radio

Listening to digital radio

1. Press ^☆ .
2. Press<>and Select to choose 'Digital radio'.
3. To change to another radio station, press <> to choose a station and then press Select.

Digital radio presets

You can save up to 20 of your favourite digital radio stations in the presets list.

Storing a radio station as a preset

1. When listening to a digital radio station, press Presets.
2. Press<>to choose a preset number. You can overwrite previous radio stations.
3. Press and hold Select or Presets to save the current digital radio station to the preset number.

Listening to a preset

1. Press Presets.
2. Press <> to choose the preset you want to listen to, then press Select.

You can also listen to a preset using only the Presets button. Press Presets multiple times, until the preset you want to listen to is displayed. After 3 seconds, your Highway tunes to that radio station.

FM transmission frequencies

If you connect your Highway to your vehicle's audio system using FM radio, local radio stations may broadcast at the same FM frequency as your Highway. To quickly change the FM transmission frequency on your Highway, you can frequencies as FM channels.

The FM transmission frequency is displayed in the top-right of the screen. If you're using the 'Line out' setting, the

FM transmission frequency is not displayed and the FM Channel button is disabled.

Storing an FM transmission frequency

1. Press FM Channel.
2. Press<>to choose an FM channel. You can overwrite previous FM frequencies.
3. Press and hold Select or FM Channel to save the current FM radio frequency to the FM channel.
4. If required, you can press <> to edit the FM frequency, then press Select to update the FM channel.

Changing the FM transmission frequency

1. Press FM Channel.
2. Press<> to choose a stored FM transmission frequency, then press Select.

You can also change the FM transmission frequency using only the FM Channel button. Press FM Channel multiple times, until the FM transmission frequency you want to use is displayed. After 3 seconds, your H that FM transmission frequency.

Auxiliary input

Listening to music on a mobile device

You can use the controller's Aux In cable to listen to music on a mobile device through your vehicle's audio system.

Diagram of a smartphone connected to a USB cable, showing the cable being inserted (no text or symbols present)

1. Connect a mobile device to your Highway using the Aux In ca

2. Press

3. Press<> and Select to choose 'Auxiliary input'. Your Highway is now ready to play music from the connected device.

Settings

Changing between the Line Out cable and FM transmission

You can choose how your Highway is connected to your vehicle's audio system.

1. Press
2. Press <> and Select to choose 'Settings' > 'Audio out'.

3. Press <> and Select to choose how to connect your Highway to your vehicle.

4. If you've connected your Highway with the Line Out cable, choose 'Line out'. Then press <> and Select to choose a gain setting of 'Low gain' or 'Normal gain'. If the audio sounds distorted, choose 'Low gain'.

5. If you're connecting your Highway over FM radio, choose 'FM transmit' and then choose an FM Ensure a radio station isn't using the frequency you choose.

Setting your Highway to enter standby automatically

By default, your Highway enters standby after 4 hours, but you can change the delay.

1. Press
2. Press <> and Select to choose 'Settings' > 'Auto standby'.
3. Press <> and Select to choose a delay between 1 and 8 hours.

Switching phantom power to the aerial on and off

By default, your Highway powers the DAB film aerial through the antenna's cable. If you're using the DAB film aerial that came with your Highway, keep this setting on. If you're using an aerial from a different manufacturer, check the aerial's user manual to see whether you need to change this setting.

1. Press
2. Press <> and Select to choose 'Settings' > 'Digital radio' > 'Phantom power'.
3. Press <> and Select to choose 'On' or 'Off'.

Radio settings

Performing an autotune

If you can't find any digital radio stations, try retuning your Highway.

• To perform an autotune, press and hold Select when you are in digital radio mode.

Listening to alternative stations when the signal is weak

If the current radio station has a weak signal, your Highway automatically tries to find a stronger signal. If your Highway can't find a stronger signal for the current radio station, it can automatically tune to a similar radio station when supported by the broadcaster.

1. Press
2. Press <> and Select to choose 'Settings' > 'Digital radio' > 'Alt stations'.
3. Press <> and Select to choose 'On' or 'Off'.

Switching traffic announcements on and off

You can set your Highway to automatically play traffic announcements when you are listening to dig Highway plays traffic announcements, it displays 'Traffic'.

1. Press
2. Press <> and Select to choose 'Settings' > 'Digital radio' > 'Traffic messages'.
3. Press <> and Select to choose 'On' or 'Off'.

To cancel a traffic announcement when it plays, press.

Display settings

Changing the language

1. Press
2. Press <> and Select to choose 'Settings' > 'Display' > 'Language'.
3. Press<>and Select to choose a language.

Changing the information displayed on the screen

Your Highway can display different information while you are listening to a radio station.

1. Press
2. Press <> and Select to choose 'Settings' > 'Display' > 'Information'.
3. Press<>and Select to choose a setting.

• To display the names of radio stations, choose 'Station name'.
- To display text that the radio station broadcasts, choose 'Scrolling text'. This setting is not recommended while driving.
• To display the signal quality of radio stations, choose 'Signal quality'.
- To display the signal strength of radio stations, choose 'Signal strength'. The signal strength is displayed on a scale from 0 to 15 bars. A marker on the scale shows the minimum number of bars required for good

Changing the screen brightness

A light sensor on the controller automatically sets the screen brightness, but you can manually change it.

1. Press
2. Press <> and Select to choose 'Settings' > 'Display' > 'Brightness' > 'Manual'.
3. Press <> and Select to choose a brightness level.

You can set the screen on the controller to dim after a certain length of time. To change the I 'Settings' > 'Display' > 'Timeout'.

Updating the software

We may provide software updates to improve your Highway. To find out more about updating the visit pure.com/highway-update.

EN

Troubleshooting

Problem Possible cause	Solution
I can't hear any sound.	Your Highway is not connected vehicle.	Eosuye the Line Out cable is firmly connected to your vehicle's audio system, or ensure you are tuned to the correct FM frequency.
	Your vehicle's audio system is not correct Input source.	Change the input source on your vehicle's audio system or auxiliary input.
	Your Highway is not in the corre mode.	Change the mode to digital radio or a uxiliary input. Read more of pages 14 and 16.
	The volume is too low on your or connected mobile device.	Vehicleup the volume on your vehicle and on the connected mobile device.
The controller is not responding.	The controller isn't connected prop to a power supply.	Ensure the controller is fully connected to the 12V power adapter, and that the a dapter is fully inserted into your vehicle's power socket. Then turn on your vehicle's ignition. If there's still a problem remove the 12V power adapter from the socket, then reinsert the adapter and wait for your Highway to restart.
Sound is distorted when my Highway is connected with the Line Out ca	The ga in setting isn't correct. Set the ga in setting to 'Low gain' or change to FM transmission.
My Highway keeps los digital radio signal.	You are travelling through areas w weak DAB signal.	Check DAB coverage in your area.
	Your Highway is not installed correctly.	Check the installation instructions on page 6.
	Something is causing interference.	Switch off satellite navigation systems, dashboard cameras or other devices to see if the signal improves.Use the supplied 12V power adapter, as other adapter cause interference.
My Highway keeps switching off by itself.	Auto standby mode is switched on.	If this is happening too often, change the auto stand more on page 17.

EN

If you need more help, visit support.pure.com.

Correct disposal of this product

This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection system or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Copyright

Copyright 2017 by Pure International Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Pure International Limited. For warranty and disclaimer information, visit pure.com.

Trademarks

Highway, Pure and the Pure logo are trademarks or registered trademarks of Pure International Limited. All other product names are trademarks of their respective companies. Version 1 February 2016.

Approvals

CE marked. Hereby, Pure declares that this Band II LPD device is in compliance with the essential requirements and other provisions of the R&TTE Directive 1999/5/EC or RED 2014/53/EU from 12th June 2017. Compliant with UNECE Regulation 10 (E-Mark) and RF exposure requirements EN 62479: 2010. You can view the Declaration of Conformity at http://www.pure.com/about/rtte-doc.

Specifications

For the full list of technical specifications, visit pure.com. Operational temperature: -20°C to +60°C. Storage temperature: -40°C to +85°C. FM frequency range: 87.6 - 107.9 MHz. FM max power: 51.78 db (uV/m).

Software Version: v1.1

Restrictions of use: None (configure and install as per this manual)

Sicherheit

Illustration of hands adjusting a car's seatbelt, showing hand positioning and a magnified inset (no text or symbols)

Line drawing of a mechanical component with a handle and lever mechanism (no text or symbols)

Diagram of a connector being inserted into a cable, showing the cable being inserted into a plug (no text or symbols present)

Simple line drawing of a wall-mounted device with a handle and base, no text or symbols present

Diagram of a car interior showing dashboard, rear seats, and side-mounted sensors (no text or labels)

Diagram of a device's internal components with a bolt and connector (no text or symbols)

Diagram showing a connector with a circular component and two connected cables (no text or symbols)

Diagram showing a medical or laboratory procedure with a tube inserted into a car body and a circular component labeled '甲' (no text or symbols on the diagram itself)

Diagram of a smartphone connected to a USB cable, showing the cable being inserted (no text or symbols present)

Illustration of hands adjusting a car seatbelt, showing hand positioning and adjustment (no text or symbols)

Line drawing of a mechanical component with a handle and lever mechanism (no text or symbols)

Diagram of a connector being inserted into a cable, showing the cable being inserted into a plug (no text or symbols present)

Simple line drawing of a wall-mounted device with a handle and base, no text or symbols present

Diagram of a car interior showing dashboard, rear seats, and side-mounted sensors (no text or labels)

Diagram of a device with a connector and internal components (no text or symbols)

Diagram of a smartphone connected to a cable with an attached plug (no text or symbols present)

Illustration of hands adjusting a car seatbelt, showing hand positioning and a circular inset view (no text or symbols)

Line drawing of a mechanical component with a handle and lever (no text or symbols)

Diagram of a cable connector with a magnified inset showing the cable's tip and pin (no text or symbols present)

Simple line drawing of a wall-mounted electrical socket with a plug, no text or symbols present

Diagram of a car interior showing dashboard, rear seats, and side-mounted sensors (no text or labels)

Diagram of a device's internal components with a bolt and connector (no text or symbols)

al veicolo

Diagram of a smartphone connected to a cable with an attached connector (no text or symbols present)

12 V DC strømforsyning.

Innhold

Sikkerhet 1

Innhold 2

Oversikt 3

Innholdet i esken 3

Ikoner på displayet 4

Kontroller 5

Kom igang 6

Installere Highway 6

Forvalg for digital radio 15

Frekvenser på FM-sendinger 16

AUX inngang 17

Illustration of hands adjusting a car seatbelt, showing hand positioning and a circular inset view (no text or symbols)

Line drawing of a mechanical component with a handle and lever (no text or symbols)

Diagram of a cable connector with a switch and cable, showing an arrow indicating direction (no text or symbols present)

Diagram showing a wall-mounted electrical socket connected to a base, with an arrow indicating the connection point (no text or symbols present)

Diagram of a car interior showing dashboard, rear seats, and side-mounted sensors (no text or labels)

Diagram of a device's internal components with a bolt and connector (no text or symbols)

Forvalg for digital radio

Diagram of a smartphone connected to an audio jack, showing the cable and connector (no text or symbols present)

Illustration of hands adjusting a car seatbelt, showing hand positioning and a circular inset view (no text or symbols)

Line drawing of a mechanical component with a handle and lever (no text or symbols)

Diagram of a cable connector with a directional arrow indicating assembly or connection (no text or symbols present)

Diagram showing a wall-mounted electrical socket connected to a base, with an arrow indicating the connection point (no text or symbols present)

Diagram of a car interior showing dashboard, rear seats, and dashboard with dashed lines indicating alignment or movement (no text or symbols)

Diagram of a device's internal components with a bolt and connector (no text or symbols)

de controller

Diagram showing a connector with a circular component and two connected wires (no text or symbols)

Diagram showing a medical or laboratory procedure with a probe inserted into a tube and a circular component labeled '左' (left), no text or symbols present.

Diagram of a smartphone connected to a cable with an attached plug (no text or symbols)

Pure International Limited

Concept House

Home Pa rk Road

Kings Langley

WD4 8UD

United Kingdom

107AM_03
