GC430D - Griddle TEFAL - Free user manual and instructions

Product Type	Electric Plancha
Brand	Tefal
Model	GC430D
Power Supply	220-240 V ~ 2000 W
Plate Type	Non-stick Grill Plates
Heating Indicator	Yes, orange light
Grease Collection Drawer	Yes, removable
Cooking Function	Simultaneous cooking on both sides with lid
Materials	Plastic housing, non-stick plates
Usage	Household only, on stable and dry surface
Safety	Do not immerse, do not use empty, hot surfaces
Cleaning	Soapy sponge, non-metallic nylon pad
Included Accessories	Juice collection tray
Cooling Before Cleaning	Minimum 2 hours, appliance closed
Usage Precautions	Silicone/wood utensils, do not overload, do not cut on plates
Warranty	See manufacturer conditions

Frequently Asked Questions - GC430D TEFAL

How to clean the grill plates after use?

Unplug the appliance and let it cool for at least 2 hours. Use a lightly soapy sponge to clean the plates, then rinse and wipe with a soft cloth. For stubborn residues, use a non-metallic nylon scouring pad. Avoid metal sponges and abrasive products.

Can I use metal utensils on the plates?

No, never use metal spatulas, tongs, forks or knives as they may scratch the non-stick surface. Prefer utensils made of silicone, heat-resistant plastic or wood.

How long does it take to preheat the plancha?

Plug in the appliance, the orange light turns on. Heat until the light turns off, indicating the cooking temperature is reached. Time varies, but generally allow several minutes.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid any hazard.

Can I use the plancha outdoors?

No, the appliance is intended for indoor household use only. Do not use it outdoors.

How to store the plancha after use?

Ensure the appliance is clean and completely dry before storing. Let it cool and store in a dry place.

What to do in case of a burn from the plancha?

Immediately run the burned area under cold water for several minutes. Consult a doctor if necessary.

Why is there smoke or odor during first use?

This is normal: a slight emission of smoke and odor may occur during the first few minutes. Open windows for ventilation and wait until it stops before cooking.

Can I cut food directly on the plates?

No, never cut food on the plates as this will damage the non-stick coating. Use a cutting board.

How to avoid overcooking food?

Since cooking takes place on both sides simultaneously, cooking times are generally shorter than expected. Monitor food regularly and do not overload the grill.

USER MANUAL GC430D TEFAL

Black and silver flatbread grater with no visible text or symbols on the body

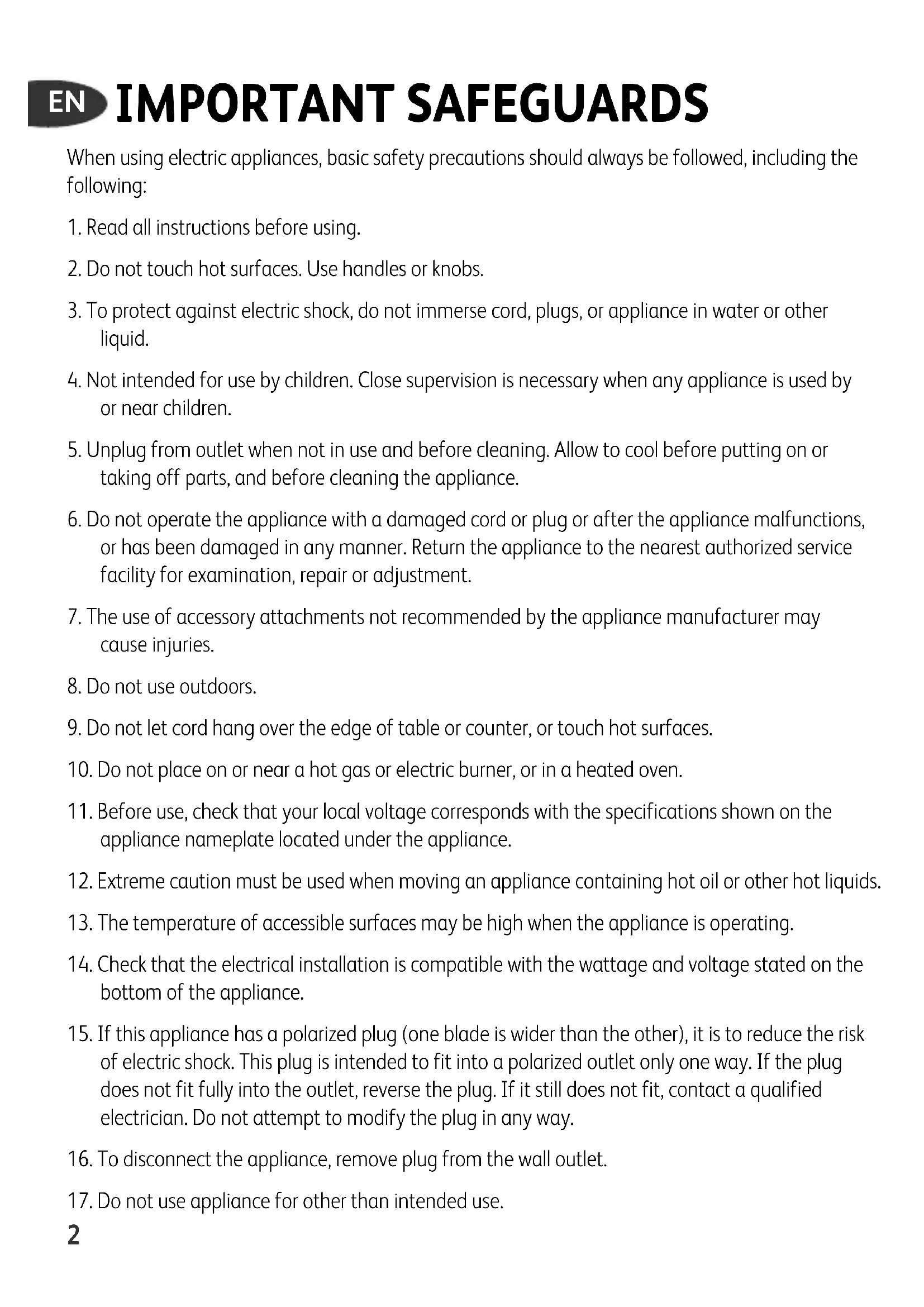

When using electric appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
4. Not intended for use by children. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over the edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Before use, check that your local voltage corresponds with the specifications shown on the appliance nameplate located under the appliance.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. The temperature of accessible surfaces may be high when the appliance is operating.
14. Check that the electrical installation is compatible with the wattage and voltage stated on the bottom of the appliance.
15. If this appliance has a polarized plug (one blade is wider than the other), it is to reduce the risk of electric shock. This plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
16. To disconnect the appliance, remove plug from the wall outlet.

17. Do not use appliance for other than intended use.

18. The appliance is only to be operated in the closed position.

SAVE THESE INSTRUCTIONS.

Safety instructions

• Never leave the appliance unattended when in use.
• Do not immerse the appliance or power cord in water.
• To prevent the appliance from overheating, do not place it in a corner or against a wall.
• Do not place the hot plates under water or on a fragile surface.
• If you have any problems, contact the authorized after-sales service center or the internet address www.t-falusa.com.

Short Cord instructions

A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

If a long detachable power-supply cord or extension cord is used :

1) The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance;
2) The longer cord should be arranged so that it does not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally.

THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD ONLY.

Thank you for buying this appliance. Read the instructions in this leaflet carefully and keep them within reach. Any commercial use, inappropriate use or ure to comply with the instructions, the manufacturer accepts no responsibility the guarantee will not apply.

For your safety, this product conforms to all applicable standards and regulations (Electric Safety, Food Compliant Materials, ...).

Our company has an ongoing policy of research and development and may modify these products without prior notice.

• Do not consume food that comes into contact with the parts marked with 📖go.
• Only use parts or accessories provided with the appliance or bought from an Approved-Service Center. Do not use them for other appliances or intention.
• To avoid damaging your appliance, do not use recipes that ask to use a flambe method of cooking.

Prevention of accidents at home

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance, always use a pot holder.
• If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
• Never leave the appliance plugged in when not in use.
• Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

1 2 3 4 5 6 EN

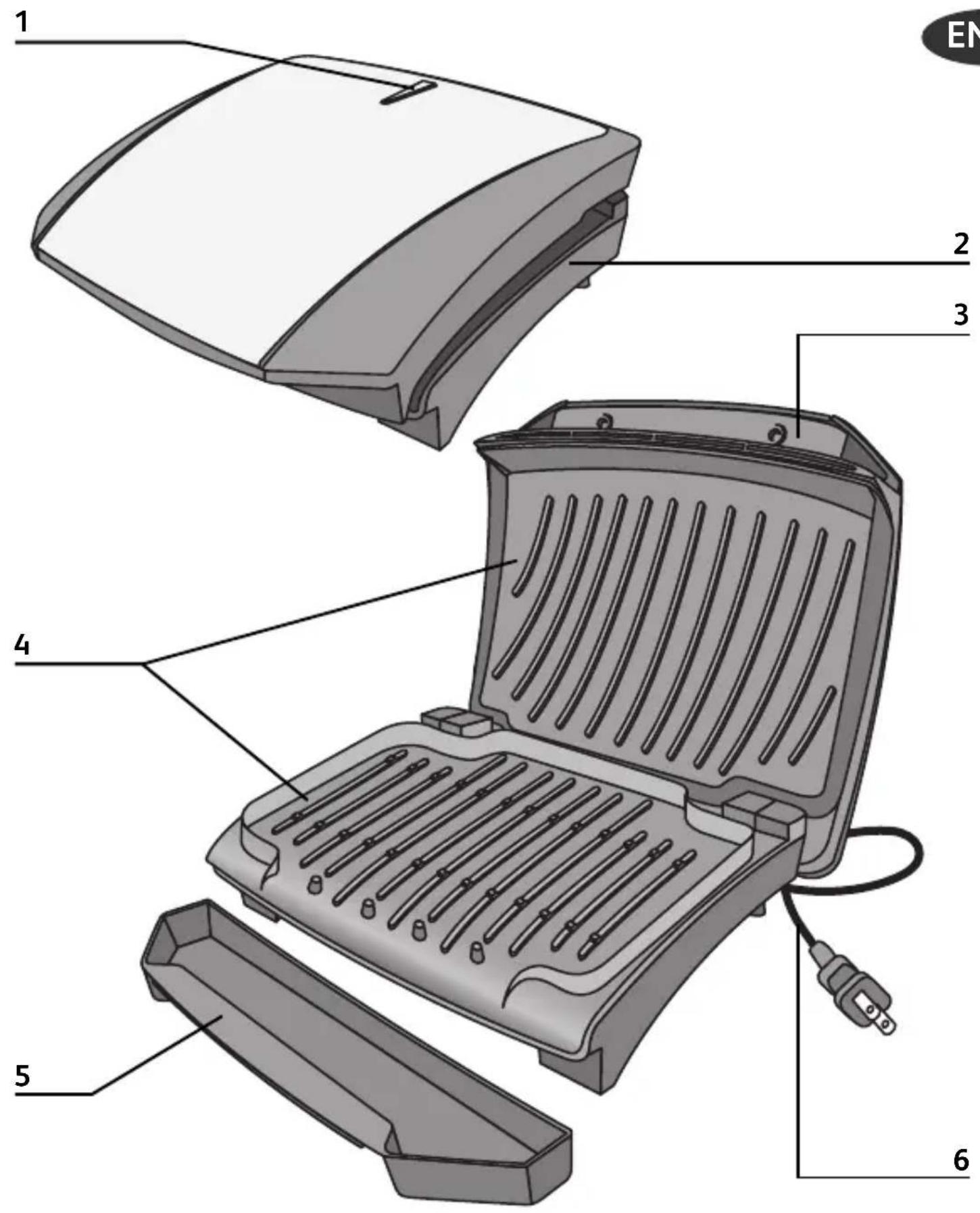

Description

1. Indicator light

2. Bottom housing

3. Upper housing (lid)

4. Grill plates

5. Drip tray

6. Power cord

Illustration of a printer with an open box and a paperclip, showing a paper roll and upward arrow (no text or symbols)

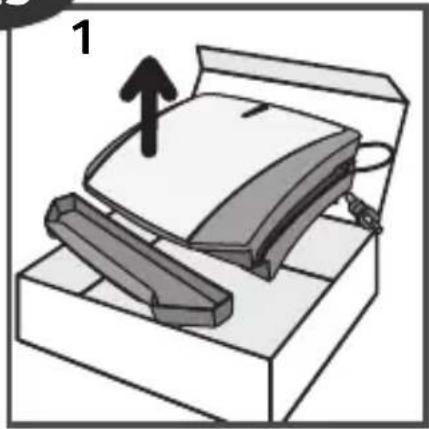

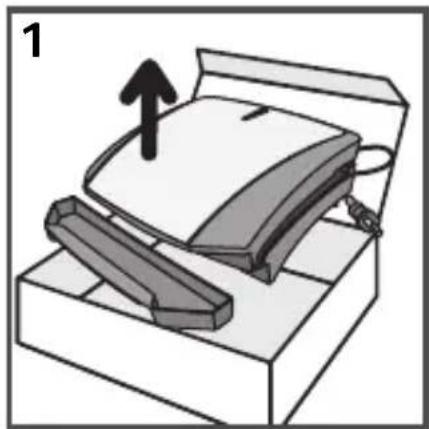

1 Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.

Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a dish towel.

Select a dry, level location where the grill will be used, leaving enough space between the back of the grill and wall to allow heat to flow without damage to cabinets and walls.

Illustration of a hand using a tool to clean or remove a textured object on a gridded machine (no text or symbols visible)

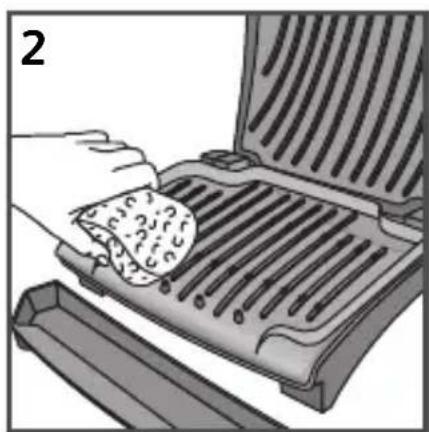

2 Wipe grill plates with a soapy sponge, then wipe clean with a wet sponge to remove any remaining soap.

Illustration of a computer keyboard with ventilation slots and an arrow indicating left-hand rule (no text or symbols)

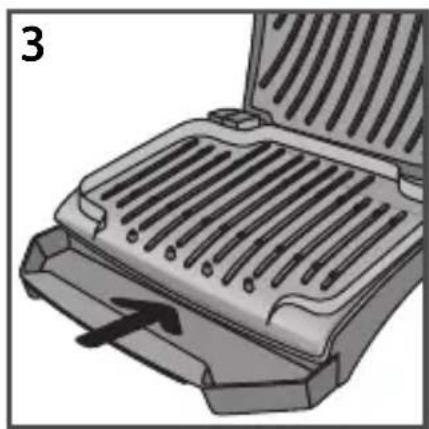

3 Place the drip tray under the bottom housing of the grill. The drip tray will allow the run off to be collected at the front of the grill.

Illustration of a keyboard with a plug and a crossed-out string, no text or symbols present

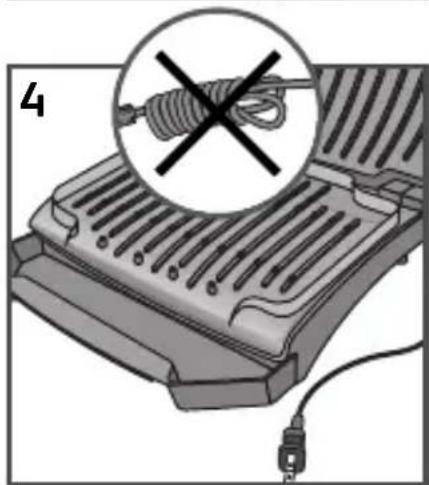

4 Fully unwind the power cord.

Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

5

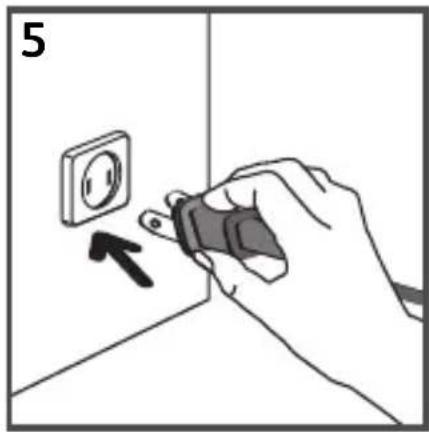

5 Plug the power cord into an outlet.

If an extension cord is used: take all necessary precautions to prevent anyone from tripping over the extension cord.

If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The power supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

On first use, there may be a slight odor and a little smoke during the first few minutes. In these cases, open the windows and wait until there is no more smoke or odor.

Simple line drawing of a lightning bolt inside a starburst shape, no text or symbols present

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

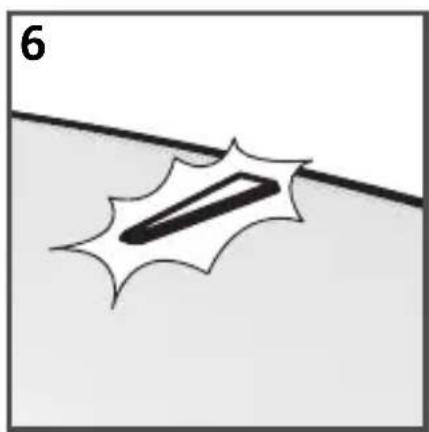

6 The orange indicator light comes on to indicate the grill is heating.

When the temperature is reached, the indicator light will turn off.

Allow the grill to preheat for several minutes before grilling and until the light goes out.

3 - Cooking

Illustration of a kitchen grill with scissors and flames, showing heat transfer (no text or symbols)

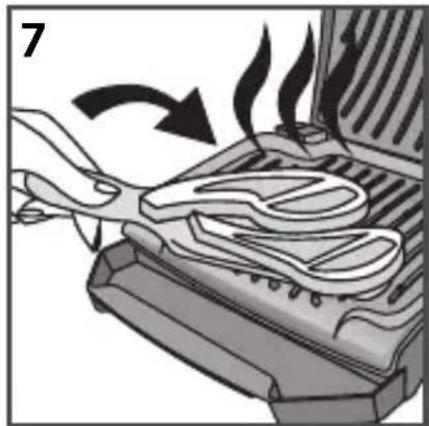

7 Carefully place foods to be cooked on lower grill plate with a spatulla.

Do not move the appliance when in use.

Illustration of a steaming tray with flames, no text or symbols present

9

10

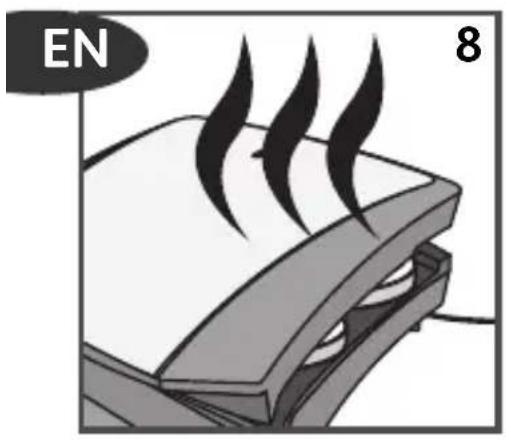

8 Important: the appliance is hot during use.

Close the cover and allow food to cook for the selected time. If desired, use a kitchen timer.

Do not leave the appliance unattended during use or when plugged in.

Important: Do not use heavy pressure on the lid of the grill at any time.

To prevent heat loss and for even cooking, do not open the lid frequently.

For best results, do not overload the grill.

Remember that since the grill is cooking from both sides, cooking time will typically be shorter than expected. Watch carefully to avoid overcooking.

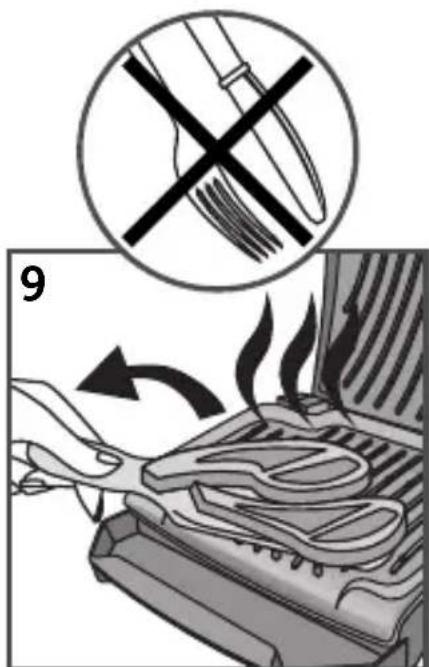

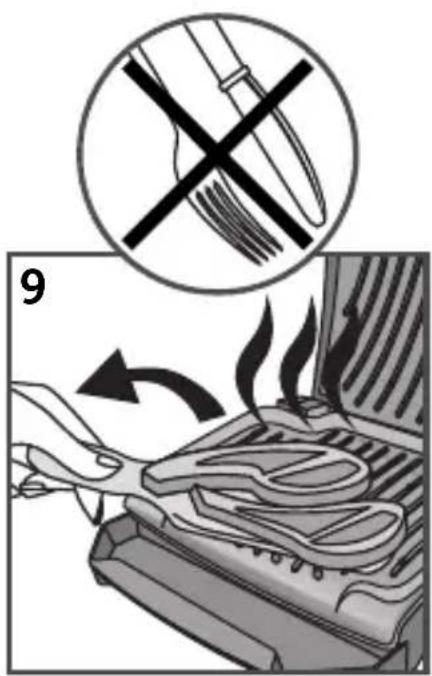

9 Once cooking is complete, carefully open the grill cover using a pot holder.

Always use silicone, heatproof plastic or wood utensils to avoid scratching nonstick surface of grill plates. Never use metal spatulas skewers, tongs, forks or knives.

Never cut directly on the grill plates.

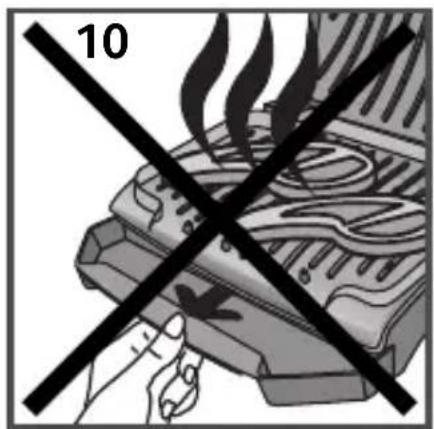

10 Do not remove the drip tray while cooking.

If the drip tray becomes full when cooking, let the appliance cool down before emptying.

Wash and dry drip tray after each use.

To preserve the non-stick properties of the coating, do not cook food in aluminium foil.

Never run the appliance empty.

Do not place cooking ustensils on the cooking surfaces of the appliance.

11

2H 12

Illustration of a portable grill with grating and tray, no text or symbols present

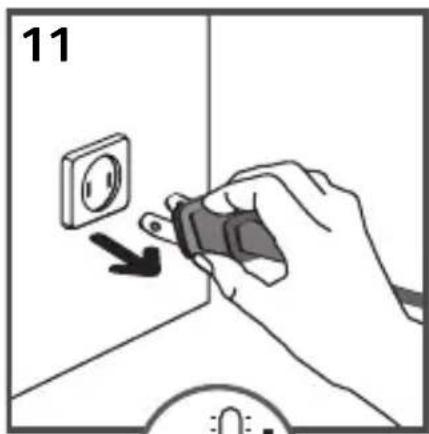

11 Before cleaning, unplug grill from wall outlet and allow to cool at least 2 hours.

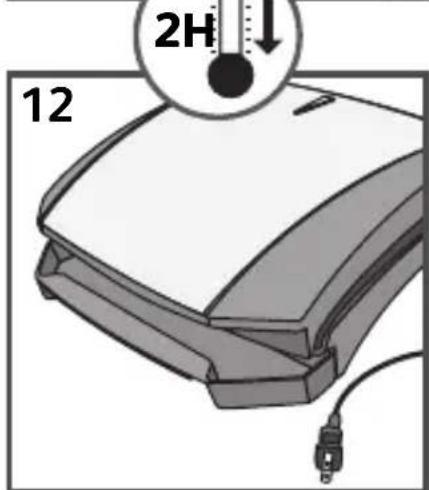

12 To avoid accidental burns, allow grill to cool thoroughly before cleaning.

The appliance must remain closed while cooling down.

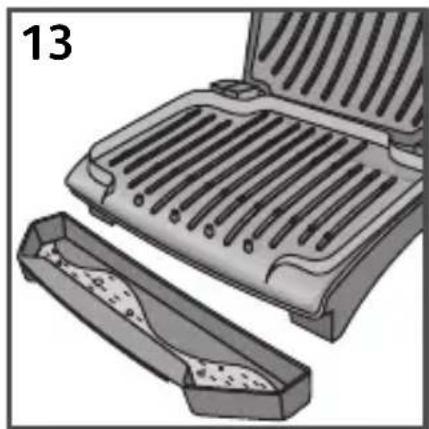

13 Place drip tray under front of grill.

Use plastic spatula to scrape off any excess fat and food particles left on the grill plates directly into the drip tray.

Illustration of a hand using a tool to clean or remove a textured object on a gridded machine (no text or symbols visible)

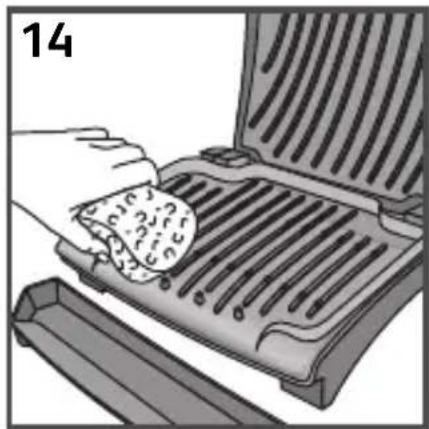

14 Use a warm, soapy sponge to wipe plates clean, then rinse sponge and wipe again to remove any soapy residue. Dry thoroughly with an absorbent paper towel.

To remove stubborn buildup, use a nylon or nonmetallic scrubbing pad to clean the grill plates.

Do not use metallic scrubbing pads, steel wool or any abrasive cleaners to clean any part of your grill; use only nylon or nonmetallic scrubbing pads.

Empty drip tray and wash in warm, soapy water; dry thoroughly with a paper towel.

To clean the grill cover, wipe with a warm, wet sponge and dry with a soft, dry cloth.

Any other servicing should be performed by an authorized service representative.

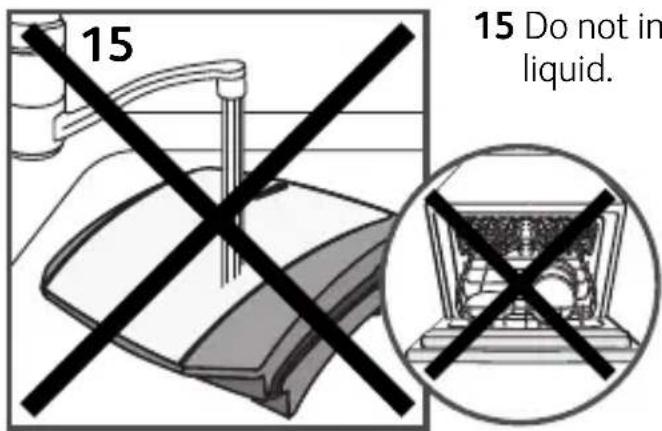

15 15 Do not in liquid.

15 Do not immerse the body of grill in water or any other liquid.

Diagram of a device inside a storage cabinet with a labeled component (no text or symbols present)

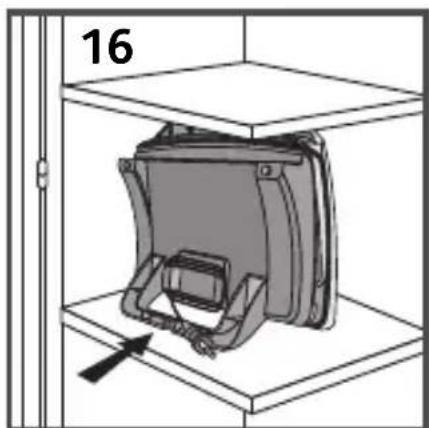

16 Always make sure grill is clean and dry before storing.
