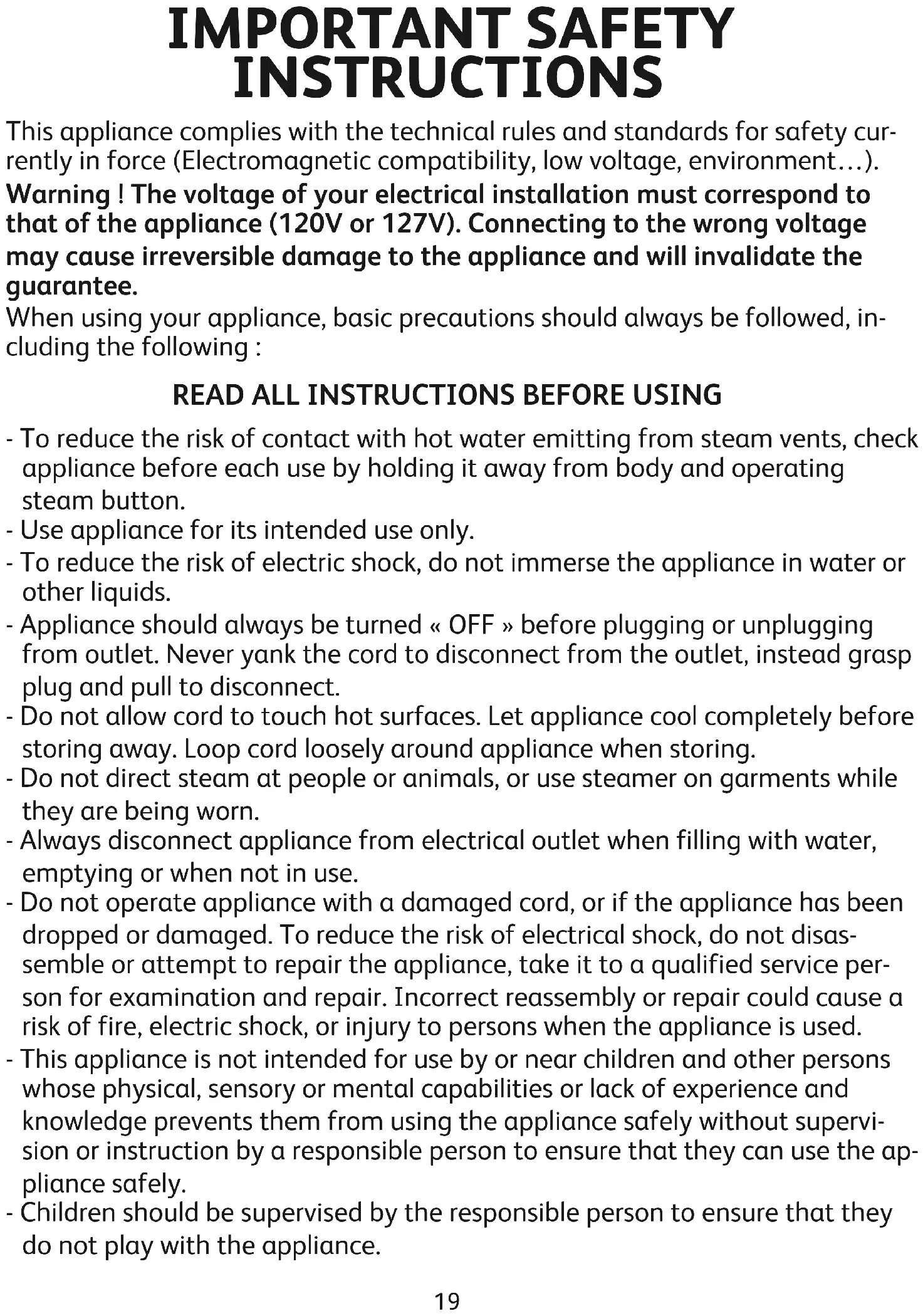

fig.15 fig.16 Min. x1 Max. x5 fig.17 fig.18 fig.19 fig.20 fig.21 fig.22 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page1819 IMPORTANT SAFETY INSTRUCTIONS This appliance complies with the technical rules and standards for safety cur- rently in force (Electromagnetic compatibility, low voltage, environment…). Warning ! The voltage of your electrical installation must correspond to that of the appliance (120V or 127V). Connecting to the wrong voltage may cause irreversible damage to the appliance and will invalidate the guarantee. When using your appliance, basic precautions should always be followed, in- cluding the following :

READ ALL INSTRUCTIONS BEFORE USING

- To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating steam button. - Use appliance for its intended use only. - To reduce the risk of electric shock, do not immerse the appliance in water or other liquids. - Appliance should always be turned « OFF » before plugging or unplugging from outlet. Never yank the cord to disconnect from the outlet, instead grasp plug and pull to disconnect. - Do not allow cord to touch hot surfaces. Let appliance cool completely before storing away. Loop cord loosely around appliance when storing. - Do not direct steam at people or animals, or use steamer on garments while they are being worn. - Always disconnect appliance from electrical outlet when filling with water, emptying or when not in use. - Do not operate appliance with a damaged cord, or if the appliance has been dropped or damaged. To reduce the risk of electrical shock, do not disas- semble or attempt to repair the appliance, take it to a qualified service per- son for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury to persons when the appliance is used. - This appliance is not intended for use by or near children and other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervi- sion or instruction by a responsible person to ensure that they can use the ap- pliance safely. - Children should be supervised by the responsible person to ensure that they do not play with the appliance. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page1920 - Burns could occur from touching hot metal parts, hot water or steam. Use care when you empty a steam appliance, there may be hot water in the tank or inside the appliance. - For water in water tank only and remove the water tank only when it is empty. - Never drop or insert any object into any opening or hose. - Always keep the hose and nozzle elevated above the water tank. - Steam only in an up and down vertical motion. Never use steamer in a hori- zontal position or tilt into a backward position, this may result in hot water discharge. - Do not place the steam nozzle directly on any surface or the appliance power cord while it is hot or plugged in. Use the stand provided. - Use caution when changing attachments, as they may contain hot water from condensation. Ensure the attachments are cooled off to avoid contact with hot water. - The use of accessory attachments other than those provided by T-fal is not recommended and may result in fire, electric shock or personal injury. - This unit is for indoor use only. SPECIAL INSTRUCTIONS - To avoid a circuit overload, do not operate another high wattage appliance on the same circuit. If an extension cord is absolutely necessary, a 15-amp rated cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

ENVIRONMENTAL PROTECTION FIRST ! i Your appliance contains valuable materials which can be recovered or recycled. ‹ When disposing of it, take it to a collection point or an approved service center. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2021 Garment steamer assembly Pole assembly

1. Place the base on the floor and put in the water tank - fig.1.

2. Insert the telescopic pole into the base and turn the locking ring to secure it

into place - fig 2a, 2b.

3. Fit the hook onto the top of the pole until you hear a click sound - fig.3.

4. Insert the hanger into the 2 holes located at the back side of the hook and pull

it down to secure it - fig.4a, 4b.

5. Place the steam head on the hook.

Functioning of the rotary hangers This garment steamer is equipped with rotary hangers in order to store the steamer easily. To turn the hangers

1. Gently pull the hanger (a) to free it from the notch located at the back of the

2. Turn the hanger to set it horizontally or to store it vertically - fig.6 et 7.

3. Fit parts (a) and (b) together in the desired position - fig.8.

The dual clip system is adjustable in height in order to be perfectly adapted to the different garment lengths. Fabric brush assembly

• Insert the fabric brush into the holes located on the steam head - fig.9.

• Before removing the fabric brush, be sure the appliance is unplugged and totally cool.

• Pull the brush out of the steam head to remove it. TIP : Before using this accessory, check the manufacturer recommendations. It is also Description

a. On/off and Steam Set button

5. Removable water tank

8. Dual clip system for pants

a. Higher part to hang b. Lower part to tighten

10.Power indicator light 11.Clips for pole fastening 12.Power cord clips Be sure unit is unplugged and completely cool before attaching this accessory. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2122 recommended that you carry out a test on part of the fabric which cannot be seen. Filling the water tank

• Ensure that the steamer is unplugged - fig.11. Remove the water tank from the base of the appliance by pulling the handle upwards - fig.12. Unscrew the tank cap and fill the tank. The tank holds

2.35 liters (80 ounces).

• The steamer must to be used with TAP WATER. If the water in your area is hard, T-fal recommends that you mix half tap water and half distilled water, which reduces the hardness. You can also use bottled spring water or distilled water only.

• After closing the cap, turn the tank down and hold it by the handle. Check out that no water is leaking through the cap.

• Place the water tank on the base - fig.14. If you have any difficulty to placing it, check that the water tank is not the wrong way round. Use

• Only operate the steamer on the floor clear of any materials which may obstruct the base of the steamer (flat and horizontal surface). Do not obstruct the openings on the lower part of the appliance.

• If necessary, expand the pole to the desired height by unlocking it, pulling it gently and locking it again - fig.15.

• Plug in the power cord, a beep sound is emitted and the power light on the front of the appliance turns on - fig.16.

• Hold down the Set/On-Off button located on the steam head for 2 to 3 seconds to switch on the steamer.The steamer starts on the minimum steam output setting. The steam amount can be set to the desired level by successively pressing the Set/On-Off button (5 different settings to perfectly adapt the steam output to all fabric types, from delicate to thick ones) - fig.17. IMPORTANT Never use water that contains additives (starch, perfume, aromatic substances, softener, etc) in the steamer. Additives such as these can affect the properties of the steam and lead to the formation of deposits. Never use water complitely distilled or demineralized.

Warning : Never steam

a garment while it is being worn. The hose and steam head may become hot during use. This is perfectly normal. Be careful and avoid any prolonged contact. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2223

• The steamer produces steam in 60 seconds, when in max position of variable steam.

• Put the garment directly on the rotating hanger or on another hanger that you can hang up to the hook. To steam pants, we advise you to use the two hangers as described in the picture - fig.19.

• Grasp the steam head with the steam vents pointing away from you. Start steaming by brushing material lightly with the grain of the fabric in an up/down vertical motion. The fabric brush opens the weave of the fabrics for better steam penetration.

• Start at the top the garment and gradually move downward. Always steam in a vertical position - fig.18.

• For more ease, we recommend to pull the garment downward with your free hand while steaming. Be careful not to touch the hot steam.

• During use, the hose may make a gurgling noise. This is a normal occurrence due to condensation. If you hear the gurgling noise, hold the hose up to direct the condensation back into the appliance. Empty tank detector This appliance is equipped with an empty tank detector. When the water tank is empty, a beep sound is emitted for a duration of 1 minute and the light indicators on the steam head will blink to alert you to fill the water tank. Turn off the appliance and fill the water tank. The appliance will automatically shut off after 1 minute if the water tank remains empty. Auto-Off function

• This garment steamer is equipped with the Auto-Off function to ensure optimum safety. Thus, if the steam head stays motionless for 5 minutes, a beep sound will be emitted for 2 minutes before the automatic shut-off.

• The garment steamer automatically turns to « Energy saving » mode before the automatic shut-off. During this time, the steam output is significantly reduced in order to limit the energy consumption before the appliance completely shuts off.

• Gently move the steam head to reactivate the appliance. Caution : the empty tank detector does not work with fully distilled or demineralized water. We recommend you to use TAP WATER. If the water in your area is hard, mix half tap water and half distilled water.

allow the steamer to run dry.

Warning : Do not bend

the steam hose during use or storage. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2324 After use

• After using the steamer, switch the power off by holding down (3 sec.) the Set/Off button. Once the power indicator light turns off, you can unplug the appliance.

• Hang the steam head in an upright position on the hook when not in use.

• Turn the hanger vertically if you want to easily store the appliance away.

• Empty and rinse the water tank each time before storage in order to flush out any scale particles - fig.20.

• Wrap the cord around the power cord clips - fig.21.

• Do not carry the steamer by the water tank handle. This appliance includes luggage style wheels for added convenience when transporting. Cleaning

• Clean the main unit with a damp cloth. To maintain maximum performance, your steamer must be descaled occasionally. The time between descaling operations depends on the quality of the water and the frequency with which you use the appliance. The appliance must be descaled at least once a year or after 50 hours of use.

• To carry out a descaling operation, follow the following steps:

1. Ensure that the appliance has cooled down

2. Fill the water tank with fresh water and place it on

the main unit allowing water to fill the boiler.

3. Remove the tank from main unit and empty the

water from the boiler through the same way the water goes inside.

4. Repeat step 2 and 3 several times until the scale

has been removed. Tips

• We recommend checking the garment care label for manufacturer recommendations before steaming. We also recommend testing the garment on an unobtrusive area such as an inner seam. CAUTION: Don’t fill the boiler by the steam head holes ! Never immerse the steam head in water ! The steam handle contains electronic components that could be damaged by direct water.

Warning : Never touch

the steam head until it has cooled down completely. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2425

• Read the recommendations for the maintenance of the fabrics on the labels of the clothing to be steamed.

• Test the strength of the color of the fabric on an area of the garment that is not visible (inside of a hem).

• Avoid contact between the steam head and silk or velvet.

• Certain garments are smoothed more easily on the reverse side.

• If you are using the steam head at a position close to the ground, raise the hose frequently in order to avoid the formation of condensation. You may hear a gurgling noise if the hose is obstructed in any way.

• Heavy fabrics may need to be steamed longer.

• Be careful at all times. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2526 Troubleshooting If it is not possible to establish the cause of the problem, seek the assistance of an approved T-FAL Service Center www.t-fal.com Problems Possible causes Solutions There is no steam. The appliance has not been turned on. Check that your appliance is properly plugged in, a beep sound is emitted. Then press the Set/Off button, the light indicator on the front must illuminate. Set the steam output. The hose hes been obstructed. Check that the hose is not bent or twisted. The steam flow is low. Your steamer has a build-up of scale besause it has not been rinsed out regularly. See descaling process (Cleaning paragraph) The hose has been obstructed. Check that the hose is not bent or twisted. The «Energy saving» mode is activated. Gently move the steam head to reactivate the appliance. Water runs through the holes of the steam head. There is condensation in the hose Never use a steamer in the horizontal position. Hold the hose vertically outstretched and wait for water to flow back into the steamer. The steamer takes a long time to heat and/or ejects white particles Your steamer has a build-up of scale besause it has not been descaled regularly. See descaling process (Cleaning paragraph) A beep sound is emitted. There is no water in the water tank. Turn off the appliance and fill the water tank. The auto-off function is activated. There is water in water tank, but the appliance doesn’t detect it. Gently move the steam head to reactivate the appliance. Replace water by tap water. Clean up the two metal contacts located in housing, under the water tank. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2627 LIMITED WARRANTY This T-fal product is warranted for 6 months from date of purchase against defects in material and workmanship. During this period, any T-fal product that, upon inspection by T-fal, is proved defective, will be repaired or replaced, at T-fals option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product. This warranty does not apply to any defect arising from a buyer’s or user’s misuse of the product, negligence, failure to follow T-fal’s instructions, use on current or voltage other than that stamped on the product, or alteration or repair not authorized by T-fal. Repair or disassembly by anyone other than a T-fal authorized service center will void the warranty. THE WARRANTIES SET FORTH HEREIN ARE EXCLUSIVE AND NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, ARE MADE BY T-FAL OR ARE AUTHORIZED TO BE MADE WITH RESPECT TO THE PRODUCT. Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. If you believe your product is defective, bring the product (or send it, postage prepaid) along with proof of purchase to the nearest authorized T-fal Service Center (see below). If you send the product, please include a letter explaining the nature of the claimed defect. In the interest of improving products, T-fal reserves the right to change specifications without prior notice. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page2728 CORRESPONDENCE CAN BE SENT TO : Groupe Seb Canada Inc. 345 Passmore Avenue Toronto, Ontario M1V 3N8 Tel: [phone] www.t-fal.ca OFFICE LOCATION ONLY. Letters will be accepted at this address and packages without a return authorization number will be refused or forwarded to a service center. For product service, see information below. SERVICE CENTER INFORMATION: If your appliance needs service, ship the product to your nearest regional service center. Be sure to put your name on the outside of the shipping box (no P.O. boxes please), include a brief note describing the issue, and include a copy of the sales receipt if the product is in warranty. If in warranty, T-fal will repair or replace the product at their discretion. If the product is out of warranty, you will be advised of the cost of repair before any work begins. For a complete list of Canadian Service Centers, please visit our website at www.t- fal.ca or call 1-800-418-3325. 1800121329 IS5200 T-FAL_105x148,5 25/10/10 08:45 Page28CENTRAL DE VAPOR IS5200
