Nicer Dicer Quick - Slicer GENIUS - Free user manual and instructions

Product Type	Manual Slicer
Brand	Genius
Model	Nicer Dicer Quick
Usage	Domestic
Main Functions	Slice, dice, cut into sticks, quarter
Included Components	Cutting frame, grids (upper, lower, quarter), empty frame, 200 ml container, freshness lid
Number of Accessories	7 pieces
Material	Plastic
Blades	Stainless steel, very sharp
Safety	Locking, protected blades, do not touch blades
Care and Cleaning	Clean immediately after use; parts without blades dishwasher safe (top rack); blades hand wash
Usage Tips	Moisten grids before cutting; remove hard seeds and stems
Suitable Foods	Soft to firm vegetables and fruits (except frozen, pits, bones)
Storage	Close and lock before storage
Weight	Approximately 0.5 kg (estimate)
Dimensions (L x W x H)	Approximately 25 x 10 x 10 cm (estimate)

Frequently Asked Questions - Nicer Dicer Quick GENIUS

What are the functions of the Nicer Dicer Quick?

It allows you to cut into thick or thin slices, dices and sticks, as well as quarters thanks to its interchangeable grids.

Can I cut frozen foods with this appliance?

No, the appliance is not designed to cut frozen foods. Use it only for fresh foods.

How to assemble the grids to get dices?

Place the lower grid in the transverse direction of the handle, and the upper grid in the longitudinal direction to form a grid.

What to do if a food does not cut easily?

If the food resists, it is probably not suitable. Do not press with your fingers on the grids; remove the food and choose another method.

How to clean the cutting grids without injuring yourself?

Turn the grid with the sharp side down and use a dish brush to remove residues. Never touch the blades with your hands.

Can I put the parts in the dishwasher?

Yes, the blade-free accessories (container, frame, lid) can go in the top rack of the dishwasher, short cycle. The blades must be hand washed.

What to do in case of staining of plastic parts?

Some foods like beetroot can stain the plastic. This is normal and harmless; it does not affect performance.

Is the appliance suitable for raw carrots?

Yes, but remove the seeds and peel if necessary. Avoid very hard unpeeled vegetables.

How to store the Nicer Dicer Quick?

Close the appliance by pushing the lock backward and store it out of reach of children and pets.

Where to buy spare parts?

Contact your local retailer or search for original Genius accessories compatible with this model.

USER MANUAL Nicer Dicer Quick GENIUS

GB Instruction Manual from page 9

Line drawing of a handheld device with an arrow indicating direction (no text or symbols)

Technical line drawing of a plastic container with an arrow indicating assembly or inspection (no text or symbols present)

Line drawing of a portable electric cooker with internal cooling fins and lid (no text or symbols)

Three technical line drawings of plastic containers: open, side, and grid (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Three technical line drawings of plastic containers: one open, two closed, and one filled with ribbed material (no text or symbols)

Line drawing of a refrigerator with grilles and a lid (no text or symbols)

Technical line drawing of two plastic containers with different internal compartments, one open and one closed, plus a plus symbol (no text or labels)

Line drawing of a mechanical device with internal components and a lid (no text or symbols)

Line drawing of a hand using a grating tool to open a grid device, with no text or symbols present.

Line drawing of a mobile phone device with a scroll wheel and a screen (no text or symbols)

Line drawing of a mechanical device with handle and base, showing internal components and an upward arrow (no text or symbols)

Diagram of a container with horizontal strips and a fan-shaped inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Reinigen des Stifterasters

Content

1 SAFETY INSTRUCTIONS AND WARNINGS....9

1.1 Proper use....9
1.2 Safety instructions ....10

2 Before first use....10
3 Product components....11
4 Assembly/Using....12

4.1 Tips and tricks....14

5 Care and cleaning....14
6 Disposal....15

Please take the time to read through these instructions for use carefully.

For your own protection and that of others, please pay particular attention to the safety instructions chapter and the warnings contained in the document.

Keep these instructions for use for future reference. Always be sure to include the instructions for use if giving the product to a third party.

The illustrations in this instruction manual are intended as a schematic representation of correct use. They may have details that differ from the original product.

1 SAFETY INSTRUCTIONS AND WARNINGS

Guide to the symbols used

CAUTION!

Failure to follow these instructions may lead to injury.

ATTENTION!

Damage to property may occur.

1.1 Proper use

■The product is intended to be used to cut soft food.
■The product is intended for household use only. It is not suitable for commercial or industrial use.

■The product is not suitable for:

- Chopping frozen food

- Grinding pits, cores, etc.

- Chopping bones or other non-edible food elements

■The accessories are not suitable for microwave or oven use.

■The product is not intended for use by adults or children with limited physical, sensory or intellectual abilities or little experience with household equipment,

unless they are supervised by a competent person who is responsible for their safety or they receive clear instructions from such a person about how the product is to be used.

- Only use the product as described in the instruction manual. Any other use is considered improper.

1.2 Safety instructions

RISK OF INJURY FROM SHARP BLADES

■The blades are extremely sharp! Always hold accessories by the plastic and do not touch the blades with your hands or other body parts under any circumstances. Handle the product with care.

■Never allow hands, hair, loose clothing or other items to come into contact with the blade.

- Only cut the food by pressing the product together. Do not use your fingers to push food through the blade inserts under any circumstances.

■Use a washing-up brush or similar tool to remove food residue from the blades or blade inserts.

HANDLING THE PRODUCT CORRECTLY

• Keep a sufficient distance from heat sources (e.g. hobs or ovens) and open flames to avoid damage to the product.
• Check the product for damage before each use. Do not use a damaged product or damaged accessories.
• Do not make any unauthorised modifications, repairs or changes to the product.
  ■Only use the product with original accessories, otherwise you will damage it and increase the risk of injury.
• Please note that the blade inserts cannot be used to cut very hard food such as carrots, unpeeled squashes or similar. Cores and pits must be removed before processing and the food may need to be peeled.

2 Before first use

CAUTION!

Risk of suffocation from plastic sheeting and bags!

Keep children and animals away from packaging material.

check the set to ensure that it is complete and no damage has occurred in transit. Details of what is supplied with the set that you purchased can be found on the packaging or the separate insert sheet.
Remove the packaging material and any stickers attached to the product for protection during transit or for advertising purposes.
clean all parts before the first use to remove any production residue (see also "Care and cleaning").

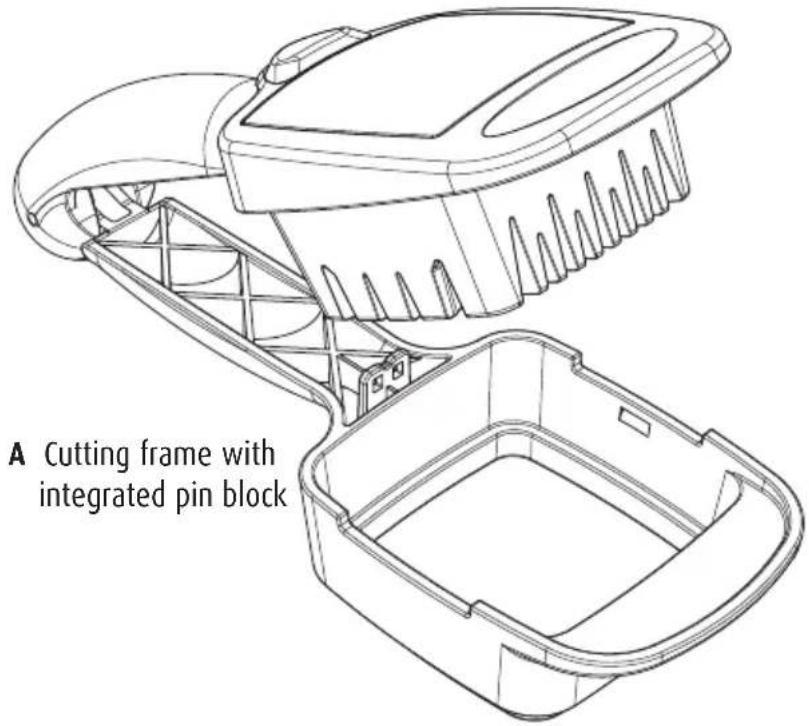

3 Product components

Line drawing of a rectangular container with internal grating and scalloped edges (no text or symbols)

B Top blade insert (with detent)

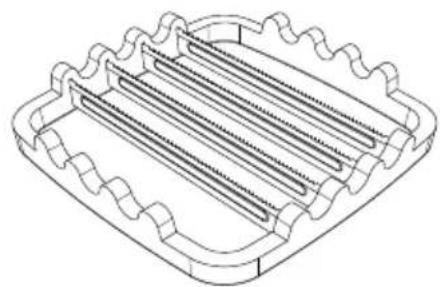

Technical line drawing of a rectangular tray with internal parallel strips, no text or symbols present

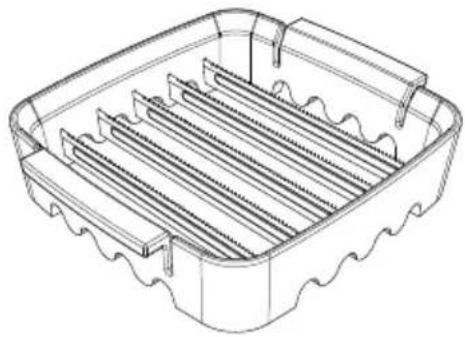

D Bottom blade insert

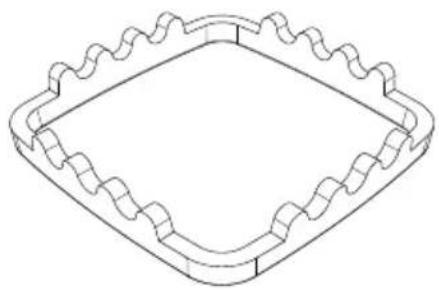

C Blind frame

Isometric line drawing of a square frame with wavy edges and a central rectangular cutout (no text or symbols)

Technical line drawing of a rectangular container with internal structural ribs (no text or symbols)

Line drawing of a square container with side handles (no text or symbols)

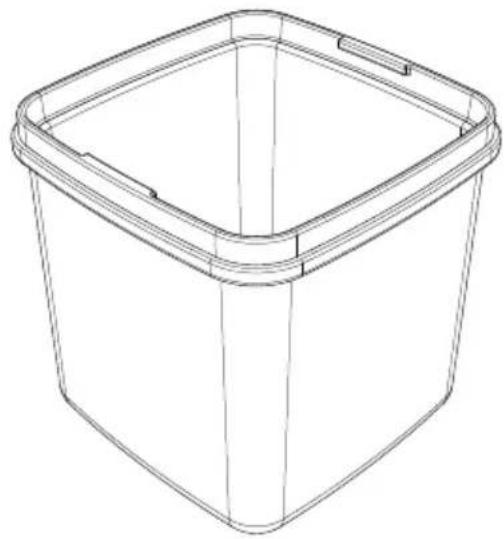

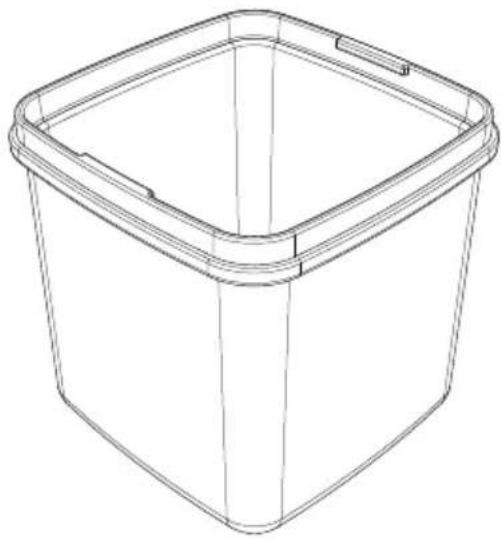

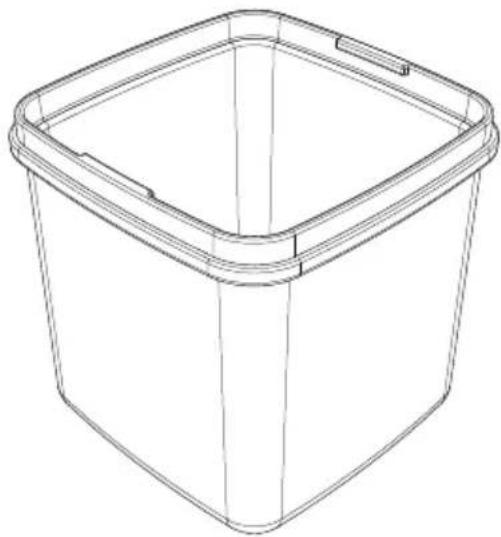

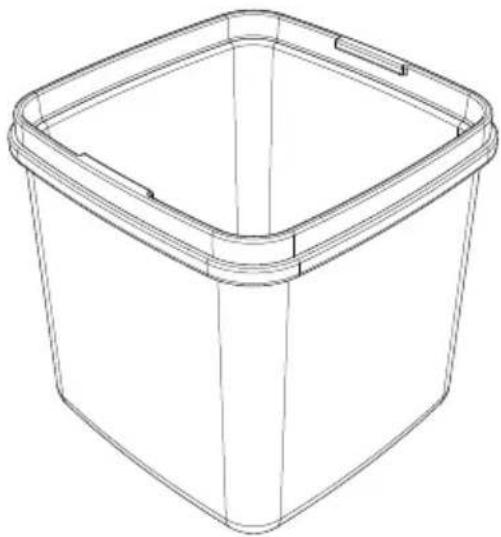

F Collecting container (capacity: 200 ml)

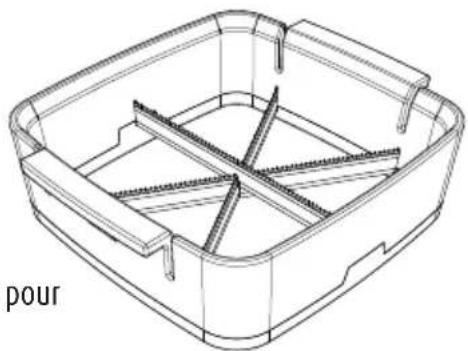

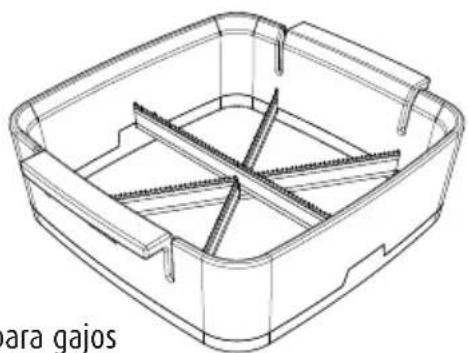

E Blade insert for wedges

Technical line drawing of a mechanical component with four symmetrical arms and central square (no text or symbols)

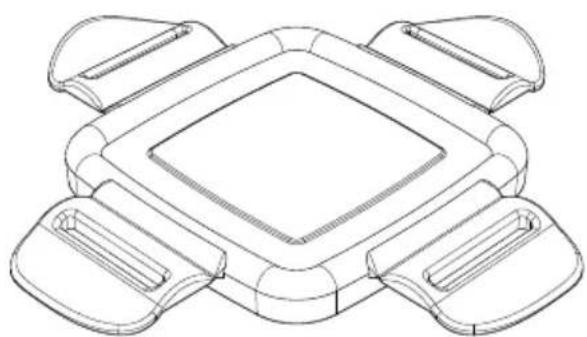

G Fresh-keeping lid

This instruction manual covers all the accessories available for the product. Details of what is supplied with the set that you purchased can be found on the packaging or the separate insert sheet. Parts that are not included in your set can of course be bought at a later date.

4 Assembly/Using

CAUTION!

Risk of cutting injuries!

The blades are extremely sharp. Always hold parts by the plastic and do not touch the blades with your hands or other body parts under any circumstances.

Only cut the food by pressing the product together. Do not use your fingers to push food through the blade inserts under any circumstances.

Ensure that the Nicer Dicer Quick is closed before you put it away.

Store the product out of the reach of children and animals.

Cutting

Line drawing of a mobile phone with a handle and screen (no text or symbols)

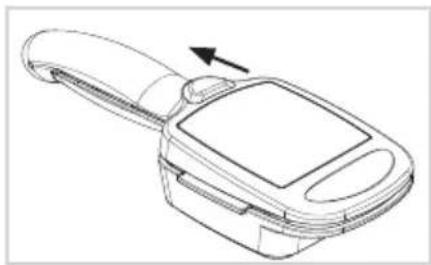

Hold the Nicer Dicer Quick with the product logo facing up. Push the lock mechanism forward to open up the Nicer Dicer Quick.

Technical line drawing of a plastic container with an arrow indicating assembly or inspection (no text or symbols present)

Now you can insert the various blade inserts or the blind frame.

•
  +

Line drawing of a mechanical device with internal components (no text or symbols)

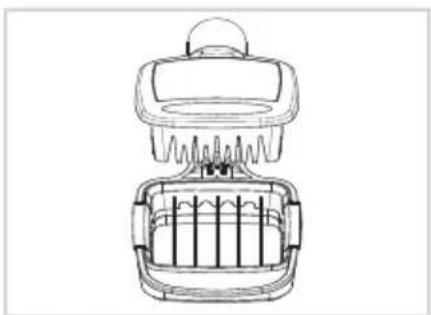

To cut thick slices first insert the blind frame and then the top blade insert. Please note that the top blade insert can only be placed on top in one direction.

•
  +

Line drawing of a mechanical device with internal components (no text or symbols)

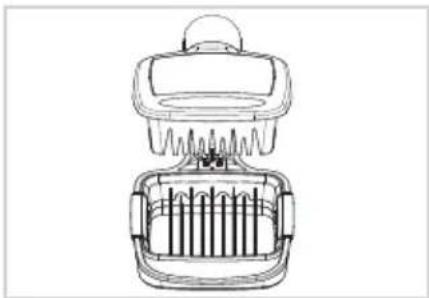

To cut thin slices insert the bottom and top blade inserts lengthwise to the handle.

•
  +

Line drawing of a car air filter with internal grid structure (no text or symbols)

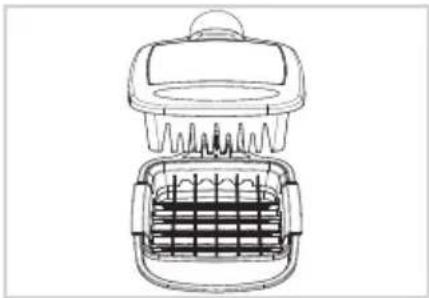

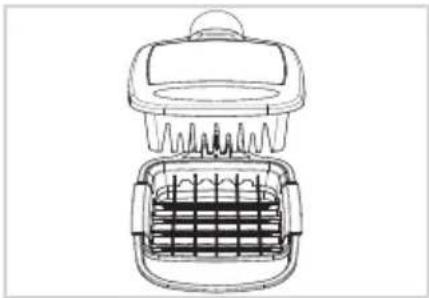

To make cubes or sticks, insert the bottom blade insert crosswise and the top blade insert lengthwise to the handle (to create a mesh pattern).

CAUTION!

The combination for cubes/sticks is not suitable for cutting vegetables with a firmer peel (such as aubergines, potatoes or bell peppers).

•

Line drawing of a mechanical device with internal components (no text or symbols)

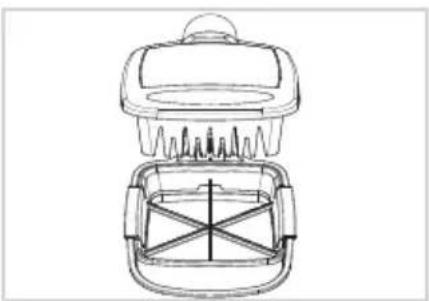

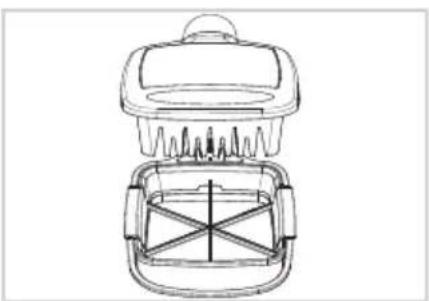

Use the blade insert for wedges to cut wedges. Always use this blade insert on its own. Never use it with other inserts.

NOTE: To cut wedges from citrus fruits, you must first remove the hard stem base on both sides, to avoid damaging the product.

Illustration of a hand using a grating tool to remove or adjust a grid-patterned container, with no text or symbols present.

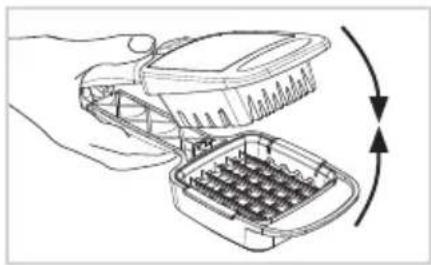

Press both halves of the handle together to cut. If you find something hard to cut, it is NOT suitable for cutting with the Nicer Dicer Quick.

Line drawing of a mobile phone with an open lid and scroll (no text or symbols)

After use and before you put the Nicer Dicer Quick away, ensure that the two sides of the handle are closed and the locking mechanism is pushed back.

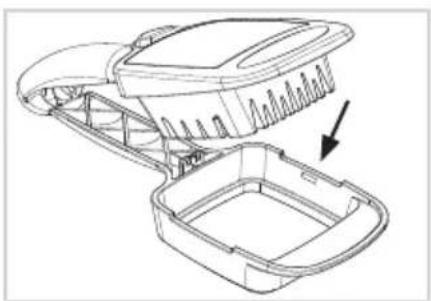

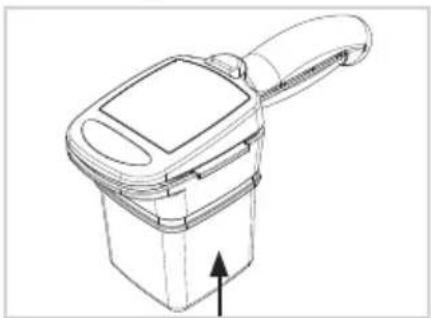

Collecting container

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

If necessary, the collecting container can be locked into place on the bottom cutting frame. When attaching the collecting container, ensure that you hear it click into place.

4.1 Tips and tricks

For storage, you can seal the collecting container with the practical fresh-keeping lid.

Place the food with the cut side on the desired cutting surface.

Before starting, dip the blade inserts in water. Wet blades cut more easily and require less force. During cutting, the blades are kept moist by the moisture in the food that is being cut.

5 Care and cleaning

CAUTION!

Risk of cutting injuries due to sharp blades!

Do not touch the blades with your hands. Always hold the inserts by the plastic.

ATTENTION!

Clean the product immediately after use to avoid the build-up of germs or mould.

• Dismantle the product before cleaning. Remove all inserts and the collecting container from the Nicer Dicer Quick.
  Do not use sharp or abrasive cleaning agents or cleaning pads.
  Allow all parts to dry thoroughly before putting them away.
  All parts without blades can be cleaned in the top basket of the dishwasher. Select an economy or standard programme. Avoid high-temperature programmes (such as sanitising or pot/ pan cycles).
  We recommend hand-washing any parts that contain blades to preserve quality and sharpness over the long term.

NOTE: Some types of fruit and vegetables can stain the plastic parts (e.g. beets). Frequent cleaning of the collecting container in a dishwasher can affect the material's transparency. This is normal and not a cause for concern; it does not limit the functionality.

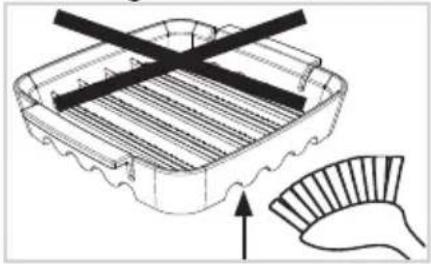

Cleaning the blade inserts

Diagram of a food processor with horizontal bars and a fan-shaped tool below (no text or symbols)

When you're cleaning the product, never touch the side with the sharp blades.

If food residue is caught between the blades, twist the blade insert to face upwards with the blunt side and carefully remove the food residue using a dishwashing brush.

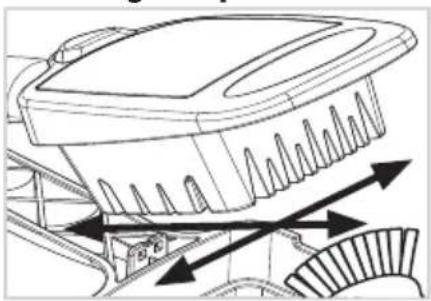

Cleaning the pin block

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Clean the integrated pin block thoroughly with a dish brush. Make sure you brush carefully through the vertical, horizontal and diagonal recesses.

6 Disposal

In the event that the product and/or accessories can no longer be used, they should be disposed of with the household rubbish. It can be disposed of by the municipal waste management services.

The packaging material can be recycled. Dispose of the packaging in an environmentally friendly way and take it to your recycling site.

If you have any questions about the device or spare parts/accessories, please contact your local retailer.

Contenu

1 CONSIGNES DE SÉCURITÉ ET AVERTISSEMENTS....16

UTILISATION CORRECTE DU PRODUIT

Line drawing of a rectangular container with internal grating and scalloped edges (no text or symbols)

Isometric line drawing of a rectangular tray with internal parallel strips, no text or symbols present

Isometric line drawing of a square frame with wavy top edge and rounded bottom edges (no text or symbols)

Line drawing of a rectangular container with internal structural ribs and handles (no text or symbols)

Line drawing of a square container with side handles (no text or symbols)

Technical line drawing of a mechanical component with four symmetrical arms and central square (no text or symbols)

Line drawing of a mobile phone with a handle and screen (no text or symbols)

Technical line drawing of a plastic container with an arrow indicating assembly or inspection (no text or symbols present)

Line drawing of a portable electric heater with internal cooling fins and lid (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a portable electric cooker with internal grid layout (no text or symbols)

Line drawing of a backpack with a lid and front panel, no text or symbols present

Illustration of a hand using a micrometer to adjust a grid-patterned container, with no text or symbols present.

Line drawing of a mobile phone with an arrow indicating left-hand rule (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, showing no text or symbols.

Diagram of a container with horizontal strips and a fan-shaped inset showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion or flow (no text or symbols)

Line drawing of a rectangular container with internal grating and scalloped edges (no text or symbols)

Isometric line drawing of a square frame with wavy edge and inner ring (no text or symbols)

Isometric line drawing of a rectangular tray with internal parallel strips, no text or symbols present

Line drawing of a rectangular plastic container with internal structural ribs (no text or symbols)

Line drawing of a square container with rounded corners and side slots (no text or symbols)

F Opvangbak (inhoud: 200 ml)

Technical line drawing of a four-pronged mechanical component with no text or symbols

G Vershouddeksel

Line drawing of a mobile phone with a handle and screen (no text or symbols)

Line drawing of a plastic container with an arrow indicating a component (no text or symbols present)

U kunt nu de verschillende mesjes en indien nodig de blinde rand erin zetten.

•
  +

Line drawing of a portable air conditioner unit with internal grating and lid (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a car hood with internal grating and ventilation slots (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Illustration of a hand using a grating tool to remove or adjust a grid-patterned container, with no text or symbols present.

Line drawing of a mobile phone with an open lid and scroll (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Diagram of a container with horizontal strips and black cross marks, alongside a fan-shaped object with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Line drawing of a rectangular container with internal grating and scalloped edges (no text or symbols)

Isometric line drawing of a rectangular container with internal parallel strips (no text or symbols)

D Inserto lama inferiore

Line drawing of a square container with side handles (no text or symbols)

Technical line drawing of a mechanical component with four symmetrical arms and central square (no text or symbols)

Line drawing of a mobile phone with a handle and screen (no text or symbols)

Technical line drawing of a plastic container with an arrow indicating a component (no text or symbols present)

Line drawing of a portable electric stove with internal compartments and top handle (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a refrigerator interior with grilles and a lid (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Illustration of a hand using a micrometer to open a grid device, with no text or symbols present.

Line drawing of a mobile phone with a scroll wheel and screen (no text or symbols)

Line drawing of a mechanical device with a handle and base, showing an upward arrow (no text or symbols)

Diagram of a container with horizontal strips and a fan-shaped object below, no text or symbols present

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Line drawing of a rectangular container with internal grating and scalloped edges (no text or symbols)

Isometric line drawing of a rectangular tray with internal parallel strips, no text or symbols present

Isometric line drawing of a square frame with wavy top edge and rounded bottom edges (no text or symbols)

Line drawing of a rectangular container with internal structural beams (no text or symbols)

Line drawing of a square container with side handles (no text or symbols)

F Recipiente colector (capacidad: 200 ml)

Line drawing of a four-legged table with a central diamond-shaped tray (no text or symbols)

Line drawing of a mobile phone device with handle and screen (no text or symbols)

Technical line drawing of a plastic container with an arrow indicating a component (no text or symbols present)

Line drawing of a portable electric cooker with internal compartments and handle (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a portable electric heater with internal grid structure (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Illustration of a hand inserting a small appliance into a grid-like container with an arrow indicating rotation (no text or symbols)

Line drawing of a mobile phone with an arrow indicating left-hand rule (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Diagram of a container with horizontal strips and black cross marks, alongside a fan-shaped object with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion or force (no text or symbols)
