Brand	Emerio
Model	CAH121942
Product type	Halogen heater
Power supply	220-240 V ~ 50/60 Hz
Nominal power	1200 W (400/800/1200 W adjustable)
Main functions	3 power levels, oscillation, tip-over switch
Number of heating tubes	3 (central, upper, lower)
Control type	Individual switches + rotary switch for oscillation
Recommended safety distance	At least 0.9 m from walls and combustible materials
Maintenance and cleaning	Clean with a soft damp cloth, do not immerse, do not use corrosive solvents
Safety	Tip-over switch, overheat protection, do not cover
Warranty	2 years from date of purchase (except for wear and tear, third-party intervention, consumable parts)
After-sales service	Emerio Deutschland GmbH, Tel: [phone], Email: [e-mail]
Protection rating	IPX0 (not water resistant, indoor use only)
Usage	Indoor, well-insulated rooms or occasional use

Frequently Asked Questions - CAH121942 Emerio

What are the available power levels?

The heater offers three power levels: 400 W, 800 W and 1200 W, individually controllable via the switches. You can combine the tubes to get the desired power.

How to activate the oscillation function?

To activate oscillation, press the rotary switch to the 'I' position. To stop it, flip it to the 'O' position.

What safety distances should be observed?

Place the heater at least 0.9 meters (3 feet) away from walls, curtains, furniture and other combustible materials. Never place the unit directly under a power outlet.

What to do if the heater emits an odor or smoke during first use?

This is normal. During the first heating, slight smoke and odor may occur. This will disappear after a few minutes of use.

How to clean the heater?

Unplug the appliance before cleaning. Use a soft damp cloth to wipe the exterior, then dry with a dry cloth. Never immerse the appliance in water and do not use corrosive solvents.

Can the heater be used in a bathroom?

No, this heater is not designed for use in bathrooms, showers or swimming pools. It should only be used in dry, well-ventilated rooms.

How does the tip-over switch work?

The heater is equipped with a tip-over switch located under the base. If the unit tips over or is placed on an unstable surface, it automatically turns off for safety reasons.

Can I use an extension cord?

Yes, but it must be suitable for the appliance's power (1200 W) to avoid overheating. Ensure the extension cord does not pose a tripping hazard.

What is the warranty and how to activate it?

The appliance has a 2-year warranty from the date of purchase. Keep your receipt as proof. The warranty covers manufacturing defects, but not damage due to misuse or unauthorized repair.

Can I use the heater with a timer or programmer?

No, it is forbidden to use this heater with a programmer, timer or remote control system, as this could cause a fire if the appliance is covered or poorly positioned.

USER MANUAL CAH121942 Emerio

White portable electric heater with mesh grille and control knob (no visible text or symbols)

Halogen Heater (EN)

Instruction manual – English ...... - 2 -

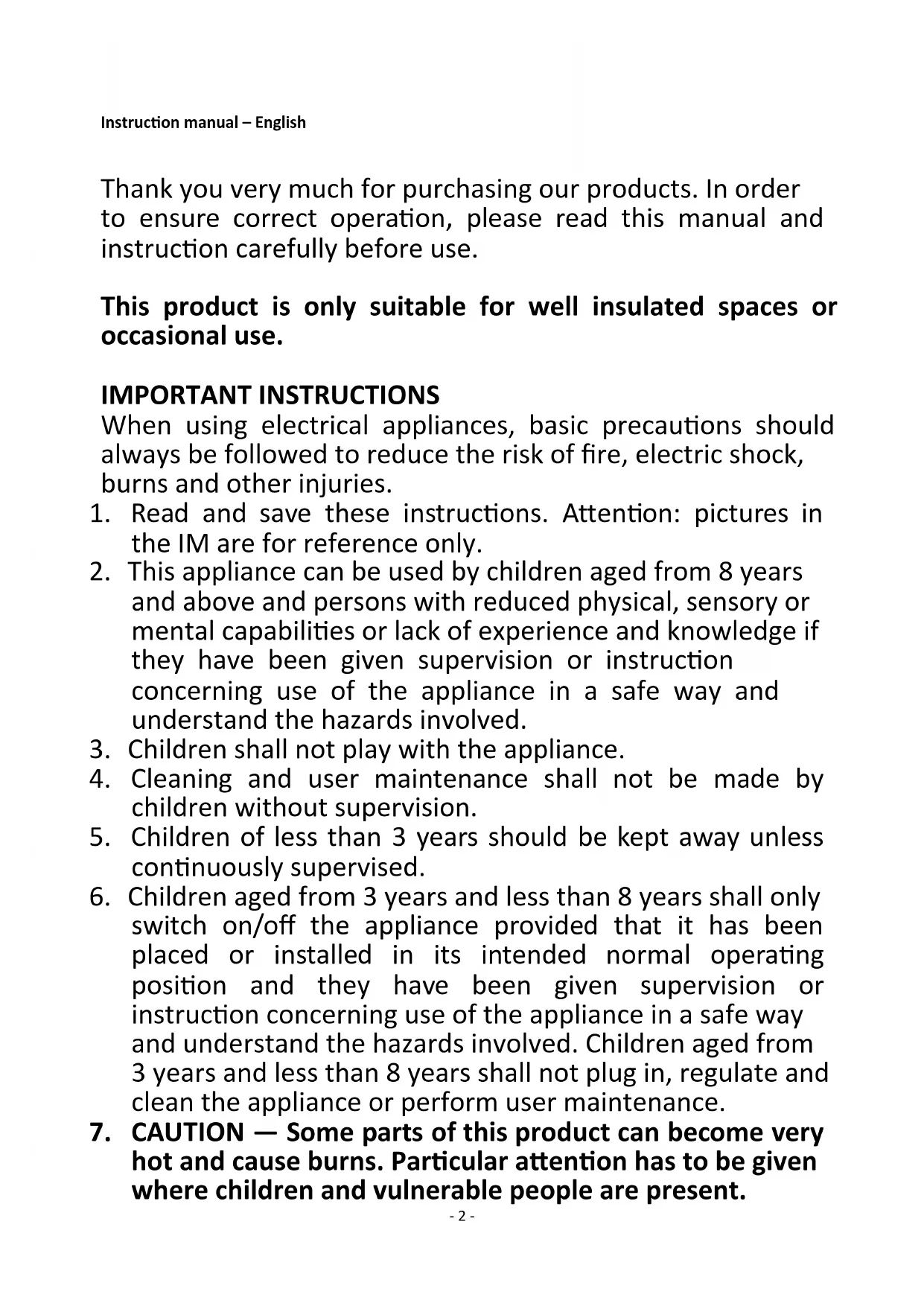

Thank you very much for purchasing our products. In order to ensure correct operation, please read this manual and instruction carefully before use.

This product is only suitable for well insulated spaces or occasional use.

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, burns and other injuries.

1. Read and save these instructions. Attention: pictures in the IM are for reference only.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously supervised.

6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance is intended to be used in household and similar applications.
10. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
11. WARNING: In order to avoid overheating, do not cover the heater.
12. The heater must not be located immediately below a socket outlet.
13. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
14. Make sure the appliance is in good condition after remove it from the package.
15. Check your mains voltage; it must match the specification of this heater.
16. Check the power cord and plug carefully before use to ensure that they are not damaged.
17. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.
18. Don't put the heater on soft surfaces such as beds or sofas.
19. Children must not play with or plug in the heater. Keep children away from the package. Polyethylene bags can be dangerous.
20. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
21. Indoor use only.
22. Do not allow the power cord to hang (e.g over the edge of a table or counter) or place/run the power cord under

rugs, carpeting, or in high-traffic areas where it may be tripped over or pulled.

1. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
2. Do not insert any other objects into the heater, as it may cause an electric shock, fire or damage to this appliance.
3. Do not use this appliance to dry or heat clothing, shoes, pipes or any other items.
4. Use the appliance in a well-ventilated area, this heater is hot when in use, to avoid burns, do not let bare skin touch a hot surface, if provided, use handle when moving this heater, keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 3 feet (0.9 meters) from all sides of the heater.
5. Use this heater only as described in the manual, any other use not recommended by the manufacturer may cause fire, electric shock or personal injury.
6. Do not operate the heater with a damaged cord or plug. After the heater malfunctions or has been dropped or damaged in any manner, return the appliance to a service facility for examination, electrical or mechanical adjustment or repair.
7. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
8. This heating device is not suitable for assembling in vehicles and machines.
9. This appliance is not a toy.
10. Do not immerse the unit in water.
11. To avoid the risk of fire or electric shock do not remove the housing.
12. Any servicing other than cleaning and user maintenance should be performed by an authorized service representative only.

35.

Means "DO NOT COVER".

PARTS DESCRIPTION

1. Power/middle tube heating switch
2. Upper tube heating switch
3. Lower tube heating switch
4. Turning switch
5. Grille
6. Heating tubes
7. Base
8. Handle
9. Tip-over switch

Assembly

1. Loosen the 2 screw bolts (A) from the bottom of the unit.
2. Insert the bottom of the unit into the base. Make sure the power cord is set properly at the cable channel (B).
3. Fasten back the 2 screw bolts. Secure firmly.

OPERATION

1. Place the heater on a firm level surface free from obstructions and at least 3 feet away from any wall or combustible materials.
2. With the power/middle tube heating switch in the position "O", plug the appliance into the power outlet.

3. Press the heating switches to choose the suitable setting 400W/800W/1200W.

4. Power/middle tube heating switch = 400W

5. Upper tube heating switch = 400W

6. Lower tube heating switch = 400W

7. To turn on the oscillation function, press the turning switch to position "I". To turn off the oscillation function, press the turning switch to position "O".

8. When you have finished using the appliance, press the switches to position "O" and unplug the appliance.

WARNING

The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

SAFETY SYSTEM

This heater is equipped with a tip-over switch under the base. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally.

CLEANING AND MAINTENANCE

This appliance requires no specific maintenance. Simply keep the appliance clean from dust and dirt. Check for damage before use. When not in use or before cleaning, always disconnect the appliance from the mains supply. Regularly clean the outside of the appliance of dust with a soft damp cloth and dry it with a dry towel. Do not immerse in water. Do not use harsh solvents.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 1200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höffer Weg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.2	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.4	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.2	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_SB	0	kW	Two or more manual stages, no room temperature control	Yes
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Emerio Deutschland GmbHHöffer Weg 1451519 OdenthalGermany

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
