FN110475.3 - Fan Emerio - Free user manual and instructions

Product Type	Table Fan
Brand	Emerio
Model	FN110475.3
Power Supply	220-240 V ~ 50 Hz
Rated Power	40 W
Operating Consumption	35.13 W
Standby Consumption	0.00 W
Maximum Airflow	48.29 m³/min
Maximum Air Speed	2.74 m/s
Service Value	1.37 (m³/min)/W
Sound Power Level	55.0 dB(A)
Speeds	3 (low, medium, high)
Oscillation Function	Yes, push button
Adjustable Tilt	Yes, manual
Protective Grille	Front and rear
Blade Material	Plastic
Assembly Required	Yes, base and head
Cleaning	Damp cloth, regular dusting of grilles
Safety	Do not immerse, unplug before maintenance, keep out of reach of children
Warranty	2 years
Approximate Dimensions	Height ~45 cm, diameter ~35 cm
Approximate Weight	2.5 kg

Frequently Asked Questions - FN110475.3 Emerio

How to assemble the fan base?

Insert the power cord into the hole in the base, align the tube bulge with the base slot, then turn the tube clockwise to secure it.

How to assemble the grilles and blade?

Remove the blade and grille fixing screws. First mount the rear grille onto the motor block, then secure it. Place the blade on the shaft aligning the slot with the pin, tighten the fixing screw counterclockwise. Finally, clip the front grille onto the rear grille and tighten the clip screw.

How to use the speeds and oscillation?

Press only one speed button at a time: 0 for off, 1 for low, 2 for medium, 3 for high. For oscillation, push the oscillation button down to activate, up to deactivate.

How to adjust the fan tilt?

Gently push on the fan grille to tilt it up or down to the desired angle.

How to clean the fan?

Always unplug the appliance before cleaning. Use a damp cloth to wipe the exterior. For the grilles, use a lint roller or a vacuum cleaner with a brush attachment. Never immerse the fan in water.

The fan is noisy, is this normal?

The maximum sound level is 55.0 dB(A), which is normal for a table fan. Ensure that the screws are tight and the blade rotates freely.

Can I use the fan continuously?

Yes, but it is recommended not to leave it unattended. After use, turn it off and unplug it.

What to do if the fan does not work?

Check that the outlet is powered and the cord is not damaged. Ensure only one speed button is pressed. If the problem persists, contact customer service.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Do not use it outdoors or in a humid environment.

How to recycle the fan at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point for electronic waste or return it to the retailer in accordance with the WEEE directive (2012/19/EU).

USER MANUAL FN110475.3 Emerio

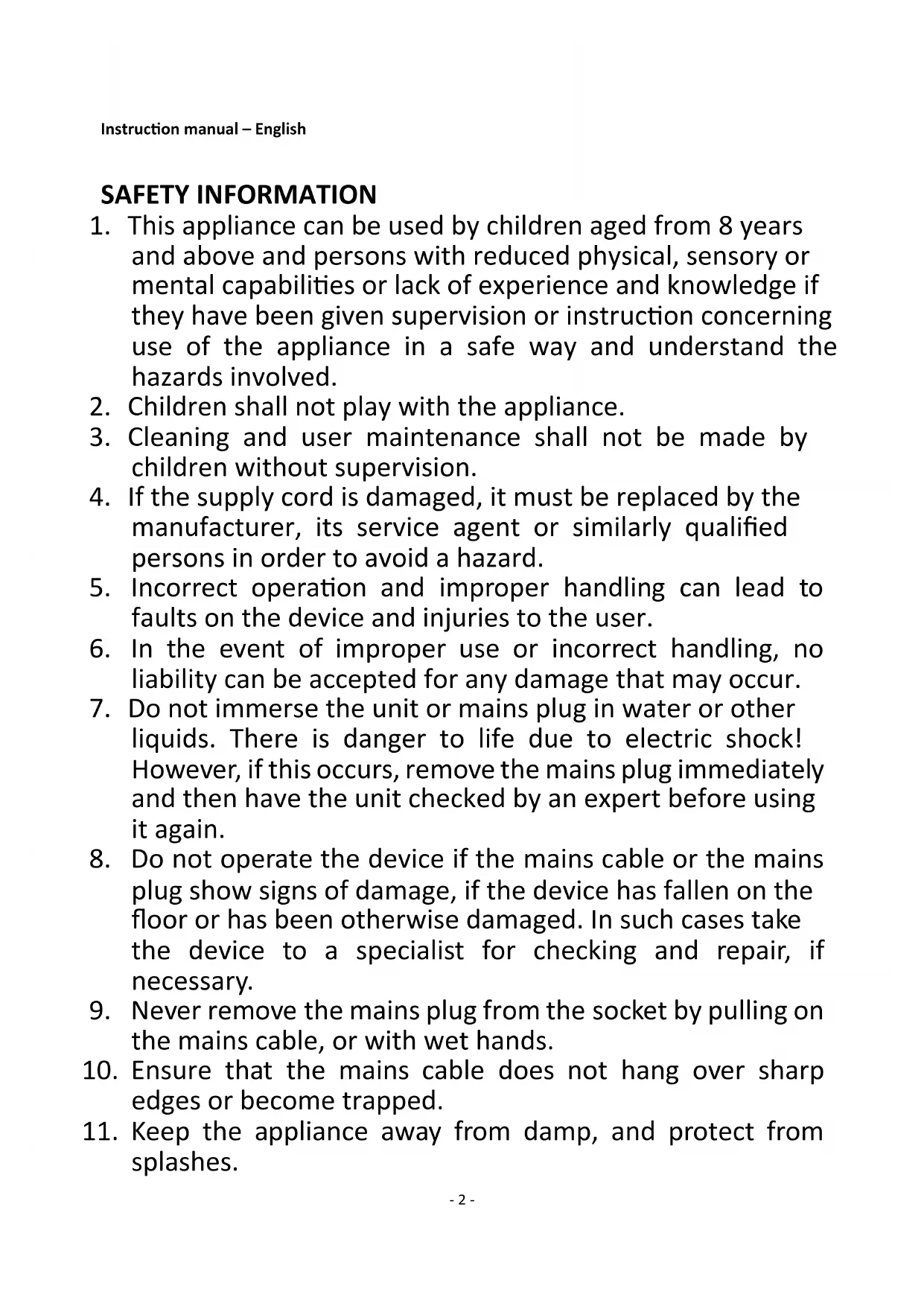

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or become trapped.

11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.
14. Use the appliance on a flat, dry and heat resistant surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

PARTS DESCRIPTION

1. Front guard
2. Guard securing clip
3. Blade fastening screw
4. Blade
5. Guard fastening screw
6. Rear guard
7. Motor shaft
8. Shaft pin
9. Oscillation knob
10. Handle
11. Bulge
12. Space
13. Standing shaft
14. Standing base
15. Power cord
16. Speed control buttons

ASSEMBLING INSTRUCTIONS

1. Base Assembly

Put power cord (15) through the hole of standing base (14), and make the bulge (11) on standing shaft (13) align with the space (12) of base hole, turning the standing shaft clockwise to fix it onto the standing base.

2. The Whole Assembly

• Remove the blade fastening screw (3) and guard fastening screw (5) from the motor shaft (7) spindle.
• Fit the rear guard (6) by positioning with the location pins. Secure the guard onto the motor body with the guard fastening screw (5).
• Place the fan blade (4) onto the motor shaft by matching the slot with the shaft pin (8). Fix the blade by tightening the blade fastening screw (3) in a counter-clockwise direction. Check that the fan blade can rotate freely by turning it with your hand.
• Loosen the clip screw on the guard securing clip (2) and open the guard securing clip. Position the top clip of front guard (1) onto the uppermost part of the rear guard (6). Press the rim of front guard onto the rear guard. Close the bottom clip and tighten the screw.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Oscillation: To make the fan head oscillate, push down the oscillation knob (9). To stop the fan head from oscillating, pull up the oscillation knob.
3. The fan is switched on and off by pressing the speed control buttons, i.e. 0 = Off , 1 = Low air flow peed , 2 = Medium air flow speed , 3 = High air flow speed .
4. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CAUTION: Press only one of the speed control buttons at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220 - 240V 50Hz

Power consumption: 40W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	48.29 m³/min
Fan power input (P)	35.13 W
Service value (SV)	1.37 (m³/min)/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PSB)	0.00 W
Fan sound power level (LWA)	55.0 dB(A)
Maximum air velocity (c)	2.74 meters/sec
Contact details for obtaining more information	Coplax AGChamerstrasse 174CH-6300 Zug

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Coplax AG

Chamerstrasse 174

CH-6300 Zug
