Product Type	Fan Heater
Brand	Emerio
Model	FH124273.1
Power Supply	220-240 V ~ 50-60 Hz
Maximum Power	2000 W
Minimum Power	1000 W
Operating Modes	Fan, low heat (1000 W), high heat (2000 W)
Adjustable Temperature Range	15 °C to 40 °C
Built-in Timer	1 to 12 hours
Horizontal Oscillation	Yes
Remote Control	Yes (CR2025 battery included)
Digital Display	Ambient Temperature
Safety - Overheat Protection	Yes
Safety - Tip-over Protection	Yes
Filter Cleaning	Removable and washable filter
Protective Grille	Yes
Control Type	Electronic with thermostat
Usage	Indoor only
Warranty	2 years

Frequently Asked Questions - FH124273.1 Emerio

How to turn on and off the appliance?

Plug in the appliance and set the power switch to the 'I' position. Press the On/Off button to turn on. To turn off, press this button again: a 30-second cooling cycle starts, then turn off the main switch and unplug.

How to change the heating mode?

Press the Mode button to successively select: Fan, low heat ( ), high heat ( ). The corresponding indicator lights up.

How to set the desired temperature?

Press the + or - buttons on the remote control or the Tem. button on the panel to adjust between 15°C and 40°C. The temperature flashes then the ambient temperature is displayed. The appliance automatically adjusts the power based on the difference.

How to use the timer?

Press the Timer button to set the operating time from 00 (off) to 12 hours. The timer icon lights up. Once the time has elapsed, the appliance stops in standby.

How to activate oscillation?

Press the Swing button to start horizontal oscillation. The oscillation icon lights up. Press again to stop.

What to do in case of overheating?

The appliance is equipped with overheat protection. In case of overheating, the heating element turns off but the fan continues. Once cooled, it restarts automatically. Identify the cause (obstruction, etc.) to avoid recurrence.

How to clean the filter and grille?

Unplug the appliance and wait for it to cool down. Remove the grille guard and filter, clean them with water, dry thoroughly before reassembling. Do not use abrasive products.

Can I use the appliance in a bathroom?

No, do not use it near a bathtub, shower, or swimming pool, nor in a bathroom or laundry room due to humidity. It is designed for dry indoor use only.

Can I cover the appliance?

No, never cover the appliance. The symbol means 'DO NOT COVER'. Covering may cause overheating and fire risk.

How to use the remote control?

Remove the plastic protection from the CR2025 battery before first use. The remote control gives access to all functions: on/off, mode, temperature, timer, oscillation, lock. If not used for a long time, remove the battery.

USER MANUAL FH124273.1 Emerio

Black OMEPC air conditioner with a circular top and digital display (no visible text or symbols)

Fan Heater (EN)

Heizlüfter (DE)

Instruction manual – English ...... - 2 -

Thank you very much for purchasing our products. In order to ensure correct operation, please read this manual and instruction carefully before use.

This product is only suitable for well insulated spaces or occasional use.

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, burns and other injuries.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. WARNING: In order to avoid overheating, do not cover the heater.
9. The heater must not be located immediately below a socket outlet.
10. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
11. Make sure the appliance is in good condition after remove it from the package.
12. Check your mains voltage; it must match the specification of this heater.
13. Check the power cord and plug carefully before use to ensure that they are not damaged.
14. Be sure the power is turned off before unplugging the heater. Do not touch the plug with wet hands.
15. Don't cover the heater.
16. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.
17. Don't put the heater on soft surfaces such as beds or sofas.
18. Children must not play with or plug in the heater. Keep children away from the package. Polyethylene bags can be dangerous.
19. Avoid using extension cords, as they may cause a fire hazard due to overheating.
20. Indoor use only.
21. Do not allow the power cord to hang (e.g. over the edge of a table or counter) or place/run the power cord under rugs, carpeting, or in high-traffic areas where it may be tripped over or pulled.

22. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

23. Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

24. Keep the power cord and product always away from heated surfaces.

25. Do not insert any other objects into the heater, as it may cause an electric shock, fire or damage to this appliance.

26. Do not use this appliance to dry or heat clothing, shoes, pipes or any other items.

27. Use the appliance in a well-ventilated area, this heater is hot when in use, to avoid burns, do not let bare skin touch a hot surface, if provided, use handle when moving this heater, keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 3 feet (0.9 meters) from all sides of the heater.

28. Use this heater only as described in the manual, any other use not recommended by the manufacturer may cause fire, electric shock or personal injury.

29. Do not operate the heater with a damaged cord or plug. After the heater malfunctions or has been dropped or damaged in any manner, return the appliance to a service facility for examination, electrical or mechanical adjustment or repair.

30. The appliance should not be operated by means of an external timer-switch or by means of a separate system with remote control not originally belonging to this appliance.

31. This heating device is not suitable for assembling in vehicles and machines.

32. The rotor guard shall not be disassembled/opened to clean the rotor blades.

33. This appliance is not a toy.

34. Do not immerse the unit in water.

35. To avoid the risk of fire or electric shock do not remove the housing.

36. Any servicing other than cleaning and user maintenance should be performed by an authorized service representative only.

1. Means "DO NOT COVER".

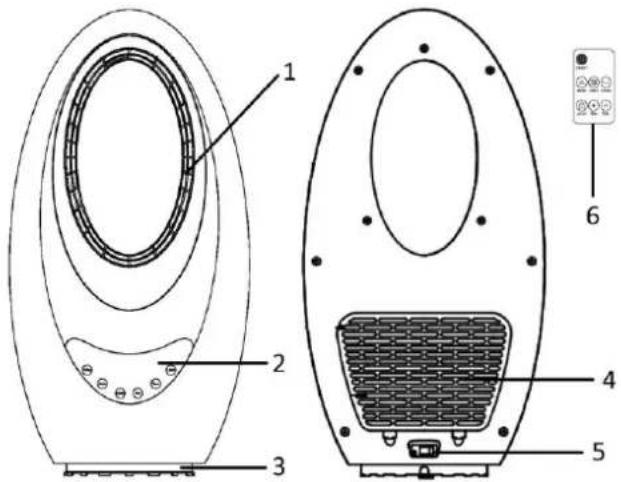

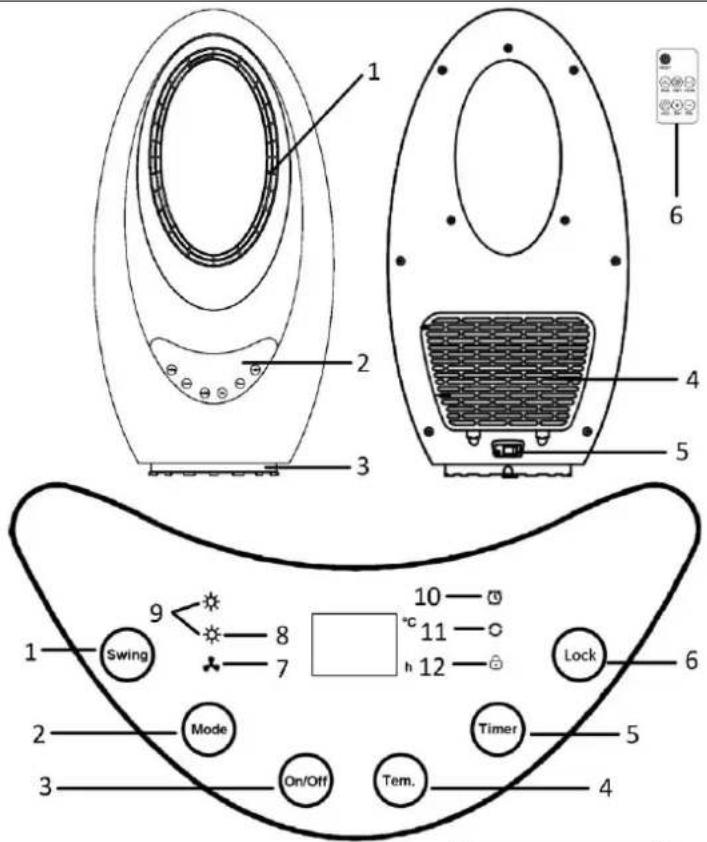

PARTS DESCRIPTION

1. Air outlet

2. Control panel

3. Base

4. Grill guard and filter

5. Power switch

6. Remote control

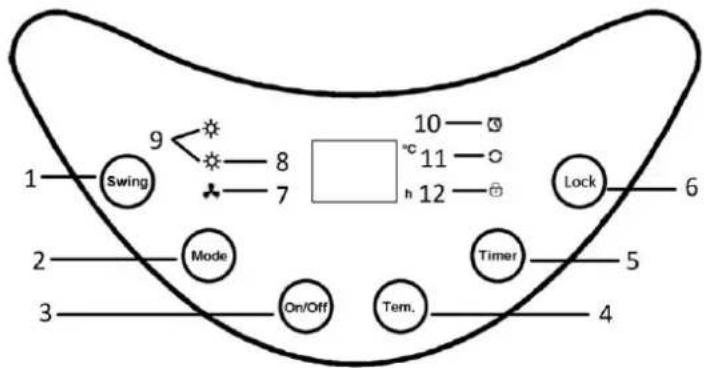

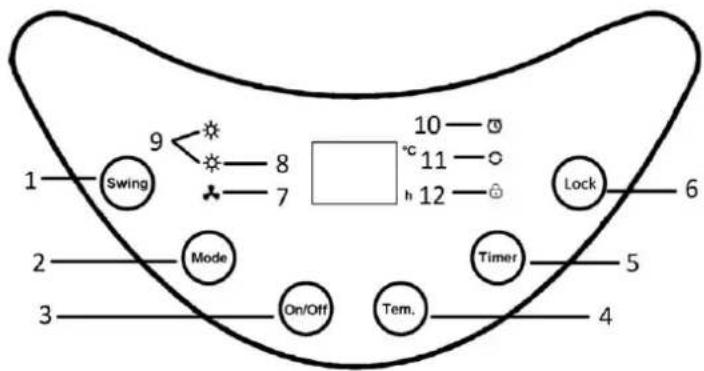

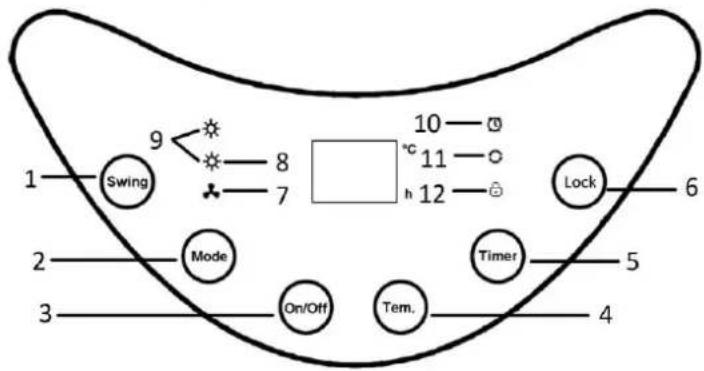

Display panel & control panel & remote control

1. Swing button

2. Mode button

3. On/off button

4. Temperature control button

5. Timer button

6. Lock button

7. Fan mode icon

8. Low heat icon

9. High heat icon

10. Timer icon

11. Swing icon

12. Lock icon

13. Temperature control button -

14. Temperature control button +

Note: One piece of CR2025 battery is provided in the remote control. Before use, please pull out the plastic insulation sheet. When the battery has run out of power, change it according to the instruction behind the remote control. If the remote control is not in use for a long time, please take the battery out. Keep button cell batteries out of reach of small children.

1 2 3 4 5 6

1 — Swing 9 ◼ 8 7 10 — Ø 11 — Ø h 12 — ⊕ Lock 6 2 — Mode 3 — On/Off Tem. Timer 5 4

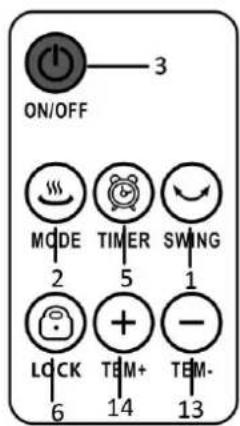

ON/OFF 3 MODE 2 TIMER 5 SWING 1 LOCK 6 TEM+ 14 TEM- 13

Three-step diagram showing a device being inserted into a container, with arrows indicating the process (no text or symbols present)

Operation

Plug the appliance into an appropriate electrical outlet. Turn on the appliance by pressing the main power switch to position "I". A beep sound will be heard at the meantime.

Press the ON/OFF button on the control panel or remote control, the appliance begins to work in fan mode.

The display will show the room temperature.

Note:

(1) Some parts of this product can become very hot and cause burns. Do not use it in areas where gasoline, paint, or any flammable liquids are used or stored.

(2) The heater is designed to be used at temperatures above -20^ .

(3) There may be a trace of odour during the first few minutes of initial use, or after a period of storage. This is noraml and will quickly disappear.

1. Power setting

Press the “Mode” button to select your desired power setting: Fan (♣); Low heat (☀); High heat (☀️). The corresponding indicator light will be on.

2. Temperature setting

Press the button “-” or “+” on the remote control or “Tem.” on the control panel to set the desired temperature. You can choose from 15^ C to 40^ C. When you set your desired temperature, it will flash a few seconds, and then shows the room temperature again.

When the set temperature is 4^ or more higher than the room temperature, the appliance will work on high heat;

When the set temperature is 2-3°C higher than the room temperature, the appliance will work on low heat;

When the room temperature reaches the set temperature, the appliance will switch to fan mode automatically.

Note:

(1) The power setting and temperature setting cannot coexist; the appliance will run according to the the lastest setting.
(2) During use, if there is no operation within five minutes, the display and indicator lights will be off. Press any button to activate the product.

3. Time setting

Press the button “Timer” to set your desired working time from 00 (off) → 01 (1h) → 02 (2h) → ... → 12 (12h) → 00 (off) → .... The timer icon will be on. When the set time has elapsed, the appliance will be off and under standby condition.

4. Oscillation

Press the button "Swing", the appliance begins to swing in horizontal direction. The swing icon will be on. Press the button again, the oscillation will stop.

5. Turn off

Press the button “On/off” again to turn off the appliance. Cold air will continue to below out for another 30 seconds to protect and enhance the lifespan of the product. Turn off the main power switch and unplug the power cord from the outlet.

SAFETY SYSTEM

• The appliance comprises a protection device protecting against overheating. A temperature limiting system inside the appliance will automatically cut the power supply from the heating element while the ventilator continues to function to cool the appliance. The appliance can re-start as soon as the normal conditions and temperature needed for it to function are re-established. Identify the causes of this overheating to avoid any recurrences
• This heater is equipped with a tilt protection safety device. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally.

CLEANING AND MAINTENANCE

• Before maintaining, please unplug the appliance and make sure the heater has cooled down completely.

• Please use soft cloth to wipe the dust on the appliance's surface.
• Do not use gasoline, thinner and any other abrasive cleaners to clean the appliance, as these can damage the surface of appliance.
• If there is too much dust or dirt on the grill guard and filter, they can be taken out and cleaned in water. Dry thoroughly before installing them back.
  • Make sure the appliance is cooled and dried before packaging. Store it in dry and ventilated places.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE OR IN

FIRE OR SHORT CIRCUIT.

Manufactured by: Emerio Deutschland GmbH

Declare that the product detailed below:

Information requirements for electric local space heaters

Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	kW	manual heat charge control, with integrated thermostat	Not applicable
Minimum heat output (indicative)	P_min	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	Not applicable
Maximum continuous heat output	P_max,c	2.0	kW	electronic heat charge control with room and/or outdoor temperature feedback	Not applicable
Auxiliary electricity consumption				fan assisted heat output	Not applicable
At nominal heat output	el_max	2.09	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0.89	kW	single stage heat output and no room temperature control	No
In standby mode	el_SB	0.329	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Emerio Deutschland GmbHLerchenweg 340789 Monheim am RheinDeutschland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for local space heaters

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
