USER MANUAL TFN110154.11 Emerio

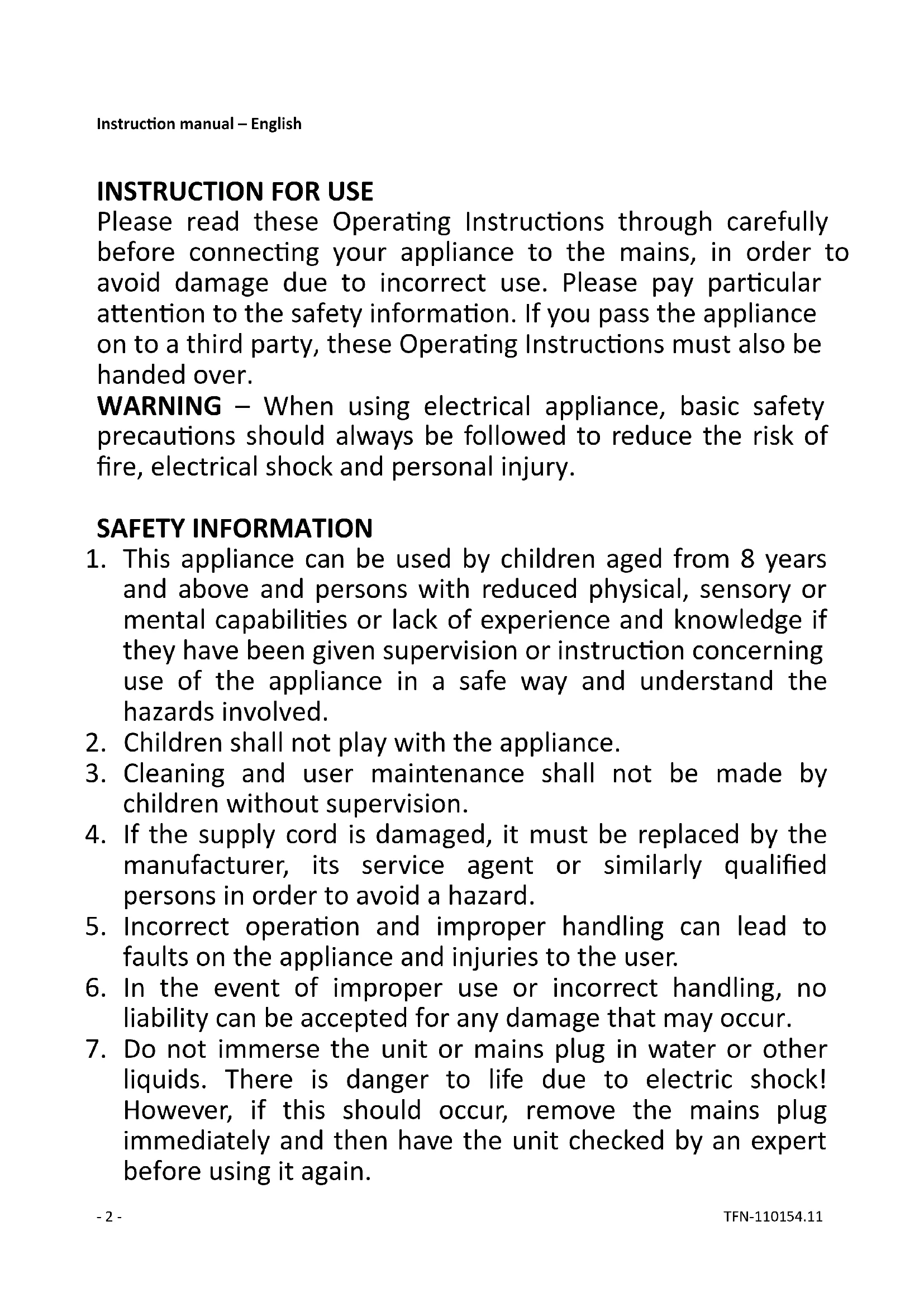

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over. WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury. SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Incorrect operation and improper handling can lead to

faults on the appliance and injuries to the user.

6. In the event of improper use or incorrect handling, no

liability can be accepted for any damage that may occur.

7. Do not immerse the unit or mains plug in water or other

liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.- 3 - TFN-110154.11

8. Do not operate the appliance if the mains cable or the

mains plug show signs of damage, if the appliance has fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

9. Never remove the mains plug from the socket by pulling on

the mains cable, or with wet hands.

10. Ensure that the mains cable does not hang over sharp

edges or allow it to become trapped.

11. Keep the appliance away from damp, and protect from

12. Keep the appliance away from hot objects (e.g. hotplates)

13. Keep the appliance and its cord out of reach of children

14. Use the appliance on a flat, dry and heat resistance surface.

15. Never leave the appliance in unattended during use.

16. Do not store or operate the appliance in the open air.

17. Keep the appliance in a dry place, inaccessible to children

18. Never put fingers or any other objects through the grilles

(fan guards) when the fan is running.

19. The appliance must be assembled completely before use.

20. Watch out for long hair! It can be caught in the fan owing

to the air turbulence.

21. Do not point the air flow to the people for a long time.

22. The rotor guard shall not be disassembled/ opened to

A. Control panel B. Remote control C. Body D. Screws E. Front base F. Back base G. Power cord

1. Spin 3 screws out from the turnplate.

2. Fasten the back and front base together.

3. Align the base with turnplate and then spin into 3 screws.

4. Press the power cord into the line deduction.- 5 - TFN-110154.11

1. Plug the power cord into a suitable socket.

2. Press button “ON/OFF” to start the fan. The fan will begin to

work under low speed and the LED light of “LOW” will be on.

3. Press button “SPEED” to choose your desired speed “LOW →

MED → HIGH → LOW …” The corresponding LED light will be on.

4. Press button “TIMER” to choose your desired working time “0.5

h → 1 h → 1.5 h → 2 h → 2.5 h → 3 h → 3.5 h → 4 h → 4.5 h → 5 h → 5.5 h → 6 h → 6.5 h → 7 h → 7.5 h → no timer → 0.5 h …”. The corresponding LED lights will be on.

5. If you wish to activate oscillatin function, please press button

“SWING”. Press the button again, the oscillation function will be deactivated. Oscillation angle: 0-70°

6. After use, press button “ON/OFF” to turn off the appliance and

then unplug it. NOTE: This unit has a remote control. 2X1.5V AAA batteries are to be installed. The functions of the remote control buttons are the same as of the buttons on the control panel.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.

2. Clean the plastic parts with a mild soap and a damp cloth or sponge.

3. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down

with a damp cloth and then dry it carefully. Always take out the mains plug first.

4. Periodically check the screws on the product to ensure they are securely tightened.

5. Store the product in a cool, dry place.

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.- 6 - TFN-110154.11

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Emerio Deutschland GmbH (no service address) Höffer Weg 14 51519 Odenthal Germany Customer service: T: [phone] E: [e-mail]
