Product Type	2-in-1 air purifier and tower fan
Brand	Emerio
Model	TFN214473.10
Height	Approximately 70 cm
Width	Approximately 20 cm
Depth	Approximately 20 cm
Weight	Approximately 3 kg
Power Supply	AC adapter 100-240 V~, 50/60 Hz, output 24 V DC, 1.5 A
Fan Power	35 W
Maximum Airflow	27.5 m³/min
Noise Level	55 dB(A)
Number of Speeds	9 adjustable speeds + max and silent modes
Oscillation Function	Yes, manual tilt 15° left/right + automatic oscillation
Timer	1 to 8 hours
Remote Control	Yes, CR2025 battery (not included)
Filter Type	Air purifier filter (replaceable)
Filter Lifespan	720 hours (approx. 30 days continuous); replacement alarm
Maintenance	Clean with a damp cloth; vacuum the ventilation grilles
Spare Parts Available	Replacement filter, remote control, adapter
Warranty	2 years
Safety	Do not immerse; do not use outdoors; do not block openings
Intended Use	Indoor only, on a flat, stable surface

Frequently Asked Questions - TFN214473.10 Emerio

How to replace the air purifier filter?

Turn the top filter cover counterclockwise to unlock and remove the assembly. Detach the old filter, attach the new one to the cover, then replace the assembly by turning clockwise to lock. After replacement, press and hold the remote control's power button for 5 seconds to reset the filter alarm.

How to reset the filter alarm?

After changing the filter, press and hold the remote control's power button for 5 seconds. The alarm and hour counter will reset.

How to use the remote control?

Point the remote control at the receiver on the digital screen. Use the buttons to turn on/off, adjust speed (9 levels + max and silent modes), activate oscillation, and set the timer (1 to 8 hours). The screen turns off after 20 seconds of inactivity; press any button to turn it back on.

How to set the timer?

Press the timer button on the remote control to select a duration from 1 to 8 hours. A blinking dot indicates the timer is active. To view the remaining time, turn on the screen and press the timer button once.

How to clean the device?

Turn off and unplug the device. Use a damp cloth to clean the exterior. Never immerse the device in water. For the ventilation grilles, use a dry brush or vacuum to remove dust.

What to do if the remote control does not work?

Check that the CR2025 battery is correctly installed and not discharged. Make sure the remote is pointed at the receiver on the screen and no obstacles block the signal. Avoid using the device near other electronic devices that could interfere.

Can I use the device without the filter?

No, the filter is essential for air purification. The device is designed to operate with the filter in place. Without the filter, air quality will not be improved and the device could draw in impurities.

What are the dimensions of the device?

Exact dimensions are not provided in the manual, but it is a typical tower fan with approximately 70 cm height, 20 cm width, and 20 cm depth. Place it on a flat surface with at least 150 mm clearance around the device.

How to activate oscillation?

On the device body, press and hold the touch screen button for 1 second. You can also manually tilt the air outlet 15° left or right. On the remote control, press the oscillation button.

How to turn off the device completely?

Press and hold the touch screen button for 2 seconds until the alarm sounds twice. You can also use the remote control's power button. Unplug the adapter from the outlet if the device remains unused for a long time.

USER MANUAL TFN214473.10 Emerio

Black handheld smart air purifier with curved handle and perforated grille (no visible text or symbols)

2-in-1 Air purifier and tower fan (EN)

Instruction manual – English ...... - 2 -

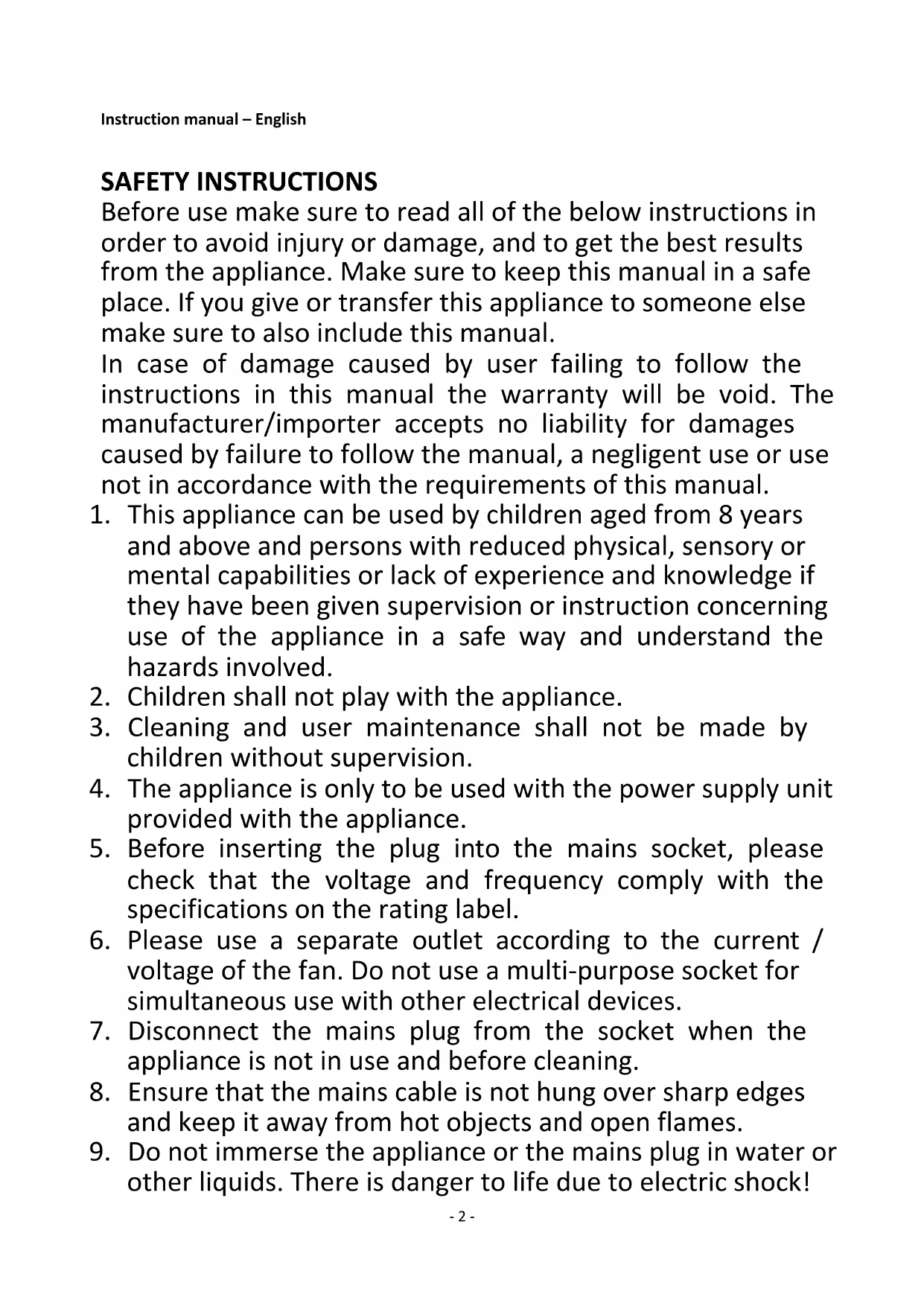

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. The appliance is only to be used with the power supply unit provided with the appliance.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Please use a separate outlet according to the current / voltage of the fan. Do not use a multi-purpose socket for simultaneous use with other electrical devices.
7. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
8. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

9. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

10. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Do not place any objects on the air inlet or outlet. Make sure that the ventilation openings are free of dust, lint, hair and other obstacles that could impair the air flow.
18. The fan should be set up dry on a horizontal platform and should not be near heat sources, corrosive air and moisture. The fan should be kept a distance of 150 mm around to ensure good air circulation.
19. Do not use the fan outdoors or on a wet surface.
20. Do not immerse the fan, power cord, or plug in water or other liquids to avoid danger. The use of an extension cord is not recommended unless it has been tested by a qualified person.
21. Please do not use an air cleaner or similar product right next to the fan.
22. Do not use any cleaning agents or lubricants for this fan and pull out the power plug before cleaning, transporting and servicing the device.

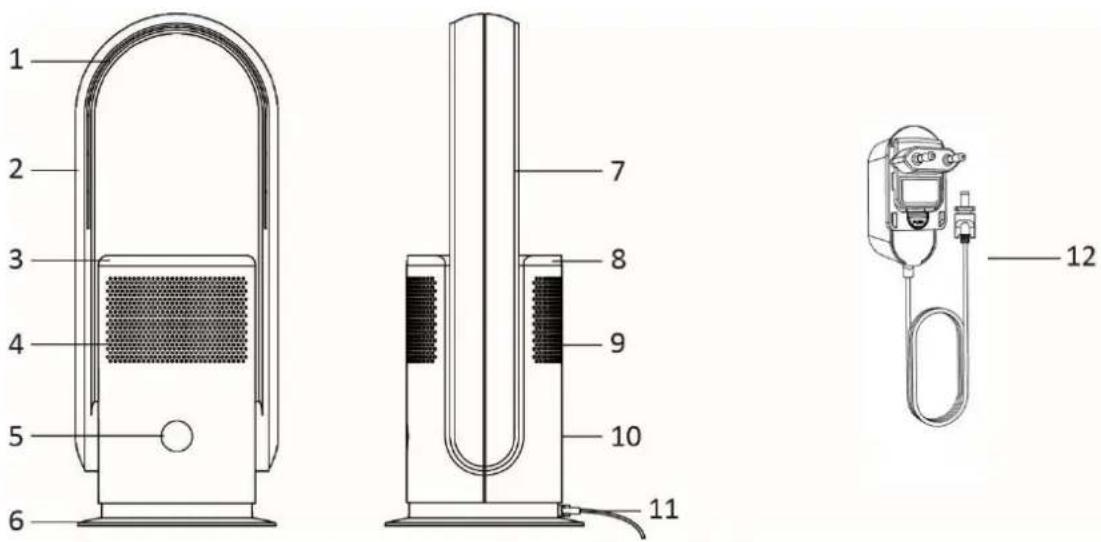

PARTS DESCRIPTION

1. Air outlet
2. Air duct
3. Top cover of the air purifier filter
4. Air inlet
5. Touch screen button / digital display
6. Base
7. Air duct
8. Top cover of the air purifier filter
9. Air inlet
10. Main body
11. Power connection
12. Adapter

Remote control

Power button:

Turn the fan on and off

Max mode:

Maximum power

Strong airflow

Quiet mode:

Soft and smooth airflow

Front view of a remote control with circular buttons and power symbol (no text or labels)

Swing:

Start and stop swing

Increase airflow

Decrease airflow

(9 speed levels)

Sleep timer:

1 to 8 hours of timed

shutdown

This unit has a remote control. One piece of CR2025 battery is to be installed (not included). If you want to change the battery, please refer to below pictures. If it is not in use for a long time, please take the battery out of the remote control. Keep button cell batteries out of reach of small children.

Note: Most functions of the appliance can only be controlled by remote control. If you have lost the remote control or if it is damaged, please contact our customer service.

The remote control should be pointed at the signal receiver on the digital display to maximize the remote control signal.

Buckle CR2025 CR2025

Possible phenomenon

1. This fan may respond to the remote control of other devices.
2. If you use the remote control of this fan, other devices may respond.

This is due to the overlapping frequencies of the remote control. There is no quality problem in the product itself. To avoid misuse, keep the remote control away from other electrical devices during operation.

OPERATION

Three identical line drawings of a U-shaped mechanical device with internal components, showing a curved arrow indicating rotation or change (no text or symbols present)

1. Before use, hold the fan body with one hand and the other hand to set the wind outlet 15^ before and after.
2. Connect the adapter into the power connection of the fan fist and then insert the adapter into a suitable power outlet. The digital display lights up and the fan goes into standby mode.
3. To switch on and off:

Press the touch screen button (the digital display) the buzzer will beep once and the fan will start. Press and hold the touch screen button for 2 seconds the buzzer will beep twice and the fan will stop running after your release your hand.

1. To set the air volume:

When the fan is operating press the touch screen button to adjust the air volume from 1 to 9.

1. To set the oscillation function:

When the fan is operating press and hold the touch screen button for 1 second. The buzzer will beep once and the fan will start oscillating. Press and hold the touch screen button for 1 second again. The buzzer will beep once and the fan will stop oscillating.

To use the remote control:

Press the power button to turn on/off the appliance.

Press the max mode button the digital display will show "H" and the wind speed becomes maximum. Press again to exit the mode. (You can also exit the mode by pressing the button "+/-".)

Press the quiet mode button the digital display will show "L" and the wind speed becomes minimum. Press again to exit the mode. (You can also exit the mode by pressing the button "+/-".)

Press the oscillation button to turn on the oscillation function. Press this button again to stop oscillating.

Press the "+" button to increase the air volume. Press the "-" button to decrease the air volume. There are 9-speed settings.

Press the timer button to set the working time from 1 to 8 hours. A small “·” will flash on the digital display to indicate the timer is under setting/operation.

Note:

1. The digital display will extinguish in approx. 20 seconds with no operations. If you want to do further operations, firstly press any button (except for the power button) on the remote control or press the touch screen button on the fan body to turn on the digital display and then press your desired buttons to choose your desired functions.
2. After the timer is set, the digital display will turn back to show the speed level and extinguish later. If you want to check the remaining time, turn on the digital display first and then press the timer button once on the remote control, the remaining time (by hour) will be shown on the digital display.

LOCATION

Away from curtains

■ Please use the fan on a flat platform. Do not place the fan in an unstable place, such as an inclined or soft surface, to avoid damage or malfunctions caused by the fan tipping over.
■ Avoid blocking the air inlet when using. Stay away from the curtains to avoid objects blocking the air inlet and the fan not working.
■ Do not place any objects within 30 cm of the air outlet, otherwise the blower effect will be impaired.

FILTER REPLACEMENT

This appliance is equipped with an air cleaning filter. Before using the appliance, the filter should be installed in it so that the air can be cleaned. Installation and replacement method of the air cleaning filter are as follows.

Diagram of a cylindrical device with a perforated lid and arrow indicating rotation (no text or symbols)

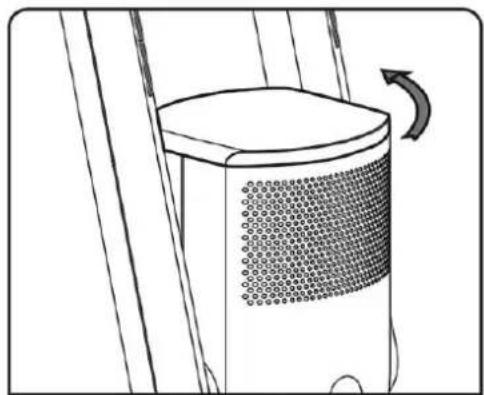

Turn the top cover of the filter counter clockwise to unlock and remove the filter.

Line drawing of a cylindrical mechanical component with a lid and textured surface (no text or symbols)

Disconnect the old filter from the top cover. Pull it out directly.

Simple line drawing of a cylindrical object with a mesh pattern and a flat top (no text or symbols)

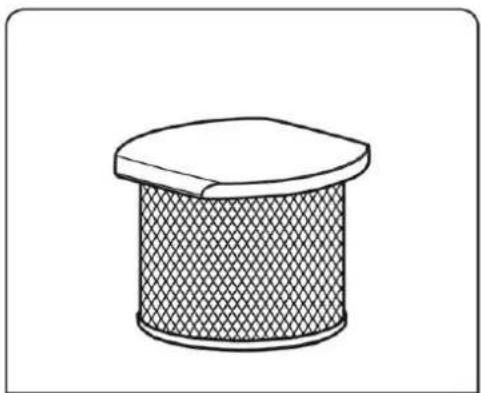

Attach the new filter to the top cover. Make sure they are connected firmly.

Diagram of a mechanical component with a meshed top and arrow indicating downward motion (no text or symbols)

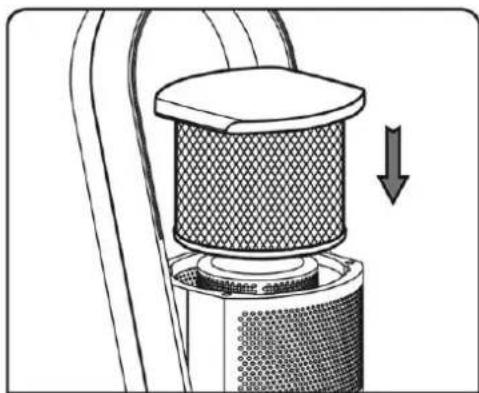

After assembling, put it back into the main body and turn it clockwise to secure it.

Replacing the filter alarm clock

Three circular diagrams showing different line segments, no text or symbols present

The fan has a memory function. After a total of 720 hours of operation, the digital display (as shown in the figure) will light up for about 5 seconds with the indicator light cycling when the fan is turned on.

After replacing the filter, press and hold the power button on the remote control for 5 seconds to clear the alarm and the operating time of the filter reclocks again.

CLEANING AND MAINTENANCE

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Adapter input: 100-240V\~ 50/60Hz, 1.5A Max

Adapter output: 24.0V DC, 1.5A, 36.0W

Fan: 24V DC, 35W, 1.5A

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

ERP information (EN)

Supplier: Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Declare that the product detailed below:

Information requirements

Information to identify the TFN-214473.10 to which the information relates to [2-in-1 Air purifier and tower fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	27.5	m3/min
Fan power input	P	28.2	W
Service value	SV	0.97	(m3/min)/W
Standby power consumption	PSB	0.4	W
Fan sound power level	LWA	55	dB(A)
Maximum air velocity	c	3.5	meters/sec
Measurement standard for service value	(EU) No 206/2012 + (EU) 2016/2282EN ISO 5801:2017EN 50564:2011EN 60704-1:2010+A11:2012EN 60704-2-7:1998
Contact details for obtaining more information	Emerio Switzerland AGOberneuhofstrasse 16340 BaarSwitzerland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
